| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | AJST12-55_AJST12-55.sldprt | 49.5 KB |
| 2 | B7005_B7005.sldprt | 51.5 KB |
| 3 | BEARING (SUB6201ZZ)_SUB6201ZZ.sldprt | 51.5 KB |
| 4 | BELT ADJUSTED PLATE.sldprt | 54.5 KB |
| 5 | BELT FEEDER_FEED END.sldprt | 47 KB |
| 6 | BELT SUPPORT ROLLER SHAFT.sldprt | 44 KB |
| 7 | BELT SUPPORT ROLLER SPACER.sldprt | 43 KB |
| 8 | Basic External Retaining Ring_am_B27.7M - 3AM1-11.sldprt | 48.5 KB |
| 9 | CJM100.sldasm | 87.5 KB |
| 10 | CJM100bearing.sldprt | 60.5 KB |
| 11 | CJM100body.sldprt | 58 KB |
| 12 | CJM100swivel.sldprt | 61.5 KB |
| 13 | CJM100wheel1.sldprt | 43.5 KB |
| 14 | CONVEYOR SIDE MOUNITNG PLATE_WAITNG.sldprt | 49 KB |
| 15 | CONVEYOR TOP COVER_LONG.sldprt | 48 KB |
| 16 | DRIVEN SHAFT ASSY.sldasm | 84.5 KB |
| 17 | DRIVEN SHAFT SUPPORT_FILLING.sldprt | 47 KB |
| 18 | DRIVEN SHAFT.sldprt | 44.5 KB |
| 19 | DRIVEN SHAFT_TENSION ROLLER SHAFT.sldprt | 44.5 KB |
| 20 | FLANGE BEARING.sldprt | 181 KB |
| 21 | FRAME MOUNTING BRACKET_REV.sldprt | 53 KB |
| 22 | FRAME MOUNTING BRACKET_mirror.sldprt | 53 KB |
| 23 | FRONT AND REAR COVER SST.sldprt | 45.5 KB |
| 24 | GUIDE PLATE.sldprt | 47.5 KB |
| 25 | IDLE SPROCKET BRACKET.sldprt | 49.5 KB |
| 26 | IDLE SPROCKET SHAFT.sldprt | 48.5 KB |
| 27 | KHV_115.sldprt | 54 KB |
| 28 | LHFC25_LHFC25.sldprt | 49 KB |
| 29 | LINEAR BUSHING SHAFT_720 LENGHT.sldprt | 43.5 KB |
| 30 | MTSPFR20_MTSPFR20.sldprt | 47.5 KB |
| 31 | MTSTR16-850_MTSTR16-850.sldprt | 44 KB |
| 32 | NUTS_M12 X 1.75.sldprt | 50.5 KB |
| 33 | NUTS_M8 X 1.25.sldprt | 51 KB |
| 34 | ROBWB30_100b.sldprt | 48 KB |
| 35 | ROFAWB30_100.sldasm | 85.5 KB |
| 36 | ROFAWB30_100mb.sldprt | 45 KB |
| 37 | ROLLER BASE FIXED SIDE RIGHT_FEED END _As Machined_.sldprt | 110 KB |
| 38 | ROLLER BASE FIXED SIDE_FEED END _As Machined_.sldprt | 98 KB |
| 39 | ROLLER CHAIN_WAITING.sldprt | 1.15 MB |
| 40 | ROLLER DRIVEN SPACER.sldprt | 43.5 KB |
| 41 | ROLLER FEEDER ASSY_WAITING.sldasm | 354 KB |
| 42 | ROLLER SUPPORT PLATE.sldprt | 48.5 KB |
| 43 | ROLLER TOP COVER MOUNTING BRACKET_Default_As Machined_.sldprt | 123 KB |
| 44 | SCREW TRUNING SUPPORT.sldprt | 49.5 KB |
| 45 | SCS25_12b.sldprt | 52 KB |
| 46 | SCSJ15_8.sldasm | 84.5 KB |
| 47 | SCSJ15_8b.sldprt | 51.5 KB |
| 48 | SET COLLAR (SCS25-12)_SCS25-12.sldasm | 85 KB |
| 49 | SHFZ15-10.sldprt | 49 KB |
| 50 | SIDE CONVEYOR DRIVING ROLLER.sldprt | 45.5 KB |
| 51 | SIDE CONVEYOR DRIVING ROLLER_DRIVEN SIDE.sldprt | 44.5 KB |
| 52 | SIDE CONVEYOR DRIVING ROLLER_TENSION ROLLER.sldprt | 44.5 KB |
| 53 | SIDE CONVEYOR MAIN ASSY.STEP | 19.8 MB |
| 54 | SIDE CONVEYOR MAIN ASSY.SLDASM | 7.09 MB |
| 55 | SIDE CONVEYOR ROLLER DRIVING SHAFT_LONG.sldprt | 48 KB |
| 56 | SIDE COVER#1 SST.sldprt | 48 KB |
| 57 | SIDE COVER#1 SST_MIRROR SIDE.sldprt | 46 KB |
| 58 | SMALL ROLLER MOUNTING PLATE.sldprt | 49 KB |
| 59 | SMALL ROLLER.sldprt | 44 KB |
| 60 | SP40B30_N_20.sldprt | 167 KB |
| 61 | SPRING WASHER_M12.sldprt | 44 KB |
| 62 | SPRING WASHER_M8.sldprt | 44 KB |
| 63 | SPROCKET (SP35B20-N-15)_SP35B20-N-15.sldprt | 130 KB |
| 64 | SPROCKET (SP40B16-N-25)_IDLE.sldprt | 105 KB |
| 65 | SPROCKET (SP40B16-N-25)_SP40B16-N-25.sldprt | 115 KB |
| 66 | SST STRUCTURE FRAME ASSY.sldasm | 98 KB |
| 67 | STEEL STRUCTURE CONVEYOR TABLE_Default_As Machined_.sldprt | 371 KB |
| 68 | STHIRB25.sldprt | 52 KB |
| 69 | Slotted_head_cap_screw_ISO_4762___M3x10.sldprt | 55 KB |
| 70 | Slotted_head_cap_screw_ISO_4762___M5x16.sldprt | 55 KB |
| 71 | TENSION BELT ADJUSTMENT ASSY.sldasm | 99 KB |
| 72 | TENSION BELT PLATE.sldprt | 54.5 KB |
| 73 | W20DRS71S4BE05_TH_V_AL_KY_YT1O3BATCRIMAM55QTXTWQZB.sldprt | 429 KB |

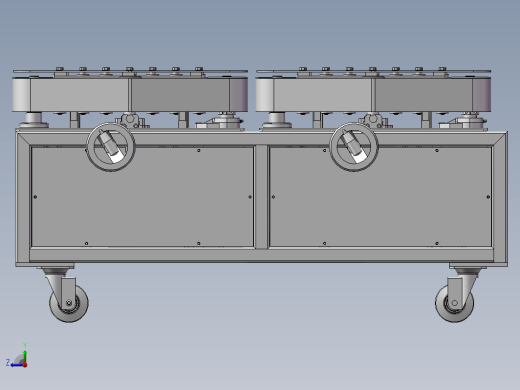

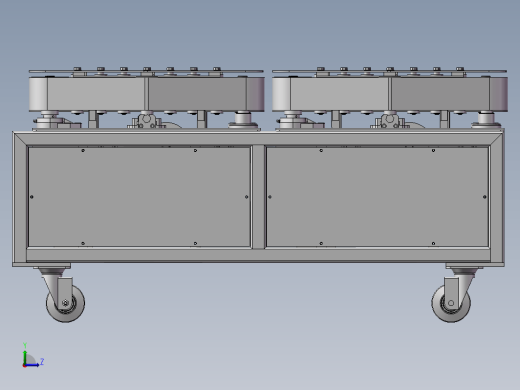

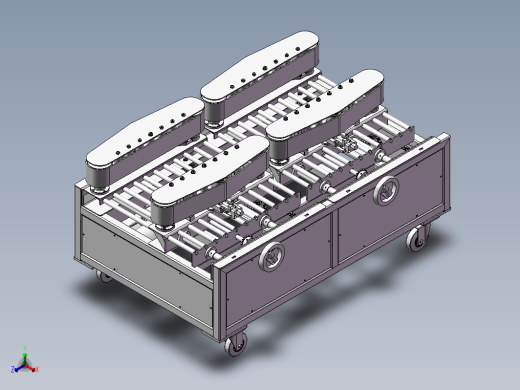

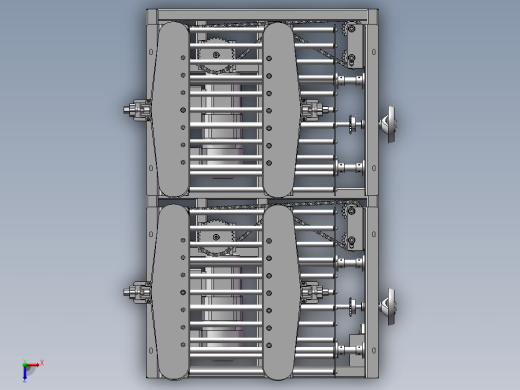

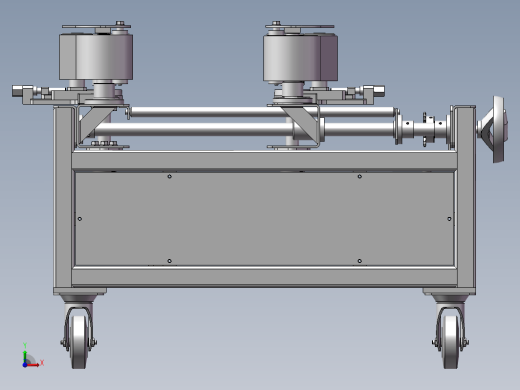

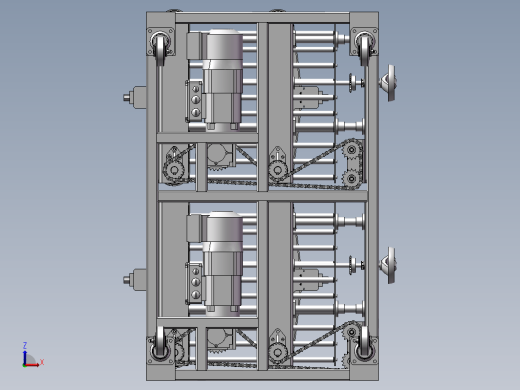

侧边带式输送机SolidWorks,step 3D模型
图纸ID：10150237
文件大小：13.94M
软件版本：
图纸格式：sldprt,sldasm,step
参数/编辑：可修改，包括参数
上传时间：2023-02-22
图纸介绍：
免费下载
故人长绝
作品: 0
粉丝: 0
文件列表
