3轴小型加工机SolidWorks 三维模型
三维机械图纸名称为：3轴小型加工机，属于机械设备，非标机械分类，软件为SolidWorks, 三维模型格式为sldprt,sldasm，可在线预览，可编辑，可供设计参考
模型参数
模型ID：10626041
模型大小：47.41M
软件版本： SolidWorks
模型格式：sldprt,sldasm
是否可编辑：可修改，包括参数
上传时间：2026-10-30
图纸介绍：
下载模型
文件列表
1. 2(None).sldprt
63.9 KB
2. 25l jerrycan(MODEL).sldprt
95 KB
3. 3(None).sldprt
66.3 KB

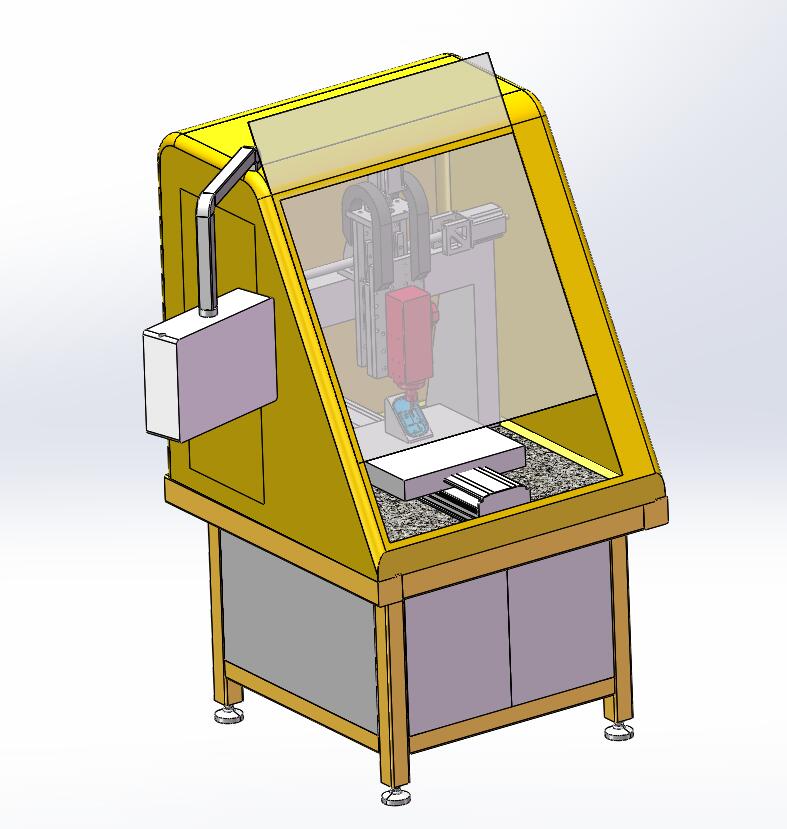

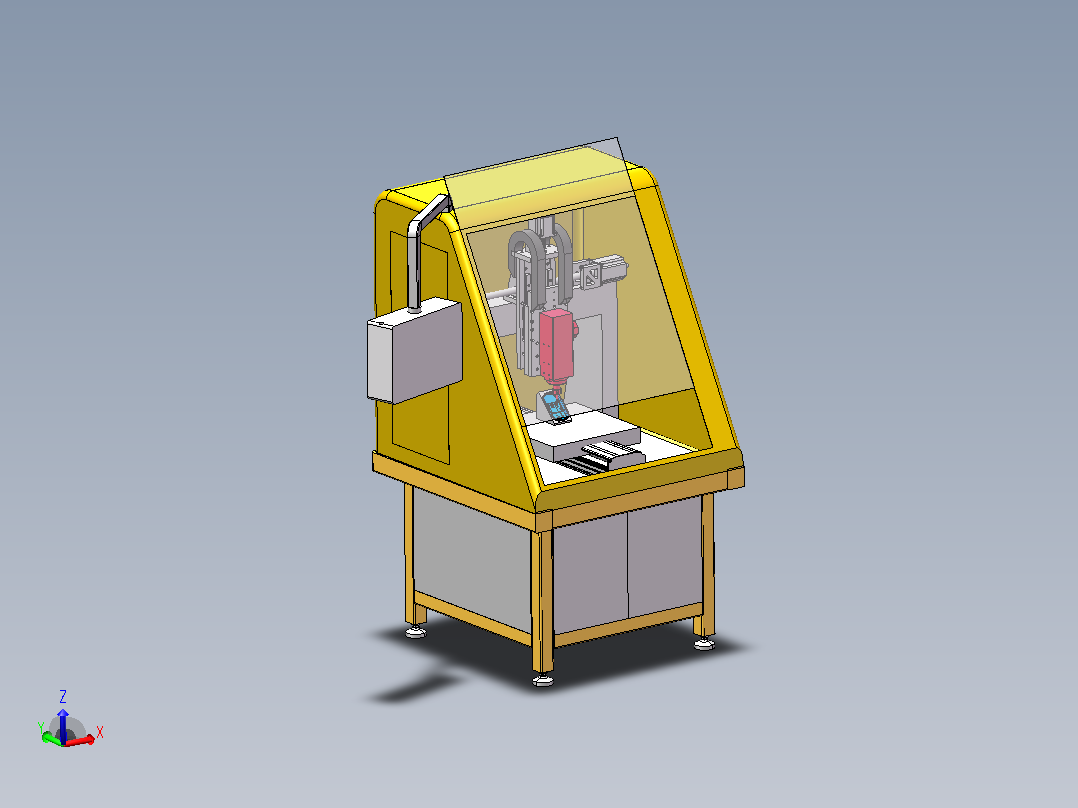

4. 3轴小型加工机.jpg
60.4 KB

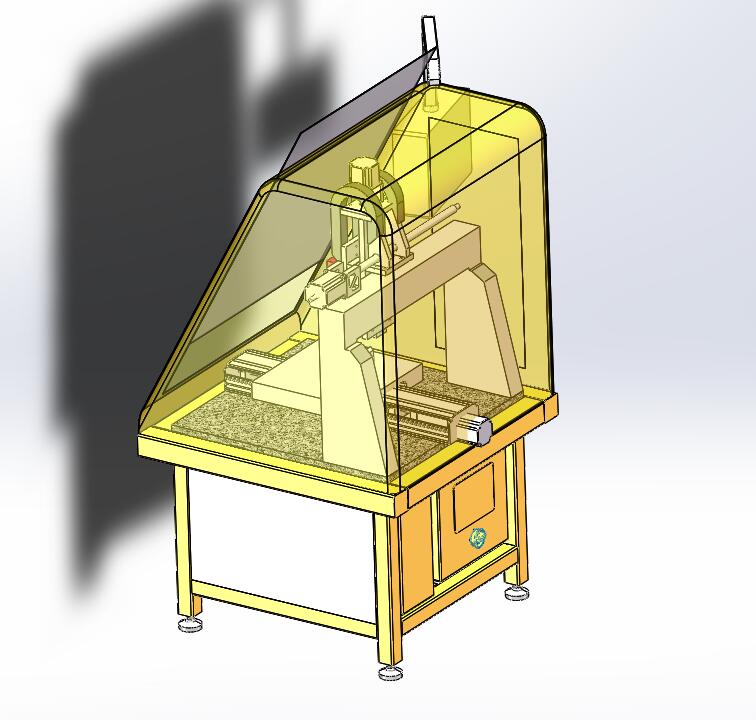

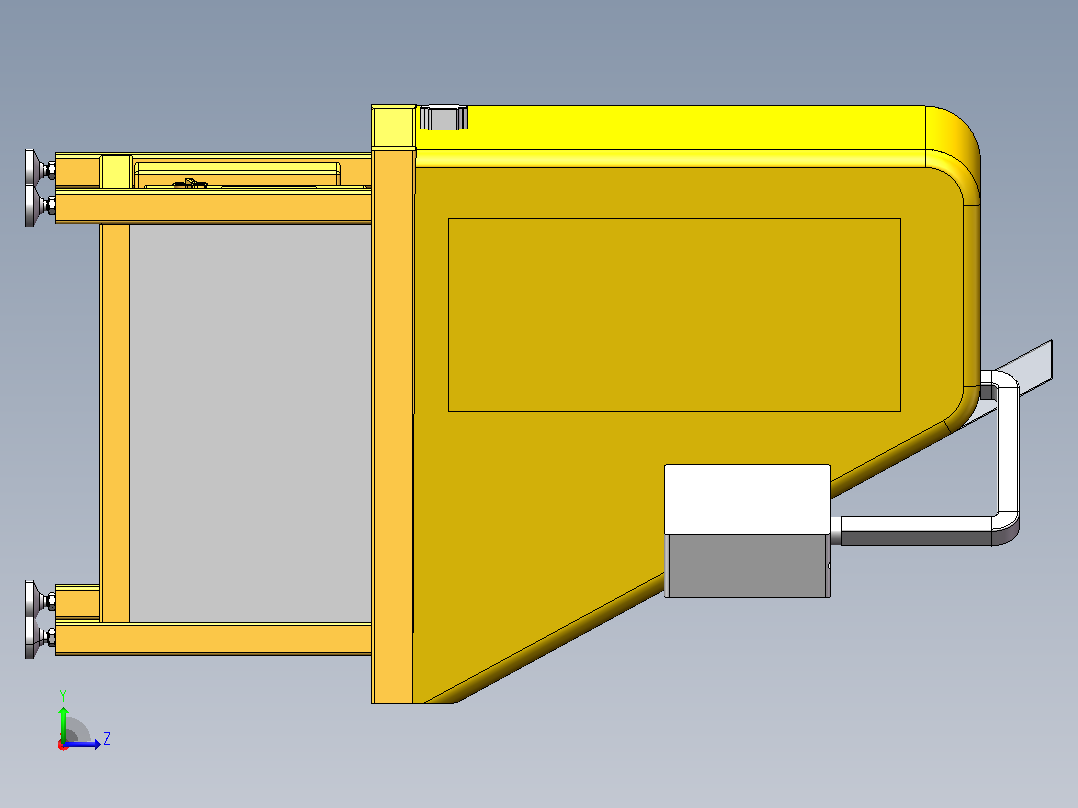

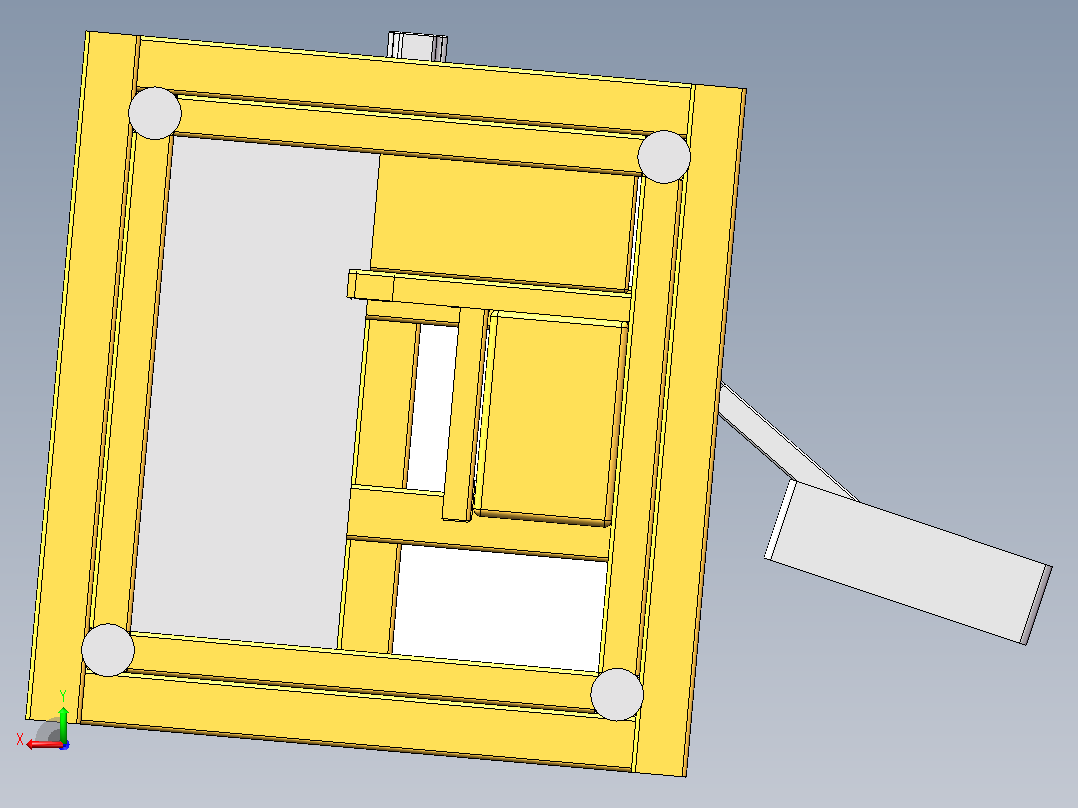

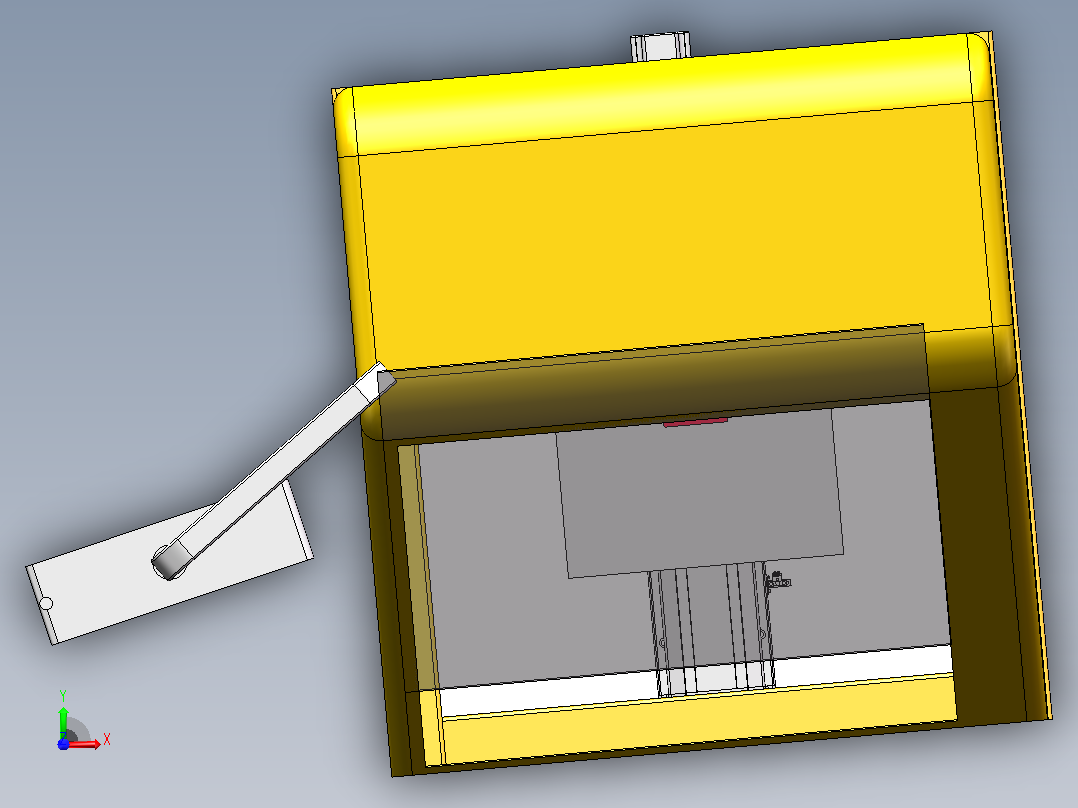

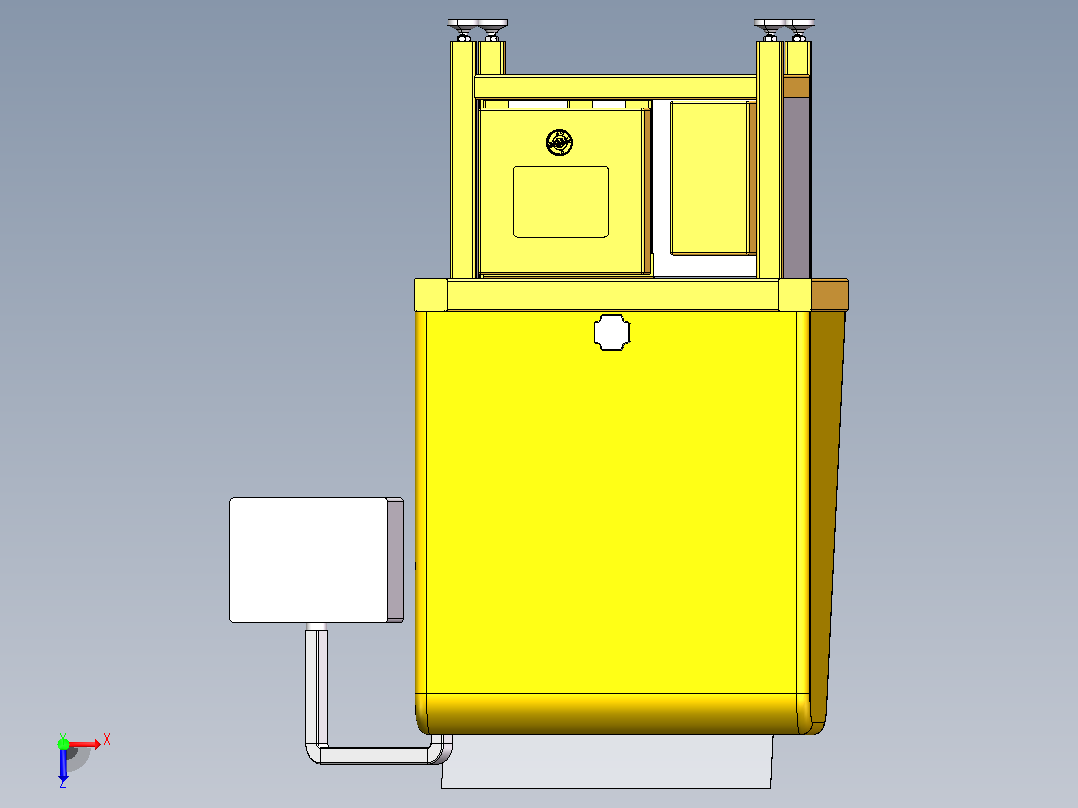

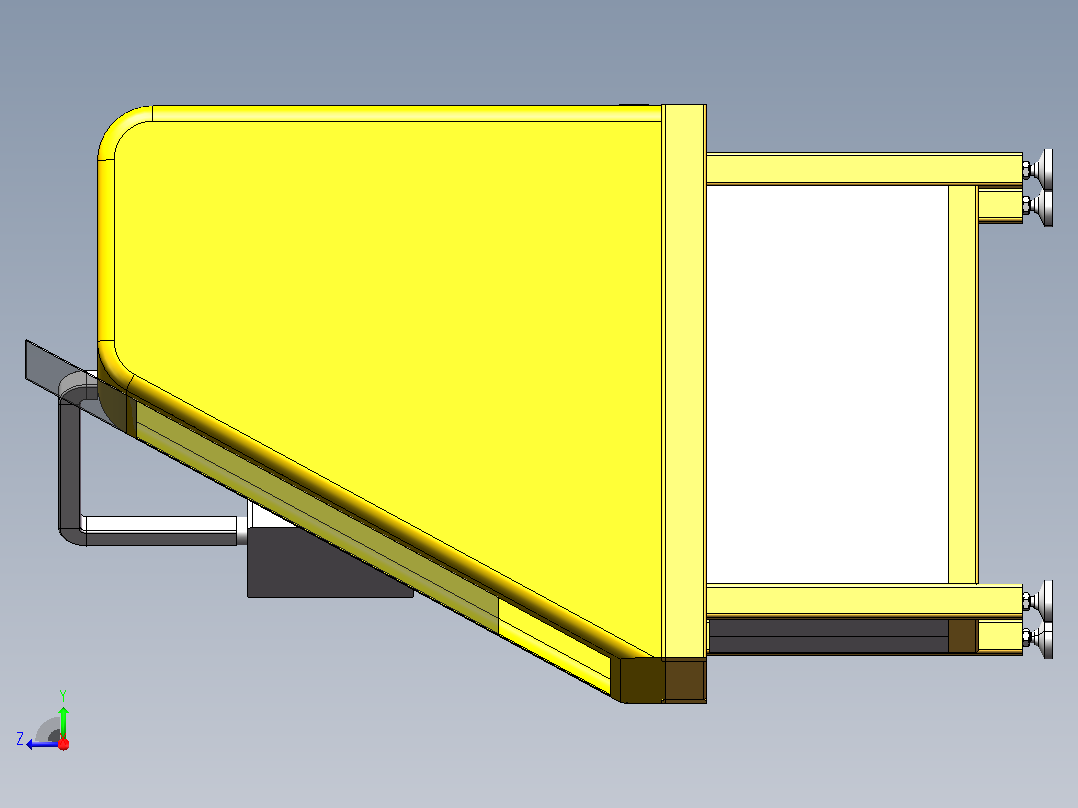

5. 3轴小型加工机侧视.jpg
55.9 KB

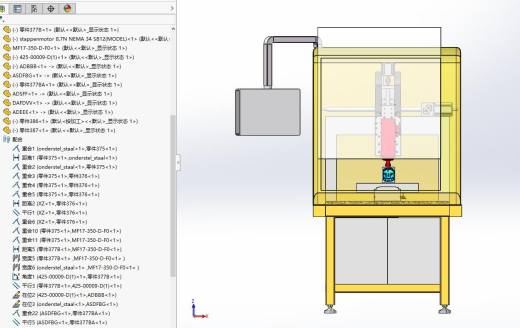

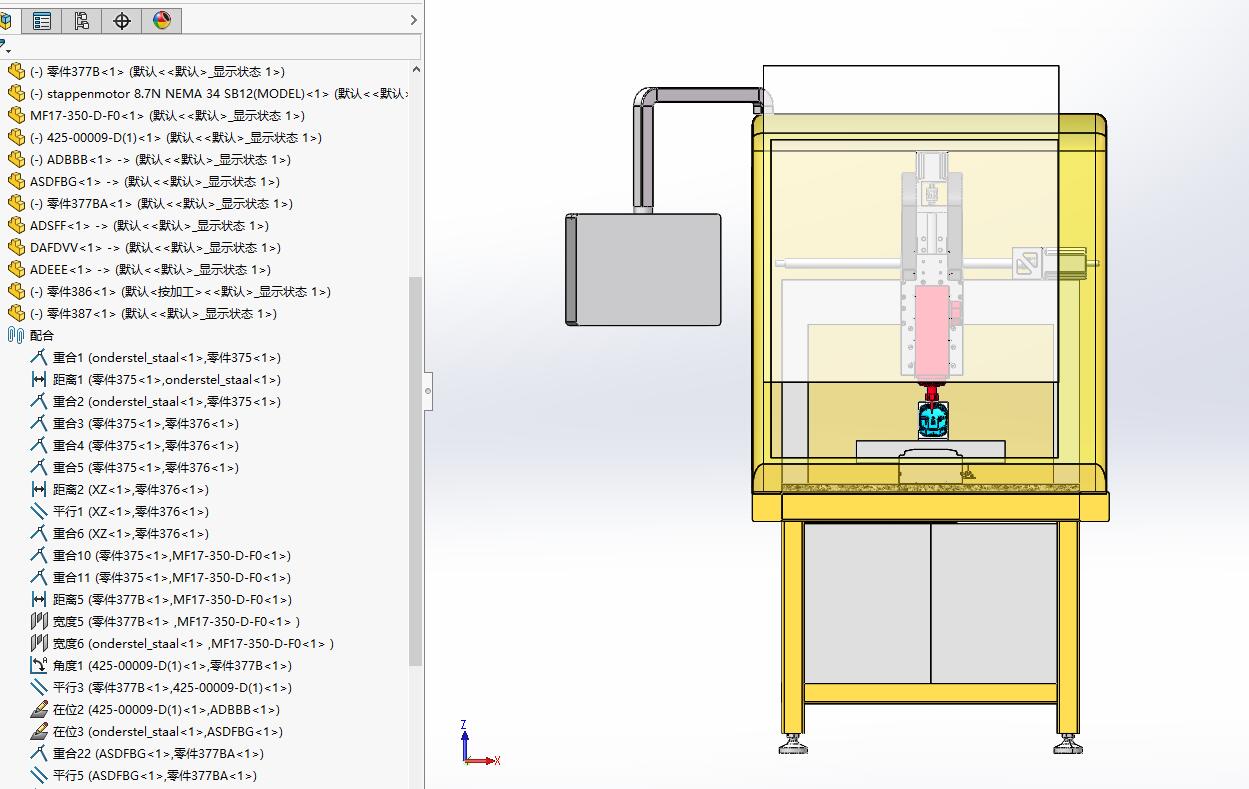

6. 3轴小型加工机原理图.jpg
110 KB

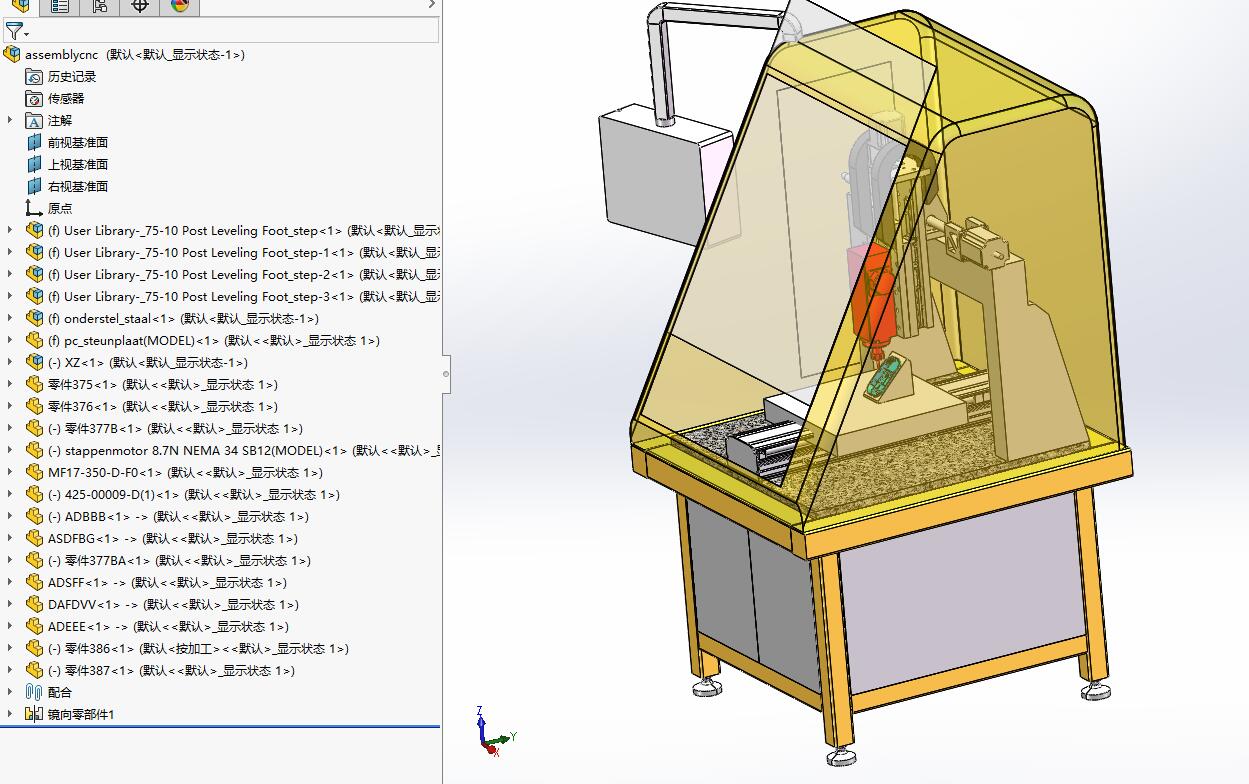

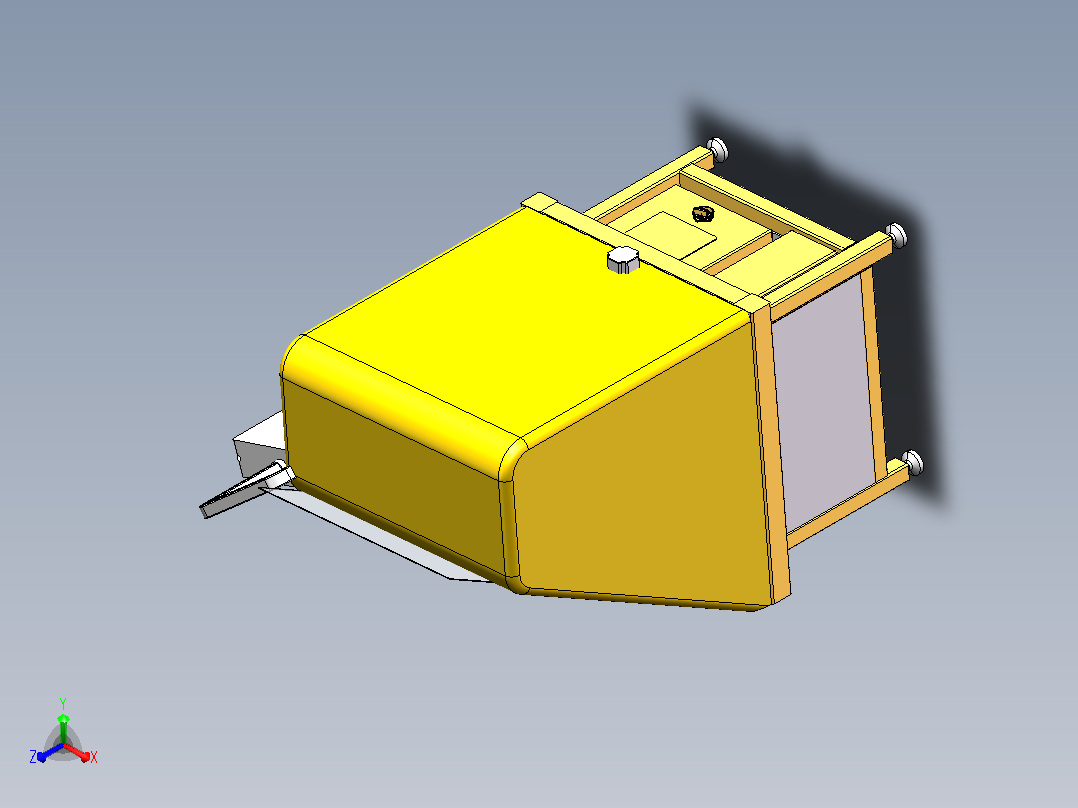

7. 3轴小型加工机装配图.jpg
135 KB
8. 4(None).sldprt
39.8 KB
9. 425-00009-D(1).SLDPRT
5.17 MB
10. 5(None).sldprt
56.5 KB
11. 6(None).sldprt
57.4 KB
12. ADBBB.SLDPRT
3.15 MB
13. ADEEE.SLDPRT
55.9 KB
14. ADSFF.SLDPRT
51.9 KB
15. ASDFBG.SLDPRT
143 KB
16. Angular Contact Radial Ball Brg, Dbl Row, 2 Cg, DIN,3203_2RS(MODEL).sldprt
2.34 MB
17. C41_47-C-SB-P-ER20-2.0KW-18000RPM_stp(MODEL).sldprt
219 KB
18. C41_47-C-SB-P-ER20-2.0KW-18000RPM_stp.sldasm
484 KB
19. DAFDVV.SLDPRT
55.4 KB
20. E-ketting Z-as(MODEL).sldprt
59.8 KB
21. Hex Socket Head Cap Screw, DIN,M6x20(MODEL).sldprt
126 KB
22. Hex Socket Head Cap Screw, DIN,M6x25(MODEL).sldprt
982 KB
23. Hex Socket Head Cap Screw, DIN,M6x30(MODEL).sldprt
148 KB
24. Hex Socket Head Cap Screw, DIN,M6x40(MODEL).sldprt
1.2 MB
25. Hex Socket Head Cap Screw, DIN,M6x60(MODEL).sldprt
58.5 KB
26. Hex Socket Head Cap Screw, DIN,M8x30(MODEL).sldprt
133 KB
27. INA KWE 20(MODEL).sldprt
91.9 KB
28. INA KWE 20-1.sldasm
96.4 KB
29. INA KWE 20-2.sldasm
96.2 KB
30. INA KWE 20-3.sldasm
96.2 KB
31. INA KWE 20.sldasm
97 KB
32. INA linear guide 360mm(MODEL).sldprt
54.2 KB
33. INA linear guide 360mm-1.sldasm
1.68 MB
34. INA linear guide 360mm.sldasm
1.68 MB
35. L-profiel 3(MODEL).sldprt
49.2 KB
36. L-profiel 4(MODEL).sldprt
53.7 KB
37. L-profiel 5(MODEL).sldprt
49.8 KB
38. L-profiel 6(MODEL).sldprt
50.7 KB
39. MF17-350-D-F0.SLDPRT
1.75 MB
40. ROTEX GS 14 Large hub 12H7 _stp(MODEL).sldprt
96.4 KB
41. ROTEX-GS 14 Spider 98 Shore A GS RED_stp(MODEL).sldprt
125 KB
42. SW3dPS-5flt-45-cr-w_step(5FDEFAU0509206216828-C6).sldprt
1.07 MB
43. Shim Ring, DIN,18x25x0_3(MODEL).sldprt
51.3 KB
44. Single Row Radial Contact Ball Brg, 2Z W 2 Shields, DIN,6203_2Z(MODEL).sldprt
877 KB
45. User Library-.75-10 Post Leveling Foot_.75-10 Post Leveling Foot(None).sldprt
730 KB
46. User Library-.75-10 Post Leveling Foot_Hex Jam Nut_AI_HJNUT 0.7500-10-D-N(None).sldprt
92.2 KB
47. User Library-_75-10 Post Leveling Foot_step-1.sldasm
625 KB
48. User Library-_75-10 Post Leveling Foot_step-2.sldasm
626 KB
49. User Library-_75-10 Post Leveling Foot_step-3.sldasm
625 KB
50. User Library-_75-10 Post Leveling Foot_step.sldasm
626 KB
51. XZ.SLDASM
5.29 MB
52. Y-as bevestigingsplaat z-as(MODEL).sldprt
128 KB
53. Y-as support lineaire wagens (MODEL).sldprt
104 KB
54. assemblycnc.SLDASM
10.3 MB
55. ballscrew rm25 X-axis(MODEL).sldprt
322 KB
56. ballscrew rm25 z-as(MODEL).sldprt
329 KB
57. besturingskast vfd(MODEL).sldprt
62.2 KB
58. besturingskast(MODEL).sldprt
57.8 KB
59. bevestigingsplaat freesspindel Z-ast(MODEL).sldprt
124 KB
60. cowling(None).sldprt
32.2 KB
61. flensring(None).sldprt
58 KB
62. flensring_dubbellager(MODEL).sldprt
57 KB
63. flensring_los lager(MODEL).sldprt
57 KB
64. indicator plate(None).sldprt
412 KB
65. lagersteun_Z-as(MODEL).sldprt
69.3 KB
66. lock_ring M17x1(MODEL).sldprt
99 KB
67. main switch.sldasm
414 KB
68. motorbevestiging_Z-as1(MODEL).sldprt
53.1 KB
69. onderstel_staal.sldasm
464 KB
70. pc(MODEL).sldprt
57.1 KB
71. pc_steunplaat(MODEL).sldprt
40.4 KB
72. plexiplaat(MODEL).sldprt
41.8 KB
73. rotex 14 gs red spider shore 98A-1.sldasm
127 KB
74. rotex 14 gs red spider shore 98A.sldasm
125 KB
75. staal_kokerprofiel__0,22m_80x80x3 - kopie(MODEL).sldprt
47.7 KB
76. staal_kokerprofiel__0,24m_80x80x3(MODEL).sldprt
47.2 KB
77. staal_kokerprofiel__0,65m_60x60x3(MODEL).sldprt
43.1 KB
78. staal_kokerprofiel__0,68m_60x60x3(MODEL).sldprt
53.3 KB
79. staal_kokerprofiel__0,72m_60x60x3(MODEL).sldprt
52.8 KB
80. staal_kokerprofiel__0,8m_80x80x3(MODEL).sldprt
50.6 KB
81. staal_kokerprofiel__1m_80x80x3(MODEL).sldprt
42.7 KB
82. stappenmoter_bevestigingsplaat(MODEL).sldprt
76.8 KB
83. stappenmotor 4,5Nm NEMA 34 SB12(MODEL).sldprt
227 KB
84. stappenmotor 8.7N NEMA 34 SB12(MODEL).sldprt
226 KB
85. switch dial(None).sldprt
644 KB
86. tussenstuk lineare wagens z-as(MODEL).sldprt
68.2 KB
87. z-as motor support(MODEL).sldprt
76.8 KB
88. z-as support(MODEL).sldprt
61.7 KB
89. 装配体139ASDB.SLDASM
247 KB
90. 零件375.SLDPRT
354 KB
91. 零件376.SLDPRT
79.6 KB
92. 零件377.SLDPRT
57.9 KB
93. 零件377B.SLDPRT
53 KB
94. 零件377BA.SLDPRT
54.3 KB
95. 零件386.SLDPRT
167 KB
96. 零件387.SLDPRT
75.5 KB
