三层三列式升降横移式立体车库设计资料含三维二维说明书AutoCAD,SolidWorks 三维模型

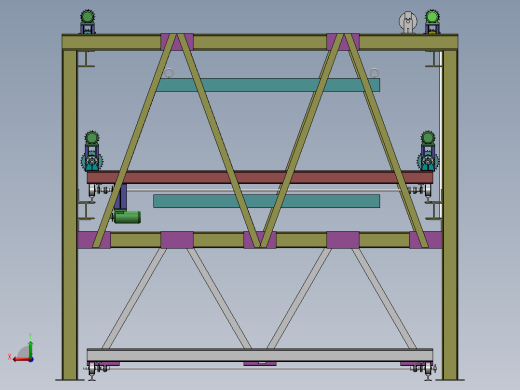

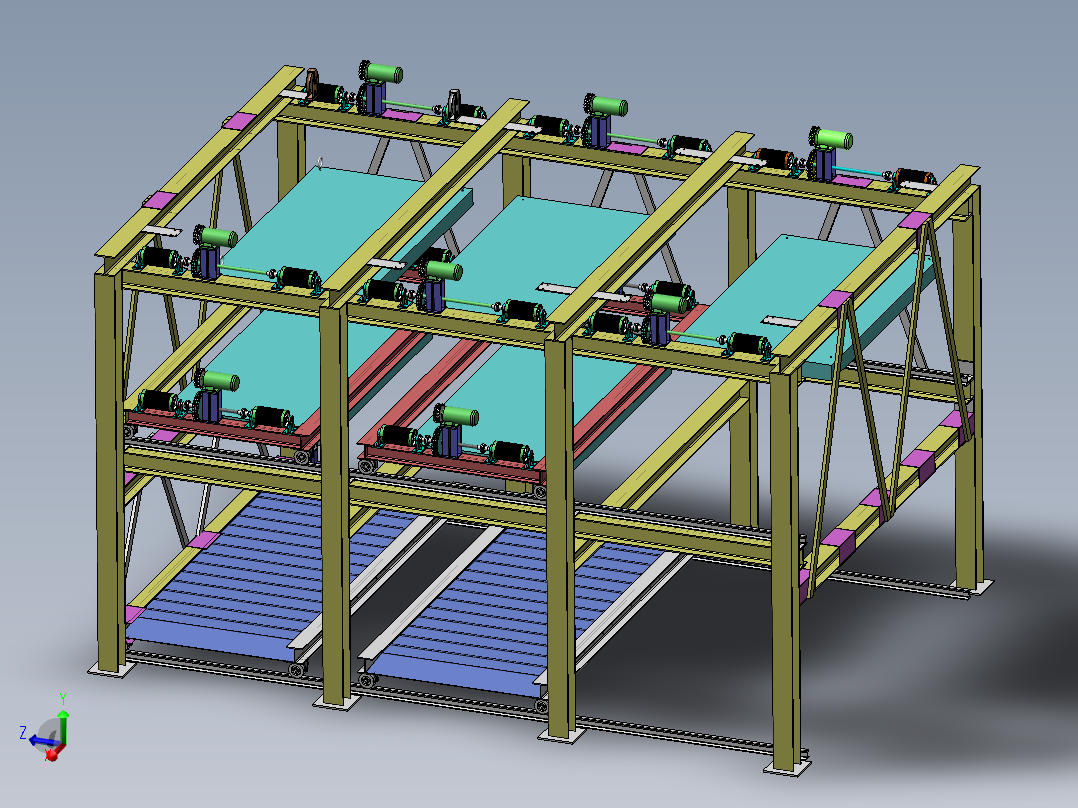

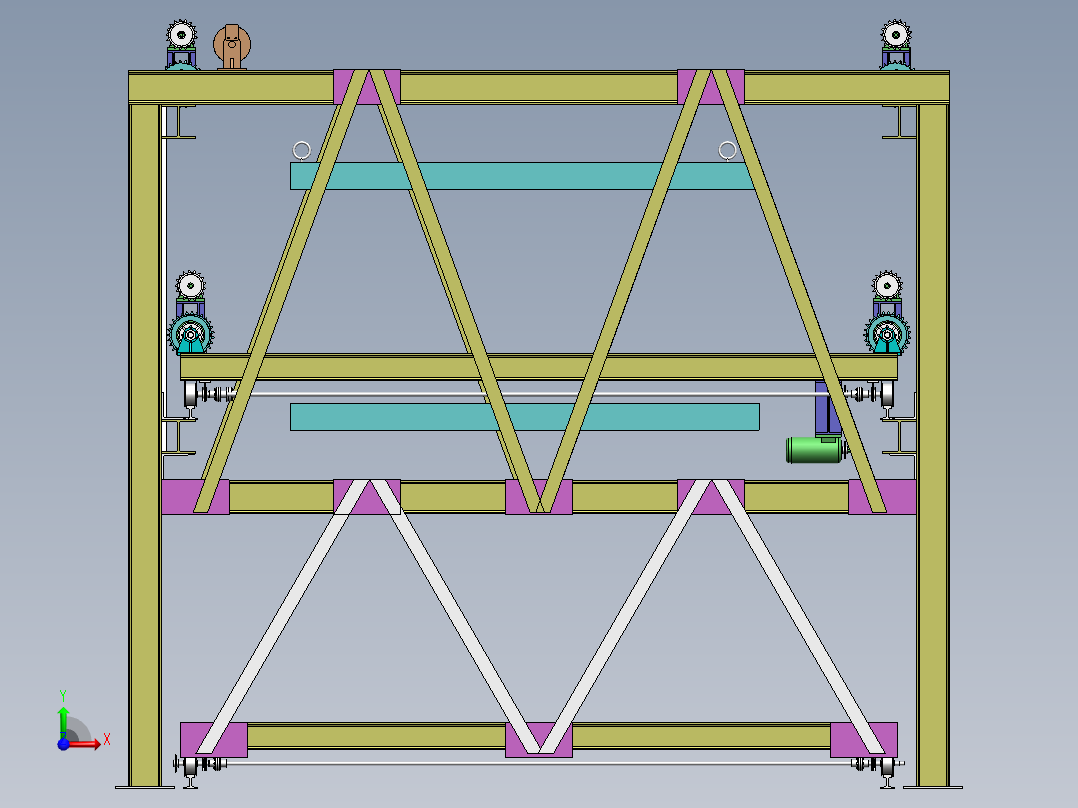

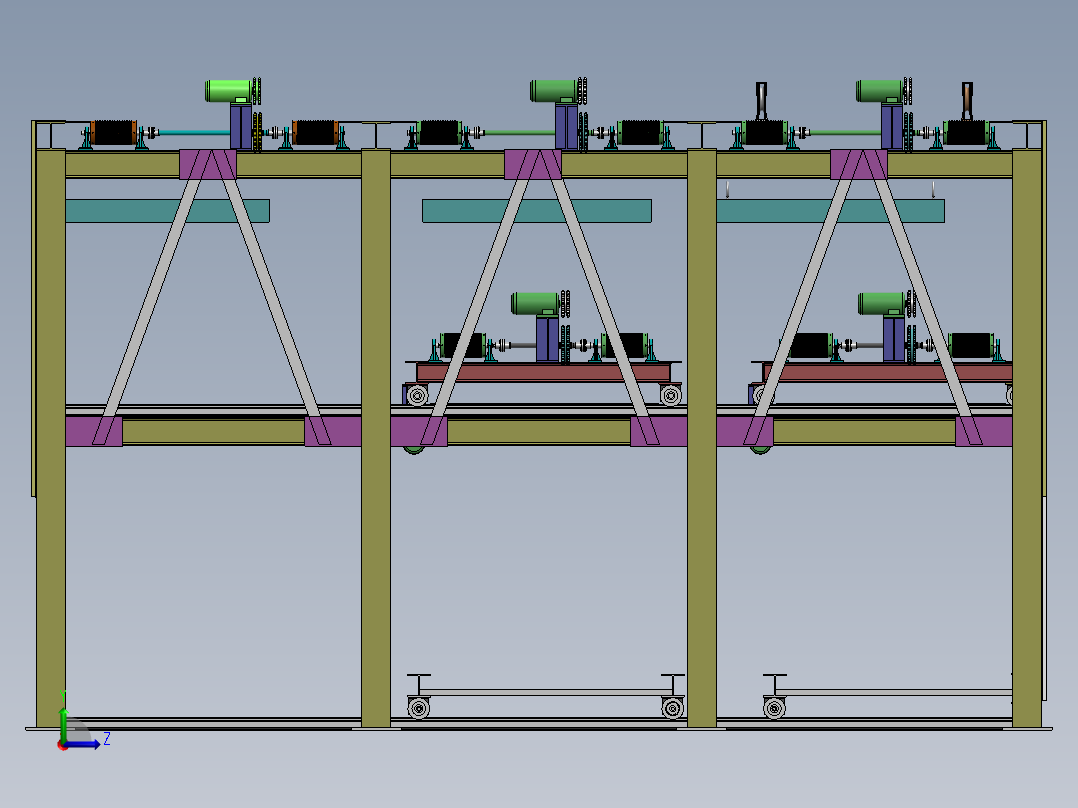

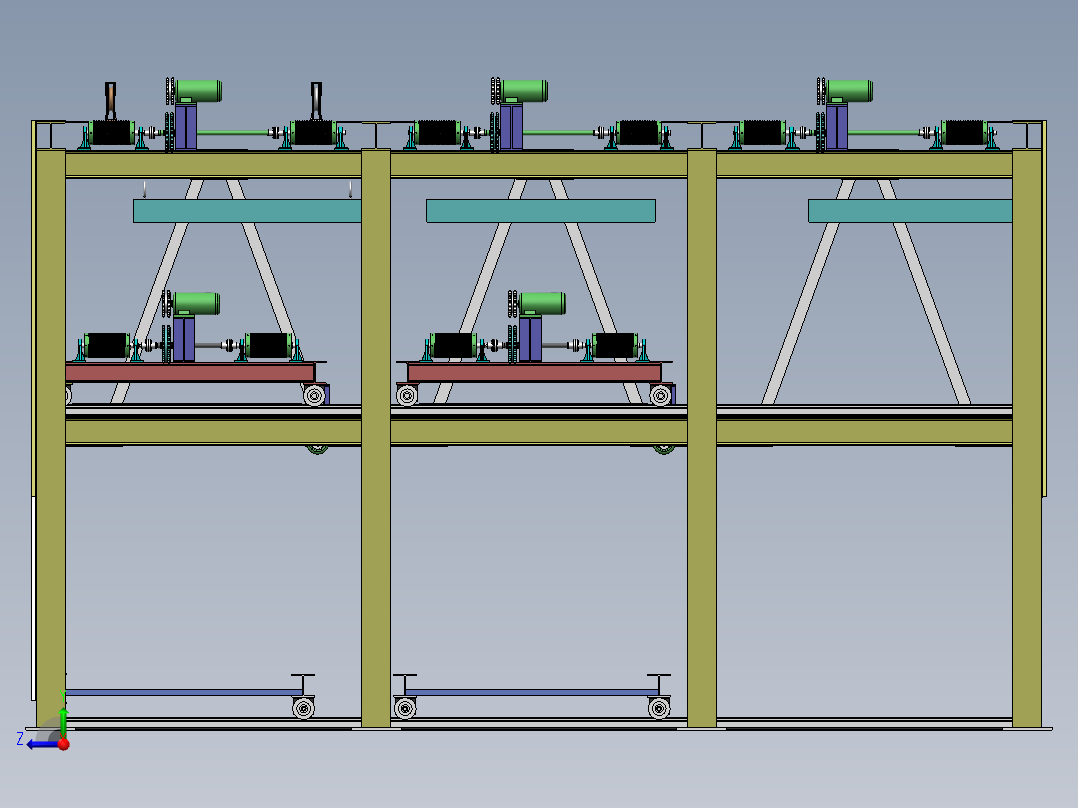

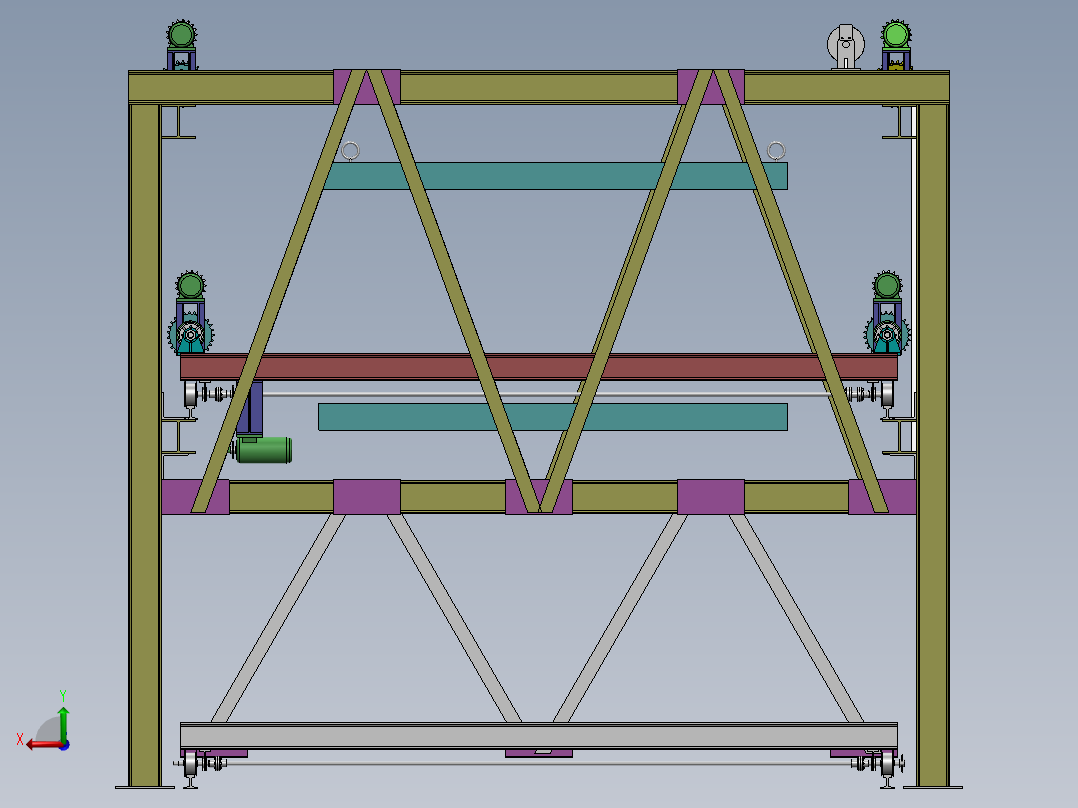

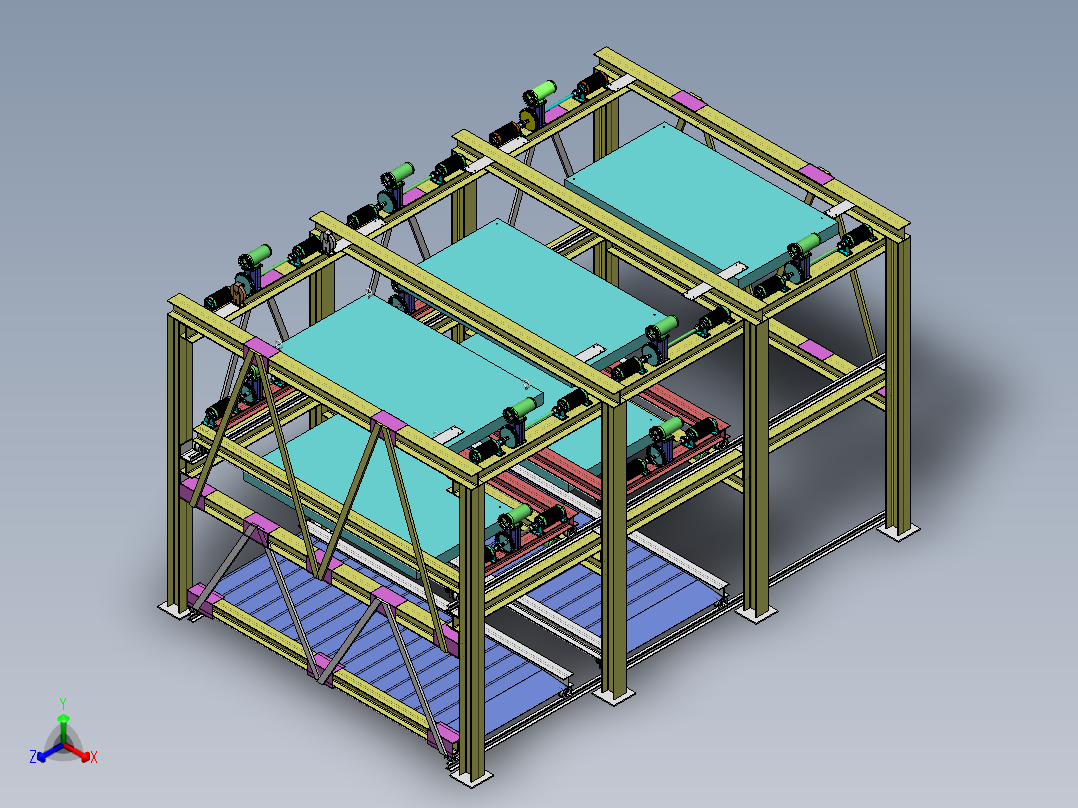

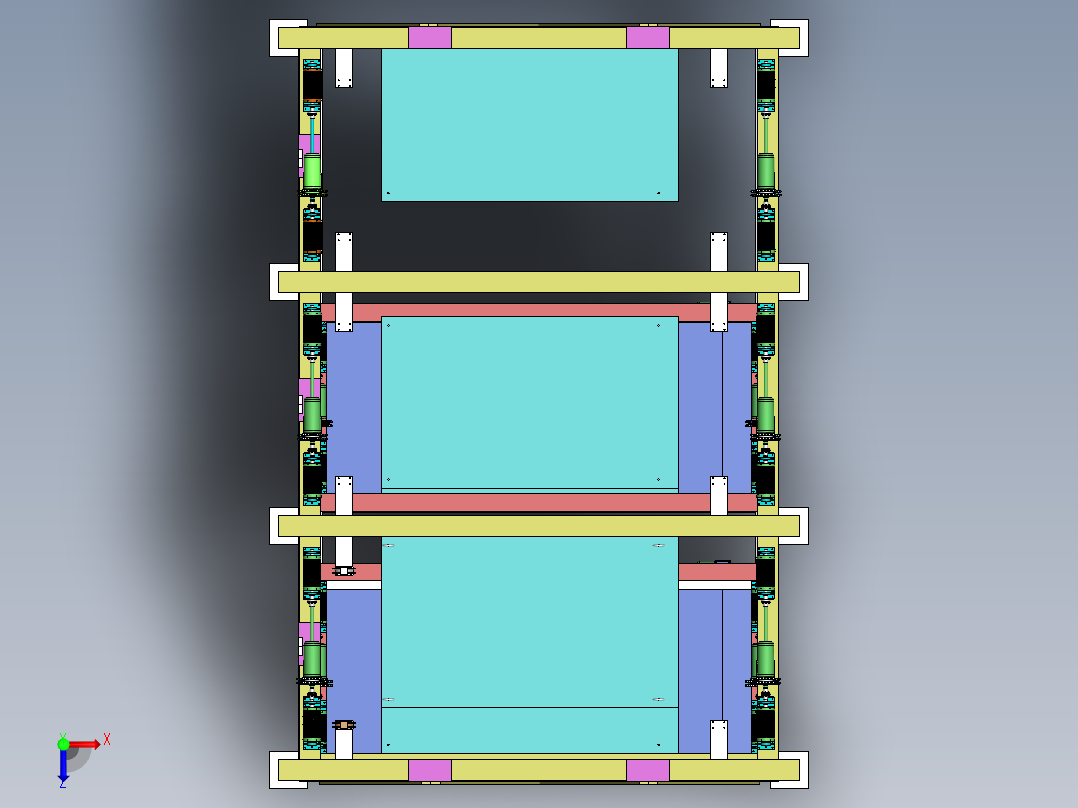

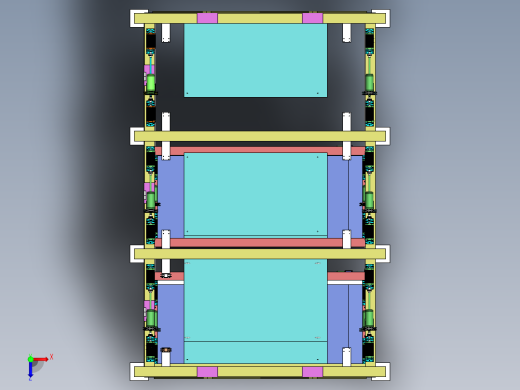

三维机械图纸名称为：三层三列式升降横移式立体车库设计资料含三维二维说明书，属于机械设备，非标机械分类，软件为AutoCAD,SolidWorks, 三维模型格式为sldprt,sldasm,dwg，可在线预览，可编辑，可供设计参考
模型参数
模型ID：10301504
模型大小：10.1M
软件版本： AutoCAD 2011,SolidWorks
模型格式：sldprt,sldasm,dwg
是否可编辑：可修改，包括参数
上传时间：2025-11-06
图纸介绍：
下载模型
文件列表
1. 12A-1_19_28_19.sldprt
155 KB
2. 20X14X250.sldprt
56.5 KB
3. 24A-2_17_24_17.sldprt
318 KB
4. 24A-2_27_50_27.sldprt
1.07 MB
5. 30X8800.sldprt
62 KB
6. 3层3例式停车库3D总装图.SLDASM
2.08 MB
7. 5X2210.sldprt
57.5 KB
8. CHEBAN.sldprt
56 KB
9. CHELUN.sldprt
56.5 KB
10. CHELUNZHOU.sldprt
56 KB
11. CHUANDONGZHOU.sldprt
127 KB
12. CHUANGDONGZHOUER.sldprt
124 KB
13. DIANDONGJI.sldprt
162 KB
14. DIANJIZHIJIA.sldprt
138 KB
15. DIBAN.sldprt
53.5 KB
16. ERCENGCHEBAN_AF0_ASM.sldasm
95 KB
17. ERCENGCHEBAN_AF1_ASM.sldasm
96 KB
18. ERCENGCHELUNZHOU.sldprt
54 KB
19. ERCENGHENGYIZHOU.sldprt
53 KB
20. FANGHUAGANGBAN.sldprt
54.5 KB
21. GAIZHOUZHUANGPEI_ASM-1.sldasm
81.5 KB
22. GAIZHOUZHUANGPEI_ASM-2.sldasm
81.5 KB
23. GAIZHOUZHUANGPEI_ASM-3.sldasm
81.5 KB
24. GAIZHOUZHUANGPEI_ASM.sldasm
81.5 KB
25. GOUZI.sldprt
56 KB
26. GY4_Y_28_ASM-1.sldasm
56 KB
27. GY4_Y_28_ASM-10.sldasm
56 KB
28. GY4_Y_28_ASM-11.sldasm
56 KB
29. GY4_Y_28_ASM-12.sldasm
56 KB
30. GY4_Y_28_ASM-13.sldasm
56 KB
31. GY4_Y_28_ASM-14.sldasm
56 KB
32. GY4_Y_28_ASM-15.sldasm
56 KB
33. GY4_Y_28_ASM-16.sldasm
56 KB
34. GY4_Y_28_ASM-17.sldasm
56 KB
35. GY4_Y_28_ASM-18.sldasm
56 KB
36. GY4_Y_28_ASM-19.sldasm
56 KB
37. GY4_Y_28_ASM-2.sldasm
56 KB
38. GY4_Y_28_ASM-20.sldasm
56 KB
39. GY4_Y_28_ASM-21.sldasm
56 KB
40. GY4_Y_28_ASM-22.sldasm
56 KB
41. GY4_Y_28_ASM-23.sldasm
56 KB
42. GY4_Y_28_ASM-24.sldasm
56 KB
43. GY4_Y_28_ASM-25.sldasm
56 KB
44. GY4_Y_28_ASM-26.sldasm
56 KB
45. GY4_Y_28_ASM-27.sldasm
56 KB
46. GY4_Y_28_ASM-28.sldasm
56 KB
47. GY4_Y_28_ASM-29.sldasm
56 KB
48. GY4_Y_28_ASM-3.sldasm
56 KB
49. GY4_Y_28_ASM-30.sldasm
56 KB
50. GY4_Y_28_ASM-31.sldasm
56 KB
51. GY4_Y_28_ASM-32.sldasm
56 KB
52. GY4_Y_28_ASM-33.sldasm
56 KB
53. GY4_Y_28_ASM-34.sldasm
56 KB
54. GY4_Y_28_ASM-35.sldasm
56 KB
55. GY4_Y_28_ASM-4.sldasm
56 KB
56. GY4_Y_28_ASM-5.sldasm
56 KB
57. GY4_Y_28_ASM-6.sldasm
56 KB
58. GY4_Y_28_ASM-7.sldasm
56 KB
59. GY4_Y_28_ASM-8.sldasm
56 KB
60. GY4_Y_28_ASM-9.sldasm
56 KB
61. GY4_Y_28_ASM.sldasm
56.5 KB
62. HENGYIZHOU.sldprt
52 KB
63. HENGYIZHOU2.sldprt
53 KB
64. HUALUN.sldprt
53.5 KB
65. HUALUNBAN.sldprt
54.5 KB
66. HUALUNTAO.sldprt
57 KB
67. HUALUNZUO.sldprt
64.5 KB
68. HUALUN_AF0_ASM.sldasm
55.5 KB
69. HUALUN_AF1_ASM.sldasm
55.5 KB
70. HW175X175.sldprt
60 KB
71. HW200X200X8X12X5320.sldprt
60.5 KB
72. HW250X250X9X14X5057.sldprt
60.5 KB
73. HW250X250X9X14X5600.sldprt
60.5 KB
74. HW250X250X9X14X6100.sldprt
60.5 KB
75. HW250X250X9X14X8800.sldprt
60.5 KB
76. JIAOGANG.sldprt
94 KB
77. JIEBAN.sldprt
90 KB
78. JIEGAN3.sldprt
58.5 KB
79. JIEGANG2.sldprt
58.5 KB
80. JUANTONG.sldprt
1.63 MB
81. JUANTONGZHOU.sldprt
63 KB
82. JUANTONG_ASM-1.sldasm
81.5 KB
83. JUANTONG_ASM-2.sldasm
81.5 KB
84. JUANTONG_ASM-3.sldasm
81.5 KB
85. JUANTONG_ASM-4.sldasm
1.5 MB
86. JUANTONG_ASM-5.sldasm
81.5 KB
87. JUANTONG_ASM.sldasm
81 KB
88. LUNGU.sldprt
70.5 KB
89. LUNZHOUZHIJIA.sldprt
59 KB
90. OPEN_CASCADE_STEP_TRAN610680228.sldprt
69.5 KB
91. OPEN_CASCADE_STEP_TRAN610680229.sldprt
69.5 KB
92. OPEN_CASCADE_STEP_TRAN610680230.sldprt
69.5 KB
93. OPEN_CASCADE_STEP_TRAN610680231.sldprt
70 KB
94. OPEN_CASCADE_STEP_TRAN610680233.sldprt
69.5 KB
95. OPEN_CASCADE_STEP_TRANSLATOR_6_.sldprt
70 KB
96. TAOTONG.sldprt
52.5 KB
97. XIACENGCHEBAN_ASM-1.sldasm
108 KB
98. XIACENGCHEBAN_ASM.sldasm
107 KB
99. XIAOCHEBAN_ASM.sldasm
56 KB
100. ZHIZUO.sldprt
161 KB
101. ZHOUCHENG.sldprt
52.5 KB
102. _____-___Y__28_GY4_GY_STEP_ASM-1.sldasm
65.5 KB
103. _____-___Y__28_GY4_GY_STEP_ASM-10.sldasm
64.5 KB
104. _____-___Y__28_GY4_GY_STEP_ASM-11.sldasm
64.5 KB
105. _____-___Y__28_GY4_GY_STEP_ASM-12.sldasm
64.5 KB
106. _____-___Y__28_GY4_GY_STEP_ASM-13.sldasm
65.5 KB
107. _____-___Y__28_GY4_GY_STEP_ASM-14.sldasm
64.5 KB
108. _____-___Y__28_GY4_GY_STEP_ASM-15.sldasm
64.5 KB
109. _____-___Y__28_GY4_GY_STEP_ASM-16.sldasm
64.5 KB
110. _____-___Y__28_GY4_GY_STEP_ASM-17.sldasm
65.5 KB
111. _____-___Y__28_GY4_GY_STEP_ASM-18.sldasm
65.5 KB
112. _____-___Y__28_GY4_GY_STEP_ASM-19.sldasm
65.5 KB
113. _____-___Y__28_GY4_GY_STEP_ASM-2.sldasm
64.5 KB
114. _____-___Y__28_GY4_GY_STEP_ASM-20.sldasm
65.5 KB
115. _____-___Y__28_GY4_GY_STEP_ASM-21.sldasm
65.5 KB
116. _____-___Y__28_GY4_GY_STEP_ASM-22.sldasm
65.5 KB
117. _____-___Y__28_GY4_GY_STEP_ASM-23.sldasm
65.5 KB
118. _____-___Y__28_GY4_GY_STEP_ASM-24.sldasm
65.5 KB
119. _____-___Y__28_GY4_GY_STEP_ASM-25.sldasm
65.5 KB
120. _____-___Y__28_GY4_GY_STEP_ASM-26.sldasm
65.5 KB
121. _____-___Y__28_GY4_GY_STEP_ASM-27.sldasm
65.5 KB
122. _____-___Y__28_GY4_GY_STEP_ASM-28.sldasm
64.5 KB
123. _____-___Y__28_GY4_GY_STEP_ASM-29.sldasm
65.5 KB
124. _____-___Y__28_GY4_GY_STEP_ASM-3.sldasm
64.5 KB
125. _____-___Y__28_GY4_GY_STEP_ASM-30.sldasm
65.5 KB
126. _____-___Y__28_GY4_GY_STEP_ASM-31.sldasm
64.5 KB
127. _____-___Y__28_GY4_GY_STEP_ASM-32.sldasm
64.5 KB
128. _____-___Y__28_GY4_GY_STEP_ASM-33.sldasm
65.5 KB
129. _____-___Y__28_GY4_GY_STEP_ASM-34.sldasm
65.5 KB
130. _____-___Y__28_GY4_GY_STEP_ASM-35.sldasm
65.5 KB
131. _____-___Y__28_GY4_GY_STEP_ASM-4.sldasm
64.5 KB
132. _____-___Y__28_GY4_GY_STEP_ASM-5.sldasm
64.5 KB
133. _____-___Y__28_GY4_GY_STEP_ASM-6.sldasm
64.5 KB
134. _____-___Y__28_GY4_GY_STEP_ASM-7.sldasm
65.5 KB
135. _____-___Y__28_GY4_GY_STEP_ASM-8.sldasm
64.5 KB
136. _____-___Y__28_GY4_GY_STEP_ASM-9.sldasm
64.5 KB
137. _____-___Y__28_GY4_GY_STEP_ASM.sldasm
64.5 KB
138. _____-_____Y__28_GY4_GY_STEP.sldprt
63.5 KB
139. 三层三列式升降横移式立体车库设计说明书.doc
1.76 MB
140. 下载车板部件图A1.dwg
137 KB
141. 二层载车板部件图A1.dwg
194 KB
142. 升降大链轮A2.dwg
113 KB
143. 升降轴A2.dwg
87.7 KB
144. 装配图A0.dwg
538 KB
