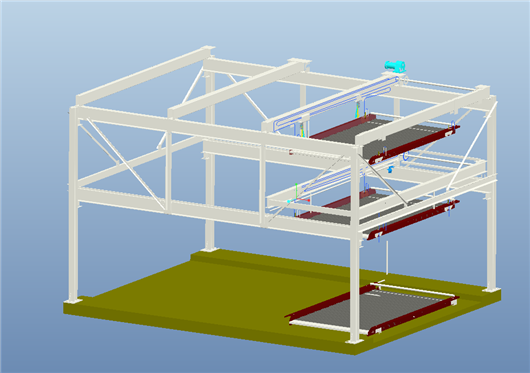

三层链条式升降横移立体车库proe/creo 三维模型
三维机械图纸名称为：三层链条式升降横移立体车库，属于设备部件，传动部件分类，软件为proe/creo, 三维模型格式为prt，可在线预览，可编辑，可供设计参考
模型参数
模型ID：10327649
模型大小：33.23M
软件版本： proe/creo
模型格式：prt
是否可编辑：可修改，包括参数
上传时间：2025-12-01
图纸介绍：
