机械设备 / 非标机械 / 泄漏检测机3
平面图
3D视图
文件列表
珊瑚网 www.shanhu3d.com

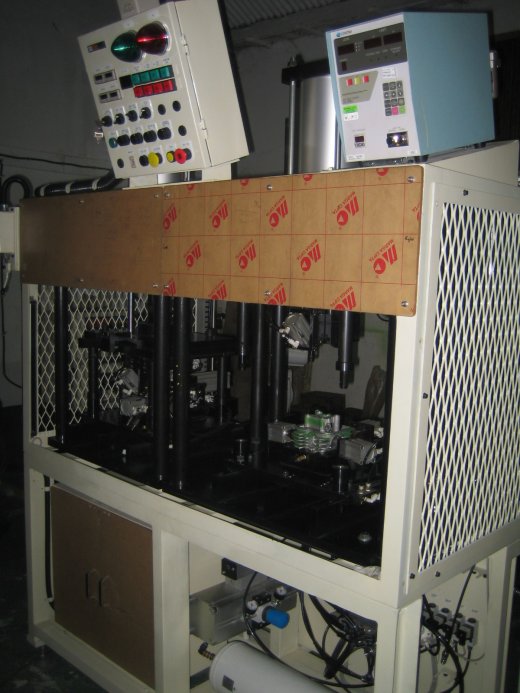

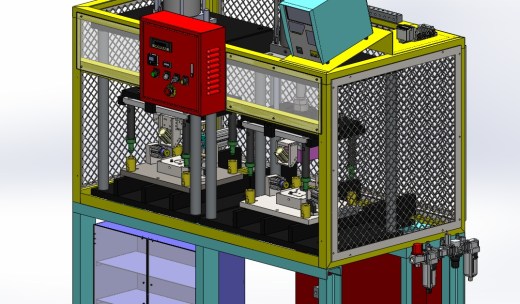

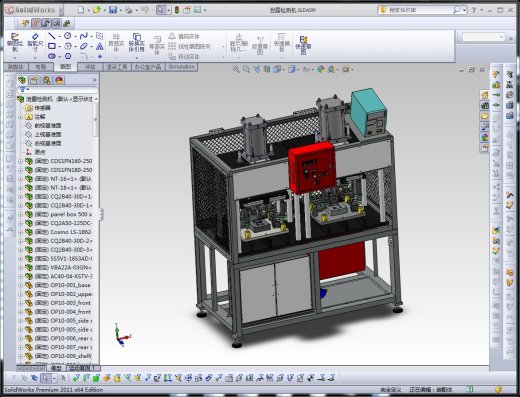

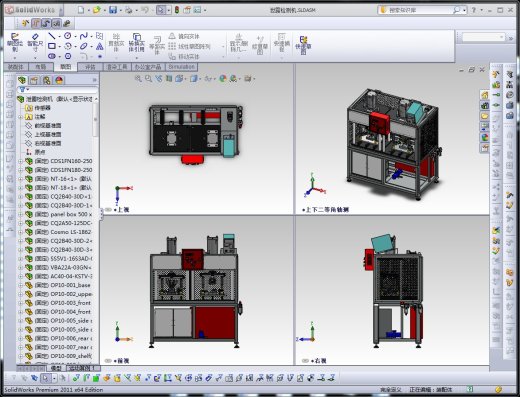

泄漏检测机3
珊瑚网 www.shanhu3d.com
泄漏检测机3
珊瑚网 www.shanhu3d.com
泄漏检测机3
珊瑚网 www.shanhu3d.com
泄漏检测机3
珊瑚网 www.shanhu3d.com
泄漏检测机3
珊瑚网 www.shanhu3d.com
泄漏检测机3
珊瑚网 www.shanhu3d.com
泄漏检测机3
珊瑚网 www.shanhu3d.com
泄漏检测机3
珊瑚网 www.shanhu3d.com
泄漏检测机3
珊瑚网 www.shanhu3d.com
泄漏检测机3
珊瑚网 www.shanhu3d.com
泄漏检测机3
加入收藏

泄漏检测机3

图纸ID：10156104
文件大小：26.15M
软件版本：
PARASOLID,SOLIDWORKS 2011
图纸格式：sldasm,sldprt,x_t
参数/编辑：可修改，包括参数
上传时间：2023-08-31
图纸介绍：
免费下载
孤灯夜雨
作品: 0
粉丝: 0
文件列表
1. AC10B-M5.sldasm
79.5 KB
2. AC10B-M5_AC3011A AF Body(10)-1.sldprt
114 KB
3. AC10B-M5_AC3011A AF Bowl Assy(10).sldasm
73.5 KB
4. AC10B-M5_AC3011A AF Bowl(10)-1.sldprt
128 KB
5. AC10B-M5_AC3011A AF Drain(10)-1.sldprt
135 KB
6. AC10B-M5_AC3011A AR Body(10)-1.sldprt
197 KB
7. AC10B-M5_AC3011A Plug(00).sldprt
87.5 KB
8. AC10B-M5_AC3011A Spacer Front Plate(1).sldprt
98.5 KB
9. AC10B-M5_AC3011A Spacer Interface(1).sldprt
116 KB
10. AC10B-M5_AC3011A Spacer(100T).sldasm
74 KB
11. AC40-04-KSTV-38JNR.sldasm
106 KB
12. AC40-04-KSTV-38JNR_AC3009A AF Body-1.sldprt
116 KB
13. AC40-04-KSTV-38JNR_AC3009A AF Bowl Assy.sldasm
74 KB
14. AC40-04-KSTV-38JNR_AC3009A AF Bowl-2.sldprt
167 KB
15. AC40-04-KSTV-38JNR_AC3009A AF Drain-2.sldprt
93 KB
16. AC40-04-KSTV-38JNR_AC3009A AKM Body.sldprt
99 KB
17. AC40-04-KSTV-38JNR_AC3009A AL Body-1.sldprt
149 KB
18. AC40-04-KSTV-38JNR_AC3009A AL Bowl Assy.sldasm
74 KB
19. AC40-04-KSTV-38JNR_AC3009A AL Bowl-2.sldprt
167 KB
20. AC40-04-KSTV-38JNR_AC3009A AL Drain-2.sldprt
106 KB
21. AC40-04-KSTV-38JNR_AC3009A AR Body-1.sldprt
216 KB
22. AC40-04-KSTV-38JNR_AC3009A Gauge-2.sldprt
100 KB
23. AC40-04-KSTV-38JNR_AC3009A Plug.sldprt
87.5 KB
24. AC40-04-KSTV-38JNR_AC3009A Spacer Front Plate.sldprt
98.5 KB
25. AC40-04-KSTV-38JNR_AC3009A Spacer Interface.sldprt
122 KB
26. AC40-04-KSTV-38JNR_AC3009A Spacer Rear Plate(4).sldprt
92 KB
27. AC40-04-KSTV-38JNR_AC3009A Spacer Rear Plate(4T).sldprt
112 KB
28. AC40-04-KSTV-38JNR_AC3009A Spacer(400-R)-1.sldasm
77 KB
29. AC40-04-KSTV-38JNR_AC3009A Spacer(400-R).sldasm
77 KB
30. AC40-04-KSTV-38JNR_AC3009A Spacer(400T-R)-1.sldasm
77 KB
31. AC40-04-KSTV-38JNR_AC3009A Spacer(400T-R)-2.sldasm
77 KB
32. AC40-04-KSTV-38JNR_AC3009A Spacer(400T-R)-3.sldasm
77 KB
33. AC40-04-KSTV-38JNR_AC3009A Spacer(400T-R).sldasm
77 KB
34. AC40-04-KSTV-38JNR_AC3009A Switch.sldprt
104 KB
35. AC40-04-KSTV-38JNR_AC3009A T Interface-1.sldprt
97.5 KB
36. AC40-04-KSTV-38JNR_AC3009A VHS Body-1.sldprt
111 KB
37. AC40-04-KSTV-38JNR_AC3009A VHS Handle.sldprt
130 KB
38. AC40-04-KSTV-38JNR_AC3009A VHS.sldasm
74 KB
39. Air Cylinder CQ2B20-30DC.sldprt
102 KB
40. Air Cylinder CQ2B32-30D.sldprt
130 KB
41. Air Cylinder CQ2B32-50D.sldprt
130 KB
42. Assy H7EC.sldasm
84 KB
43. Assy Hanyoung CR-253.sldasm
83 KB
44. B18.6.7M - M3 x 0.5 x 5 Type I Cross Recessed PHMS --5N.sldprt
89.5 KB
45. B18.6.7M - M4 x 0.7 x 5 Type I Cross Recessed PHMS --5N.sldprt
89.5 KB
46. CDJ2B16-75-B.sldprt
111 KB
47. CDS1FN160-250-A54Z.sldasm
78 KB
48. CDS1FN160-250-A54Z_A5_A6_F5_J5_ForLargeBore.sldprt
101 KB
49. CDS1FN160-250-A54Z_CS1-Body-1.sldprt
118 KB
50. CDS1FN160-250-A54Z_CS1-Flange.sldprt
88.5 KB
51. CDS1FN160-250-A54Z_CS1-Rod.sldprt
88 KB
52. CDS1FN180-250-A54Z.sldasm
78.5 KB
53. CDS1FN180-250-A54Z_A5_A6_F5_J5_ForLargeBore.sldprt
102 KB
54. CDS1FN180-250-A54Z_CS1-Body-1.sldprt
111 KB
55. CDS1FN180-250-A54Z_CS1-Flange.sldprt
88.5 KB
56. CDS1FN180-250-A54Z_CS1-Rod.sldprt
87.5 KB
57. COUNTER OMRON.sldasm
106 KB
58. CQ2A50-125DC-R06US.sldasm
78.5 KB
59. CQ2A50-125DC-R06US_AS3054 Body.sldprt
126 KB
60. CQ2A50-125DC-R06US_AS3054-1.sldasm
69.5 KB
61. CQ2A50-125DC-R06US_AS3054.sldasm
69.5 KB
62. CQ2A50-125DC-R06US_CQ2 SnapRing.sldprt
90.5 KB
63. CQ2A50-125DC-R06US_CQ22031Rods.sldprt
88.5 KB
64. CQ2A50-125DC-R06US_CQ2Tube.sldprt
120 KB
65. CQ2B40-30D-1.sldasm
74.5 KB
66. CQ2B40-30D-2.sldasm
74.5 KB
67. CQ2B40-30D-3.sldasm
74.5 KB
68. CQ2B40-30D.sldasm
74.5 KB
69. CQ2B40-30D_CQ2 SnapRing.sldprt
89.5 KB
70. CQ2B40-30D_CQ22031Rods.sldprt
87.5 KB
71. CQ2B40-30D_CQ2Tube.sldprt
118 KB
72. Control Box.sldprt
113 KB
73. Cosmo LS-1862.sldasm
73.5 KB
74. Cosmo LS-1862.sldprt
156 KB
75. Cover.sldprt
131 KB
76. Emergency Label.sldprt
199 KB
77. Emergency hanyoung.sldprt
1.5 MB
78. Foot AJPD16_100e.sldprt
126 KB
79. Fuji Electric AR9T511-M.sldprt
123 KB
80. HANYOUNG CR-253 5A.sldprt
430 KB
81. Karet.sldprt
88.5 KB
82. Legend Standby.sldprt
200 KB
83. NT-16.sldasm
106 KB
84. NT-16_CS1-RodEndNut.sldprt
94 KB
85. NT-18.sldasm
68.5 KB
86. NT-18_Nuts.sldprt
88 KB
87. OMRON H7EC.sldprt
327 KB
88. OP10-001_base frame(Default_As Machined_).sldprt
456 KB
89. OP10-002_upper frame(Default_As Machined_).sldprt
233 KB
90. OP10-003_front cover (R).sldprt
87 KB
91. OP10-004_front cover (L).sldprt
87 KB
92. OP10-005_side cover.sldprt
1.35 MB
93. OP10-006_rear cover (R).sldprt
1.4 MB
94. OP10-007_rear cover (L).sldprt
1.19 MB
95. OP10-009_shelf(Default_As Machined_).sldprt
136 KB
96. OP10-010_junction block (A).sldprt
105 KB
97. OP10-011_junction block (B).sldprt
104 KB
98. OP10-012_junction block (C).sldprt
100 KB
99. OP10-013_junction block (D).sldprt
94 KB
100. OP10-014_lower plate (R).sldprt
97.5 KB
101. OP10-015_upper plate (R).sldprt
118 KB
102. OP10-016_lower plate (L) .sldprt
98 KB
103. OP10-017_upper plate (L).sldprt
97 KB
104. OP10-018_base rib (A).sldprt
103 KB
105. OP10-019_base rib (B).sldprt
94 KB
106. OP10-020_central plate.sldprt
103 KB
107. OP10-021_guide(1).sldprt
93.5 KB
108. OP10-022_guide(2).sldprt
93.5 KB
109. OP10-023_clamp.sldprt
87 KB
110. OP10-024_fix-pin.sldprt
91 KB
111. OP10-025_stopper base.sldprt
94 KB
112. OP10-026_stopper plate.sldprt
87 KB
113. OP10-027_cylinder connector (R).sldprt
87.5 KB
114. OP10-028_cylinder connector (L).sldprt
87.5 KB
115. OP10-029_setting flange.sldprt
98 KB
116. OP10-030_plate.sldprt
134 KB
117. OP10-031_guide base.sldprt
87.5 KB
118. OP10-032_collar.sldprt
83.5 KB
119. OP10-033_setup guide .sldprt
93.5 KB
120. OP10-034_shelf-door.sldprt
88 KB
121. OP10-101_base plate lower (R).sldprt
89 KB
122. OP10-102_base plate lower (L).sldprt
95 KB
123. OP10-104_upper base plate (R).sldprt
95.5 KB
124. OP10-105_upper base plate (L) .sldprt
96 KB
125. OP10-106_guide post.sldprt
89 KB
126. OP10-107_guide-pin.sldprt
88 KB
127. OP10-108_guide catch.sldprt
90 KB
128. OP10-109_base block (lower)-R.sldprt
110 KB
129. OP10-111_base block (lower)-L .sldprt
105 KB
130. OP10-113_round-pin.sldprt
86.5 KB
131. OP10-114_dia-pin.sldprt
90 KB
132. OP10-116_work-guide.sldprt
92.5 KB
133. OP10-118_cylinder base (1).sldprt
93.5 KB
134. OP10-119_cylinder stand (1) -R.sldprt
104 KB
135. OP10-120_cylinder stand (1) -L.sldprt
105 KB
136. OP10-121_cylinder stand (2) -R.sldprt
105 KB
137. OP10-122_rib plate.sldprt
88 KB
138. OP10-123_seal rod.sldprt
92.5 KB
139. OP10-124_seal pad.sldprt
83.5 KB
140. OP10-125_seal rod dia7.sldprt
89 KB
141. OP10-126_seal pad dia7.sldprt
81.5 KB
142. OP10-127_cylinder base M6.sldprt
97.5 KB
143. OP10-128_seal head M6.sldprt
89.5 KB
144. OP10-129_seal pad M6.sldprt
81.5 KB
145. OP10-130_cylinder base (2)-L.sldprt
95 KB
146. OP10-131_cylinder stand (2) -L.sldprt
93 KB
147. OP10-132_side plate (2)-L.sldprt
96.5 KB
148. OP10-133_seal rod camshaft.sldprt
87.5 KB
149. OP10-134_cylinder stand (3).sldprt
103 KB
150. OP10-135_junction block (E).sldprt
102 KB
151. OP10-136_junction block (F).sldprt
104 KB
152. OP10-137_base block (upper)-R.sldprt
102 KB
153. OP10-139_base plate (F)-R.sldprt
89.5 KB
154. OP10-140_side plate (F)-R.sldprt
88.5 KB
155. OP10-141_inclined plate (F).sldprt
104 KB
156. OP10-142_seal rod plug.sldprt
88.5 KB
157. OP10-143_seal pad plug.sldprt
81.5 KB
158. OP10-144_upper seal block.sldprt
119 KB
159. OP10-146_seal side plate (1).sldprt
87 KB
160. OP10-147_seal side plate (2).sldprt
87.5 KB
161. OP10-148_seal block.sldprt
87 KB
162. OP10-149_base block (upper)-L.sldprt
104 KB
163. OP10-150_clamp rod (L).sldprt
94 KB
164. OP10-151_seal rod (L).sldprt
87.5 KB
165. OP10-152_side plate upper-L1.sldprt
91.5 KB
166. OP10-153_side plate upper-L2.sldprt
91.5 KB
167. OP10-154_inclined plate (L).sldprt
92.5 KB
168. OP10-155_base plate (F)-L.sldprt
91.5 KB
169. OP10-156_side plate (F)-L.sldprt
89.5 KB
170. OP10-157_seal rod (valve guide).sldprt
90.5 KB
171. OP10-158_seal pad (valve guide).sldprt
84 KB
172. OP10-159_seal block (2nd air pass).sldprt
98.5 KB
173. OP10-160_seal pad (2nd air pass).sldprt
83.5 KB
174. OP10-161_junction block (G).sldprt
97.5 KB
175. Omron.sldprt
628 KB
176. SS5V1-16S3AD-08B-N1.sldasm
90 KB
177. SS5V1-16S3AD-08B-N1_AXT100-DR.sldprt
114 KB
178. SS5V1-16S3AD-08B-N1_Base-1.sldasm
74.5 KB
179. SS5V1-16S3AD-08B-N1_Base-2.sldasm
74.5 KB
180. SS5V1-16S3AD-08B-N1_Base-3.sldasm
74.5 KB
181. SS5V1-16S3AD-08B-N1_Base-4.sldasm
74.5 KB
182. SS5V1-16S3AD-08B-N1_Base-5.sldasm
74.5 KB
183. SS5V1-16S3AD-08B-N1_Base-6.sldasm
74.5 KB
184. SS5V1-16S3AD-08B-N1_Base-7.sldasm
74.5 KB
185. SS5V1-16S3AD-08B-N1_Base.sldasm
74.5 KB
186. SS5V1-16S3AD-08B-N1_CAD Side End Plate.sldprt
262 KB
187. SS5V1-16S3AD-08B-N1_CAExhaust Side.sldasm
78.5 KB
188. SS5V1-16S3AD-08B-N1_CAInput Side End Plate.sldprt
264 KB
189. SS5V1-16S3AD-08B-N1_EX120 Adapter.sldprt
101 KB
190. SS5V1-16S3AD-08B-N1_EX120 Connector Block.sldasm
83 KB
191. SS5V1-16S3AD-08B-N1_EX120 SI Unit.sldprt
188 KB
192. SS5V1-16S3AD-08B-N1_Exhaust Cap.sldprt
111 KB
193. SS5V1-16S3AD-08B-N1_Rail Clamp.sldprt
103 KB
194. SS5V1-16S3AD-08B-N1_SV Fittings.sldprt
95 KB
195. SS5V1-16S3AD-08B-N1_VV5Q Fittings.sldprt
95 KB
196. SS5V1-16S3AD-08B-N1_Valve Base.sldprt
229 KB
197. Switch CR-253.sldprt
111 KB
198. VBA22A-03GN.sldasm
77.5 KB
199. VBA22A-03GN_AN6009 Silencer.sldprt
194 KB
200. VBA22A-03GN_AN6009.sldasm
71.5 KB
201. VBA22A-03GN_G36-10-N01.sldprt
98 KB
202. VBA22A-03GN_VBA20A Body.sldprt
131 KB
203. VBA22A-03GN_VBA20A Bracket.sldprt
107 KB
204. Vexta Operation Unit OP200A.sldprt
157 KB
205. circular post SPCD-SSB-D50-L760-E5-P30-M16-F15-V30-MA16-SC40-W20-S41.sldprt
93 KB
206. circular post dia22-16-M8.sldprt
87.5 KB
207. circular post spca dia22-16-M8.sldprt
135 KB
208. hex nut gradec_iso(Hexagon Nut ISO - 4034 - M6 - N).sldprt
92 KB
209. hex screw gradec_iso(ISO 4018 - M6 x 25-WN).sldprt
91 KB
210. hex thin nut gradeb_iso(Hexagon Nut ISO - 4036 - M8 - N).sldprt
87.5 KB
211. panel body dalam.sldprt
98 KB
212. panel body depan.sldprt
140 KB
213. panel body.sldprt
236 KB
214. panel box 500 x 600 x 200.sldasm
131 KB
215. plain washer small grade a_iso(Washer ISO 7092 - 20).sldprt
83.5 KB
216. push_lamp1.sldprt
238 KB
217. slide bush dia25.sldprt
86.5 KB
218. slide shaft dia25x440.sldprt
83 KB
219. socket head cap screw_iso(ISO 4762 M16 x 35 --- 35N).sldprt
89.5 KB
220. tutup bawah.sldprt
86.5 KB
221. 泄露检测机.SLDASM
6.34 MB
222. 芞 (1).jpg
283 KB
223. 芞 (2).jpg
280 KB
224. 芞 (4).JPG
491 KB
225. 芞 (5).jpg
272 KB
226. 邿繞潰聆儂.x_t
31.4 MB
免责申明: 本网站模型由用户自行上传，如权利人发现存在误传其作品情形，请及时与本站联系。
【泄漏检测机3】相关作品
滚动更载更多~
提示
×

下载该图档需要消耗0金币！

确认下载
联系与合作
关于我们
免责申明
侵权处理
联系我们
服务与支持
注册协议
隐私政策
广告合作
网站分类
模型库
Copyright © 2019-2025 www.shanhu3d.com 珊瑚网 All Rights Reserved. 皖ICP备17011993号
