# | 文件名称 | 文件大小 |
---|---|---|
1 | 51104_AllCATPart.CATPart | 784 KB |
2 | A1.CATProduct | 145 KB |
3 | A1_Servohalter.CATPart | 321 KB |
4 | A2.CATProduct | 138 KB |
5 | A3.CATProduct | 123 KB |
6 | A3_Servohalter.CATPart | 644 KB |
7 | A4.CATProduct | 103 KB |
8 | A4_1.CATPart | 1.05 MB |
9 | A4_Servohalter.CATPart | 190 KB |
10 | A5.CATProduct | 53.9 KB |
11 | A5_1.CATPart | 417 KB |
12 | A5_2.CATPart | 421 KB |
13 | A5_Flansch.CATPart | 1.04 MB |
14 | A6.CATProduct | 51.3 KB |
15 | Coffee Mug.CATPart | 2.29 MB |
16 | Deckel_Gehaeuse.CATPart | 158 KB |
17 | Deckel_Gehaeuse_A4.CATPart | 368 KB |
18 | Deckel_Schwinge.CATPart | 1.69 MB |
19 | Einsatz_608zz.CATPart | 272 KB |
20 | Einsatz_Servohorn.CATPart | 699 KB |
21 | Gear_1-1.CATPart | 755 KB |
22 | Gear_2-1.CATPart | 1.38 MB |
23 | Gripper.CATProduct | 90 KB |
24 | Gripper_Base-1.CATPart | 585 KB |
25 | Huelse.CATPart | 221 KB |
26 | ISO_7046-2_M2.5x5-H2_STEEL_GRADE_A_COUNTERSUNK_FLAT_HEAD_SCREW.CATPart | 171 KB |
27 | ISO_7046-2_M2.5x8-H2_STEEL_GRADE_A_COUNTERSUNK_FLAT_HEAD_SCREW.CATPart | 171 KB |
28 | ISO_7046-2_M3x10-H2_STEEL_GRADE_A_COUNTERSUNK_FLAT_HEAD_SCREW.CATPart | 173 KB |
29 | ISO_7046-2_M3x16-H2_STEEL_GRADE_A_COUNTERSUNK_FLAT_HEAD_SCREW.CATPart | 173 KB |
30 | LF-20MG.CATPart | 610 KB |
31 | LF-20MG_Gehaeuse.CATPart | 590 KB |
32 | LF-20MG_Gehaeuse_2.CATPart | 586 KB |
33 | LF-20MG_Halter.CATPart | 540 KB |
34 | Lagerfassung_A4.CATPart | 476 KB |
35 | Loeffelhalter.CATPart | 2.05 MB |
36 | MG92B.CATPart | 380 KB |
37 | Parametric-Gear.CATPart | 1.01 MB |
38 | Platte.CATPart | 159 KB |
39 | Referenzierung.CATPart | 920 KB |
40 | SOCKEL.CATProduct | 129 KB |
41 | Schwinge2.CATPart | 858 KB |
42 | Servohorn.CATPart | 579 KB |
43 | Sockel_Fuss_1.CATPart | 2.06 MB |
44 | Spender.CATPart | 715 KB |
45 | _V0.7.4.CATProduct | 683 KB |
46 | _V0.7.4.stp | 10 MB |
47 | bearing_608zz_1.CATPart | 783 KB |
48 | bearing_623zz_1.CATPart | 647 KB |
49 | bearing_694zz_1.CATPart | 673 KB |
50 | kinematic_01.CATPart | 127 KB |

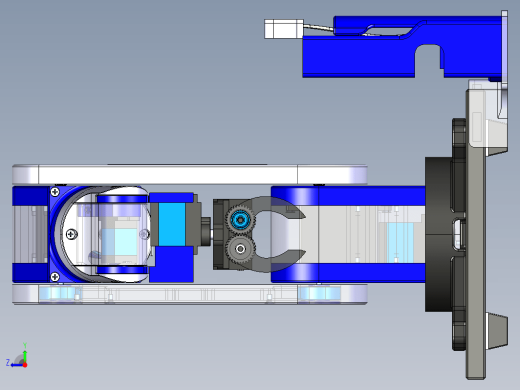

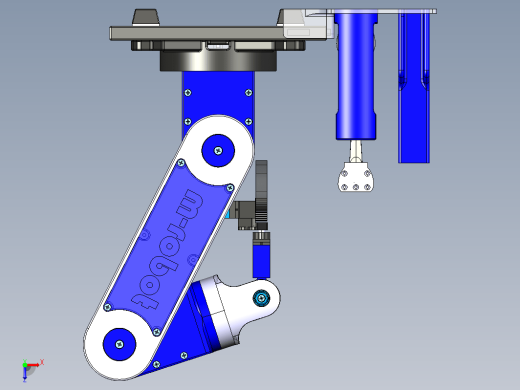

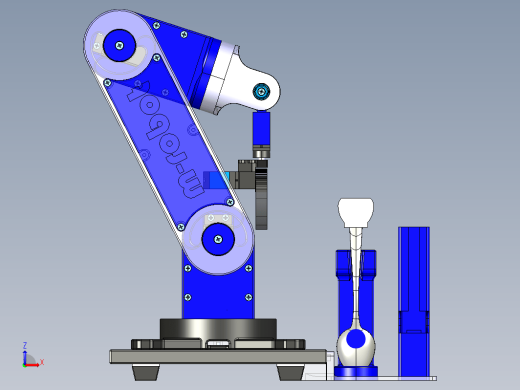

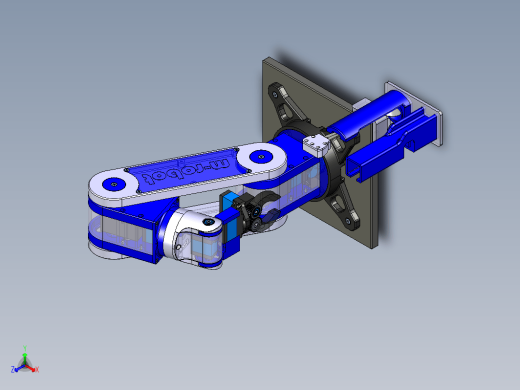

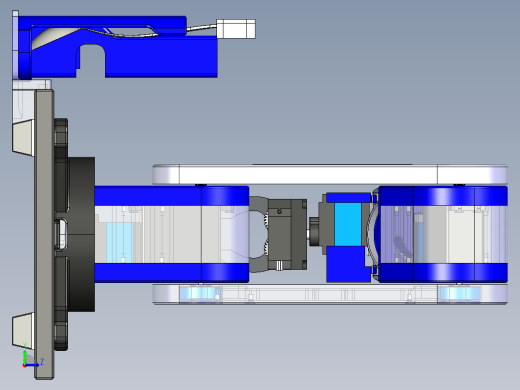

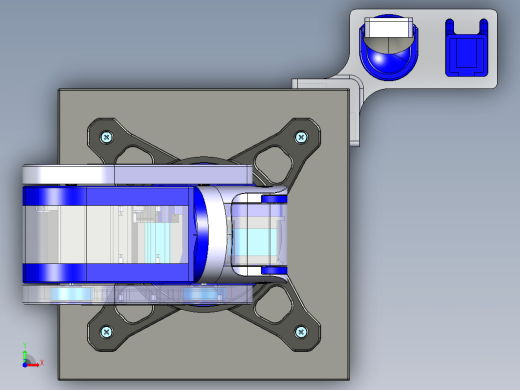

简易6 DOF机械臂V0.7.4catia,step 3D模型
图纸ID:10145196
文件大小:12.71M
软件版本:
参数/编辑:可修改,包括参数
上传时间:2022-09-11
图纸介绍:
