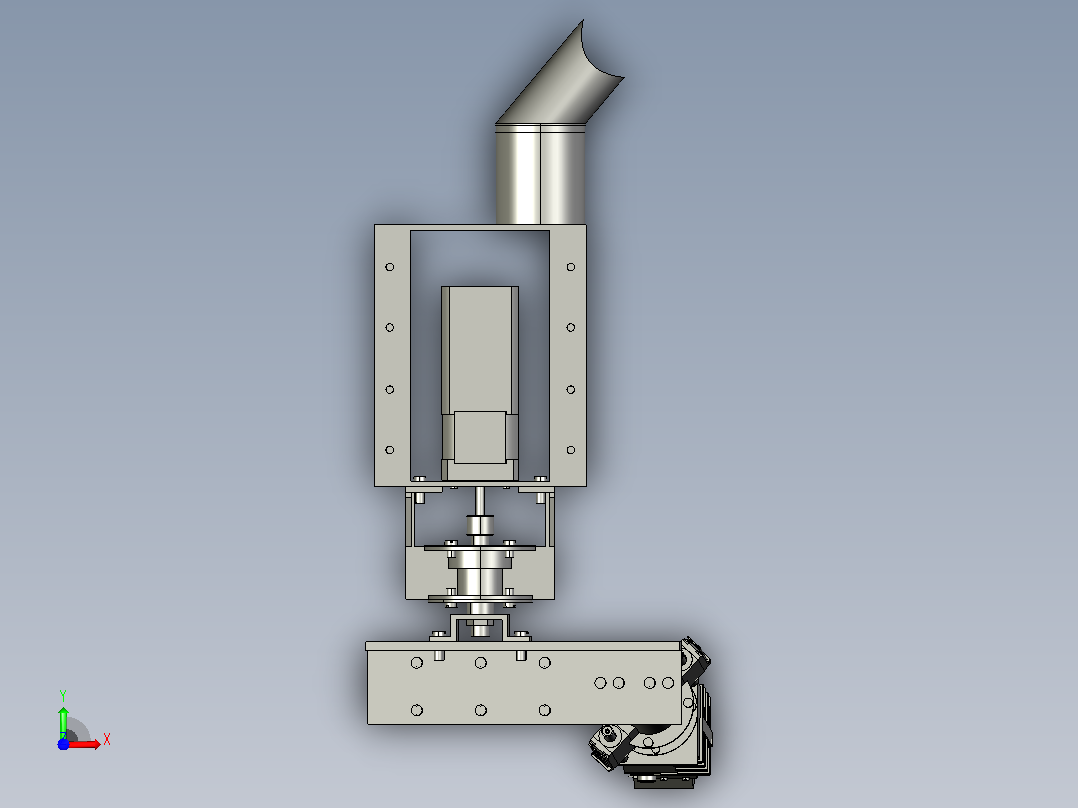

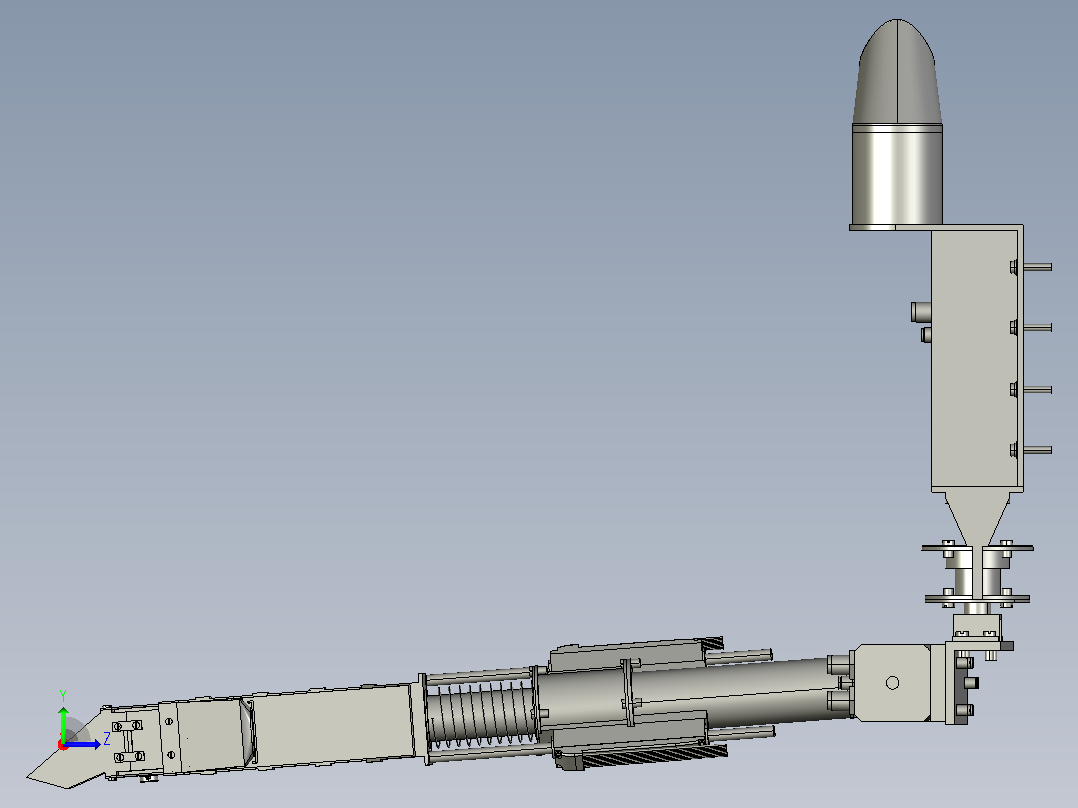

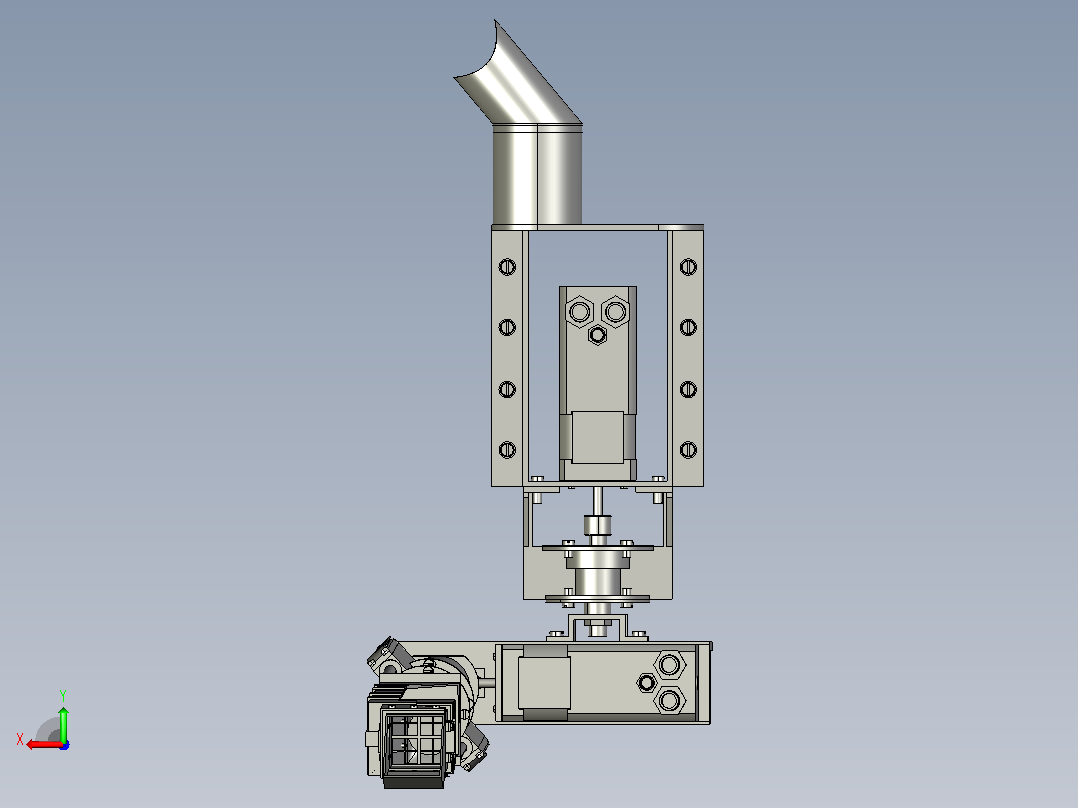

基于机械臂的挖掘机及风土取样装置step,stl 三维模型
三维机械图纸名称为：基于机械臂的挖掘机及风土取样装置，属于机械设备，工程机械分类，软件为step,stl, 三维模型格式为pdf,stl,step，可在线预览，可编辑，可供设计参考
模型参数
模型ID：10615537
模型大小：24.9M
软件版本： step,stl
模型格式：pdf,stl,step
是否可编辑：可修改，包括参数
上传时间：2026-10-11
图纸介绍：
下载模型
文件列表

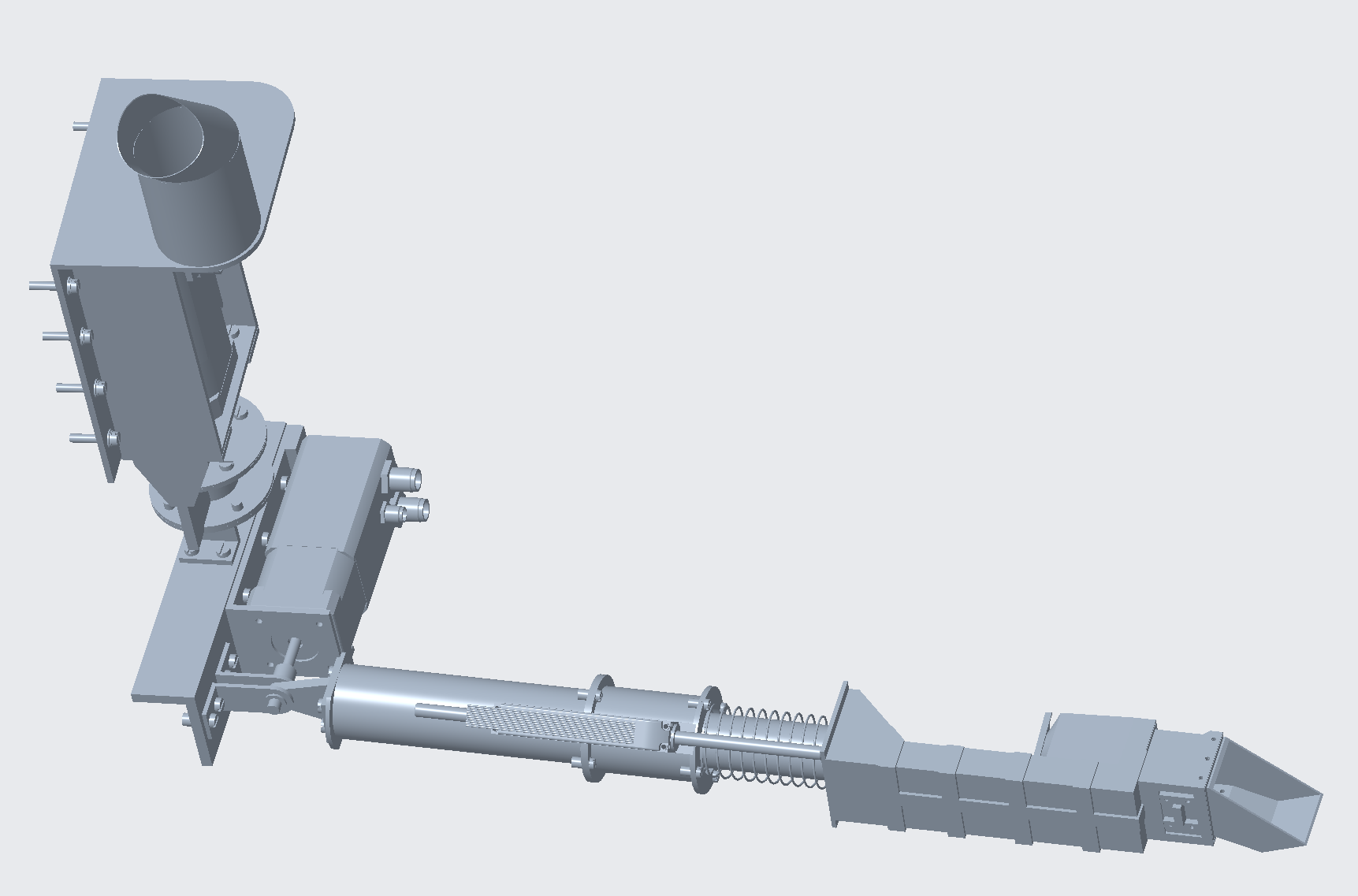

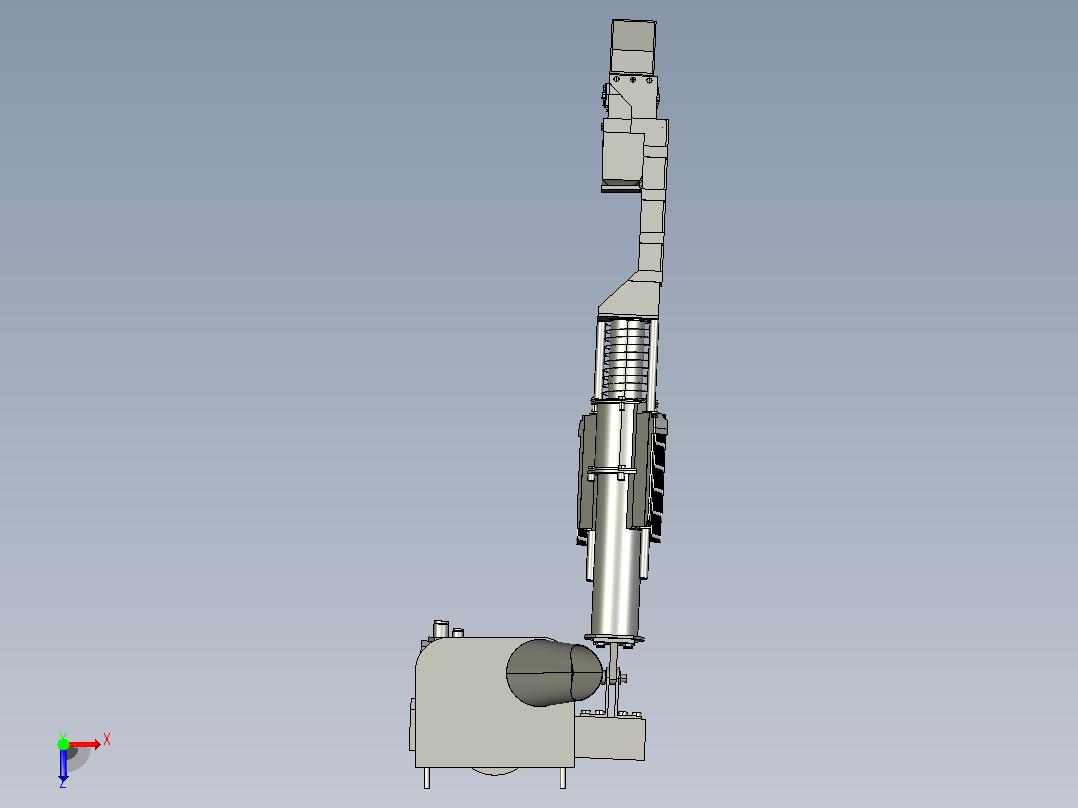

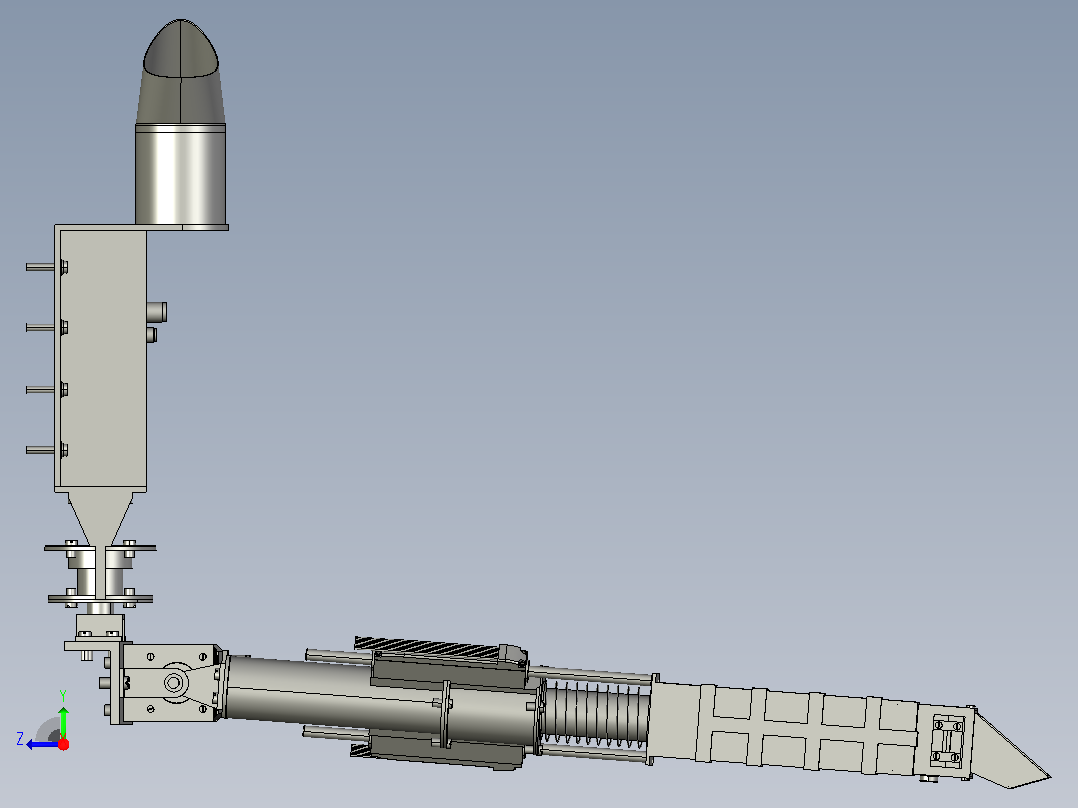

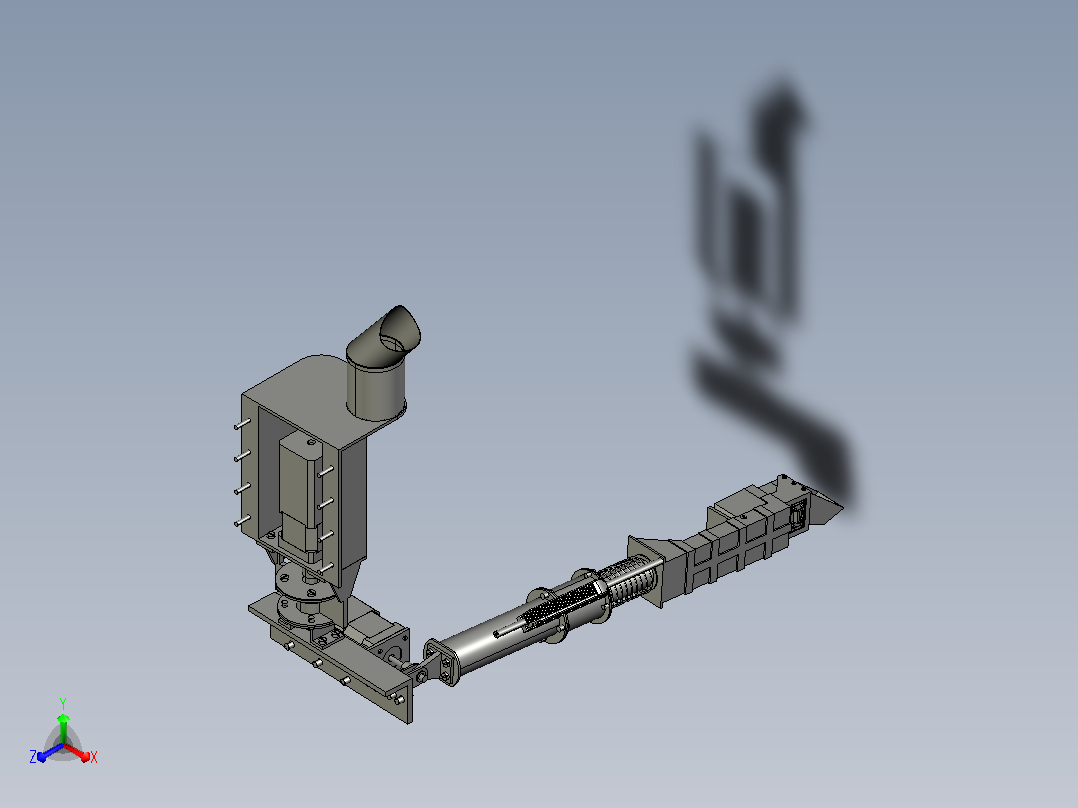

1. 211-robotic-arm-based-excavator-cum-regolith-sampling-device-STP.STL.png
88.5 KB
2. Lunar sampling technical document.pdf
512 KB

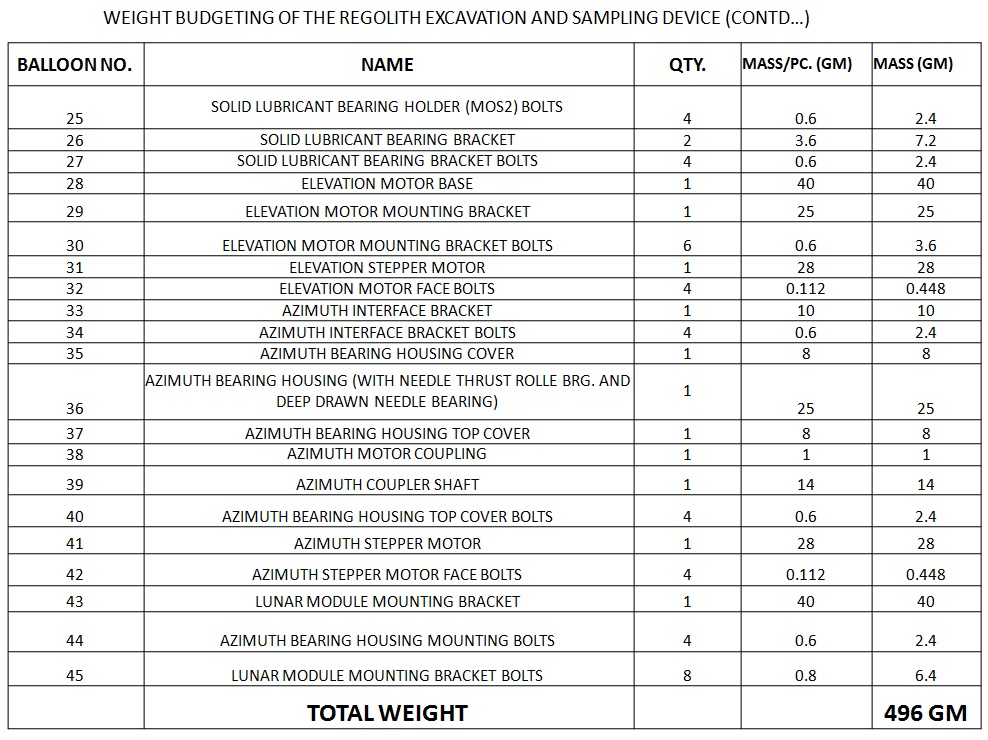

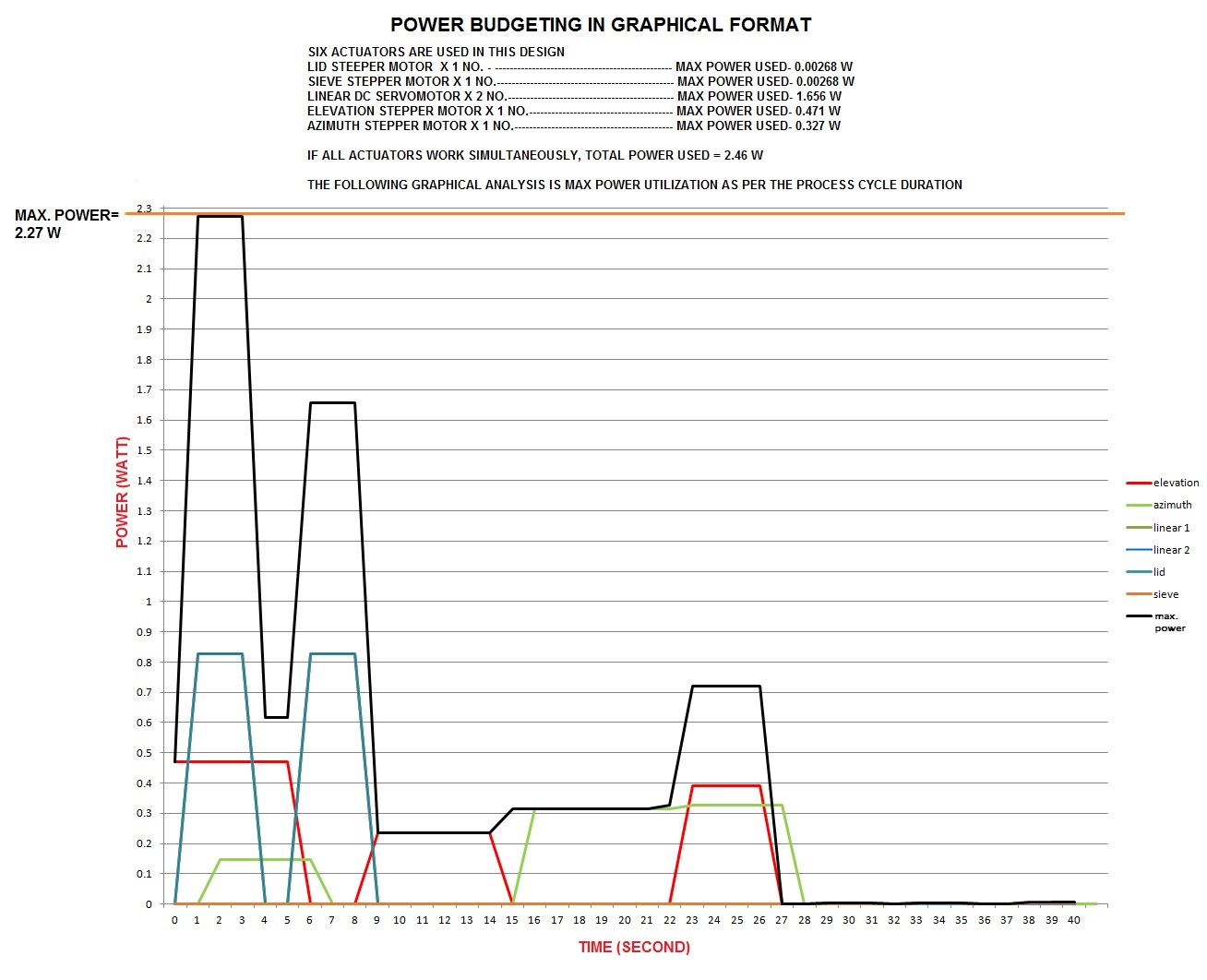

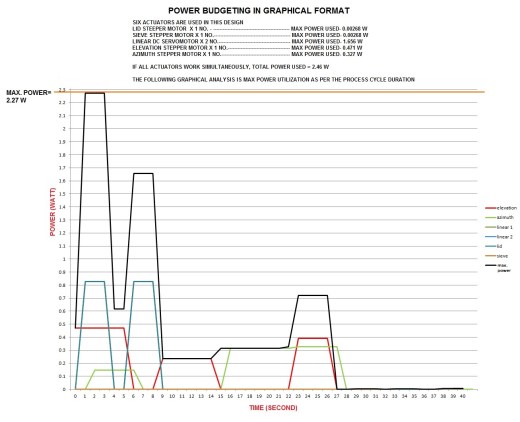

3. POWER BUDGET .jpg
223 KB

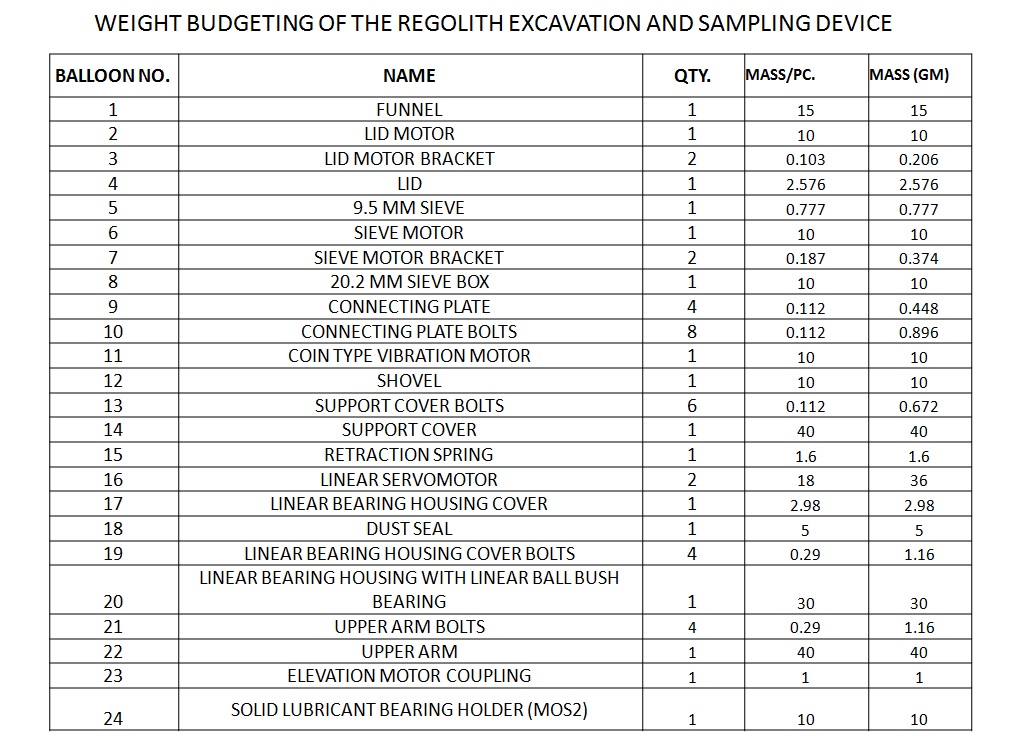

4. WEIGHT BUDGET 1.jpg

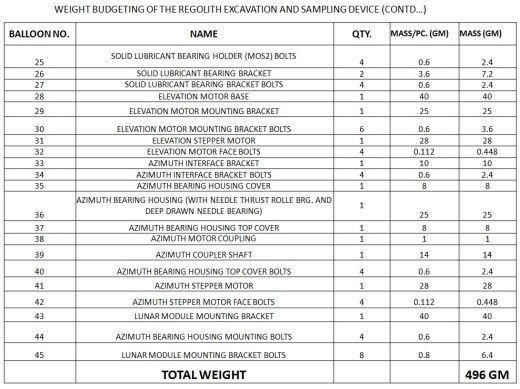

228 KB
5. WEIGHT BUDGET 2.jpg
253 KB

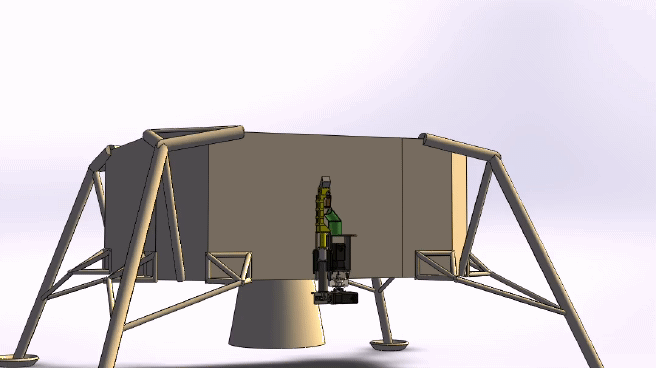

6. animodel_cam (1)_1.gif
2.52 MB

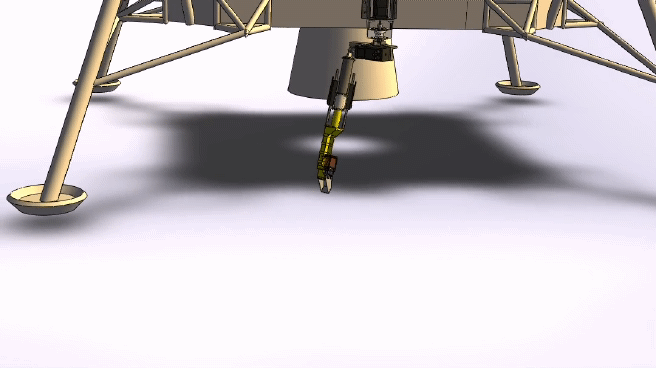

7. animodel_cam (1)_2.gif
2.96 MB

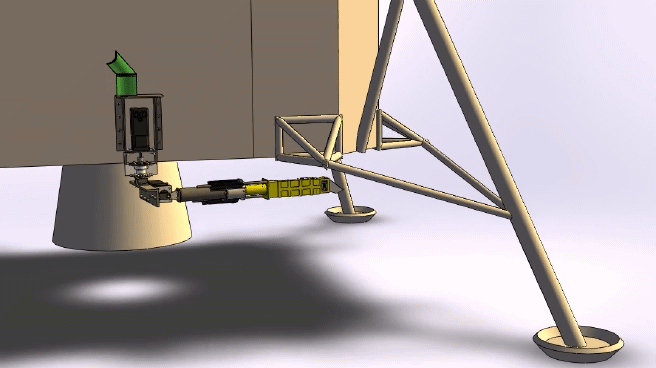

8. animodel_cam (1)_3.gif
2.11 MB

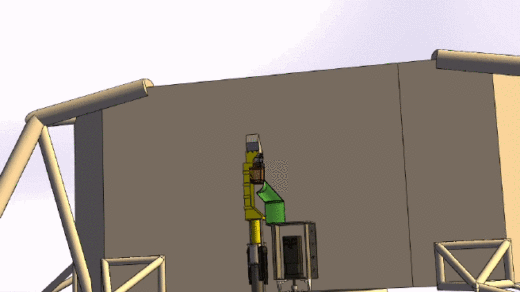

9. animodel_cam (1)_4.gif
1.32 MB

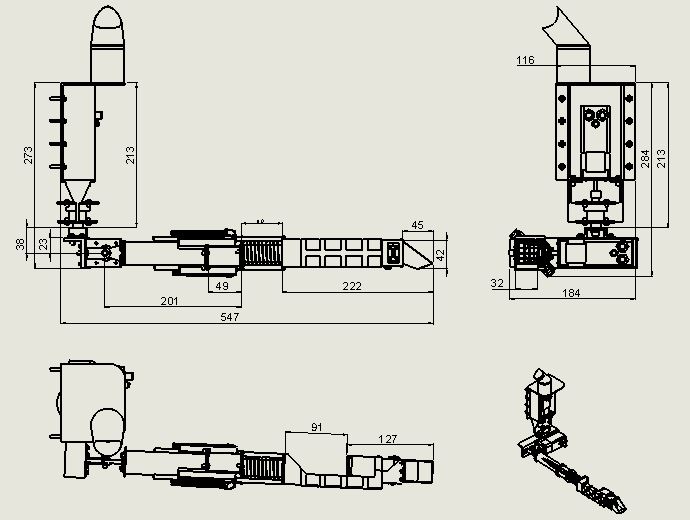

10. dimension rebuild assenbly .JPG
51.1 KB
11. rebuild final assembly - 300210008089-1.STL
26.6 KB
12. rebuild final assembly - 300210008089-10.STL
26.6 KB
13. rebuild final assembly - 300210008089-11.STL
26.6 KB
14. rebuild final assembly - 300210008089-12.STL
26.6 KB
15. rebuild final assembly - 300210008089-13.STL
26.6 KB
16. rebuild final assembly - 300210008089-7.STL
26.6 KB
17. rebuild final assembly - 300210008089-8.STL
26.6 KB
18. rebuild final assembly - 300210008089-9.STL
26.6 KB
19. rebuild final assembly - 300210319071 M2X4-1.STL
39.6 KB
20. rebuild final assembly - 300210319071 M2X4-10.STL
39.6 KB
21. rebuild final assembly - 300210319071 M2X4-11.STL
39.6 KB
22. rebuild final assembly - 300210319071 M2X4-12.STL
39.6 KB
23. rebuild final assembly - 300210319071 M2X4-13.STL
39.6 KB
24. rebuild final assembly - 300210319071 M2X4-14.STL
39.6 KB
25. rebuild final assembly - 300210319071 M2X4-15.STL
39.6 KB
26. rebuild final assembly - 300210319071 M2X4-16.STL
39.6 KB
27. rebuild final assembly - 300210319071 M2X4-17.STL
39.6 KB
28. rebuild final assembly - 300210319071 M2X4-18.STL
39.6 KB
29. rebuild final assembly - 300210319071 M2X4-19.STL
39.6 KB
30. rebuild final assembly - 300210319071 M2X4-2.STL
39.6 KB
31. rebuild final assembly - 300210319071 M2X4-20.STL
39.6 KB
32. rebuild final assembly - 300210319071 M2X4-21.STL
39.6 KB
33. rebuild final assembly - 300210319071 M2X4-22.STL
39.6 KB
34. rebuild final assembly - 300210319071 M2X4-23.STL
39.6 KB
35. rebuild final assembly - 300210319071 M2X4-24.STL
39.6 KB
36. rebuild final assembly - 300210319071 M2X4-25.STL
39.6 KB
37. rebuild final assembly - 300210319071 M2X4-26.STL
39.6 KB
38. rebuild final assembly - 300210319071 M2X4-3.STL
39.6 KB
39. rebuild final assembly - 300210319071 M2X4-4.STL
39.6 KB
40. rebuild final assembly - 300210319071 M2X4-5.STL
39.6 KB
41. rebuild final assembly - 300210319071 M2X4-6.STL
39.6 KB
42. rebuild final assembly - 300210319071 M2X4-7.STL
39.6 KB
43. rebuild final assembly - 300210319071 M2X4-8.STL
39.6 KB
44. rebuild final assembly - 300210319071 M2X4-9.STL
39.6 KB
45. rebuild final assembly - 300210330226 M3x4 CH HD SCREW-1.STL
30.3 KB
46. rebuild final assembly - 300210330226 M3x4 CH HD SCREW-2.STL
30.3 KB
47. rebuild final assembly - 300210330226 M3x4 CH HD SCREW-3.STL
30.3 KB
48. rebuild final assembly - 300210330226 M3x4 CH HD SCREW-4.STL
30.3 KB
49. rebuild final assembly - 300210330226 M3x4 CH HD SCREW-5.STL
30.3 KB
50. rebuild final assembly - 300210330226 M3x4 CH HD SCREW-6.STL
30.3 KB
51. rebuild final assembly - 300210330226 M3x4 CH HD SCREW-7.STL
30.3 KB
52. rebuild final assembly - 300210330226 M3x4 CH HD SCREW-8.STL
30.3 KB
53. rebuild final assembly - 300210338180 M4 X 6 CH HD SCREEW-10.STL
30.1 KB
54. rebuild final assembly - 300210338180 M4 X 6 CH HD SCREEW-11.STL
30.1 KB
55. rebuild final assembly - 300210338180 M4 X 6 CH HD SCREEW-13.STL
30.1 KB
56. rebuild final assembly - 300210338180 M4 X 6 CH HD SCREEW-14.STL
30.1 KB
57. rebuild final assembly - 300210338180 M4 X 6 CH HD SCREEW-15.STL
30.1 KB
58. rebuild final assembly - 300210338180 M4 X 6 CH HD SCREEW-16.STL
30.1 KB
59. rebuild final assembly - 300210338180 M4 X 6 CH HD SCREEW-18.STL
30.1 KB
60. rebuild final assembly - 300210338180 M4 X 6 CH HD SCREEW-2.STL
30.1 KB
61. rebuild final assembly - 300210338180 M4 X 6 CH HD SCREEW-20.STL
30.1 KB
62. rebuild final assembly - 300210338180 M4 X 6 CH HD SCREEW-21.STL
30.1 KB
63. rebuild final assembly - 300210338180 M4 X 6 CH HD SCREEW-22.STL
30.1 KB
64. rebuild final assembly - 300210338180 M4 X 6 CH HD SCREEW-24.STL
30.1 KB
65. rebuild final assembly - 300210338180 M4 X 6 CH HD SCREEW-26.STL
30.1 KB
66. rebuild final assembly - 300210338180 M4 X 6 CH HD SCREEW-30.STL
30.1 KB
67. rebuild final assembly - 300210338180 M4 X 6 CH HD SCREEW-32.STL
30.1 KB
68. rebuild final assembly - 300210338180 M4 X 6 CH HD SCREEW-34.STL
30.1 KB
69. rebuild final assembly - 300210338180 M4 X 6 CH HD SCREEW-36.STL
30.1 KB
70. rebuild final assembly - 300210338180 M4 X 6 CH HD SCREEW-4.STL
30.1 KB
71. rebuild final assembly - 300210338180 M4 X 6 CH HD SCREEW-44.STL
30.1 KB
72. rebuild final assembly - 300210338180 M4 X 6 CH HD SCREEW-46.STL
30.1 KB
73. rebuild final assembly - 300210338180 M4 X 6 CH HD SCREEW-48.STL
30.1 KB
74. rebuild final assembly - 300210338180 M4 X 6 CH HD SCREEW-5.STL
30.1 KB
75. rebuild final assembly - 300210338180 M4 X 6 CH HD SCREEW-50.STL
30.1 KB
76. rebuild final assembly - 300210338180 M4 X 6 CH HD SCREEW-52.STL
30.1 KB
77. rebuild final assembly - 300210338180 M4 X 6 CH HD SCREEW-54.STL
30.1 KB
78. rebuild final assembly - 300210338180 M4 X 6 CH HD SCREEW-56.STL
30.1 KB
79. rebuild final assembly - 300210338180 M4 X 6 CH HD SCREEW-58.STL
30.1 KB
80. rebuild final assembly - 300210338180 M4 X 6 CH HD SCREEW-6.STL
30.1 KB
81. rebuild final assembly - 300210338180 M4 X 6 CH HD SCREEW-8.STL
30.1 KB
82. rebuild final assembly - 300210338180 M4 X 6 CH HD SCREEW-9.STL
30.1 KB
83. rebuild final assembly - 303012210825-M4 Plain Washer TypeA-1.STL
20.4 KB
84. rebuild final assembly - 303012210825-M4 Plain Washer TypeA-3.STL
20.4 KB
85. rebuild final assembly - 303012210825-M4 Plain Washer TypeA-4.STL
20.4 KB
86. rebuild final assembly - 303012210825-M4 Plain Washer TypeA-5.STL
20.4 KB
87. rebuild final assembly - 303012210825-M4 Plain Washer TypeA-6.STL
20.4 KB
88. rebuild final assembly - 303012210825-M4 Plain Washer TypeA-7.STL
20.4 KB
89. rebuild final assembly - 303012210825-M4 Plain Washer TypeA-8.STL
20.4 KB
90. rebuild final assembly - 303012210825-M4 Plain Washer TypeA-9.STL
20.4 KB
91. rebuild final assembly - 303110234466-M4 Spring Washer TypeA-1.STL
21.7 KB
92. rebuild final assembly - 303110234466-M4 Spring Washer TypeA-3.STL
21.7 KB
93. rebuild final assembly - 303110234466-M4 Spring Washer TypeA-4.STL
21.7 KB
94. rebuild final assembly - 303110234466-M4 Spring Washer TypeA-5.STL
21.7 KB
95. rebuild final assembly - 303110234466-M4 Spring Washer TypeA-6.STL
21.7 KB
96. rebuild final assembly - 303110234466-M4 Spring Washer TypeA-7.STL
21.7 KB
97. rebuild final assembly - 303110234466-M4 Spring Washer TypeA-8.STL
21.7 KB
98. rebuild final assembly - 303110234466-M4 Spring Washer TypeA-9.STL
21.7 KB
99. rebuild final assembly - 6 mm dia stepper motor-1.STL
190 KB
100. rebuild final assembly - 6 mm dia stepper motor-2.STL
190 KB
101. rebuild final assembly - azimuth bracket 1-1.STL
39.3 KB
102. rebuild final assembly - azimuth brg housing top cover-1.STL
67.5 KB
103. rebuild final assembly - azimuth brg housing-1.STL
235 KB
104. rebuild final assembly - azimuth brg hsg lower cover-1.STL
57.7 KB
105. rebuild final assembly - azimuth motor bracket-1.STL
156 KB
106. rebuild final assembly - azimuth motor coupling-1.STL
44.7 KB
107. rebuild final assembly - azimuth shaft-1.STL
37.8 KB
108. rebuild final assembly - brg hsg.-1.STL
258 KB
109. rebuild final assembly - coin type vibrator-1.STL
220 KB
110. rebuild final assembly - dust seal cover-1.STL
72.5 KB
111. rebuild final assembly - dust seal-1.STL
290 KB
112. rebuild final assembly - elevation base 1-1.STL
245 KB
113. rebuild final assembly - elevation bracket 1-1.STL
34.8 KB
114. rebuild final assembly - elevation bracket 1-3.STL
34.8 KB
115. rebuild final assembly - elevation motor coupling-1.STL
27.2 KB
116. rebuild final assembly - funnel-1.STL
163 KB
117. rebuild final assembly - igus_mot-an-s-060-005-042-m-d-aaad_e94r8lnab21srz8xndjpexyyo-1.STL
178 KB
118. rebuild final assembly - igus_mot-an-s-060-005-042-m-d-aaad_e94r8lnab21srz8xndjpexyyo-3.STL
178 KB
119. rebuild final assembly - lid bracket-1.STL
20.9 KB
120. rebuild final assembly - lid bracket-2.STL
20.9 KB
121. rebuild final assembly - lid-1.STL
18.1 KB
122. rebuild final assembly - lm motor housing-1.STL
204 KB
123. rebuild final assembly - lm motor housing-3.STL
204 KB
124. rebuild final assembly - lm motor rod-1.STL
105 KB
125. rebuild final assembly - lm motor rod-3.STL
105 KB
126. rebuild final assembly - lock nut azimuth motor shaft-1.STL
11 KB
127. rebuild final assembly - plate1-1.STL
15.5 KB
128. rebuild final assembly - plate1-2.STL
15.5 KB
129. rebuild final assembly - plate1-3.STL
15.5 KB
130. rebuild final assembly - plate1-4.STL
15.5 KB
131. rebuild final assembly - sample container-1.STL
21.2 KB
132. rebuild final assembly - sample funnel-1.STL
101 KB
133. rebuild final assembly - sampler-1.STL
23.9 KB
134. rebuild final assembly - scooper-1.STL
82.8 KB
135. rebuild final assembly - sieve fine bracket-1.STL
20.3 KB
136. rebuild final assembly - sieve fine bracket-2.STL
20.3 KB
137. rebuild final assembly - sieve fine-1.STL
38.4 KB
138. rebuild final assembly - spring 2 reformable-1.STL
2.17 MB
139. rebuild final assembly - stepper motor bracket 1-1.STL
49.3 KB
140. rebuild final assembly - stepper motor bracket nema 17-1.STL
96.2 KB
141. rebuild final assembly - support cover-1.STL
97.8 KB
142. rebuild final assembly - upper arm-1.STL
151 KB
143. rebuild final assembly.STEP
4.78 MB

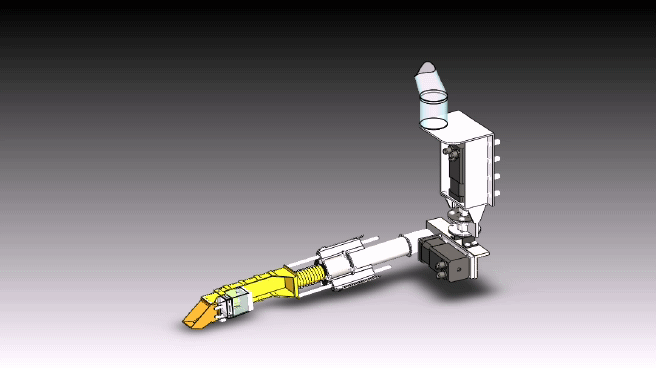

144. rebuild final assembly_explode_combine_1.gif
438 KB

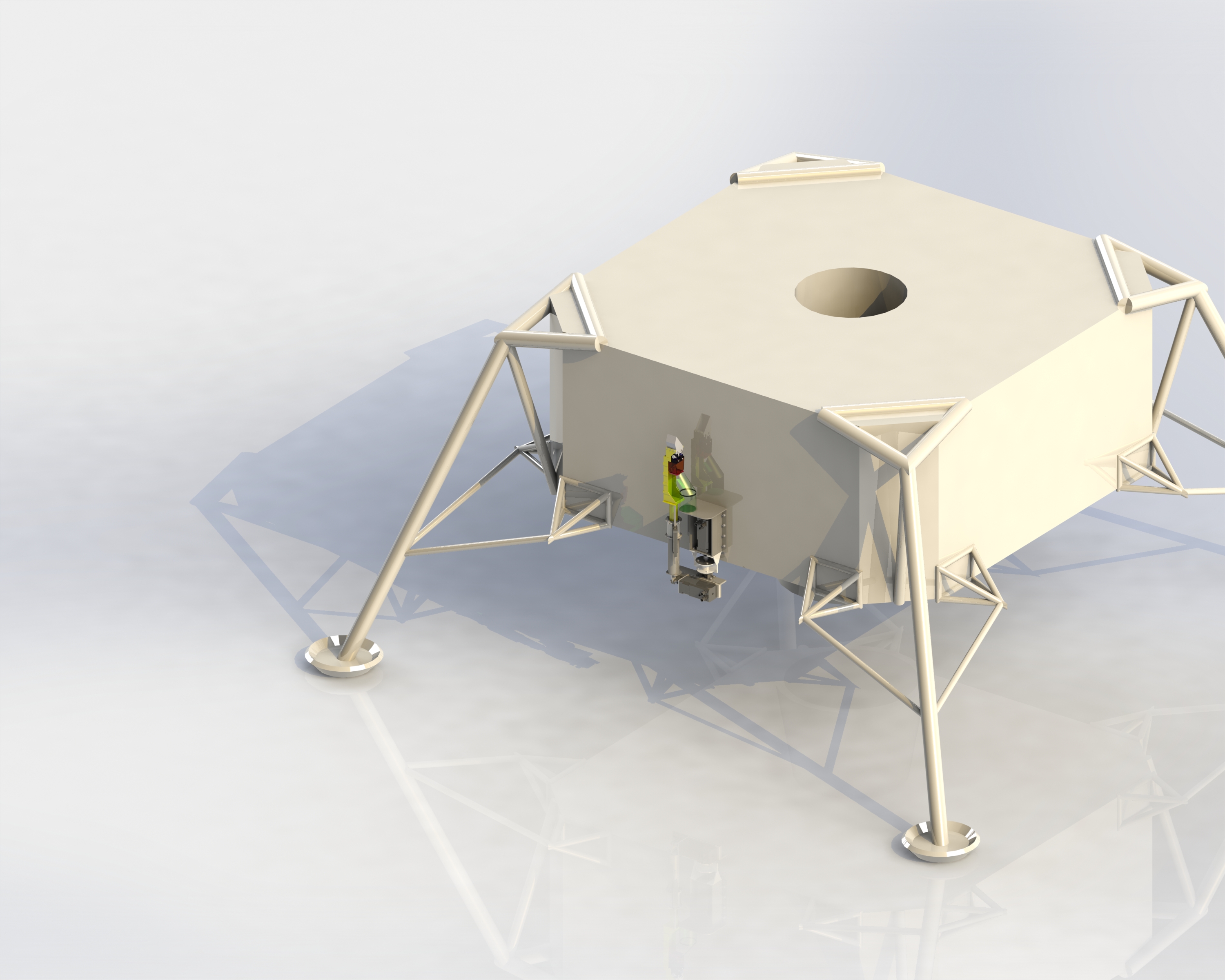

145. render with module1.JPG
2.03 MB

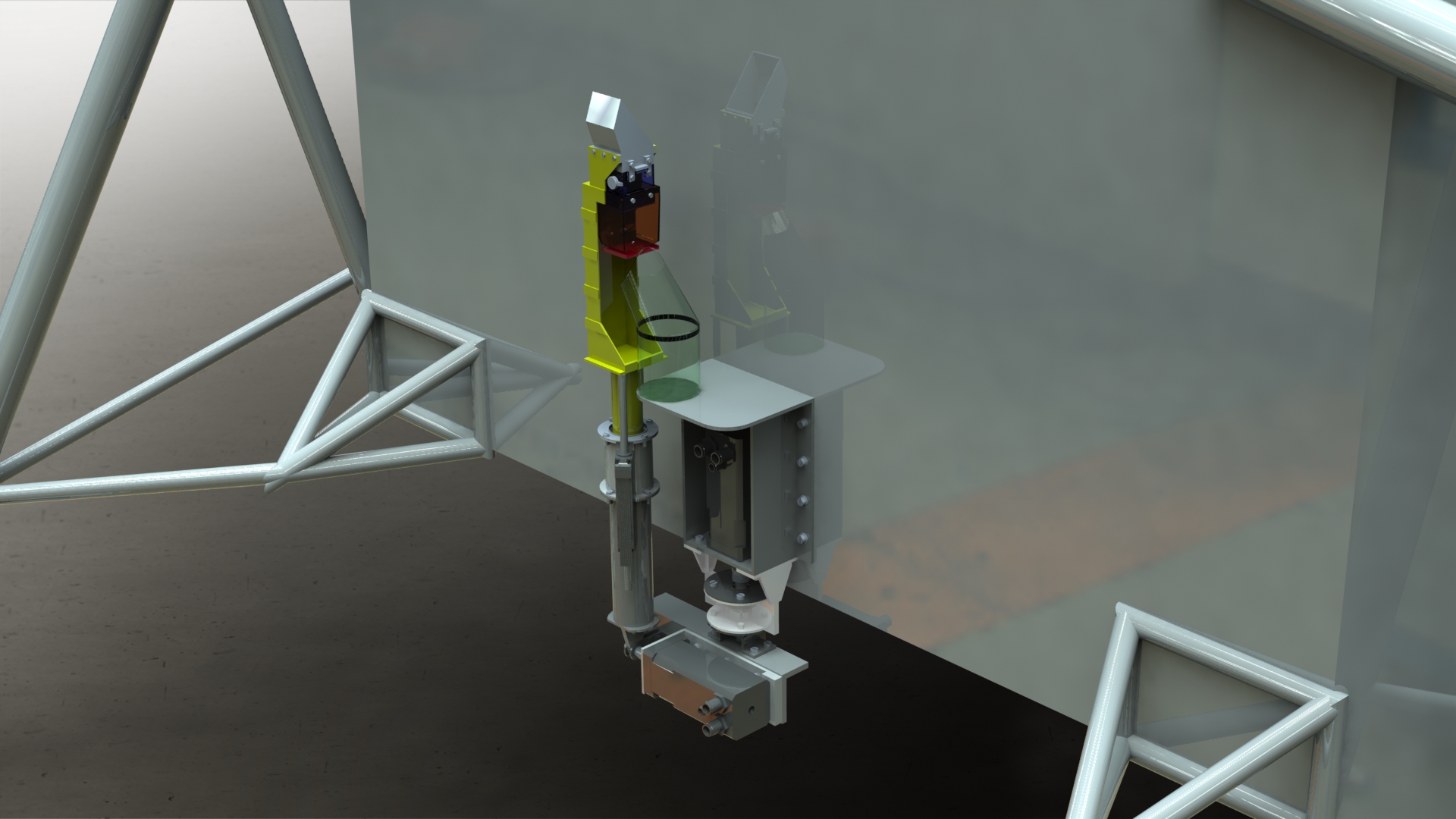

146. render with module3.JPG
746 KB

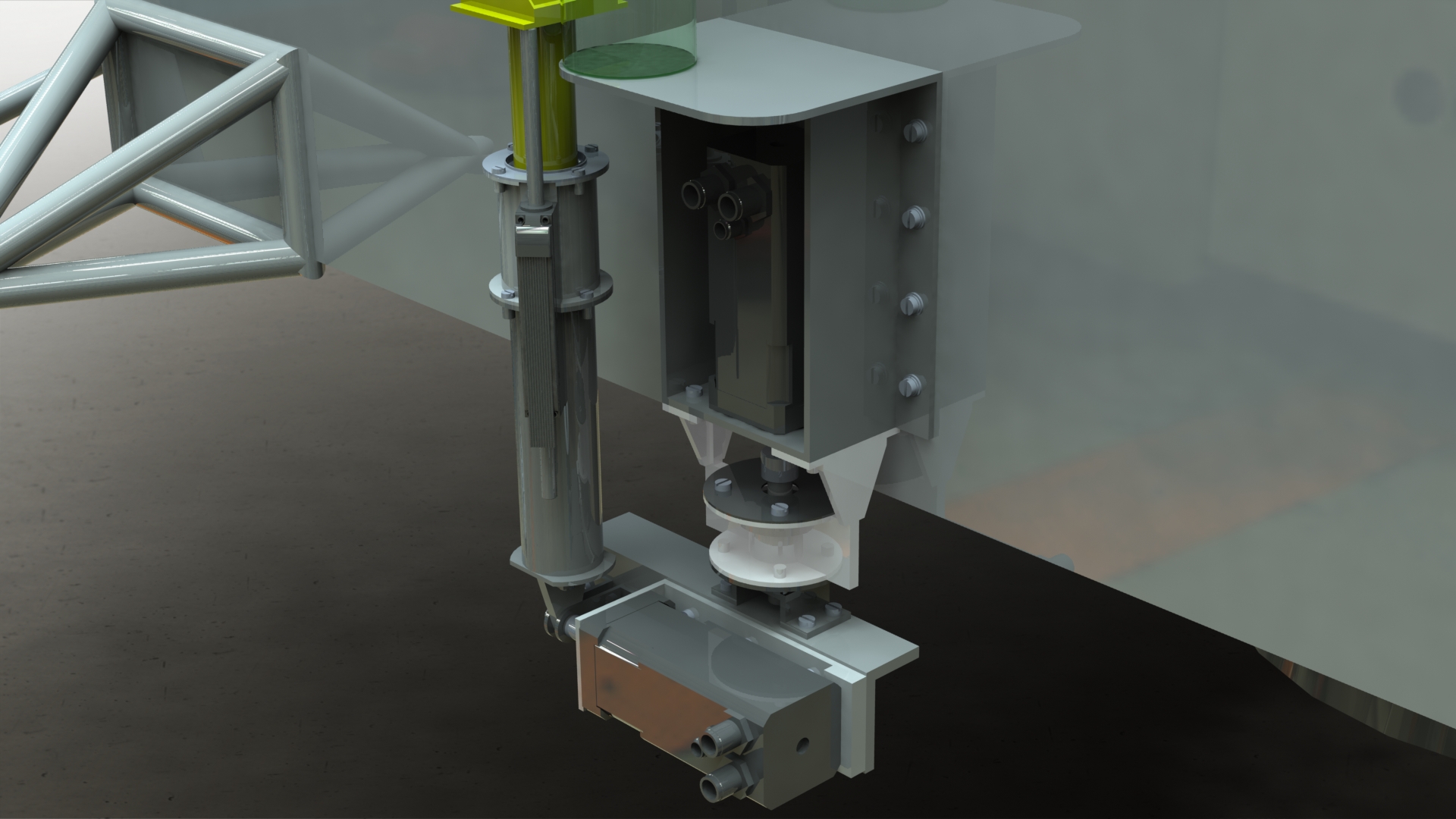

147. render with module4.JPG
732 KB

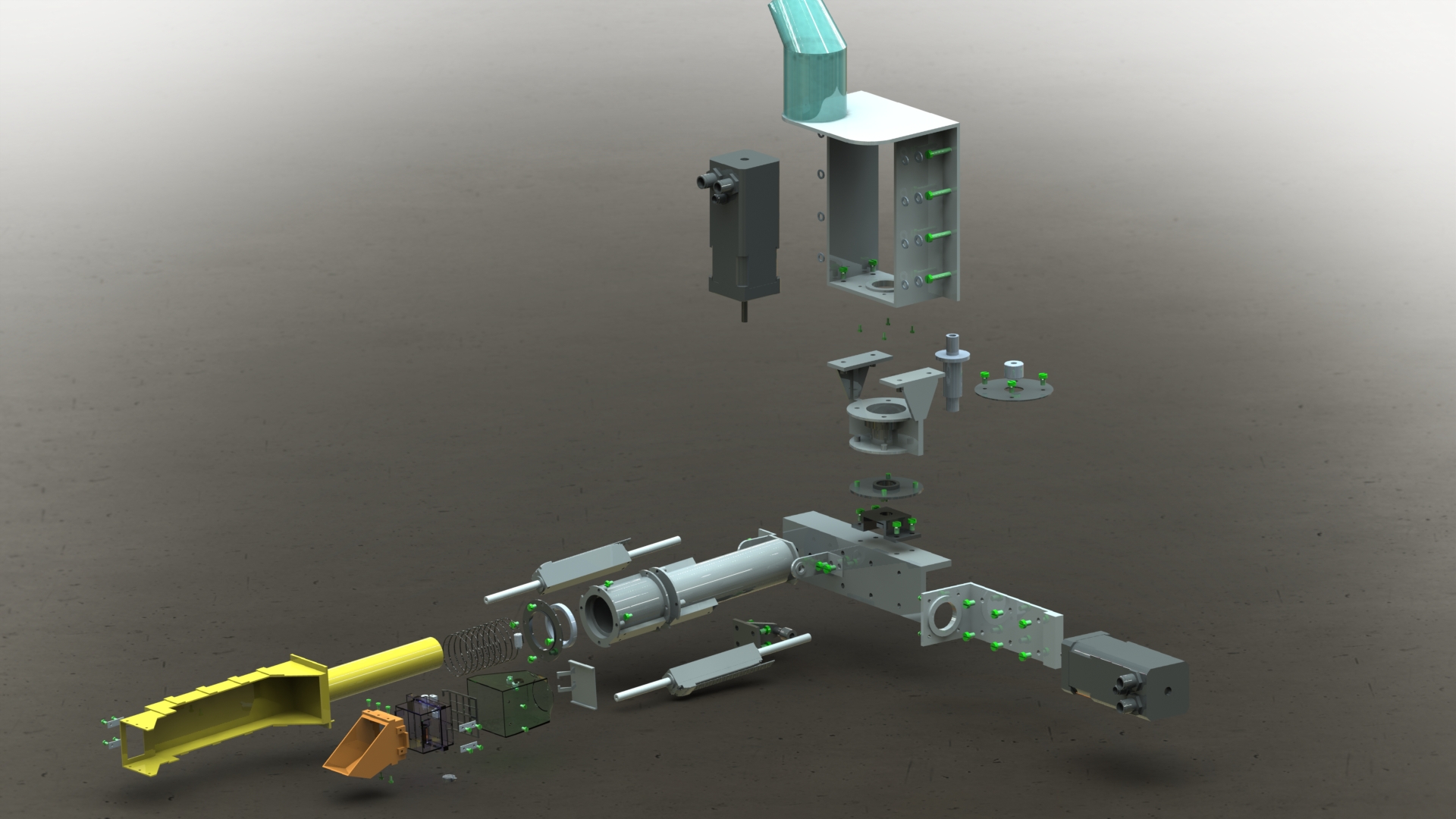

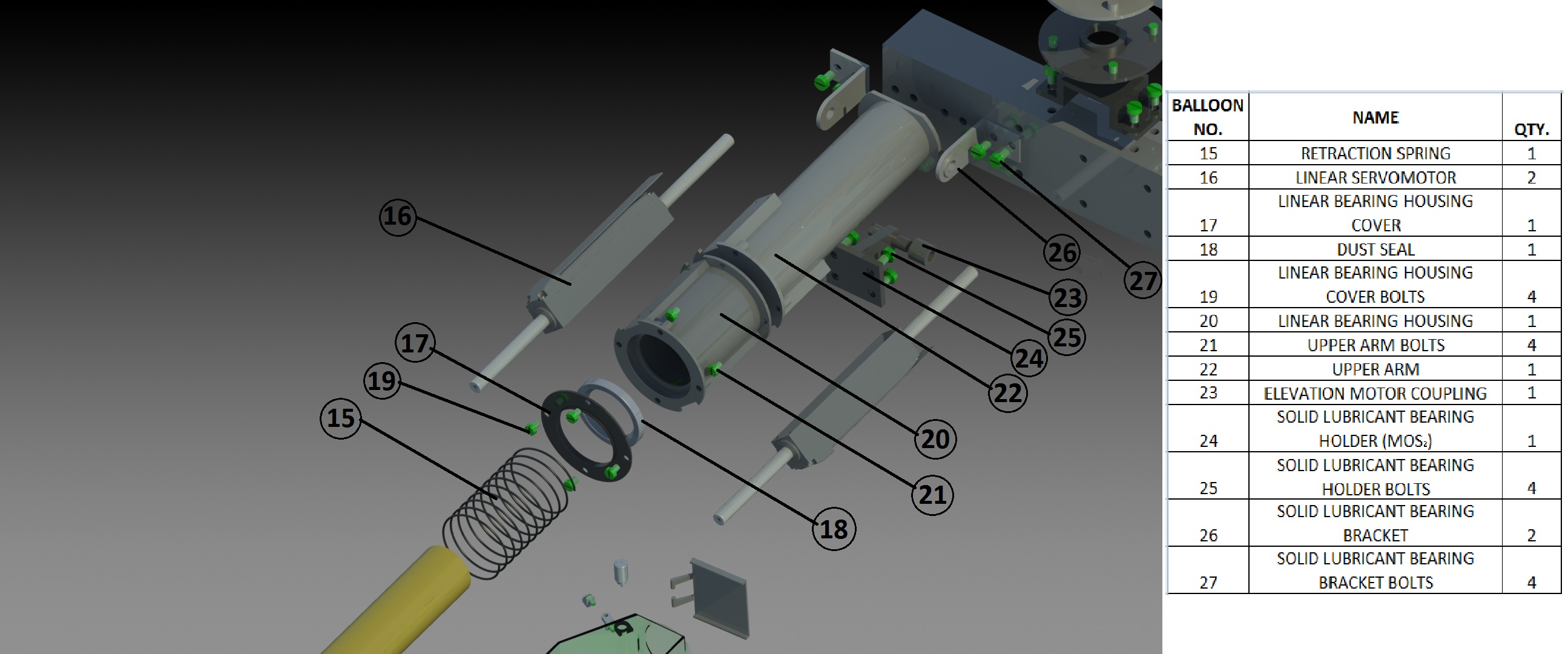

148. render wo module11_LABEL.jpg
413 KB

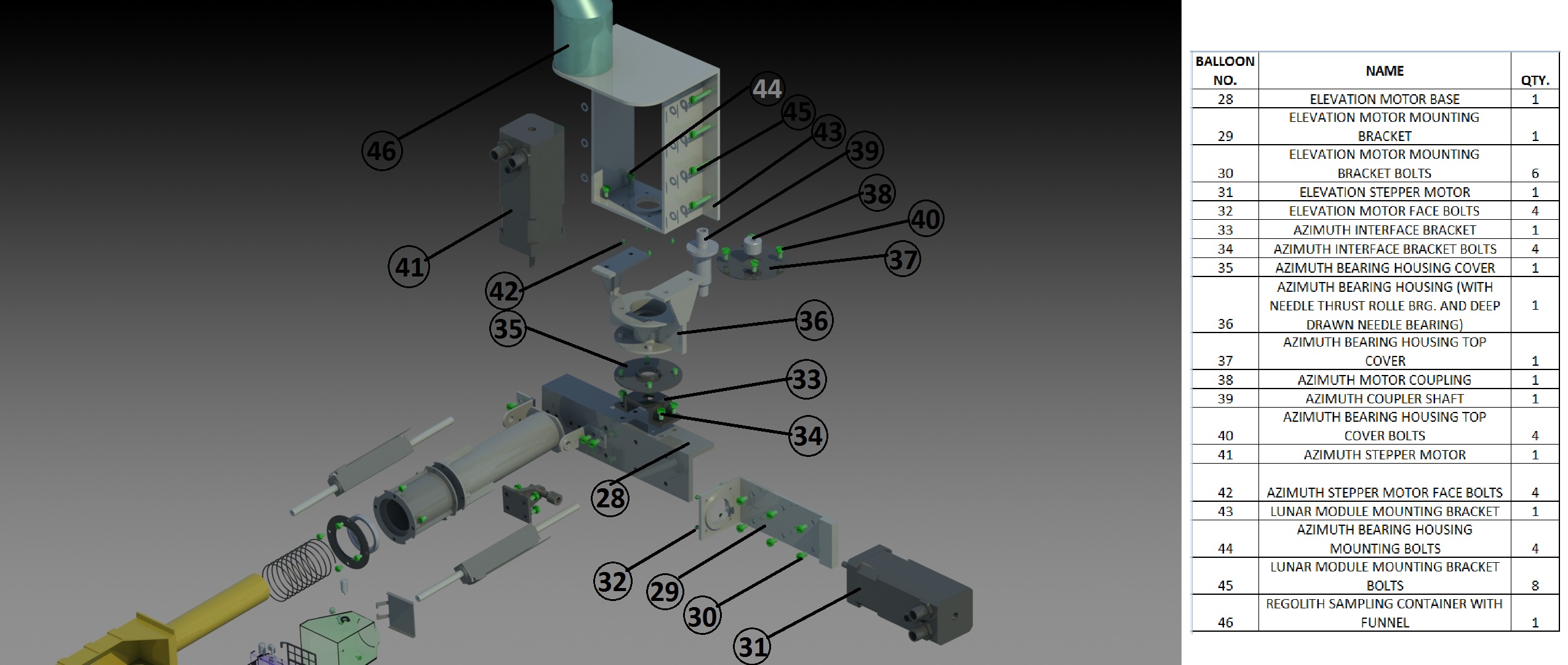

149. render wo module12_LABEL.jpg
465 KB

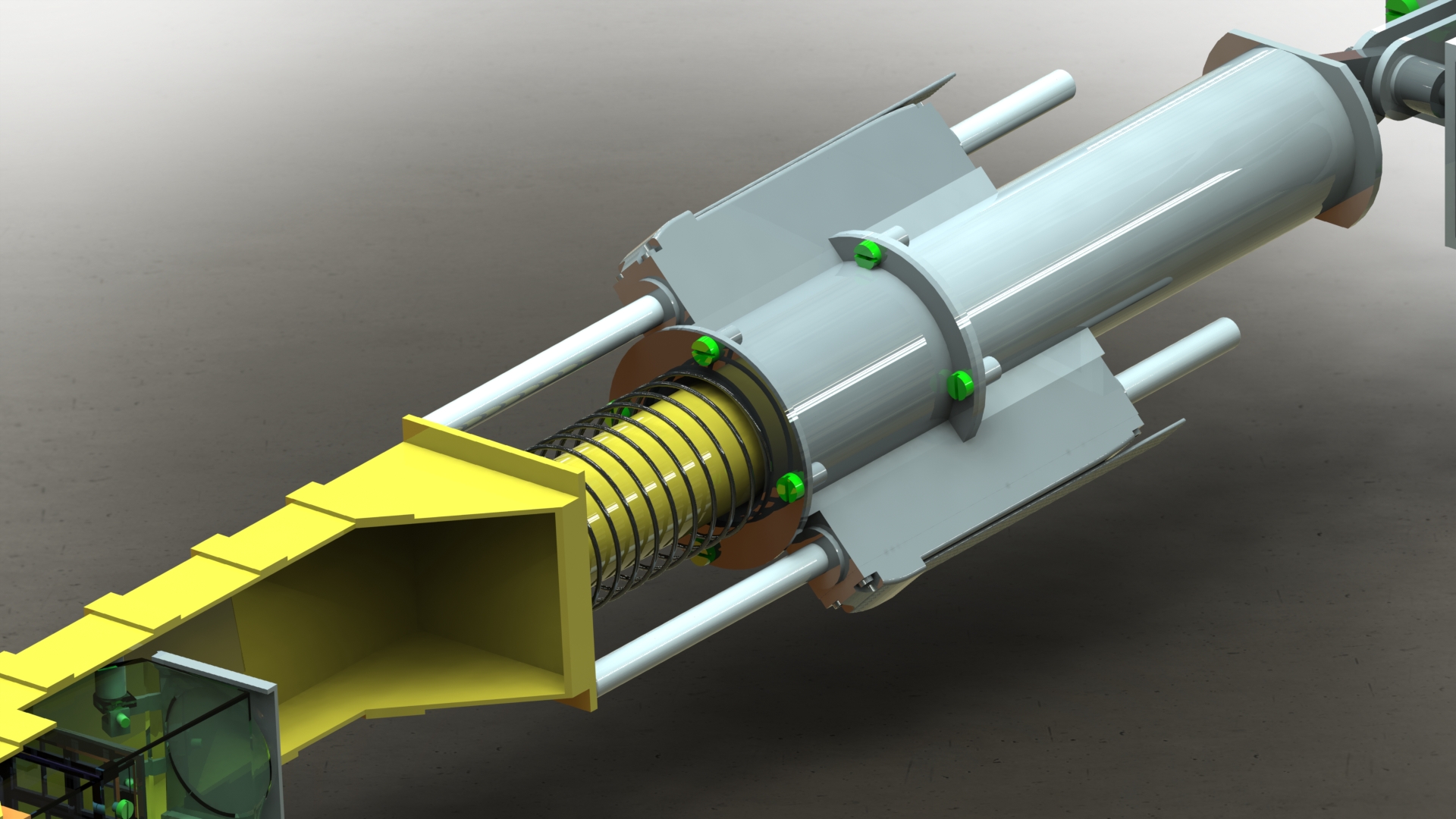

150. render wo module15.JPG
765 KB

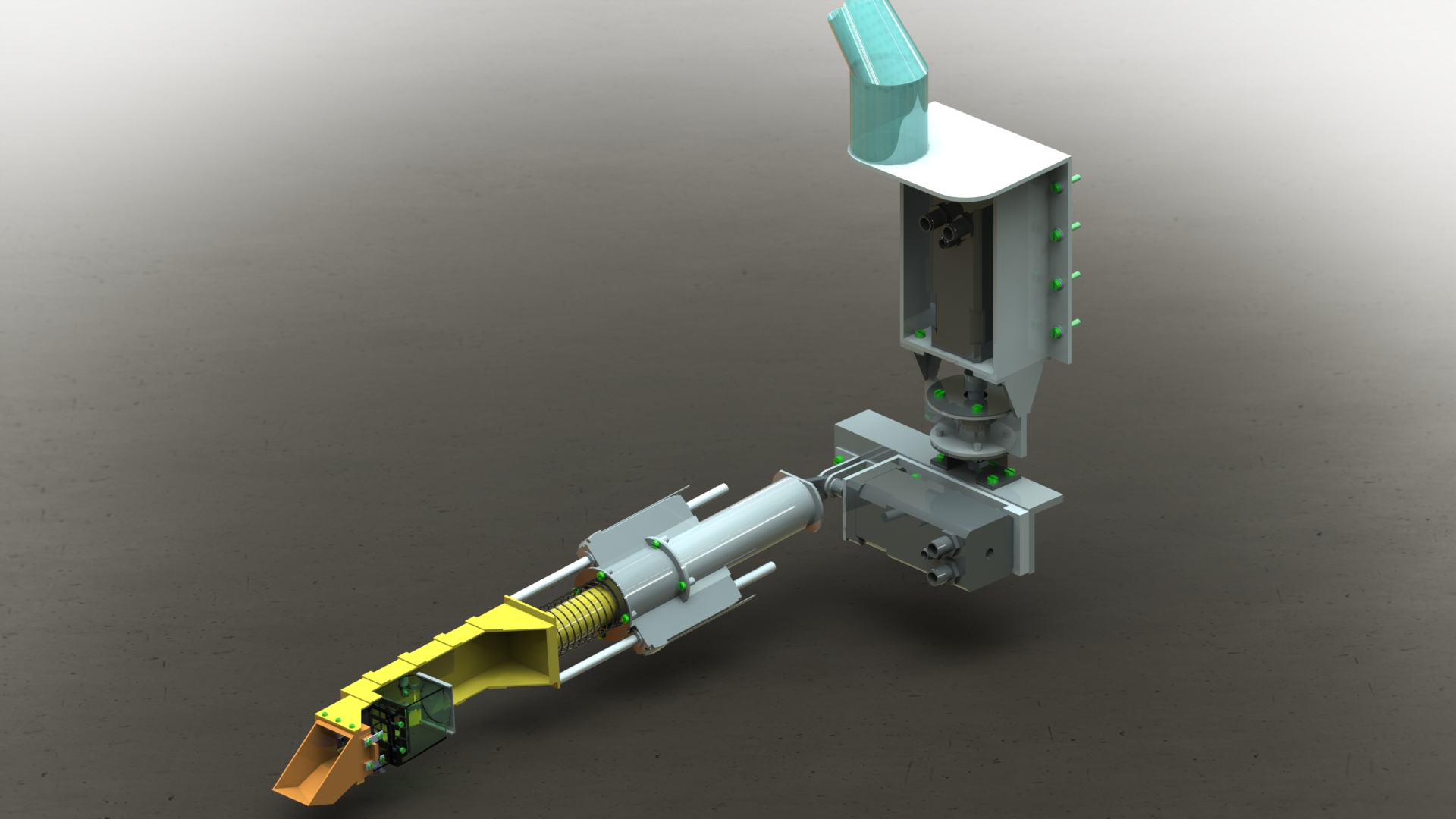

151. render wo module16.JPG
749 KB

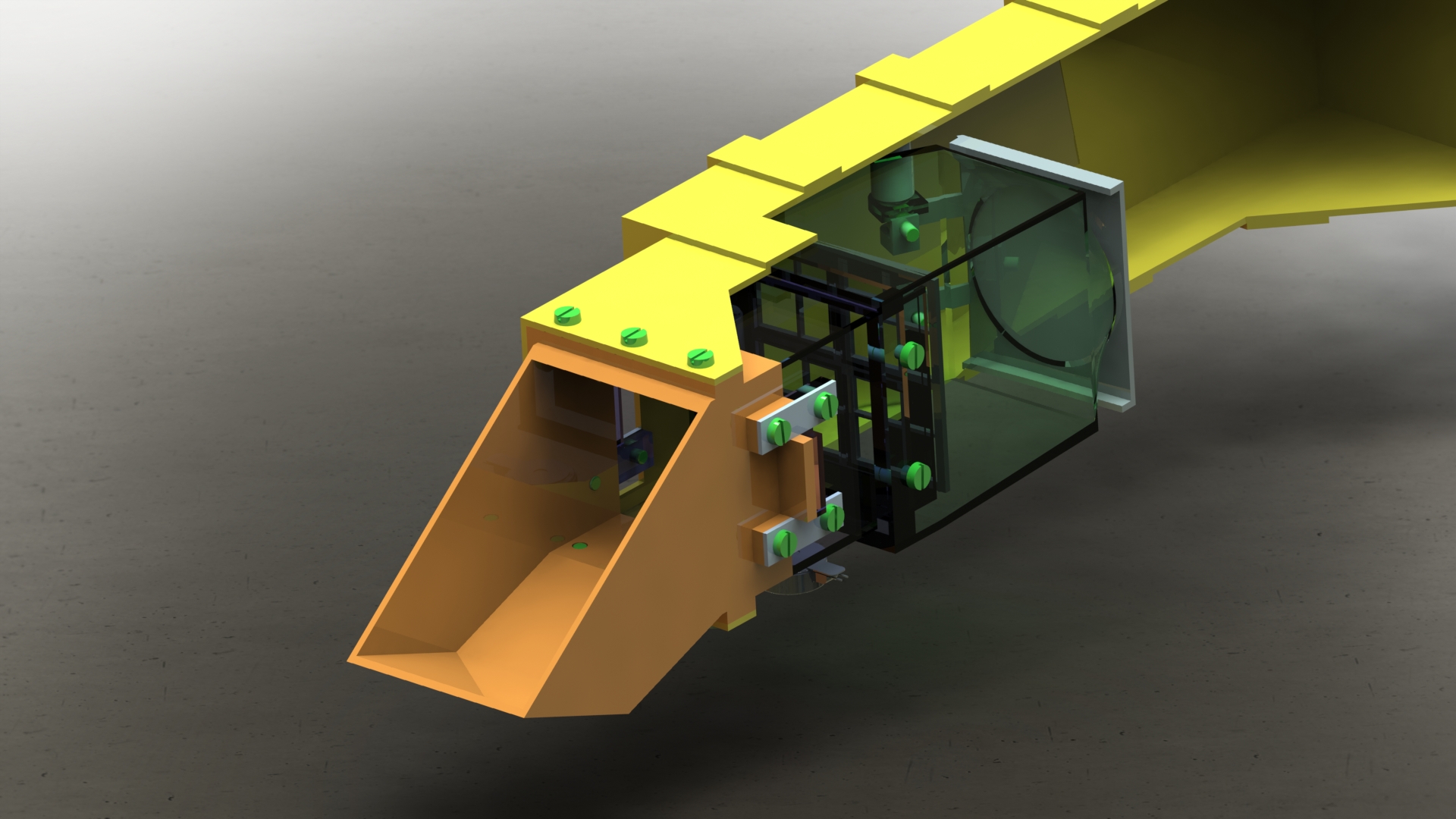

152. render wo module18.JPG
774 KB
153. render wo module19.JPG
848 KB

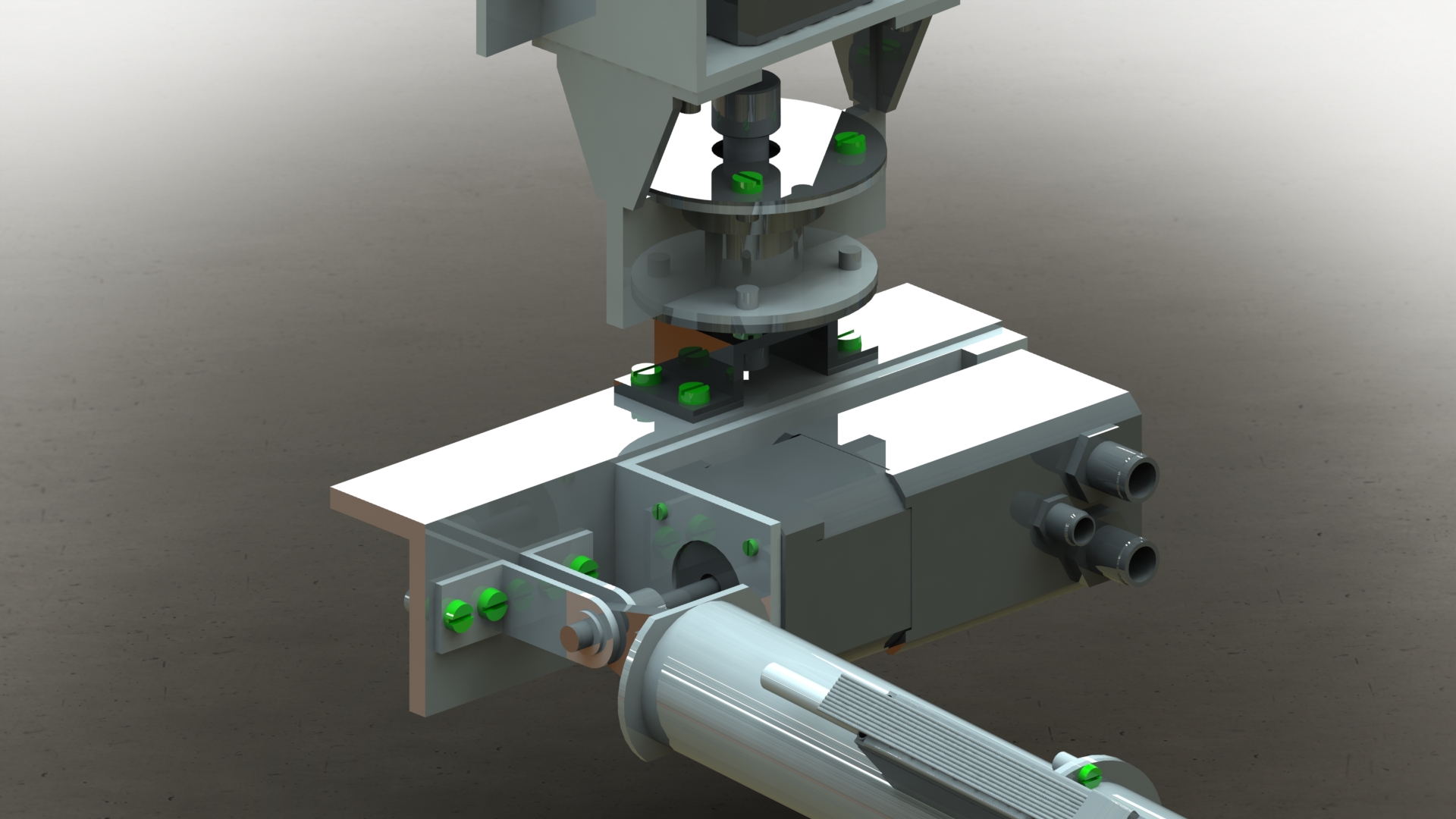

154. render wo module20.JPG
777 KB

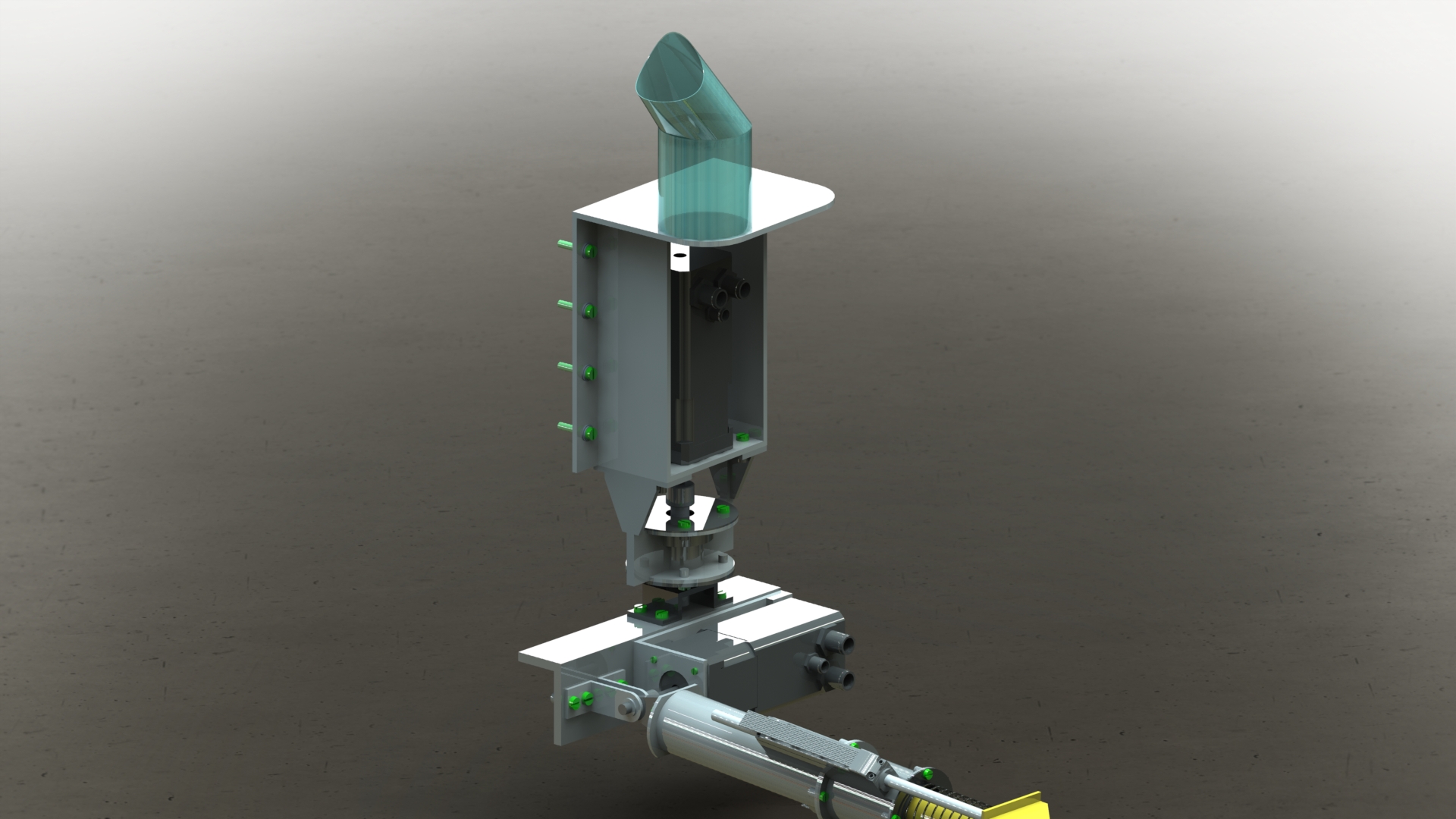

155. render wo module21.JPG
721 KB

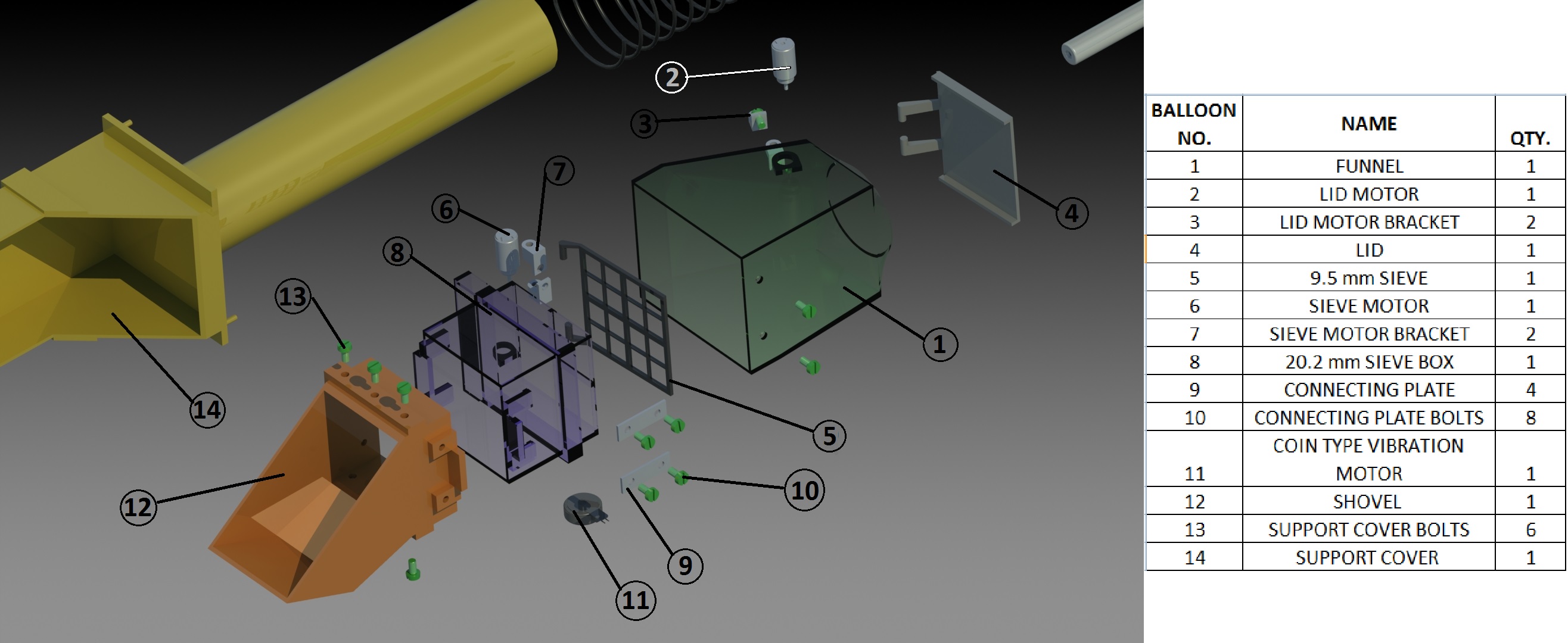

156. render wo module8_label.jpg
388 KB

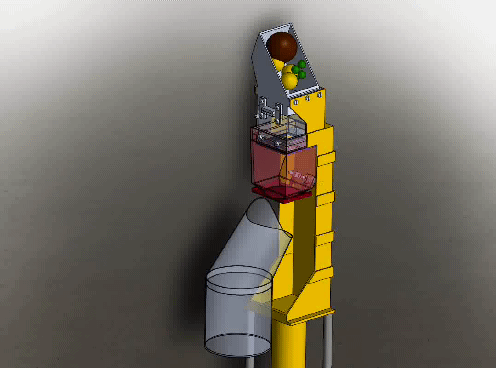

157. soil simulation_gif_1.gif
1.35 MB
