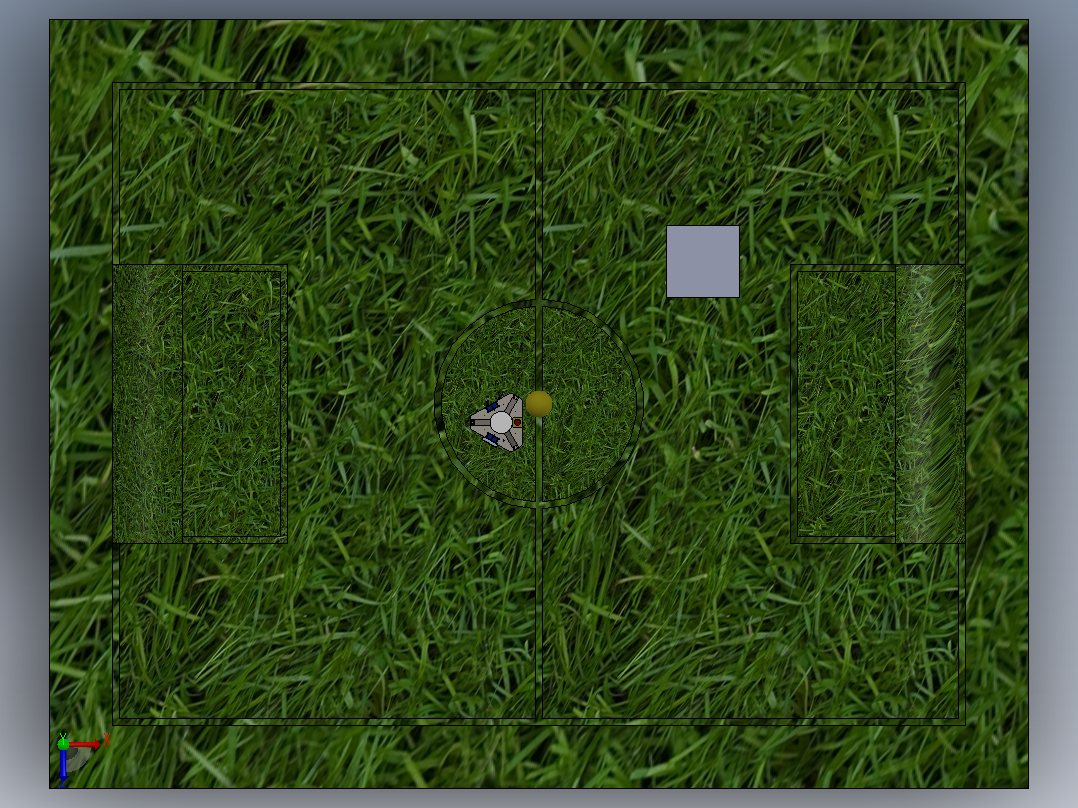

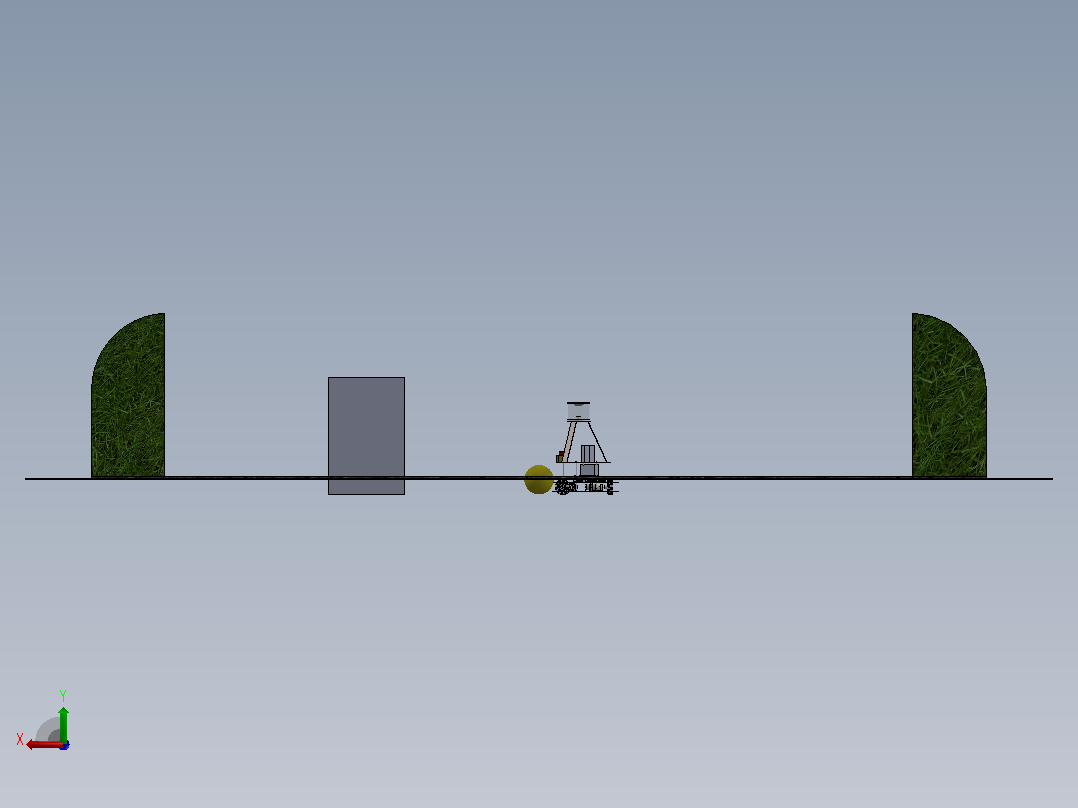

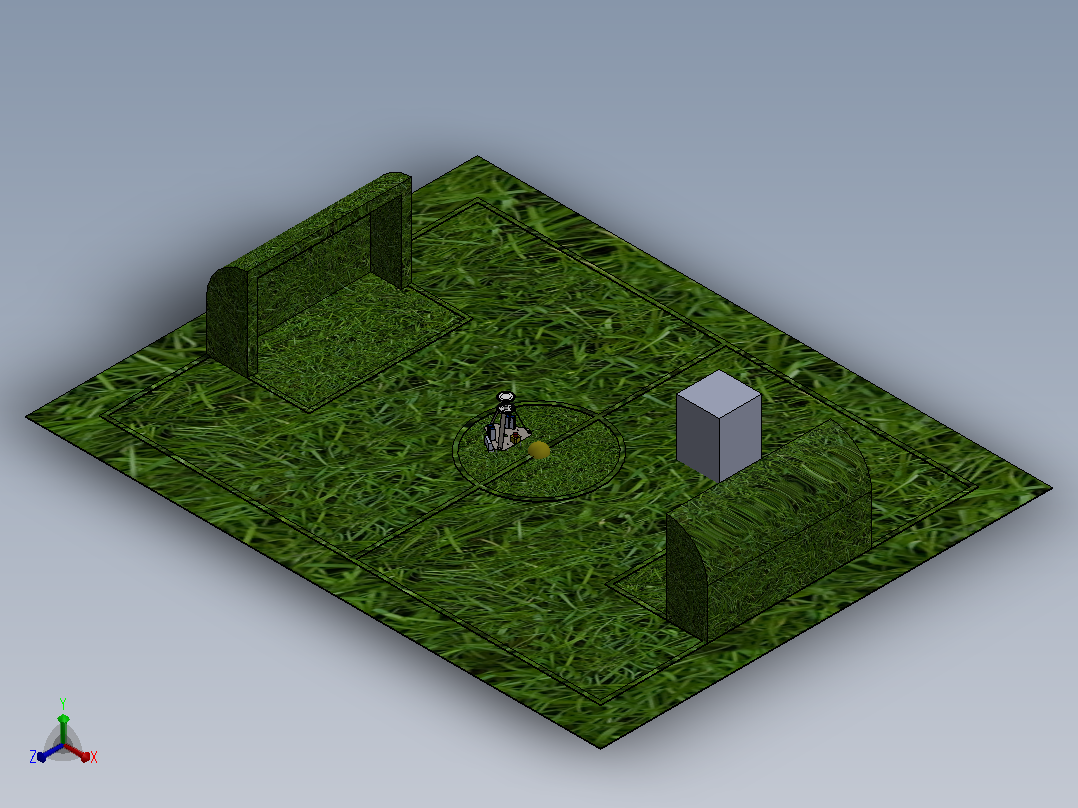

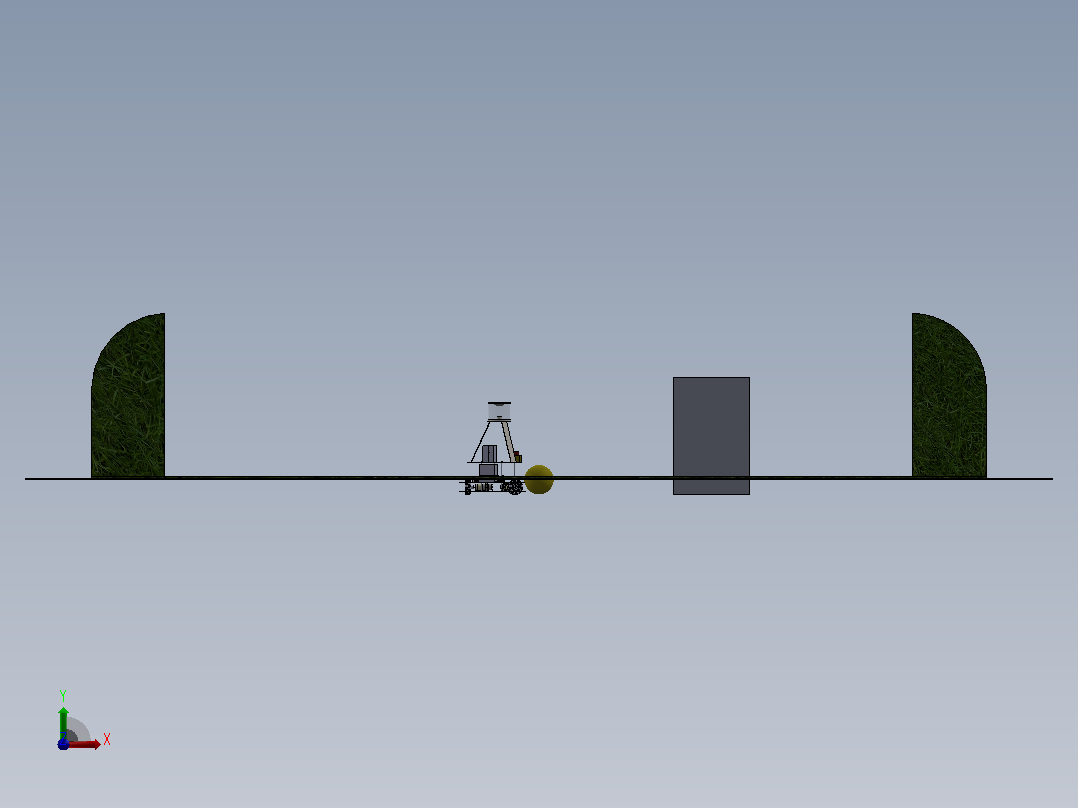

2023年中型联赛机器人足球波尔曼·BandungAutoCAD,SolidWorks,step,stp,stl 三维模型
三维机械图纸名称为：2023年中型联赛机器人足球波尔曼·Bandung，属于机械设备，智能装置分类，软件为AutoCAD,SolidWorks,step,stp,stl, 三维模型格式为dwg,pdf,sldprt,sldasm,stl,step，可在线预览，可编辑，可供设计参考
模型参数
模型ID：10587543
模型大小：27.78M
软件版本： AutoCAD,SolidWorks,step,stp,stl
模型格式：dwg,pdf,sldprt,sldasm,stl,step
是否可编辑：可修改，包括参数
上传时间：2026-09-14
图纸介绍：
下载模型
文件列表

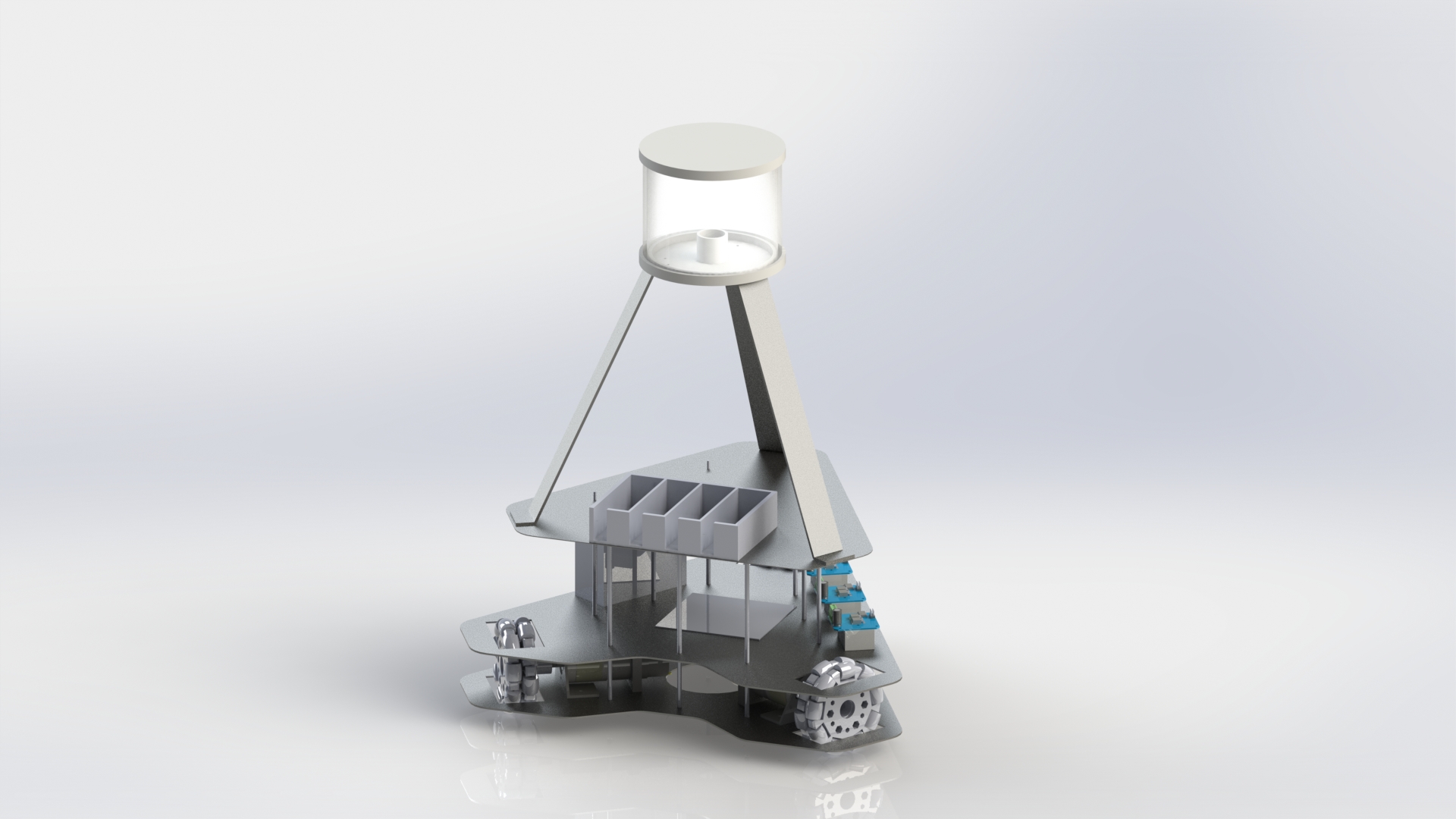

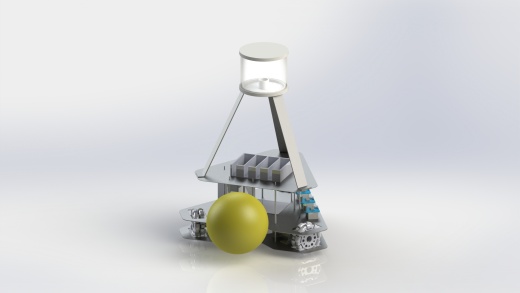

1. 1-1000-00.JPG
605 KB

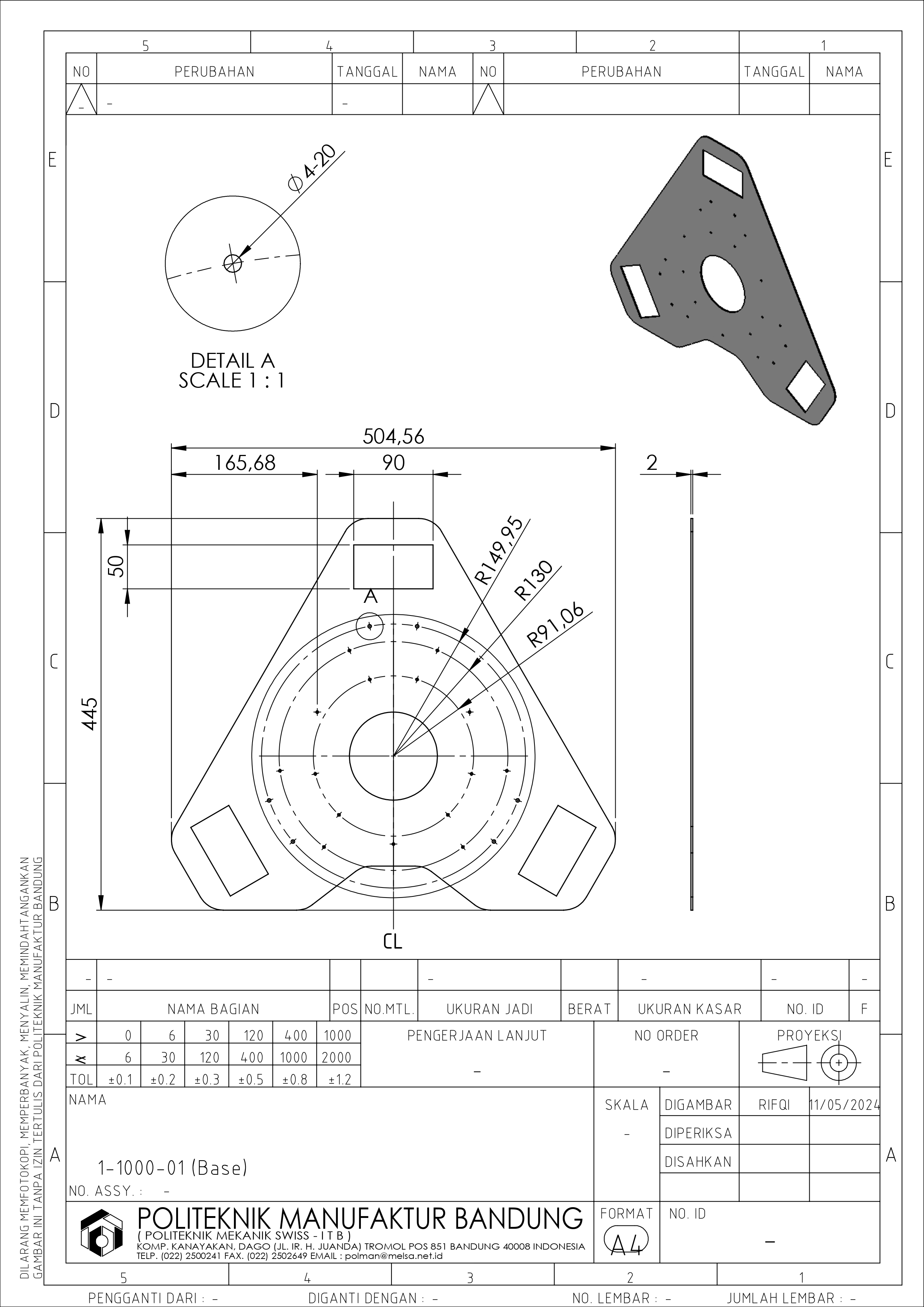

2. 1-1000-01 (Base).DWG
268 KB
3. 1-1000-01 (Base).PDF
57 KB
4. 1-1000-01 (Base).SLDDRW
191 KB
5. 1-1000-01 (Base).SLDPRT
166 KB
6. 1-1000-01 (Base)_page-0001.jpg
1.19 MB
7. 1-1000-01.JPG
610 KB
8. 1-1000-02 (bracket motor).SLDASM
65.5 KB
9. 1-1000-02-01.SLDPRT
70.3 KB
10. 1-1000-02-02.SLDPRT
88.5 KB

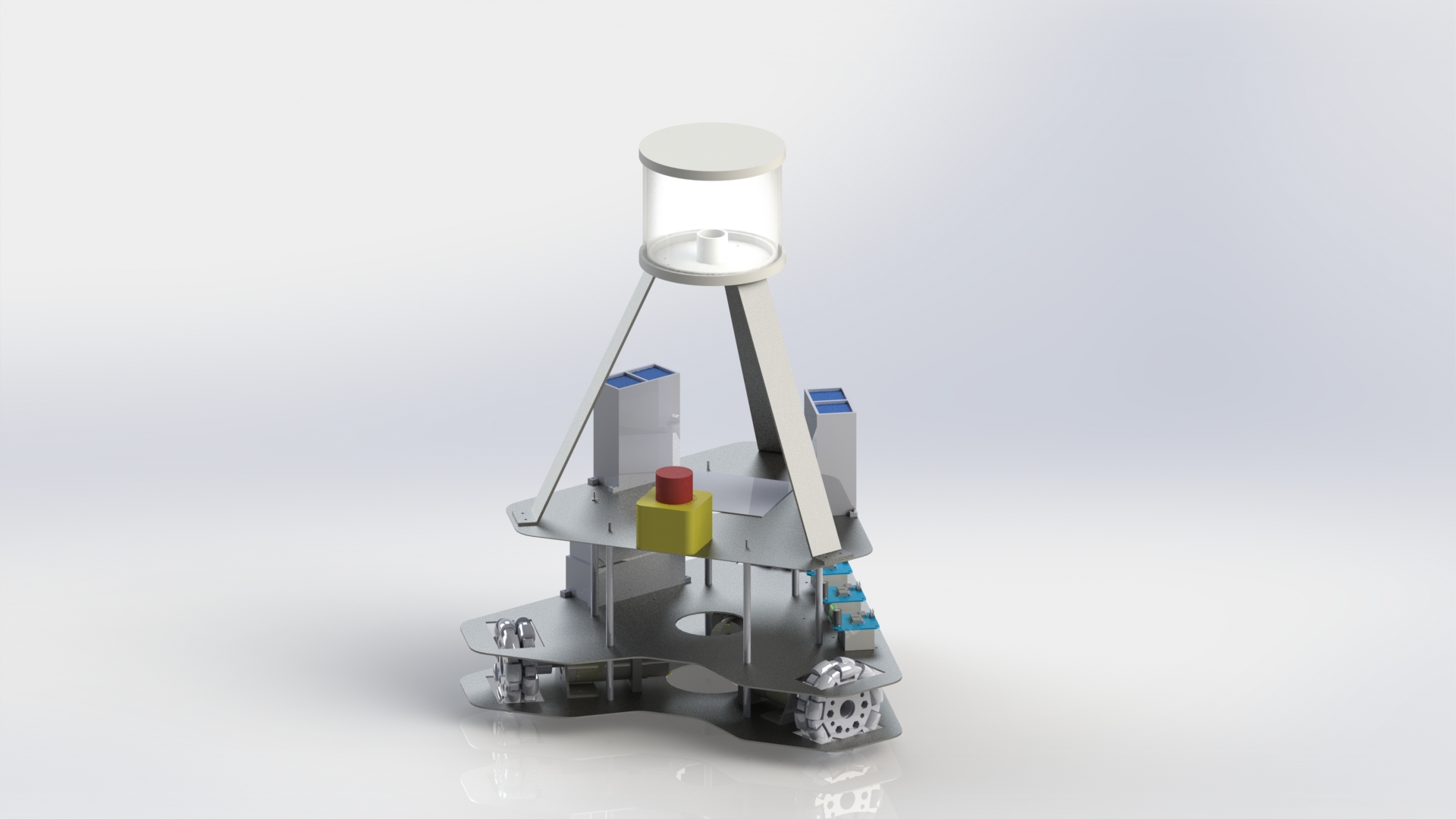

11. 1-1000-02.JPG
617 KB
12. 1-1000-03 (Lantai 3).DWG
269 KB
13. 1-1000-03 (Lantai 3).PDF
40.5 KB
14. 1-1000-03 (Lantai 3).SLDDRW
155 KB
15. 1-1000-03 (Lantai 3).SLDPRT
179 KB

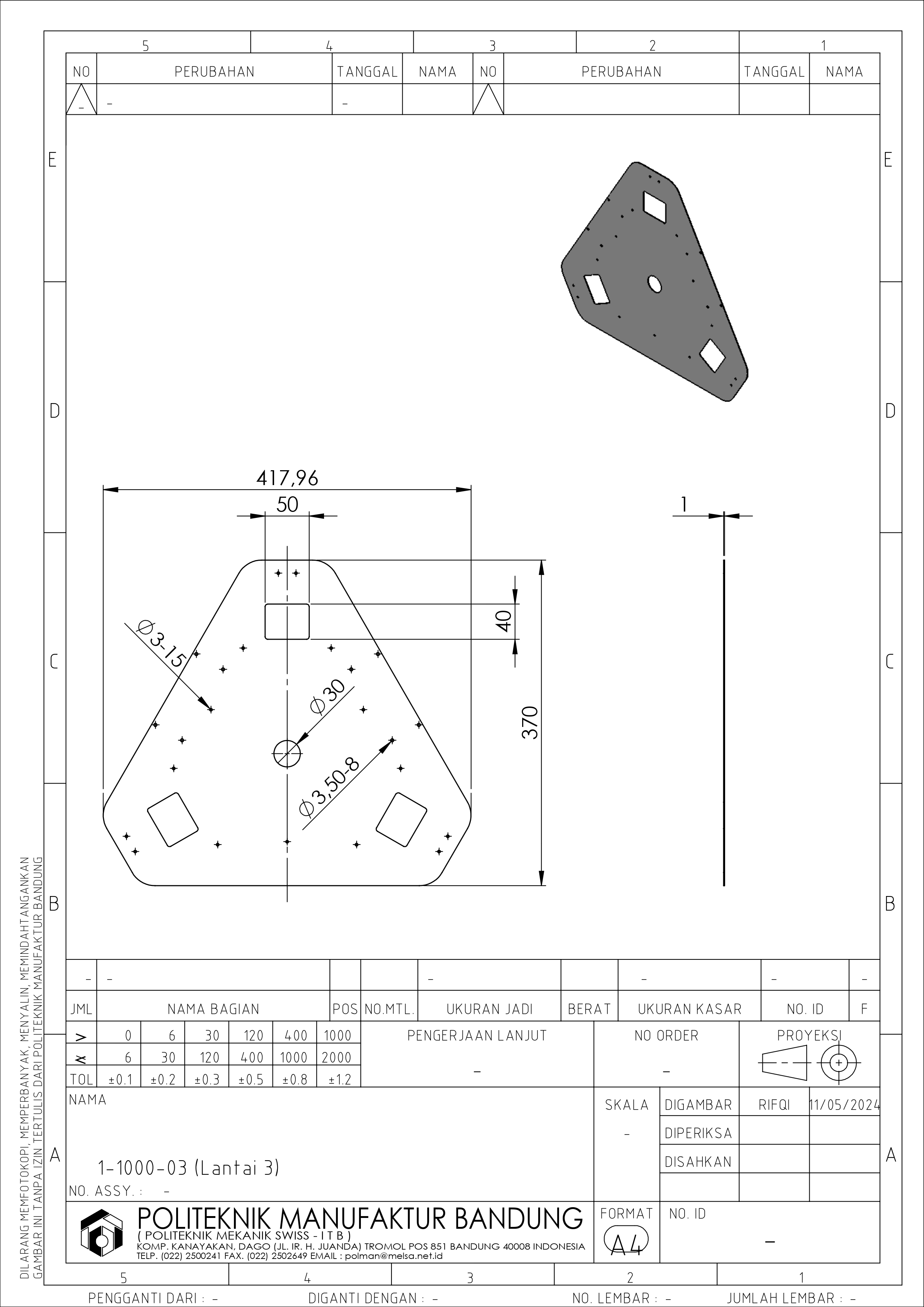

16. 1-1000-03 (Lantai 3)_page-0001.jpg
993 KB

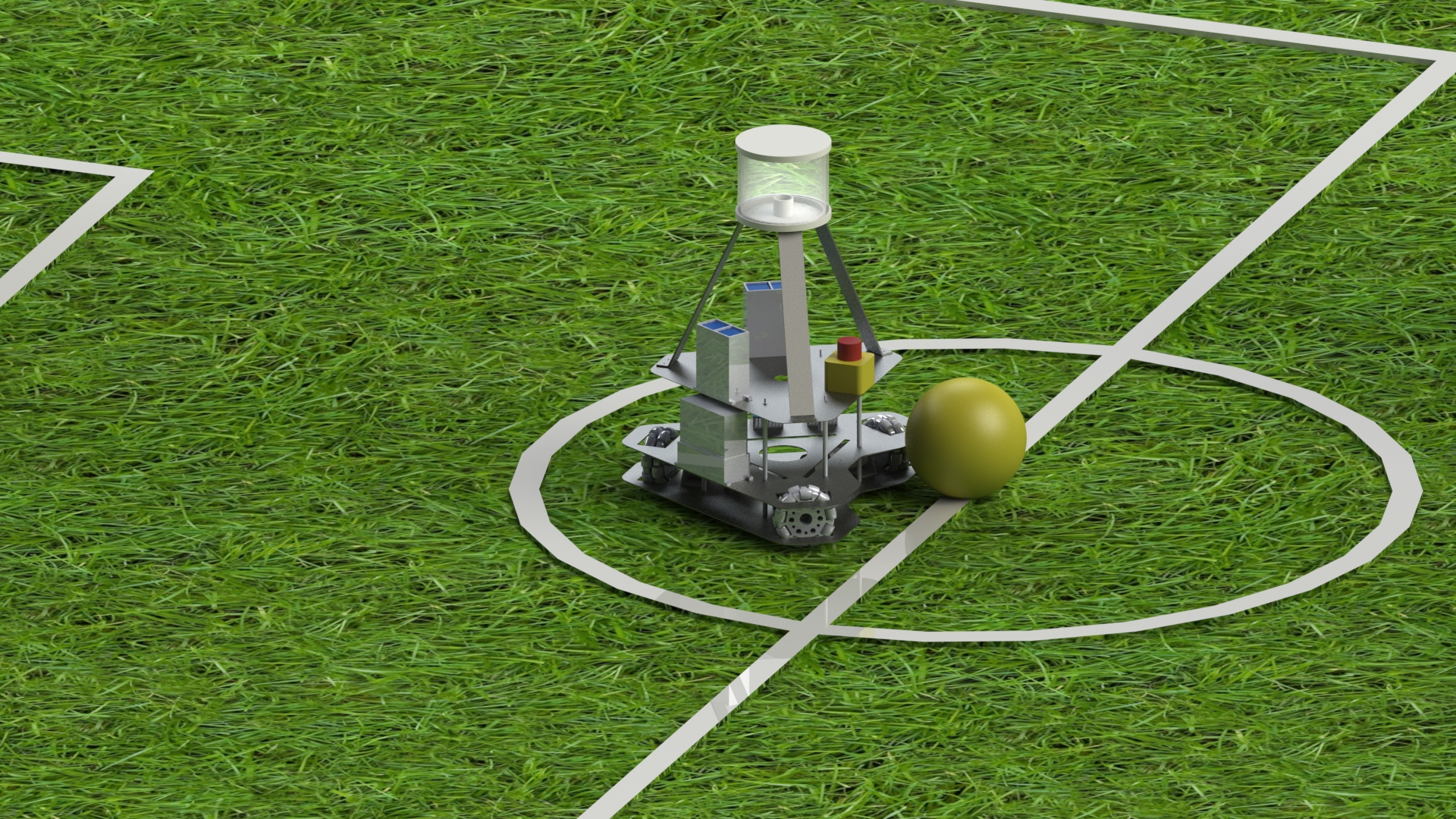

17. 1-1000-03.JPG
1.84 MB
18. 1-1000-04 (ban dribble).sldprt
37.9 KB

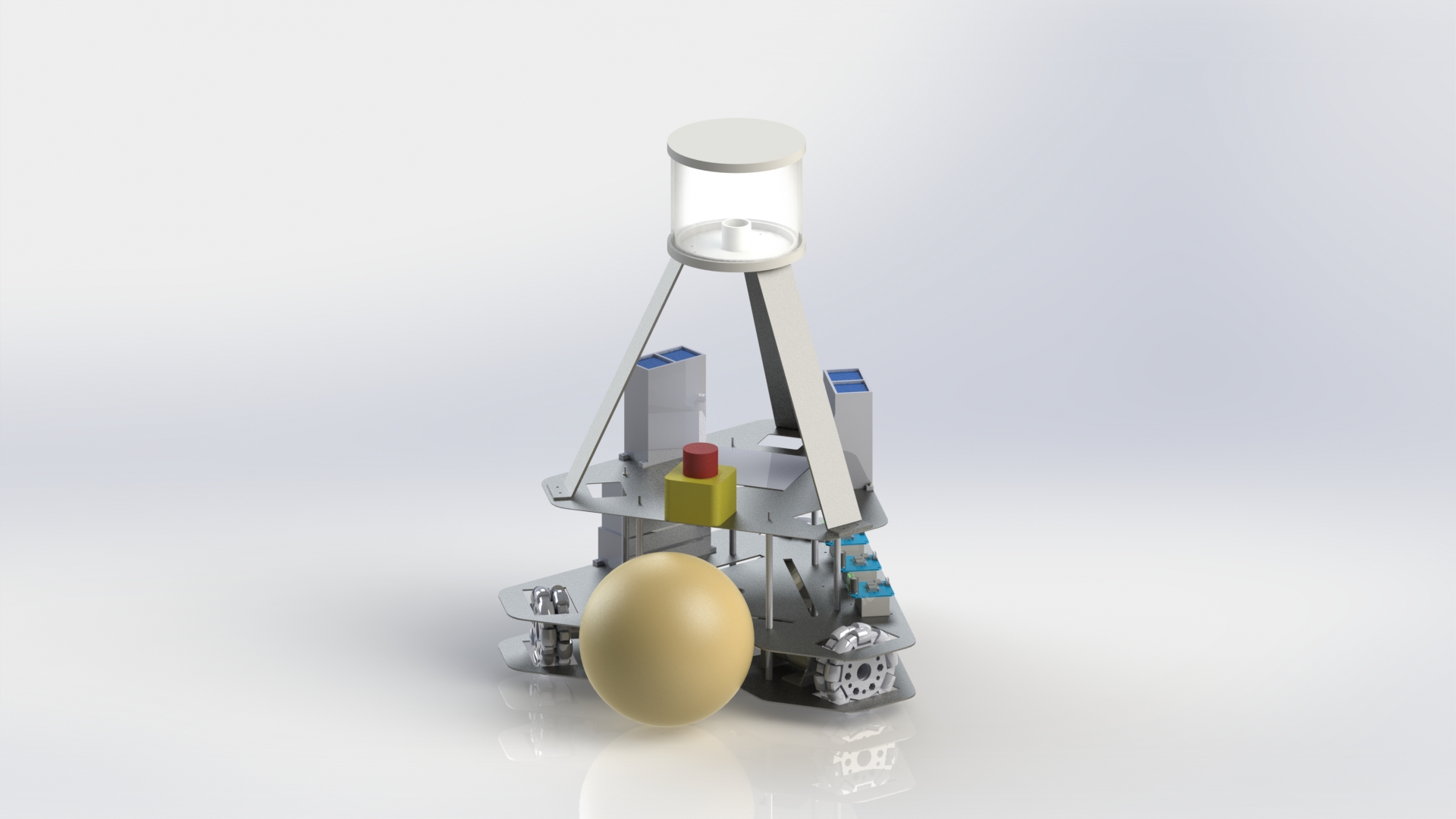

19. 1-1000-04.JPG
615 KB
20. 1-1000-05 (dudukan drible).sldprt
28.1 KB

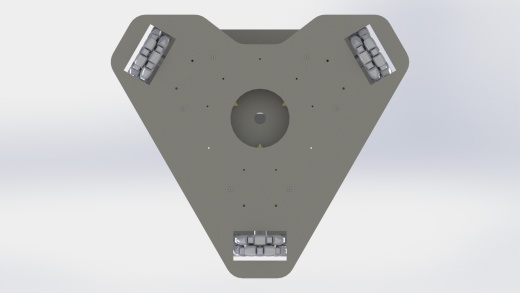

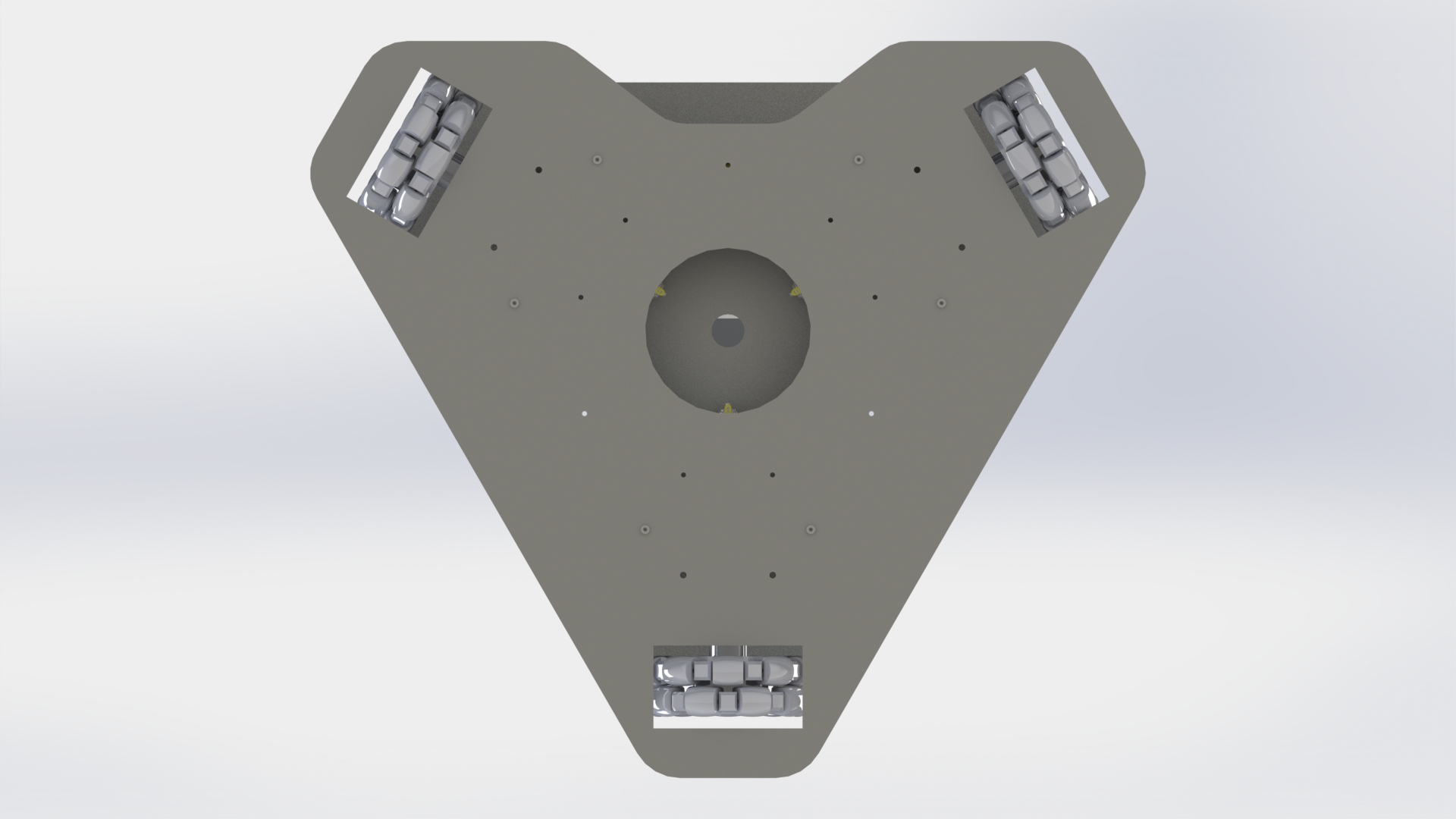

21. 1-1000-05-bottom.JPG
629 KB

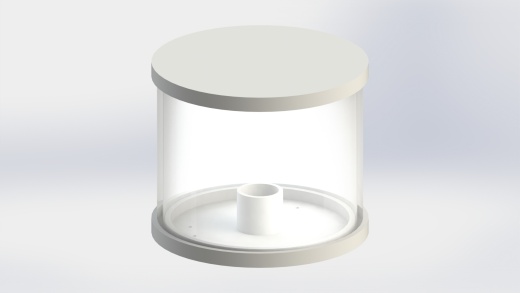

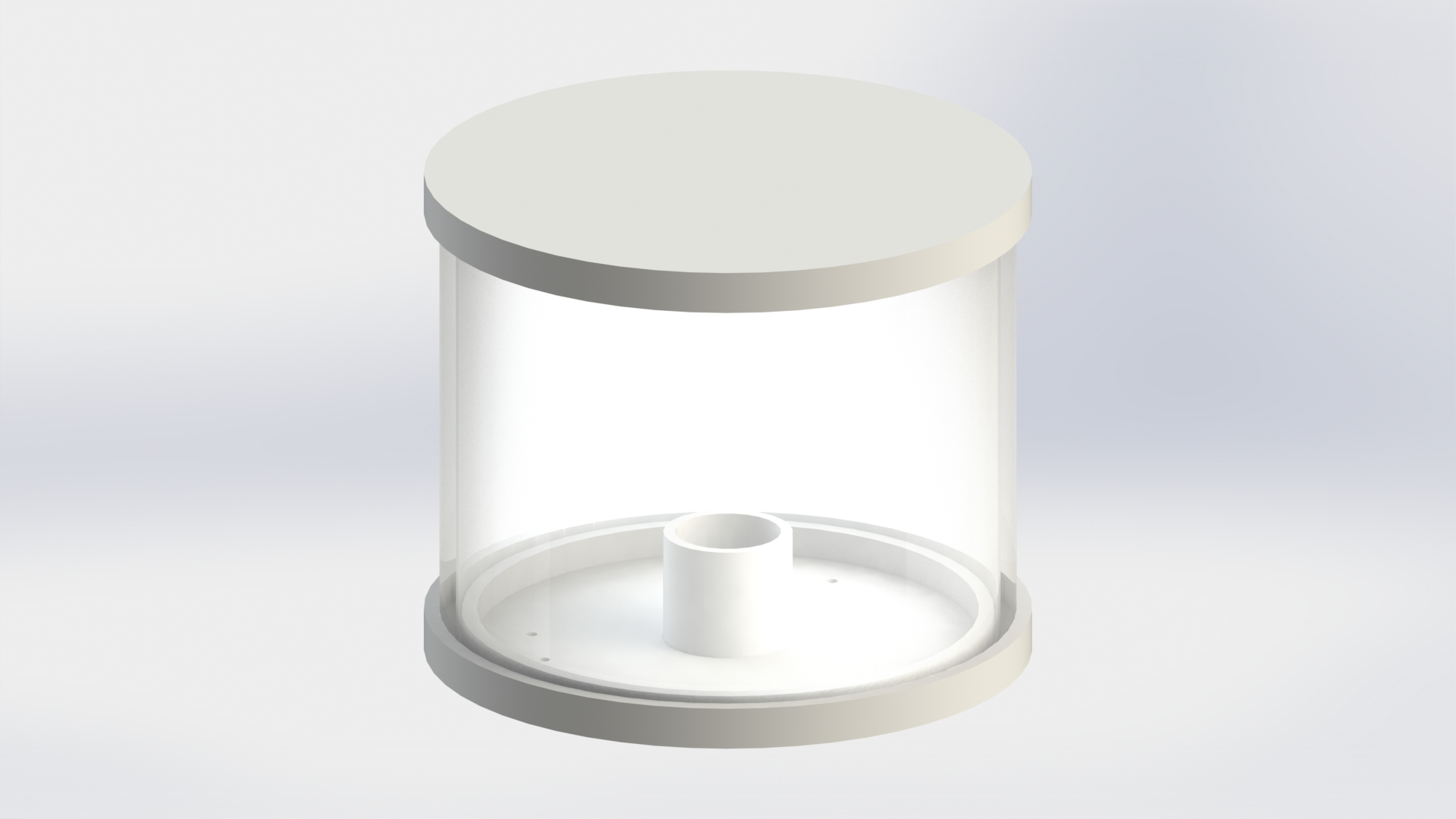

22. 1-1000-05-cam.JPG
502 KB

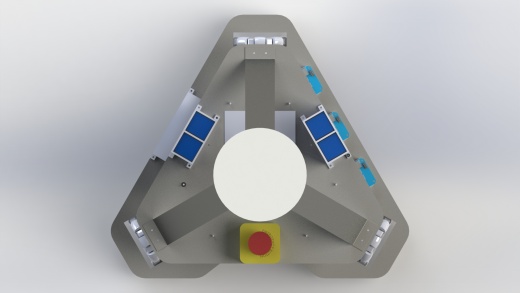

23. 1-1000-05-top.JPG
757 KB

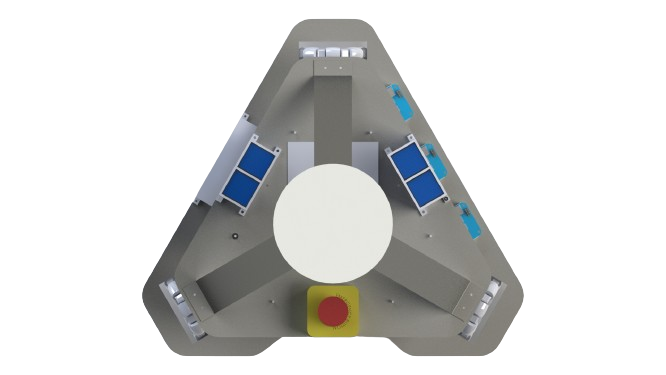

24. 1-1000-05-top.png
117 KB

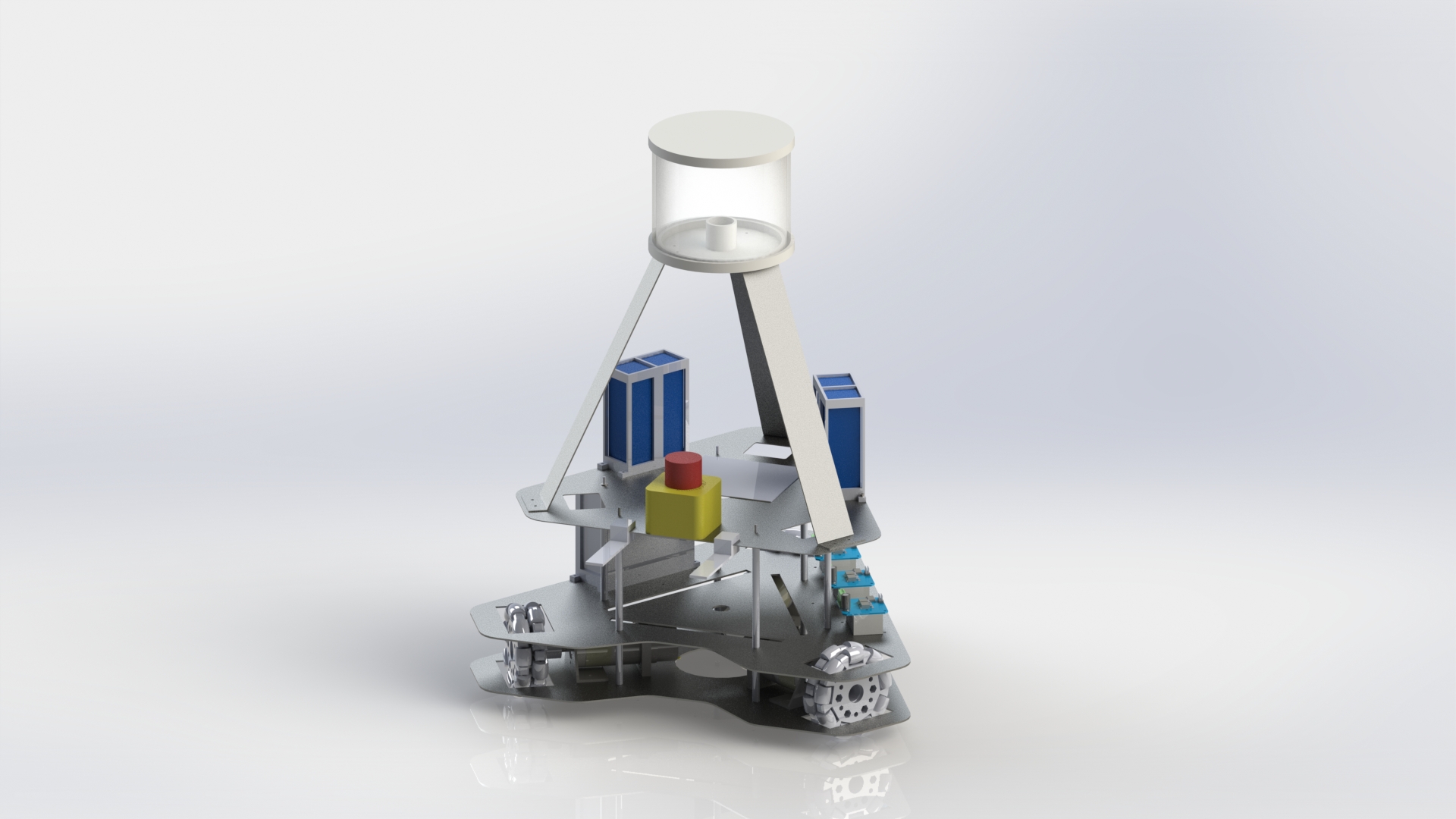

25. 1-1000-05.JPG
631 KB
26. 1-1000-06 (dudukan kiker).sldprt
31.5 KB
27. 1-1000-07 (kiker).sldprt
23.1 KB
28. 1-1000-08 (Lantai 2).DWG
269 KB
29. 1-1000-08 (Lantai 2).PDF
44.5 KB
30. 1-1000-08 (Lantai 2).SLDDRW
178 KB
31. 1-1000-08 (Lantai 2).SLDPRT
209 KB

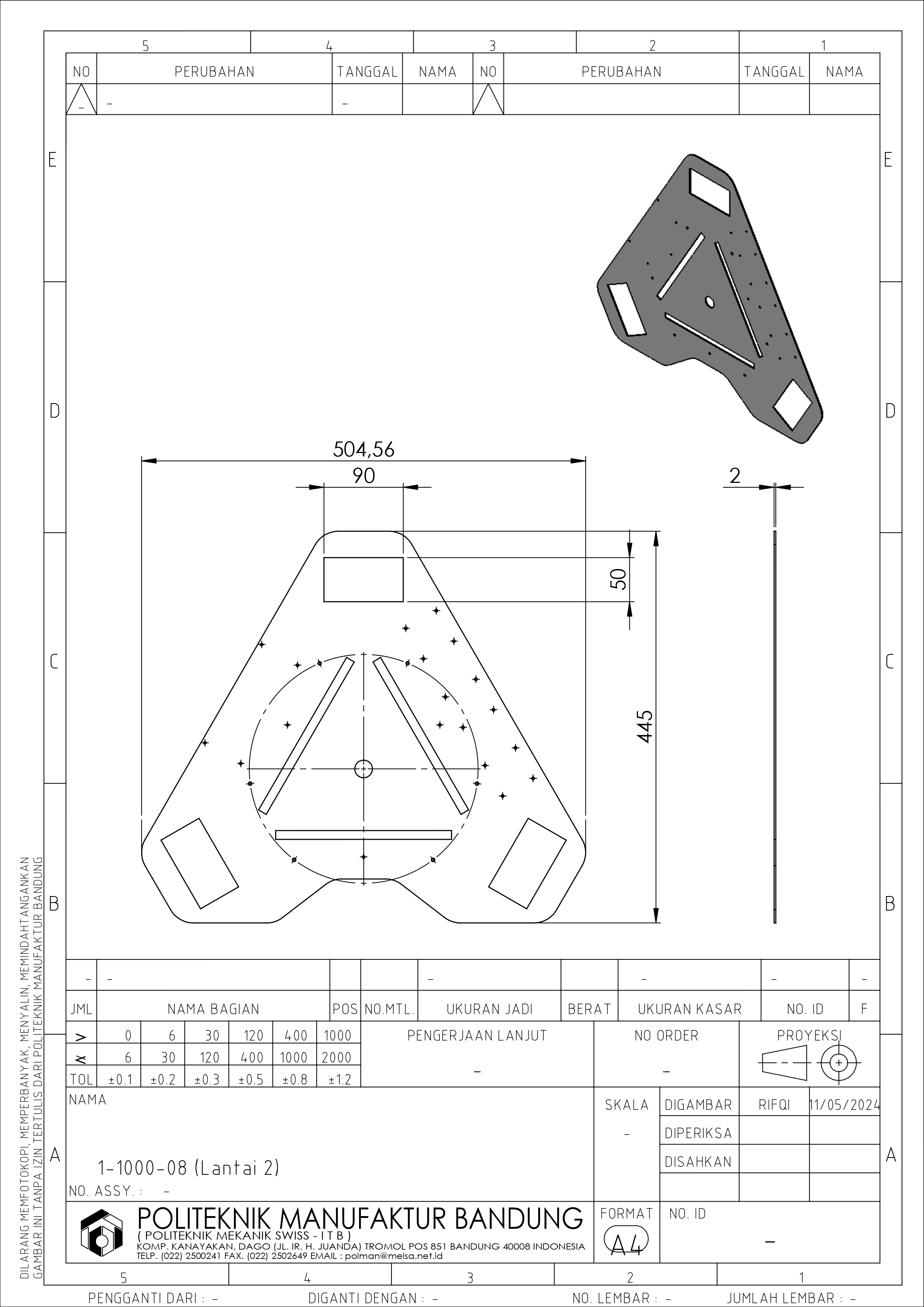

32. 1-1000-08 (Lantai 2)_page-0001.jpg
1.06 MB
33. 1-1000-09 (tempat baterai li-po).SLDPRT
95 KB
34. 1-1000-11 (selenoid).sldprt
34.4 KB
35. 1-1000-12 (assy kaki omni vision).PDF
81.4 KB
36. 1-1000-12 (assy kaki omni vision).SLDASM
126 KB
37. 1-1000-12 (assy kaki omni vision).SLDDRW
285 KB
38. 1-1000-12-01 (assy omni vision).SLDASM
128 KB
39. 1-1000-12-01-01 (base omni vision).SLDPRT
79.7 KB
40. 1-1000-12-01-02 (akrilik omni vision).SLDPRT
46.4 KB
41. 1-1000-12-01-03 (top omni vision).SLDPRT
80.5 KB
42. 1-1000-12-01-04 (base omni vision versi 2).SLDPRT
127 KB
43. 1-1000-12-01-04 (base omni vision versi 2).STL
208 KB

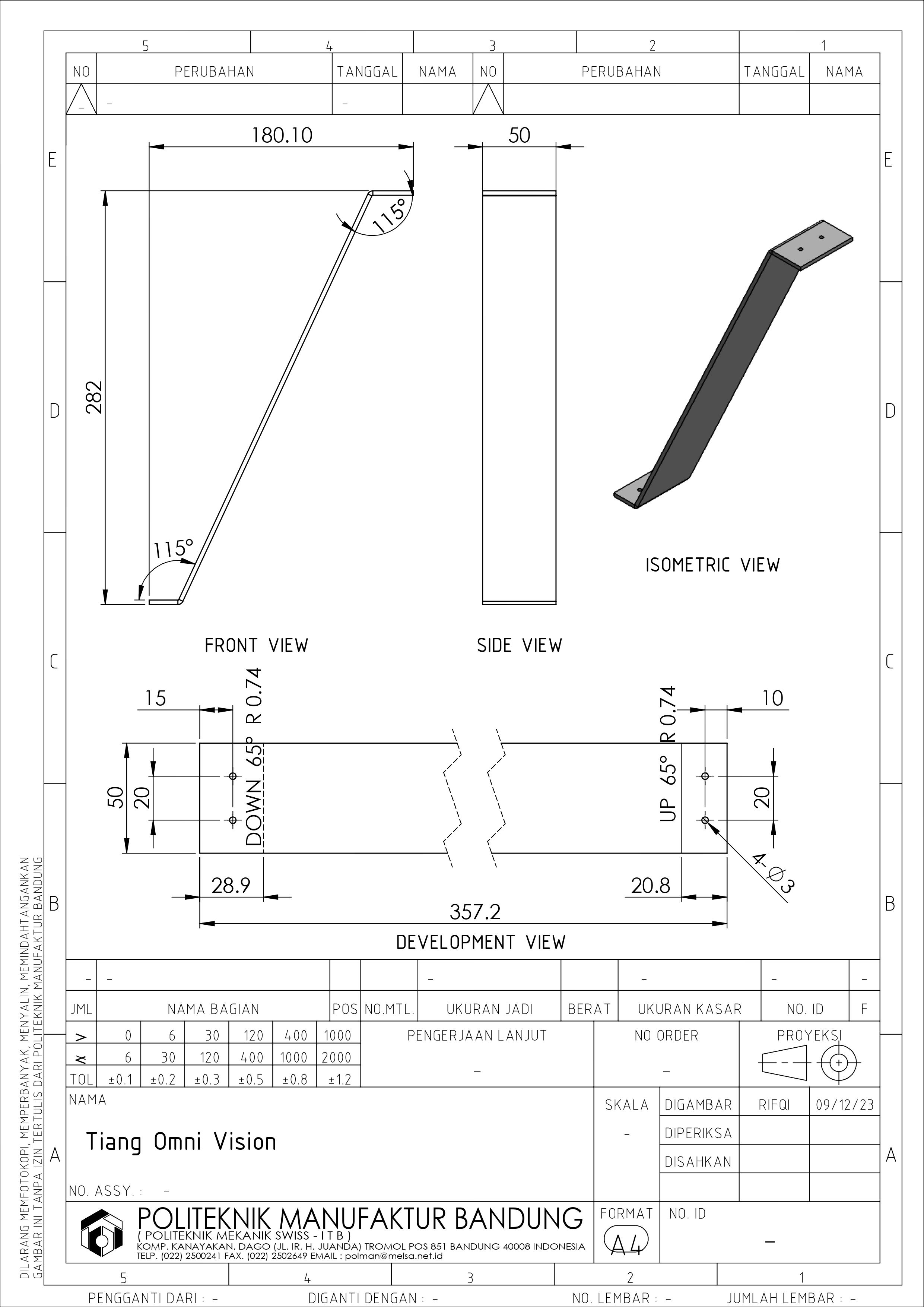

44. 1-1000-12-02 (tiang omni vision).PDF
44.7 KB
45. 1-1000-12-02 (tiang omni vision).SLDDRW
131 KB
46. 1-1000-12-02 (tiang omni vision).SLDPRT
91.2 KB
47. 1-1000-12-02 (tiang omni vision)_page-0001.jpg
1.08 MB
48. 1-1000-13 (PCB).SLDPRT
39.9 KB
49. 1-1000-14 (Tempat Baterai).PDF
63.4 KB

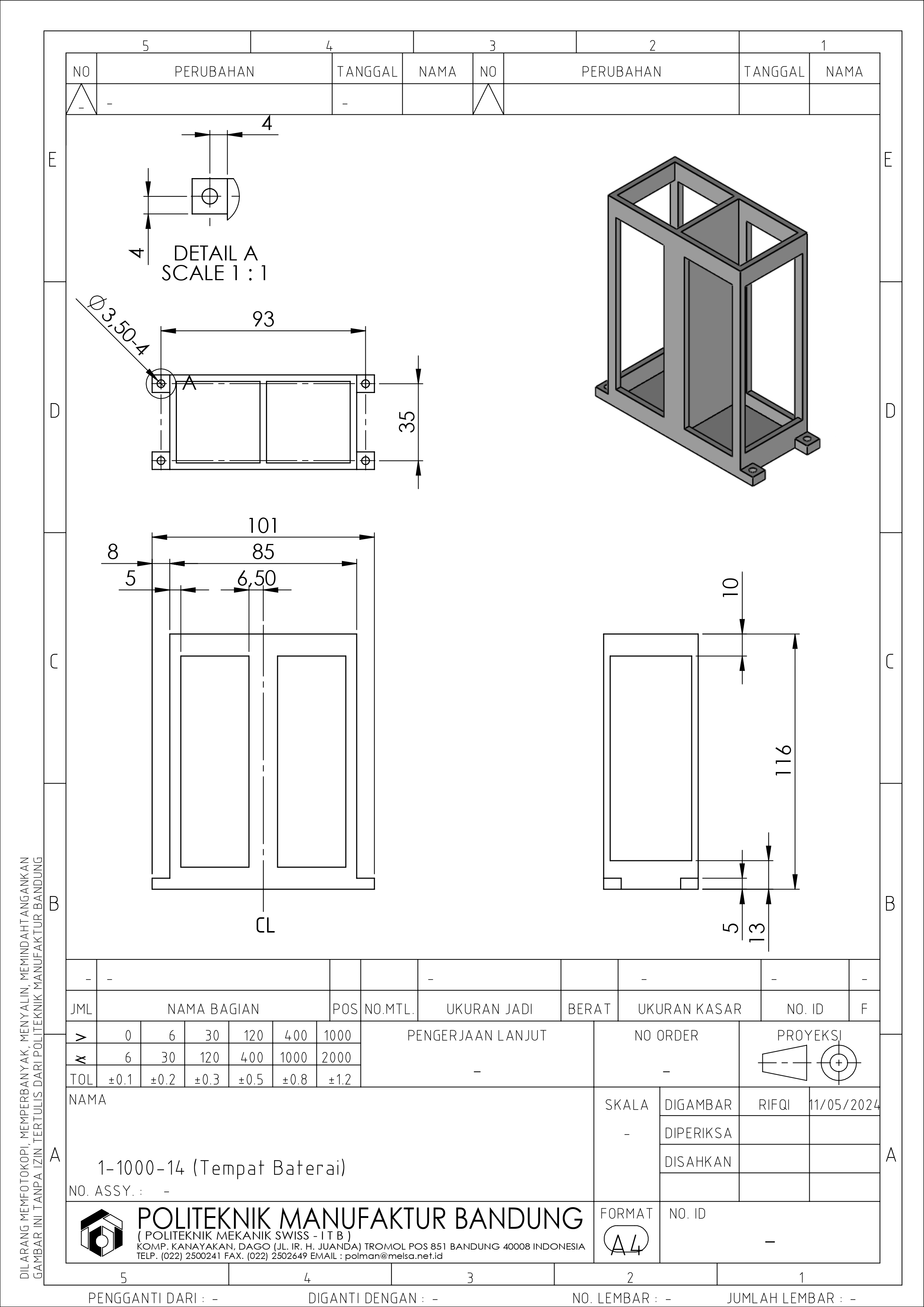

50. 1-1000-14 (Tempat Baterai).SLDDRW
135 KB
51. 1-1000-14 (Tempat Baterai).SLDPRT
185 KB
52. 1-1000-14 (Tempat Baterai).STL
39.3 KB
53. 1-1000-14 (Tempat Baterai)_page-0001.jpg
1.06 MB
54. 1-1000-15 (Tempat Mini PC).PDF
62.3 KB
55. 1-1000-15 (Tempat Mini PC).SLDDRW
129 KB
56. 1-1000-15 (Tempat Mini PC).SLDPRT
84.6 KB
57. 1-1000-15 (Tempat Mini PC).STL
34.7 KB

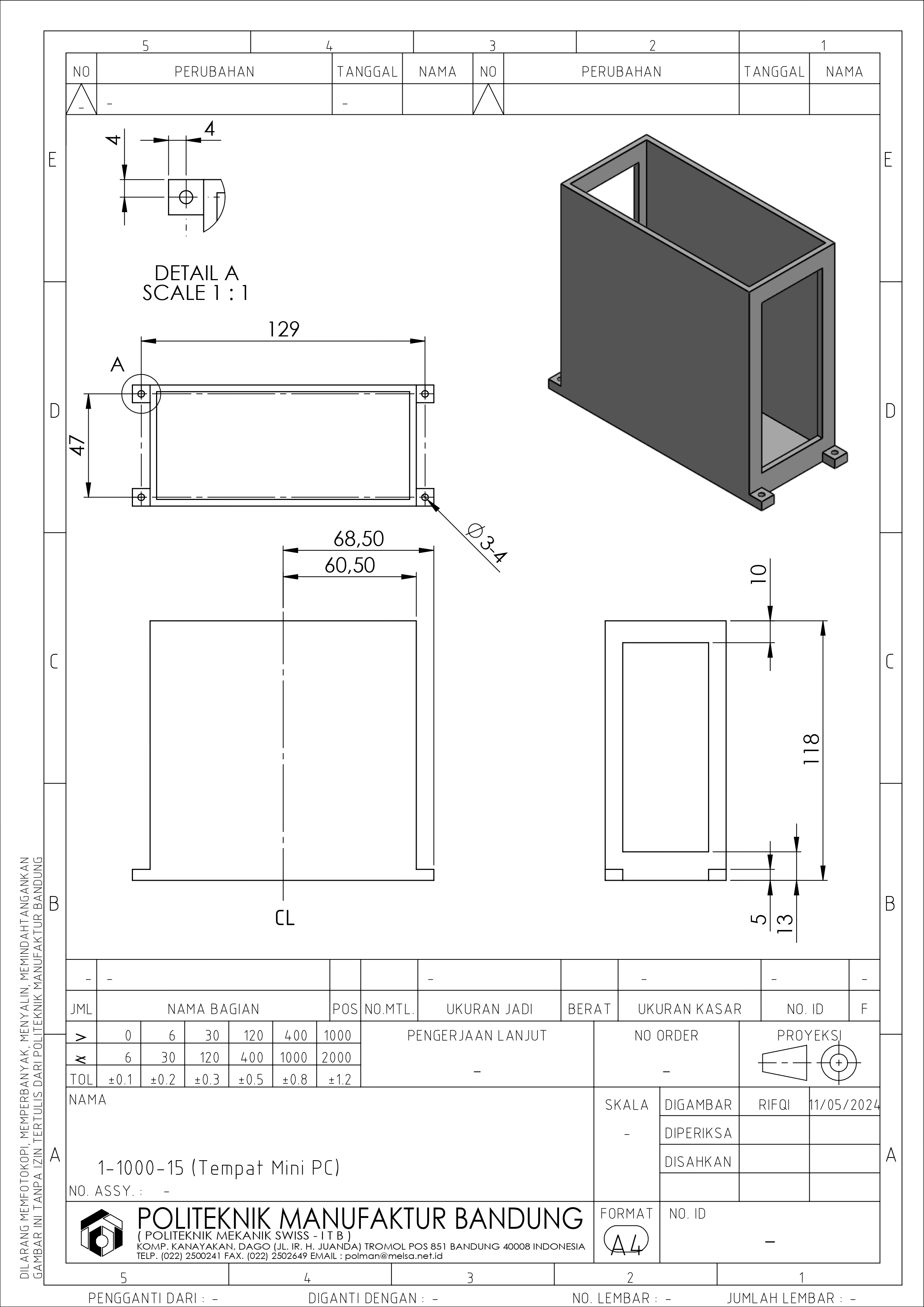

58. 1-1000-15 (Tempat Mini PC)_page-0001.jpg
1.01 MB
59. 1-1000-16 (dribbler).SLDPRT
83.3 KB
60. 1-1000-16 (dribbler).STL
17.5 KB

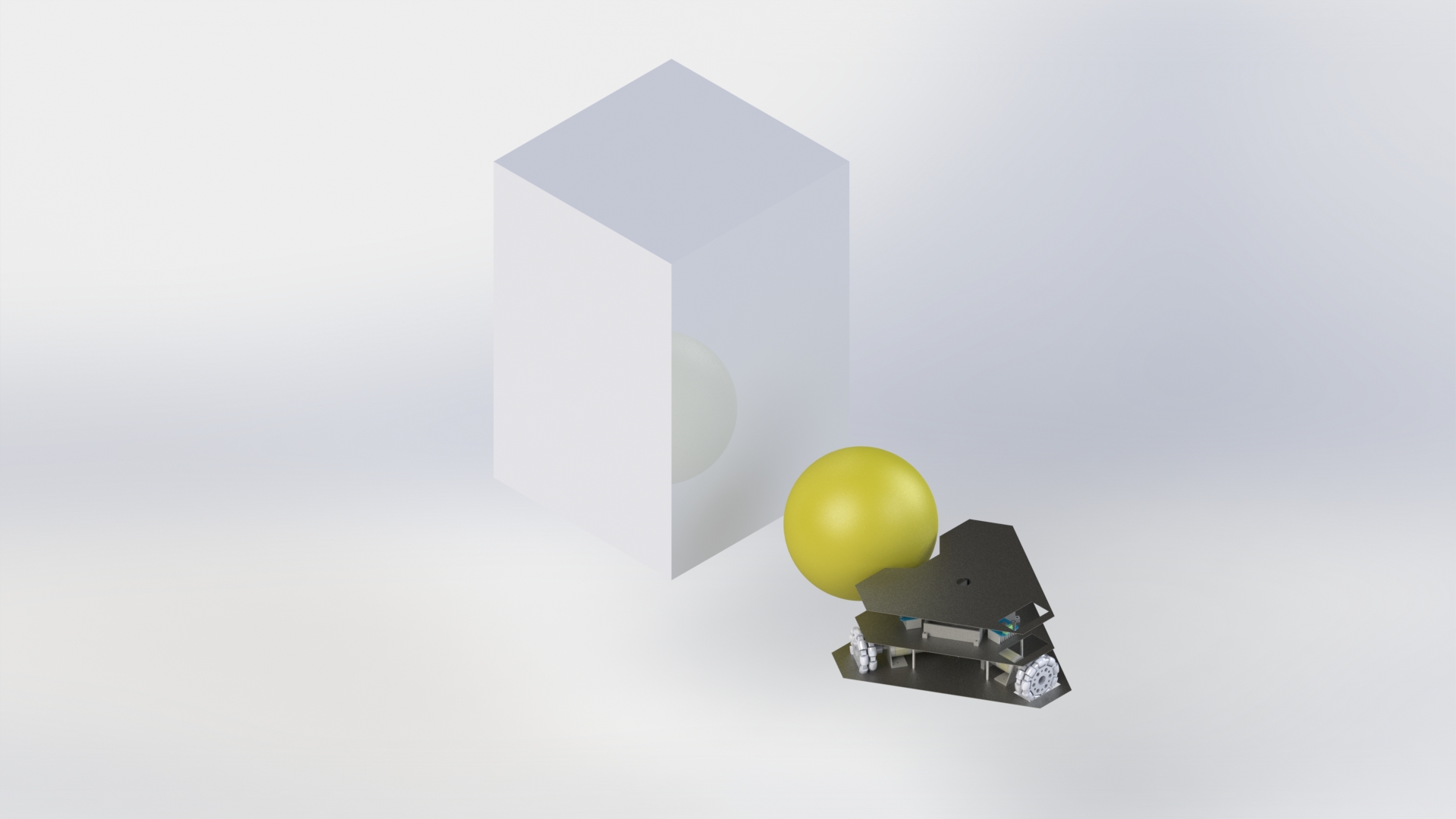

61. 1-1000.JPG
560 KB
62. 1-1000.PDF
119 KB
63. 1-1000.SLDASM
1.37 MB
64. 1-1000.SLDDRW
1.42 MB

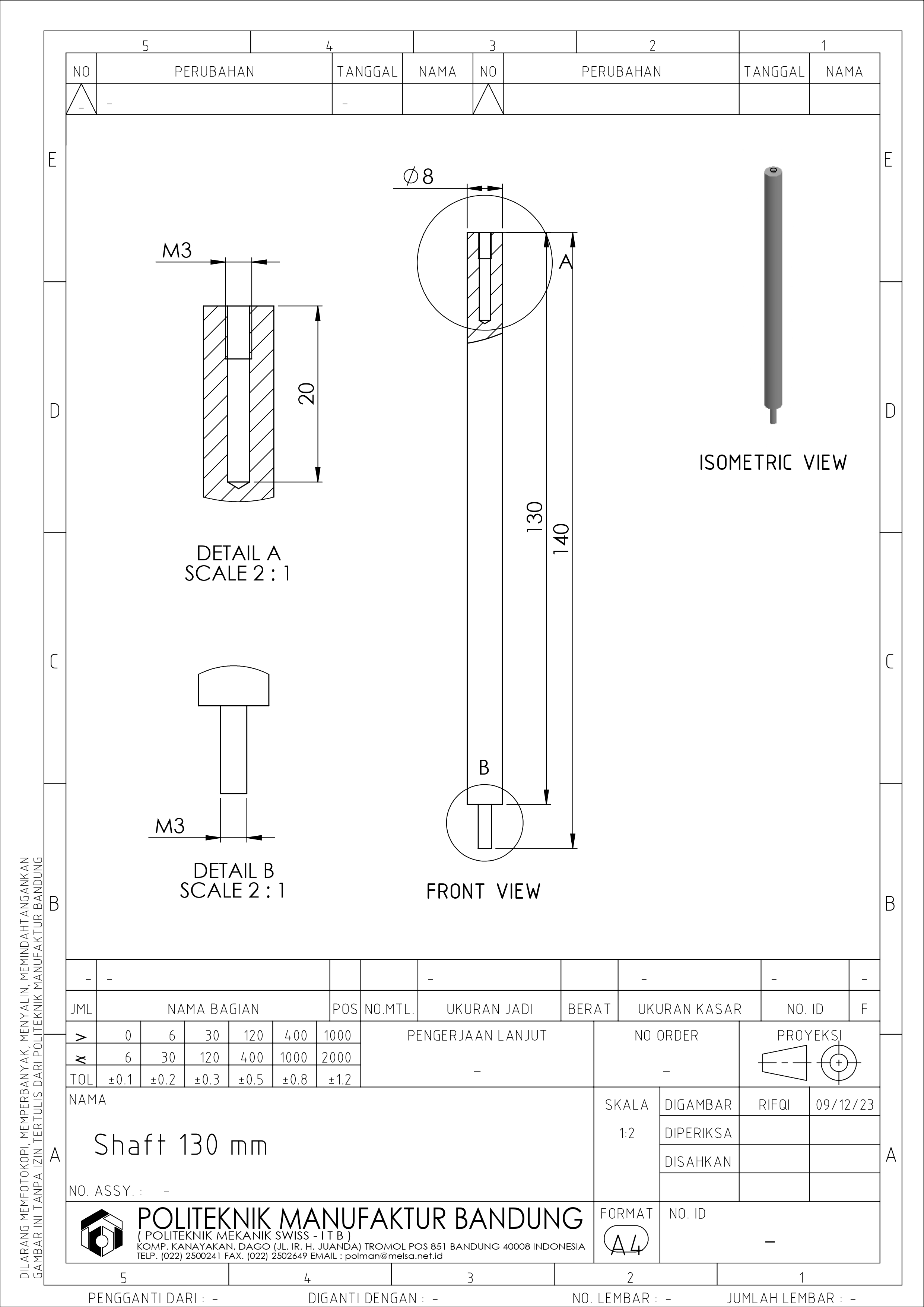

65. 130 mm.PDF
41.9 KB
66. 130 mm.SLDDRW
127 KB
67. 130 mm.SLDPRT
46.1 KB
68. 130 mm_page-0001.jpg
992 KB

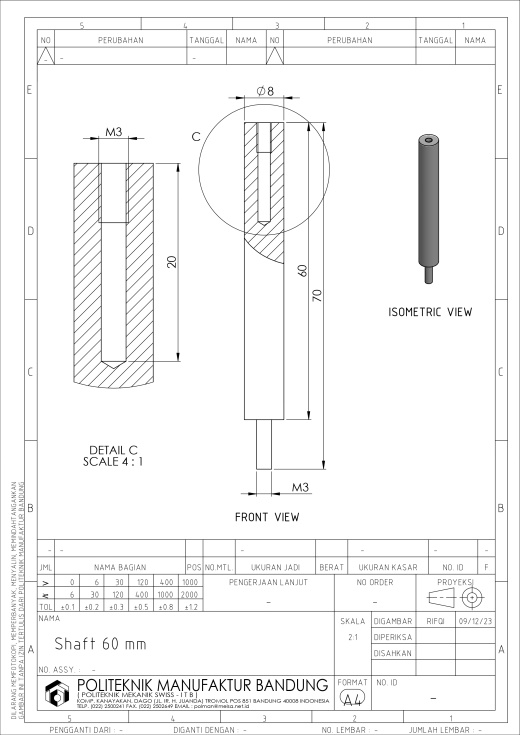

69. 60 mm.PDF
42.1 KB
70. 60 mm.SLDDRW
131 KB
71. 60 mm.SLDPRT
47.9 KB

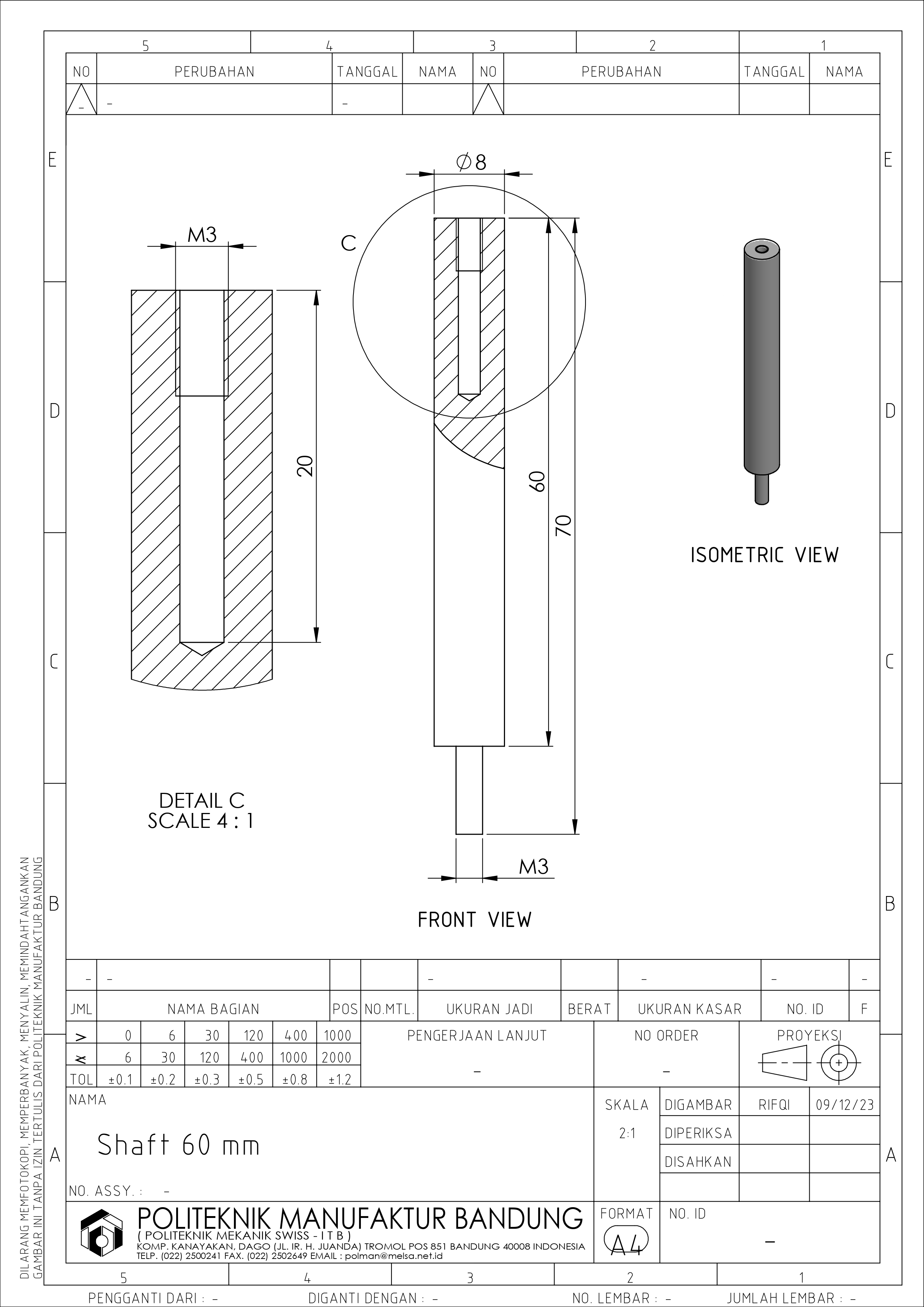

72. 60 mm_page-0001.jpg
1.1 MB
73. ASUS MINI PC.SLDPRT
44.4 KB
74. BTS7960 43A HIGH POWER H BRIDGE MODULE.SLDPRT
788 KB
75. Bola.SLDPRT
103 KB
76. DEL-1-1000-08 (Lantai 2).SLDPRT
83.9 KB
77. DUDUKAN PG 45 3MM.SLDPRT
56.3 KB
78. DUDUKAN PG 45 3MM.f3d
81.9 KB
79. DUDUKAN PG 45 3MM.step
23.8 KB
80. EMG-BUTTON.SLDPRT
295 KB
81. Flat pattern - 1-1000-12-02 (tiang omni vision).DXF
22.9 KB
82. LENOVO PC.SLDPRT
98.1 KB
83. Lapangan Bola.SLDPRT
424 KB
84. Lapangan Real.SLDPRT
43.4 KB
85. Li-Po Turnigy.SLDPRT
325 KB
86. M3_F_TO_F_10MM_STANDOFF.STEP
54.3 KB
87. M3_F_TO_F_15MM_STANDOFF.STEP
54.3 KB
88. M3_F_TO_F_20MM_STANDOFF.STEP
54.3 KB
89. M3_F_TO_F_5MM_STANDOFF.STEP
54.3 KB
90. M3_M_TO_F_10MM_STANDOFF.STEP
64 KB
91. M3_M_TO_F_15MM_STANDOFF.STEP
64 KB
92. M3_M_TO_F_20MM_STANDOFF.SLDPRT
55.4 KB
93. M3_M_TO_F_20MM_STANDOFF.STEP
64 KB
94. M3_M_TO_F_5MM_STANDOFF.STEP
64 KB
95. Motor DC PG28 Planetarigear.sldprt
96.9 KB
96. Motor DC PG45.SLDPRT
369 KB
97. OMNI WHEEL 100mm.SLDPRT
840 KB
98. OMNI WHEEL 100mm.stp
1.15 MB
99. Penutup Atas_1.STEP
188 KB
100. Penyangga Bawah_1.STEP
193 KB
101. Rintangan.SLDPRT
38.2 KB
102. Standoff M3 M-M H 50mm.stp
436 KB

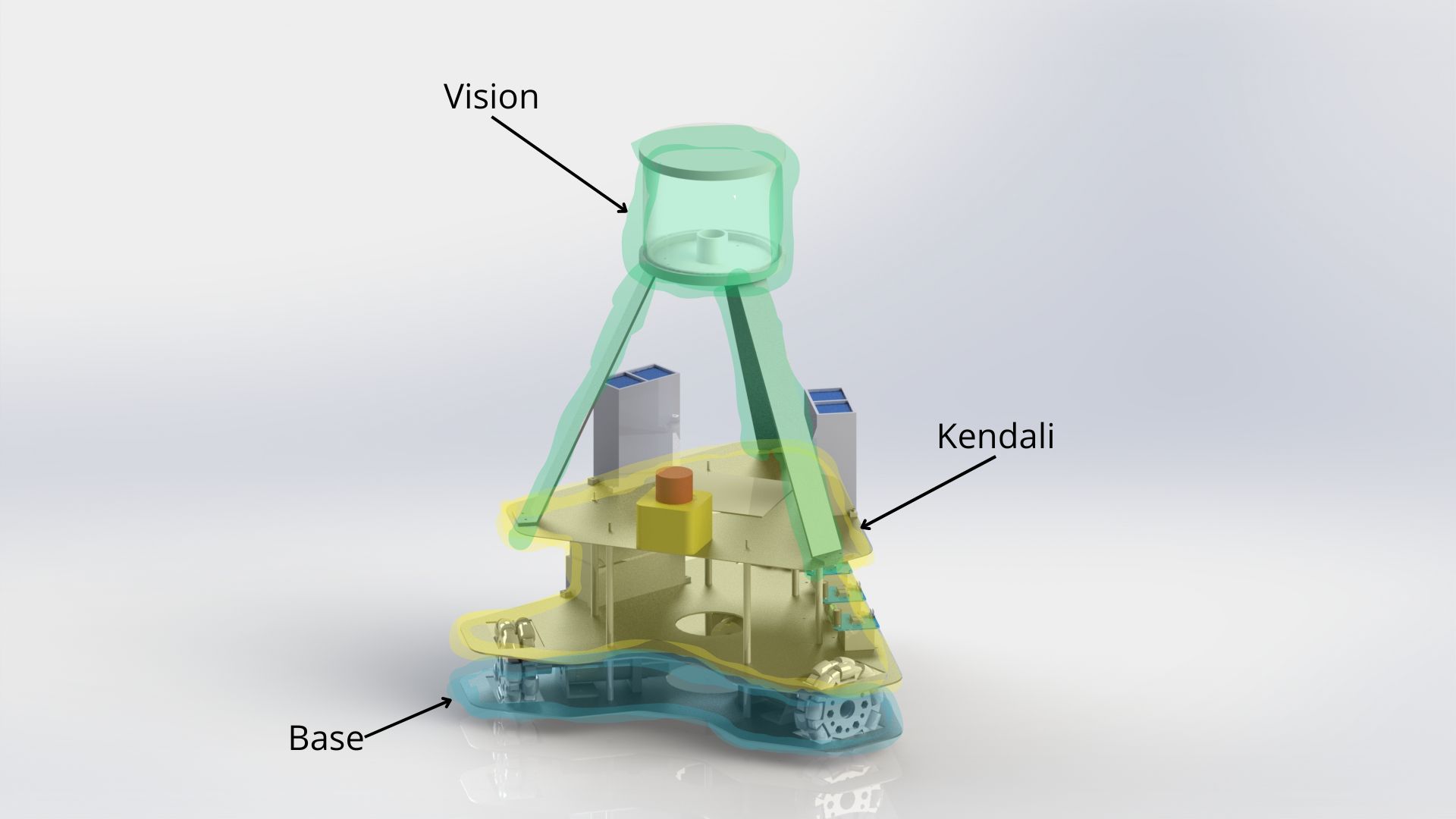

103. StrukturFungsi.png
83.7 KB

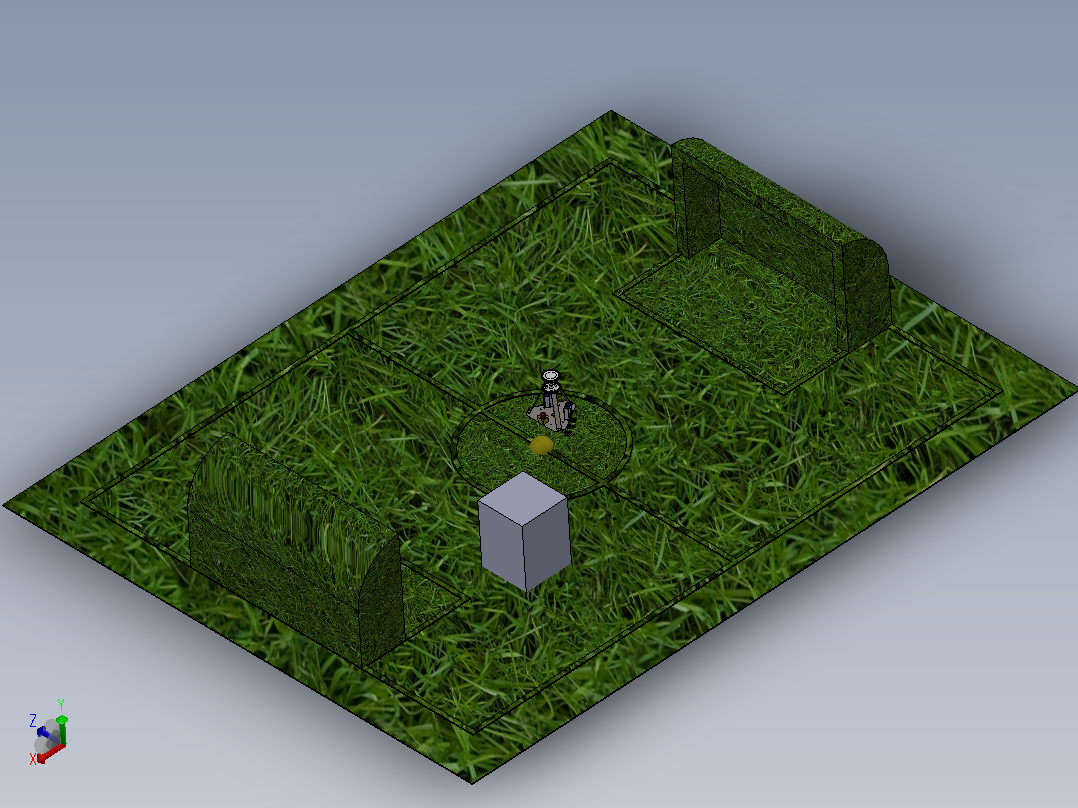

104. Tampilan Lapangan.SLDASM
1.52 MB
105. hexagonal_spacer_MF_M3_H05_HEX5_FTD3_MTL8.step
60.8 KB
106. hexagonal_spacer_MF_M3_H06_HEX5_FTD3_MTL8.step
60.5 KB
107. hexagonal_spacer_MF_M3_H07_HEX5_FTD4_MTL8.step
60.5 KB
108. hexagonal_spacer_MF_M3_H08_HEX5_FTD4_MTL8.step
60.7 KB
109. hexagonal_spacer_MF_M3_H09_HEX5_FTD4_MTL8.step
60.5 KB
110. hexagonal_spacer_MF_M3_H10_HEX5_FTD6_MTL8.step
60.7 KB
111. hexagonal_spacer_MF_M3_H11_HEX5_FTD6_MTL8.step
60.8 KB
112. hexagonal_spacer_MF_M3_H12_HEX5_FTD8_MTL8.step
60.5 KB
113. hexagonal_spacer_MF_M3_H13_HEX5_FTD8_MTL8.step
60.6 KB
114. hexagonal_spacer_MF_M3_H14_HEX5_FTD8_MTL8.step
60.8 KB
115. hexagonal_spacer_MF_M3_H15_HEX5_FTD8_MTL8.step
60.8 KB
116. hexagonal_spacer_MF_M3_H16_HEX5_FTD8_MTL8.step
60.6 KB
117. hexagonal_spacer_MF_M3_H18_HEX5_FTD8_MTL8.step
60.7 KB
118. hexagonal_spacer_MF_M3_H20_HEX5_FTD8_MTL8.SLDPRT
57.5 KB
119. hexagonal_spacer_MF_M3_H20_HEX5_FTD8_MTL8.step
60.5 KB
120. hexagonal_spacer_MF_M3_H25_HEX5_FTD10_MTL10.step
60.5 KB
121. hexagonal_spacer_MF_M3_H30_HEX5_FTD10_MTL10.step
60.5 KB
122. hexagonal_spacer_MF_M3_H35_HEX5_FTD10_MTL10.step
60.7 KB
123. hexagonal_spacer_MF_M3_H40_HEX5_FTD10_MTL10.step
60.5 KB
124. hexagonal_spacer_MF_M3_H45_HEX5_FTD10_MTL10.step
60.6 KB
125. hexagonal_spacer_MF_M3_H50_HEX5_FTD10_MTL10.step
60.8 KB
126. hexagonal_spacer_MF_M3_H55_HEX5_FTD10_MTL10.step
60.6 KB
127. hexagonal_spacer_MF_M3_H60_HEX5_FTD10_MTL10.step
60.5 KB
128. omniwheel_1.sldprt
831 KB
129. zongzhuangtu.STEP
2.6 MB
130. ~$60 mm.SLDDRW
7 B
