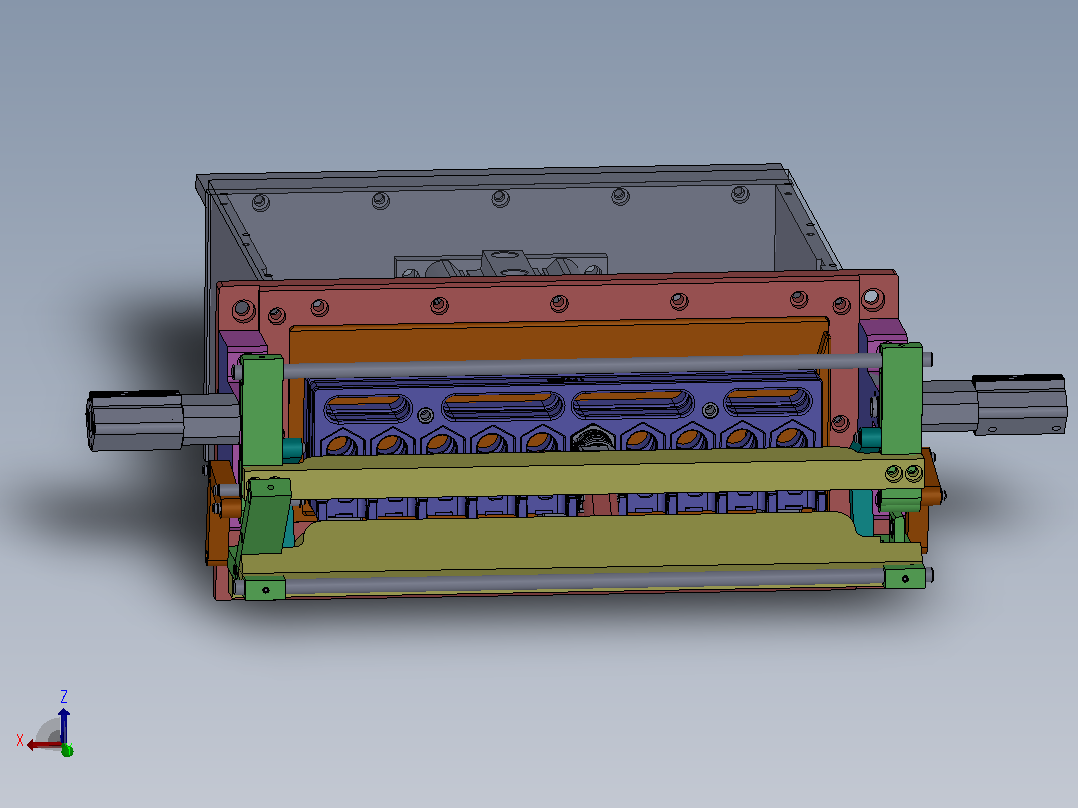

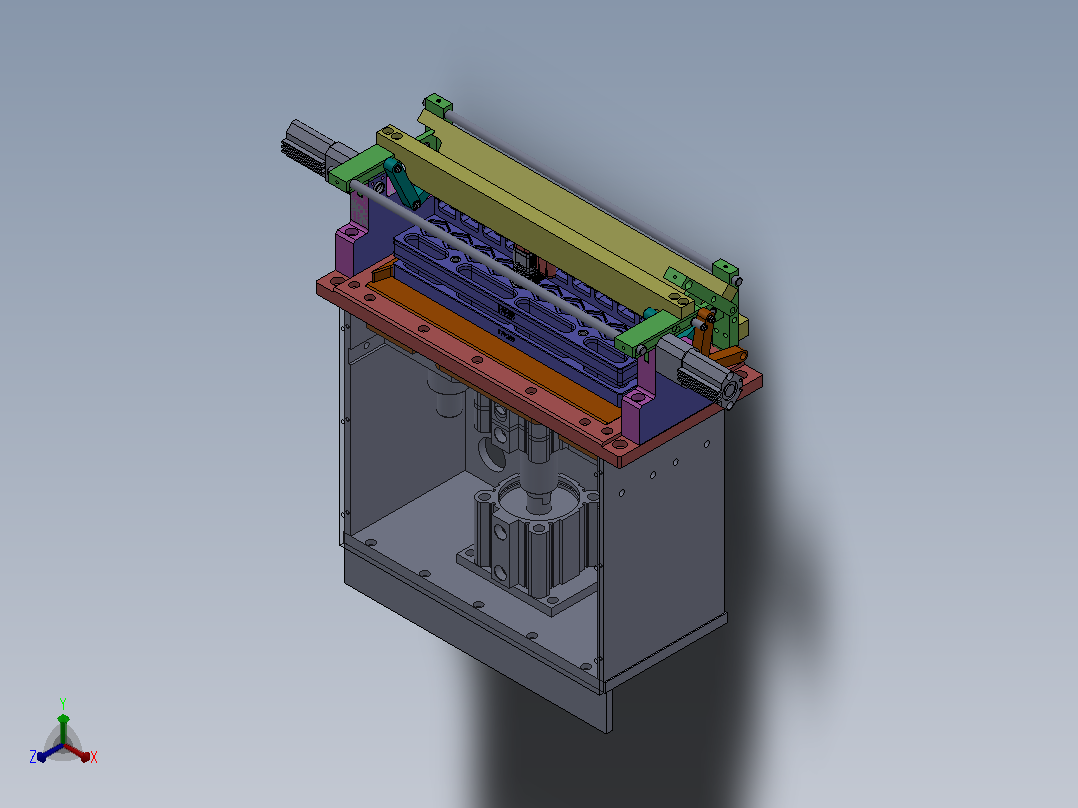

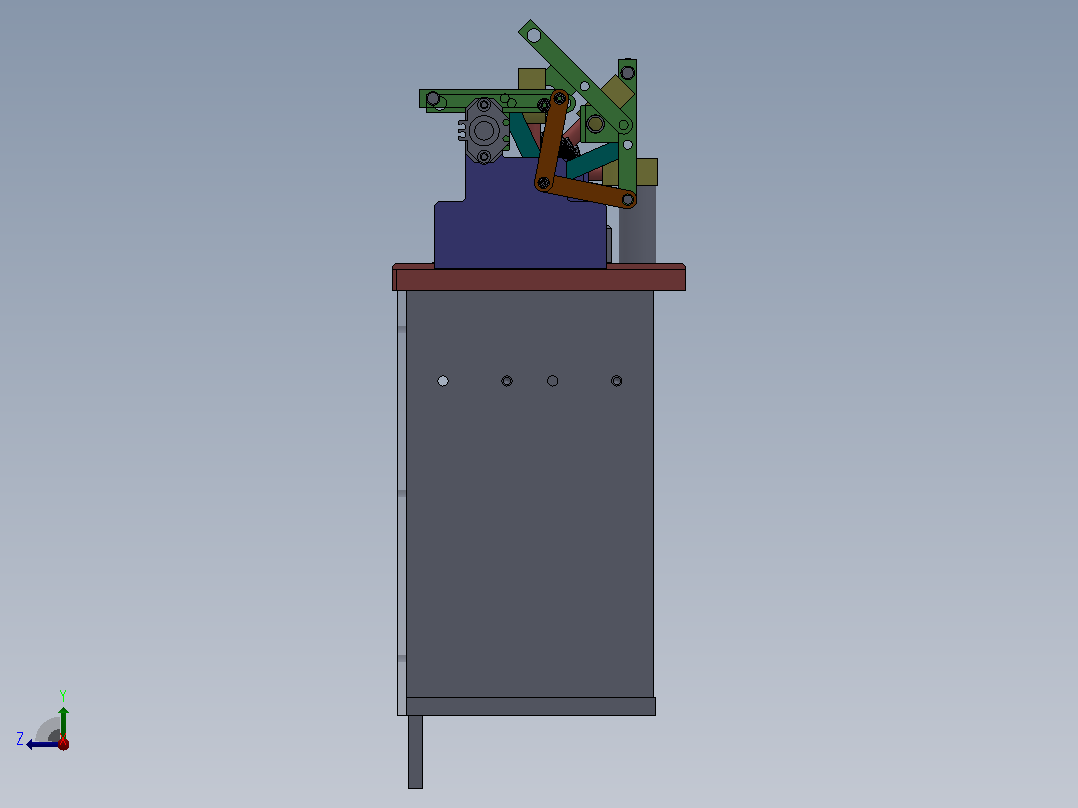

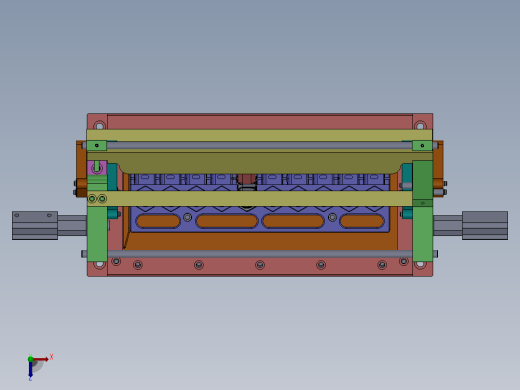

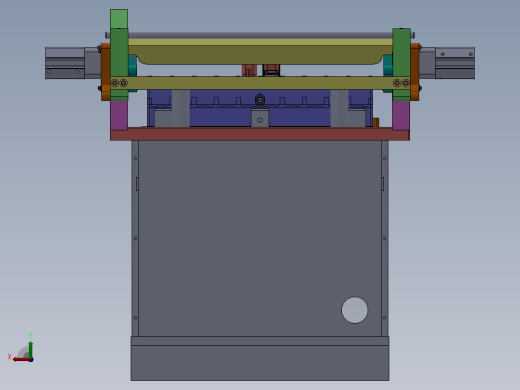

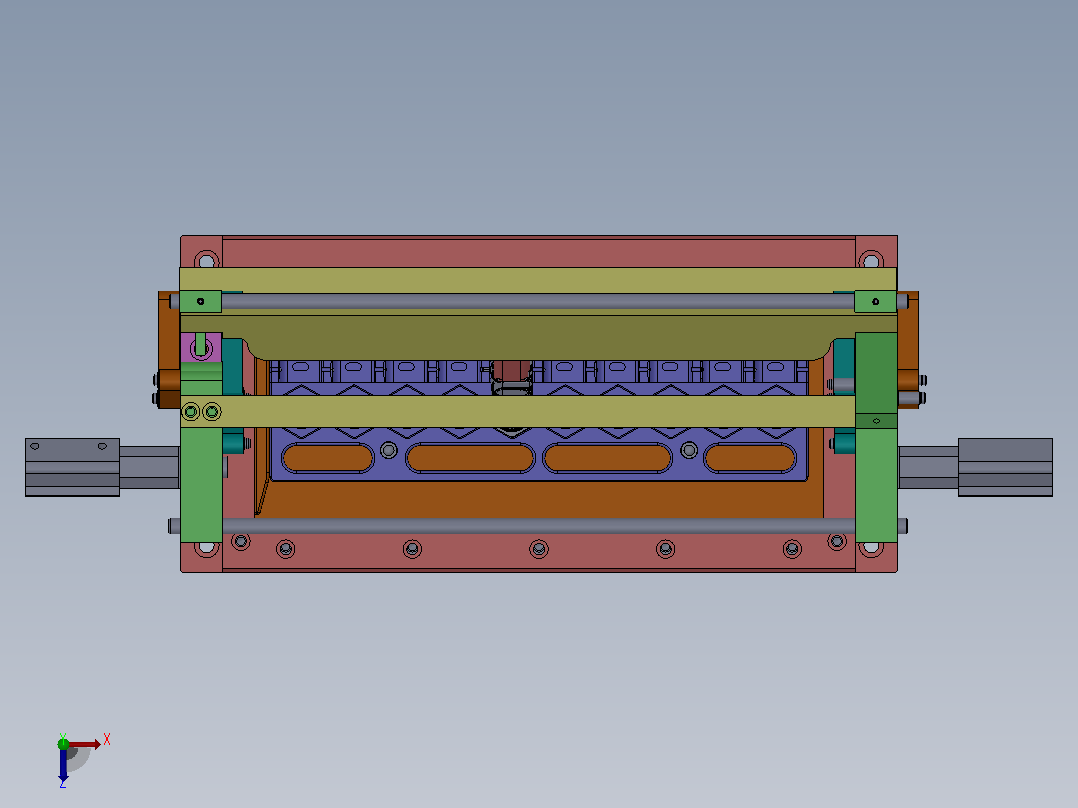

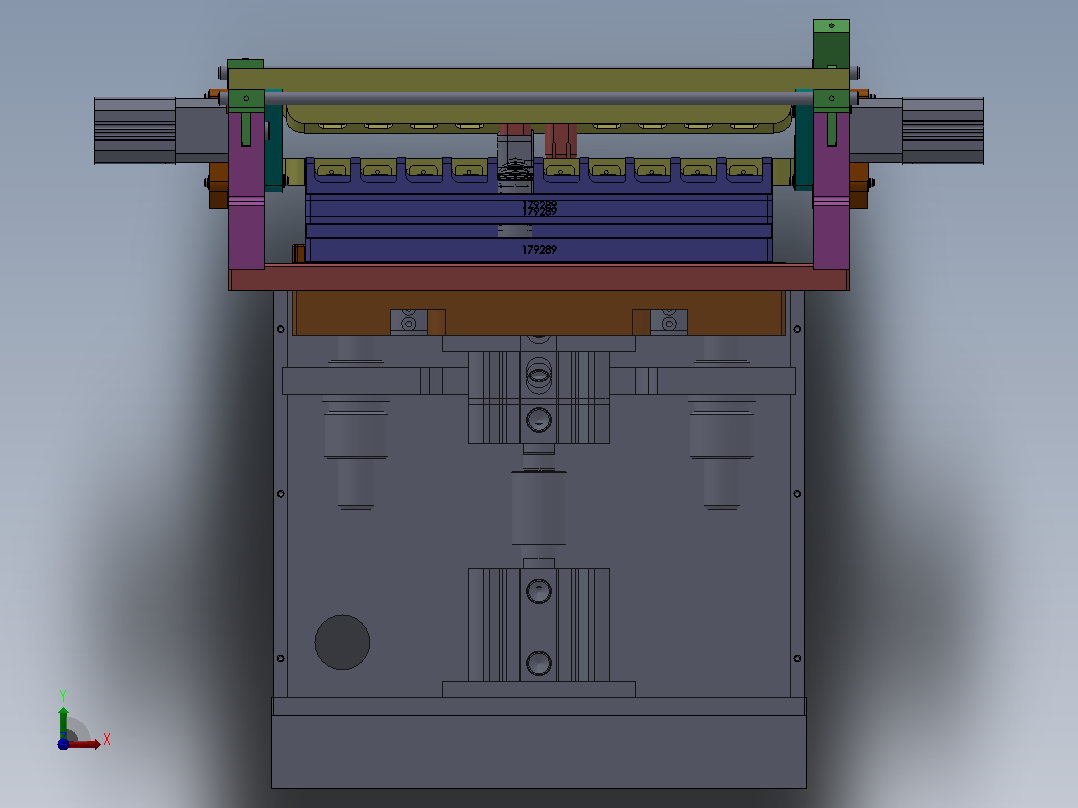

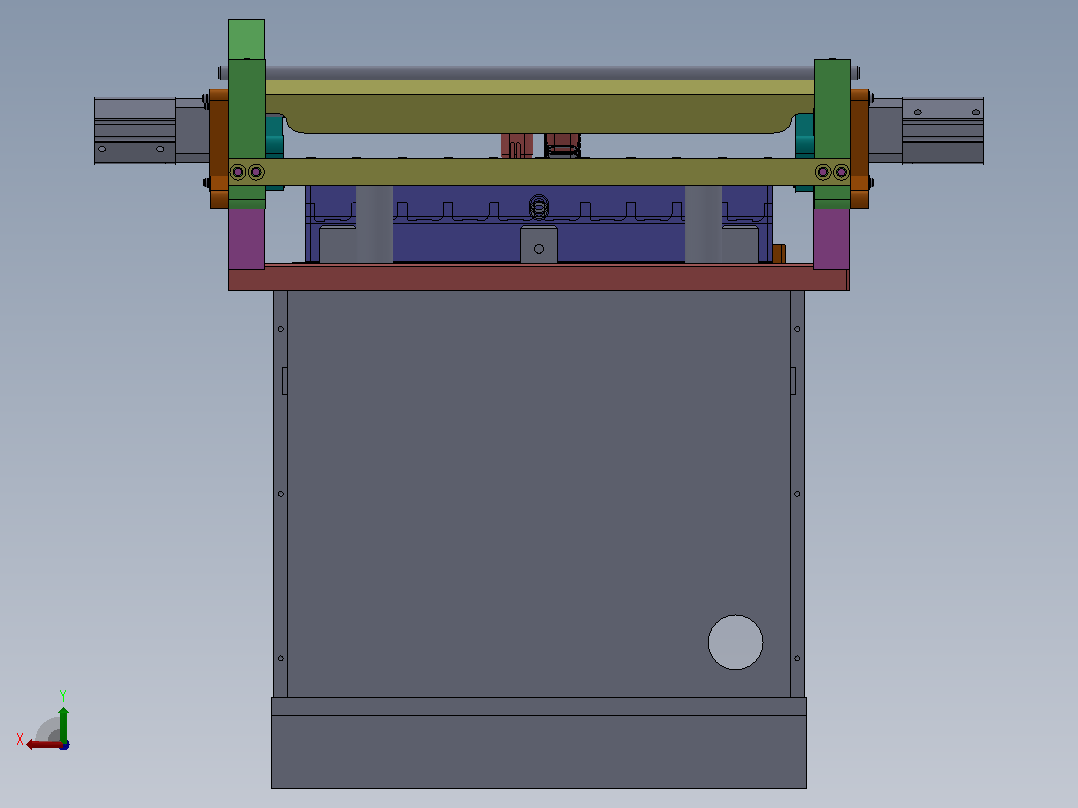

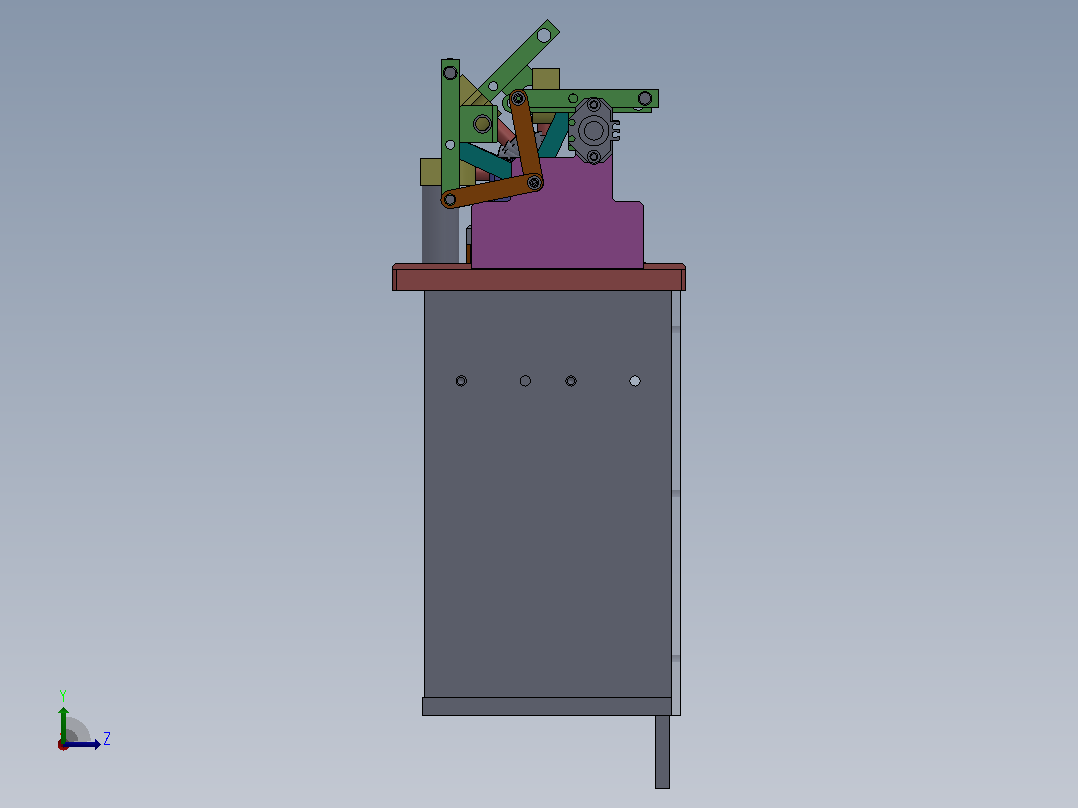

汽车线束插头压装工装夹具SolidWorks 三维模型
三维机械图纸名称为：汽车线束插头压装工装夹具，属于交通运输，车辆工程分类，软件为SolidWorks, 三维模型格式为sldasm,sldprt，可在线预览，可编辑，可供设计参考
模型参数
模型ID：10542747
模型大小：12.12M
软件版本： SolidWorks
模型格式：sldasm,sldprt
是否可编辑：可修改，包括参数
上传时间：2026-07-26
图纸介绍：
下载模型
文件列表
1. 81HCP04-02-MOTION(1- 0 DGR DOWN)-27.sldasm
56 KB
2. 81HCP04-02-MOTION(2- 0 DGR UP)-27.sldasm
56 KB
3. 81HCP04-02-MOTION(3- 15 DGR.718-.443)-27.sldasm
56 KB
4. 81HCP04-02-MOTION(4- 30 dgr .915 - .413)-27.sldasm
56 KB
5. 81HCP04-02-MOTION(5- 45 dgr 1.074 - .299)-27.sldasm
56 KB
6. 81HCP04-02-MOTION(6- 60 dgr 1.216 - .176)-27.sldasm
56 KB
7. 81HCP04-02-MOTION(7- 75 dgr 1.302 - - .012)-27.sldasm
56 KB
8. 81HCP04-02-MOTION(8- 90 dgr 1.332 - -.214)-54.sldasm
56 KB
9. 81HCP04-02-MOTION(8- 90 dgr 1.332 - -.214)-55.sldasm
56 KB
10. 81hcp04-02-motionB-28.sldprt
677 KB
11. 81hcp04-02-motionC-28.sldprt
674 KB
12. 81hcp04-02-motionD-28.sldprt
678 KB
13. 81hcp04-02-motionE-28.sldprt
678 KB
14. 81hcp04-02-motionF-28产品.SLDPRT
1.1 MB
15. 81hcp04-02A-motion-28.sldprt
676 KB
16. 92605A239-28.sldprt
107 KB
17. CDQ2B20-25DZ-M9PWL_CQ22031Rods-28.sldprt
52 KB
18. CDQ2B20-25DZ-M9PWL_CQ2Tube-28.sldprt
66.5 KB
19. CDQ2G80TN-10DMZ-M9PVSBPC_CQ22031Rods-28.sldprt
52 KB
20. CDQ2G80TN-10DMZ-M9PVSBPC_CQ2Tube-28.sldprt
89 KB
21. CDQ2G80TN-10DMZ-M9PVSBPC_Flange-28.sldprt
66 KB
22. CDQ2G80TN-25DMZ-M9PWVSBPC_CQ22031Rods-28.sldprt
52.5 KB
23. CDQ2G80TN-25DMZ-M9PWVSBPC_CQ2Tube-28.sldprt
89 KB
24. CDQ2G80TN-25DMZ-M9PWVSBPC_Flange-28.sldprt
66 KB
25. Fabco-Air-E-5-X-MR-28.sldprt
80.5 KB
26. T-605491-001-PLASTIC(T-605491-001-001)-27.sldprt
588 KB
27. T-605492-001(Default)-27.sldprt
60 KB
28. m-179227-001-28.sldprt
69.5 KB
29. m-179227-002-28.sldprt
77 KB
30. m-179227-003-28.sldprt
53.5 KB
31. m-179227-004-28.sldprt
89 KB
32. m-179227-005-28.sldprt
51 KB
33. m-179227-006-28.sldprt
49.5 KB
34. m-179227-007-28.sldprt
72.5 KB
35. m-179227-008-28.sldprt
51 KB
36. m-179227-009-28.sldprt
54 KB
37. m-179227-010-28.sldprt
51 KB
38. m-179227-011-28.sldprt
65.5 KB
39. m-179227-012-28.sldprt
84 KB
40. m-179227-013-28.sldprt
48.5 KB
41. m-179227-014-28.sldprt
54 KB
42. m-179227-015-28.sldprt
58 KB
43. m-179227-016-28.sldprt
61.5 KB
44. m-179227-017-28.sldprt
84 KB
45. m-179227-018-28.sldprt
55.5 KB
46. m-179227-019-28.sldprt
58.5 KB
47. m-179227-020-28.sldprt
52 KB
48. m-179227-021-28.sldprt
48.5 KB
49. m-179227-022-28.sldprt
53 KB
50. m-179227-023-28.sldprt
48.5 KB
51. m-179227-024-28.sldprt
84 KB
52. m-179227-025-28.sldprt
74 KB
53. m-179227-s001_bearing_mcmaster_2868t43-28.sldprt
49 KB
54. m-179227-s004_smc_cdq2b20-25dz-m9pwl(CDQ2B20-25DZ-M9PWL)-54.sldasm
56 KB
55. m-179227-s004_smc_cdq2b20-25dz-m9pwl(CDQ2B20-25DZ-M9PWL)-55.sldasm
56 KB
56. m-179227-s005_danly_gd100-28.sldprt
51.5 KB
57. m-179227-s006_shaft_mcmaster_1240k710-28.sldprt
71 KB
58. m-179227-s007_smc_cdq2g80tn-25dmz-m9pwvsbpc(EOS)-27.sldasm
59.5 KB
59. m-179227-s007_smc_cdq2g80tn-25dmz-m9pwvsbpc(Home)-27.sldasm
59.5 KB
60. m-179227-s008_smc_cdq2g80tn-10dmz-m9pvsbpc(EOS)-27.sldasm
59 KB
61. m-179227-s008_smc_cdq2g80tn-10dmz-m9pvsbpc(Home)-27.sldasm
59 KB
62. m-179227-s008_smc_cdq2g80tn-10dmz-m9pvsbpc(free)-27.sldasm
59.5 KB
63. m-179227-s009_mcmaster_8491a726-28.sldprt
48.5 KB
64. m-179227-s010_mcmaster_8491a725-28.sldprt
48.5 KB
65. m-179227-s011_shim_mcmaster_90917a631-28.sldprt
49 KB
66. m-179227-s012_mcmaster_92158A199-28.sldprt
76.5 KB
67. m-179227-s013_bearing_mcmaster_6952k62-28.sldprt
49 KB
68. m-179227-s015_mcmaster_8491A191-28.sldprt
48.5 KB
69. m-179227-sub2(Default-_flexible1)-27.sldasm
92 KB
70. m-179227-sub2(no angle limit mate-_flexible1)-27.sldasm
92.5 KB
71. m-179227-sub3-28.sldasm
53 KB
72. m-179227-sub4(Default)-54.sldasm
58.5 KB
73. m-179227-sub4(Default)-55.sldasm
58.5 KB
74. m-179227.SLDASM
5.82 MB
75. m-179289(0 - inserted)-27.sldasm
80 KB
76. m-179289(0- before insertion)-27.sldasm
80.5 KB
77. m-179289(15 dgr)-27.sldasm
80.5 KB
78. m-179289(30 dgr)-27.sldasm
80.5 KB
79. m-179289(45 dgr)-27.sldasm
80.5 KB
80. m-179289(60 dgr)-27.sldasm
80.5 KB
81. m-179289(75 dgr)-27.sldasm
81 KB
82. m-179289(90 dgr)-54.sldasm
92.5 KB
83. m-179289(90 dgr)-55.sldasm
92.5 KB
84. m-179289-001-28.sldprt
316 KB
85. m-179289-s001-MISUMI_pfssn4_2_03-28.sldprt
58.5 KB
86. m-179289-s002_mcmaster_8492a066-28.sldprt
49.5 KB
87. m-179289-s003_mcmaster_8492a119-28.sldprt
49.5 KB
