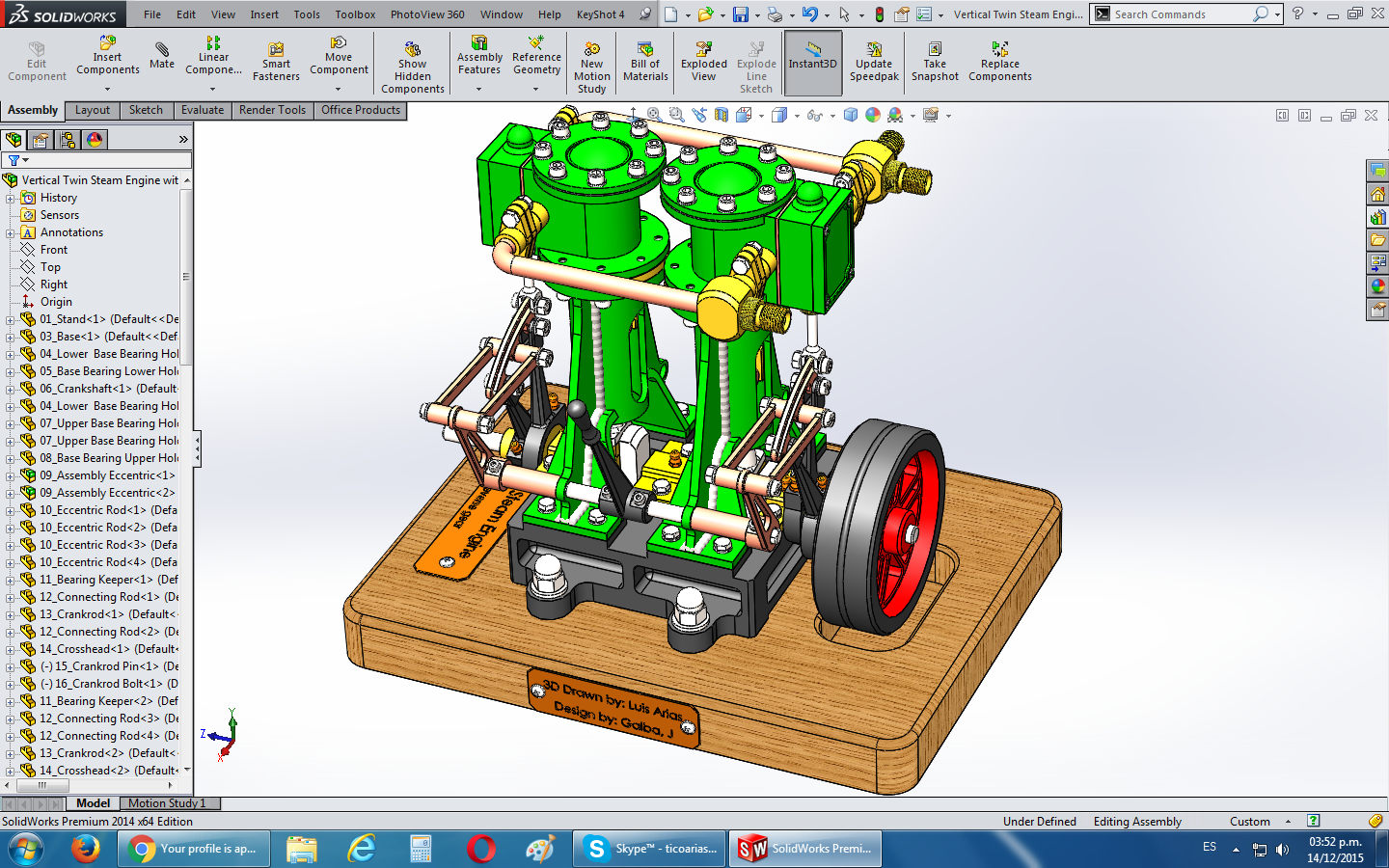

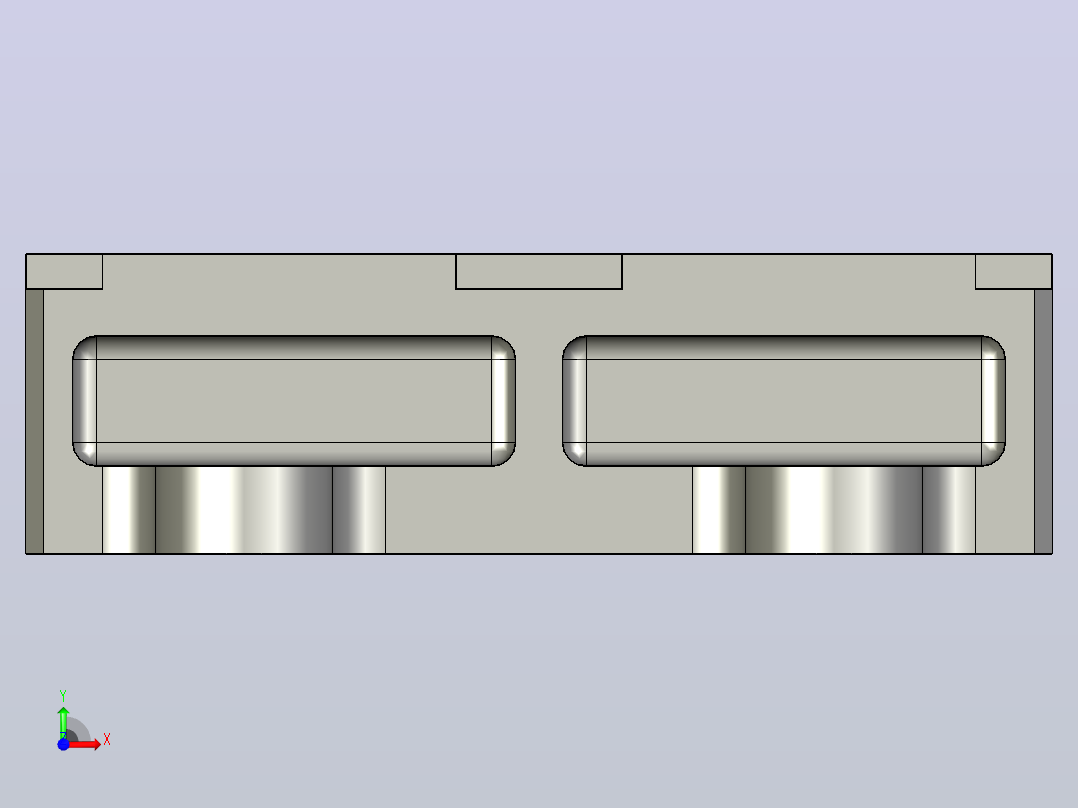

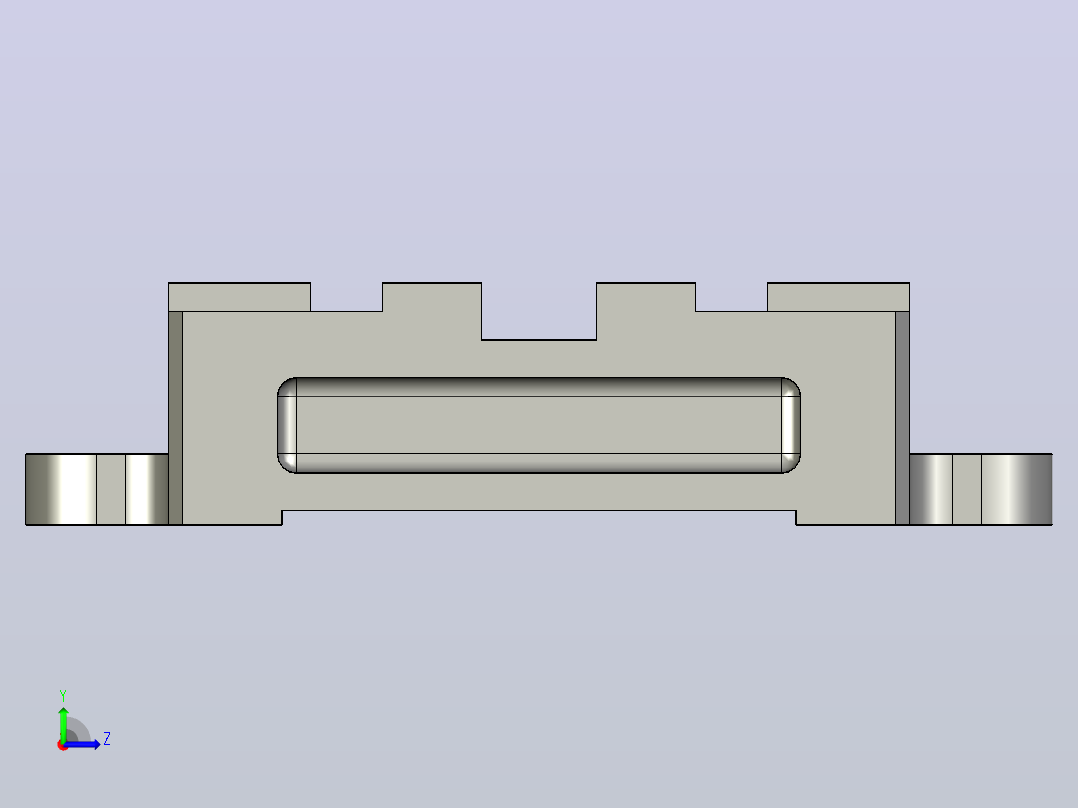

带倒档的立式双蒸汽机step 三维模型
三维机械图纸名称为：带倒档的立式双蒸汽机，属于机械设备，非标机械分类，软件为step, 三维模型格式为step,pdf，可在线预览，可编辑，可供设计参考
模型参数
模型ID：10538176
模型大小：29.63M
软件版本： step
模型格式：step,pdf
是否可编辑：可修改，包括参数
上传时间：2026-07-13
图纸介绍：
下载模型
文件列表
1. 01_Cylinder Piping Tube Glanse.STEP
114 KB
2. 01_Stand.STEP
163 KB
3. 01_Standard Cylinder.STEP
636 KB
4. 02_04_Cylinder Piping Collector Glanse.STEP
118 KB
5. 02_Standard Rib.STEP
124 KB
6. 03_05_Cylinder Piping Connector.STEP
827 KB

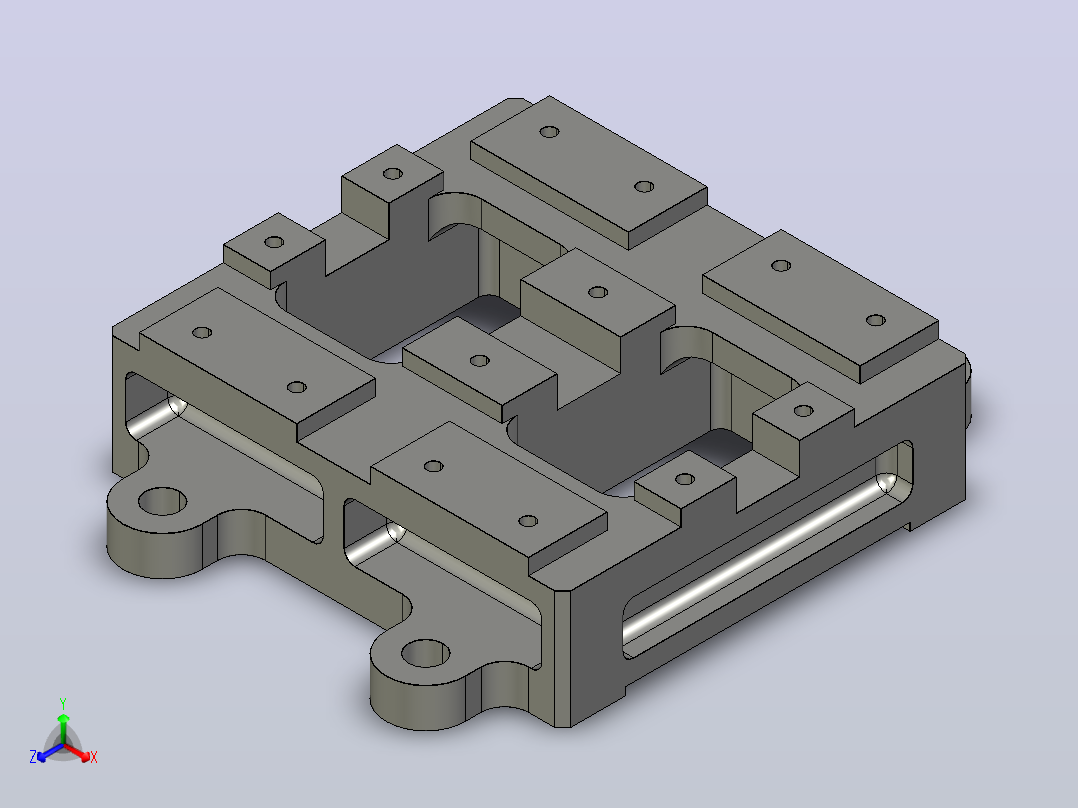

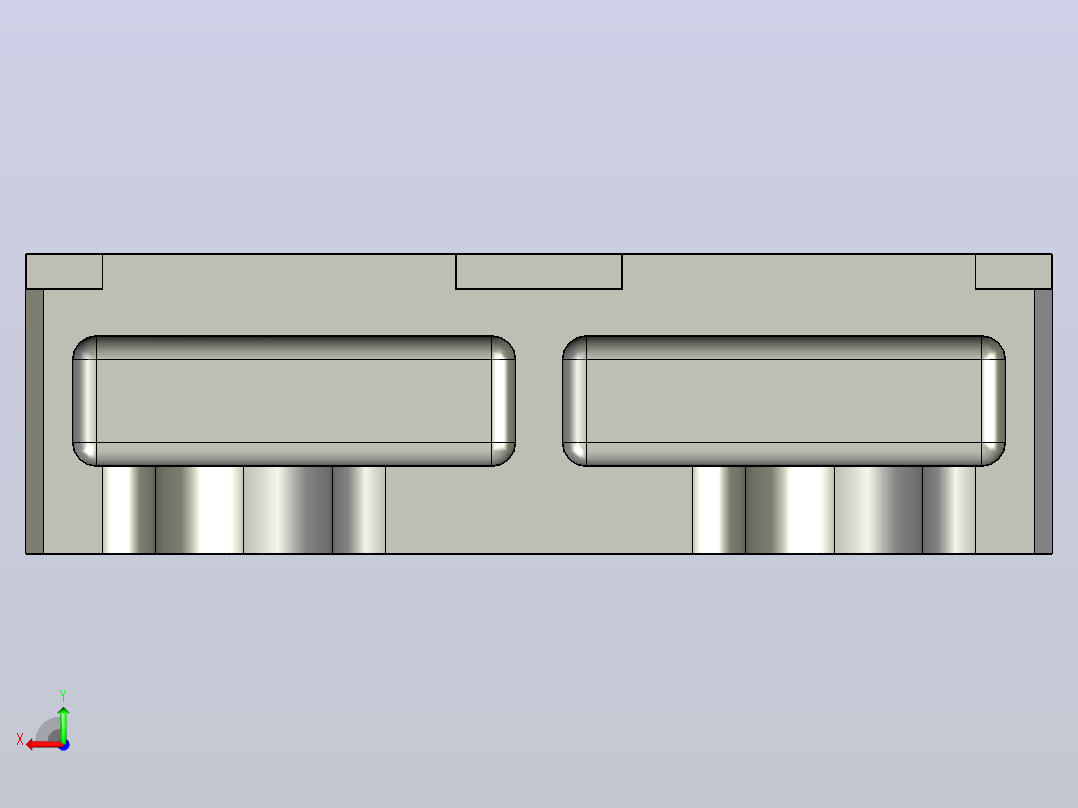

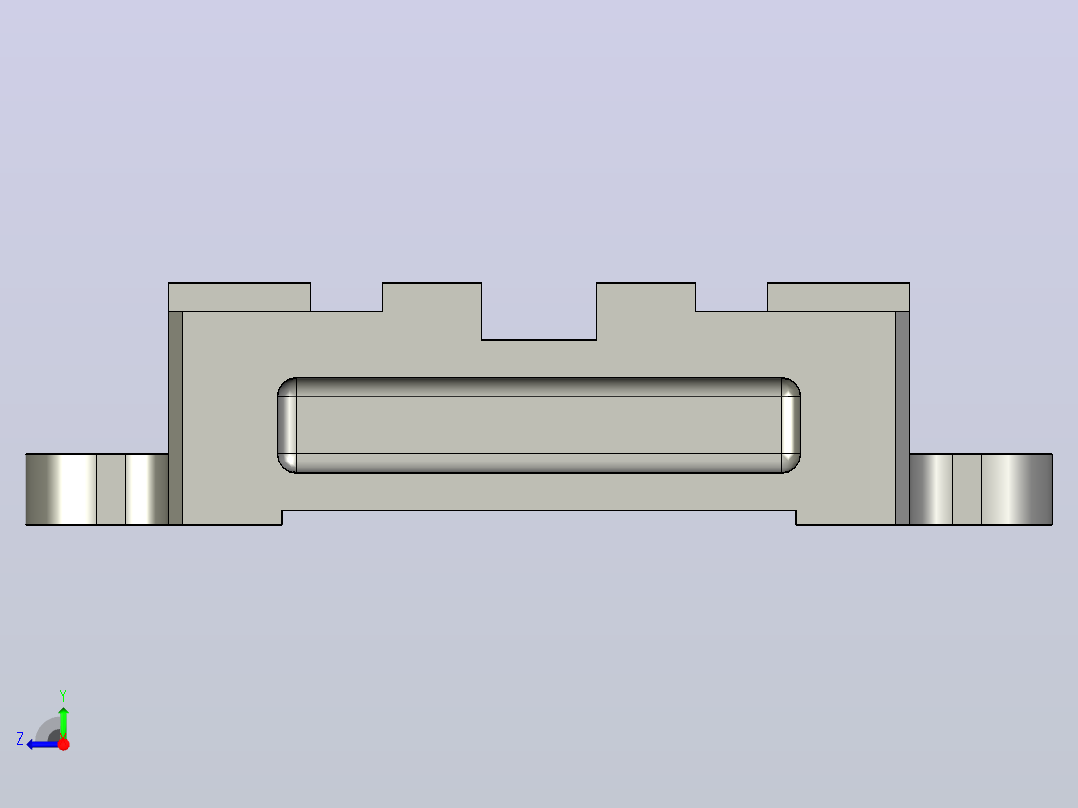

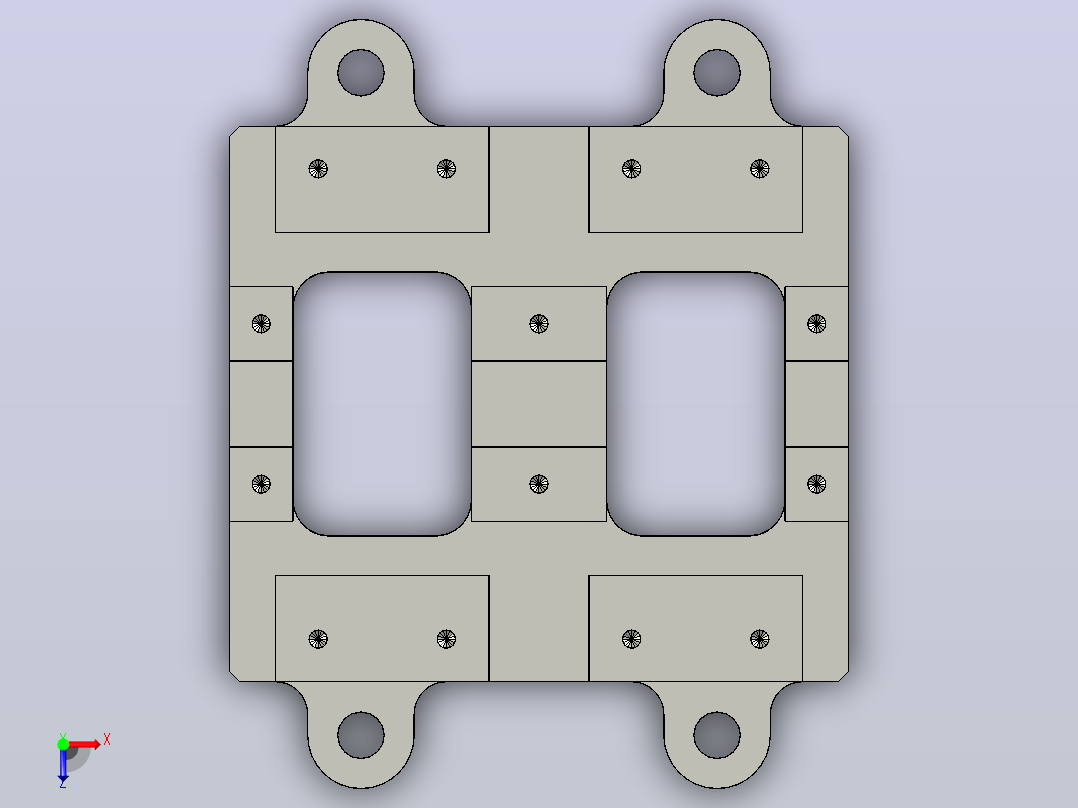

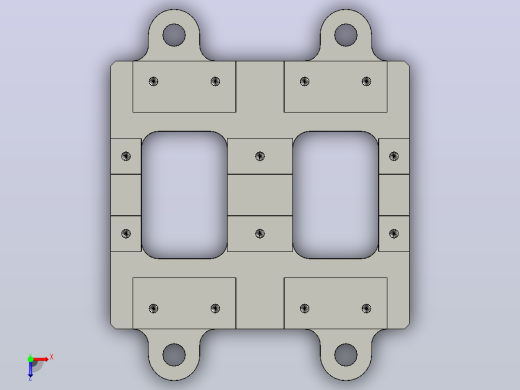

7. 03_Base.STEP
1.18 MB
8. 03_Cylinder Piping Collector Exit.STEP
90.6 KB
9. 03_Standard Socle.STEP
72.1 KB
10. 04_Cylinder Piping Tube Entry.STEP
49.4 KB
11. 04_Lower Base Bearing Holder.STEP
66.1 KB
12. 04_Standard Foot.STEP
181 KB
13. 05_Base Bearing Lower Holder2.STEP
66.2 KB
14. 05_Cylinder Piping Collector Entry.STEP
97.9 KB
15. 06_Crankshaft.STEP
374 KB
16. 06_Cylinder piping tube glanse packing.STEP
44.1 KB
17. 07_Upper Base Bearing Holder.STEP
385 KB
18. 08_Base Bearing Upper Holder2.STEP
353 KB
19. 09_Assembly Eccentric.STEP
228 KB
20. 10_Eccentric Rod.STEP
454 KB
21. 11_Bearing Keeper.STEP
75.8 KB
22. 12_Connecting Rod.STEP
97.3 KB
23. 13_Crankrod.STEP
497 KB
24. 14_Crosshead.STEP
562 KB
25. 15_Crankrod Pin.STEP
39.3 KB
26. 16_Crankrod Bolt.STEP
35.5 KB
27. 17_Welding Assembly Standard.STEP
1.02 MB
28. 18_Cylinder Packnut.STEP
57.3 KB
29. 19_Cylinder Cover Lower.STEP
180 KB
30. 20_Cylinder Right.STEP
469 KB
31. 21_Cylinder Left.STEP
471 KB
32. 22_Steam Piston.STEP
68.6 KB
33. 23_Steam Piston Ring.STEP
42.9 KB
34. 24_Piston Rod.STEP
56.2 KB
35. 25_Cylinder Packing.STEP
58.7 KB
36. 26_Upper Cylinder Cover.STEP
158 KB
37. 27_Valve Plate.STEP
169 KB
38. 28_Steamchest.STEP
323 KB
39. 30_Slide Valve.STEP
244 KB
40. 31_Slide Valve Holder.STEP
225 KB
41. 32_Steam Chest Slide Valve Rod.STEP
178 KB
42. 33_Reverse Gear Link.STEP
254 KB
43. 34_Reverse Gear Lever Rod.STEP
52.9 KB
44. 35_Flywheel.STEP
531 KB
45. 36_Reverse Gear Lever.STEP
201 KB
46. 37_Reverse Gear Lever Link.STEP
178 KB
47. 38_Reverse Gear Drag Link.STEP
93.3 KB
48. 39_Steamchest Cover.STEP
221 KB
49. 40_Assembly Cylinder Piping Exit.STEP
976 KB
50. 41_Assembly Cylinder Piping Entry.STEP
984 KB
51. 42_Cylinder Pipe Connector.STEP
40.9 KB

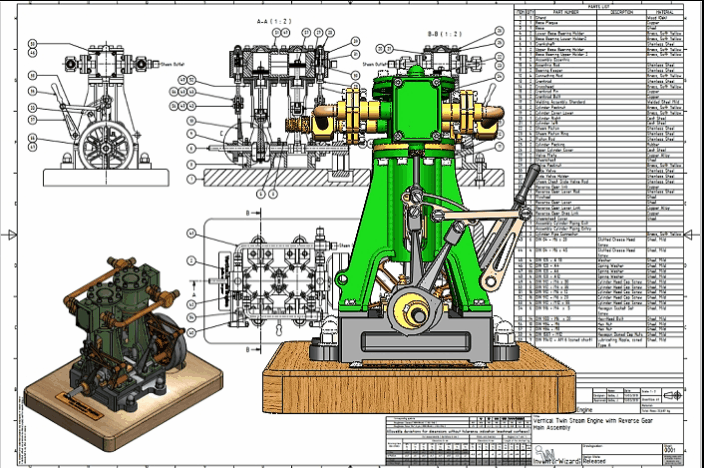

52. Animacion Vertical Twin Stean Engine.gif
9.11 MB
53. Assembly Cylinder Piping Entry.pdf
103 KB
54. Assembly Cylinder Piping Exit.pdf
90.2 KB
55. Assembly Eccentric.pdf
60.6 KB
56. Assembly Standard.pdf
139 KB
57. Assembly.pdf
447 KB
58. Base Bearing Lower Holder1.pdf
44 KB
59. Base Bearing Lower Holder2.pdf
48.7 KB
60. Base Bearing Upper Holder1.pdf
59.7 KB
61. Base Bearing Upper Holder2.pdf
67 KB
62. Base.pdf
94.6 KB
63. Bearing Keeper.pdf
41.9 KB
64. Connecting Rod.pdf
44.8 KB
65. Crankrod Bolt.pdf
52.3 KB
66. Crankrod Pin.pdf
45.6 KB
67. Crankrod.pdf
52.6 KB
68. Crankshaft.pdf
84.3 KB
69. Crosshead.pdf
61.3 KB
70. Cylinder Cover Lower.pdf
55.5 KB
71. Cylinder Cover Upper.pdf
63.7 KB
72. Cylinder Left.pdf
80.1 KB
73. Cylinder Packing.pdf
51.7 KB
74. Cylinder Packnut.pdf
58.4 KB
75. Cylinder Pipe Connector.pdf
46.2 KB
76. Cylinder Piping Collector Entry.pdf
62.5 KB
77. Cylinder Piping Collector Exit.pdf
62 KB
78. Cylinder Piping Collector Glanse.pdf
55.7 KB
79. Cylinder Piping Connector.pdf
61 KB
80. Cylinder Piping Tube Entry.pdf
56.4 KB
81. Cylinder Piping Tube Exit.pdf
52.3 KB
82. Cylinder Piping Tube Glanse.pdf
53.4 KB
83. Cylinder Right.pdf
82 KB
84. Cylinder piping tube glanse packing.pdf
45.8 KB
85. Eccentric 01.STEP
166 KB
86. Eccentric 01.pdf
58.7 KB
87. Eccentric 02.STEP
50 KB
88. Eccentric 02.pdf
52 KB
89. Eccentric Rod.pdf
64.3 KB
90. Flywheel2.pdf
71 KB
91. Reverse Gear Drag Link.pdf
62.7 KB
92. Reverse Gear Lever Link.pdf
56.7 KB
93. Reverse Gear Lever Rod.pdf
56.8 KB
94. Reverse Gear Lever.pdf
60.9 KB
95. Reverse Gear Link.pdf
76.7 KB
96. Slide Valve Holder.pdf
53.8 KB
97. Slide Valve.pdf
45.3 KB
98. Stand.pdf
63.4 KB
99. Standard Cylinder.pdf
69.5 KB
100. Standard Foot.pdf
41.4 KB
101. Standard Rib.pdf
54.4 KB
102. Standard Socle.pdf
58.3 KB
103. Steam Piston Ring.pdf
48.1 KB
104. Steam Piston Rod.pdf
47 KB
105. Steam Piston.pdf
56.6 KB
106. Steamchest Cover.pdf
73.6 KB
107. Steamchest.pdf
60.9 KB
108. Valve Packnut.pdf
84.4 KB
109. Valve Plate.pdf
72 KB
110. Valve Slide Rod.pdf
51 KB

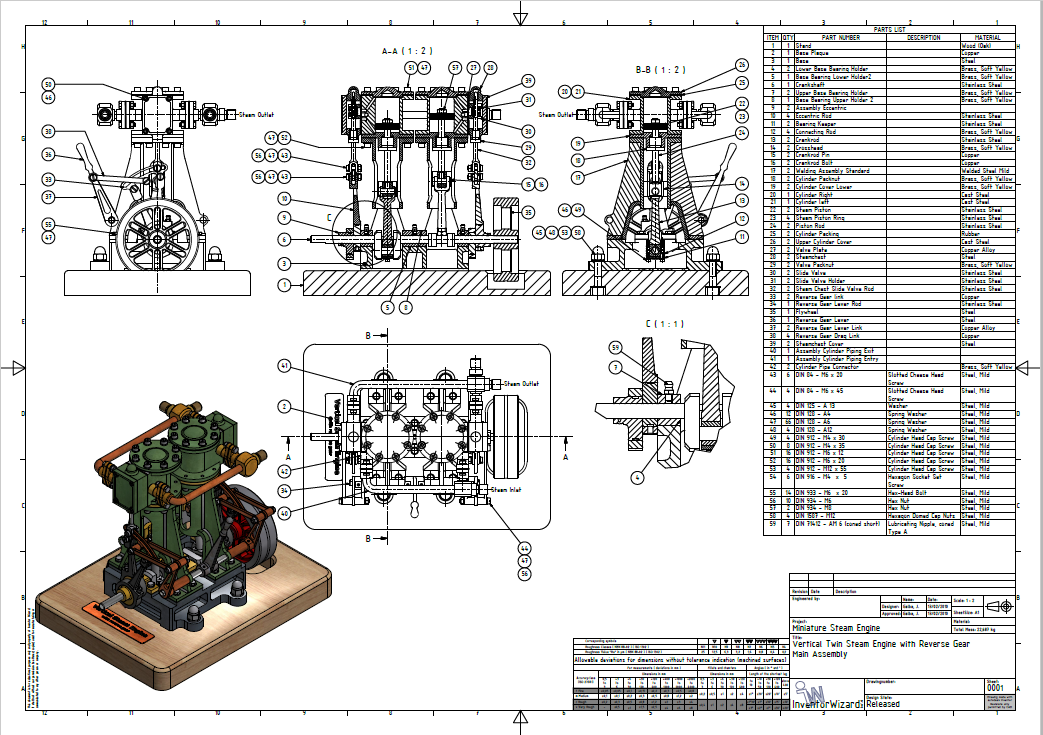

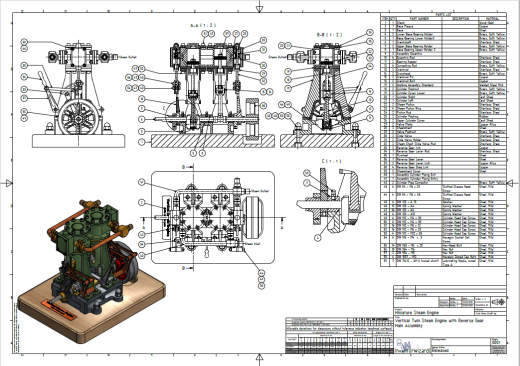

111. Vertical Twin Steam Engine.png
287 KB
112. Vertical Twin Steam Engine_Solidworks.png
757 KB

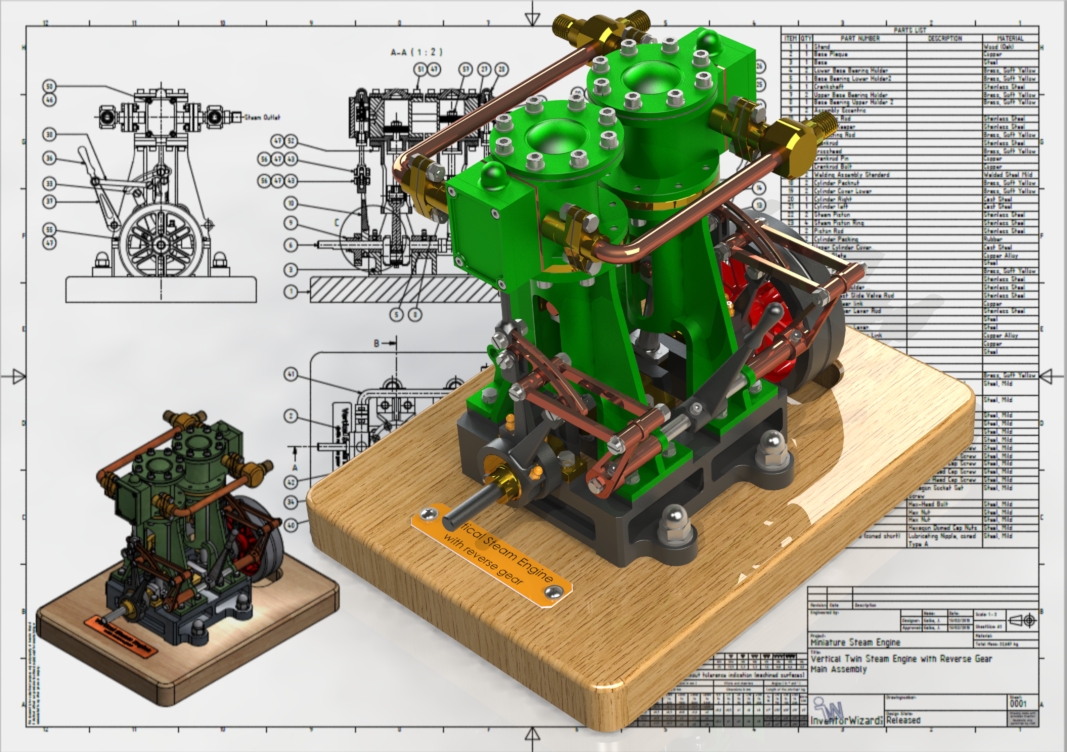

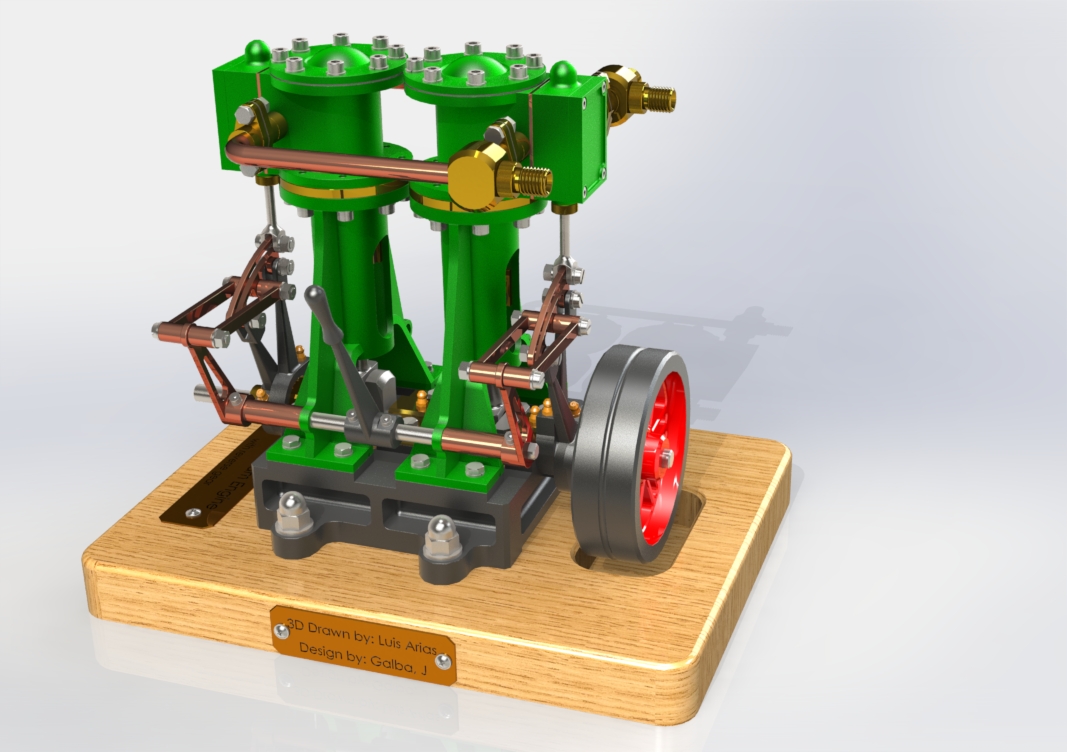

113. Vertical Twin Steam Engine_render.JPG
341 KB
114. Vertical Twin Steam Engine_render_1.JPG
581 KB
