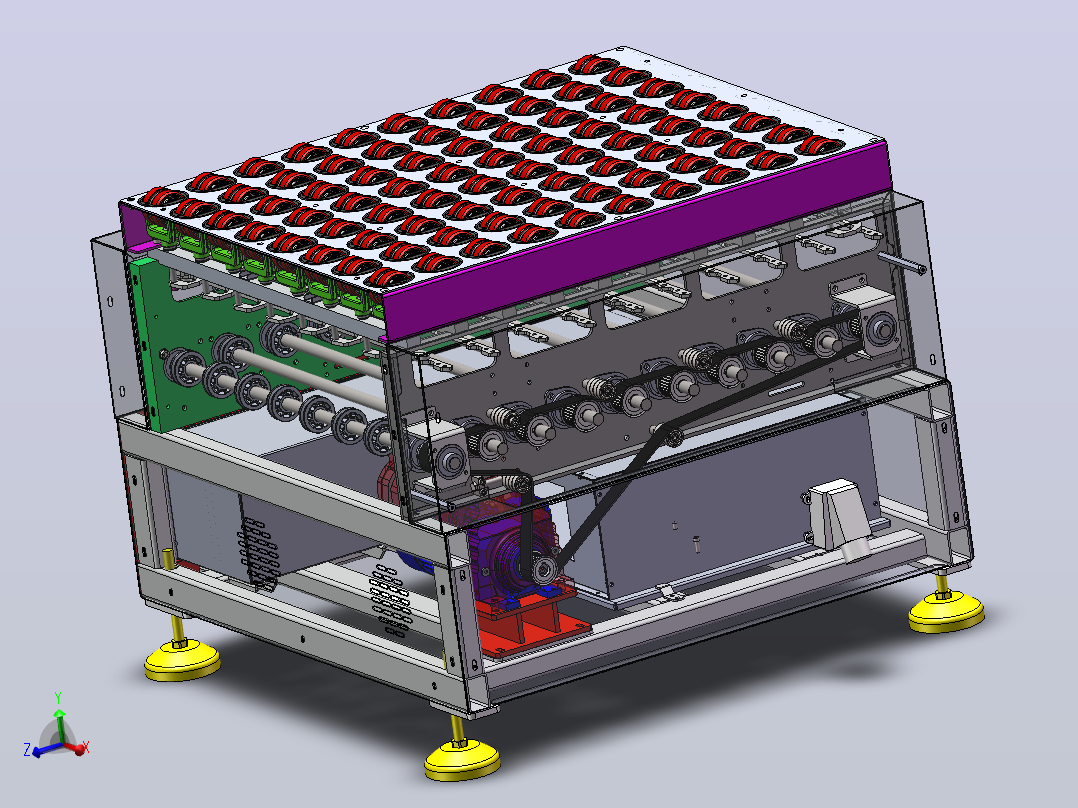

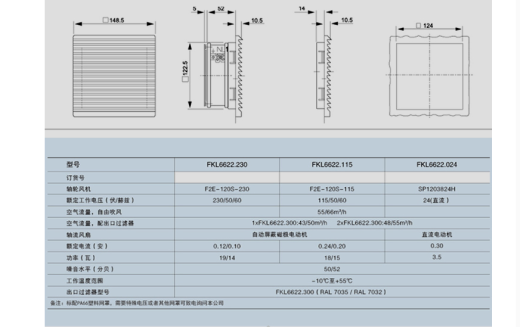

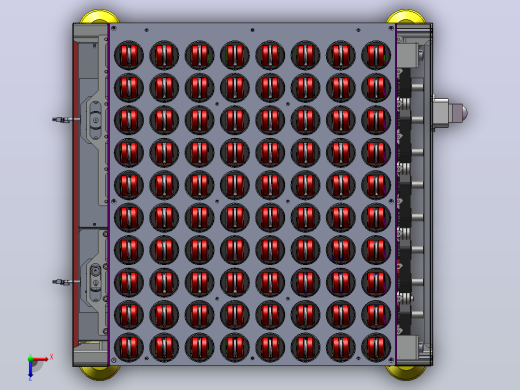

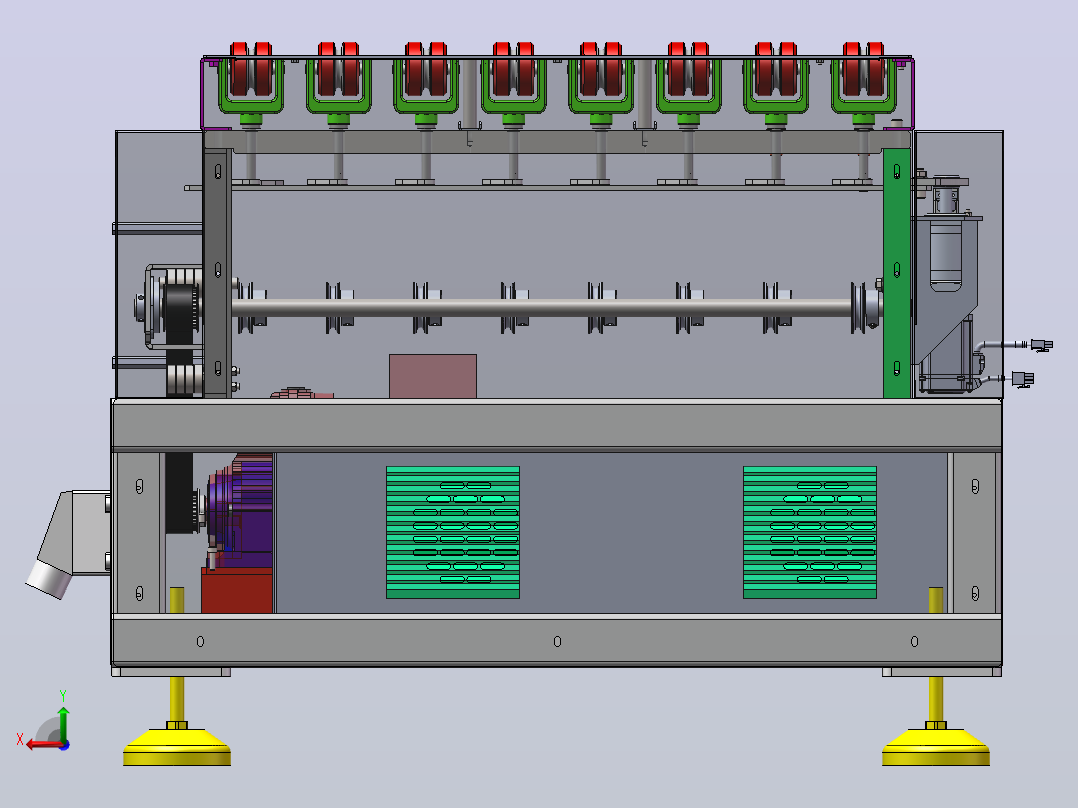

摆轮分拣机（生产项目全套图档sw+cad）SolidWorks,AutoCAD,igs,step,parasolid,stp 三维模型

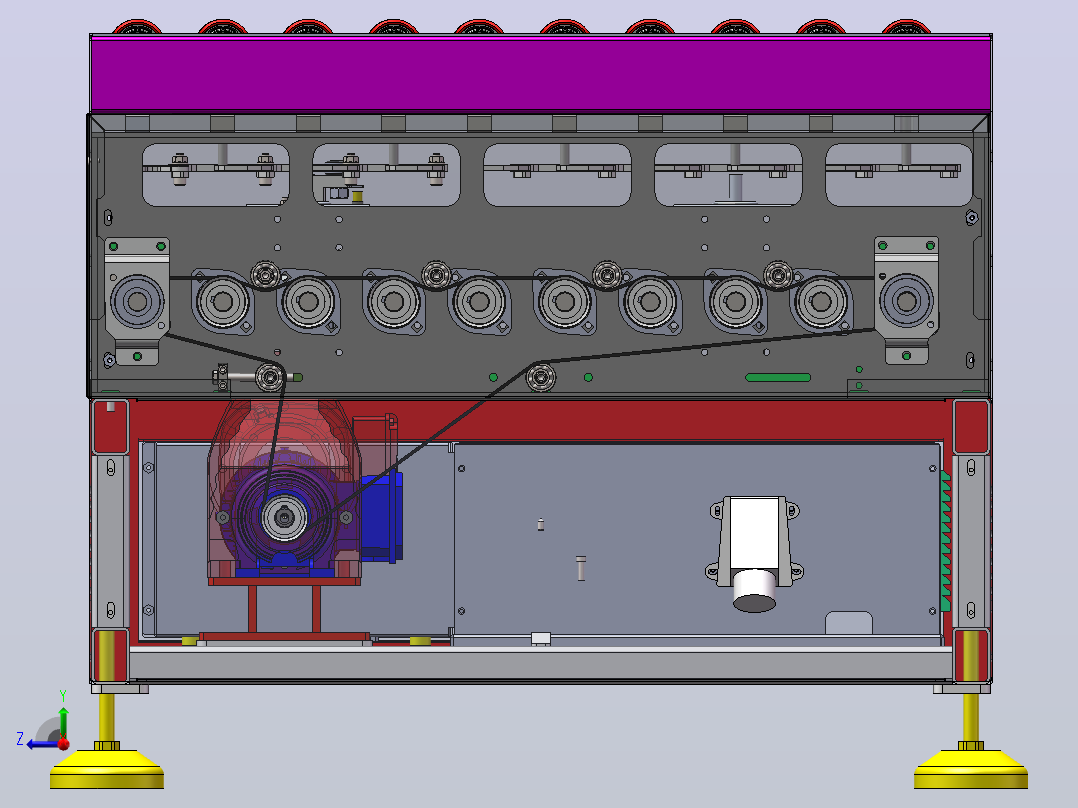

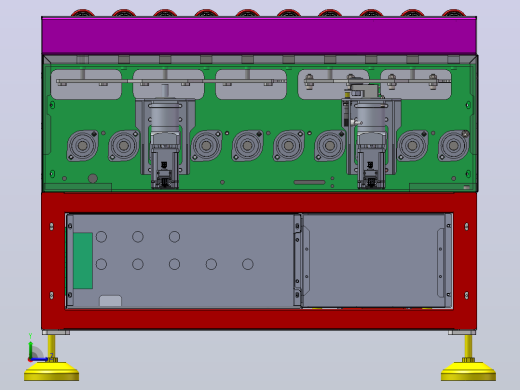

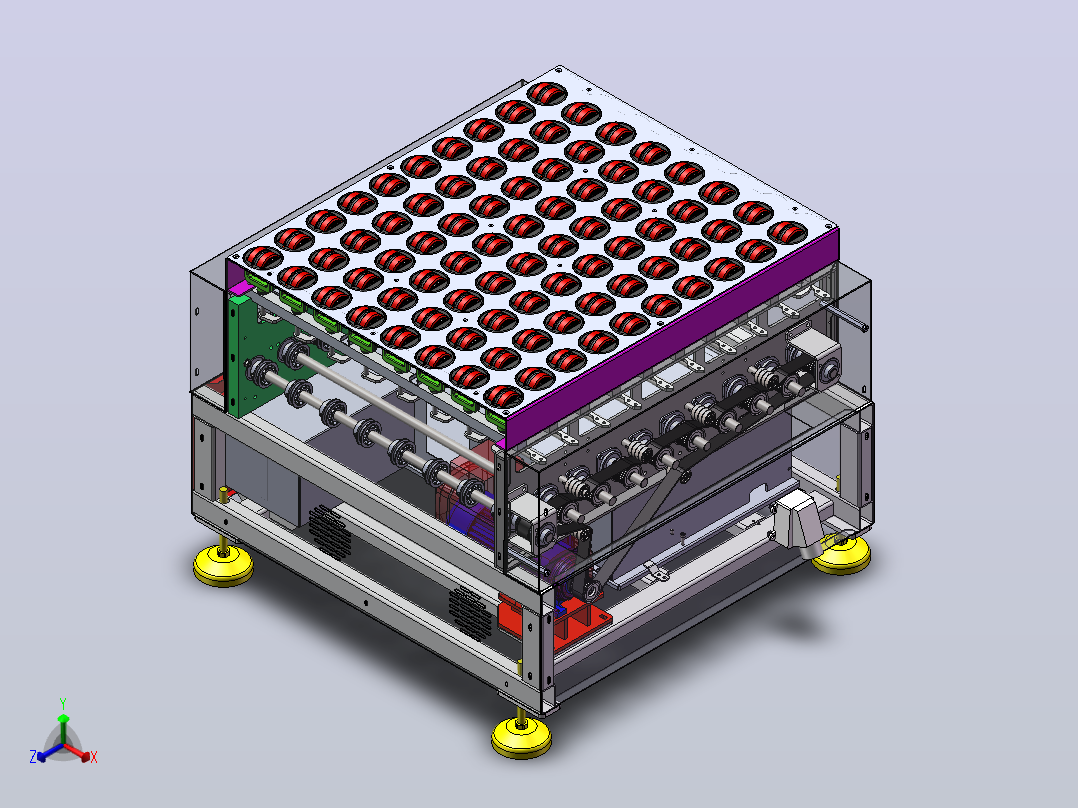

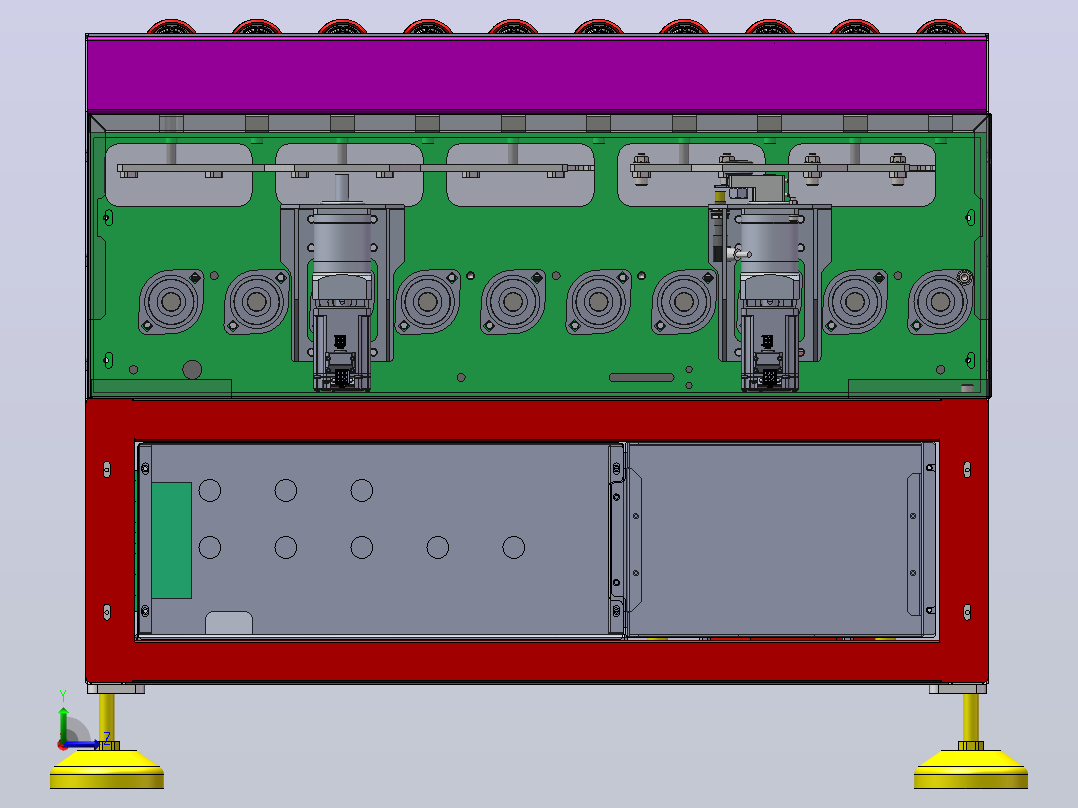

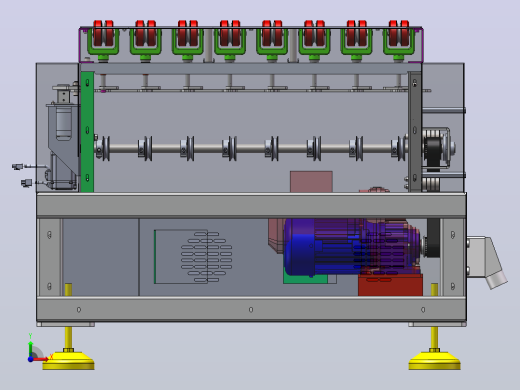

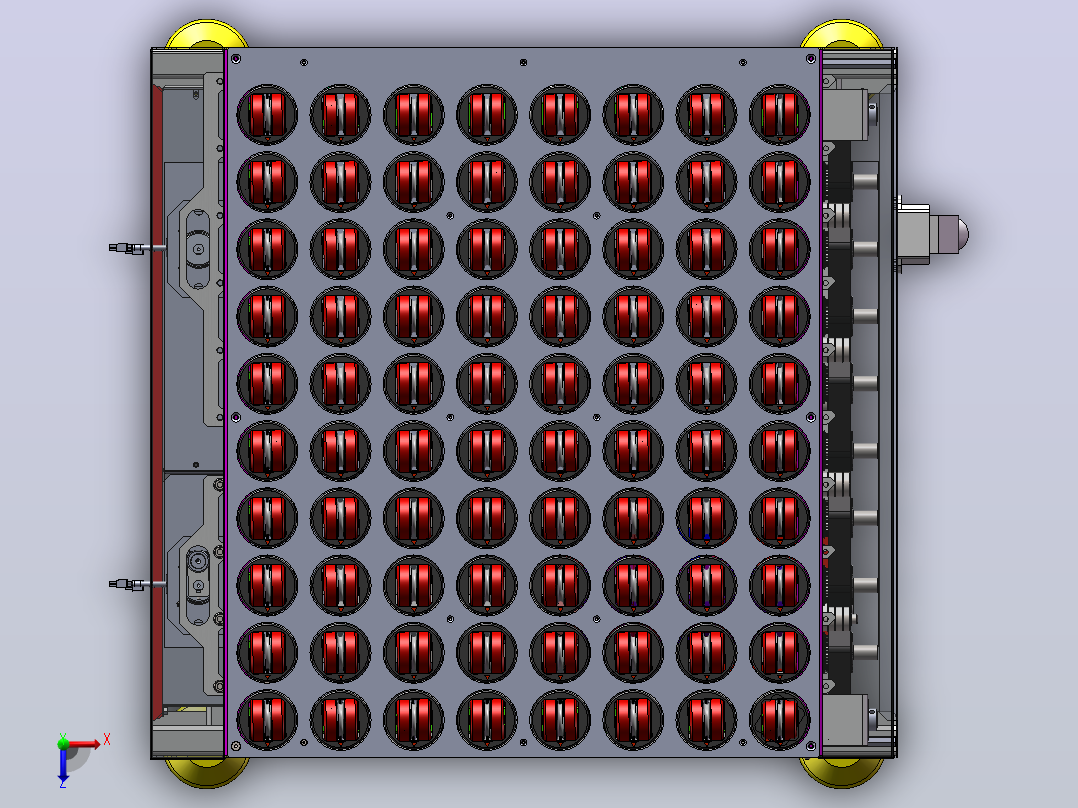

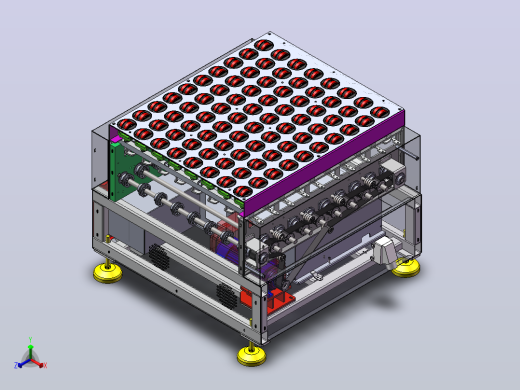

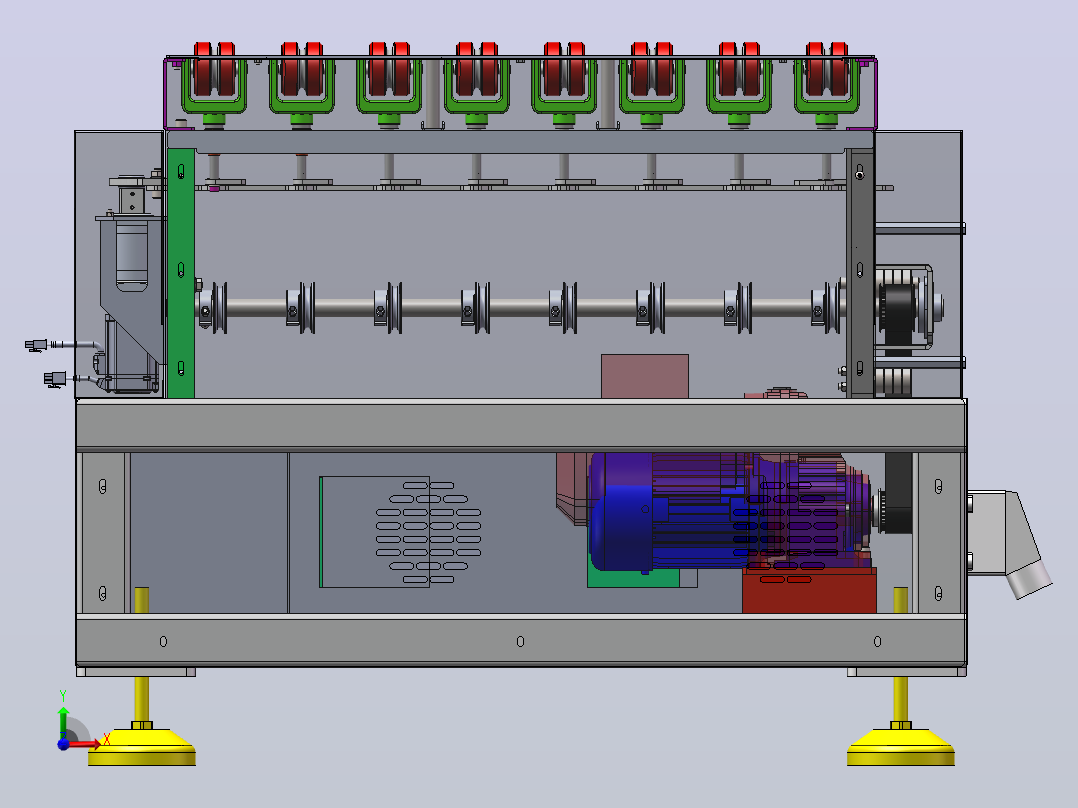

三维机械图纸名称为：摆轮分拣机（生产项目全套图档sw+cad），属于机械设备，输送提升设备分类，软件为SolidWorks,AutoCAD,igs,step,parasolid,stp, 三维模型格式为sldprt,pdf,sldasm,step,dwg,igs,x_t，可在线预览，可编辑，可供设计参考

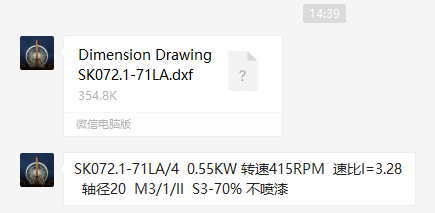

.png!format.webp)
.png!format.webp)

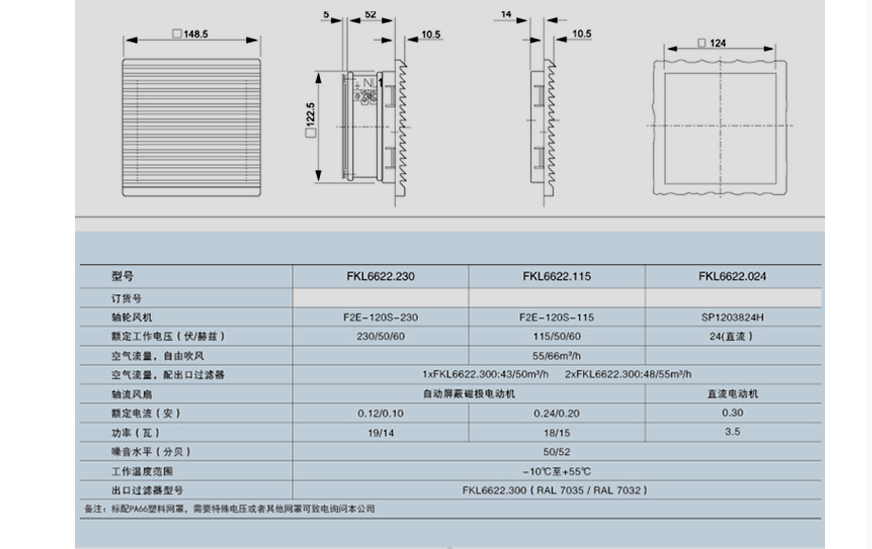

.png!format_w_520.webp)
.png!format_w_520.webp)
模型参数
模型ID：10510417
模型大小：131.13M
软件版本： SolidWorks,AutoCAD,igs,step,parasolid,stp
模型格式：sldprt,pdf,sldasm,step,dwg,igs,x_t
是否可编辑：可修改，包括参数
上传时间：2026-06-22
图纸介绍：
下载模型
