符合ANSI B16.9的所有常见短半径90°管道弯头库stl,stp,inventor 三维模型

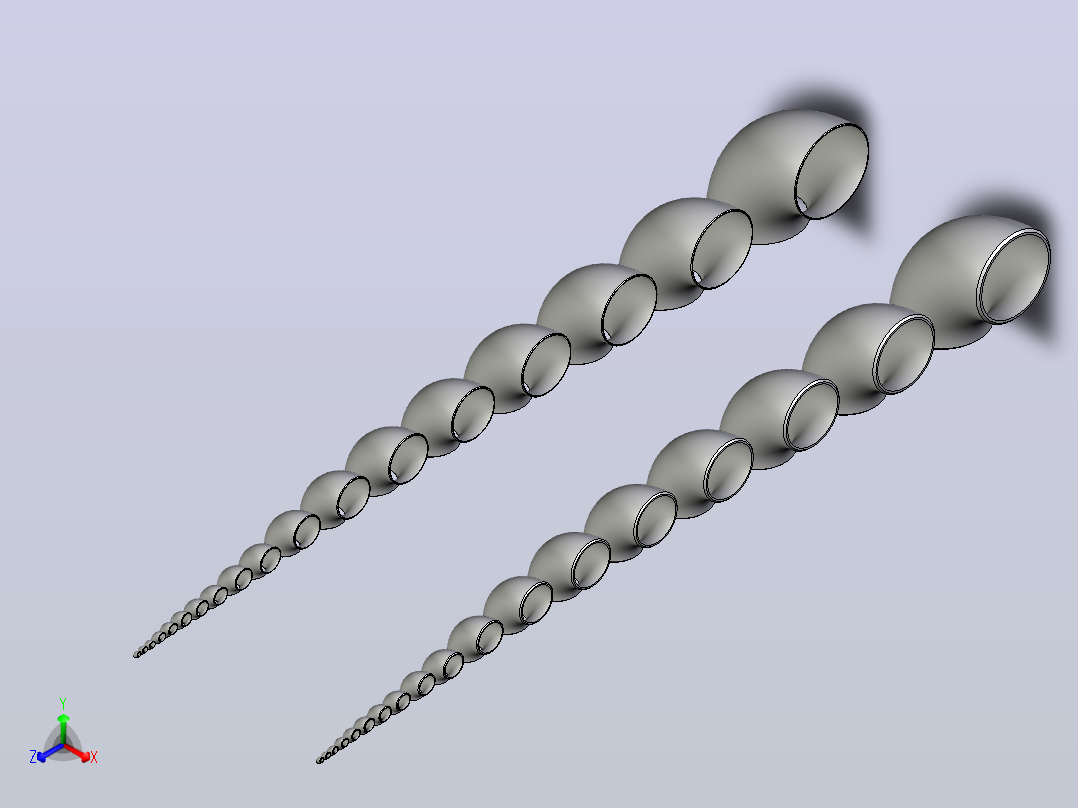

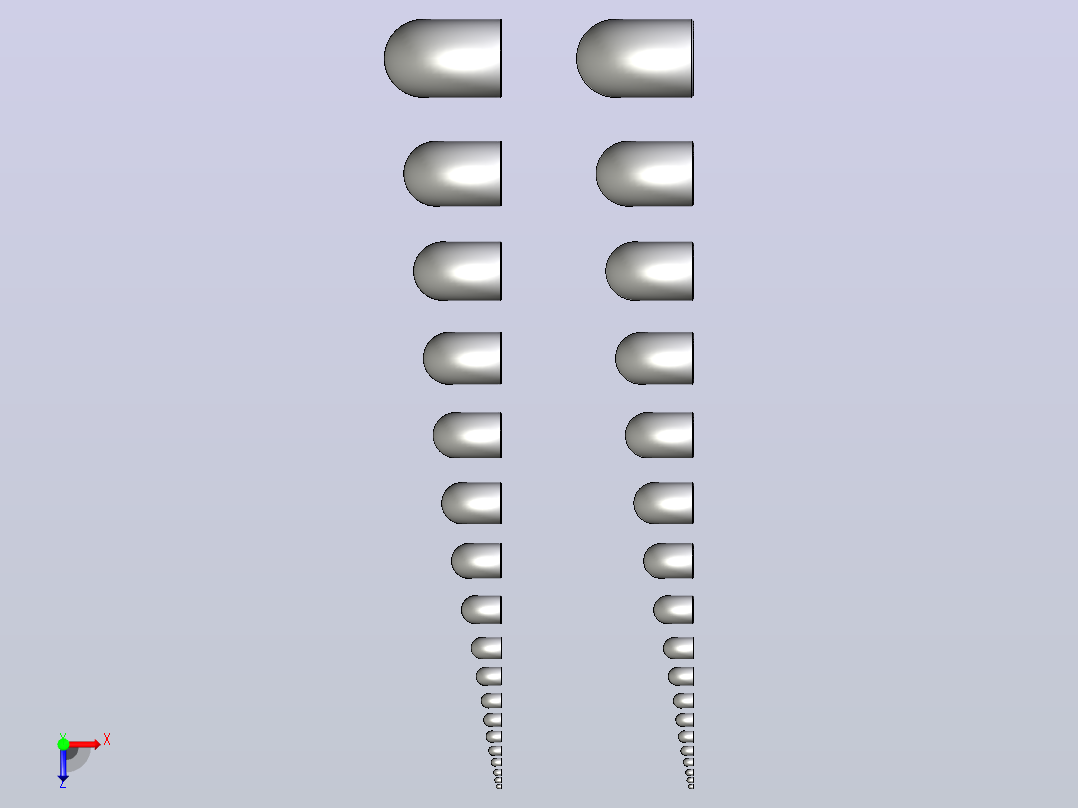

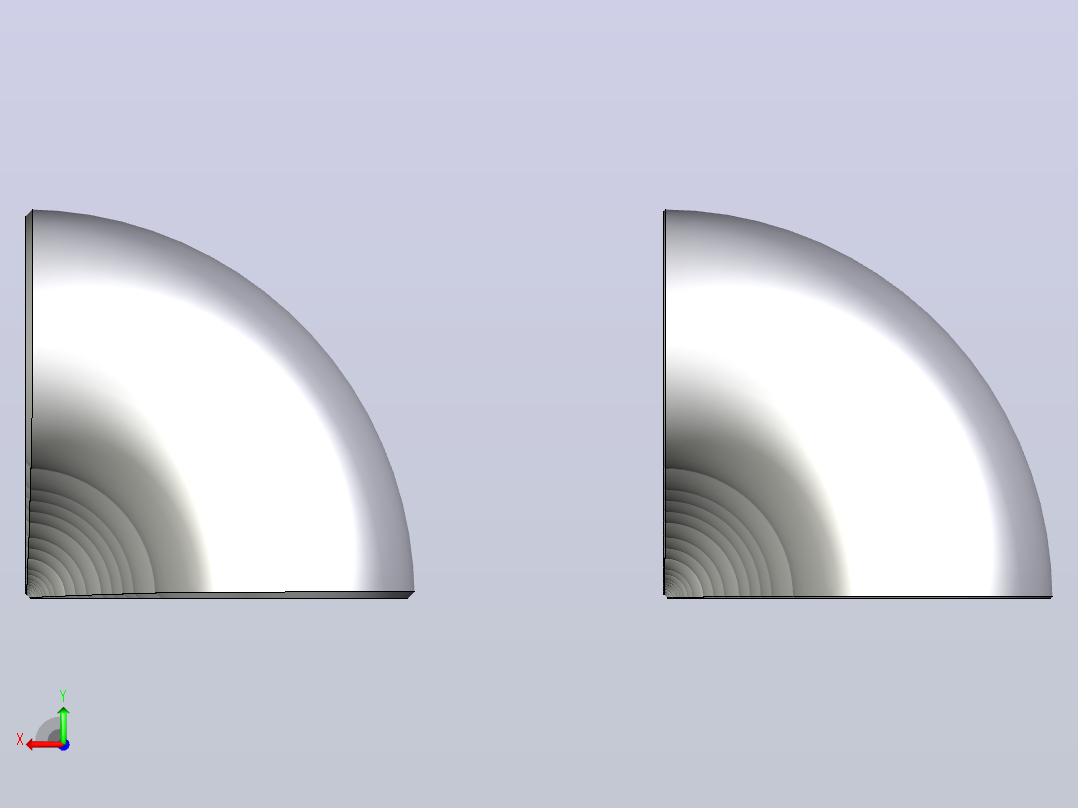

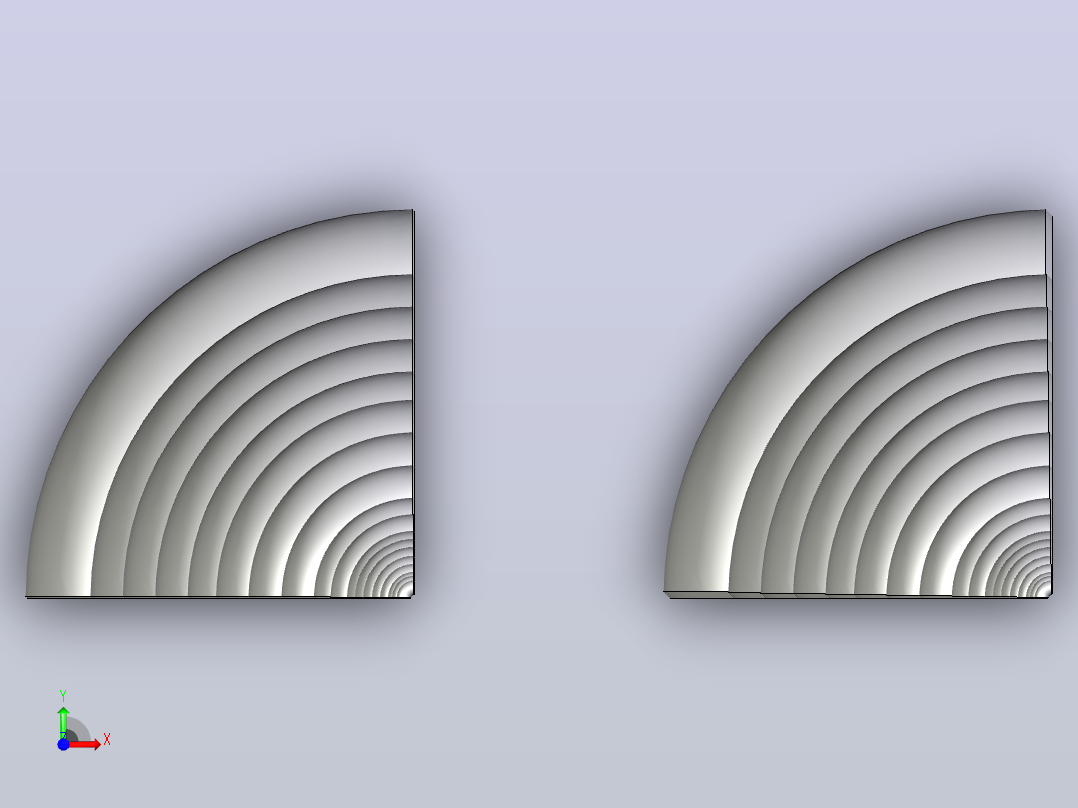

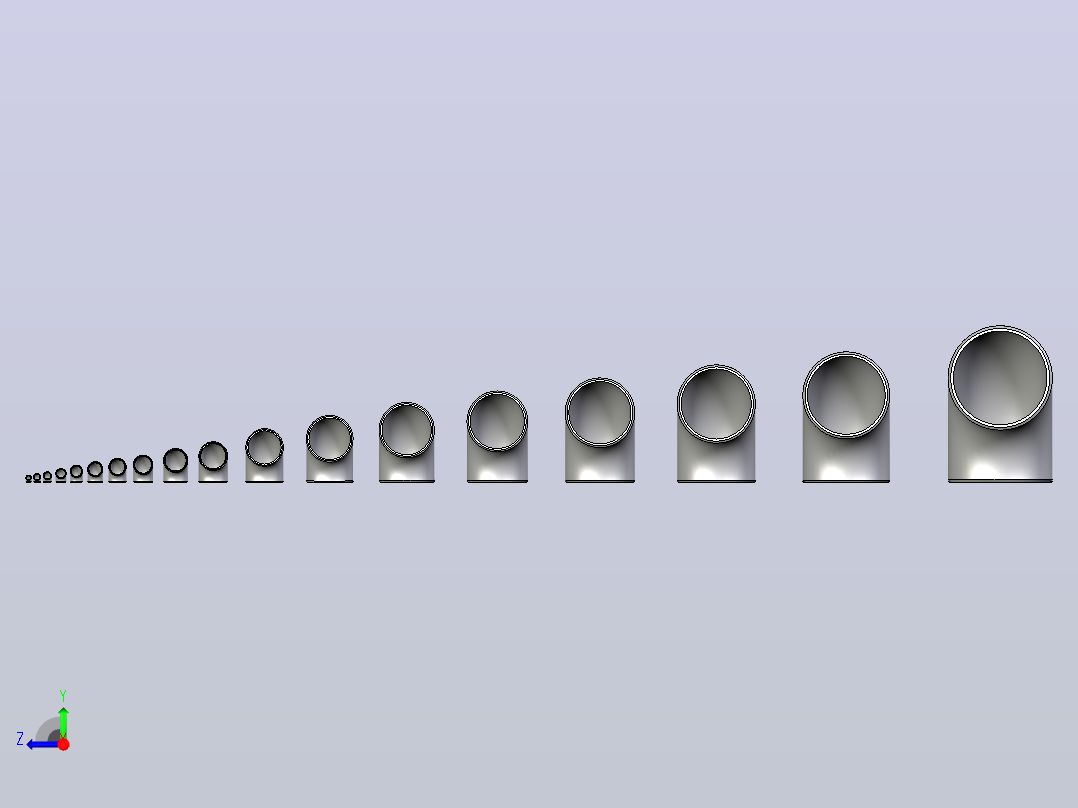

三维机械图纸名称为：符合ANSI B16.9的所有常见短半径90°管道弯头库，属于设备部件，管道附件分类，软件为stl,stp,inventor, 三维模型格式为ipt,stl，可在线预览，可编辑，可供设计参考
模型参数
模型ID：10467074
模型大小：23.64M
软件版本： stl,stp,inventor
模型格式：ipt,stl
是否可编辑：可修改，包括参数
上传时间：2026-05-18
图纸介绍：
下载模型
文件列表
1. ELBOW 90° (Sch80) DN100 (4'') SR (Ø114.3 OD).ipt
160 KB
2. ELBOW 90° (Sch80) DN125 (5'') SR (Ø141.3 OD).ipt
160 KB
3. ELBOW 90° (Sch80) DN15 (1-2'') SR (Ø21.3 OD).ipt
155 KB
4. ELBOW 90° (Sch80) DN150 (6'') SR (Ø168.3 OD).ipt
160 KB
5. ELBOW 90° (Sch80) DN20 (3-4'') SR (Ø26.7 OD).ipt
160 KB
6. ELBOW 90° (Sch80) DN200 (8'') SR (Ø219.1 OD).ipt
160 KB
7. ELBOW 90° (Sch80) DN25 (1'') SR (Ø33.4 OD).ipt
163 KB
8. ELBOW 90° (Sch80) DN250 (10'') SR (Ø273 OD).ipt
160 KB
9. ELBOW 90° (Sch80) DN300 (12'') SR (Ø323.9 OD).ipt
160 KB
10. ELBOW 90° (Sch80) DN32 (1 1-4'') SR (Ø42.2 OD).ipt
164 KB
11. ELBOW 90° (Sch80) DN350 (14'') SR (Ø355.6 OD).ipt
159 KB
12. ELBOW 90° (Sch80) DN40 (1 1-2'') SR (Ø48.3 OD).ipt
163 KB
13. ELBOW 90° (Sch80) DN400 (16'') SR (Ø406.4 OD).ipt
159 KB
14. ELBOW 90° (Sch80) DN450 (18'') SR (Ø457.2 OD).ipt
159 KB
15. ELBOW 90° (Sch80) DN50 (2'') SR (Ø60.3 OD).ipt
165 KB
16. ELBOW 90° (Sch80) DN500 (20'') SR (Ø508 OD).ipt
159 KB
17. ELBOW 90° (Sch80) DN600 (24'') SR (Ø609.6 OD).ipt
167 KB
18. ELBOW 90° (Sch80) DN65 (2 1-2'') SR (Ø73 OD).ipt
160 KB
19. ELBOW 90° (Sch80) DN80 (3'') SR (Ø88.9 OD).ipt
160 KB
20. ELBOW 90° (Sch80) DN90 (3 1-2'') SR (Ø101.6 OD).ipt
164 KB
21. ELBOW 90° DN100 (4'') SR (Ø114.3 OD).ipt
163 KB
22. ELBOW 90° DN125 (5'') SR (Ø141.3 OD).ipt
163 KB
23. ELBOW 90° DN15 (1-2'') SR (Ø21.3 OD).ipt
155 KB
24. ELBOW 90° DN150 (6'') SR (Ø168.3 OD).ipt
163 KB
25. ELBOW 90° DN20 (3-4'') SR (Ø26.7 OD).ipt
162 KB
26. ELBOW 90° DN200 (8'') SR (Ø219.1 OD).ipt
162 KB
27. ELBOW 90° DN25 (1'') SR (Ø33.4 OD).ipt
162 KB
28. ELBOW 90° DN250 (10'') SR (Ø273 OD).ipt
161 KB
29. ELBOW 90° DN300 (12'') SR (Ø323.9 OD).ipt
161 KB
30. ELBOW 90° DN32 (1 1-4'') SR (Ø42.2 OD).ipt
163 KB
31. ELBOW 90° DN350 (14'') SR (Ø355.6 OD).ipt
160 KB
32. ELBOW 90° DN40 (1 1-2'') SR (Ø48.3 OD).ipt
168 KB
33. ELBOW 90° DN400 (16'') SR (Ø406.4 OD).ipt
160 KB
34. ELBOW 90° DN450 (18'') SR (Ø457.2 OD).ipt
160 KB
35. ELBOW 90° DN50 (2'') SR (Ø60.3 OD).ipt
167 KB
36. ELBOW 90° DN500 (20'') SR (Ø508 OD).ipt
160 KB
37. ELBOW 90° DN600 (24'') SR (Ø609.6 OD).ipt
167 KB
38. ELBOW 90° DN65 (2 1-2'') SR (Ø73 OD).ipt
162 KB
39. ELBOW 90° DN80 (3'') SR (Ø88.9 OD).ipt
162 KB
40. ELBOW 90° DN90 (3 1-2'') SR (Ø101.6 OD).ipt
168 KB
41. Elbow 90° - Short Radius.iam
170 KB
42. Elbow 90掳 - Short Radius.stl
13.1 MB
43. Elbow 90掳 - Short Radius.stp
1.32 MB
44. Elbow Rendering 01.bmp
900 KB
45. Elbow Rendering 02.bmp
900 KB
46. Elbow Rendering 03.bmp
900 KB
47. Elbow Rendering 04.bmp
900 KB
