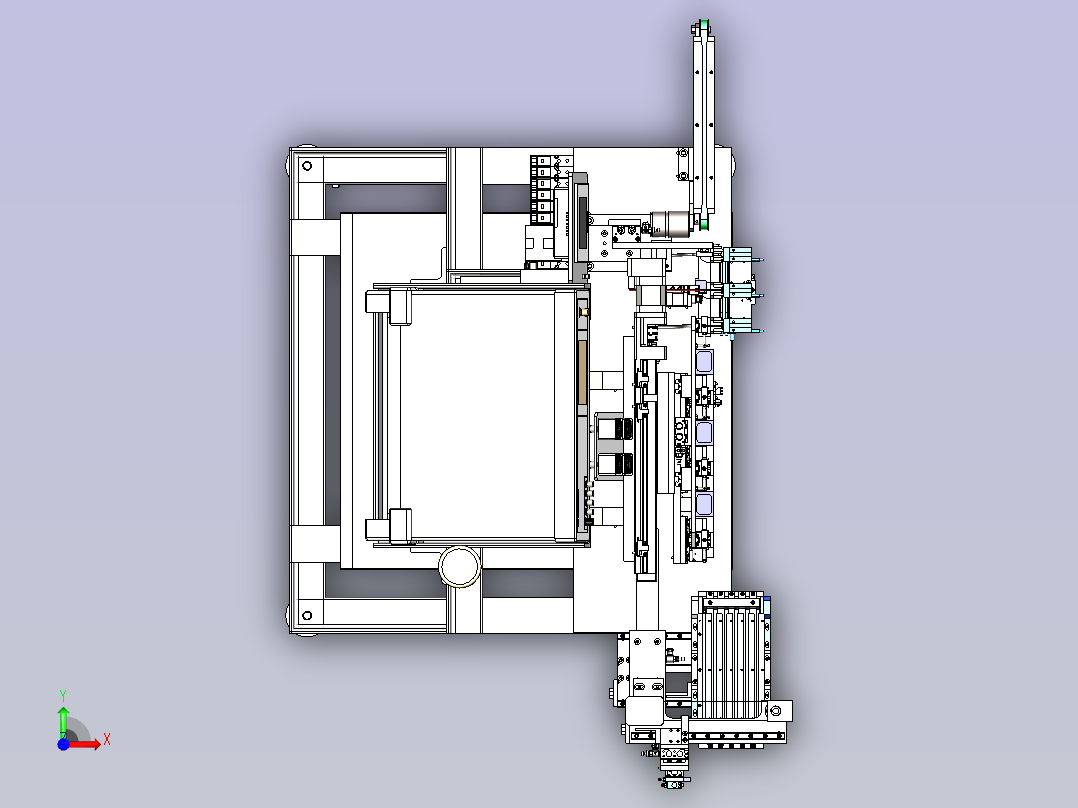

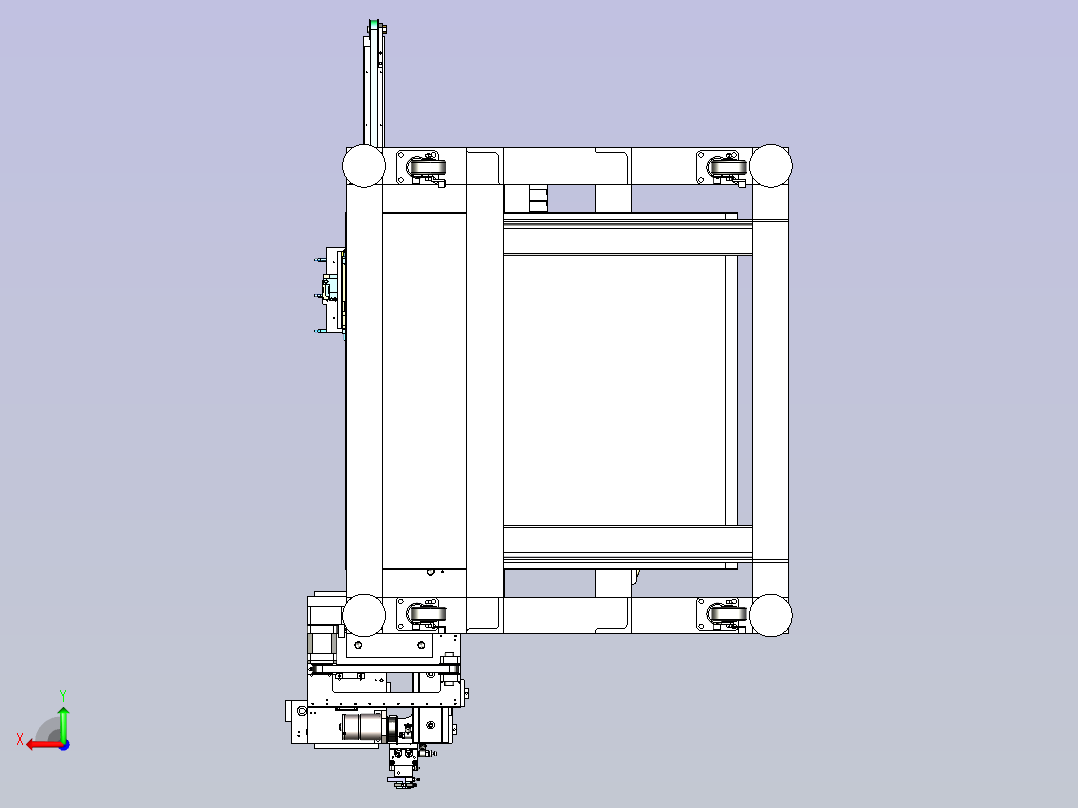

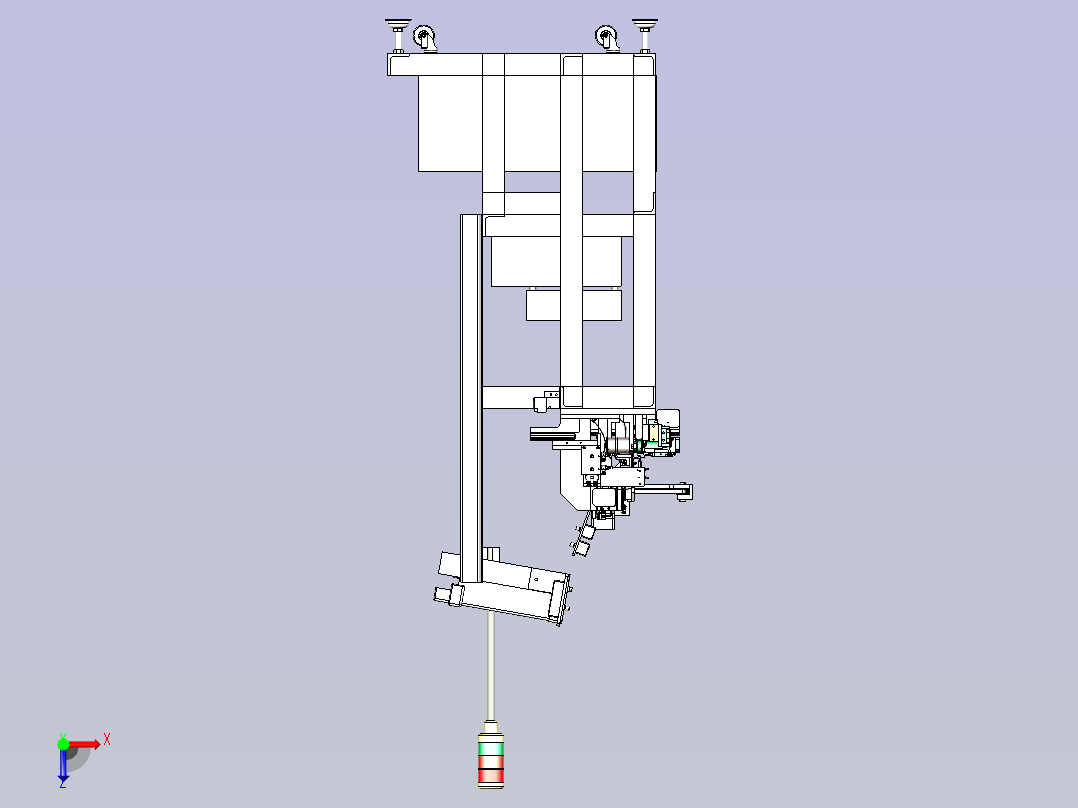

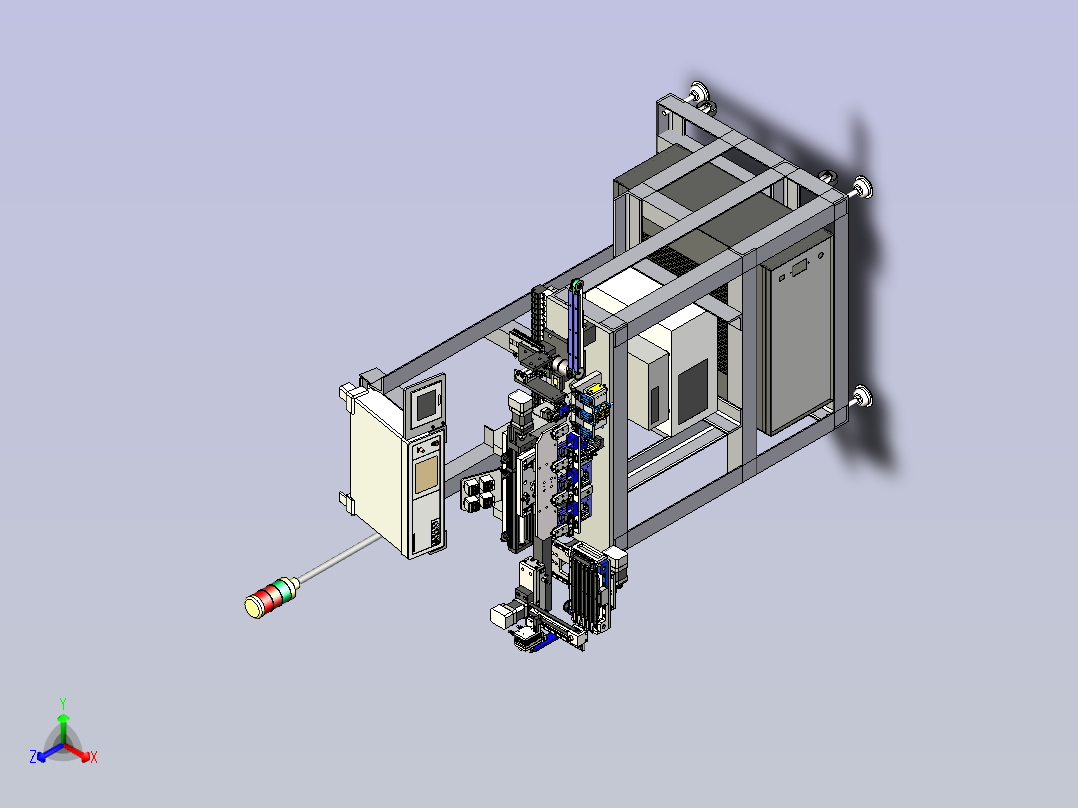

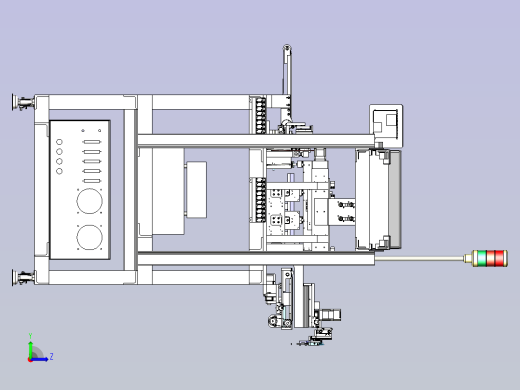

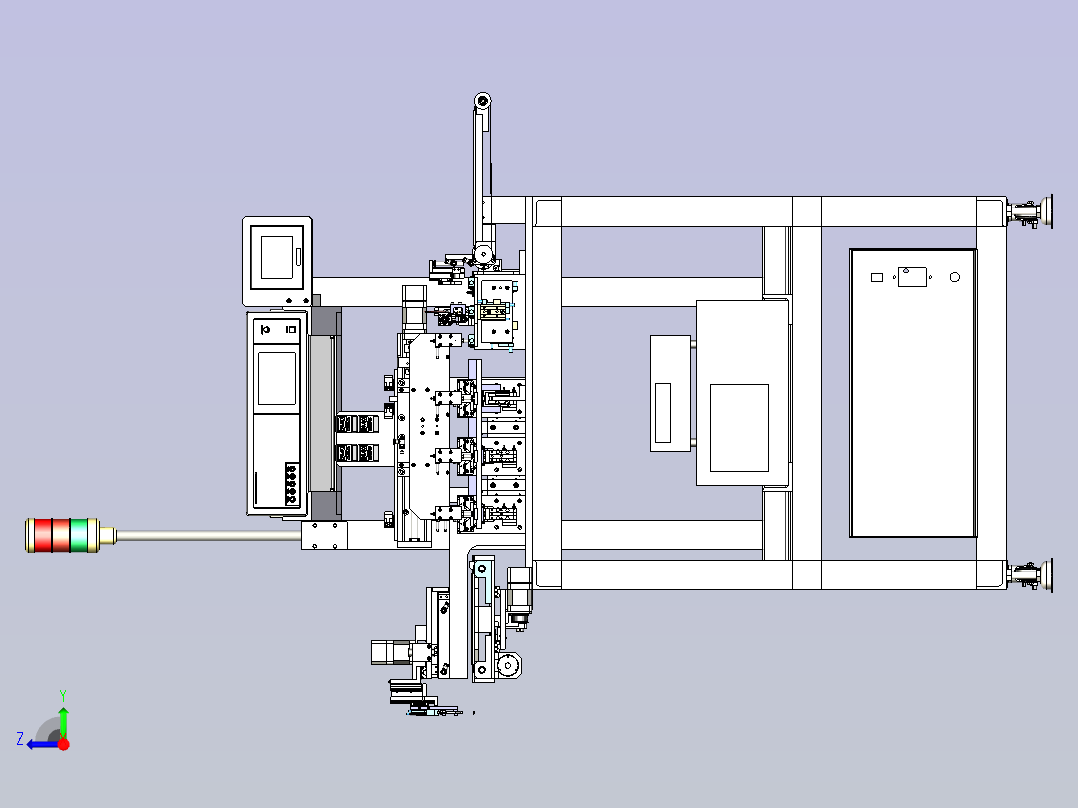

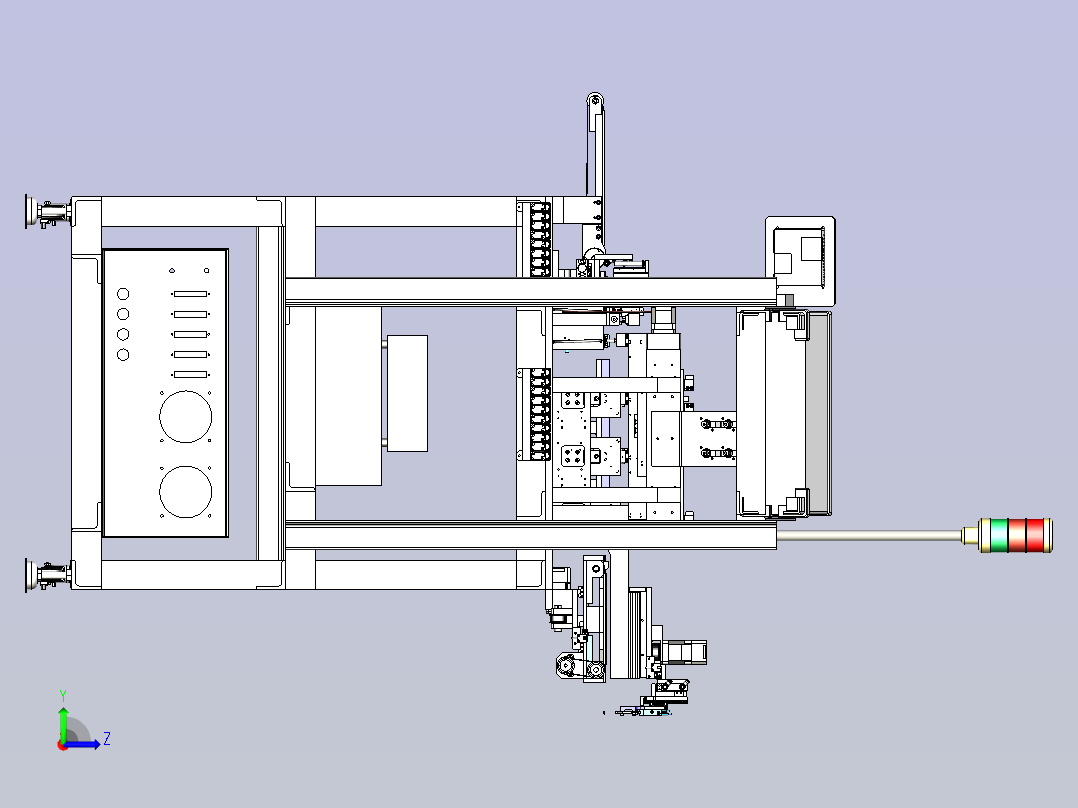

功率电感线圈测试机3D图纸inventor,stp 三维模型
三维机械图纸名称为：功率电感线圈测试机3D图纸，属于机械设备，实验测试设备分类，软件为inventor,stp, 三维模型格式为ipt，可在线预览，可编辑，可供设计参考
模型参数
模型ID：10431814
模型大小：42.62M
软件版本： inventor,stp
模型格式：ipt
是否可编辑：可修改，包括参数
上传时间：2026-04-27
图纸介绍：
下载模型
文件列表
1. 030-4E1.iam
113 KB
2. 1.ipt
166 KB
3. 12-6604 A (TERMINAL PIN BOTTOM).ipt
83 KB
4. 12-6604 A (TERMINAL PIN MIDDLE).ipt
95 KB
5. 12-6604 A (TERMINAL PIN SIDE).ipt
84 KB
6. 12-6606 A (BASE MOLD).ipt
313 KB
7. 12-6606 A (BASE).iam
154 KB
8. 12-9130 A (DRUM CORE).ipt
181 KB
9. 12-9131 A (RING CORE).ipt
157 KB
10. 12nut.ipt
109 KB
11. 1_1.ipt
218 KB
12. 1_2.ipt
239 KB
13. 2.ipt
113 KB
14. 2_1.ipt
166 KB
15. 2_2.ipt
187 KB
16. 3.ipt
114 KB
17. 3D-MDX12x75.ipt
469 KB
18. ADAPTOR PLATE.ipt
223 KB
19. ALIGNER CHUCK ceramic part.ipt
105 KB
20. ALIGNER CHUCK.ipt
121 KB
21. ALIGNER PLATE RIGHT.ipt
120 KB
22. ALIGNER PLATE.ipt
128 KB
23. ANSI L 2 x 2 x 1_4 00000001.ipt
111 KB
24. ANSI L 2 x 2 x 1_4 00000002.ipt
106 KB
25. ANSI L 2 x 2 x 1_4 00000003.ipt
105 KB
26. ANSI L 2 x 2 x 1_4 00000004.ipt
112 KB
27. ANSI L 2 x 2 x 1_4 00000005.ipt
103 KB
28. ANSI L 2 x 2 x 1_4 00000006.ipt
103 KB
29. ANSI L 2 x 2 x 1_4 00000007.ipt
103 KB
30. ANSI L 2 x 2 x 1_4 00000008.ipt
103 KB
31. ANSI L 2 x 2 x 1_4 00000009.ipt
105 KB
32. ANSI L 2 x 2 x 1_4 00000010.ipt
115 KB
33. ANSI L 2 x 2 x 1_4 00000011.ipt
109 KB
34. ANSI L 2 x 2 x 1_4 00000012.ipt
114 KB
35. ANSI L 2 x 2 x 1_4 00000013.ipt
109 KB
36. ANSI L 2 x 2 x 1_4 00000014.ipt
111 KB
37. ANSI L 2 x 2 x 1_4 00000015.ipt
111 KB
38. ANSI L 2 x 2 x 1_4 00000016.ipt
108 KB
39. ANSI L 2 x 2 x 1_4 00000017.ipt
108 KB
40. ANSI L 2 x 2 x 1_4 00000018.ipt
105 KB
41. ANSI L 2 x 2 x 1_4 00000024.ipt
108 KB
42. ANSI L 2 x 2 x 1_4 00000025.ipt
108 KB
43. ANSI L 2 x 2 x 1_4 00000036.ipt
110 KB
44. ANSI L 2 x 2 x 1_4 00000037.ipt
111 KB
45. ANSI L 2 x 2 x 1_4 00000038.ipt
105 KB
46. ANSI L 2 x 2 x 1_4 00000039.ipt
109 KB
47. ANSI L 2 x 2 x 1_4 00000040.ipt
109 KB
48. ANSI L 2 x 2 x 1_4 00000043.ipt
103 KB
49. ANSI L 2 x 2 x 1_4 00000044.ipt
103 KB
50. ANSI L 2 x 2 x 1_4 00000054.ipt
109 KB
51. ANSI L 2 x 2 x 1_4 00000055.ipt
109 KB
52. ANSI L 2 x 2 x 1_4 00000060.ipt
110 KB
53. ANSI L 2 x 2 x 1_4 00000061.ipt
111 KB
54. ANSI L 2 x 2 x 1_4 00000062.ipt
109 KB
55. AS 1112 (2) - Metric M6 Type 5.ipt
137 KB
56. ASPOL3-15b.ipt
116 KB
57. ASPOL3-25b.ipt
108 KB
58. Assembly2.iam
126 KB
59. B698ZZ HOLDER 2.ipt
116 KB
60. B698ZZ HOLDER.ipt
111 KB
61. B698ZZ.ipt
182 KB
62. BACK PLATE.ipt
136 KB
63. BASE BED.ipt
143 KB
64. BELT HOLDER.ipt
110 KB
65. BF4BU-M3.ipt
144 KB
66. BOTTOM PLATE.ipt
86 KB
67. BS 4168 _ Part 1 Hexagon Socket Head Cap Screw - Metric M2.5 x 4.ipt
154 KB
68. BS 4168 _ Part 1 Hexagon Socket Head Cap Screw - Metric M3 x 10.ipt
143 KB
69. BS EN 24036 M4.ipt
105 KB
70. Broached Socket Head Cap Screw - Metric M2x0.4 x 6.ipt
147 KB
71. Broached Socket Head Cap Screw - Metric M3x0.5 x 20.ipt
131 KB
72. Broached Socket Head Cap Screw - Metric M3x0.5 x 6.ipt
148 KB
73. Broached Socket Head Cap Screw - Metric M3x0.5 x 8.ipt
146 KB
74. Broached Socket Head Cap Screw - Metric M6x1 x 20.ipt
146 KB
75. C5T-2R1.iam
183 KB
76. CF PLATE.ipt
127 KB
77. CFK513PAP2.ipt
150 KB
78. CHUCKING ASSEMBLY.iam
389 KB
79. CNGJ50sw.ipt
103 KB
80. CNGS50-R.iam
176 KB
81. CNGS50-Rbo.ipt
225 KB
82. CNGS50-Rst11.ipt
115 KB
83. CONVEYOR FRAME.ipt
97 KB
84. CONVEYOR MAIN PLATE.ipt
117 KB
85. CORNER PLATE.ipt
87.5 KB
86. DIN EN ISO 2338 3 h8 x 28.ipt
92 KB
87. DIN EN ISO 4762 M3 x 5.ipt
150 KB
88. DIN EN ISO 4762 M4 x 10.ipt
147 KB
89. FL684ZZ.ipt
191 KB
90. FRONT PLATE.ipt
96 KB
91. Frame0001.iam
171 KB
92. GULONG.ipt
144 KB
93. HBG25-11.iam
160 KB
94. HBG25-11.ipt
161 KB
95. HBG25-11_1.ipt
167 KB
96. HBG_RING19Rring.ipt
111 KB
97. HBLT80-LENGHT.ipt
104 KB
98. HBPA28-P6-11.ipt
174 KB
99. HC PLATE.ipt
116 KB
100. HIGH VOLTAGE.ipt
88.5 KB
101. HTBN436S2M100.ipt
98.5 KB
102. HTPA14S2M040-K-H3.ipt
256 KB
103. HTPA40S2M100-A-P5.ipt
559 KB
104. HTPA40S2M100-A-P8.ipt
589 KB
105. IDLER CONVEYOR SHAFT.ipt
102 KB
106. IDLER LOCK.ipt
118 KB
107. IDLER PLATE.ipt
102 KB
108. JIS B 1184 - Metric M4 x 6.ipt
162 KB
109. KNTR3.ipt
155 KB
110. KR3310D+300L-0-065I.iam
374 KB
111. LCR PROBE ASSY.iam
257 KB
112. LCR.ipt
1.39 MB
113. LED.ipt
88.5 KB
114. M3x0.5A.ipt
131 KB
115. MAIN OVEN SENDER STAND.ipt
96.5 KB
116. MAIN STAMPING PLATE.ipt
112 KB
117. MCKL20-5-6.ipt
277 KB
118. MDX08x20 chelic.ipt
531 KB
119. MDX08x20-1.ipt
414 KB
120. MDX12x50-SB2-AM2-1.ipt
351 KB
121. MDX12x50-SB2-AM2-2.ipt
214 KB
122. MHLD1.7-15.ipt
131 KB
123. MHZ2-6D-M9B.iam
118 KB
124. MINI Z MOTOR HOLDER.ipt
147 KB
125. MXQ6-10A-M9B.iam
150 KB
126. NFJN12-100.iam
109 KB
127. NFJN12-100pad.ipt
134 KB
128. OUTPUT CONVEYOR.iam
320 KB
129. OUTPUT MOTOR HOLDER.ipt
139 KB
130. PATLIGHT HOLDER 2.ipt
101 KB
131. PATLIGHT HOLDER.ipt
125 KB
132. PATLIGHT.ipt
123 KB
133. PRODUCT_NAME_1.ipt
304 KB
134. PRODUCT_NAME_2.ipt
307 KB
135. PRODUCT_NAME_3.ipt
589 KB
136. PRODUCT_NAME_4.ipt
371 KB
137. PRODUCT_NAME_5.ipt
367 KB
138. PRODUCT_NAME_6.ipt
371 KB
139. Part2.ipt
123 KB
140. Part3.ipt
149 KB
141. RBTS2-4.ipt
131 KB
142. REJECT CATCHER.ipt
118 KB
143. SC4-M5M_.ipt
237 KB
144. SIDE PLATE.ipt
85.5 KB
145. SL-222-50-55 BS.iam
145 KB
146. SRS9 BLOCK.ipt
616 KB
147. SRS9MUUC1+215LM.ipt
130 KB
148. SRS9MUUC1+75LM.ipt
133 KB
149. SSEB6 MAIN PLATE.ipt
138 KB
150. SSEB6 PLATE RIGHT.ipt
115 KB
151. SSEB6 PLATE.ipt
117 KB
152. STAMPING BASE PLATE.ipt
106 KB
153. SYTD1025.iam
156 KB
154. TABLE.iam
121 KB
155. TE-35QG-24-200.ipt
228 KB
156. TOP PLATE.ipt
179 KB
157. TOUCH PANEL ATTACHMENT.ipt
94 KB
158. TOUCH PANEL HOLDER.ipt
108 KB
159. UEF4BU-M3.ipt
158 KB
160. VACUUM SENSOR HOLDER.ipt
130 KB
161. VACUUM SENSOR.ipt
313 KB
162. XVT BELT.ipt
96.5 KB
163. Y AXIS IDLER SHAFT.ipt
92 KB
164. YM6F-stn1-6-030-4E1-CPSL-DC24V.iam
170 KB
165. YM7F.ipt
148 KB
166. adaptor assembly.iam
406 KB
167. adaptor holder.ipt
104 KB
168. adaptor main plate.ipt
149 KB
169. b_SSEB6.ipt
163 KB
170. back body.ipt
94.5 KB
171. ballscrew motor holder.ipt
129 KB
172. bambola attachment.ipt
104 KB
173. bambola plate.ipt
112 KB
174. bambola.ipt
85.5 KB
175. bearing holder 2.ipt
153 KB
176. bearing holder p-up.ipt
121 KB
177. bearing plate 2.ipt
131 KB
178. bearing plate.ipt
117 KB
179. belt holder pick-up.ipt
117 KB
180. belt support plate.ipt
116 KB
181. belt support.ipt
105 KB
182. body.ipt
90.5 KB
183. bracket mounting.ipt
102 KB
184. cf4uua.ipt
124 KB
185. coil guide 2.ipt
113 KB
186. coil guide.ipt
95 KB
187. coil rail stamping.ipt
114 KB
188. coil sensor plate.ipt
118 KB
189. connector plate.ipt
131 KB
190. conveyor motor holder.ipt
131 KB
191. conveyor plate.ipt
156 KB
192. cool muscle.ipt
146 KB
193. cover.ipt
99.5 KB
194. cps15-d-sps.ipt
323 KB
195. cps35-d-sps.ipt
259 KB
196. driver.ipt
107 KB
197. fbm stamping.iam
497 KB
198. guide plate.ipt
119 KB
199. guide.ipt
94.5 KB
200. height check stand.ipt
94.5 KB
201. height checking arm.ipt
146 KB
202. height checking wire.ipt
160 KB
203. htbn186s2m100.ipt
100 KB
204. idler shaft 1.ipt
96.5 KB
205. idler shaft 2.ipt
94 KB
206. lcr adaptor plate.ipt
98.5 KB
207. lwl9 plate.ipt
165 KB
208. main plate.ipt
133 KB
209. main stand.ipt
91.5 KB
210. mdx connect plate.ipt
117 KB
211. mdx12 plate.ipt
105 KB
212. mdx8 plate stamping.ipt
117 KB
213. mdx8 plate.ipt
125 KB
214. mhz2 chuck a.ipt
108 KB
215. mhz2 chuck b.ipt
97 KB
216. mhz2-6 plate.ipt
117 KB
217. micro gear holder.ipt
142 KB
218. mini bearing holder.ipt
112 KB
219. mini idler lock.ipt
128 KB
220. mini shaft.ipt
102 KB
221. mini support.ipt
101 KB
222. mini z belt holder.ipt
101 KB
223. mini z guide plate.ipt
125 KB
224. mini z plate.ipt
98 KB
225. motor holder pick-up.ipt
128 KB
226. ms2-6.ipt
108 KB
227. msc3-8.ipt
118 KB
228. multimeter.ipt
97.5 KB
229. mxd12 stamping plate.ipt
117 KB
230. mxj4-5cs-m9b-2.ipt
192 KB
231. mxj4-5cs-m9b.ipt
190 KB
232. mxs8-50 connector plate.ipt
109 KB
233. mxs8-50 plate.ipt
117 KB
234. oven output mechanism.iam
853 KB
235. oven pick-up unit.iam
1.12 MB
236. pick-up plate.ipt
130 KB
237. pick-up unit.iam
220 KB
238. pmu-24r holder 2.ipt
101 KB
239. pmu-24r holder.ipt
101 KB
240. pmu-24r.ipt
117 KB
241. pmu-24r_1.ipt
118 KB
242. probe holder lcr 1.ipt
114 KB
243. probe holder.ipt
110 KB
244. r_SSEB6-40.ipt
119 KB
245. rail cover.ipt
88 KB
246. rail guide.ipt
94 KB
247. railSV1025.ipt
155 KB
248. rail_SYTD1025.ipt
116 KB
249. rc chuck.ipt
101 KB
250. roller_10001025.ipt
150 KB
251. sending assembly REVIED.iam
900 KB
252. sending joint plate.ipt
110 KB
253. sensor actuator.ipt
108 KB
254. skr33 holder.ipt
112 KB
255. slide_SYTD1025.ipt
185 KB
256. srs9 carrier plate.ipt
126 KB
257. srs9 plate oven pick-up.ipt
147 KB
258. srs9 plate.ipt
141 KB
259. stamp plate.ipt
112 KB
260. stamping assembly.iam
566 KB
261. stamping sender.iam
841 KB
262. touch panel.ipt
187 KB
263. vacuum hose.ipt
168 KB
264. vacuum plate.ipt
126 KB
265. x mini plate.ipt
127 KB
266. x-axis plate.ipt
124 KB
267. 功率电感线圈测试机3D图纸.stp
21.3 MB
268. 功率电感线圈测试机3D图纸.stp.iam
4.03 MB
