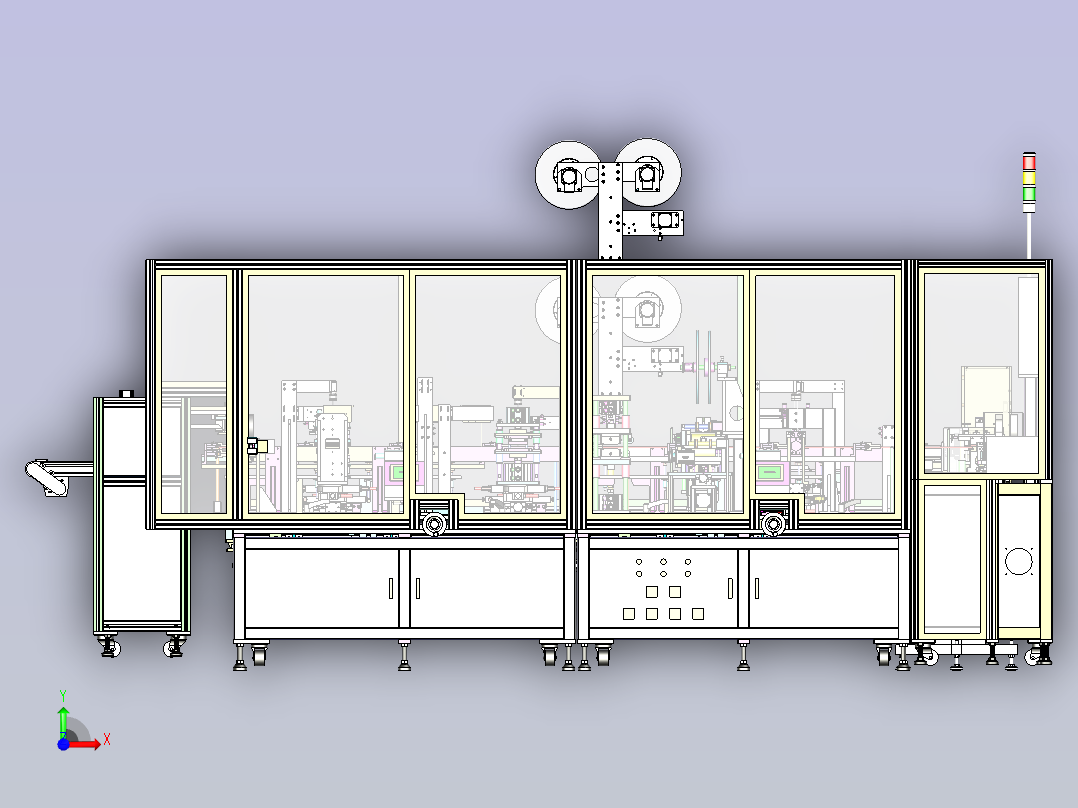

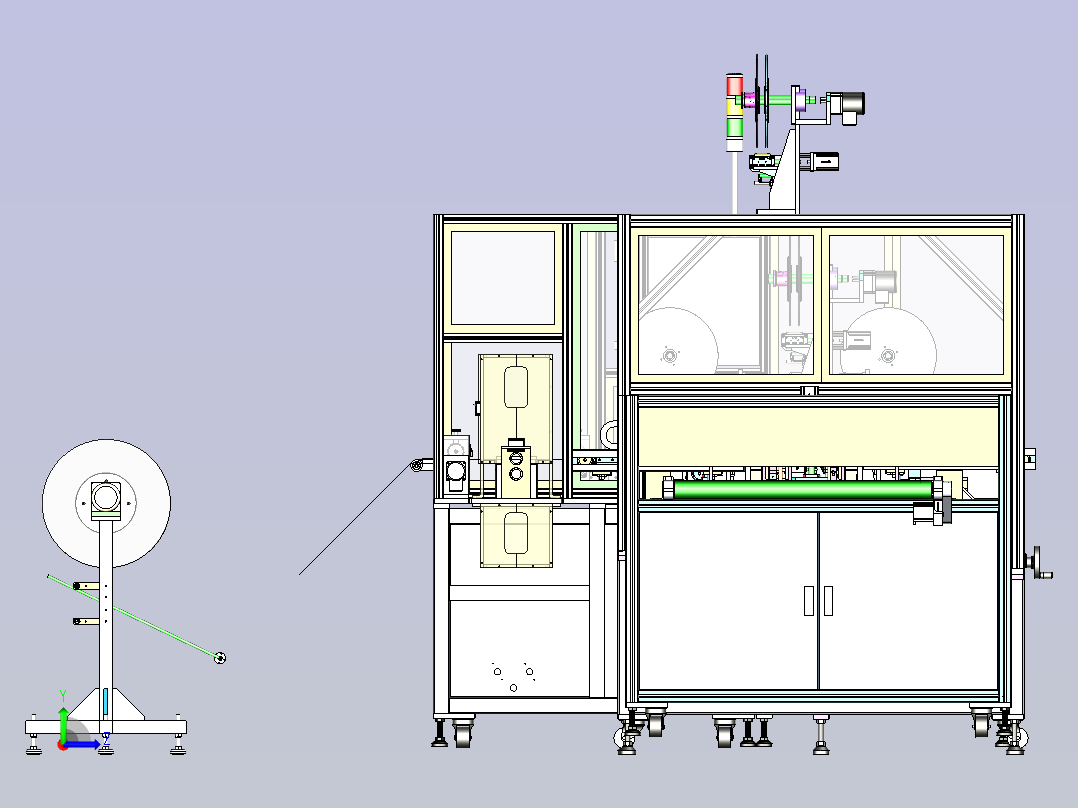

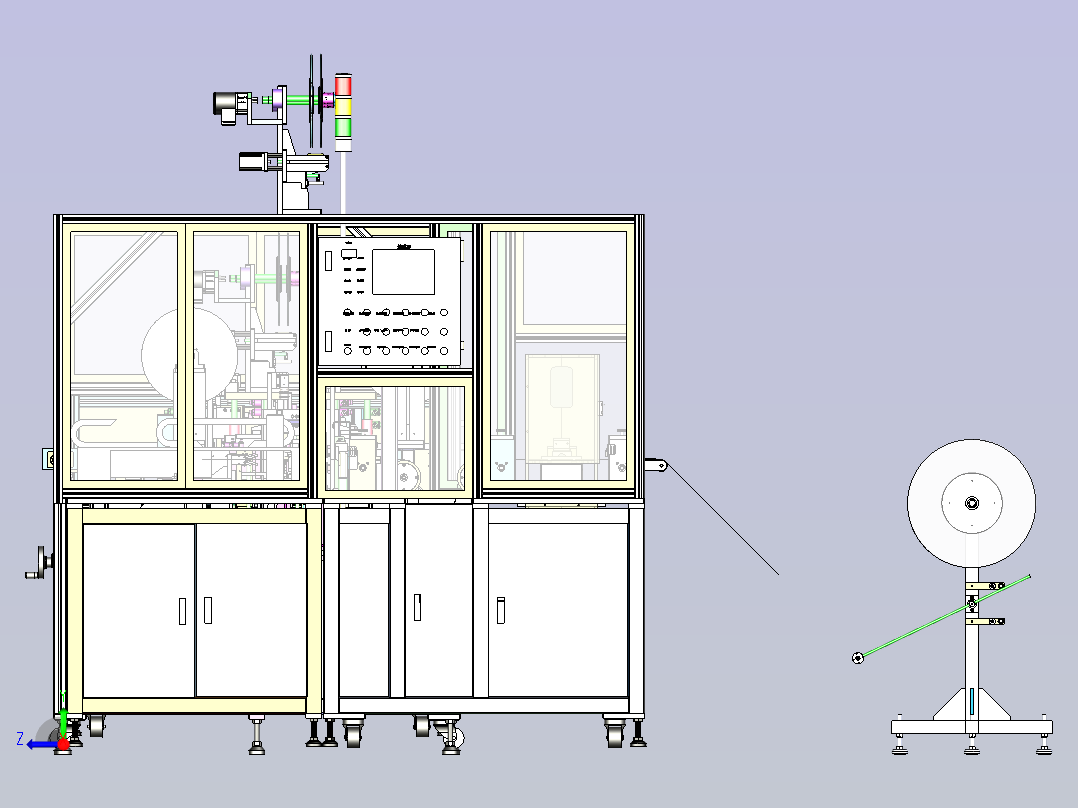

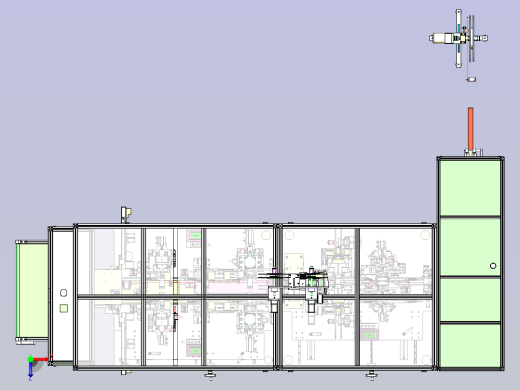

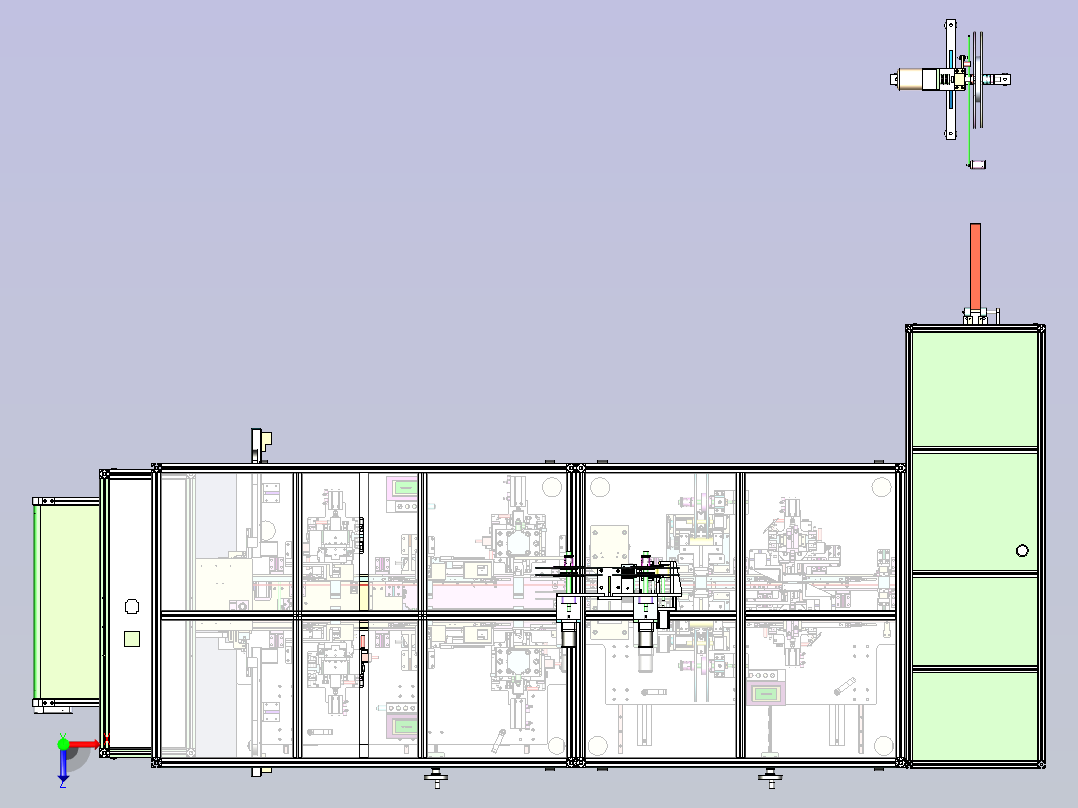

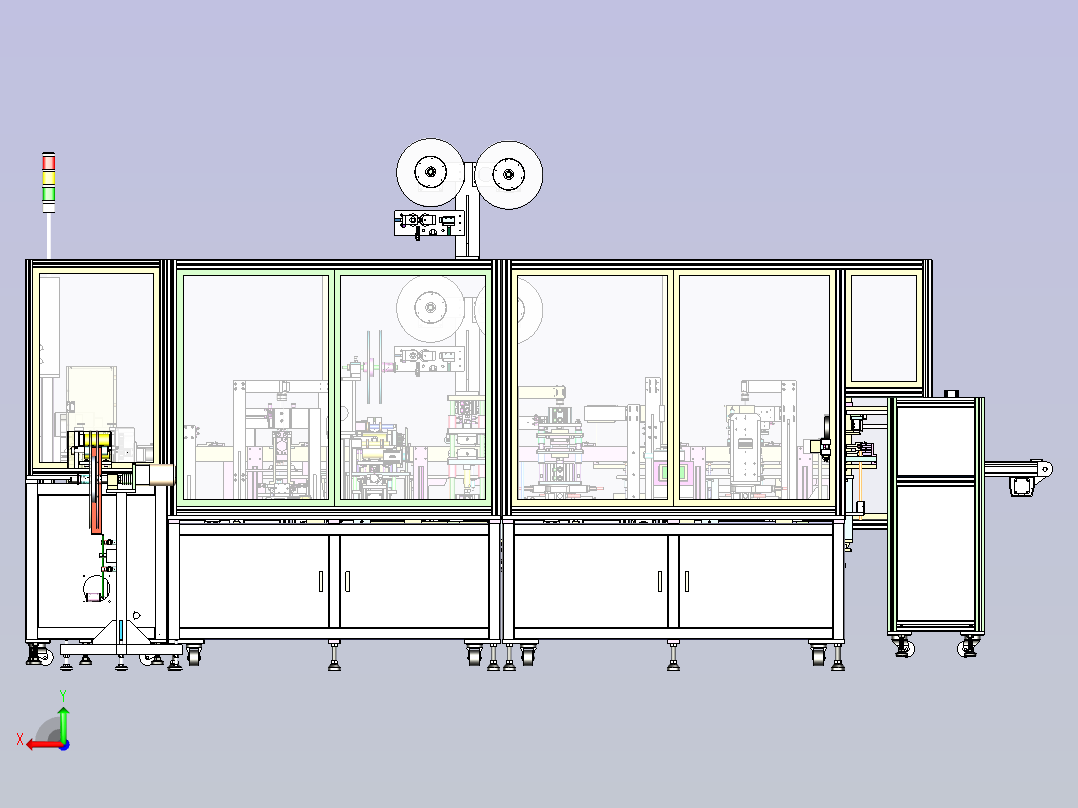

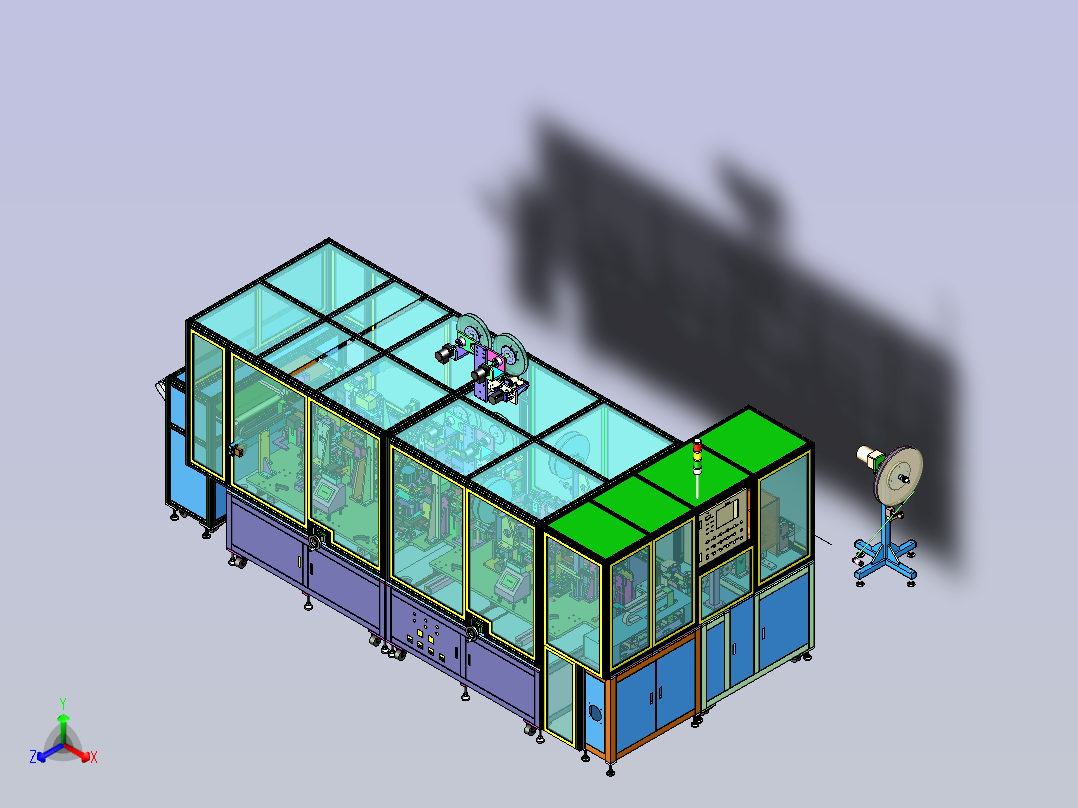

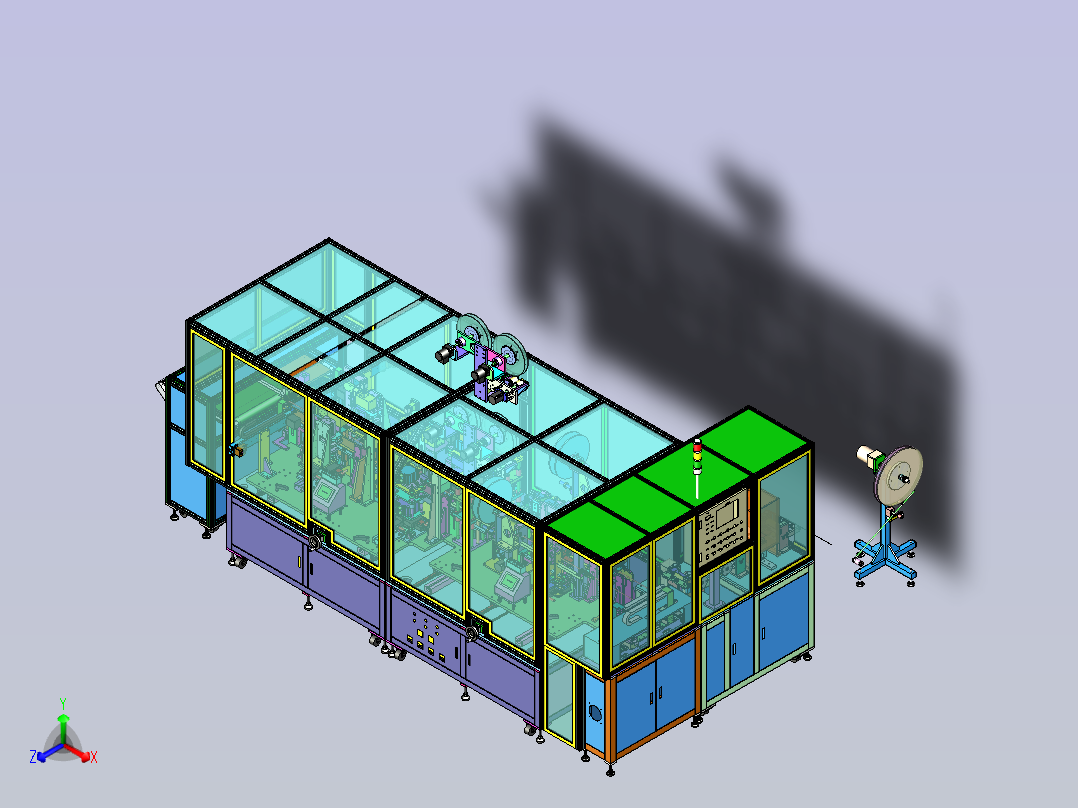

FFC手机软排线自动剥离热压冲裁切断检测生产线inventor,stp 三维模型
三维机械图纸名称为：FFC手机软排线自动剥离热压冲裁切断检测生产线，属于数码电器，手机相关分类，软件为inventor,stp, 三维模型格式为ipt，可在线预览，可编辑，可供设计参考
模型参数
模型ID：10427279
模型大小：193.71M
软件版本： inventor,stp
模型格式：ipt
是否可编辑：可修改，包括参数
上传时间：2026-04-25
图纸介绍：
下载模型
文件列表
1. 01-50X50X900(机架1).ipt
90 KB
2. 02-50X50X480(机架1).ipt
91.5 KB
3. 03-50X50X640(机架1).ipt
91 KB
4. 04-面板垫脚石板.ipt
84 KB
5. 05-支柱2.ipt
102 KB
6. 06-50X50X435.ipt
92.5 KB
7. 07-50X50X590.ipt
90.5 KB
8. 08-50X50X415(机架1).ipt
93 KB
9. 09-50X50X155(机架1).ipt
99 KB
10. 11-脚杯固定板.ipt
108 KB
11. 12-50X50X540(机架1).ipt
89 KB
12. 13-50X50X285(机架1).ipt
92.5 KB
13. 14-50X50X210(机架1).ipt
94.5 KB
14. 15-脚杯.ipt
1.2 MB
15. 16-脚轮.ipt
166 KB
16. A01N001脚杯FJSN12_100(MISUMI).ipt
147 KB
17. A01N002压料滚轮轴承B686ZZ(MISUMI).ipt
187 KB
18. A01N004压料接近开关E2E-X5ME1(OMRON).ipt
158 KB
19. A01N005锁紧套弹簧(线径1.5 外径32.5 自由长度10).ipt
282 KB
20. A01N006锁紧套钢珠(直径6).ipt
124 KB
21. A01N008联轴器MCKLC-32-12-12(三普).ipt
160 KB
22. A01N009放料马达(配减速箱)5TK20CGN-CP(配减速箱5GN15)(世协).ipt
138 KB
23. A01P001放料架立柱.ipt
153 KB
24. A01P002压料滚轮盖板.ipt
157 KB
25. A01P003压料滚轮.ipt
163 KB
26. A01P004压料滚心轴.ipt
102 KB
27. A01P005压料杆.ipt
96 KB
28. A01P006压料杆转轴.ipt
129 KB
29. A01P007压料杆轴承座.ipt
133 KB
30. A01P008接近开关固定板垫柱.ipt
114 KB
31. A01P009接近开关固定板.ipt
96.5 KB
32. A01P010压料杆挡柱.ipt
120 KB
33. A01P011锁紧套.ipt
109 KB
34. A01P012锁紧套.ipt
179 KB
35. A01P013锁紧套.ipt
149 KB
36. A01P014锁紧套.ipt
130 KB
37. A01P015料带前挡圈.ipt
87.5 KB
38. A01P016料带支撑圈.ipt
108 KB
39. A01P017料带后挡圈.ipt
99 KB
40. A01P018料带后挡圈固定座.ipt
155 KB
41. A01P019放料心轴.ipt
246 KB
42. A01P020轴承座.ipt
149 KB
43. A01P021放料轴紧定螺母.ipt
125 KB
44. A01P022马达座.ipt
117 KB
45. AHTFW26_S5M150_10body.ipt
379 KB
46. A放料架.iam
760 KB
47. B-ASSY切断机.iam
3.26 MB
48. B01N001轴承B686ZZ(MISUMI).ipt
187 KB
49. B01N002压料接近开关E2E-X5ME1(OMRON).ipt
159 KB
50. B01P001机架.iam
697 KB
51. B01P001机架封板1.ipt
153 KB
52. B01P001机架封板10.ipt
154 KB
53. B01P001机架封板11.ipt
163 KB
54. B01P001机架封板2.ipt
165 KB
55. B01P001机架封板3.ipt
217 KB
56. B01P001机架封板4.ipt
170 KB
57. B01P001机架封板5.ipt
155 KB
58. B01P001机架封板6.ipt
153 KB
59. B01P001机架封板7.ipt
158 KB
60. B01P001机架封板8.ipt
153 KB
61. B01P001机架封板9.ipt
158 KB
62. B01P002压料滚轮盖板.ipt
157 KB
63. B01P003压料滚轮.ipt
163 KB
64. B01P004压料滚心轴.ipt
102 KB
65. B01P005压料杆.ipt
98.5 KB
66. B01P006接近开关固定板.ipt
96.5 KB
67. B01P007压料杆挡柱.ipt
120 KB
68. B01P008接近开关固定板垫柱.ipt
108 KB
69. B01P009压料杆转轴.ipt
125 KB
70. B01P010压料杆轴承座.ipt
133 KB
71. B01P011机板.ipt
174 KB
72. B01P012接近开关固定板.ipt
105 KB
73. B01P013接近开关感应柱.ipt
105 KB
74. B01机架部.iam
863 KB
75. B02N001托料滚轴承B6000ZZ(MISUMI).ipt
153 KB
76. B02P001托料滚端盖.ipt
190 KB
77. B02P002托料滚挡圈.ipt
98 KB
78. B02P003托料滚轮.ipt
155 KB
79. B02P004隔套.ipt
108 KB
80. B02P005托料滚心轴.ipt
105 KB
81. B02P006托料滚固定立板.ipt
110 KB
82. B02P007托料滚固定立板.ipt
105 KB
83. B02P008托料滚轮.ipt
120 KB
84. B02托料滚轮部1.iam
162 KB
85. B02托料滚轮部2.iam
231 KB
86. B03-N015光纤FU-A10.ipt
158 KB
87. B03N001.B03P015弹簧调节旋钮NOB8-25(MISUMI).ipt
452 KB
88. B03N002从动滚轮固定座导柱VFJW8_69_M4_N4(MISUMI).ipt
98.5 KB
89. B03N003滚轮打开导套LHFCD8(MISUMI).ipt
149 KB
90. B03N004滚轮打开导柱SFJT8-55-M4(MISUMI).ipt
95.5 KB
91. B03N005滚轮打开气缸CDQ2B25-5D-A73(SMC(亚德客代替）).ipt
219 KB
92. B03N006从动滚轮固定座导套LMUW8(MISUMI).ipt
140 KB
93. B03N007传动齿轮GEAKBG2.0-25-20-A-10N(MISUMI).ipt
229 KB
94. B03N008联轴器CPDW32_8_10(MISUMI).ipt
350 KB
95. B03N009力矩马达TM203A-GNJ+PAVR-20KZ(东方).ipt
560 KB
96. B03N010联轴器CPDW32_10_14(MISUMI).ipt
349 KB
97. B03N011伺服马达MSMD-200W(松下).ipt
427 KB
98. B03N013接近开关402.ipt
115 KB
99. B03P001底板.ipt
118 KB
100. B03P002送料滚右固定板.ipt
117 KB
101. B03P003旋钮固定板.ipt
126 KB
102. B03P004导套上盖板.ipt
116 KB
103. B03P005从动滚固定座.ipt
132 KB
104. B03P006导套下盖板.ipt
113 KB
105. B03P007导柱下固定板.ipt
129 KB
106. B03P008从动滚打开顶杆.ipt
97 KB
107. B03P009顶杆固定板.ipt
123 KB
108. B03P010主动滚轮.ipt
125 KB
109. B03P011从动滚轮.ipt
131 KB
110. B03P012送料滚左固定板.ipt
124 KB
111. B03P013传动齿轮罩.ipt
94.5 KB
112. B03P014扭矩马达座.ipt
101 KB
113. B03P015旋钮固定板.ipt
133 KB
114. B03P016旋钮固定板.ipt
126 KB
115. B03P017送料滚右固定板.ipt
112 KB
116. B03P018伺服马达座.ipt
102 KB
117. B03P019感应器安装座.ipt
107 KB
118. B03P020感应器安装座.ipt
107 KB
119. B03P021送料滚右固定板.ipt
117 KB
120. B03P022光纤安装座.ipt
107 KB
121. B03P022导向块.ipt
120 KB
122. B03P023导向块.ipt
141 KB
123. B03P024导向块.ipt
141 KB
124. B03P025导向块(对称).ipt
96 KB
125. B03P025导向块.ipt
96.5 KB
126. B03送料部1.iam
608 KB
127. B03送料部2.iam
592 KB
128. B03送料部3.iam
641 KB
129. B04N001挡光气缸CXSL10-50-Y59A(SMC)-02.ipt
115 KB
130. B04P001下挡光板-02.ipt
96 KB
131. B04P002导料面板前侧板-02.ipt
119 KB
132. B04P003导料面板-02.ipt
142 KB
133. B04P004导料板-02.ipt
111 KB
134. B04P005封板-02.ipt
98.5 KB
135. B04P006导料面板后侧板-02.ipt
120 KB
136. B04P007上挡光板-02.ipt
100 KB
137. B04P008挡光气缸固定板-02.ipt
98.5 KB
138. B04P009挡光气缸固定板立板-02.ipt
108 KB
139. B04P010吸风口-02.ipt
128 KB
140. B04激光导向部-02.iam
187 KB
141. B05N002切刀导柱（前切刀)VFJW16-234-M6-N6(MISUMI).ipt
84 KB
142. B05N003切刀导套LHFCD16(MISUMI).ipt
153 KB
143. B05N004直线轴承LHFRD6(MISUMI).ipt
147 KB
144. B05N005等高螺丝CLBR6_50(MISUMI).ipt
118 KB
145. B05N006传感器受光器EX-13EA(松下).ipt
121 KB
146. B05N006传感器投光器EX-13EA(松下).ipt
124 KB
147. B05N007传感器SX671(OMRON).ipt
138 KB
148. B05N008减速器PGL60-4(申力(世协代替)).ipt
169 KB
149. B05N009步进电机YK57XN78-4208研控.ipt
473 KB
150. B05P001轴承固定板.ipt
104 KB
151. B05P002轴承固定板.ipt
89 KB
152. B05P003轴承固定板.ipt
117 KB
153. B05P004切刀底板.ipt
140 KB
154. B05P005传感器EX-13EB下支架.ipt
118 KB
155. B05P006切刀马达固定低板.ipt
149 KB
156. B05P007下切刀.ipt
134 KB
157. B05P008预压板.ipt
91.5 KB
158. B05P009上切刀.ipt
96.5 KB
159. B05P010上刀座.ipt
131 KB
160. B05P011传感器EX-13EB上支架.ipt
126 KB
161. B05P012位置感应片.ipt
105 KB
162. B05P013传感器SX671底座.ipt
111 KB
163. B05P014光电支撑侧板.ipt
95.5 KB
164. B05P015光电支撑底板.ipt
114 KB
165. B05P016切刀马达固定底板.ipt
122 KB
166. B05P017加强板.ipt
96 KB
167. B05P018切刀马达固定立板.ipt
108 KB
168. B05P019偏心轮.ipt
172 KB
169. B05P020导轨.ipt
118 KB
170. B05P021压块.ipt
122 KB
171. B05切刀部.iam
461 KB
172. B06P001茶色板(对称).ipt
106 KB
173. B06P001茶色板.ipt
104 KB
174. B06P002茶色门.ipt
87.5 KB
175. B06P003茶色板.ipt
94.5 KB
176. B06P004茶色板.ipt
96 KB
177. B06P005茶色板.ipt
98 KB
178. B06P006茶色板.ipt
124 KB
179. B06P007茶色板.ipt
96.5 KB
180. B06P008茶色板.ipt
97 KB
181. B06P009茶色板.ipt
96 KB
182. B06P010茶色板.ipt
97 KB
183. B06上激光保护罩.iam
144 KB
184. B06下激光保护罩.iam
128 KB
185. C-ASSY搬运机.iam
1.14 MB
186. C-HFS8-4040-160.ipt
190 KB
187. C-HFS8-4040-225.ipt
168 KB
188. C-HFS8-4040-520.ipt
164 KB
189. C01-ASSY机架部.iam
920 KB
190. C01N001伺服马达MSMD-200W(松下).ipt
427 KB
191. C01N002同步轮HTCPA26_S5M150_10(MISUMI(超传代替)).ipt
409 KB
192. C01N003同步轮AHTFW26_S5M150_10(MISUMI(超传代替)).iam
211 KB
193. C01N004拖链2.ipt
91 KB
194. C01P001-01.ipt
90 KB
195. C01P001-02.ipt
101 KB
196. C01P001-03.ipt
90 KB
197. C01P001-04面板垫脚石板.ipt
84 KB
198. C01P001封板1.ipt
157 KB
199. C01P001封板2.ipt
162 KB
200. C01P001封板3.ipt
153 KB
201. C01P001封板4.ipt
155 KB
202. C01P001封板5.ipt
98.5 KB
203. C01P001机架.iam
552 KB
204. C01P001机架.ipt
127 KB
205. C01P001脚杯.ipt
1.2 MB
206. C01P002电箱底板.ipt
93 KB
207. C01P003机板.ipt
168 KB
208. C01P004伺服马达座.ipt
109 KB
209. C01P005从动轮心轴.ipt
154 KB
210. C01P006光电感应器安装板.ipt
136 KB
211. C01P007保护罩.ipt
107 KB
212. C01P008拖链安装板.ipt
100 KB
213. C01P009拖链安装板.ipt
91.5 KB
214. C02-ASSY搬运部.iam
382 KB
215. C02N001滑块SEL2BW16_590(MISUMI).ipt
204 KB
216. C02N001滑轨SEL2BW16_590(MISUMI).ipt
150 KB
217. C02N001滑轨组件SEL2BW16-590(MISUMI).iam
126 KB
218. C02N002气爪MHC2-16D(SMC).ipt
145 KB
219. C02N003滑台气缸MXQ8-50CS-A90(SMC).iam
144 KB
220. C02N003滑台气缸MXQ8-50CS-A90(本体).ipt
189 KB
221. C02N003滑台气缸MXQ8-50CS-A90(滑台).ipt
194 KB
222. C02N004气爪MHZ2-16DN-Y59A(SMC).ipt
249 KB
223. C02N005传感器SX671(OMRON).ipt
139 KB
224. C02P001滑块固定板.ipt
138 KB
225. C02P002同步带压板.ipt
95 KB
226. C02P003气爪2固定板连接板.ipt
122 KB
227. C02P004开口夹光电感应片.ipt
96.5 KB
228. C02P005加强肋.ipt
88.5 KB
229. C02P006气爪2固定板.ipt
125 KB
230. C02P007夹爪.ipt
107 KB
231. C02P008气爪1固定板连接板.ipt
139 KB
232. C02P009平行夹光电感应片.ipt
112 KB
233. C02P010滑台气缸连接板.ipt
130 KB
234. C02P011连接板加强板.ipt
94 KB
235. C02P012气爪1固定板.ipt
111 KB
236. C02P013夹爪上.ipt
103 KB
237. C02P014夹爪下.ipt
102 KB
238. C02P015长感应片.ipt
100 KB
239. C02P016短感应片.ipt
103 KB
240. D-ASSY剥离热压机.iam
5.44 MB
241. D01-1-ASSY地脚组件.iam
112 KB
242. D01-ASSY热压剥离机架.iam
328 KB
243. D01-N001-脚轮90(高).ipt
166 KB
244. D01-P001M16螺杆.ipt
92.5 KB
245. D01-P002安装板.ipt
99 KB
246. D01-P004垫块.ipt
93 KB
247. D01-P005地脚.ipt
112 KB
248. D01-P006垫板.ipt
86.5 KB
249. D01-P007垫块.ipt
95 KB
250. D01-封板1.ipt
85 KB
251. D01-封板2.ipt
86.5 KB
252. D01-封板3.ipt
86.5 KB
253. D01-封板5.ipt
86 KB
254. D01-封板6.ipt
86.5 KB
255. D01-方通50X50-1105.ipt
94 KB
256. D01-方通50X50-1305.ipt
93.5 KB
257. D01-方通50X50-265.ipt
103 KB
258. D01-方通50X50-320.ipt
102 KB
259. D01-方通50X50-321.ipt
100 KB
260. D01-方通50X50-370.ipt
100 KB
261. D01-方通50X50-378.ipt
99.5 KB
262. D01-方通50X50-410.ipt
99.5 KB
263. D01-方通50X50-421.ipt
99 KB
264. D01-方通50X50-428.ipt
98 KB
265. D01-方通50X50-478.ipt
97.5 KB
266. D01-配电板1.ipt
100 KB
267. D01-配电板2.ipt
90.5 KB
268. D01-配电板3.ipt
91 KB
269. D01-配电板4.ipt
97 KB
270. D01-配电板5.ipt
207 KB
271. D01-门1.ipt
115 KB
272. D01-门2.ipt
88.5 KB
273. D01-门3.ipt
89.5 KB
274. D01-门4.ipt
89 KB
275. D02-ASSY剥离热压基板组件.iam
704 KB
276. D02-N001-上银滑块HGW20CA.ipt
496 KB
277. D02-N002-上银滑轨HGR20CA2R420.ipt
137 KB
278. D02-N003-位置显示器DPNP4P1.ipt
150 KB
279. D02-N004-锁紧把手CLNP12-40.ipt
166 KB
280. D02-N005-上银丝杠1R12-04T3-FSIWE1-270-381-0.05.ipt
606 KB
281. D02-N005-上银丝母1R12-04T3-FSIWE1-270-381-0.05.ipt
168 KB
282. D02-N006-轴承B6000ZZ.ipt
207 KB
283. D02-N007-实心手轮AHSN100.ipt
217 KB
284. D02-P001剥离热压基板.ipt
123 KB
285. D02-P002垫板.ipt
98.5 KB
286. D02-P003固定座.ipt
136 KB
287. D02-P004固定块.ipt
116 KB
288. D02-P006锁紧螺母.ipt
97.5 KB
289. D02-P007丝母座.ipt
124 KB
290. D02-P009剥离热压基板.ipt
168 KB
291. D02-P010剥离热压基板.ipt
112 KB
292. D02-P011挡块.ipt
113 KB
293. D02-P012支撑板.ipt
102 KB
294. D02-P013支撑座.ipt
122 KB
295. D02-P014支撑板.ipt
92.5 KB
296. D02-P015支撑板.ipt
91.5 KB
297. D02-P016支撑板.ipt
103 KB
298. D02-P017垫块.ipt
120 KB
299. D02-P018胶垫.ipt
83 KB
300. D03-ASSY转接组件.iam
210 KB
301. D03-N001双联气缸CXSM6-10-Z73.ipt
216 KB
302. D03-N002光电开关SX402.ipt
115 KB
303. D03-N003节流阀AS1201F-M5-04.ipt
159 KB
304. D03-P001底板.ipt
127 KB
305. D03-P002安装板.ipt
100 KB
306. D03-P003加强筋.ipt
86.5 KB
307. D03-P004垫块.ipt
108 KB
308. D03-P005压块.ipt
120 KB
309. D03-P006胶垫.ipt
83 KB
310. D04-1-ASSY剥离治具.iam
636 KB
311. D04-2-ASSY剥离视觉.iam
273 KB
312. D04-3-ASSY剥离压料.iam
216 KB
313. D04-N101-对位平台VVB-010-C02E.ipt
334 KB
314. D04-N102-气动手指MHZ2-40D-Y59A(30-60).ipt
246 KB
315. D04-N103-上银滑块HGW15CA1R-90.ipt
457 KB
316. D04-N103-上银滑轨HGW15CA1R-90.ipt
141 KB
317. D04-N104-浮动接头JA30-10-125(SMC).ipt
142 KB
318. D04-N105-液压缓冲器RB1006(SMC).ipt
138 KB
319. D04-N106-传感器SX671(OMRON).ipt
144 KB
320. D04-N107-CDU32-20D-A93.ipt
229 KB
321. D04-N108-AS2201-01-F06S.ipt
164 KB
322. D04-N109-定位销MS4-15.ipt
108 KB
323. D04-N110摩擦纸50μm.ipt
83 KB
324. D04-N201-CCD镜头ML-2514(松下).ipt
302 KB
325. D04-N202镜头ML-2514(MORITEX).ipt
121 KB
326. D04-N203红色背光光源.ipt
108 KB
327. D04-N301双联气缸CXSM25-10-Z73(0).ipt
212 KB
328. D04-N302-AS2201-01-F06S.ipt
164 KB
329. D04-P101连接板.ipt
160 KB
330. D04-P102底板.ipt
175 KB
331. D04-P103剥离治具.ipt
124 KB
332. D04-P104剥离治具.ipt
248 KB
333. D04-P105感应片.ipt
106 KB
334. D04-P106安装座.ipt
123 KB
335. D04-P107定位销.ipt
123 KB
336. D04-P108连接块.ipt
125 KB
337. D04-P109安装座.ipt
104 KB
338. D04-P110-安装块(对称).ipt
120 KB
339. D04-P110-安装块.ipt
119 KB
340. D04-P111-限位块.ipt
116 KB
341. D04-P112基准片.ipt
108 KB
342. D04-P201底座.ipt
142 KB
343. D04-P202加强板.ipt
86.5 KB
344. D04-P203立板.ipt
109 KB
345. D04-P204导向块.ipt
106 KB
346. D04-P205安装板.ipt
115 KB
347. D04-P206安装板.ipt
106 KB
348. D04-P207安装座.ipt
114 KB
349. D04-P301压块.ipt
102 KB
350. D04-P302支座.ipt
148 KB
351. D04-P303胶垫.ipt
83.5 KB
352. D04-剥离组件.iam
828 KB
353. D05-1-ASSY补强板切断(固定).iam
904 KB
354. D05-1-ASSY补强板切断(移动).iam
903 KB
355. D05-2-ASSY补强板送料(固定).iam
731 KB
356. D05-2-ASSY补强板送料(移动).iam
733 KB
357. D05-3-ASSY贴补强板(固定).iam
369 KB
358. D05-3-ASSY贴补强板(移动).iam
369 KB
359. D05-4-ASSY补强板压料(固定).iam
173 KB
360. D05-4-ASSY补强板压料(移动).iam
175 KB
361. D05-5-ASSY补强板导向.iam
187 KB
362. D05-ASSY补强板组件(固定).iam
1.74 MB
363. D05-ASSY补强板组件(移动).iam
1.78 MB
364. D05-N101直线轴承LHFCW-N16.ipt
161 KB
365. D05-N102导柱VFJW16-294-M6-N6.ipt
92 KB
366. D05-N103直线轴承LHFRD6.ipt
158 KB
367. D05-N104等高螺丝6-50.ipt
122 KB
368. D05-N105步进减速机.ipt
170 KB
369. D05-N106步进电机56.ipt
549 KB
370. D05-N107轴承B6006.ipt
209 KB
371. D05-N108卡簧STWN30.ipt
111 KB
372. D05-N109传感器SX671(OMRON).ipt
140 KB
373. D05-N110弹簧FUF6-25-A.ipt
283 KB
374. D05-N111弹簧UR5-45.ipt
381 KB
375. D05-N201轴承B6001ZZ.ipt
205 KB
376. D05-N202导柱VFJW8-69-M4-N4.ipt
100 KB
377. D05-N203直线轴承LMUW8.ipt
150 KB
378. D05-N204气缸CQ2B25-5D.ipt
220 KB
379. D05-N205节流阀AS1201F-M5-04.ipt
159 KB
380. D05-N206直线轴承LHFCD8.ipt
154 KB
381. D05-N207导柱SFJT8-55-M4.ipt
98 KB
382. D05-N208光电开关SX402.ipt
116 KB
383. D05-N209齿轮GEAHB2.0-25-20-A-10N.ipt
232 KB
384. D05-N210步进电机56.ipt
551 KB
385. D05-N211同步带轮HTCPA26-S5M100-8.ipt
520 KB
386. D05-N212同步带轮HTCPA26-S5M100-10.ipt
519 KB
387. D05-N213同步带HTBN295S5M-100.ipt
101 KB
388. D05-N301导轨SEBW14_110(滑轨).ipt
109 KB
389. D05-N301滑块SEBW14.ipt
186 KB
390. D05-N302双联气缸CXSM10-10-Z73.ipt
199 KB
391. D05-N303气缸CDQ2B20-40D-A73.ipt
176 KB
392. D05-N304浮动接头JB20-5-080.ipt
129 KB
393. D05-N305节流阀AS1201F-M5-04.ipt
159 KB
394. D05-N306发热管200W.ipt
93.5 KB
395. D05-N307热电偶E52-CA1D-M6-4M.ipt
103 KB
396. D05-N308快换接头KQH04-M5.ipt
137 KB
397. D05-N401双联气缸CXSM15-10-Z73.ipt
198 KB
398. D05-N402节流阀AS1201F-M5-04.ipt
159 KB
399. D05-N501轴承B6001ZZ.ipt
205 KB
400. D05-N502卡簧STWN12.ipt
113 KB
401. D05-P101底板(对称).ipt
113 KB
402. D05-P101底板.ipt
113 KB
403. D05-P102支柱.ipt
87.5 KB
404. D05-P103安装板(对称).ipt
152 KB
405. D05-P103安装板.ipt
152 KB
406. D05-P104下刀座.ipt
152 KB
407. D05-P105下刀.ipt
135 KB
408. D05-P106上刀座(对称).ipt
142 KB
409. D05-P106上刀座.ipt
143 KB
410. D05-P107压块.ipt
96 KB
411. D05-P108胶垫.ipt
86 KB
412. D05-P109上刀.ipt
104 KB
413. D05-P110安装板.ipt
109 KB
414. D05-P111导杆.ipt
89.5 KB
415. D05-P112压块.ipt
109 KB
416. D05-P113连接块.ipt
116 KB
417. D05-P114连接块.ipt
94.5 KB
418. D05-P115连接块.ipt
94 KB
419. D05-P116安装块.ipt
134 KB
420. D05-P117安装块.ipt
139 KB
421. D05-P118加强筋.ipt
102 KB
422. D05-P119偏心套.ipt
179 KB
423. D05-P120光电支撑底板.ipt
113 KB
424. D05-P121光电支撑侧板.ipt
99.5 KB
425. D05-P122传感器SX671底座.ipt
111 KB
426. D05-P123位置感应片.ipt
105 KB
427. D05-P201立板(对称).ipt
126 KB
428. D05-P201立板.ipt
126 KB
429. D05-P202胶辊.ipt
123 KB
430. D05-P203立板(对称).ipt
118 KB
431. D05-P203立板.ipt
119 KB
432. D05-P204安装块.ipt
129 KB
433. D05-P205盖板.ipt
116 KB
434. D05-P206轴承座.ipt
153 KB
435. D05-P207连接块.ipt
119 KB
436. D05-P208胶辊.ipt
143 KB
437. D05-P209安装块(对称).ipt
128 KB
438. D05-P209安装块.ipt
128 KB
439. D05-P210连接板.ipt
141 KB
440. D05-P211导柱.ipt
102 KB
441. D05-P212导向块.ipt
141 KB
442. D05-P213导向块.ipt
120 KB
443. D05-P214感应器安装座(对称).ipt
108 KB
444. D05-P214感应器安装座.ipt
107 KB
445. D05-P215垫块.ipt
93 KB
446. D05-P216安装块.ipt
134 KB
447. D05-P301安装板.ipt
115 KB
448. D05-P302连接板.ipt
124 KB
449. D05-P303连接板.ipt
103 KB
450. D05-P304安装块.ipt
116 KB
451. D05-P305隔热板.ipt
96 KB
452. D05-P306加热块(对称).ipt
121 KB
453. D05-P306加热块.ipt
121 KB
454. D05-P307连接块.ipt
138 KB
455. D05-P308安装板.ipt
142 KB
456. D05-P309挡块.ipt
108 KB
457. D05-P310支柱.ipt
89 KB
458. D05-P401安装板.ipt
113 KB
459. D05-P402安装板.ipt
112 KB
460. D05-P403加强板.ipt
92 KB
461. D05-P404安装块.ipt
115 KB
462. D05-P405胶垫.ipt
82.5 KB
463. D05-P501安装板.ipt
99.5 KB
464. D05-P502安装板.ipt
92 KB
465. D05-P503轴承座.ipt
143 KB
466. D05-P504导向轴.ipt
108 KB
467. D05-P505轴环.ipt
119 KB
468. D06-1-ASSY快速夹头.iam
384 KB
469. D06-ASSY补强板送料架.iam
716 KB
470. D06-N001轴承B6002.ipt
208 KB
471. D06-N002轴承B6001.ipt
209 KB
472. D06-N003弹簧.ipt
359 KB
473. D06-N004钢珠.ipt
139 KB
474. D06-N005卡簧STWN12.ipt
113 KB
475. D06-P001安装板.ipt
130 KB
476. D06-P002加强板.ipt
98 KB
477. D06-P003立板.ipt
103 KB
478. D06-P004轴承座.ipt
160 KB
479. D06-P005轴.ipt
249 KB
480. D06-P006轴.ipt
109 KB
481. D06-P007轴承座.ipt
145 KB
482. D06-P008轴环.ipt
119 KB
483. D06-P009安装板.ipt
117 KB
484. D06-P010挡盘.ipt
100 KB
485. D06-P011挡圈.ipt
146 KB
486. D06-P012料芯.ipt
121 KB
487. D06-P013螺母.ipt
138 KB
488. D06-P014轴套.ipt
190 KB
489. D06-P015轴套.ipt
133 KB
490. D06-P016轴套.ipt
112 KB
491. D06-P017轴套.ipt
151 KB
492. D06-P018支柱.ipt
131 KB
493. D06-P019内六角螺丝(M8-30追加工).ipt
106 KB
494. D07-1-ASSY快速夹头.iam
390 KB
495. D07-ASSY热压清洁机构(移动).iam
1.05 MB
496. D07-N001东方扭矩马达2TK3CGN-A+2GN7.5K.ipt
560 KB
497. D07-N002轴承B6001ZZ.ipt
164 KB
498. D07-N003带导杆气缸MGPM12-20-Z73.ipt
293 KB
499. D07-N004步进电机YK57XN78-4208研控.ipt
473 KB
500. D07-N005轴承B6002ZZ.ipt
205 KB
501. D07-N006导轨STZL8_55.ipt
116 KB
502. D07-N006滑块SEZB8.ipt
207 KB
503. D07-N008弹簧.ipt
359 KB
504. D07-N009钢珠.ipt
139 KB
505. D07-N010光电开关SX402.ipt
115 KB
506. D07-P001安装板.ipt
112 KB
507. D07-P002安装板.ipt
116 KB
508. D07-P003连接板.ipt
91 KB
509. D07-P004轴承座.ipt
161 KB
510. D07-P005轴.ipt
106 KB
511. D07-P006料盘芯.ipt
143 KB
512. D07-P007料盘.ipt
101 KB
513. D07-P008料盘芯.ipt
146 KB
514. D07-P009安装板.ipt
136 KB
515. D07-P010安装板.ipt
135 KB
516. D07-P011支柱.ipt
94 KB
517. D07-P012胶轮.ipt
167 KB
518. D07-P013胶轮.ipt
140 KB
519. D07-P014轴.ipt
120 KB
520. D07-P015轴.ipt
125 KB
521. D07-P016安装块.ipt
116 KB
522. D07-P017安装块.ipt
108 KB
523. D07-P018安装块.ipt
137 KB
524. D07-P019导向杆.ipt
99 KB
525. D07-P020加强板.ipt
89.5 KB
526. D07-P021安装板.ipt
107 KB
527. D07-P022安装块.ipt
122 KB
528. D07-P023安装板.ipt
109 KB
529. D07-P024加强板.ipt
92.5 KB
530. D07-P026连接板.ipt
91 KB
531. D07-P027安装板.ipt
111 KB
532. D07-P029安装板.ipt
124 KB
533. D07-P030加强板.ipt
89 KB
534. D07-P031配重小块.ipt
118 KB
535. D07-P032限位块.ipt
91 KB
536. D07-P033传感器安装架.ipt
103 KB
537. D07-P034安装板.ipt
125 KB
538. D07-P035安装板.ipt
120 KB
539. D07-P035轴套.ipt
190 KB
540. D07-P036轴套.ipt
133 KB
541. D07-P037轴套.ipt
111 KB
542. D07-P038轴套.ipt
151 KB
543. D08-ASSY热压模具.iam
595 KB
544. D08-N001气缸CDQ2B80-10D-M9NV.ipt
268 KB
545. D08-N002调速阀AS3201F-04-10S.ipt
164 KB
546. D08-N003直线轴承LHFCW-N20.ipt
158 KB
547. D08-N004发热管200W.ipt
97 KB
548. D08-N005热电偶E52-CA1D-M6-4M.ipt
103 KB
549. D08-N006气缸CDQ2B63-10D-A730.ipt
267 KB
550. D08-N007调速阀调速阀AS3201F-03-08S.ipt
165 KB
551. D08-N008双联气缸CXSM6-10-Z73.ipt
216 KB
552. D08-N009调速阀AS1201F-M5-04.ipt
158 KB
553. D08-P001安装板.ipt
138 KB
554. D08-P002导柱.ipt
82.5 KB
555. D08-P003限位柱.ipt
85 KB
556. D08-P004热压模板.ipt
148 KB
557. D08-P005隔热板.ipt
105 KB
558. D08-P006热压铜块.ipt
116 KB
559. D08-P007热压模板.ipt
161 KB
560. D08-P008浮动接头.ipt
147 KB
561. D08-P009浮动接头.ipt
150 KB
562. D08-P010浮动接头.ipt
133 KB
563. D08-P011安装板.ipt
125 KB
564. D08-P012安装板.ipt
102 KB
565. D08-P013压块.ipt
109 KB
566. D08-P014胶垫.ipt
83.5 KB
567. D08-P015安装块.ipt
114 KB
568. D08-P016导向杆.ipt
93 KB
569. D08-P017热压导向环.ipt
113 KB
570. E-ASSY冲裁检测机.iam
3.33 MB
571. E01-1-ASSY地脚组件.iam
112 KB
572. E01-ASSY冲裁电检机架.iam
296 KB
573. E01-N001-脚轮90(高).ipt
166 KB
574. E01-P001M16螺杆.ipt
92.5 KB
575. E01-P002安装板.ipt
99 KB
576. E01-P004垫块.ipt
93 KB
577. E01-P005地脚.ipt
113 KB
578. E01-P006垫板.ipt
86.5 KB
579. E01-P007垫块.ipt
95 KB
580. E01-封板1.ipt
85.5 KB
581. E01-封板2.ipt
87 KB
582. E01-封板3.ipt
87 KB
583. E01-封板4.ipt
86 KB
584. E01-封板5.ipt
86 KB
585. E01-封板6.ipt
86 KB
586. E01-方通50X50-1105.ipt
94.5 KB
587. E01-方通50X50-1305.ipt
94 KB
588. E01-方通50X50-265.ipt
103 KB
589. E01-方通50X50-320.ipt
101 KB
590. E01-方通50X50-321.ipt
100 KB
591. E01-方通50X50-370.ipt
101 KB
592. E01-方通50X50-378.ipt
100 KB
593. E01-方通50X50-410.ipt
99.5 KB
594. E01-方通50X50-421.ipt
99.5 KB
595. E01-方通50X50-428.ipt
98.5 KB
596. E01-方通50X50-478.ipt
98 KB
597. E01-配电板1.ipt
101 KB
598. E01-配电板2.ipt
90.5 KB
599. E01-配电板3.ipt
90.5 KB
600. E01-配电板4.ipt
97.5 KB
601. E01-门1.ipt
89.5 KB
602. E01-门2.ipt
89.5 KB
603. E01-门3.ipt
89.5 KB
604. E01-门4.ipt
89.5 KB
605. E02-ASSY冲裁检测基板组件.iam
695 KB
606. E02-N001-上银滑块HGW20CA.ipt
496 KB
607. E02-N002-上银滑轨HGR20CA2R420.ipt
137 KB
608. E02-N003-位置显示器DPNP4P1.ipt
150 KB
609. E02-N004-锁紧把手CLNP12-40.ipt
166 KB
610. E02-N005-上银丝杠1R12-04T3-FSIWE1-270-381-0.05.ipt
606 KB
611. E02-N005-上银丝母1R12-04T3-FSIWE1-270-381-0.05.ipt
169 KB
612. E02-N006-轴承B6000ZZ.ipt
207 KB
613. E02-N007-实心手轮AHSN100.ipt
217 KB
614. E02-P001冲裁检测基板.ipt
122 KB
615. E02-P002垫板.ipt
98.5 KB
616. E02-P003固定座.ipt
136 KB
617. E02-P004固定块.ipt
116 KB
618. E02-P006锁紧螺母.ipt
97.5 KB
619. E02-P007丝母座.ipt
123 KB
620. E02-P008挡块.ipt
112 KB
621. E02-P009冲裁检测基板.ipt
179 KB
622. E02-P010冲裁检测基板.ipt
127 KB
623. E02-P011支撑板.ipt
94 KB
624. E02-P012支撑座.ipt
122 KB
625. E02-P013支撑板.ipt
95.5 KB
626. E02-P014支撑座(对称).ipt
130 KB
627. E02-P014支撑座.ipt
130 KB
628. E02-P015垫块.ipt
101 KB
629. E03-1-ASSY冲裁模具.iam
634 KB
630. E03-2-ASSY冲裁光源(固定).iam
184 KB
631. E03-2-ASSY冲裁光源(移动).iam
184 KB
632. E03-3-ASSY冲裁CCD(固定).iam
259 KB
633. E03-3-ASSY冲裁CCD(移动).iam
260 KB
634. E03-4-ASSY冲裁对位平台.iam
444 KB
635. E03-ASSY冲裁组件(固定).iam
1.07 MB
636. E03-ASSY冲裁组件(移动).iam
1.07 MB
637. E03-N101-气缸CDQ2B100-10D-M9NV.ipt
266 KB
638. E03-N102-直线轴承LHFSD16G.ipt
154 KB
639. E03-N104调速阀AS3201F-03-08S.ipt
161 KB
640. E03-N105气缸CDQ2B80-15D-M9NV.ipt
271 KB
641. E03-N106直线轴承LHMSD16.ipt
176 KB
642. E03-N107定位销FPDPC6-P8-L10-B10(MISUMI).ipt
114 KB
643. E03-N108-等高螺栓MSB6-25(MISUMI).ipt
134 KB
644. E03-N109-弹簧SWY11-20(MISUMI).ipt
240 KB
645. E03-N201光源SM-CO70(500W用).ipt
158 KB
646. E03-N202-电缸T4-12-200-3L-ERCD-CN1(YAMAHA).ipt
201 KB
647. E03-N301相机ANPVC1470(松下).ipt
156 KB
648. E03-N302镜头ML-2514(MORITEX).ipt
122 KB
649. E03-N303双联气缸CXSM6-10-Z73.ipt
217 KB
650. E03-N304节流阀AS1201F-M5-04.ipt
159 KB
651. E03-N401-CDU32-70A-A93.ipt
228 KB
652. E03-N402-对位平台VVB-010-C02E.ipt
334 KB
653. E03-N403-EG15-210.ipt
123 KB
654. E03-N403-EGW15SA.ipt
219 KB
655. E03-N404-浮动接头JA30-10-125(SMC).ipt
142 KB
656. E03-N405-液压缓冲器RB1006(SMC).ipt
138 KB
657. E03-N406-AS2201-01-F06S.ipt
164 KB
658. E03-P101底板.ipt
151 KB
659. E03-P102安装板.ipt
156 KB
660. E03-P103导柱.ipt
92 KB
661. E03-P104连接块.ipt
128 KB
662. E03-P105连接块.ipt
131 KB
663. E03-P106安装板.ipt
121 KB
664. E03-P107安装板.ipt
161 KB
665. E03-P108-导套.ipt
129 KB
666. E03-P109-导柱.ipt
93 KB
667. E03-P110裁切下模板.ipt
143 KB
668. E03-P111裁切上模板.ipt
179 KB
669. E03-P112上模切刀.ipt
91.5 KB
670. E03-P113裁切脱料板.ipt
160 KB
671. E03-P114连接块.ipt
128 KB
672. E03-P115连接块.ipt
134 KB
673. E03-P116外六角螺丝M14-110.ipt
115 KB
674. E03-P117定位销.ipt
124 KB
675. E03-P201安装板(对称).ipt
115 KB
676. E03-P201安装板.ipt
111 KB
677. E03-P202安装板.ipt
108 KB
678. E03-P203加强筋.ipt
88.5 KB
679. E03-P204安装板.ipt
115 KB
680. E03-P205导向块.ipt
106 KB
681. E03-P301固定底板.ipt
136 KB
682. E03-P302侧板.ipt
118 KB
683. E03-P303加强筋.ipt
89.5 KB
684. E03-P304安装板.ipt
103 KB
685. E03-P305安装块.ipt
108 KB
686. E03-P306导向块.ipt
106 KB
687. E03-P307垫块.ipt
110 KB
688. E03-P308安装板(对称).ipt
113 KB
689. E03-P308安装板.ipt
113 KB
690. E03-P309压块(对称).ipt
105 KB
691. E03-P309压块.ipt
101 KB
692. E03-P310胶垫.ipt
84 KB
693. E03-P401-底板.ipt
140 KB
694. E03-P402-挡块.ipt
110 KB
695. E03-P403-连接板.ipt
131 KB
696. E03-P404-限位块.ipt
117 KB
697. E03-P405-安装块(对称).ipt
122 KB
698. E03-P405-安装块.ipt
120 KB
699. E03-P406-连接块.ipt
124 KB
700. E04-ASSY尺寸检查组件(固定).iam
338 KB
701. E04-ASSY尺寸检查组件(移动).iam
338 KB
702. E04-N001双联气缸CXSM6-10-Z73.ipt
217 KB
703. E04-N002调速阀AS1201F-M5-04.ipt
158 KB
704. E04-N003光源SM-CO70.ipt
158 KB
705. E04-N004镜头ML-2514(MORITEX).ipt
121 KB
706. E04-N005-CCD-ANPVC1210(松下).ipt
304 KB
707. E04-N111-节流阀AS1201-M5-F06.ipt
171 KB
708. E04-P001安装板.ipt
130 KB
709. E04-P002底板.ipt
138 KB
710. E04-P003加强筋.ipt
90 KB
711. E04-P004固定块.ipt
148 KB
712. E04-P005垫块.ipt
120 KB
713. E04-P006导向块.ipt
106 KB
714. E04-P007压块.ipt
110 KB
715. E04-P008垫块.ipt
104 KB
716. E04-P009胶垫.ipt
82.5 KB
717. E05-1-ASSY电检治具.iam
334 KB
718. E05-2-ASSY电检视觉(固定).iam
308 KB
719. E05-2-ASSY电检视觉(移动).iam
310 KB
720. E05-3-ASSY电检对位平台.iam
448 KB
721. E05-ASSY电检组件(固定).iam
817 KB
722. E05-ASSY电检组件(移动).iam
817 KB
723. E05-N101气缸EMXS25L-10AS-A93V.ipt
285 KB
724. E05-N102电路板排线.ipt
113 KB
725. E05-N103节流阀AS2201-01-F06S.ipt
161 KB
726. E05-N104检测电路板.ipt
104 KB
727. E05-N105销钉MS6-15.ipt
108 KB
728. E05-N201光源SM-CO70.ipt
158 KB
729. E05-N202镜头ML-2514(MORITEX).ipt
121 KB
730. E05-N203-CCD-ANPVC1210(松下).ipt
304 KB
731. E05-N204节流阀AS1201F-M5-04.ipt
159 KB
732. E05-N205双联气缸CXSM6-10-Z73.ipt
217 KB
733. E05-N301-CDU32-20D-A93.ipt
229 KB
734. E05-N302-对位平台VVB-010-C02E.ipt
334 KB
735. E05-N303-EG15-210.ipt
125 KB
736. E05-N303-EGW15SA.ipt
219 KB
737. E05-N304-浮动接头JA30-10-125(SMC).ipt
142 KB
738. E05-N305-液压缓冲器RB1006(SMC).ipt
138 KB
739. E05-N306-节流阀AS1201-M5-F06.ipt
171 KB
740. E05-P101底板.ipt
152 KB
741. E05-P102安装板.ipt
135 KB
742. E05-P103安装板.ipt
149 KB
743. E05-P104安装板.ipt
136 KB
744. E05-P105垫块.ipt
107 KB
745. E05-P106垫块.ipt
112 KB
746. E05-P107加强筋.ipt
90 KB
747. E05-P108定位销.ipt
124 KB
748. E05-P201安装板.ipt
119 KB
749. E05-P202安装板.ipt
127 KB
750. E05-P203加强板.ipt
90.5 KB
751. E05-P204安装板.ipt
113 KB
752. E05-P205导向块.ipt
106 KB
753. E05-P206安装板(对称).ipt
116 KB
754. E05-P206安装板.ipt
117 KB
755. E05-P207安装块.ipt
120 KB
756. E05-P208胶垫.ipt
83.5 KB
757. E05-P209压块(对称).ipt
105 KB
758. E05-P209压块.ipt
101 KB
759. E05-P301-底板.ipt
138 KB
760. E05-P302-挡块.ipt
110 KB
761. E05-P303-连接板.ipt
131 KB
762. E05-P304-限位块.ipt
116 KB
763. E05-P305-安装块(对称).ipt
122 KB
764. E05-P305-安装块.ipt
119 KB
765. E05-P306-连接块.ipt
124 KB
766. E06-N001步进马达YK57XN78-4208A(研控).ipt
124 KB
767. E06-N002同步带轮HTPA48S3M100A-P8(MISUMI).ipt
639 KB
768. E06-N003导轨MGNR15R380CM+RC (E=10)(上银)(滑块).ipt
309 KB
769. E06-N003导轨MGNR15R380CM+RC (E=10)(上银)(滑轨).ipt
145 KB
770. E06-N003导轨MGNR15R380CM+RC (E=10)(上银).iam
127 KB
771. E06-N004气夹MHC2-16D-Y59A(SMC)(夹爪1).ipt
118 KB
772. E06-N004气夹MHC2-16D-Y59A(SMC)(夹爪2).ipt
121 KB
773. E06-N004气夹MHC2-16D-Y59A(SMC)(本体).ipt
192 KB
774. E06-N004气夹MHC2-16D-Y59A(SMC).iam
133 KB
775. E06-N006同步带HTBN1080S3M-100(MISUMI).ipt
888 KB
776. E06-N007传感器SX671(OMRON).ipt
138 KB
777. E06-N008拖链2.ipt
91.5 KB
778. E06-P001底板.ipt
127 KB
779. E06-P002立板.ipt
103 KB
780. E06-P003加强筋.ipt
95 KB
781. E06-P004安装板.ipt
130 KB
782. E06-P005挡块.ipt
103 KB
783. E06-P006块.ipt
147 KB
784. E06-P007块.ipt
133 KB
785. E06-P008气夹安装板.ipt
117 KB
786. E06-P009夹块.ipt
113 KB
787. E06-P010皮带槽块.ipt
129 KB
788. E06-P011安装座.ipt
144 KB
789. E06-P012轴.ipt
135 KB
790. E06-P013螺母.ipt
111 KB
791. E06-P014罩子.ipt
93 KB
792. E06-P015感应片.ipt
101 KB
793. E06-P016光电感应器安装板.ipt
140 KB
794. E06-P017拖链支架.ipt
94.5 KB
795. E06-拉料组件(固定).iam
621 KB
796. E06-拉料组件(移动).iam
617 KB
797. F-接料机.iam
1.15 MB
798. F01接料机架.iam
654 KB
799. F02-N001导轨HGR15R400C+RC (E=20)(上银)(滑块).ipt
111 KB
800. F02-N001导轨HGR15R400C+RC (E=20)(上银)(滑轨).ipt
97 KB
801. F02-N001导轨HGR15R400C+RC (E=20)(上银).iam
92.5 KB
802. F02-N002带导杆气缸MGPL16-10-Z73(SMC).ipt
334 KB
803. F02-N003吸盘ZPT08UNJ10-B3-A8(SMC).ipt
141 KB
804. F02-N004步进电机YK57XN78-4208A(研控).ipt
473 KB
805. F02-N006同步带轮HTPA26S5M100-A-P8(MISUMI).ipt
393 KB
806. F02-N007同步带HTBN1050S5M-100(MISUMI).ipt
92.5 KB
807. F02-N008传感器SX671(OMRON).ipt
139 KB
808. F02-N009拖链.ipt
91 KB
809. F02-P001安装板.ipt
145 KB
810. F02-P002滑板.ipt
138 KB
811. F02-P003吸盘安装板1.ipt
118 KB
812. F02-P003吸盘安装板2.ipt
100 KB
813. F02-P003吸盘安装板3.ipt
100 KB
814. F02-P004轴承座.ipt
128 KB
815. F02-P005惰轮轴.ipt
109 KB
816. F02-P006自制螺母.ipt
99 KB
817. F02-P007同步带固定座.ipt
134 KB
818. F02-P008同步带压紧座.ipt
103 KB
819. F02-P009传感器安装块.ipt
138 KB
820. F02-P010感应片.ipt
109 KB
821. F02-P011拖链支架.ipt
98 KB
822. F02取料组件.iam
460 KB
823. F03-N001铝型材HFS6-3060-517(MISUMI).ipt
157 KB
824. F03-N002皮带L=1365 W=800 T=2.ipt
98 KB
825. F03-N003步进电机YK60HB86-03A(YAKO).ipt
154 KB
826. F03-N004同步带轮HTPA25S5M100-A-P8(MISUMI).ipt
400 KB
827. F03-N005同步带轮HTPA25S5M100-A-P17(MISUMI).ipt
409 KB
828. F03-N007同步带HTBN360S5M-100(MISUMI).ipt
151 KB
829. F03-P001轴.ipt
96.5 KB
830. F03-P002调整座(对称).ipt
113 KB
831. F03-P002调整座.ipt
114 KB
832. F03-P003垫片.ipt
85 KB
833. F03-P004马达固定板.ipt
137 KB
834. F03-P005从动轴.ipt
90.5 KB
835. F03-P006滚筒.ipt
92.5 KB
836. F03-P007安装座(对称).ipt
114 KB
837. F03-P007安装座.ipt
116 KB
838. F03-P008罩子.ipt
151 KB
839. F03-P009封盖.ipt
120 KB
840. F03-P010支座.ipt
117 KB
841. F03-P011连接块.ipt
104 KB
842. F03皮带组件.iam
339 KB
843. FFC产品(L=115剥离后).ipt
294 KB
844. FFC产品(L=115激光切断后).ipt
278 KB
845. FFC产品(L=115贴补强板后).ipt
297 KB
846. FFC剥离机产品.ipt
97.5 KB
847. FFC手机软排线自动剥离热压冲裁切断检测生产线.stp
100 MB
848. FFC手机软排线自动剥离热压冲裁切断检测生产线.stp.iam
16.5 MB
849. H01-ASSY-中间搬运组件.iam
1.6 MB
850. H01-ASSY中间搬运基板组件.iam
1.37 MB
851. H01-N001滑轨HGWR15R2130C+RC( E=15)(上银)(滑块).ipt
111 KB
852. H01-N001滑轨HGWR15R2130C+RC( E=15)(上银)(滑轨1).ipt
111 KB
853. H01-N002前轴承座BSW12(MISUMI).ipt
299 KB
854. H01-N003后轴承座BUN12(MISUMI).ipt
243 KB
855. H01-N004同步带轮PTPA40P3M100_B_P10(MISUMI).ipt
500 KB
856. H01-N005同步带PTBN309P3M_100(MISUMI).ipt
191 KB
857. H01-N006伺服马达MSMD-400W(松下).ipt
184 KB
858. H01-N007同步带轮PTPA36P3M100_B_N14(MISUMI).ipt
472 KB
859. H01-N008浮动接头JA20-8-125(SMC).ipt
158 KB
860. H01-N009光电传感器EE-SX671A(OMRON).ipt
491 KB
861. H01-N010丝杠BSSRK1520-615-F30-P10(MISUMI)(丝杆).ipt
98.5 KB
862. H01-N010丝杠BSSRK1520-615-F30-P10(MISUMI)(丝母).ipt
176 KB
863. H01-N010丝杠BSSRK1520-615-F30-P10(MISUMI)(轴环).ipt
127 KB
864. H01-N011步进电机YK57XN78-4208A(研控).ipt
475 KB
865. H01-N012轴承B628ZZ(MISUMI).ipt
162 KB
866. H01-N013丝杠MTSRW12-300-F10-V8-S32-Q8(MISUMI)(丝杆).ipt
92.5 KB
867. H01-N013丝杠MTSRW12-300-F10-V8-S32-Q8(MISUMI)(丝母).ipt
156 KB
868. H01-N014滑轨HGR15R260C+RC(E=10)(上银)(滑块).ipt
112 KB
869. H01-N014滑轨HGR15R260C+RC(E=10)(上银)(滑轨).ipt
97 KB
870. H01-N015同步带轮HTPA48S2M100-B-P8.ipt
611 KB
871. H01-N016同步带HTUN240S2M-100.ipt
102 KB
872. H01-N017销钉MS6-15.ipt
108 KB
873. H01-P001基板.ipt
168 KB
874. H01-P002基板.ipt
158 KB
875. H01-P003平移板.ipt
178 KB
876. H01-P004平移板.ipt
184 KB
877. H01-P005滑块垫板.ipt
99 KB
878. H01-P006丝母座.ipt
126 KB
879. H01-P007伺服马达座.ipt
132 KB
880. H01-P008伺服马达座加强肋.ipt
91 KB
881. H01-P009连接接头(反牙).ipt
118 KB
882. H01-P009连接接头.ipt
118 KB
883. H01-P010连接杆.ipt
89 KB
884. H01-P011挡块.ipt
109 KB
885. H01-P012轴承座.ipt
137 KB
886. H01-P013马达安装板.ipt
133 KB
887. H01-P014连接板.ipt
167 KB
888. H01-P015光电感应器安装板.ipt
140 KB
889. H01-P016感应片.ipt
104 KB
890. H02-ASSY中间搬运固定夹爪.iam
399 KB
891. H02-N001导套LHFCD8(MISUMI).ipt
144 KB
892. H02-N002升降气缸CDU16-30D-A93(SMC).ipt
256 KB
893. H02-N003浮动接头JA15-5-080(SMC).ipt
147 KB
894. H02-N004导柱固定座STHXC8(MISUMI).ipt
150 KB
895. H02-N005导柱VFJT8_120_M4(MISUMI).ipt
95 KB
896. H02-N006搬运气爪MHZL2-10D-Y69A(SMC).ipt
198 KB
897. H02-N007管接头M-3ALU-4(SMC).ipt
179 KB
898. H02-P001固定座底板.ipt
128 KB
899. H02-P002固定座立板.ipt
119 KB
900. H02-P003加强筋.ipt
89.5 KB
901. H02-P004立板(对称).ipt
118 KB
902. H02-P004立板.ipt
119 KB
903. H02-P005升降气缸固定板.ipt
120 KB
904. H02-P006加强筋.ipt
103 KB
905. H02-P007升降板.ipt
104 KB
906. H02-P008夹爪固定座.ipt
129 KB
907. H02-P009夹爪.ipt
124 KB
908. H02-P010胶垫.ipt
83 KB
909. H03-ASSY中间搬运移动夹爪(前).iam
417 KB
910. H03-ASSY中间搬运移动夹爪(后).iam
415 KB
911. H03-N001导套LHFCD8(MISUMI).ipt
144 KB
912. H03-N002升降气缸CDU16-30D-A93(SMC).ipt
255 KB
913. H03-N003浮动接头JA15-5-080(SMC).ipt
147 KB
914. H03-N004导柱固定座STHXC8(MISUMI).ipt
150 KB
915. H03-N005导柱VFJT8_120_M4(MISUMI).ipt
95 KB
916. H03-N006搬运气爪MHZL2-10D-Y69A(SMC).ipt
198 KB
917. H03-N007管接头M-3ALU-4(SMC).ipt
179 KB
918. H03-P001固定座底板.ipt
134 KB
919. H03-P002立板(对称).ipt
126 KB
920. H03-P002立板.ipt
125 KB
921. H03-P003加强筋.ipt
99 KB
922. H03-P004升降气缸固定板.ipt
122 KB
923. H03-P005加强筋.ipt
103 KB
924. H03-P006调节螺母固定板.ipt
97.5 KB
925. H03-P007感应片.ipt
99 KB
926. H03-P008升降板.ipt
104 KB
927. H03-P009夹爪固定座.ipt
129 KB
928. H03-P010夹爪.ipt
125 KB
929. H03-P011胶垫.ipt
83 KB
930. H03-P012升降板.ipt
104 KB
931. H03-P013调节螺母安装块.ipt
112 KB
932. H03-P014调节螺母固定板.ipt
97 KB
933. H04-ASSY长产皮尼导向组件.iam
135 KB
934. H04-P001导向杆.ipt
79 KB
935. H04-P002支撑杆.ipt
98 KB
936. H04-P003支撑杆.ipt
86 KB
937. H04-P004支撑杆.ipt
86.5 KB
938. H04-P005安装板.ipt
96.5 KB
939. H04-P006固定座.ipt
119 KB
940. H04-P007固定座.ipt
119 KB
941. H04-P008固定座.ipt
128 KB
942. HFS6-3030-1000.ipt
137 KB
943. HFS6-3030-1782.ipt
133 KB
944. HFS6-3030-207.ipt
159 KB
945. HFS6-3030-373.ipt
148 KB
946. HFS6-3030-475.ipt
145 KB
947. HFS6-3030-485.ipt
145 KB
948. HFS6-3030-520.ipt
143 KB
949. HFS6-3030-655.ipt
141 KB
950. HFS6-3030-762.ipt
139 KB
951. HFS6-3030-855.ipt
138 KB
952. HFS6-3030-885.ipt
138 KB
953. HFS8-4040-1000.ipt
157 KB
954. HFS8-4040-1122.ipt
157 KB
955. HFS8-4040-1165.ipt
154 KB
956. HFS8-4040-160.ipt
191 KB
957. HFS8-4040-225.ipt
168 KB
958. HFS8-4040-315.ipt
173 KB
959. HFS8-4040-400.ipt
171 KB
960. HFS8-4040-452.5.ipt
164 KB
961. HFS8-4040-645.ipt
165 KB
962. HFS8-4040-655.ipt
164 KB
963. HFS8-4040-780.ipt
158 KB
964. HFS8-4040-850.ipt
156 KB
965. HFS8-4040-905.ipt
158 KB
966. HFS8-4040-945.ipt
156 KB
967. HFS8-4040-960-2.ipt
190 KB
968. HFS8-4040-960.ipt
158 KB
969. M10-35内六角螺丝.ipt
103 KB
970. M10-35带垫片内六角螺丝.iam
106 KB
971. M10垫片组件.iam
103 KB
972. M10平垫.ipt
96.5 KB
973. M10弹垫.ipt
101 KB
974. M10螺母.ipt
119 KB
975. M14螺母.ipt
120 KB
976. M16螺母.ipt
120 KB
977. M3-8内六角螺丝.ipt
107 KB
978. M3外六角螺丝.ipt
115 KB
979. M4-18内六角螺丝.ipt
102 KB
980. M4-18带垫片内六角螺丝.iam
102 KB
981. M4垫片组件.iam
97.5 KB
982. M4平垫.ipt
89.5 KB
983. M4弹垫.ipt
101 KB
984. M5-30内六角螺丝.ipt
98.5 KB
985. M5-30带垫片内六角螺丝.iam
101 KB
986. M5垫片组件.iam
98.5 KB
987. M5平垫.ipt
91 KB
988. M5弹垫.ipt
101 KB
989. M6-20内六角螺丝.ipt
104 KB
990. M6-20带垫片内六角螺丝.iam
104 KB
991. M6-25内六角螺丝.ipt
102 KB
992. M6-25带垫片内六角螺丝.iam
103 KB
993. M6-45内六角螺丝.ipt
96.5 KB
994. M6垫片组件.iam
98.5 KB
995. M6平垫.ipt
91 KB
996. M6弹垫.ipt
100 KB
997. M6螺母.ipt
118 KB
998. M8-25内六角螺丝.ipt
105 KB
999. M8-25带垫片内六角螺丝.iam
103 KB
1000. M8-30内六角螺丝.ipt
103 KB
1001. M8-40内六角螺丝.ipt
99.5 KB
1002. M8-40带垫片内六角螺丝.iam
100 KB
1003. M8-50内六角螺丝.ipt
97 KB
1004. M8垫片组件.iam
97.5 KB
1005. M8平垫.ipt
89 KB
1006. M8弹垫.ipt
101 KB
1007. M8螺母.ipt
120 KB
1008. SPT5-T-D.ipt
110 KB
1009. X01-ASSY小操作面板组件.iam
253 KB
1010. X01-N001触摸屏.ipt
646 KB
1011. X01-N002安装盒.ipt
124 KB
1012. X01-N003-16带灯按钮红.ipt
231 KB
1013. X01-N004-16带灯按钮绿.ipt
231 KB
1014. X01-N005-16带灯按钮黄.ipt
231 KB
1015. X01-N006-16旋钮.ipt
236 KB
1016. X01-P001连接板.ipt
111 KB
1017. X01-P002立柱.ipt
90.5 KB
1018. X01-P004小电箱.ipt
121 KB
1019. X02-ASSY-大操作面板.iam
1.1 MB
1020. X02-P001方通座.ipt
126 KB
1021. X02-P002.ipt
7.25 MB
1022. Y-B-P010上安全门.ipt
97 KB
1023. Y-B-P011上安全门.ipt
97 KB
1024. Y-B-P012上安全门.ipt
99.5 KB
1025. Y-B-P013上安全门.ipt
96 KB
1026. Y-B-P014上安全门.ipt
102 KB
1027. Y-B-P015上安全门.ipt
82 KB
1028. Y-B-P016上安全门.ipt
82.5 KB
1029. Y-B-P017上安全门.ipt
82 KB
1030. Y-B-P018上安全门.ipt
96.5 KB
1031. Y-B-P019上安全门.ipt
100 KB
1032. Y-B-P020下安全门.ipt
98 KB
1033. Y-B切断机安全罩.iam
197 KB
1034. Y-C-P001安全门.ipt
96 KB
1035. Y-C-P002安全门.ipt
100 KB
1036. Y-C-P003安全门.ipt
95.5 KB
1037. Y-C-P004顶板.ipt
81.5 KB
1038. Y-D-P001安全门.ipt
96 KB
1039. Y-D-P002安全门.ipt
100 KB
1040. Y-D-P003安全门.ipt
96 KB
1041. Y-D-P004安全门.ipt
99 KB
1042. Y-D-P005安全门.ipt
96 KB
1043. Y-D-P006安全门.ipt
98 KB
1044. Y-D-P007顶板.ipt
81.5 KB
1045. Y-D热压保护罩.iam
190 KB
1046. Y-E冲裁保护罩.iam
207 KB
1047. Y-HFS8-4040-1000.ipt
157 KB
1048. Y-HFS8-4040-1122.ipt
157 KB
1049. Y-HFS8-4040-905.ipt
159 KB
1050. Y-HFS8-4040-945.ipt
158 KB
1051. bearingB6200ZZ.ipt
154 KB
1052. 前安全挡板.ipt
83 KB
1053. 前脚杯装配图.iam
508 KB
1054. 加厚快.ipt
126 KB
1055. 后脚杯装配图.iam
510 KB
1056. 封板1.ipt
154 KB
1057. 封板2.ipt
156 KB
1058. 封板3.ipt
151 KB
1059. 封板4.ipt
155 KB
1060. 封板5.ipt
153 KB
1061. 带电磁门禁开关.ipt
130 KB
1062. 标准吸片.ipt
88.5 KB
1063. 螺母-02.ipt
117 KB
1064. 铝型材HFS8-4040-1120(MISUMI).ipt
220 KB
1065. 铝型材HFS8-4040-320(MISUMI).ipt
175 KB
1066. 铝型材HFS8-4040-958(MISUMI).ipt
160 KB
1067. 门.ipt
159 KB
【FFC手机软排线自动剥离热压冲裁切断检测生产线】相关作品
下载提示
×
微信扫码登录
手机登录
