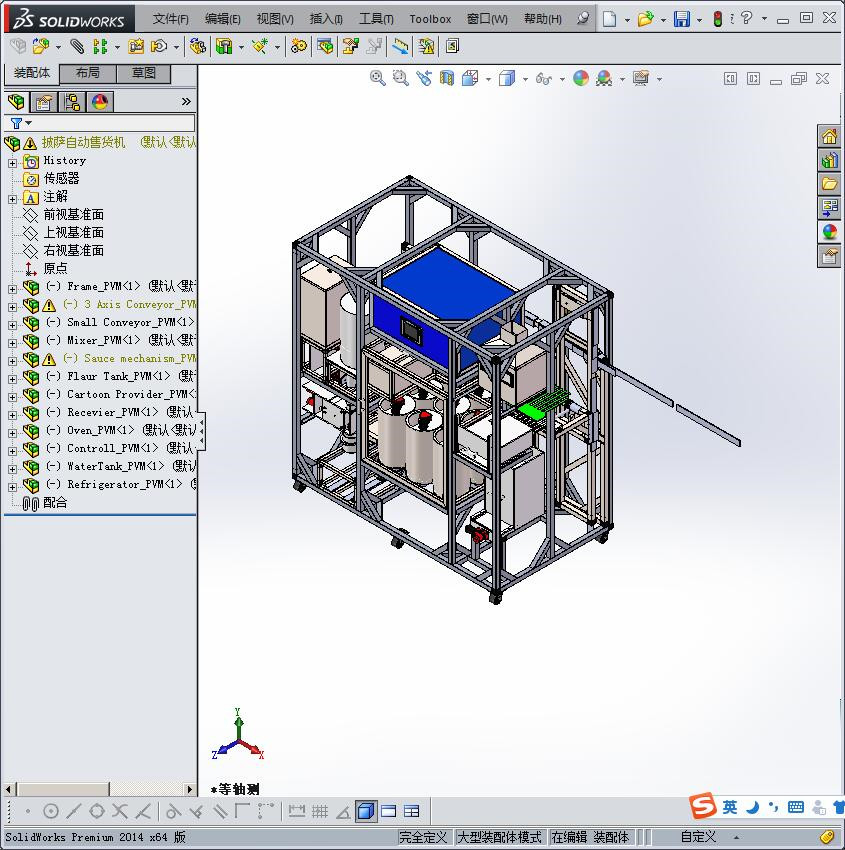

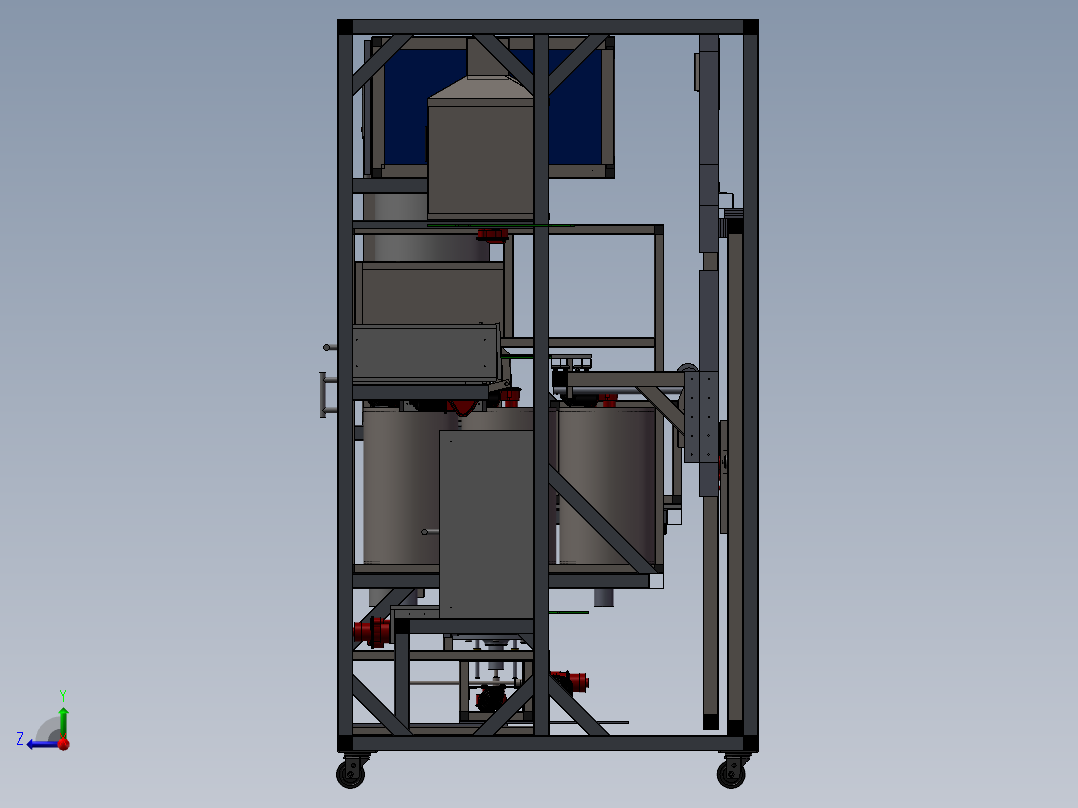

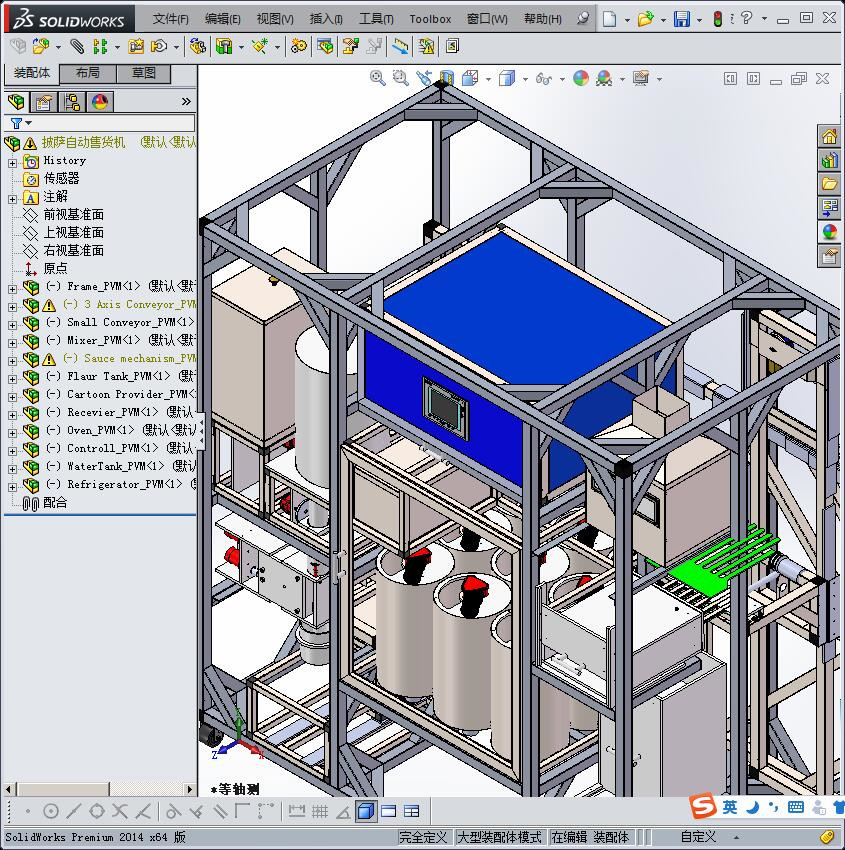

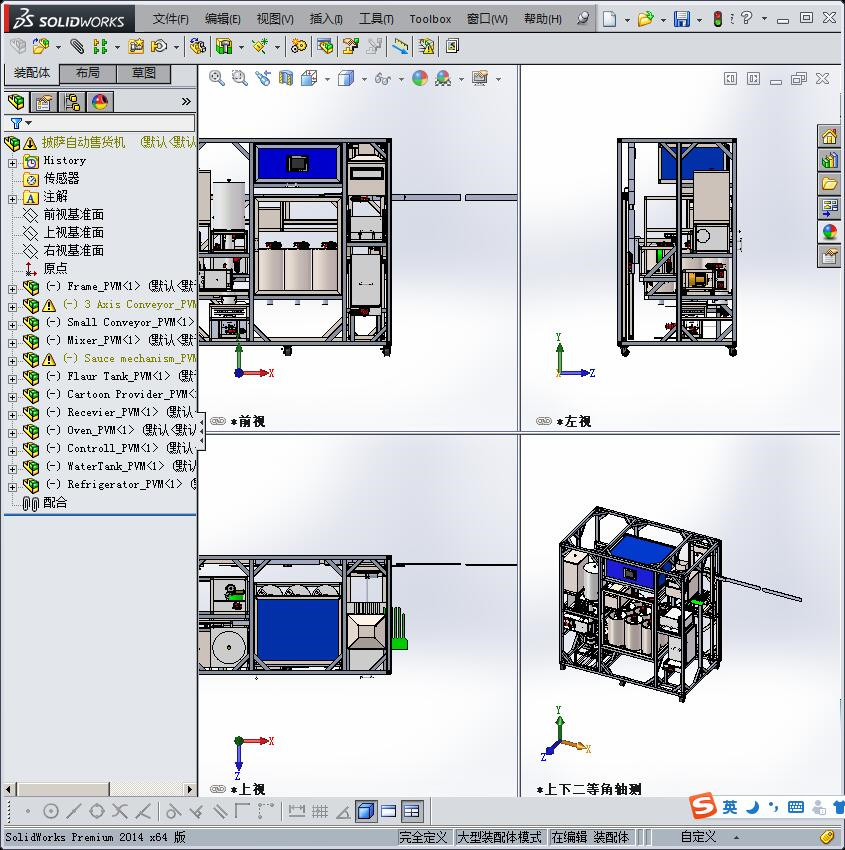

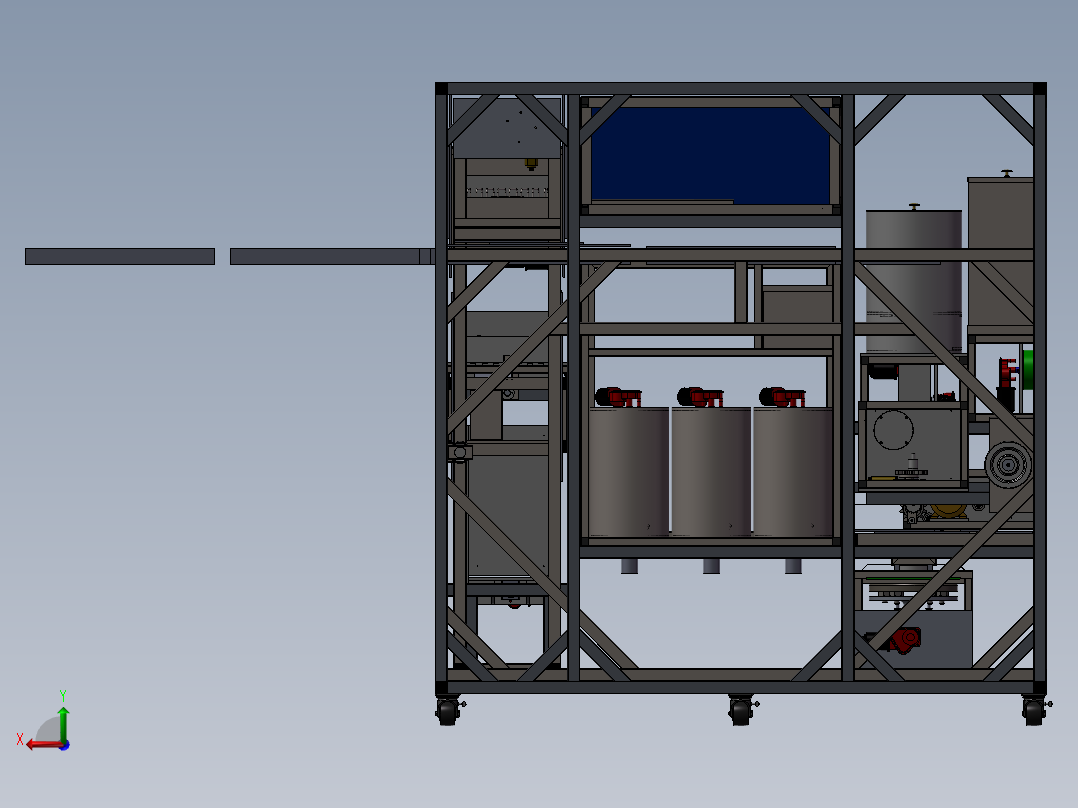

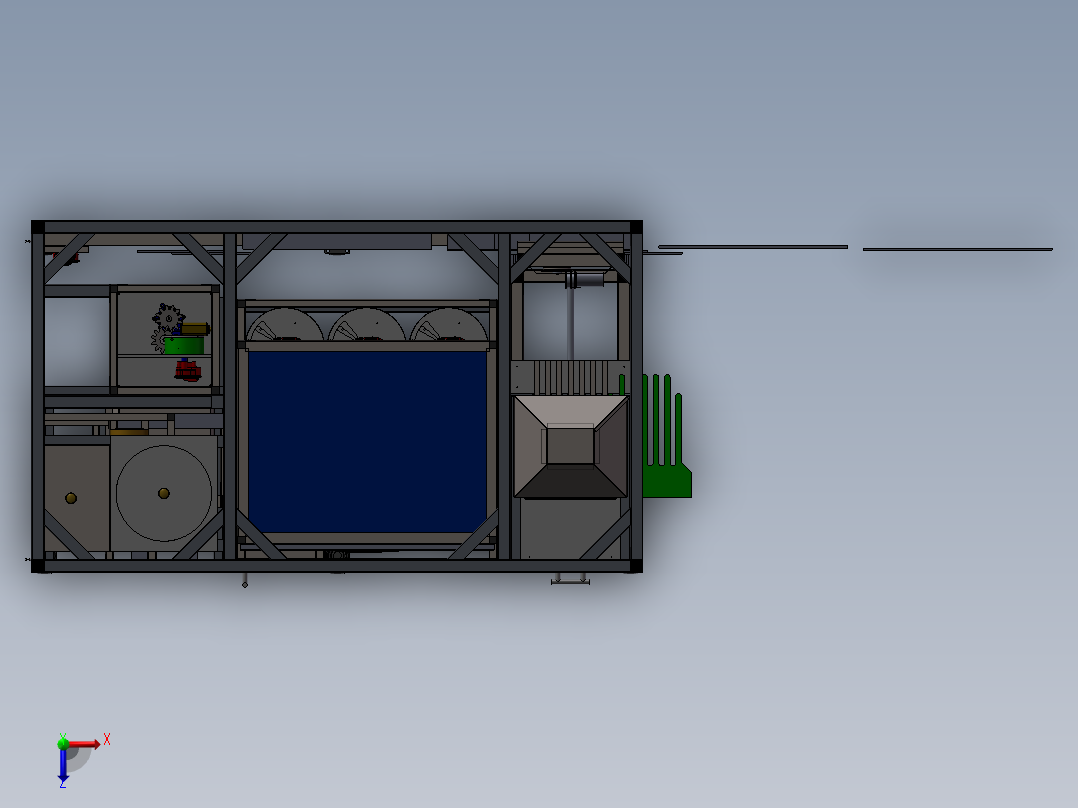

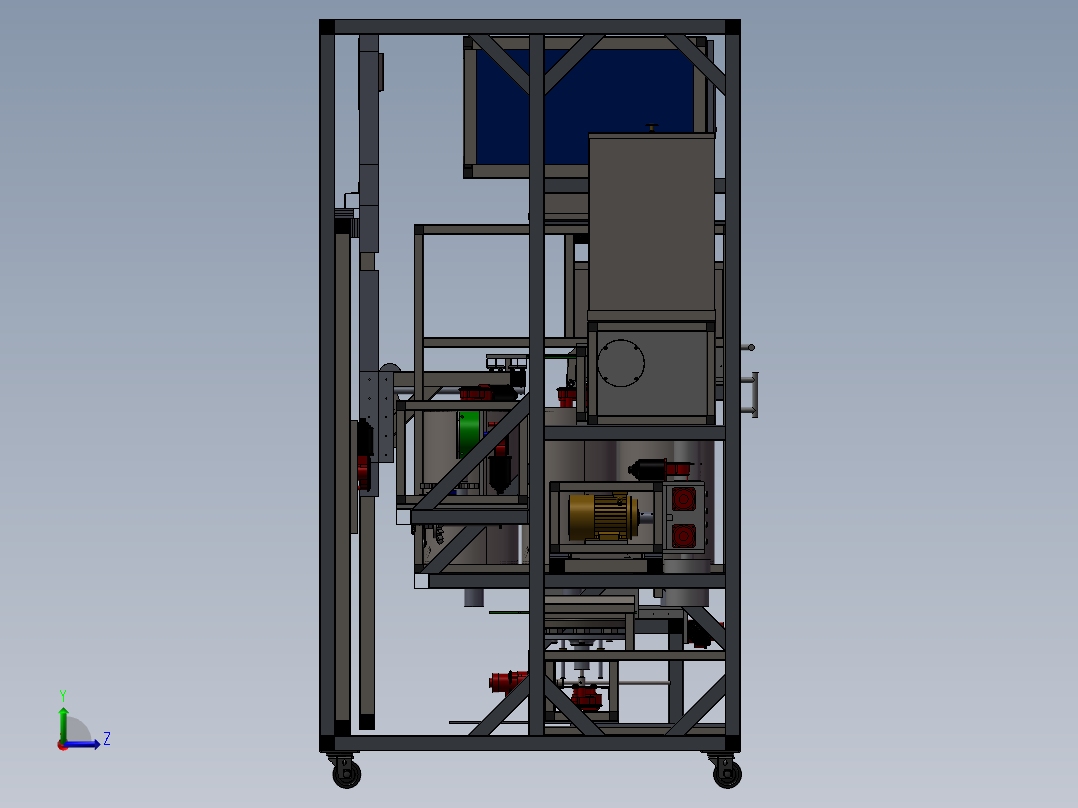

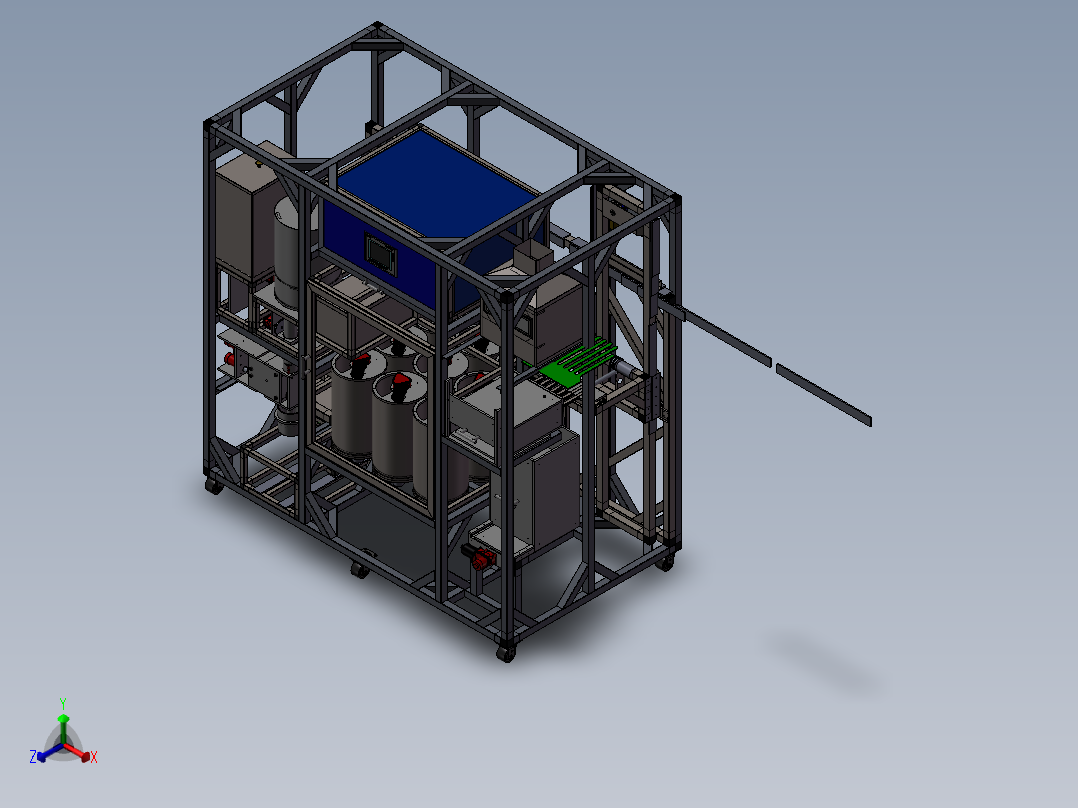

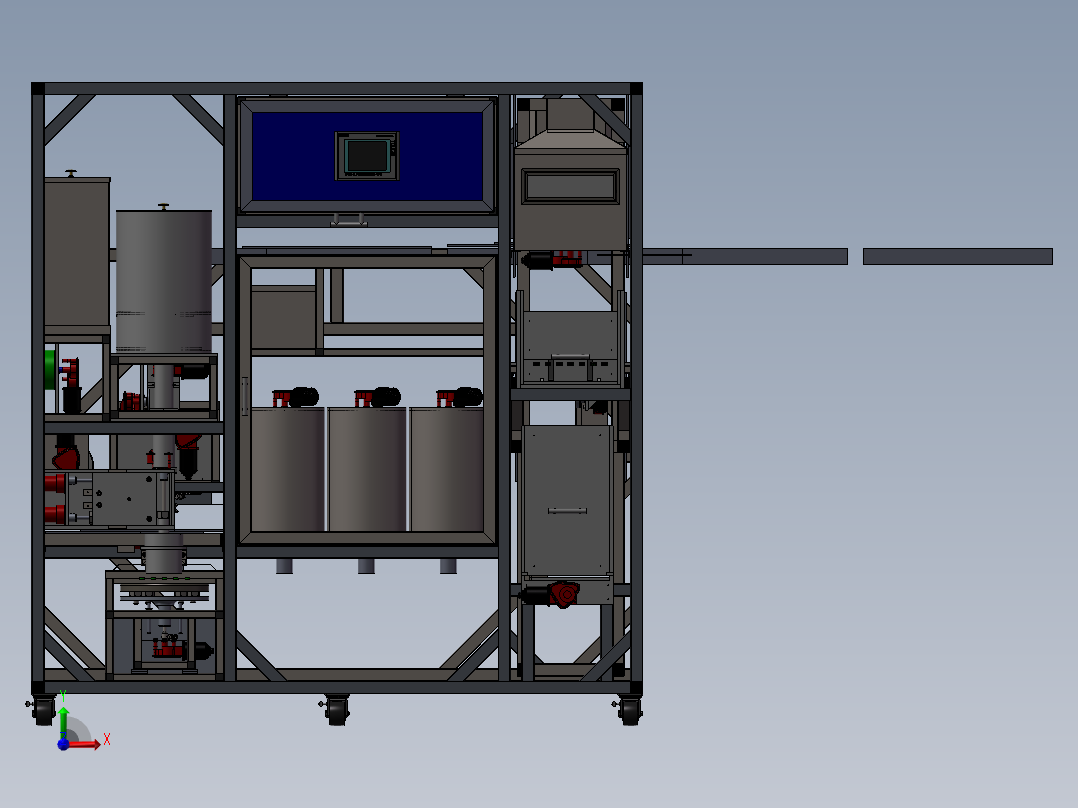

披萨自动售货机SolidWorks,step 3D模型
机械图纸名称为：披萨自动售货机，属于机械设备，非标机械分类，软件为SolidWorks,step, 三维模型格式为sldprt,sldasm,step，可在线预览，可编辑，可供设计参考
模型参数
模型ID：10362317
模型大小：36.63M
软件版本： SolidWorks,step
模型格式：sldprt,sldasm,step
是否可编辑：可修改，包括参数
上传时间：2026-01-02
图纸介绍：
下载模型
文件列表
1. 14BG183-2-180M-B3-Lonne.sldprt
198 KB
2. 3 Axis Conveyor_PVM.sldasm
239 KB
3. ABS Bush_Mixer.sldprt
54.5 KB
4. Axi_Oven.sldprt
58 KB
5. Axis NO.1_3 Axis Conveyor_Default_As Machined_.sldprt
189 KB
6. Axis NO.2_3 Axis Conveyor_Default_As Machined_.sldprt
115 KB
7. Axis NO.3_3 Axis Conveyor_Default_As Machined_.sldprt
139 KB
8. Back Cover_Mixer.sldprt
56.5 KB
9. Back Door_Recevier.sldprt
55 KB
10. Bearing_Sauce mechanism.sldprt
54 KB
11. Bearing_Small Conveyor.sldprt
55.5 KB
12. Big Side_Mixer.sldprt
59.5 KB
13. Body_Refrigerator.sldasm
125 KB
14. Cartoon Provider_PVM.sldasm
149 KB
15. Collector_Distrbuter Tank.sldprt
82.5 KB
16. Combine1.sldprt
54.5 KB
17. Combine3.sldprt
54 KB
18. Combine4.sldprt
54.5 KB
19. Combine7.sldprt
54.5 KB
20. Controll_PVM.sldasm
159 KB
21. Cover Plate_Cartoon Provider.sldprt
55.5 KB
22. Cover_Flaur Tank.sldprt
58 KB
23. Cup_Flaur Tank.sldprt
54.5 KB
24. Cup_Mixer.sldprt
53.5 KB
25. Descending arm Screw_Mixer.sldprt
54 KB
26. Distrbuter Tank_Refrigerator_Chees Tank.sldasm
138 KB
27. Distrbuter Tank_Refrigerator_Oilves Tank.sldasm
138 KB
28. Distrbuter door_Distrbuter Tank.sldprt
80.5 KB
29. Distributor Motor Flange_Sauce mechanism.sldprt
57.5 KB
30. Door screw_Mixer.sldprt
54 KB
31. Door_Controll_Default_As Machined_.sldprt
90.5 KB
32. Fiber NO.1_Controll.sldprt
54 KB
33. Fiber NO.2_Controll.sldprt
54 KB
34. Fiber NO.3_Controll.sldprt
54 KB
35. Fiber NO.4_Controll.sldprt
54 KB
36. Fiber NO.5_Controll.sldprt
58 KB
37. Fixed fram_Mixer_Default_As Machined_.sldprt
129 KB
38. Flange_Oven.sldprt
66 KB
39. Flange_Recevier.sldprt
64 KB
40. Flaur Tank_Flaur Tank.sldprt
57 KB
41. Flaur Tank_PVM.sldasm
302 KB
42. Flexible Coupling_Mixer.sldprt
60 KB
43. Fram_Body_Default_As Machined_.sldprt
325 KB
44. Fram_Controll_Default_As Machined_.sldprt
263 KB
45. Fram_Flaur Tank_Default_As Machined_.sldprt
167 KB
46. Fram_Mixer_Default_As Welded_.sldprt
186 KB
47. Fram_Sauce mechanism_Default_As Machined_.sldprt
167 KB
48. Fram_Small Conveyor_Default_As Machined_.sldprt
247 KB
49. Fram_WaterTank_Default_As Machined_.sldprt
196 KB
50. Frame_Frame_Default_As Machined_.sldprt
1.31 MB
51. Frame_PVM.sldasm
138 KB
52. Front Cover_Mixer.sldprt
55.5 KB
53. Grill_Oven_Default_As Machined_.sldprt
146 KB
54. Guide Rod_Small Conveyor.sldprt
54 KB
55. HAND Motor _3 Axis Conveyor.sldprt
53.5 KB
56. HalogenLampHolder.sldprt
68.5 KB
57. HalogenLamp_400W.sldprt
96.5 KB
58. Hand_3 Axis Conveyor.sldprt
69 KB
59. Heating Desk_Small Conveyor.sldprt
70.5 KB
60. Holes disk_Distrbuter Tank_chess spacer.sldprt
80 KB
61. Holes disk_Distrbuter Tank_oilves spacer.sldprt
80 KB
62. Holo Flange_Sauce mechanism.sldprt
61.5 KB
63. L_Mixer_Default_As Machined_.sldprt
55.5 KB
64. L_Sauce mechanism.sldprt
55 KB
65. L_Small Conveyor_Default_As Machined_.sldprt
56 KB
66. Lever_Recevier.sldprt
54.5 KB
67. Lift Nut_Small Conveyor.sldprt
54 KB
68. Lift Nut_Small Conveyor_With Ring.sldprt
57 KB
69. Lock Plate_Flaur Tank.sldprt
58.5 KB
70. Main Aix_Flaur Tank.sldprt
59.5 KB
71. Main Plate_Flaur Tank.sldprt
54.5 KB
72. Main Plate_Small Conveyor.sldprt
55.5 KB
73. Main Sahft_Distrbuter Tank.sldprt
59.5 KB
74. Main column_Small Conveyor.sldprt
53.5 KB
75. Mixer Flange_Mixer.sldprt
58.5 KB
76. Mixer_PVM.sldasm
283 KB
77. Motor Flange_3 Axis Conveyor.sldprt
71 KB
78. Motor Flange_Flaur Tank.sldprt
53.5 KB
79. Motor NO.2 sheet_3 Axis Conveyor.sldprt
66.5 KB
80. Motor Plate_Mixer.sldprt
56.5 KB
81. Moving Bolck_Sauce mechanism.sldprt
69.5 KB
82. Moving Fram_Small_Default_As Machined_.sldprt
167 KB
83. Moving cone_Flaur Tank.sldprt
53.5 KB
84. Nut NO.2_Cartoon Provider.sldprt
59 KB
85. Nut NO.2_Mixer.sldprt
54.5 KB
86. Nut Plate_Cartoon Provider.sldprt
66.5 KB
87. Oven_PVM.sldasm
169 KB
88. PLC locker _Controll_Default_As Machined_.sldprt
148 KB
89. PLate_Sauce mechanism.sldprt
58 KB
90. Part1.sldprt
54 KB
91. Pin NO.1_3 Axis Conveyor.sldprt
58 KB
92. Pin_Flaur Tank.sldprt
58 KB
93. Pin_Recevier.sldprt
55 KB
94. Piston_Mixer.sldprt
53.5 KB
95. Plate NO.1_3 Axis Conveyor.sldprt
69.5 KB
96. Plate NO.1_Flaur Tank.sldprt
55 KB
97. Plate NO.1_Mixer.sldprt
54 KB
98. Plate NO.1_Recevier.sldprt
56.5 KB
99. Plate NO.1_Small Conveyor.sldprt
55 KB
100. Plate NO.2_3 Axis Conveyor.sldprt
65.5 KB
101. Plate NO.2_Flaur Tank.sldprt
54 KB
102. Plate NO.2_Mixer.sldprt
54.5 KB
103. Plate NO.2_Recevier.sldprt
54.5 KB
104. Plate NO.2_Small Conveyor.sldprt
55 KB
105. Plate NO.3_3 Axis Conveyor.sldprt
59 KB
106. Plate NO.3_Mixer.sldprt
56 KB
107. Plate NO.3_Small Conveyor.sldprt
55 KB
108. Plate NO.4_3 Axis Conveyor.sldprt
55 KB
109. Plate NO.5_3 Axis Conveyor.sldprt
60.5 KB
110. Plate NO.7_3 Axis Conveyor.sldprt
62.5 KB
111. Plate NO.7_Mixer.sldprt
58.5 KB
112. Plate NO.8_Mixer.sldprt
54.5 KB
113. Plate_Mixer.sldprt
58.5 KB
114. Power Screw_Cartoon Provider_300.sldprt
62 KB
115. Power Screw_Mixer_300.sldprt
54 KB
116. Power Screw_Small Conveyor_100.sldprt
62 KB
117. Power Screw_Small Conveyor_300.sldprt
62 KB
118. Press Plate_Small Conveyor.sldprt
54.5 KB
119. Pulley NO.1_3 Axis Conveyor.sldprt
87 KB
120. Pulley NO.2_3 Axis Conveyor.sldprt
68.5 KB
121. Pulley NO.3_3 Axis Conveyor.sldprt
71 KB
122. Pulley hup_3 Axis Conveyor.sldprt
57.5 KB
123. Pump Plate_Sauce mechanism.sldprt
55.5 KB
124. Pump Plate_Water Tank.sldprt
54.5 KB
125. Pump_Body_Sauce mechanism.sldprt
67.5 KB
126. Pump_Cover_Sauce mechanism.sldprt
59 KB
127. Pump_Motor flange_Sauce mechanism.sldprt
63.5 KB
128. Pump_Pin_Sauce mechanism.sldprt
54 KB
129. Pump_Roller Holder_Sauce mechanism.sldprt
59.5 KB
130. Pump_Sauce mechanism_PVM.sldasm
138 KB
131. QQ截图20161018175706.jpg
187 KB
132. QQ截图20161018175715.jpg
301 KB
133. QQ截图20161018175718.jpg
201 KB
134. Recevier_PVM.sldasm
176 KB
135. Refiler_Distrbuter Tank.sldprt
59 KB
136. Refrigerator_PVM.sldasm
134 KB
137. Ring_Sauce mechanism.sldprt
64 KB
138. Rod_Mixer.sldprt
56.5 KB
139. Rod_Recevier_Default_As Machined_.sldprt
59 KB
140. S7-300 PLC mounting rail.sldprt
75 KB
141. Sauce mechanism_PVM.sldasm
198 KB
142. Sause Tank_Sause Tank.sldprt
88.5 KB
143. Screw Flange for descending arm_Mixer.sldprt
61 KB
144. Screw Flange for door_Mixer.sldprt
60.5 KB
145. Screw Flange for main motor_Mixer.sldprt
61 KB
146. Screw_Flaur Tank.sldprt
52 KB
147. Screw_Sauce mechanism.sldprt
60 KB
148. Send Arm_Cartoon Provider.sldprt
55 KB
149. Sheet NO.1_Oven.sldprt
62.5 KB
150. Sheet NO.2_Oven.sldprt
61 KB
151. Sheet NO.3_Oven.sldprt
55.5 KB
152. Sheet NO.4_Oven_lower.sldprt
60.5 KB
153. Sheet NO.4_Oven_upper.sldprt
60.5 KB
154. Sheet NO.5_Oven.sldprt
59.5 KB
155. Sheet NO.6_Oven.sldprt
80.5 KB
156. Sheet NO.7_Oven.sldprt
76 KB
157. ShepherdCasterCorp-BLS30152TZ-PHN51(KK)B.sldasm
138 KB
158. ShepherdCasterCorp-BLS30152TZ-PHN51(KK)B_BLS30 top plate(TOP PLATE 750).sldprt
135 KB
159. ShepherdCasterCorp-BLS30152TZ-PHN51(KK)B_BMS BALL CUP.sldprt
56.5 KB
160. ShepherdCasterCorp-BLS30152TZ-PHN51(KK)B_BMS bearings.sldprt
123 KB
161. ShepherdCasterCorp-BLS30152TZ-PHN51(KK)B_BMS kingpin(staked).sldprt
60.5 KB
162. ShepherdCasterCorp-BLS30152TZ-PHN51(KK)B_BMS30 AXLE.sldprt
66 KB
163. ShepherdCasterCorp-BLS30152TZ-PHN51(KK)B_BMS30 PHN wheel.sldprt
55 KB
164. ShepherdCasterCorp-BLS30152TZ-PHN51(KK)B_BMS30 Pemnut.sldprt
53 KB
165. ShepherdCasterCorp-BLS30152TZ-PHN51(KK)B_BMS30 axle nut.sldprt
55.5 KB
166. ShepherdCasterCorp-BLS30152TZ-PHN51(KK)B_BMS30 horn.sldprt
289 KB
167. ShepherdCasterCorp-BLS30152TZ-PHN51(KK)B_BMS30 thumbscrew.sldprt
59 KB
168. Sliding door guide_Flaur Tank.sldprt
56 KB
169. Sliding door guide_Flaur Tank_upper guide.sldprt
58 KB
170. Small Conveyor_PVM.sldasm
256 KB
171. Small Side_Mixer.sldprt
57 KB
172. Spacer_Distrbuter Tank_lower cover.sldprt
73.5 KB
173. Spacer_Distrbuter Tank_upper cover.sldprt
59.5 KB
174. Spacer_Recevier.sldprt
54 KB
175. Split3[3].sldprt
55.5 KB
176. Split3[5].sldprt
55 KB
177. Tank_Distrbuter Tank.sldprt
54 KB
178. Tank_Water Tank.sldprt
88.5 KB
179. Tefal Plate_Small Conveyor.sldprt
70 KB
180. Tube jouint part NO.1_Sauce mechanism.sldprt
55 KB
181. Tube jouint part NO.2_Sauce mechanism.sldprt
55 KB
182. Tube jouint part NO.3_Sauce mechanism.sldprt
53.5 KB
183. U_Sauce mechanism.sldprt
68 KB
184. Upper Door_Mixer.sldprt
58.5 KB
185. User Library-TP177B-DP-6-MSTN.sldprt
1.83 MB
186. Washer NO.1_3 Axis Conveyor.sldprt
54 KB
187. Washer NO.2_3 Axis Conveyor.sldprt
54.5 KB
188. WaterTank_PVM.sldasm
135 KB
189. angular contact ball bearing_68_skf_SKF - 7205 BE - 12,SI,NC,12_68.sldprt
61.5 KB
190. axi.sldprt
52.5 KB
191. bearing falnge_Flaur Tank.sldprt
56 KB
192. bearing_3 Axis Conveyor.sldprt
55 KB
193. bushing_Oven.sldprt
57.5 KB
194. c_001_three.sldprt
81 KB
195. c_002_2.sldprt
59.5 KB
196. c_002_3.sldprt
61 KB
197. coupling_Flaur Tank.sldprt
67.5 KB
198. cup holding NO.1_Flaur Tank.sldprt
56 KB
199. cup holding NO.2_Flaur Tank.sldprt
57.5 KB
200. filler_Flaur Tank.sldprt
71 KB
201. flange NO.1_Distrbuter Tank.sldprt
68.5 KB
202. flange_Water Tank.sldprt
56 KB
203. front_Cartoon Provider.sldprt
55 KB
204. gearbox.sldprt
917 KB
205. glass fram_Oven_short.sldprt
63.5 KB
206. glass fram_Oven_tall.sldprt
63.5 KB
207. glass_Oven.sldprt
54 KB
208. glass_motor.sldasm
117 KB
209. glass_wheel.sldasm
117 KB
210. guide rod_3 Axis Conveyor.sldprt
90.5 KB
211. guide_mixer.sldprt
54 KB
212. h_001SLDPRT.sldprt
122 KB
213. hand base_3 Axis Conveyor_Default_As Machined_.sldprt
69 KB
214. hand finger_3 Axis Conveyor_small.sldprt
90 KB
215. hand finger_3 Axis Conveyor_tall.sldprt
90 KB
216. hand holder base_3 Axis Conveyor.sldprt
75.5 KB
217. heater holder_Small Conveyor.sldprt
61 KB
218. heavy duty external retaining ring_am_PreviewCfg.sldprt
58.5 KB
219. hex nut gradec_iso_PreviewCfg.sldprt
62.5 KB
220. hex nut style 1 gradeab_iso_Hexagon Nut ISO - 4032 - M4 - W - N.sldprt
62 KB
221. hex nut style 1 gradeab_iso_Hexagon Nut ISO - 4032 - M5 - W - N.sldprt
62 KB
222. holder flange_3 Axis Conveyor.sldprt
59.5 KB
223. holder side sheet_3 Axis Conveyor.sldprt
62.5 KB
224. hsnd_002.sldprt
53.5 KB
225. lower cone_Flaur Tank.sldprt
63.5 KB
226. lower guide_Cartoon Provider.sldprt
55 KB
227. lower plate_Flaur Tank.sldprt
54 KB
228. m_001.sldasm
116 KB
229. m_001.sldprt
74.5 KB
230. m_001_gearbox.sldprt
198 KB
231. m_004.sldprt
58.5 KB
232. mixer axi_Mixer.sldprt
52.5 KB
233. motor NO.2 Flange_Flaur Tank.sldprt
65.5 KB
234. motor flange NO.1_Distrbuter Tank.sldprt
58.5 KB
235. motor plate_Cartoon Provider.sldprt
58.5 KB
236. motor.sldprt
82 KB
237. pan head cross recess screw_iso_ISO 7045 - M4 x 8 - Z --- 8N.sldprt
66 KB
238. pin.sldprt
52.5 KB
239. plain washer 10673 type snl_iso_ISO 10673-7.4-S.sldprt
53 KB
240. plain washer 10673 type snl_iso_PreviewCfg.sldprt
53 KB
241. plain washer chamfered grade a_iso_Washer ISO 7090 - 5.sldprt
53.5 KB
242. radial ball bearing_68_skf_PreviewCfg.sldprt
101 KB
243. radial ball bearing_68_skf_SKF - 6200 - 8,SI,NC,8_68.sldprt
61.5 KB
244. server locker _Controll_Default_As Machined_.sldprt
78 KB
245. side guide_Cartoon Provider.sldprt
54.5 KB
246. side_Cartoon Provider.sldprt
55 KB
247. sieve holder_Flaur Tank_holls thru.sldprt
70 KB
248. sliding part.sldprt
54 KB
249. sliding part_300.sldprt
54 KB
250. sliding part_500.sldprt
54 KB
251. sliding part_600.sldprt
54 KB
252. sliding.sldasm
111 KB
253. sliding_300.sldasm
111 KB
254. sliding_500.sldasm
111 KB
255. sliding_600.sldasm
111 KB
256. slot NO.2_Recevier.sldprt
54 KB
257. slot_Recevier.sldprt
54.5 KB
258. smal_wheel.sldprt
56 KB
259. socket button head screw_iso_PreviewCfg.sldprt
62 KB
260. socket head cap screw_iso_ISO 4762 M10 x 35 - 35N.sldprt
62.5 KB
261. socket head cap screw_iso_ISO 4762 M4 x 10 --- 10N.sldprt
61.5 KB
262. socket head cap screw_iso_ISO 4762 M4 x 25 --- 25N.sldprt
61.5 KB
263. socket head cap screw_iso_ISO 4762 M5 x 16 --- 16N.sldprt
62 KB
264. socket head cap screw_iso_ISO 4762 M5 x 20 --- 20N.sldprt
61.5 KB
265. socket head cap screw_iso_ISO 4762 M5 x 25 --- 25N.sldprt
61.5 KB
266. socket head cap screw_iso_ISO 4762 M5 x 30 --- 30N.sldprt
61.5 KB
267. socket head cap screw_iso_ISO 4762 M5 x 8 --- 8N.sldprt
61.5 KB
268. socket head cap screw_iso_ISO 4762 M6 x 16 --- 16N.sldprt
62 KB
269. socket head cap screw_iso_ISO 4762 M6 x 20 --- 20N.sldprt
62 KB
270. socket set screw cup point_iso_ISO 4029 - M5 x 12-N.sldprt
56.5 KB
271. socket set screw cup point_iso_ISO 4029 - M6 x 12-N.sldprt
56.5 KB
272. spacer_Flaur Tank.sldprt
53.5 KB
273. spur gear_iso_ISO - Spur gear 2.25M 10T 20PA 8FW ---S10A75H50L6.0N.sldprt
69 KB
274. spur gear_iso_PreviewCfg.sldprt
74 KB
275. straight bevel gear_iso_PreviewCfg.sldprt
151 KB
276. straight bevel pinion_iso_PreviewCfg.sldprt
105 KB
277. straight_miter_gear_iso_big.sldprt
1010 KB
278. straight_miter_gear_iso_small.sldprt
181 KB
279. triangle_Cartoon Provider.sldprt
54 KB
280. tube head holder_Sauce mechanism.sldprt
54 KB
281. u_section.sldprt
67 KB
282. upper cone_Flaur Tank.sldprt
68.5 KB
283. upper guid_Cartoon Provider.sldprt
54.5 KB
284. wheel_holder.sldprt
105 KB
285. wing_Mixer.sldprt
63 KB
286. 披萨自动售货机.SLDASM
12.1 MB
287. 披萨自动售货机.STEP
55.5 MB
【披萨自动售货机】相关作品
下载提示
×
微信扫码登录
手机登录
