| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | 1.png | 124 KB |
| 2 | 18 Tooth Gear - tabacco hopper pinion.sldprt | 111 KB |
| 3 | 2.png | 136 KB |
| 4 | 42 Tooth Gear - tobacco hopper spur.sldprt | 195 KB |
| 5 | 52 Toot Gear REDESIGN lower door.sldprt | 223 KB |
| 6 | 52 Toot Gear REDESIGN motor n plunger.sldprt | 233 KB |
| 7 | 90126A509 - mcmaster no.6 washer.sldprt | 46 KB |
| 8 | 90295A140 mcmaster nylon washer one quarter.sldprt | 46 KB |
| 9 | 90403A146 mcmaster gear to manifold 6-32 pan head.sldprt | 221 KB |
| 10 | 90545A007 - mcmaster no.6 nut.sldprt | 76.5 KB |
| 11 | 91251A144 mcmaster shcs 6-32 x _25.sldprt | 98 KB |
| 12 | 91251A148 mcmaster shcs 6-32 x _5.sldprt | 133 KB |
| 13 | 91253A106 mcmaster 4-40x0.25 flat shcs.sldprt | 90 KB |
| 14 | 91253A144 mcmaster 6-32 x .25 fhscs.sldprt | 84 KB |
| 15 | 91400A154 - mcmaster 6-32 x 1in.sldprt | 402 KB |
| 16 | 91920A335 mcmaster standoff 6-32 mod to 1.177in. USE.sldprt | 332 KB |
| 17 | 92295A203 mcmaster no.6x0.25 thread forming.sldprt | 86.5 KB |
| 18 | 92295A205 mcmaster no.6x0.375 thread forming.sldprt | 89.5 KB |
| 19 | 92295A207 mcmaster no.6x0.5 thread forming.sldprt | 93 KB |
| 20 | 92295A212 mcmaster no.6x0.75 thread forming.sldprt | 96 KB |
| 21 | 92373A109 - mcmaster spring pin - linkages.sldprt | 49 KB |
| 22 | 98338A100 mcmaster clevis pin.sldprt | 58 KB |
| 23 | CNA1007H - Interrupter.sldprt | 59 KB |
| 24 | Cig SENSOR Mount.sldprt | 84.5 KB |
| 25 | HANKSCRAFT motor.sldprt | 187 KB |
| 26 | Housing - slotted top door TOP.sldprt | 92.5 KB |
| 27 | Housing - slotted top door.sldprt | 217 KB |
| 28 | NOZZLE rev eng.sldprt | 159 KB |
| 29 | Plunger - REDESIGN.sldprt | 153 KB |
| 30 | Plunger RAIL.sldprt | 153 KB |
| 31 | Plunger linkage - REDESIGN.sldprt | 78 KB |
| 32 | Powermatic Motor - Linkage.sldprt | 48 KB |
| 33 | Powermatic Motor.sldprt | 143 KB |
| 34 | YH-03-05 - bill.sldprt | 120 KB |
| 35 | YH-03-07 (replacement) - bill.sldprt | 102 KB |
| 36 | YH-03-08 - bill.sldprt | 54.5 KB |
| 37 | YH-03-09 - bill.sldprt | 93 KB |
| 38 | YH-03-12 - bill.sldprt | 262 KB |
| 39 | YH-03-15-1 - bill.sldprt | 48 KB |
| 40 | YH-03-15-1 SLOTTED - bill.sldprt | 56 KB |
| 41 | YH-03-15-2 - bill.sldprt | 61 KB |
| 42 | YH-03-15-3 - bill.sldprt | 49.5 KB |
| 43 | YH-03-16 - bill.sldprt | 58 KB |
| 44 | YH-03-19 - bill.sldprt | 58.5 KB |
| 45 | YH-03-27 - bill.sldprt | 47.5 KB |
| 46 | YH-03-28 - bill.sldprt | 50 KB |
| 47 | YH-03-29 - bill.sldprt | 48 KB |
| 48 | YH-03-32 - bill.sldprt | 48.5 KB |
| 49 | YH-03-36 - bill.sldprt | 49 KB |
| 50 | YH-03-37 - bill.sldprt | 66 KB |
| 51 | YH-03-47 - bill.sldprt | 133 KB |
| 52 | YH-03-51 - bill.sldprt | 49.5 KB |
| 53 | YH-03-53 - bill.sldprt | 47 KB |
| 54 | YH-03-55 - bill.sldprt | 116 KB |
| 55 | YH-03-56 - bill.sldprt | 47 KB |
| 56 | YH-03-60 modified - bill - plate.sldprt | 53.5 KB |
| 57 | base plate - mod.sldprt | 210 KB |
| 58 | cig tube hopper - REDESIGN.sldprt | 157 KB |
| 59 | cig tube hopper door - REDESIGN.sldprt | 107 KB |
| 60 | cig tube hopper sliding door - REDESIGN.sldprt | 187 KB |
| 61 | cig tube.sldprt | 48 KB |
| 62 | crank shaft2 - bill.sldprt | 50.5 KB |
| 63 | flat washer regular_am_B18.22M - Plain washer, 3.5 mm, regular.sldprt | 46.5 KB |
| 64 | guide shaft - bill.sldprt | 45.5 KB |
| 65 | hex nut style 1_am_B18.2.4.1M - Hex nut, Style 1, M4 x 0.7 --D-N.sldprt | 56 KB |
| 66 | linkage - slotted top door.sldprt | 48 KB |
| 67 | linkage 1 bill.sldprt | 205 KB |
| 68 | linkage 2 bill.sldprt | 176 KB |
| 69 | linkage connector - mirrored - side 2.sldprt | 49 KB |
| 70 | linkage connector 2.sldprt | 156 KB |
| 71 | linkage connector.sldprt | 49 KB |
| 72 | linkage1 - bill.sldprt | 242 KB |
| 73 | linkage2 - bill w tab for interuptor.sldprt | 246 KB |
| 74 | linkage2 - bill.sldprt | 74 KB |
| 75 | lower door - REDESIGN.sldprt | 100 KB |
| 76 | motor mount - plastic standoff - REDESIGN.sldprt | 67.5 KB |
| 77 | mounting plate.sldprt | 187 KB |
| 78 | post - gear - REDESIGN.sldprt | 47 KB |
| 79 | post - linkage - REDESIGN.sldprt | 47 KB |
| 80 | prototype feet.sldprt | 45.5 KB |
| 81 | rake pusher - bill - plastic.sldprt | 233 KB |
| 82 | ram shaft - bill.sldprt | 54 KB |
| 83 | slotted top door.sldprt | 85 KB |
| 84 | standoff.sldprt | 47 KB |
| 85 | tobacco finger - bill.sldprt | 55 KB |
| 86 | tobacco hopper - bottom back leg drive.sldprt | 57.5 KB |
| 87 | tobacco hopper - bottom back leg side 2.sldprt | 67 KB |
| 88 | tobacco hopper - production prototype - FLAT - side 2.sldprt | 329 KB |
| 89 | tobacco hopper - production prototype - FLAT.sldprt | 110 KB |
| 90 | tobacco hopper interrupter mount.sldprt | 84.5 KB |
| 91 | 全自动卷烟机构.SLDASM | 7.04 MB |
| 92 | 全自动卷烟机构.STEP | 35.2 MB |
| 93 | 零件179.SLDPRT | 2.53 MB |

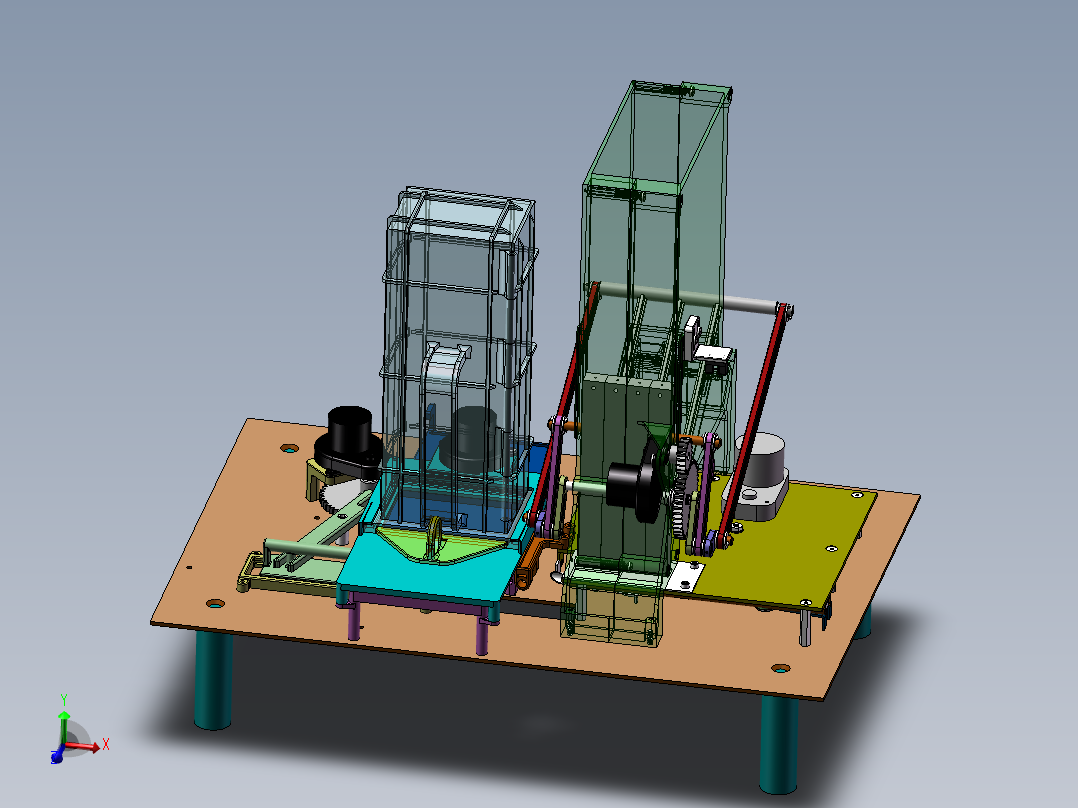

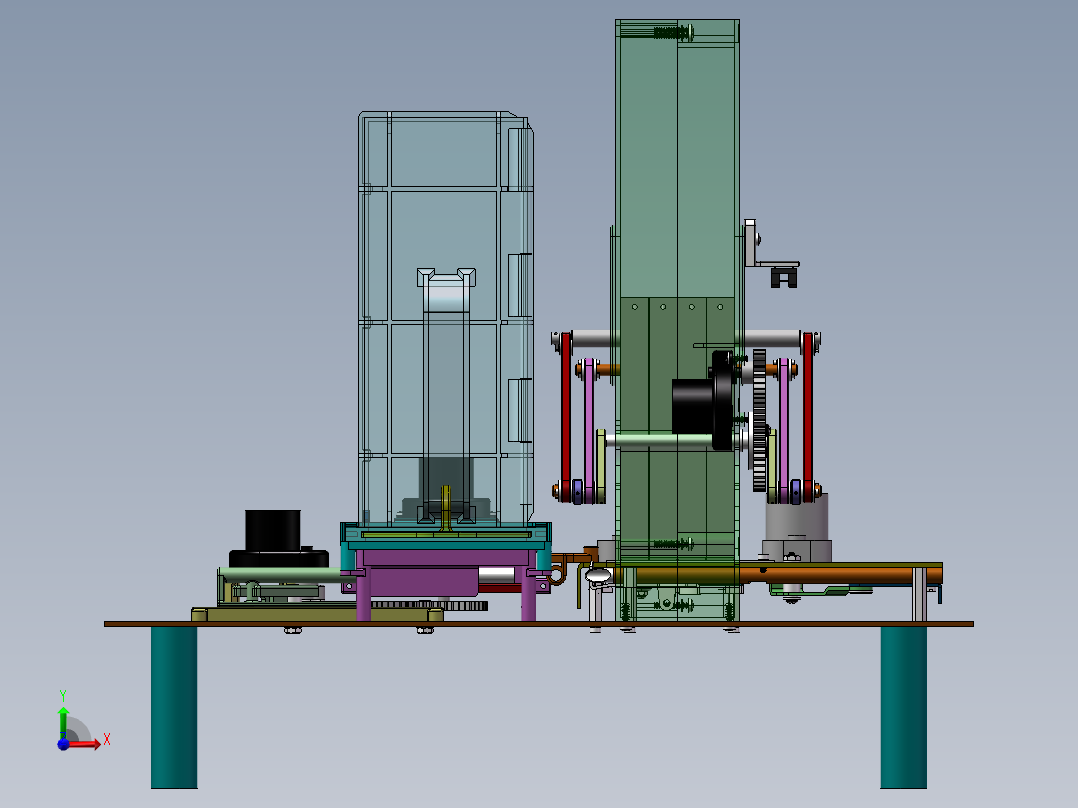

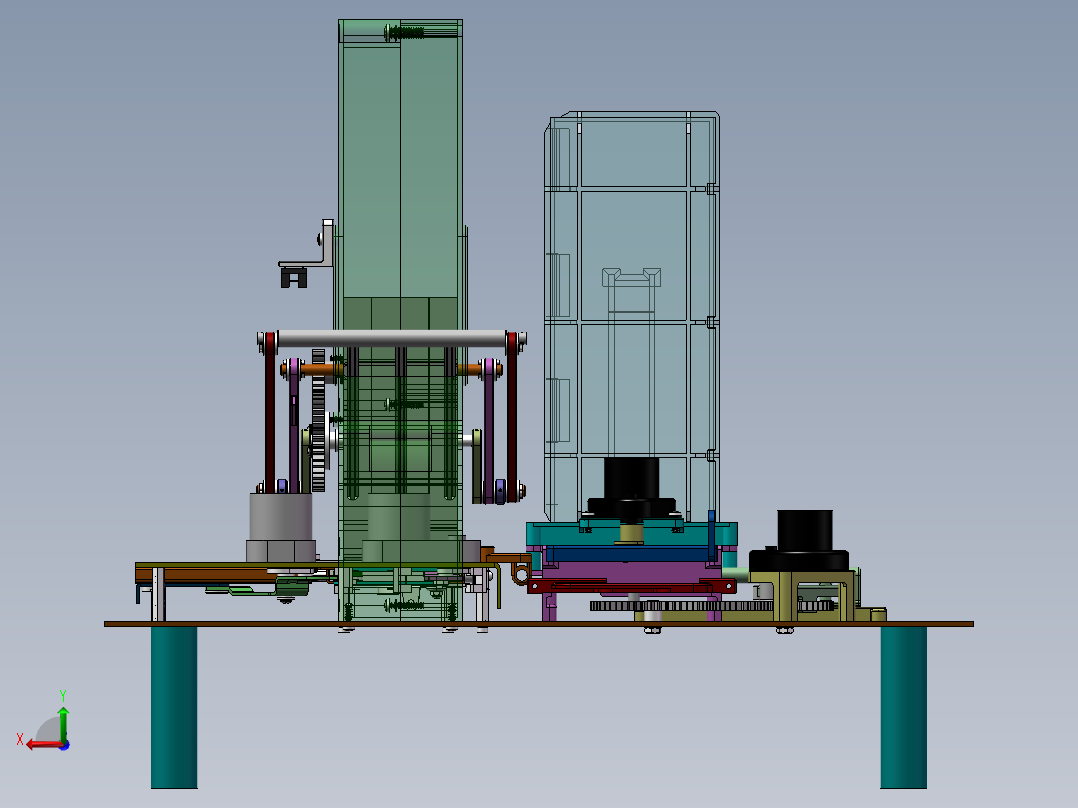

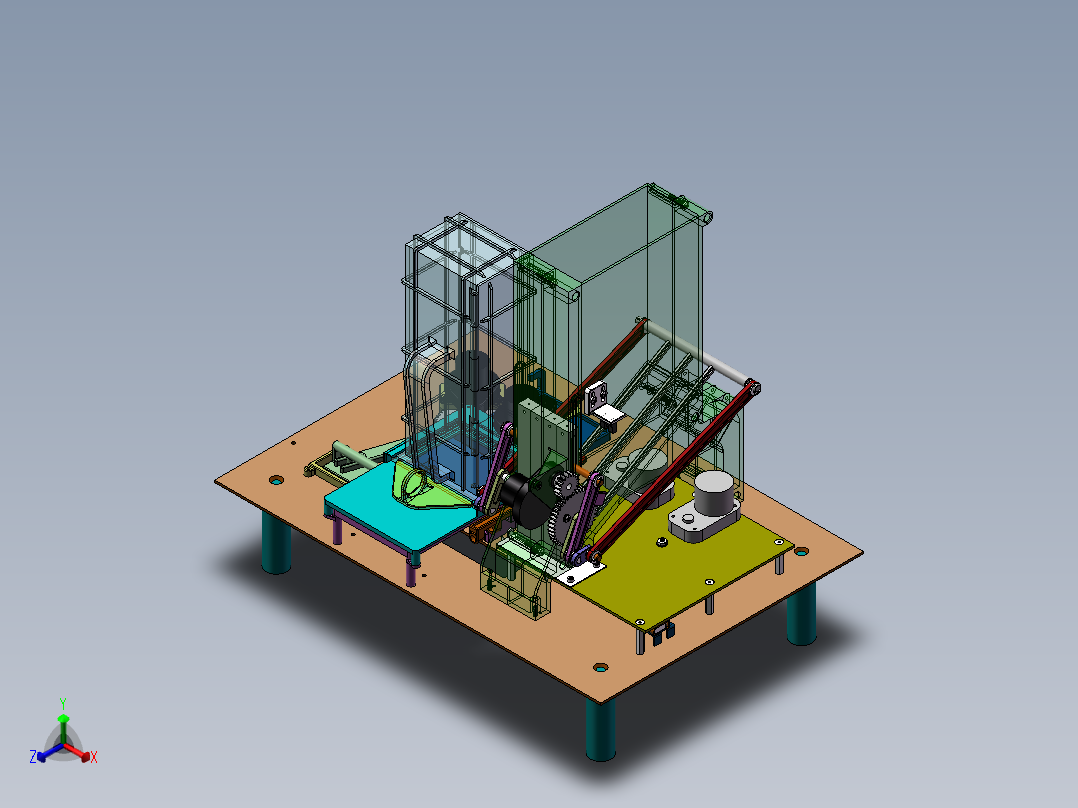

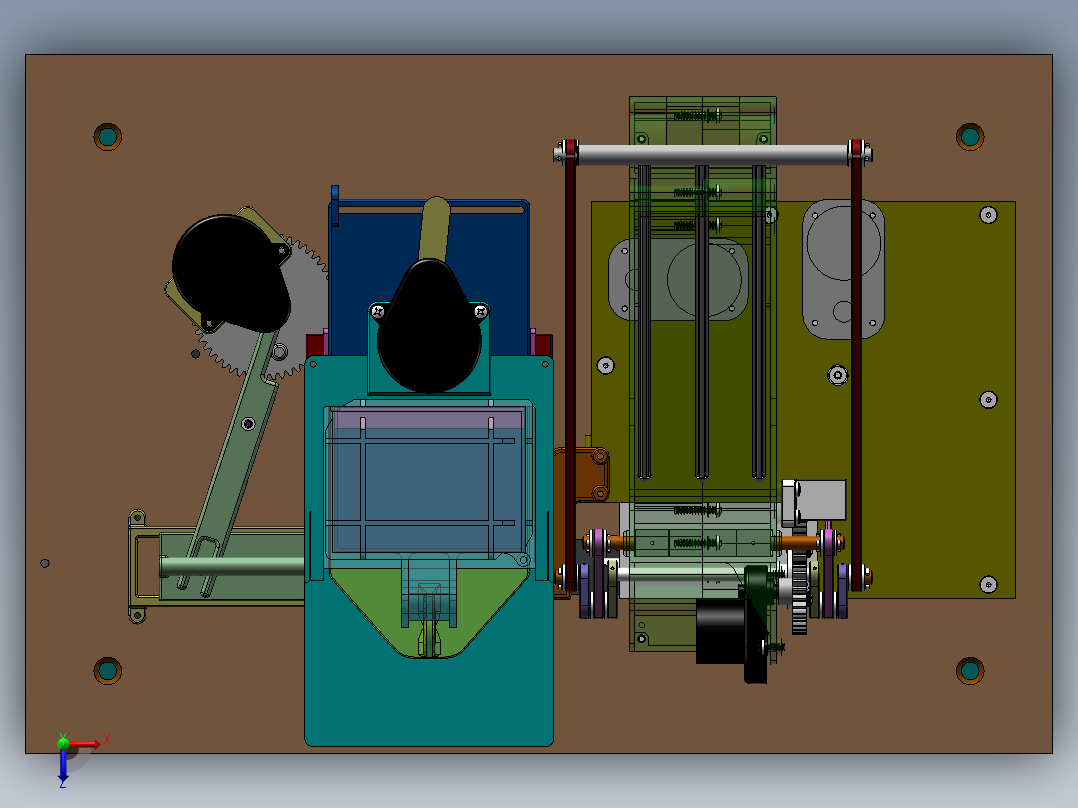

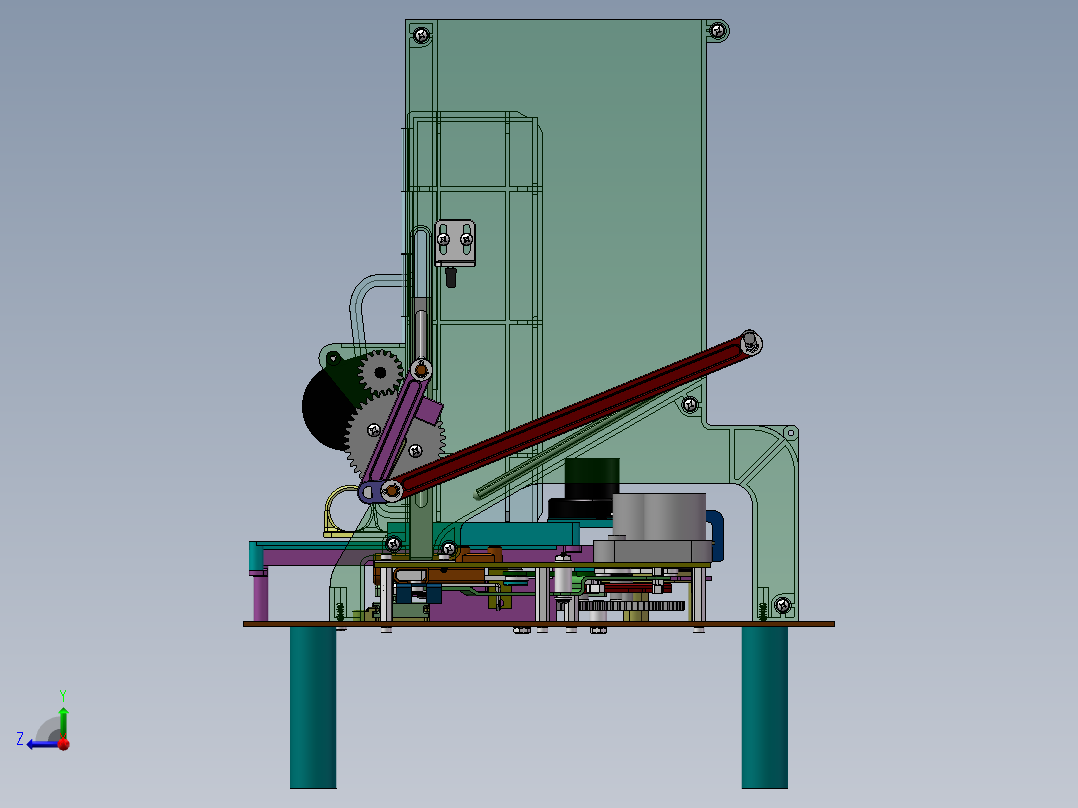

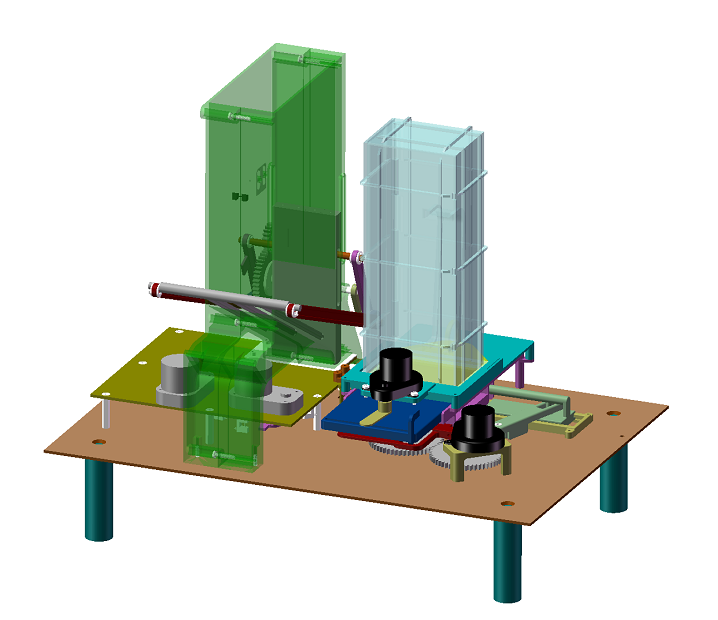

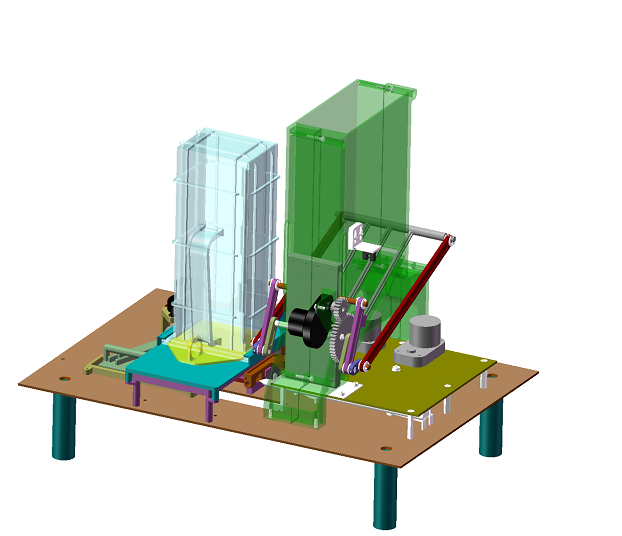

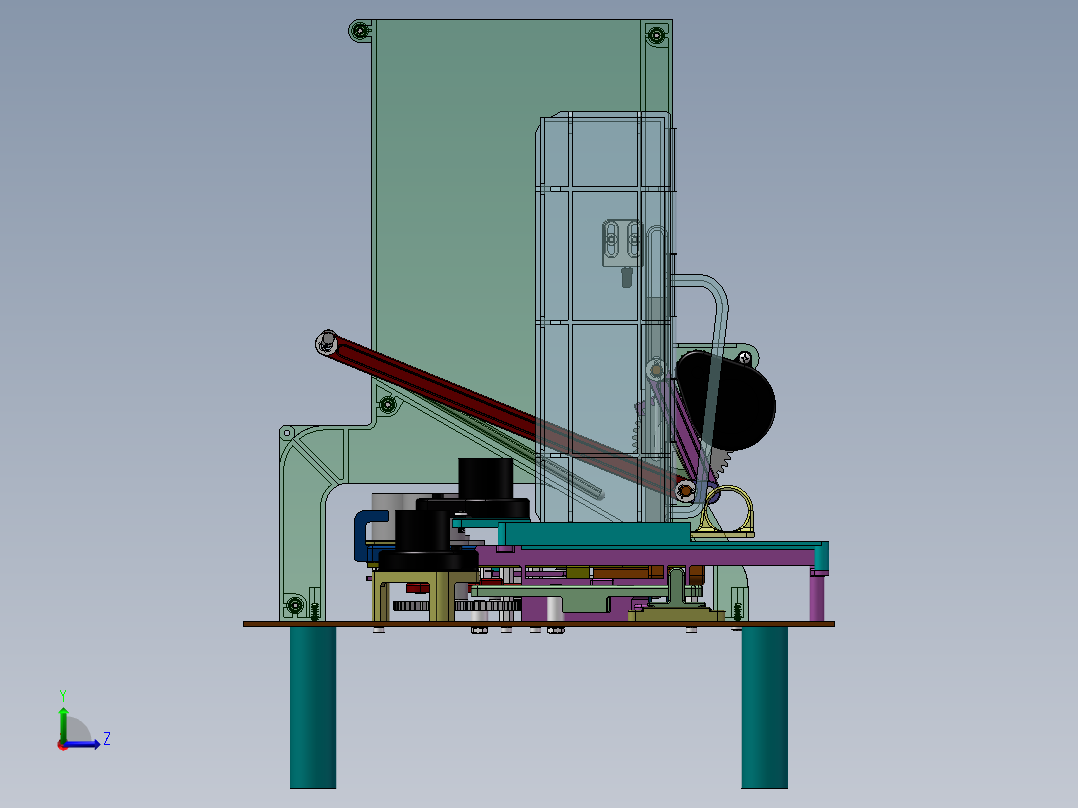

小型全自动卷烟机构图纸sw13
图纸ID：10238543
文件大小：19.54M
软件版本：
图纸格式：sldprt,sldasm,step
参数/编辑：可修改，包括参数
上传时间：2025-06-04
图纸介绍：
