| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | A139982 Indicator, Elevating Mechanism.SLDPRT | 67.4 KB |
| 2 | A139983 Pawl, Indexing.SLDPRT | 94.7 KB |
| 3 | A139984 Pin, Stop, Upper Elevating Screw.SLDPRT | 104 KB |
| 4 | A139985 Washer, Stop, Elevating Screw, Upper.SLDPRT | 66 KB |
| 5 | A139986 Washer, Traversing Slide Lock Lever.SLDPRT | 80.4 KB |
| 6 | A139987 Lever, Traversing Slide Lock.SLDPRT | 448 KB |
| 7 | A139988 Screw, Locking, Traversing slide.SLDPRT | 749 KB |
| 8 | A139989 Screw, Traversing Slide Lock Lever.SLDPRT | 288 KB |
| 9 | A139994 Ring, Click, Handwheel, Elevating.SLDPRT | 299 KB |
| 10 | A139995 Plug, Handwheel.SLDPRT | 51.6 KB |
| 11 | A139999 Spring, Pawl, Indexing.SLDPRT | 582 KB |
| 12 | A140000 Spring, Traversing Slide Lock.SLDPRT | 338 KB |
| 13 | A140002 Spring, Stop, Elevating Mechanism.SLDPRT | 108 KB |
| 14 | A140003 Pin, Stop, Lower, Elevating Screw.SLDPRT | 168 KB |
| 15 | A140269 Plug, Sleeve, Elevating.SLDPRT | 68.8 KB |
| 16 | A140485 Screw, Retaining.SLDPRT | 297 KB |
| 17 | A140612 Screw, Lock, Elevating Handwheel.SLDPRT | 352 KB |
| 18 | A140658 Plate, Scale, elevating Screw, Upper.SLDPRT | 458 KB |
| 19 | A141090 Key, Elevating Screw Joint Pin.SLDPRT | 59.2 KB |
| 20 | A141091 Spring, elevating Screw, Joint Pin.SLDPRT | 445 KB |
| 21 | A171491 Nut, Locking, Traveerse Scale.SLDPRT | 2.31 MB |
| 22 | A171492 Scale, Traverse Mechanism.SLDPRT | 566 KB |
| 23 | A171495 Pin, Click, Elevation & Traversing Mechanism.SLDPRT | 97.4 KB |
| 24 | A172237 Spring, Pin, Click.SLDPRT | 637 KB |
| 25 | A174112 Body, Pin, Elevating Screw.SLDPRT | 377 KB |
| 26 | A174113 Pin, Elevating Screw, assy.SLDASM | 342 KB |
| 27 | A174126 Screw, Stop.SLDPRT | 352 KB |
| 28 | A174170 Stop, Elevating Screw, Upper, assy.SLDASM | 299 KB |
| 29 | A174175 Ring, Click, Traversing Mechanism.SLDPRT | 154 KB |
| 30 | A174192 Washer.SLDPRT | 68.5 KB |
| 31 | A189757 Stop, Elevating Screw, assy.SLDASM | 89.9 KB |
| 32 | A194313 Lever, Traversing Slide Lock, assy.SLDASM | 212 KB |
| 33 | B108210 Screw, Elevating, Lower.SLDPRT | 1.72 MB |
| 34 | B108211 Handwheel, elevating.SLDPRT | 7.85 MB |
| 35 | B158375 Handwheel, Traversing.SLDPRT | 1.9 MB |
| 36 | B166488 Screw, Elevating, Upper.SLDPRT | 1.21 MB |
| 37 | B166489 Yoke, Elevating Screw, Upper.SLDPRT | 600 KB |
| 38 | B166490 Screw, Traversing.SLDPRT | 1 MB |
| 39 | B195549 Sleeve, Elevating Mechanism.SLDPRT | 1.36 MB |
| 40 | BBSX4AB Nut, Safety (0.3125-24 x 0.350).sldprt | 218 KB |
| 41 | BBWXIAA Nut, Safety (0.250-28 x 0.3125).sldprt | 216 KB |
| 42 | BFDXIBK Pin, Straight, Steel.SLDPRT | 77.1 KB |
| 43 | BGAX3L Key, Woodruff.SLDPRT | 54.9 KB |
| 44 | C74620 - M2 Tripod T&E.pdf | 5.88 MB |
| 45 | C74620 Mechanism, Traversing & Elevating, assy.SLDASM | 13.4 MB |
| 46 | C74620 Mechanism, Traversing & Elevating, assy.SLDASM | 13.4 MB |
| 47 | C91827 Screw, Elevating, assy.SLDASM | 3.41 MB |
| 48 | CCAX1B Ball 0.1875, Steel.SLDPRT | 163 KB |
| 49 | Render1.JPG | 414 KB |
| 50 | Render2.JPG | 829 KB |
| 51 | Render3.JPG | 577 KB |
| 52 | Render4.JPG | 454 KB |

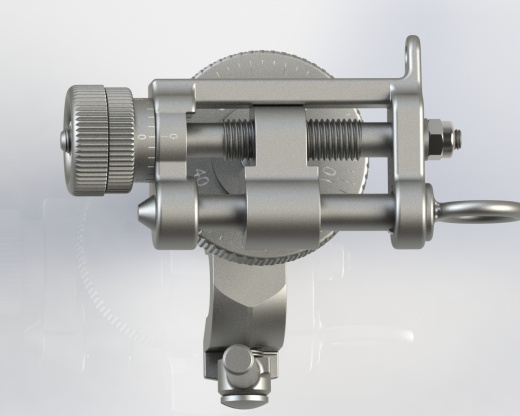

C74620横移和提升机构
图纸ID：10203383
文件大小：65.54M
软件版本：
图纸格式：sldprt,sldasm,pdf
参数/编辑：可修改，包括参数
上传时间：2024-07-16
图纸介绍：
下载模型
