| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | 5486540559ace.jpg | 149 KB |
| 2 | 54865406098ad.jpg | 110 KB |
| 3 | Body#1.SLDASM | 1.05 MB |
| 4 | Drivesystem_manipulator#01.SLDASM | 98.5 KB |
| 5 | Endeffector#01.SLDASM | 425 KB |
| 6 | Flipper#21.SLDASM | 506 KB |
| 7 | Gearbox#23_body_front#01.SLDPRT | 341 KB |
| 8 | Gearbox#23_body_top#01.SLDPRT | 157 KB |
| 9 | Gearbox#31.SLDASM | 227 KB |
| 10 | Gearbox#31_body_bottom#01.SLDPRT | 270 KB |
| 11 | Gearbox#31_body_left#01.SLDPRT | 278 KB |
| 12 | Gearbox#31_body_right#01.SLDPRT | 272 KB |
| 13 | Gearbox#41.SLDASM | 540 KB |
| 14 | Gearbox#41_body_bottom#01.SLDPRT | 248 KB |
| 15 | Gearbox#41_body_front#01.SLDPRT | 398 KB |
| 16 | Gearbox#41_body_left#01.SLDPRT | 276 KB |
| 17 | Gearbox#41_body_right#01.SLDPRT | 271 KB |
| 18 | Gearbox#41_body_top#01.SLDPRT | 154 KB |
| 19 | Gearbox_worm#02.SLDASM | 260 KB |
| 20 | Gripper#01.SLDASM | 1.75 MB |
| 21 | Link_1_manipulator#01.SLDASM | 359 KB |
| 22 | Link_2_manipulator#01.SLDASM | 354 KB |
| 23 | Manipulator#01.SLDASM | 1.96 MB |
| 24 | Motor_200w#1.SLDASM | 119 KB |
| 25 | Motor_RE40_148867#01.SLDASM | 224 KB |
| 26 | Motor_gearbox_200w#1.SLDASM | 114 KB |
| 27 | Motor_gearbox_200w#2.SLDASM | 121 KB |
| 28 | Part2.SLDPRT | 241 KB |
| 29 | Pulley_TTW#1.SLDASM | 95.5 KB |
| 30 | Pulley_triangle_driver#1.SLDASM | 173 KB |
| 31 | Pulley_triangle_idler#1.SLDASM | 127 KB |
| 32 | Robot#01.SLDASM | 5.77 MB |
| 33 | Shaft_coaxial#11.SLDASM | 233 KB |
| 34 | TTW#11.SLDASM | 700 KB |
| 35 | Wrist#01.SLDASM | 1.42 MB |
| 36 | base1_manipulator#1.SLDPRT | 583 KB |
| 37 | base2_manipulator#1.SLDPRT | 230 KB |
| 38 | battry_cap_#01.SLDPRT | 175 KB |
| 39 | bearing_TTW#1.SLDPRT | 239 KB |
| 40 | bearing_TTW#2.SLDPRT | 236 KB |
| 41 | bearing_d12_D24_B6#11.SLDPRT | 243 KB |
| 42 | bearing_d20_D32_B7#1.SLDPRT | 234 KB |
| 43 | bearing_d25_D47_B8#11.SLDPRT | 254 KB |
| 44 | bearing_d25_D52_B18#11.SLDPRT | 237 KB |
| 45 | belt_H78#11.SLDPRT | 805 KB |
| 46 | belt_t_MM76#01.SLDPRT | 87.5 KB |
| 47 | belt_traks#2.SLDPRT | 777 KB |
| 48 | belt_triangle#L56.SLDPRT | 97.5 KB |
| 49 | body_bottom#11.SLDPRT | 271 KB |
| 50 | body_fixture#01.SLDPRT | 251 KB |
| 51 | body_fixture#02.SLDPRT | 330 KB |
| 52 | body_front#01.SLDPRT | 174 KB |
| 53 | body_seat_manipulator#01.SLDPRT | 378 KB |
| 54 | body_seprator#01.SLDPRT | 97.5 KB |
| 55 | bolt_M4#1.SLDPRT | 356 KB |
| 56 | bosh_d5_d10#01.SLDPRT | 79.5 KB |
| 57 | bosh_d6#01.SLDPRT | 81 KB |
| 58 | bosh_d8_gripper#01.SLDPRT | 79.5 KB |
| 59 | bosh_gripper.SLDPRT | 98.5 KB |
| 60 | bosh_shaft_flipper#1.SLDPRT | 118 KB |
| 61 | bosh_shaft_flipper#2.SLDPRT | 105 KB |
| 62 | bosh_shaft_triangle#1.SLDPRT | 115 KB |
| 63 | bosh_shaft_triangle#2.SLDPRT | 185 KB |
| 64 | camera_miniature_ZETRO#01.SLDPRT | 183 KB |
| 65 | camera_zoom_module#01.SLDPRT | 169 KB |
| 66 | chain_25#08.SLDPRT | 111 KB |
| 67 | chainwheel_25_11T#02.sldprt | 532 KB |
| 68 | chainwheel_25_16T#02.SLDPRT | 680 KB |
| 69 | chainwheel_25_24T#01.sldprt | 782 KB |
| 70 | chassis_side#1.SLDPRT | 2.74 MB |
| 71 | chassis_side#2.SLDPRT | 2.64 MB |
| 72 | coupling_motor#01.SLDPRT | 260 KB |
| 73 | coupling_motor#02.SLDPRT | 169 KB |
| 74 | coupling_motor_ECpowemax#01.SLDPRT | 119 KB |
| 75 | coupling_motor_ECpowemax#02.SLDPRT | 113 KB |
| 76 | coupling_motor_NMRV30.SLDPRT | 152 KB |
| 77 | coupling_motor_manipulator#01.SLDPRT | 183 KB |
| 78 | coupling_motor_manipulator#02.SLDPRT | 150 KB |
| 79 | cover_endeffector#01.SLDPRT | 269 KB |
| 80 | encoder_hedl5540#110514.SLDPRT | 134 KB |
| 81 | flange_bearing_RX64.SLDPRT | 147 KB |
| 82 | frame#1_base_gripper.SLDPRT | 277 KB |
| 83 | frame#2_base_gripper.SLDPRT | 182 KB |
| 84 | frame_back_gripper.SLDPRT | 247 KB |
| 85 | frame_flipper#1.SLDPRT | 606 KB |
| 86 | frame_front_endeffector.SLDPRT | 243 KB |
| 87 | frame_link_1#01.SLDPRT | 426 KB |
| 88 | frame_link_1#02.SLDPRT | 421 KB |
| 89 | frame_link_2#01.SLDPRT | 365 KB |
| 90 | frame_link_2#02.SLDPRT | 359 KB |
| 91 | gear_30T#12.SLDPRT | 552 KB |
| 92 | gear_30T#14.SLDPRT | 560 KB |
| 93 | gear_42T_mn5#01_wrist01.SLDPRT | 393 KB |
| 94 | gear_42T_mn5#02_wrist01.SLDPRT | 319 KB |
| 95 | gear_48T#2.SLDPRT | 771 KB |
| 96 | gear_60T_mn5#01_wrist01.SLDPRT | 495 KB |
| 97 | gear_60T_mn5#02_wrist01.SLDPRT | 379 KB |
| 98 | gearbox_gp42c#203129.SLDPRT | 164 KB |
| 99 | gearbox_worm_NMRV30.SLDPRT | 462 KB |
| 100 | gearbox_worm_manipulator#01.SLDPRT | 344 KB |
| 101 | key_A4_4_20.SLDPRT | 91 KB |
| 102 | link1#1_gripper#01.SLDPRT | 175 KB |
| 103 | link1#2_gripper#01.SLDPRT | 124 KB |
| 104 | link1_gripper#01.SLDPRT | 170 KB |
| 105 | motor_cap_#01.SLDPRT | 177 KB |
| 106 | motor_ecpowermax30#305013.SLDPRT | 188 KB |
| 107 | mounting_motor_triangle#1.SLDPRT | 268 KB |
| 108 | mounting_motor_triangle#2.SLDPRT | 267 KB |
| 109 | nut_5#1.SLDPRT | 181 KB |
| 110 | nut_6#1.SLDPRT | 178 KB |
| 111 | nut_8#1.SLDPRT | 178 KB |
| 112 | nut_8#2.SLDPRT | 180 KB |
| 113 | plate_body#01.SLDPRT | 189 KB |
| 114 | pulley01_gripper.SLDPRT | 221 KB |
| 115 | pulley_H24#1.SLDPRT | 531 KB |
| 116 | pulley_H24#2.SLDPRT | 448 KB |
| 117 | pulley_H24#3.SLDPRT | 422 KB |
| 118 | pulley_H36#1.SLDPRT | 700 KB |
| 119 | pulley_H36#2.SLDPRT | 637 KB |
| 120 | pulley_L24#1.SLDPRT | 332 KB |
| 121 | pulley_L24#3.SLDPRT | 476 KB |
| 122 | pully_flipper_driven#11.SLDASM | 120 KB |
| 123 | pully_flipper_driver#11.SLDASM | 123 KB |
| 124 | retaining ring_d10#1.SLDPRT | 118 KB |
| 125 | retaining ring_d21#1.SLDPRT | 119 KB |
| 126 | ring_pulley_driver#1.SLDPRT | 187 KB |
| 127 | ring_pulley_flipper#1.SLDPRT | 200 KB |
| 128 | ring_pulley_idler#1.SLDPRT | 203 KB |
| 129 | ring_shaft_pulley#1.SLDPRT | 91 KB |
| 130 | ring_triangle#2.SLDPRT | 115 KB |
| 131 | rubber_gripper#01.SLDPRT | 100 KB |
| 132 | seat_CO2#03.SLDPRT | 256 KB |
| 133 | seat_bearing_TTW#1.SLDPRT | 189 KB |
| 134 | seat_bearing_flipper#12.SLDPRT | 220 KB |
| 135 | seat_bearing_flipper#21.SLDASM | 75 KB |
| 136 | seat_bearing_flipper#21.SLDPRT | 147 KB |
| 137 | seat_body#01.SLDPRT | 120 KB |
| 138 | seat_camera#01.SLDPRT | 218 KB |
| 139 | seat_idler#01.SLDPRT | 178 KB |
| 140 | seat_servoRX-64_OF64H set.SLDPRT | 475 KB |
| 141 | seat_servoRX-64_OF64S.SLDPRT | 252 KB |
| 142 | sensor_TPA#01.SLDPRT | 271 KB |
| 143 | servo_HSR5990TG#1.SLDPRT | 531 KB |
| 144 | servo_dynamixel_Rx64.SLDPRT | 414 KB |
| 145 | servo_dynamixel_Rx64_thrust.SLDPRT | 478 KB |
| 146 | shaft01_link2_gripper#01.SLDPRT | 104 KB |
| 147 | shaft_coupling#1_endeffector.SLDPRT | 157 KB |
| 148 | shaft_coupling#2_endeffector.SLDPRT | 185 KB |
| 149 | shaft_coupling_manipulator#01.SLDPRT | 146 KB |
| 150 | shaft_idler_11Tsprocket#01.SLDPRT | 92 KB |
| 151 | shaft_in#01.SLDPRT | 283 KB |
| 152 | shaft_in#02.SLDPRT | 308 KB |
| 153 | shaft_in#03.SLDPRT | 195 KB |
| 154 | shaft_in#3.SLDPRT | 321 KB |
| 155 | shaft_link1#0.SLDPRT | 177 KB |
| 156 | shaft_link1#1.SLDPRT | 175 KB |
| 157 | shaft_out#1.SLDPRT | 232 KB |
| 158 | shaft_out#3.SLDPRT | 232 KB |
| 159 | shaft_pulley_flipper#11.SLDPRT | 221 KB |
| 160 | shaft_pully_triangle#1.SLDPRT | 116 KB |
| 161 | shaft_spacer01_gripper.SLDPRT | 161 KB |
| 162 | shaft_wrist_gripper02.SLDPRT | 182 KB |
| 163 | spacer_gripper#3.SLDPRT | 81 KB |
| 164 | spacer_link1_#1.SLDPRT | 163 KB |
| 165 | spacer_link2_#1.SLDPRT | 227 KB |
| 166 | spacer_linlk1#02.SLDPRT | 102 KB |
| 167 | spacer_linlk1#1.SLDPRT | 102 KB |
| 168 | spacer_linlk1#2.SLDPRT | 106 KB |
| 169 | spacer_linlk1#3.SLDPRT | 107 KB |
| 170 | spacer_teflon_manipulator#01.SLDPRT | 80 KB |
| 171 | spurgear_pinion_m1.5_T18.SLDPRT | 271 KB |
| 172 | tensioner_shaft#14.SLDPRT | 179 KB |
| 173 | triangle_in#11.SLDPRT | 517 KB |
| 174 | triangle_out#11.SLDPRT | 428 KB |
| 175 | washer_M5#02.SLDPRT | 84.5 KB |
| 176 | washer_M8#02.SLDPRT | 88.5 KB |
| 177 | washer_M8#03.SLDPRT | 85.5 KB |
| 178 | washer_d10_D20#11.SLDPRT | 89.5 KB |
| 179 | washer_d6_d15#01.SLDPRT | 78.5 KB |
| 180 | washer_shaft_gripper#01.SLDPRT | 88 KB |

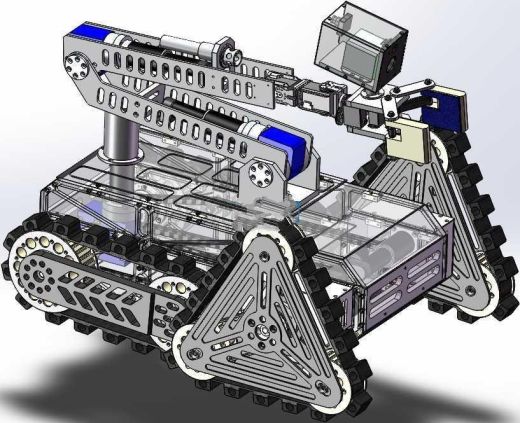

【1174】移动救援机器人SW设计
图纸ID：10198318
文件大小：28.37M
软件版本：
SOLIDWORKS 2014
图纸格式：sldasm,sldprt
参数/编辑：可修改，包括参数
上传时间：2024-06-30
图纸介绍：
