带1cc发动机的RC航模飞机结构step,fusion360,AutoCAD 3D模型

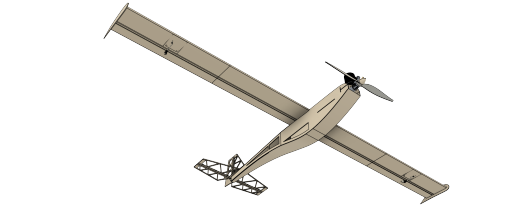

3D模型名称为：带1cc发动机的RC航模飞机结构，属于交通运输，车辆相关分类，软件为step,fusion360,AutoCAD, 三维模型格式为step,dwg,pdf，可在线预览，可编辑，可供设计参考

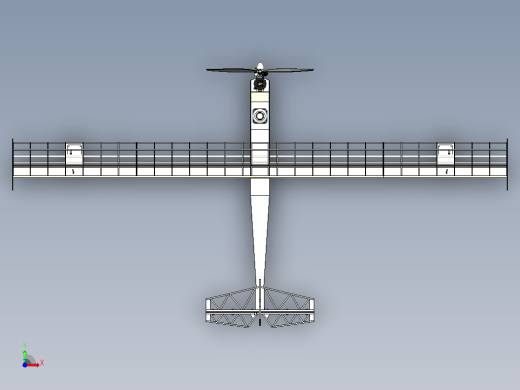

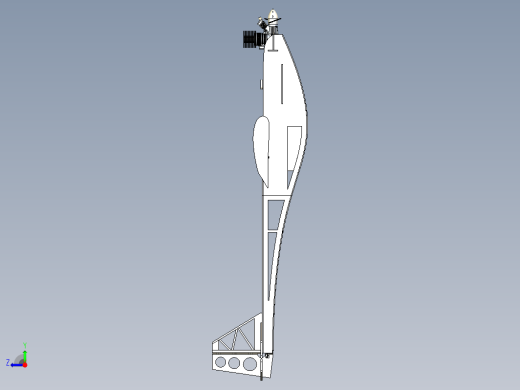

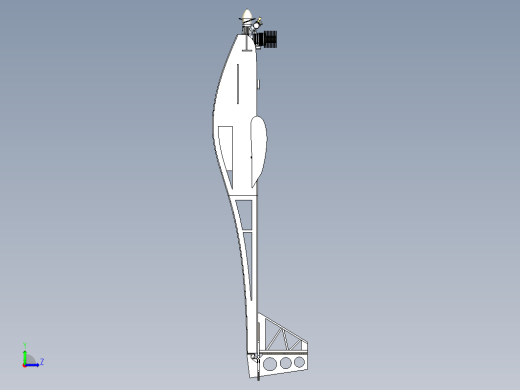

平面图

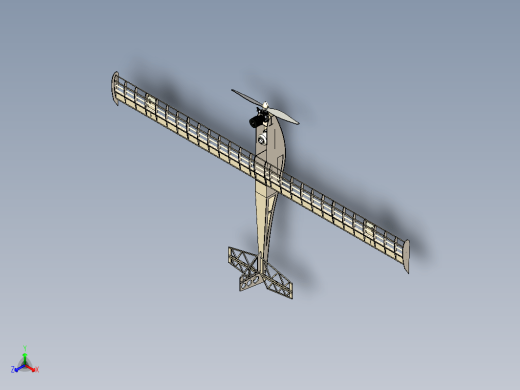

3D视图

加入收藏

模型参数

模型ID：10175620

模型大小：18.48M

软件版本： step,fusion360,AutoCAD

模型格式：step,dwg,pdf

是否可编辑：可修改，包括参数

上传时间：2024-04-25

图纸介绍：

免费下载

初晴

+ 关注

作品: 0

粉丝: 0

文件列表

1. 12x6 ELECTRIC PROPELLER.step

339 KB

2. AP 0.061 ENGINE.step

2.76 MB

3. ASSEMBLY DRAWING DODGER RC.dwg

223 KB

4. DODGER RC.step

12.7 MB

5. DTL DODGER DRAWING 1_FUSELAGE SIDE VIEW Drawing.dxf

96.2 KB

6. DTL DODGER DRAWING 1_FUSELAGE SIDE VIEW Drawing.pdf

5.73 KB

7. DTL DODGER DRAWING ASSEMBLY.pdf

68.4 KB

8. DTL DODGER DRAWING_FUSELAGE INT STRUCTURE Drawing.dxf

90 KB

9. DTL DODGER DRAWING_FUSELAGE INT STRUCTURE Drawing.pdf

2.11 KB

10. DTL DODGER DRAWING_FUSELAGE SIDE VIEW Drawing.dxf

91.6 KB

11. DTL DODGER DRAWING_FUSELAGE SIDE VIEW Drawing.pdf

3.36 KB

12. DTL DODGER DRAWING_FUSELAGE TAIL Drawing.dxf

90.7 KB

13. DTL DODGER DRAWING_FUSELAGE TAIL Drawing.pdf

1.9 KB

14. DTL DODGER DRAWING_FUSELAGE TOP VIEW Drawing.dxf

89.2 KB

15. DTL DODGER DRAWING_FUSELAGE TOP VIEW Drawing.pdf

1.93 KB

16. DTL DODGER DRAWING_FUSELAGE WING RIB Drawing.dxf

103 KB

17. DTL DODGER DRAWING_FUSELAGE WING RIB Drawing.pdf

3.46 KB

18. DTL DODGER DRAWING_HORIZONTAL TAIL Drawing.dxf

111 KB

19. DTL DODGER DRAWING_HORIZONTAL TAIL Drawing.pdf

2.77 KB

20. DTL DODGER DRAWING_MOTOR MOUNT Drawing.dxf

90.8 KB

21. DTL DODGER DRAWING_MOTOR MOUNT Drawing.pdf

73.7 KB

22. DTL DODGER DRAWING_VERTICAL TAIL Drawing.pdf

2.46 KB

23. DTL DODGER DRAWING_VERTICAL TAIL.dxf

96.7 KB

24. DTL DODGER DRAWING_WC RIB.dxf

131 KB

25. DTL DODGER DRAWING_WC RIB.pdf

75.5 KB

26. DTL DODGER DRAWING_WINGLET L&R Drawing.dxf

121 KB

27. DTL DODGER DRAWING_WINGLET L&R Drawing.pdf

79.6 KB

28. DTL DODGER DRAWING_WTL&R.dxf

126 KB

29. DTL DODGER v7 1.png

186 KB

30. DTL DODGER v7.png

334 KB

31. DTL DODGER v9.f3d

11.4 MB

32. DTL Dodger Drawing Assembly 1.pdf

171 KB

33. FUEL TANK (1).step

2.18 MB

34. FUSELAGE EXT STRUCTURE.step

835 KB

35. FUSELAGE INT STRUCTURE.step

21.8 KB

36. HORIZONTAL TAIL.step

769 KB

37. MOTOR MOUNT.step

31.7 KB

38. Poster.png

2.15 MB

39. SERVO v10(Mirror).step

231 KB

40. SERVO v10.step

231 KB

41. VERTICAL TAIL.step

290 KB

42. WING.step

4.72 MB

43. WTL&R DRAWING.pdf

88.7 KB
