| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | 5.6x14mm M3 Nylon Tapped Spacer.SLDPRT | 65.1 KB |
| 2 | 5.6x14mm M3 Nylon Tapped Spacer.SLDPRT | 65.1 KB |
| 3 | 5.6x6.5mm M3 Nylon Tapped Spacer.SLDPRT | 68.1 KB |
| 4 | Back.SLDPRT | 84.6 KB |
| 5 | Bearing Bracket Inner Assembly.SLDASM | 118 KB |
| 6 | Bearing Bracket Inner Body.SLDPRT | 157 KB |
| 7 | Bearing Bracket Inner Shaft.SLDPRT | 139 KB |
| 8 | Bearing Bracket Middle Assembly.SLDASM | 163 KB |
| 9 | Bearing Bracket Middle Bottom.SLDPRT | 147 KB |
| 10 | Bearing Bracket Middle Shaft.SLDPRT | 130 KB |
| 11 | Bearing Bracket Middle Top.SLDPRT | 177 KB |
| 12 | Bearing Damping Mount.SLDPRT | 251 KB |
| 13 | Bearing Holder Middle Assembly.SLDASM | 244 KB |
| 14 | Bearing Test Assembly.SLDASM | 326 KB |
| 15 | Bracing.SLDPRT | 194 KB |
| 16 | Bracket Base.SLDPRT | 87.4 KB |
| 17 | Bracket r.SLDPRT | 87.4 KB |
| 18 | Cap.SLDPRT | 262 KB |
| 19 | Carbon Fibre Mount.SLDPRT | 311 KB |
| 20 | Cobra 2208 rotor.SLDPRT | 253 KB |
| 21 | Cobra 2208 stator.SLDPRT | 258 KB |
| 22 | Cobra 2208.SLDPRT | 311 KB |
| 23 | Cobra Motor.SLDASM | 470 KB |
| 24 | Corona DS-339MG.SLDPRT | 290 KB |
| 25 | Corona DS-339MG.SLDPRT | 290 KB |
| 26 | Damping Back.SLDPRT | 84.6 KB |
| 27 | Damping Ball 100g.SLDPRT | 88.2 KB |
| 28 | Damping Bracket.SLDPRT | 151 KB |
| 29 | Damping Front.SLDPRT | 97.7 KB |
| 30 | Extension M3 Servo Horn.SLDPRT | 332 KB |
| 31 | F.1.SLDPRT | 208 KB |
| 32 | Front.SLDPRT | 102 KB |
| 33 | Gemfan 6040.SLDPRT | 471 KB |
| 34 | Inner Ring Cobra.SLDASM | 933 KB |
| 35 | Inner Ring Frame Assembly.SLDASM | 268 KB |
| 36 | Inner disk.SLDPRT | 374 KB |
| 37 | L.1.SLDPRT | 208 KB |
| 38 | L.2.SLDPRT | 285 KB |
| 39 | L.3.SLDPRT | 217 KB |
| 40 | M3 Servo Horn.SLDPRT | 323 KB |
| 41 | M3 Servo Horn.SLDPRT | 323 KB |
| 42 | Middle Base.SLDPRT | 64.8 KB |
| 43 | Middle Ring Assembly.SLDASM | 1020 KB |
| 44 | Middle Ring Torque.SLDASM | 2.12 MB |
| 45 | Middle Ring.SLDPRT | 1.11 MB |
| 46 | Middle-Ring-Torque-Test-Rig.JPG | 825 KB |
| 47 | Middle.SLDPRT | 69.3 KB |
| 48 | Motor Arm.SLDPRT | 308 KB |
| 49 | Motor Assembly Support.SLDASM | 534 KB |
| 50 | Motor Mount Middle Section.SLDPRT | 247 KB |
| 51 | P.1.SLDPRT | 303 KB |
| 52 | P.2.SLDPRT | 256 KB |
| 53 | Pot Test Rig.SLDASM | 274 KB |
| 54 | Potentiometer.SLDPRT | 157 KB |
| 55 | Prop Adapter Base.SLDPRT | 69.5 KB |
| 56 | Prop Adapter Cone.SLDPRT | 212 KB |
| 57 | Prop Adapter Inner.SLDPRT | 112 KB |
| 58 | Prop Adapter.SLDASM | 310 KB |
| 59 | R.1.SLDPRT | 244 KB |
| 60 | R.2.SLDPRT | 285 KB |
| 61 | R.3.SLDPRT | 217 KB |
| 62 | Rotor assembly.SLDASM | 397 KB |
| 63 | S.1.SLDPRT | 322 KB |
| 64 | S.2.SLDPRT | 304 KB |
| 65 | Servo Bracket Inner Assembly.SLDASM | 221 KB |
| 66 | Servo Bracket Inner Face.SLDPRT | 144 KB |
| 67 | Servo Bracket Inner.SLDPRT | 121 KB |
| 68 | Servo Bracket Middle Assembly.SLDASM | 290 KB |
| 69 | Servo Bracket Middle Bottom.SLDPRT | 162 KB |
| 70 | Servo Bracket Middle Mount.SLDPRT | 259 KB |
| 71 | Servo Bracket Middle Top.SLDPRT | 185 KB |
| 72 | Servo Extension Middle Bottom.SLDPRT | 142 KB |
| 73 | Servo Extension Middle Bracket.SLDPRT | 212 KB |
| 74 | Servo Extension Middle Shaft.SLDPRT | 146 KB |
| 75 | Servo Extension Middle Top.SLDPRT | 173 KB |
| 76 | Servo Grommet.SLDPRT | 67.1 KB |
| 77 | Servo Grommet.SLDPRT | 67.1 KB |
| 78 | Servo Middle Extension.SLDASM | 224 KB |
| 79 | Servo Mount Bottom.SLDPRT | 130 KB |
| 80 | Servo Mount Bottom.SLDPRT | 131 KB |
| 81 | Servo Mount Middle Assembly.SLDASM | 211 KB |
| 82 | Servo Mount Top.SLDPRT | 140 KB |
| 83 | Servo Strain Assembly.SLDASM | 332 KB |
| 84 | Servo Strain Mount Top.SLDPRT | 248 KB |
| 85 | Shaft Adapter.SLDPRT | 42 KB |
| 86 | Tower Left.SLDASM | 216 KB |
| 87 | Tower Right.SLDASM | 226 KB |
| 88 | bracket.SLDPRT | 162 KB |
| 89 | strain guage.SLDPRT | 80 KB |
| 90 | torque-middle.png | 955 KB |

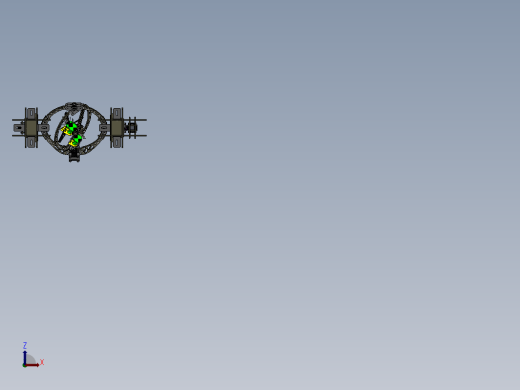

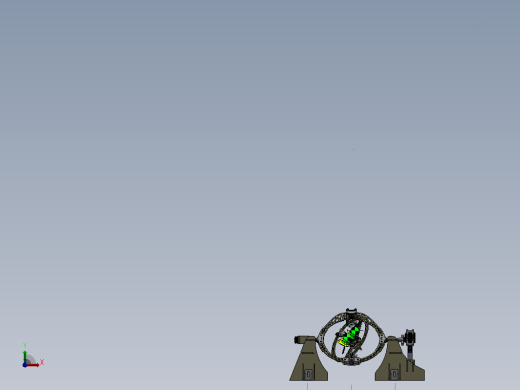

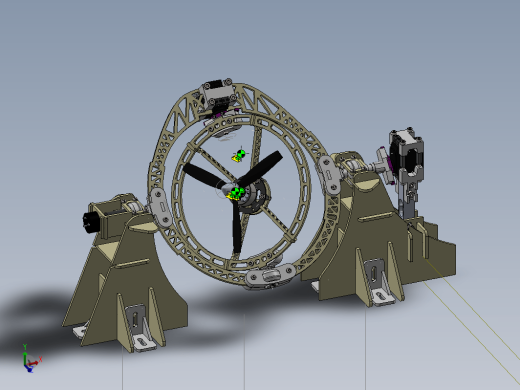

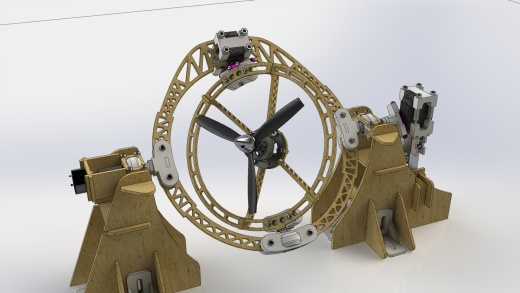

中环扭矩试验台
图纸ID：10155249
文件大小：24.12M
软件版本：
图纸格式：sldprt,sldasm
参数/编辑：可修改，包括参数
上传时间：2023-08-03
图纸介绍：
