| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | (1)-Lower Pivot Shaft.STEP | 303 KB |
| 2 | (1)-Lower Pivot Shaft.SLDPRT | 129 KB |
| 3 | (10)-Axle.STEP | 777 KB |
| 4 | (10)-Axle.SLDPRT | 707 KB |
| 5 | (11)-Outer Body.STEP | 158 KB |
| 6 | (11)-Outer Body.SLDPRT | 171 KB |
| 7 | (12-Pedal.STEP | 777 KB |
| 8 | (12-Pedal.SLDPRT | 903 KB |
| 9 | (13)-Flat spring.STEP | 76.8 KB |
| 10 | (13)-Flat spring.SLDPRT | 116 KB |
| 11 | (14)-Directional Lever.STEP | 40.1 KB |
| 12 | (14)-Directional Lever.SLDPRT | 91.4 KB |
| 13 | (15)-End-stop Spring.STEP | 884 KB |
| 14 | (15)-End-stop Spring.SLDPRT | 1.66 MB |
| 15 | (16)-Torsion Spring.STEP | 342 KB |
| 16 | (16)-Torsion Spring.SLDPRT | 275 KB |
| 17 | (17)-Working Pawl Sping.STEP | 816 KB |
| 18 | (17)-Working Pawl Sping.SLDPRT | 1.43 MB |
| 19 | (18)-Inner Body.STEP | 373 KB |
| 20 | (18)-Inner Body.SLDPRT | 237 KB |
| 21 | (19)-Pedal lock.STEP | 170 KB |
| 22 | (19)-Pedal lock.SLDPRT | 135 KB |
| 23 | (2)-Upper Pivot Shaft.STEP | 696 KB |
| 24 | (2)-Upper Pivot Shaft.SLDPRT | 172 KB |
| 25 | (20)-METAL SEALING WASHER.STEP | 15.6 KB |
| 26 | (20)-METAL SEALING WASHER.SLDPRT | 77.1 KB |
| 27 | (3)-Cutter pin.STEP | 39.5 KB |
| 28 | (3)-Cutter pin.SLDPRT | 126 KB |
| 29 | (4)-End Stop.STEP | 47.6 KB |
| 30 | (4)-End Stop.SLDPRT | 107 KB |
| 31 | (5)-Locking Pawl.STEP | 63.4 KB |
| 32 | (5)-Locking Pawl.SLDPRT | 109 KB |
| 33 | (6)-Working Pawl.STEP | 72 KB |
| 34 | (6)-Working Pawl.SLDPRT | 111 KB |
| 35 | (7)-Roller Raceway.STEP | 34.9 KB |
| 36 | (7)-Roller Raceway.SLDPRT | 71.6 KB |
| 37 | (8)-Roller.STEP | 15.5 KB |
| 38 | (8)-Roller.SLDPRT | 41.4 KB |
| 39 | (9)-End stop-Clip.STEP | 71.9 KB |
| 40 | (9)-End stop-Clip.SLDPRT | 122 KB |
| 41 | 10.JPG | 1.5 MB |
| 42 | 12mm.STEP | 267 KB |
| 43 | 12mm.SLDPRT | 360 KB |
| 44 | 16mm.STEP | 310 KB |
| 45 | 16mm.SLDPRT | 390 KB |
| 46 | 2437T180_HVY DUTY THREADED STEM CASTER W DEBRIS CAP.STEP | 1.18 MB |
| 47 | 2437T180_HVY DUTY THREADED STEM CASTER W DEBRIS CAP.SLDPRT | 1000 KB |
| 48 | 2437T190_HVY DUTY THREADED STEM CASTER W DEBRIS CAP.STEP | 1.17 MB |
| 49 | 2437T190_HVY DUTY THREADED STEM CASTER W DEBRIS CAP.SLDPRT | 967 KB |
| 50 | 7.JPG | 1.63 MB |
| 51 | 9.JPG | 1.55 MB |
| 52 | 90386A109_CLASS 8.8 STL SERRATED FLANGE HEAD CAP SCREW.STEP | 1.27 MB |
| 53 | 90386A109_CLASS 8.8 STL SERRATED FLANGE HEAD CAP SCREW.SLDPRT | 974 KB |
| 54 | FLANGE LOCKNUT-8mm.STEP | 442 KB |
| 55 | FLANGE LOCKNUT-8mm.SLDPRT | 523 KB |
| 56 | GOJAK- ASSEM.STEP | 8.31 MB |
| 57 | GOJAK- ASSEM.SLDASM | 3.37 MB |
| 58 | Hex nut 8mm.STEP | 654 KB |
| 59 | Hex nut 8mm.SLDPRT | 551 KB |

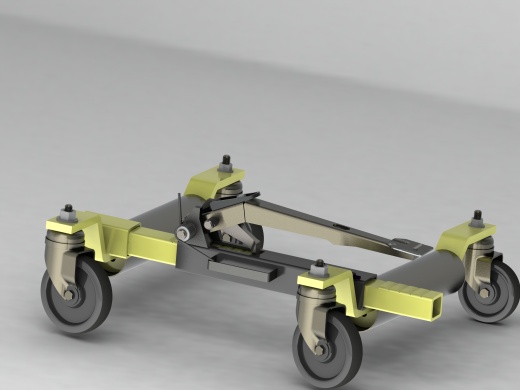

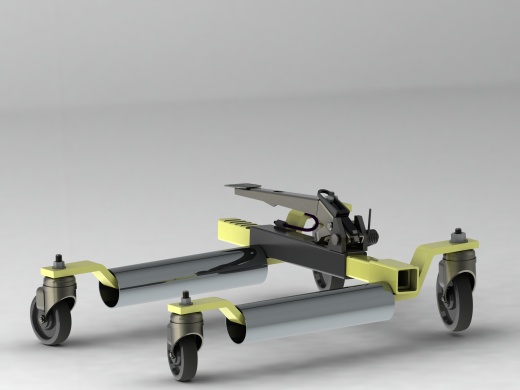

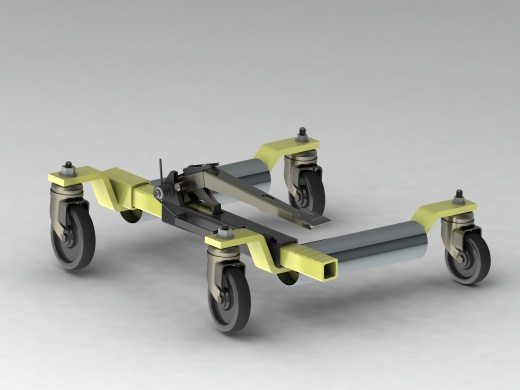

Jack Dolly千斤顶推车
图纸ID：10154598
文件大小：23.47M
软件版本：
图纸格式：step,sldprt,sldasm
参数/编辑：可修改，包括参数
上传时间：2023-07-13
图纸介绍：
