| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | 0.1875 Ball Stud 0.375.ipt | 166 KB |
| 2 | 0.25 ball.ipt | 138 KB |
| 3 | 2 Degree Suspension.iam | 242 KB |
| 4 | ANSI B18.2.4.4M - M5 x 0,8.ipt | 198 KB |
| 5 | Ball End Assembly.iam | 179 KB |
| 6 | Ball End.ipt | 342 KB |
| 7 | Double Wishbone Rc Model Suspension.jpg | 401 KB |
| 8 | E-Clip.ipt | 171 KB |
| 9 | Font Upper Arm.ipt | 651 KB |
| 10 | Front Axle.ipt | 351 KB |
| 11 | Front Hub Bearing.ipt | 155 KB |
| 12 | Front Hub Carrier L Assembly.iam | 1.22 MB |
| 13 | Front Hub Carrier R Assembly.iam | 1.21 MB |
| 14 | Front Hub Carrier R.ipt | 1.03 MB |
| 15 | Front Hub Carrier.ipt | 1.03 MB |
| 16 | Front Lower Arm Assembly.iam | 263 KB |
| 17 | Front Lower Arm brace.ipt | 132 KB |
| 18 | Front Lower Arm.ipt | 1.07 MB |
| 19 | Front Lower Hinge Pin.ipt | 126 KB |
| 20 | Front Shock Brace.ipt | 302 KB |
| 21 | Front Side Plate L.ipt | 756 KB |
| 22 | Front Side Plate R.ipt | 910 KB |
| 23 | Front Suspention Adjustment Clip.ipt | 133 KB |
| 24 | Front Upper Arm Assembly.iam | 208 KB |
| 25 | Front Upper Arm Mounted.ipt | 972 KB |
| 26 | Front Upper Hinge Pin.ipt | 127 KB |
| 27 | Hex Drive Pin.ipt | 113 KB |
| 28 | Hex Drive.ipt | 207 KB |
| 29 | Hex Retaining O-Ring.ipt | 146 KB |
| 30 | ISO 4035 - M3 - ISO.ipt | 159 KB |
| 31 | ISO 4762 - M3 x 12ISO.ipt | 186 KB |
| 32 | ISO 4762 - M3 x 20ISO.ipt | 183 KB |
| 33 | O- Ring.ipt | 168 KB |
| 34 | Pillow Ball Bushing.ipt | 159 KB |
| 35 | Pillow Ball Retainer.ipt | 153 KB |
| 36 | Pillow Ball.ipt | 174 KB |
| 37 | Piston Of Suspension.ipt | 160 KB |
| 38 | Rear Hex Hub Assembly.iam | 182 KB |
| 39 | Rear Hub Bearing.ipt | 168 KB |
| 40 | Shock Absorber Assembly.iam | 1 MB |
| 41 | Shock Body 1.3 Length.ipt | 173 KB |
| 42 | Shock Body Assembly.iam | 216 KB |
| 43 | Shock Bushing.ipt | 195 KB |
| 44 | Shock Cartridge Assembly.iam | 238 KB |
| 45 | Shock Cartridge.ipt | 341 KB |
| 46 | Shock Catridge Cover.ipt | 177 KB |
| 47 | Shock Catridge Spacer.ipt | 146 KB |
| 48 | Shock Shaft.ipt | 137 KB |
| 49 | Shock Spring Adjusment.ipt | 212 KB |
| 50 | Shock Strut.iam | 320 KB |
| 51 | Spring Cup.ipt | 372 KB |
| 52 | Spring.ipt | 717 KB |
| 53 | Tire Assembly.iam | 600 KB |
| 54 | Tire.ipt | 1.63 MB |
| 55 | wheel.ipt | 1.79 MB |

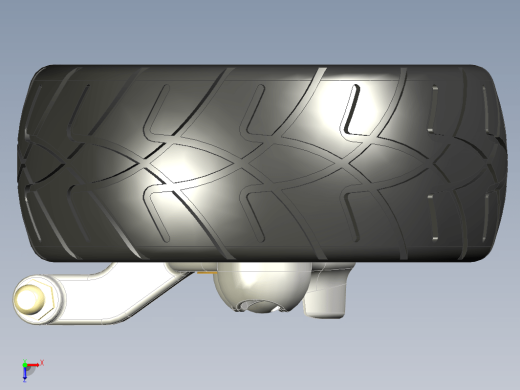

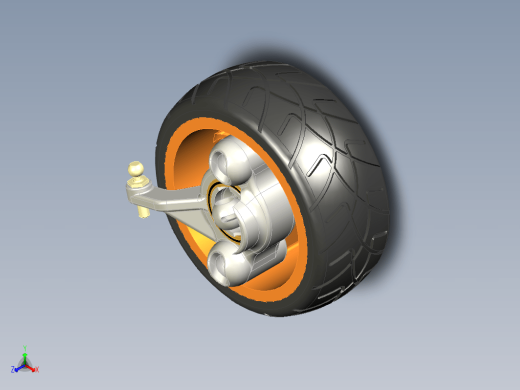

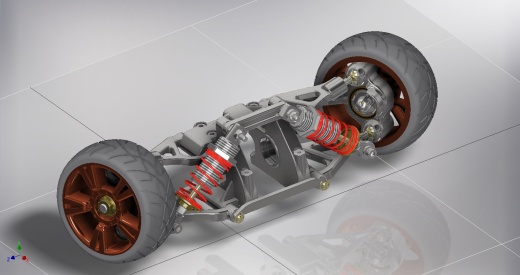

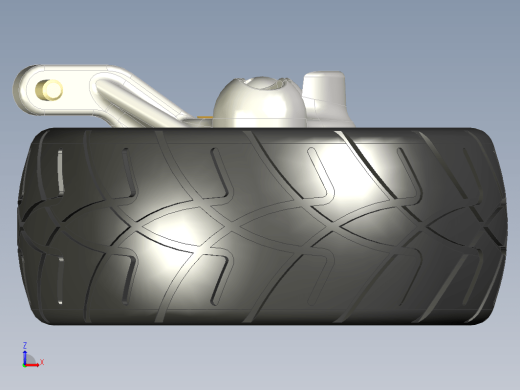

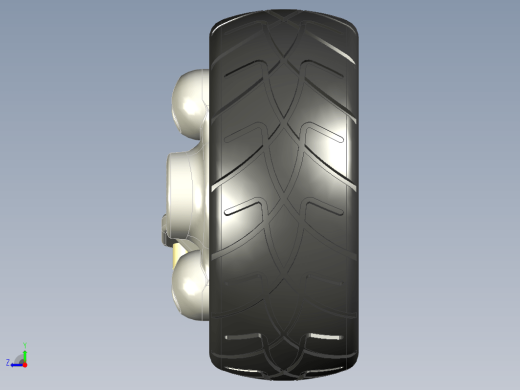

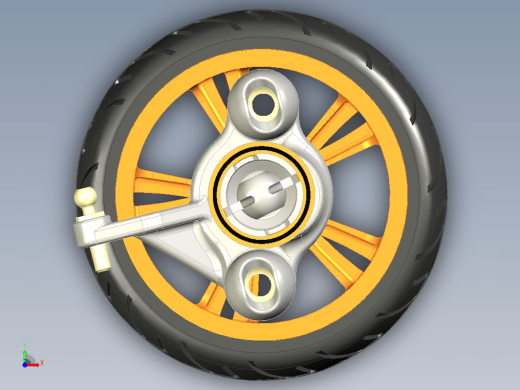

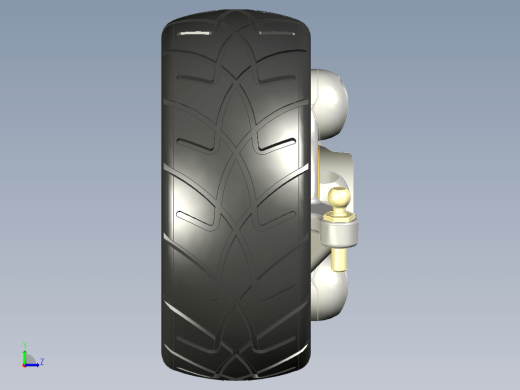

双横臂RC模型车悬架
图纸ID：10153834
文件大小：21.45M
软件版本：
图纸格式：ipt
参数/编辑：可修改，包括参数
上传时间：2023-06-18
图纸介绍：
