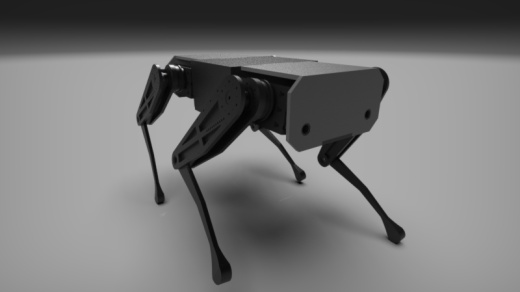

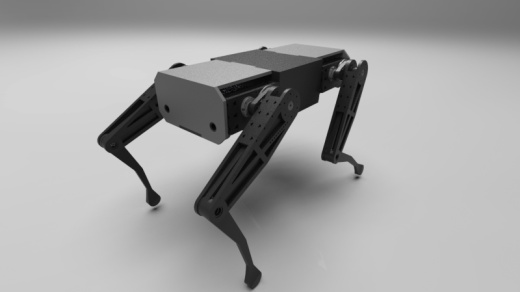

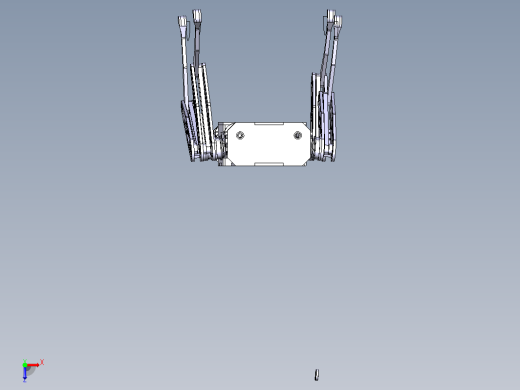

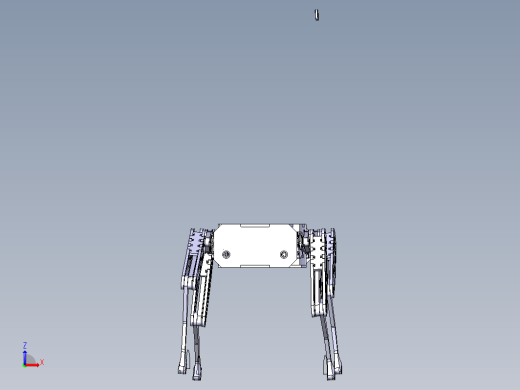

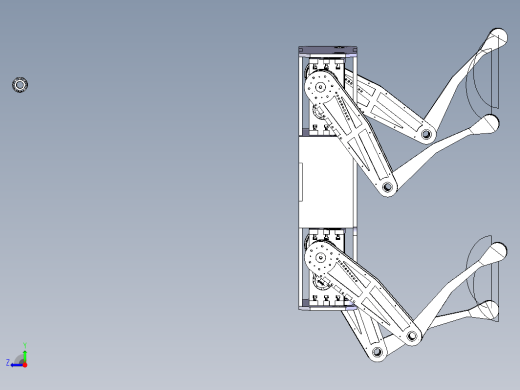

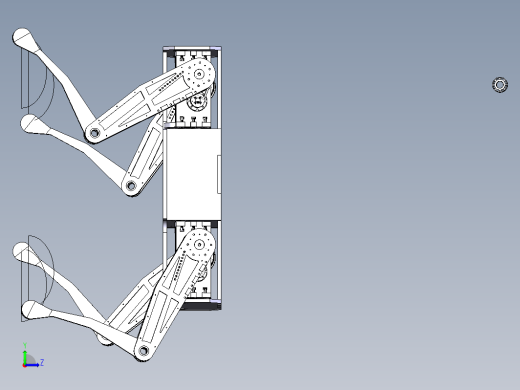

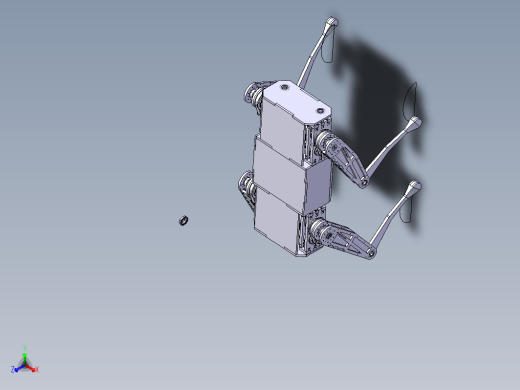

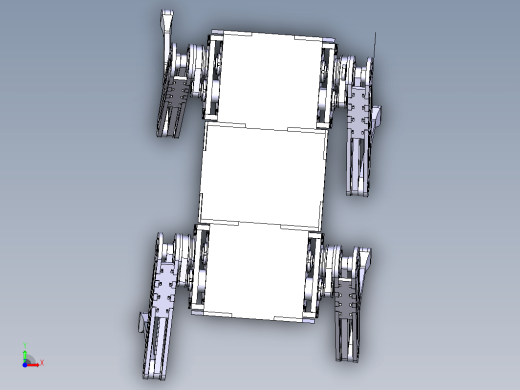

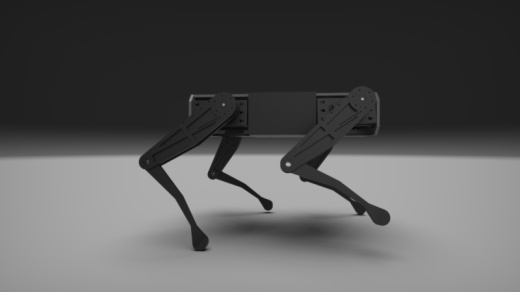

四足机器狗 Spike
（ID:10145375）
免费下载
文件大小：12.96M
| 软件版本：CATIA,STEP
| 参数/编辑：可修改，包括参数
| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | +必看说明+.txt | 2.22 KB |
| 2 | 15-1 Nema 23 Stepper Assembly.CATProduct | 45.6 KB |
| 3 | 2010N120 20mmID 70mmOD Face-Mount Bearing.CATPart | 399 KB |
| 4 | 20T 12mmID WaterJet Pulley.CATPart | 314 KB |
| 5 | 20T 3-4ID AT5 WaterJet Pulley.CATPart | 690 KB |
| 6 | 30T 3-4ID AT5 Waterjet Pulley.CATPart | 1.27 MB |
| 7 | 50T 20mmID AT5 Waterjet Pulley.CATPart | 1.93 MB |
| 8 | 8017T500 3-4OD Upper Leg Shaft Tapped.CATPart | 127 KB |
| 9 | Battery Cover.CATPart | 107 KB |
| 10 | Body Assembly.CATProduct | 101 KB |
| 11 | Bottom Body Panel.CATPart | 140 KB |
| 12 | Driving Shaft.CATPart | 123 KB |
| 13 | End Plate for Rotary.CATPart | 307 KB |
| 14 | Flat Bearing Spacer Plate.CATPart | 91.7 KB |
| 15 | Front Body Bearing Block.CATPart | 147 KB |
| 16 | Inner Body Bearing Block.CATPart | 122 KB |
| 17 | L Leg Assembly.CATProduct | 216 KB |
| 18 | Leg Outer Mounting Plate.CATPart | 389 KB |
| 19 | Lower Leg Assembly Mirror.CATProduct | 55.6 KB |
| 20 | Lower Leg Assembly.CATProduct | 58.6 KB |
| 21 | Lower Leg Timing Belt.CATPart | 75.3 KB |
| 22 | Lower Leg.CATPart | 439 KB |
| 23 | Motor Mount.CATPart | 336 KB |
| 24 | Nema 23 56mm.CATPart | 25.3 MB |
| 25 | Nema 23 Assembly.CATProduct | 35.1 KB |
| 26 | Nema 23 Driving Shaft.CATPart | 119 KB |
| 27 | Pulley Side End Mount.CATPart | 483 KB |
| 28 | R Leg Assembly.CATProduct | 228 KB |
| 29 | RILLENKUGELLAGER_DIN_625_61905.CATPart | 628 KB |
| 30 | Rear Body Bearing Block.CATPart | 140 KB |
| 31 | Side Panel.CATPart | 116 KB |
| 32 | Spike Assembly.CATProduct | 877 KB |
| 33 | Spike Assembly.stp | 15.5 MB |
| 34 | Spike, the robot dog.1.jpg | 74 KB |
| 35 | Spike, the robot dog.2.jpg | 53.8 KB |
| 36 | Spike, the robot dog.4.jpg | 76.7 KB |
| 37 | Spike, the robot dog.5.jpg | 85.3 KB |
| 38 | Stepper Pulley Assembly.CATProduct | 44.6 KB |
| 39 | Stepper Pulley End.CATPart | 139 KB |
| 40 | StepperOnline 15-1 Planetary Gearbox.CATPart | 298 KB |
| 41 | Timing Belt Guide Washer Thick.CATPart | 86.8 KB |
| 42 | Timing Belt Guide Washer Thin.CATPart | 84.4 KB |
| 43 | Top Body Panel.CATPart | 182 KB |
| 44 | Upper Leg Assembly Mirror.CATProduct | 149 KB |
| 45 | Upper Leg Assembly.CATProduct | 177 KB |
| 46 | Upper Leg Carbon Plate.CATPart | 234 KB |
| 47 | Upper Leg Mirror.CATPart | 614 KB |
| 48 | Upper Leg Pulley Guide Washer Thick.CATPart | 114 KB |
| 49 | Upper Leg Pulley Guide Washer Thin.CATPart | 93.1 KB |
| 50 | Upper Leg Timing Belt.CATPart | 80.4 KB |
| 51 | Upper Leg Top Guard.CATPart | 421 KB |
| 52 | Upper Leg.CATPart | 563 KB |
| 53 | WaterJet Bearing Washer.CATPart | 60.5 KB |
| 54 | WaterJet Outer Bearing Washer.CATPart | 59.4 KB |
| 55 | 【 珊瑚网 www.shanhu3d.com 】 更多【资料】【图档】.url | 177 B |
| 56 | 公众号免费下载.jpg | 79 KB |
模型信息
图纸ID：10145375
文件大小：12.96M
软件版本：
CATIA,STEP
参数/编辑：可修改，包括参数
上传时间：2022-09-17
图纸介绍：
