| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | Adapter Ring^Milling Head.prt | 113 KB |
| 2 | Angle Gear lead^Gantry X-Y.prt | 481 KB |
| 3 | Angle-Gear^Milling Head.prt | 1.99 MB |
| 4 | BT30 ER32 COLLET NUT.prt | 172 KB |
| 5 | BT30 ER32 TOOL HOLDER^Milling Head.prt | 81 KB |
| 6 | Bar X^Gantry X-Y.prt | 88.5 KB |
| 7 | Bar Y^Gantry X-Y.prt | 88.5 KB |
| 8 | Block Y^Gantry X-Y.prt | 310 KB |
| 9 | Block _^Gantry X-Y.prt | 249 KB |
| 10 | Broken Gear^Gantry X-Y.prt | 3.08 MB |
| 11 | Bronze Bush X^Gantry X-Y.prt | 153 KB |
| 12 | Bronze Bush Y^Gantry X-Y.prt | 151 KB |
| 13 | Bush Cup X^Gantry X-Y.prt | 149 KB |
| 14 | Bush Cup Y^Gantry X-Y.prt | 148 KB |
| 15 | COLLET ER 32-_ER 32-GB 12X9 DIN ISO.prt | 299 KB |
| 16 | Carrier^Milling Head.prt | 137 KB |
| 17 | Central gear^Milling Head.prt | 1.61 MB |
| 18 | Clamp 60 main^Gantry X-Y.prt | 122 KB |
| 19 | Clamp-60 with pin^Gantry X-Y.prt | 202 KB |
| 20 | Distance Bush^Milling Head.prt | 103 KB |
| 21 | E-BT30 -ER 32 COLLET CHUCK.prt | 188 KB |
| 22 | End Mill^Milling Head.prt | 536 KB |
| 23 | Fix Lug^Milling Head.prt | 93 KB |
| 24 | Fixator for pin^Gantry X-Y.prt | 95.5 KB |
| 25 | Fixator^Gantry X-Y.prt | 103 KB |
| 26 | Gantry X-Y.prt | 282 KB |
| 27 | Gearbox^Milling Head.prt | 303 KB |
| 28 | Handle^Gantry X-Y_.prt | 105 KB |
| 29 | Handwheel 150^Gantry X-Y.prt | 229 KB |
| 30 | Handwheel 200^Gantry X-Y.prt | 227 KB |
| 31 | Hex Bolt M12^Gantry X-Y.prt | 104 KB |
| 32 | Key 8x8x30^Milling Head.prt | 86.5 KB |
| 33 | Lug-45^Gantry X-Y.prt | 93 KB |
| 34 | Lug-60^Gantry X-Y.prt | 93 KB |
| 35 | Milling Head.prt | 181 KB |
| 36 | Motor^Milling Head.prt | 1.12 MB |
| 37 | Nut M45^Milling Head.prt | 127 KB |
| 38 | Pin^Milling Head.prt | 104 KB |
| 39 | Plate^Gantry X-Y.prt | 217 KB |
| 40 | Quill Cup^Milling Head.prt | 203 KB |
| 41 | Quill Holder^Milling Head.prt | 275 KB |
| 42 | Quill^Milling Head.prt | 186 KB |
| 43 | Satelite^Milling Head.prt | 724 KB |
| 44 | Semiaxis^Milling Head.prt | 124 KB |
| 45 | Spindle^Milling Head.prt | 169 KB |
| 46 | Sun Gear^Milling Head.prt | 472 KB |
| 47 | Wiper A38-100x112,2^Milling Head.prt | 114 KB |
| 48 | Wiper A38-45x53^Gantry X-Y.prt | 113 KB |
| 49 | Wiper A38-60x70^Gantry X-Y.prt | 113 KB |
| 50 | X-Nut Housing^Gantry X-Y.prt | 157 KB |
| 51 | X-Nut^Gantry X-Y.prt | 327 KB |
| 52 | X-Screw Bearings Cup^Gantry X-Y_.prt | 116 KB |
| 53 | X-Screw Bearings Housing^Gantry X-Y.prt | 153 KB |
| 54 | X-Screw^Gantry X-Y.prt | 1.63 MB |
| 55 | Y-Nut Housing^Gantry X-Y.prt | 158 KB |
| 56 | Y-Nut^Gantry X-Y.prt | 308 KB |
| 57 | Y-Screw Bearings Cup^Gantry X-Y_.prt | 116 KB |
| 58 | Y-Screw Bearings Housing^Gantry X-Y.prt | 153 KB |
| 59 | Y-Screw^Gantry X-Y.prt | 948 KB |
| 60 | Z-Nut^Milling Head.prt | 129 KB |
| 61 | Z-Screw Bearings Housing^Milling Head.prt | 149 KB |
| 62 | Z-Screw Cup^Milling Head.prt | 126 KB |
| 63 | Z-Screw^Milling Head.prt | 127 KB |
| 64 | circlip for shafts normal_din_Circlip DIN 471 - 15 x 1.prt | 114 KB |
| 65 | circlip for shafts normal_din_Circlip DIN 471 - 20 x 1.2.prt | 114 KB |
| 66 | circlip for shafts normal_din_Circlip DIN 471 - 40 x 1.75.prt | 114 KB |
| 67 | eyebolt580_din_Eyebolt DIN 358-M12-N.prt | 225 KB |
| 68 | hex collar nut 1.5d height_din_DIN 6331-M24-N.prt | 127 KB |
| 69 | inafag_b7009-c-t-p4s^Milling Head.prt | 288 KB |
| 70 | plain washer 6902 type abc_din_DIN 6902-A11.prt | 89 KB |
| 71 | radial ball bearing_68_skf_SKF - 6002 - 12,SI,NC,12_68.prt | 135 KB |
| 72 | radial ball bearing_68_skf_SKF - 6003 - 12,SI,NC,12_68.prt | 133 KB |
| 73 | radial ball bearing_68_skf_SKF - 6007 - 14,SI,NC,14_68.prt | 133 KB |
| 74 | radial ball bearing_68_skf_SKF - 6009 - 16,DE,AC,16_68.prt | 716 KB |
| 75 | radial ball bearing_68_skf_SKF - 6205 - 12,SI,NC,12_68.prt | 135 KB |
| 76 | socket head cap screw_din_DIN 912 M10 x 25 --- 25N.prt | 118 KB |
| 77 | socket head cap screw_din_DIN 912 M10 x 30 --- 30N.prt | 118 KB |
| 78 | socket head cap screw_din_DIN 912 M5 x 16 --- 16N.prt | 118 KB |
| 79 | socket head cap screw_din_DIN 912 M5 x 20 --- 20N.prt | 117 KB |
| 80 | socket head cap screw_din_DIN 912 M5 x 35 --- 22N.prt | 117 KB |
| 81 | socket head cap screw_din_DIN 912 M5 x 40 --- 40N.prt | 117 KB |
| 82 | socket head cap screw_din_DIN 912 M6 x 16 --- 16N.prt | 118 KB |
| 83 | socket head cap screw_din_DIN 912 M6 x 25 --- 25N.prt | 117 KB |
| 84 | socket head cap screw_din_DIN 912 M8 x 40 --- 40N.prt | 117 KB |
| 85 | socket head cap screw_din_DIN 912 M8 x 45 --- 45N.prt | 117 KB |
| 86 | socket head cap screw_din_DIN 912 M8 x 60 --- 60N.prt | 116 KB |
| 87 | zpt.prt | 246 KB |

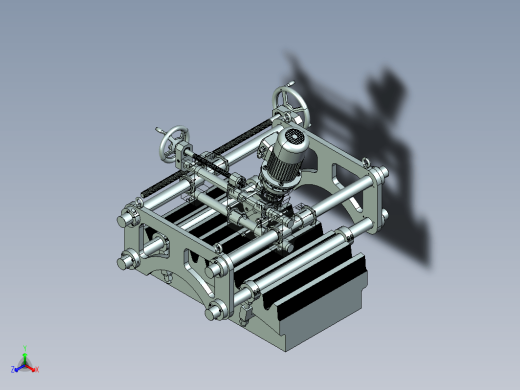

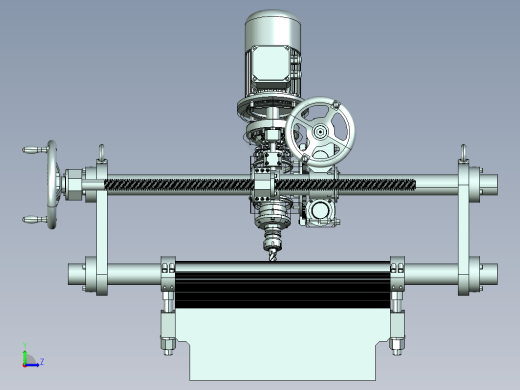

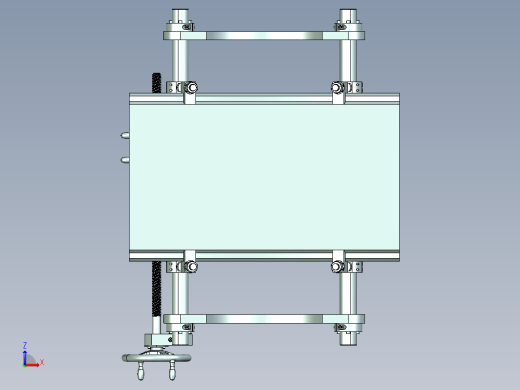

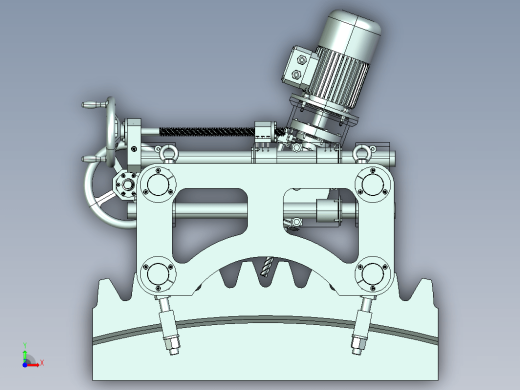

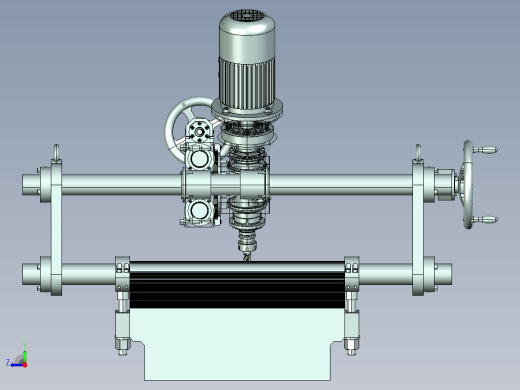

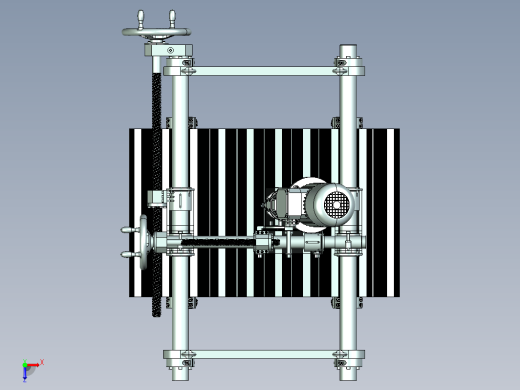

齿轮铣齿机
图纸ID：10131277
文件大小：10.22M
软件版本：
图纸格式：prt
参数/编辑：可修改，包括参数
上传时间：2021-06-17
图纸介绍：
