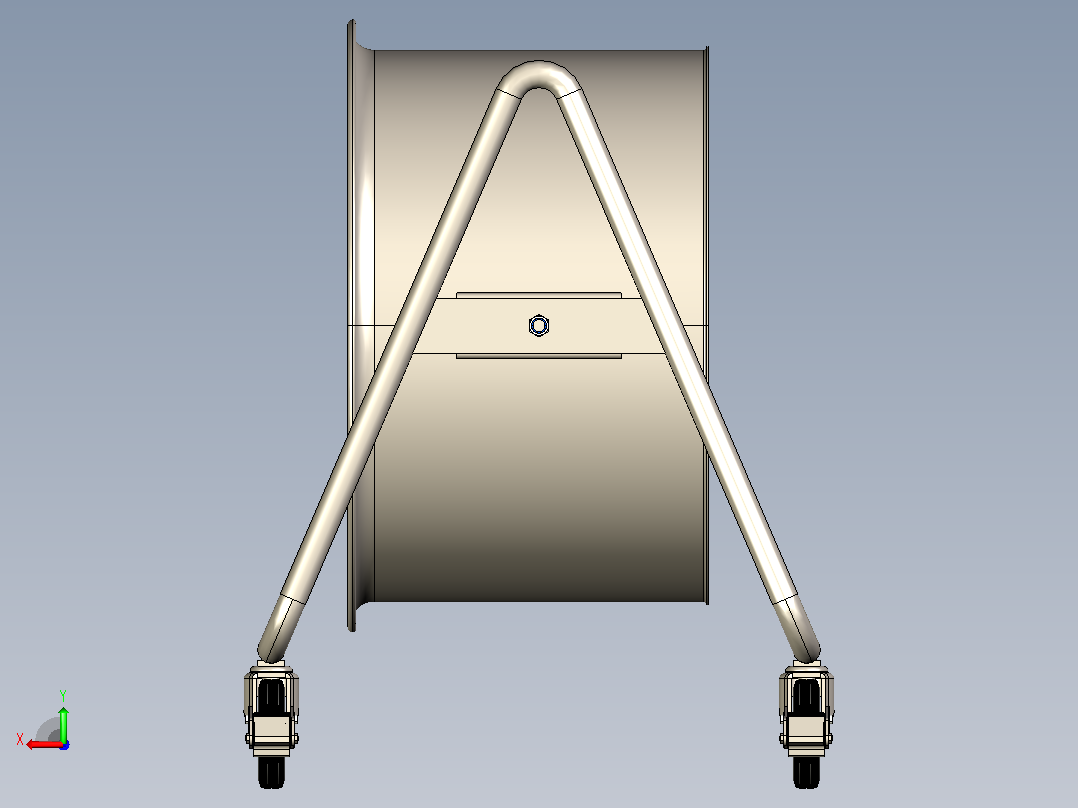

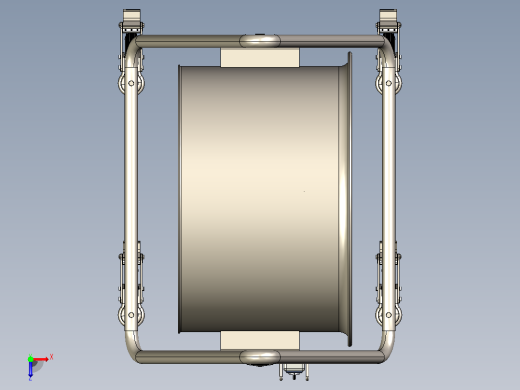

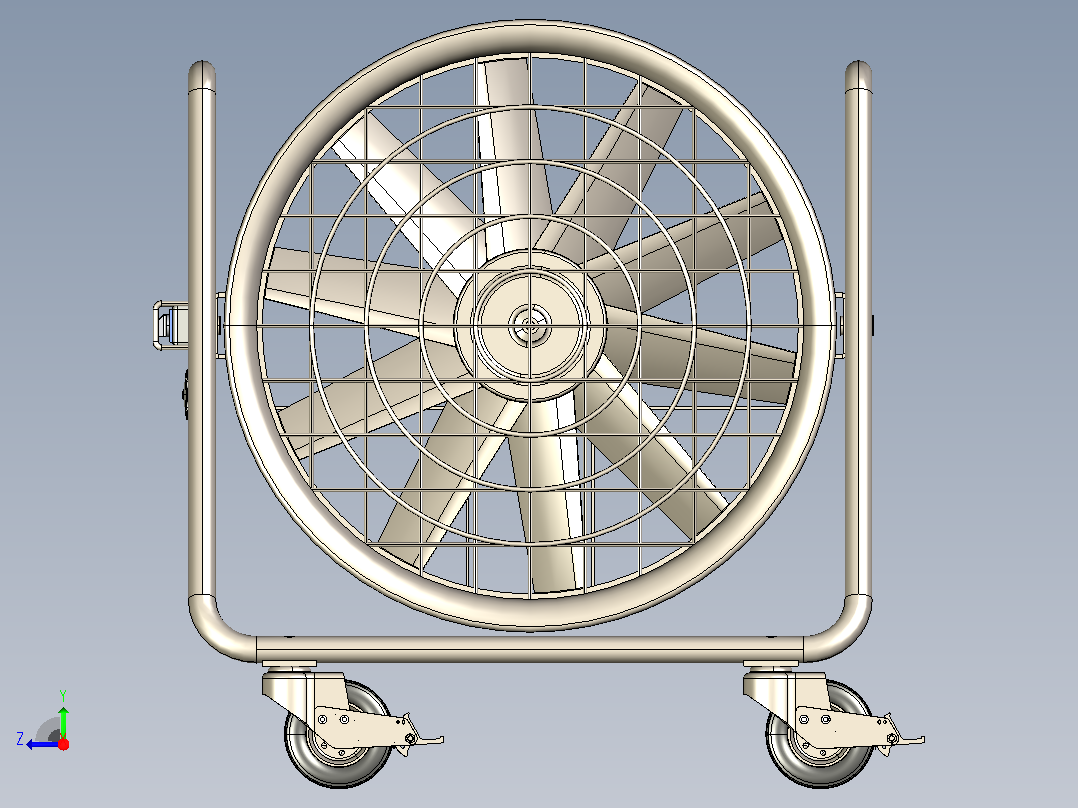

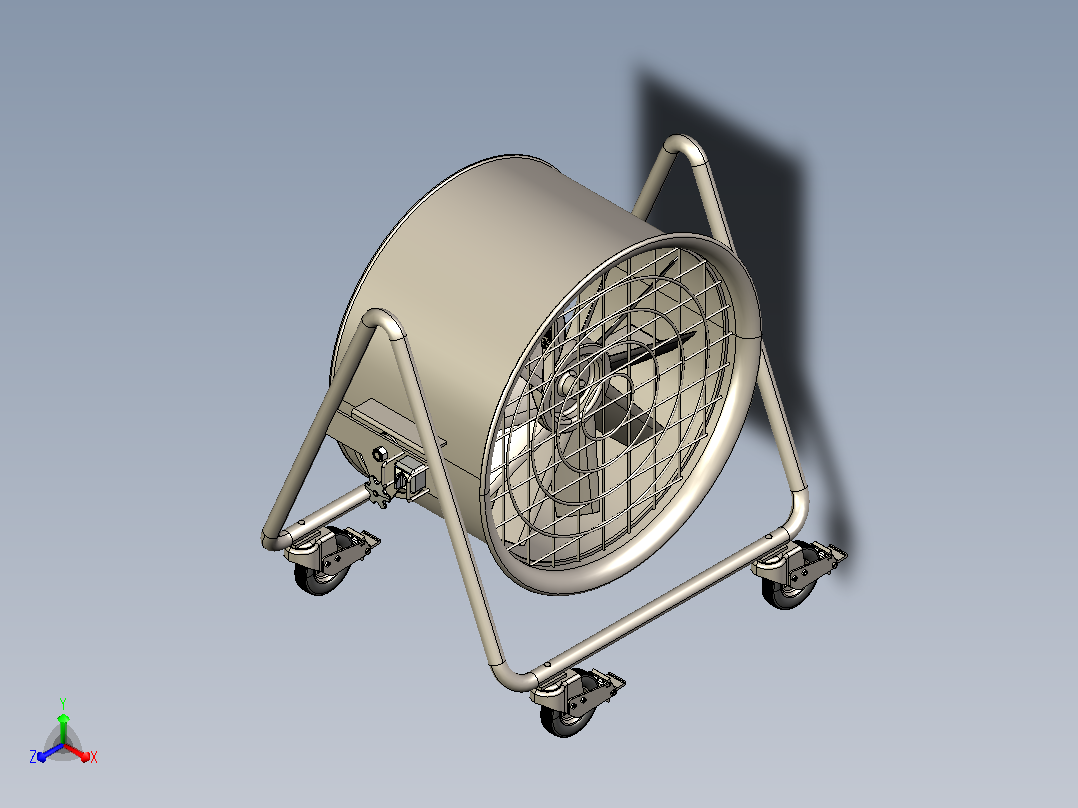

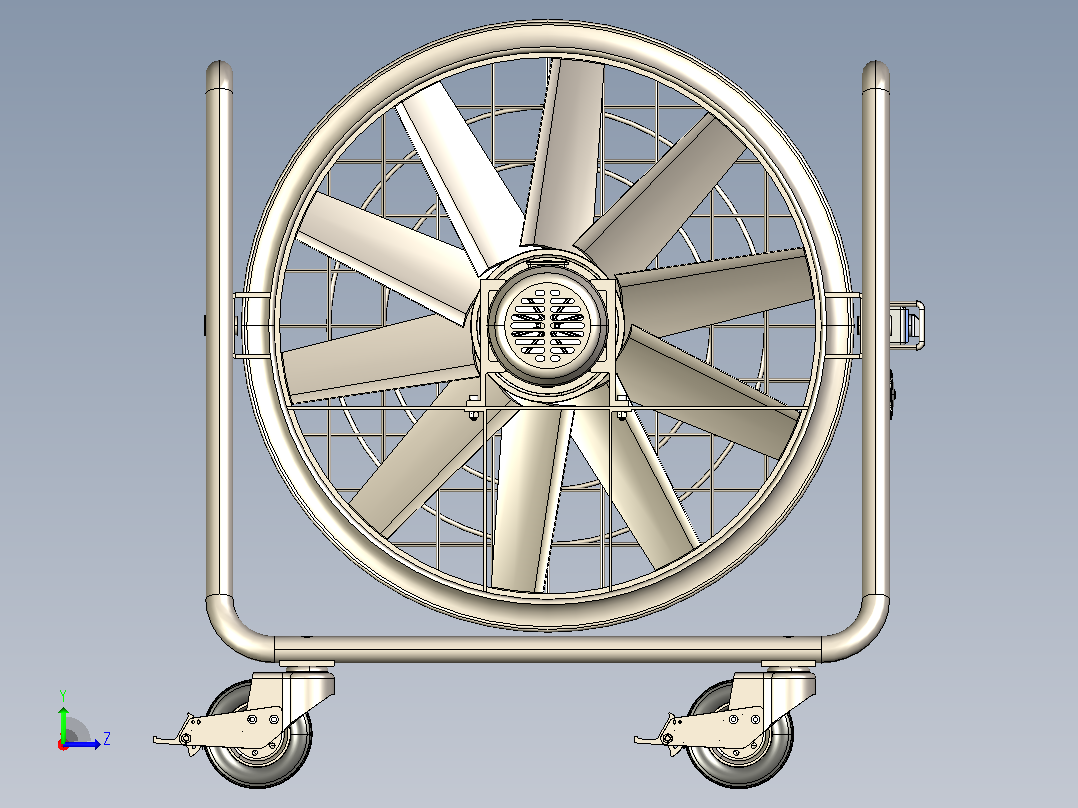

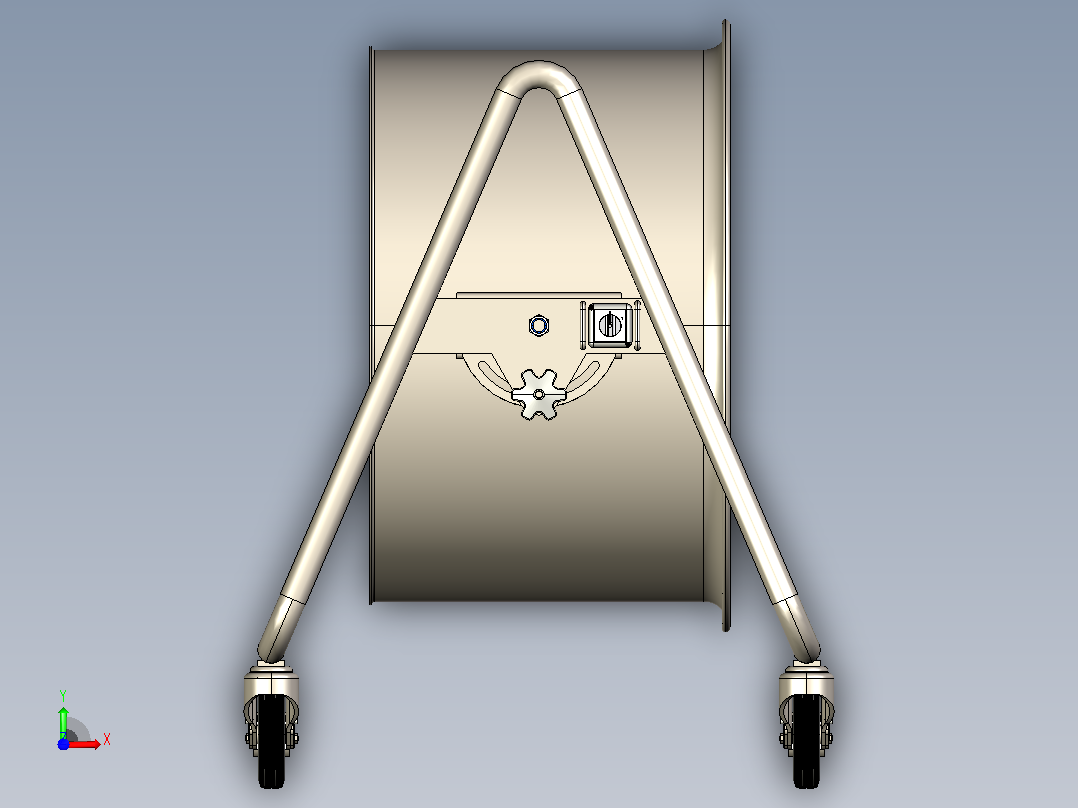

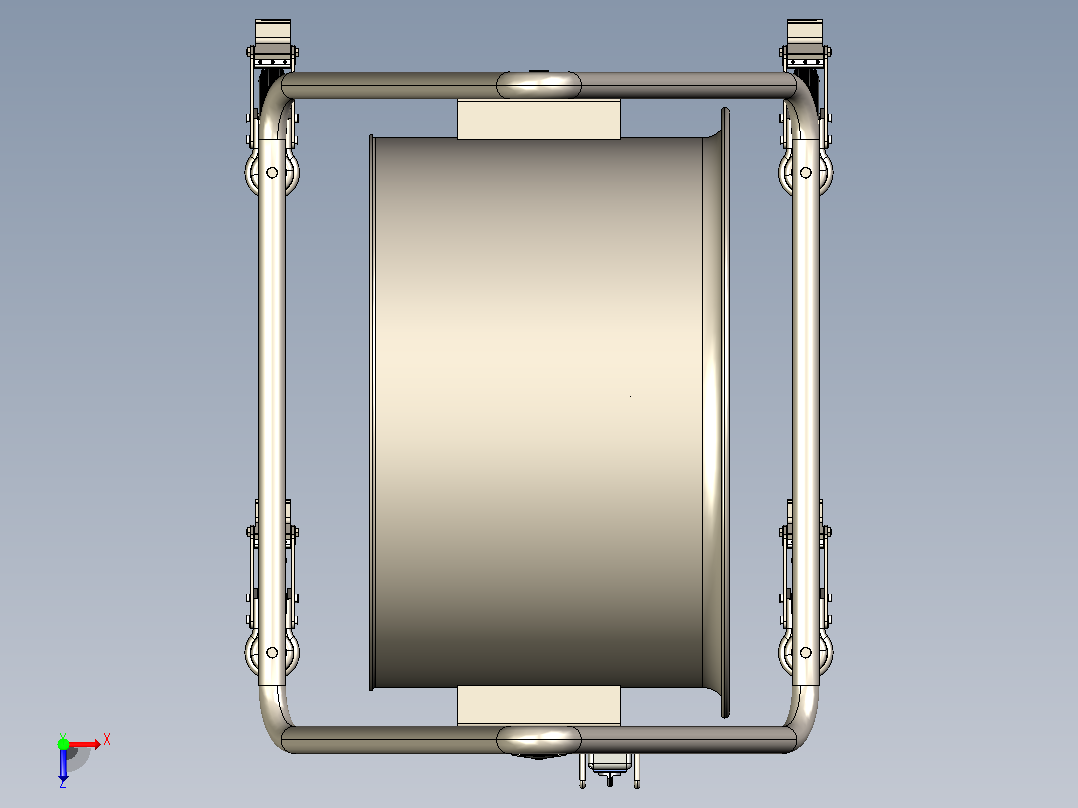

工业轴流风机 (2)igs,step 三维模型
三维机械图纸名称为：工业轴流风机 (2)，属于机械设备，通用设备分类，软件为igs,step, 三维模型格式为igs,step，可在线预览，可编辑，可供设计参考
模型参数
模型ID：10594509
模型大小：54.85M
软件版本： igs,step
模型格式：igs,step
是否可编辑：可修改，不包括参数
上传时间：2026-09-22
图纸介绍：
下载模型
文件列表
1. AssemWENT3.IGS
31.4 MB
2. AssemWENT3.STEP
17 MB

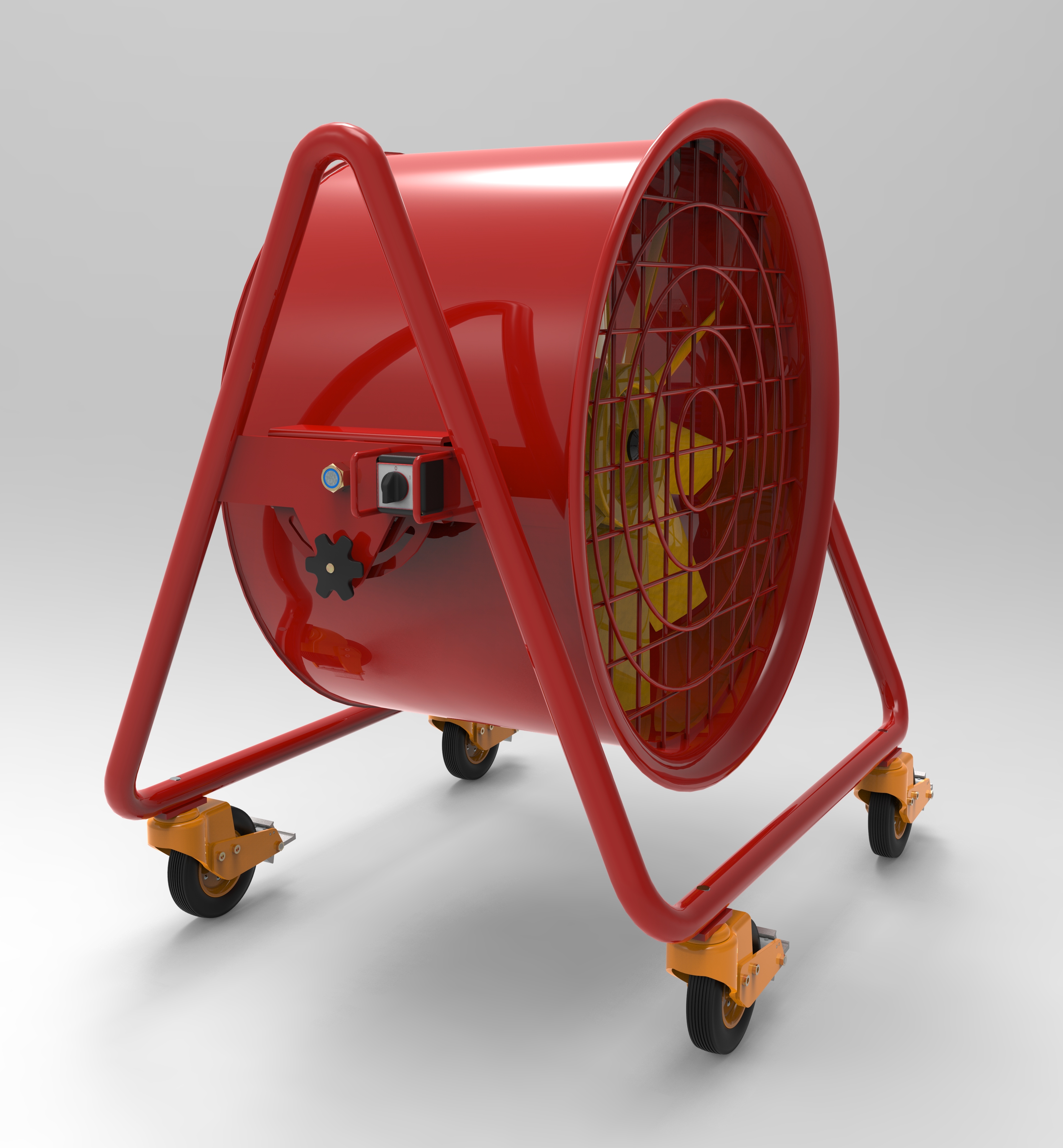

3. industrial axial blower.253.jpg
2.1 MB

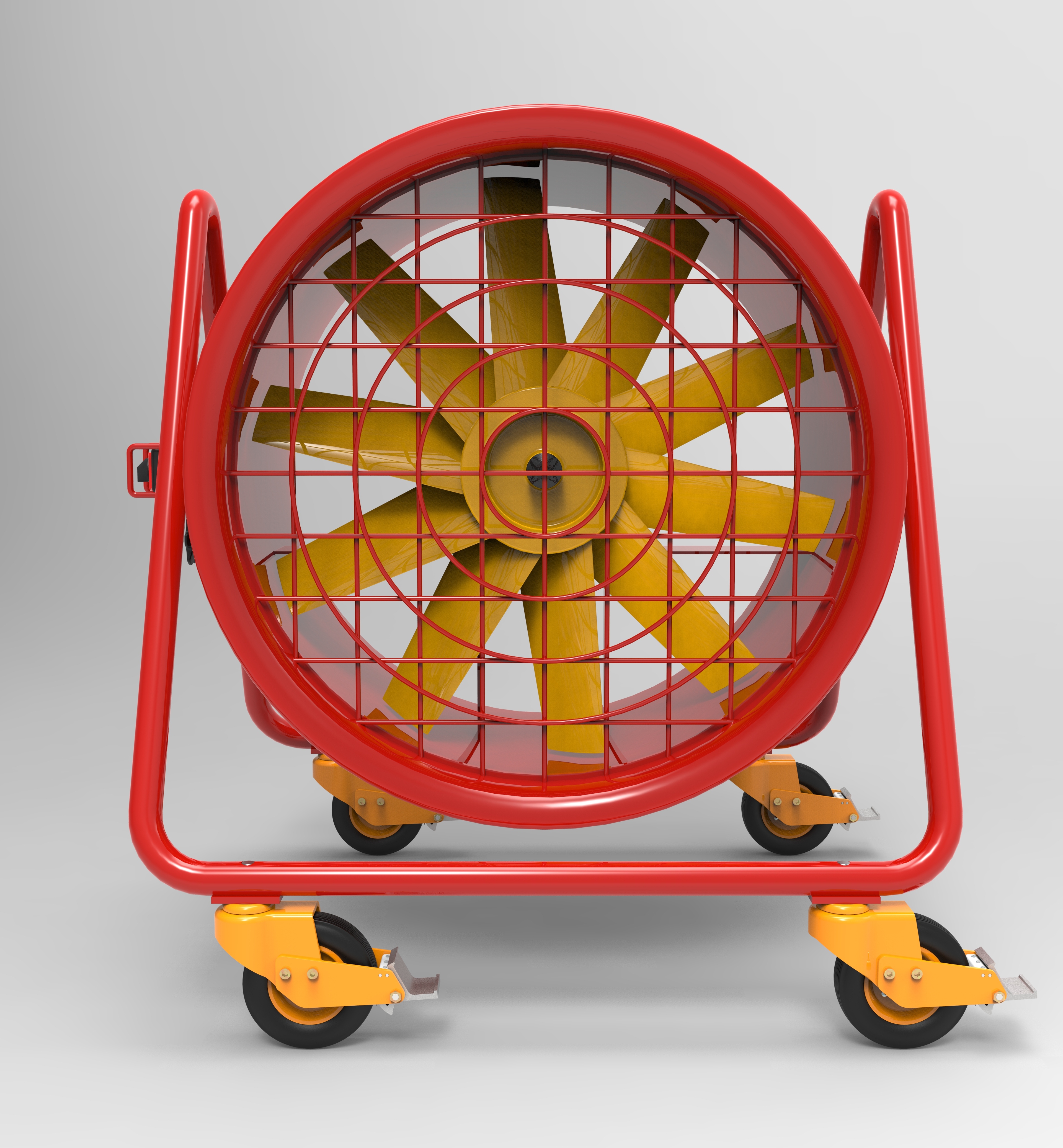

4. industrial axial blower.254.jpg
3.01 MB
