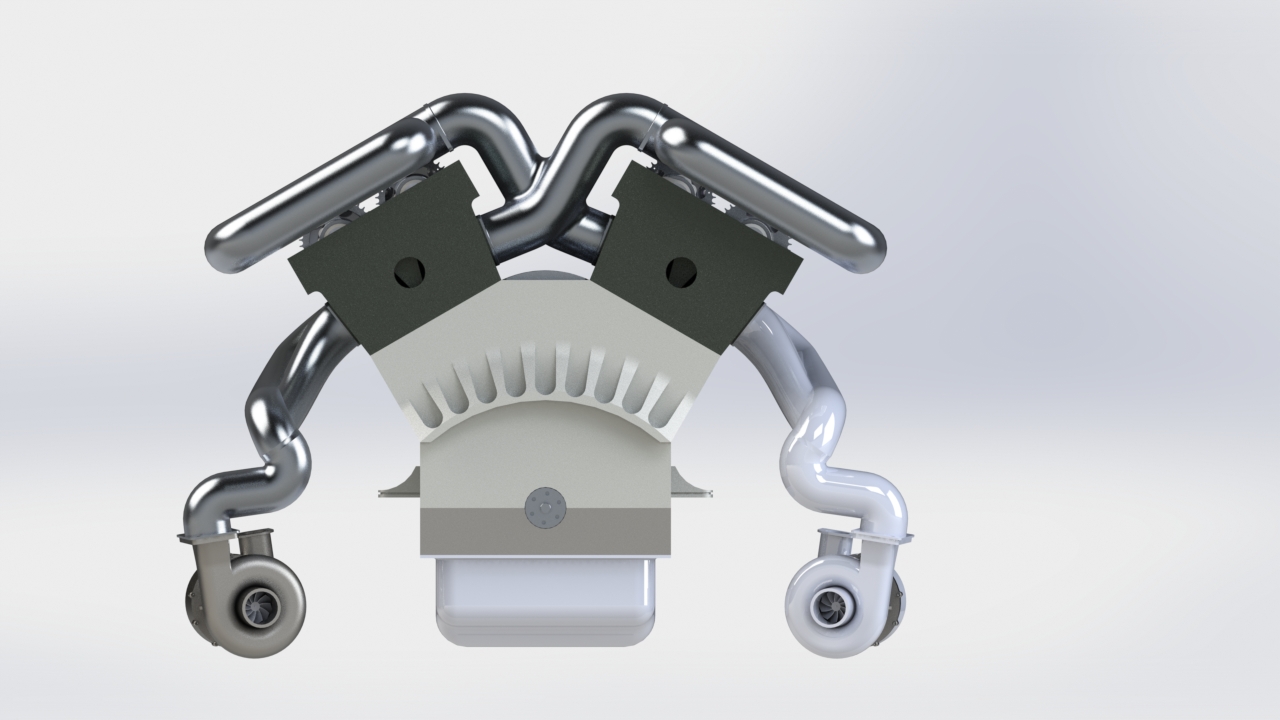

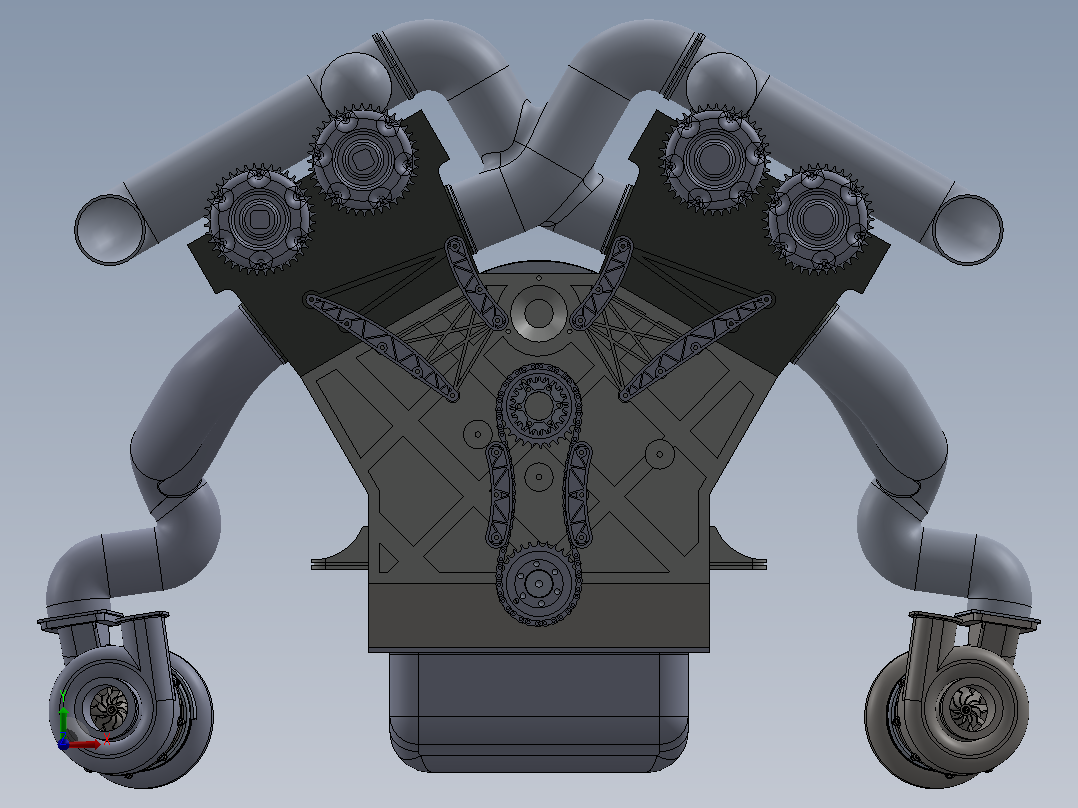

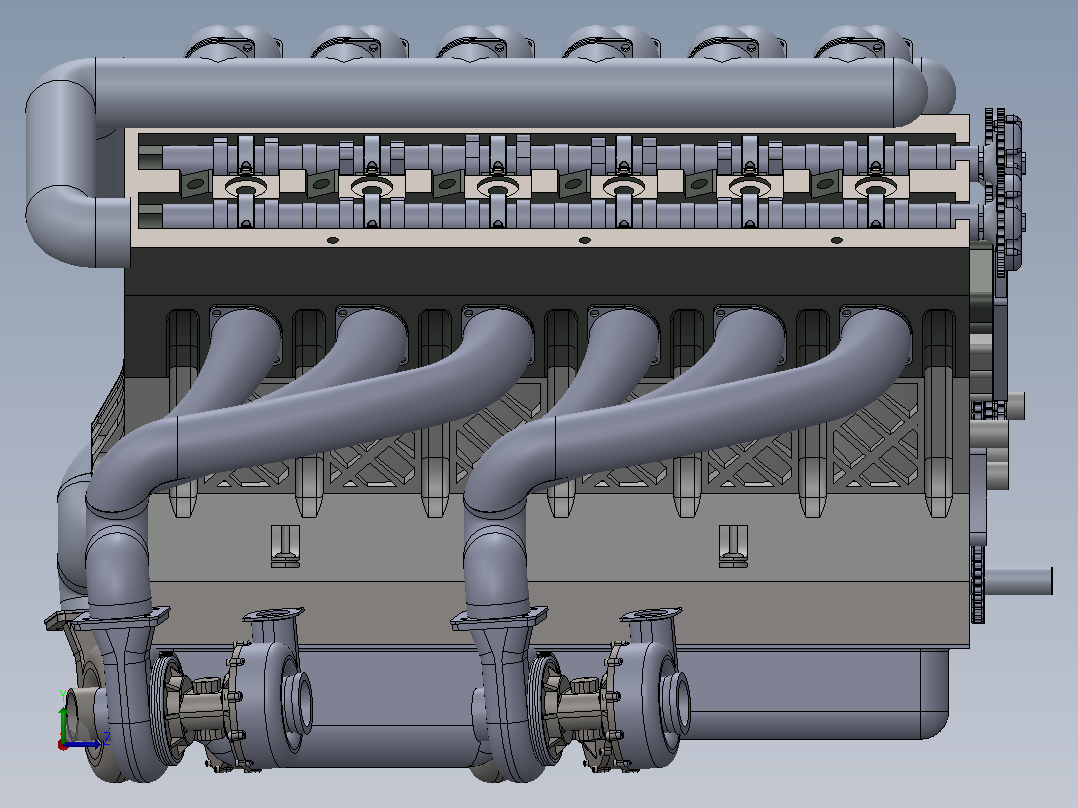

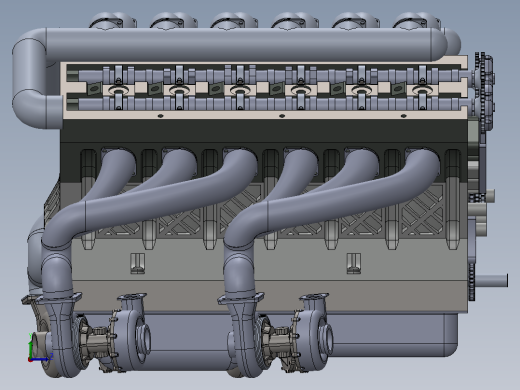

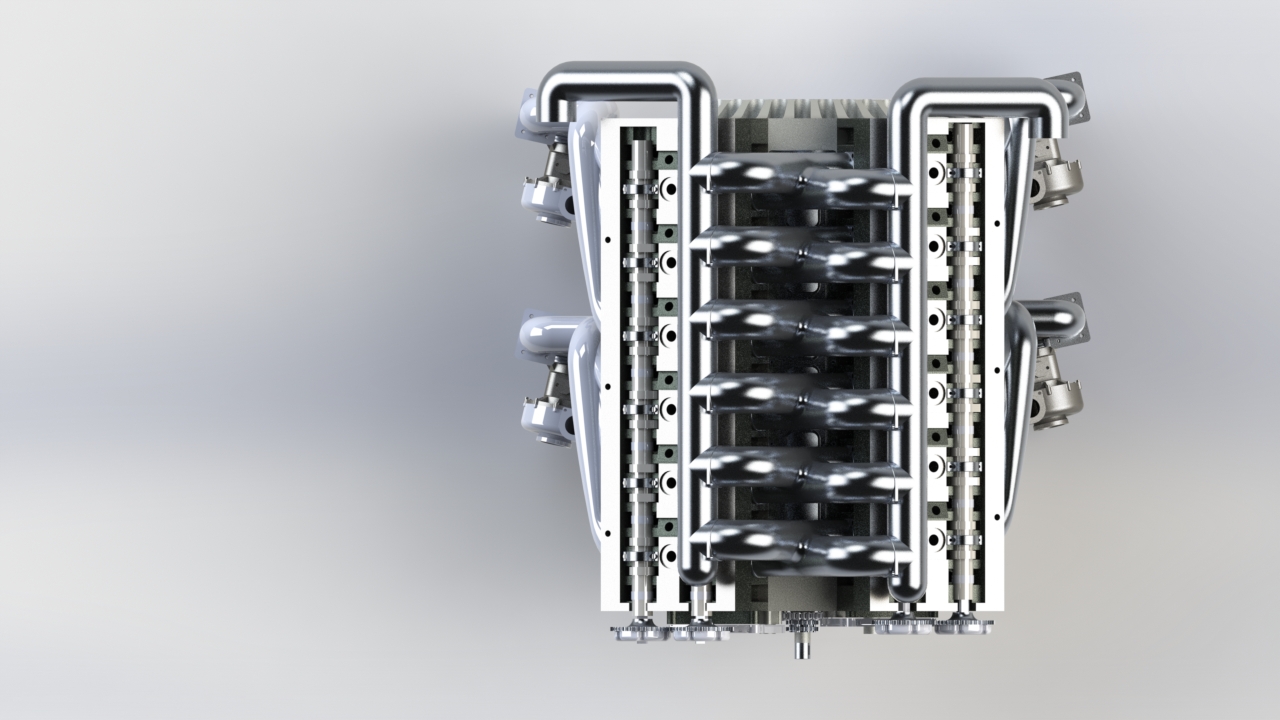

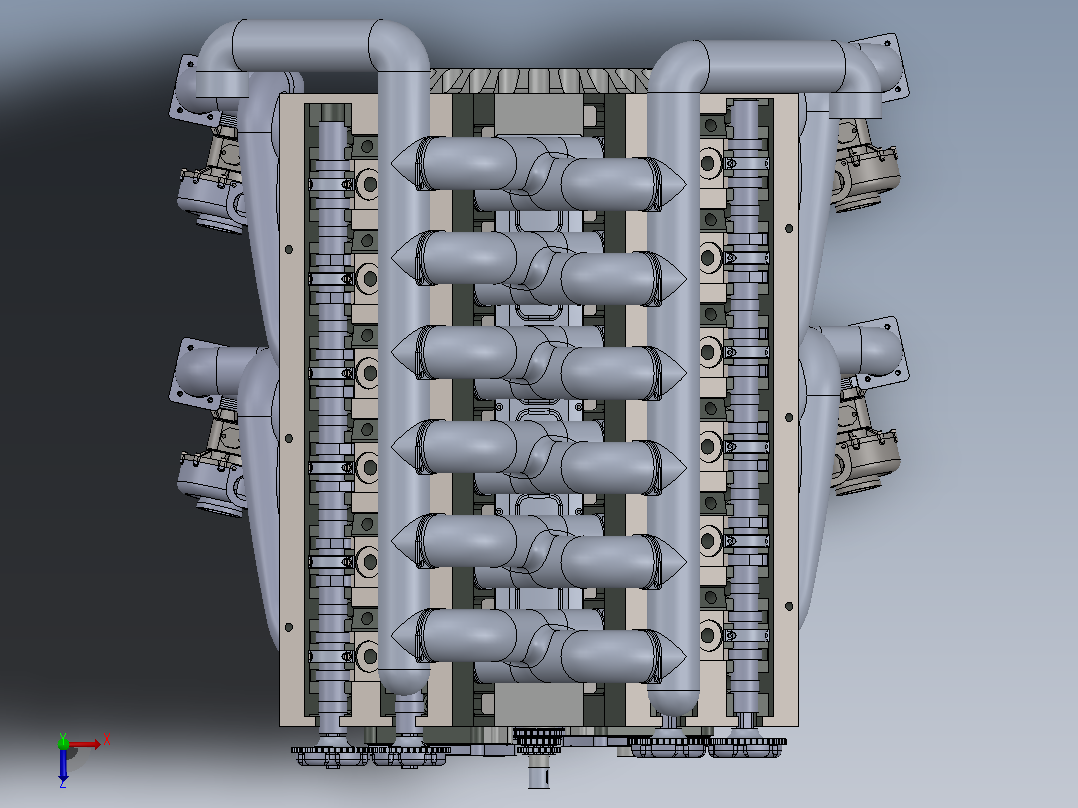

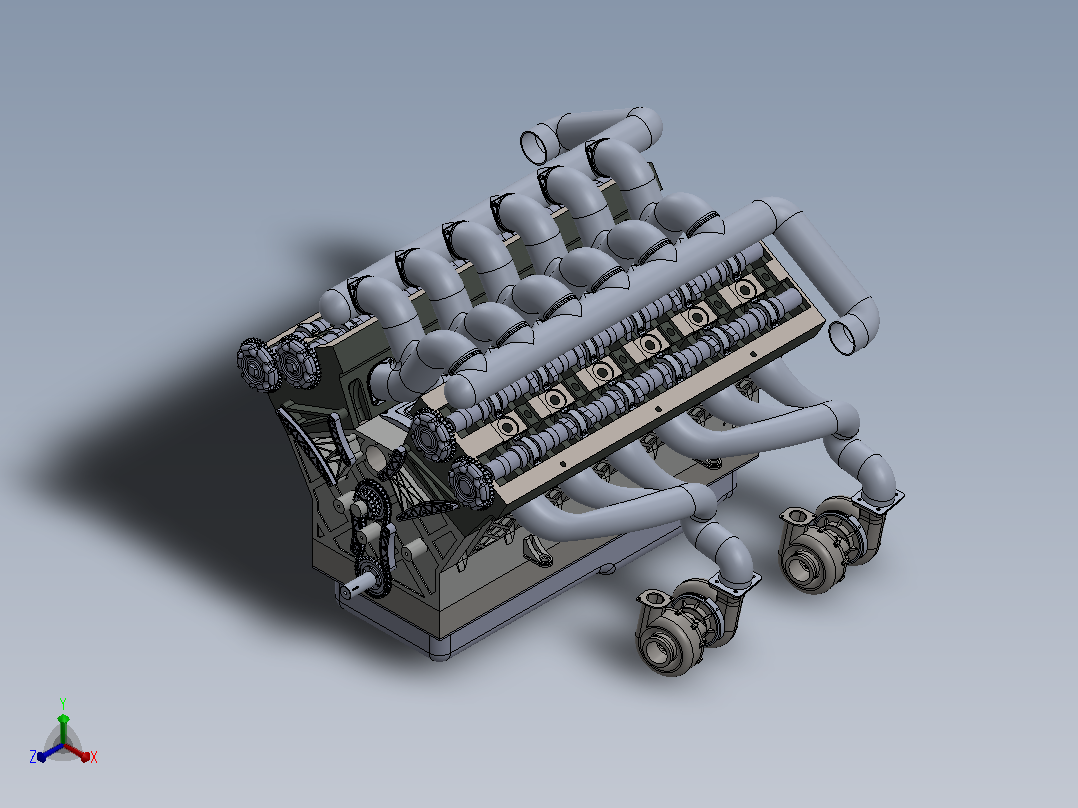

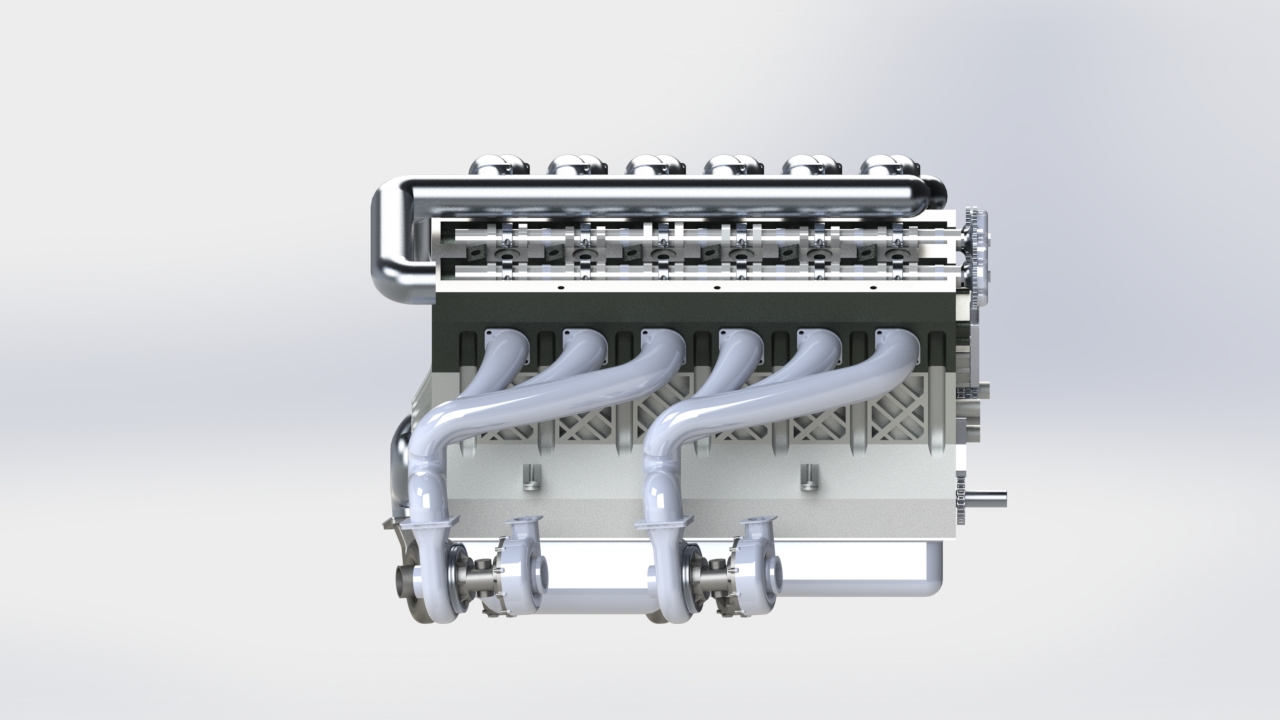

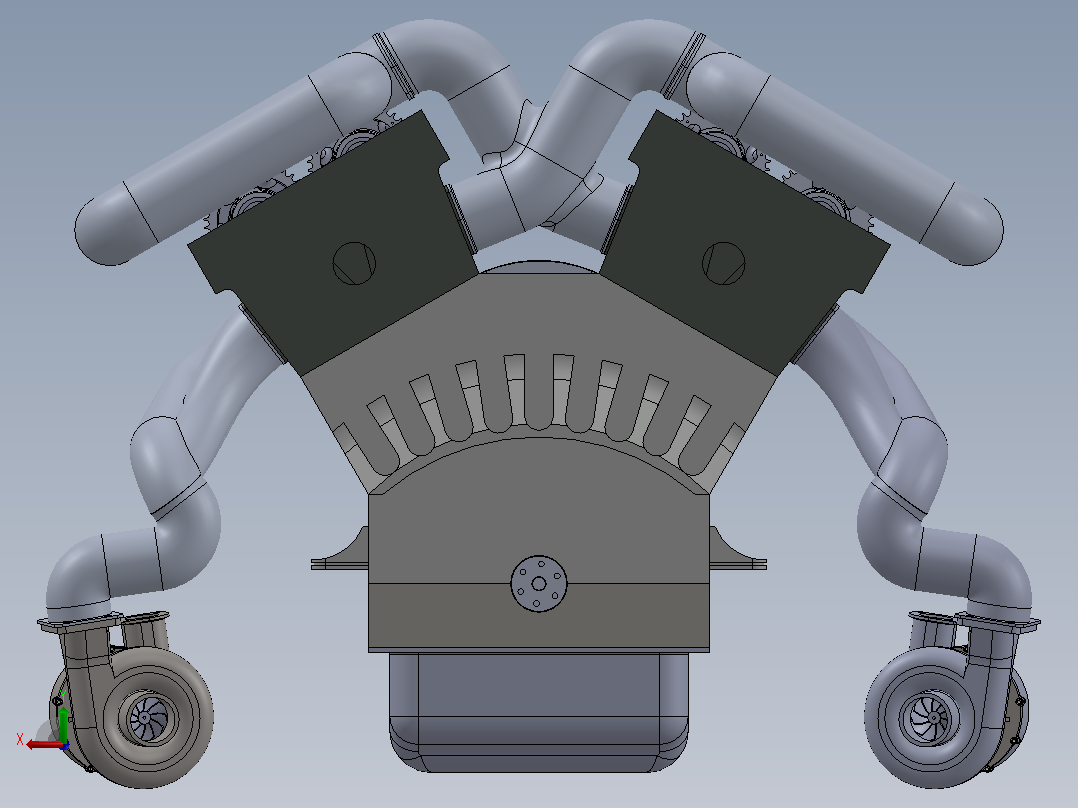

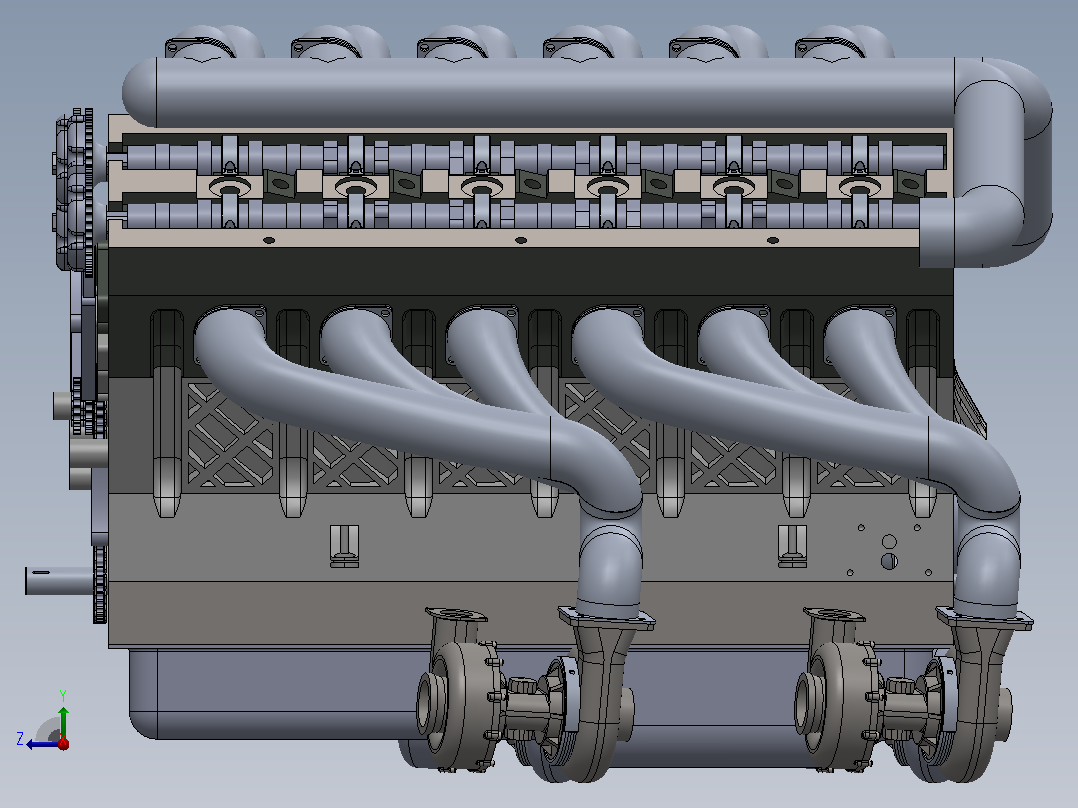

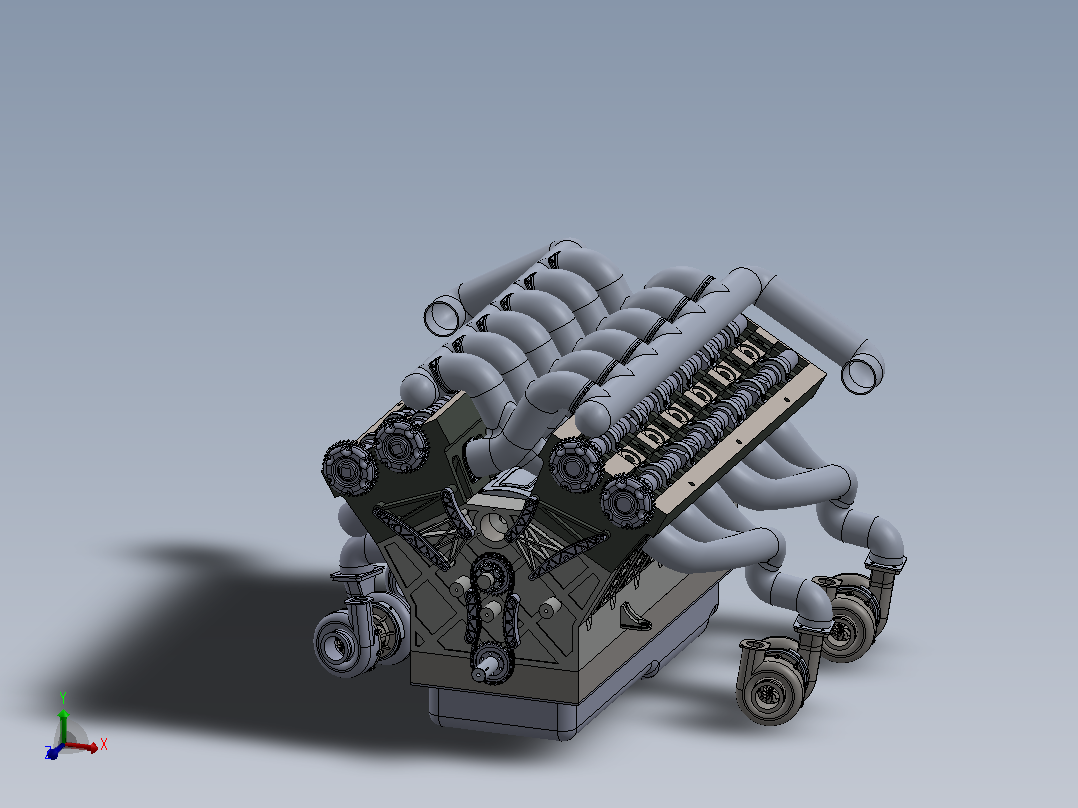

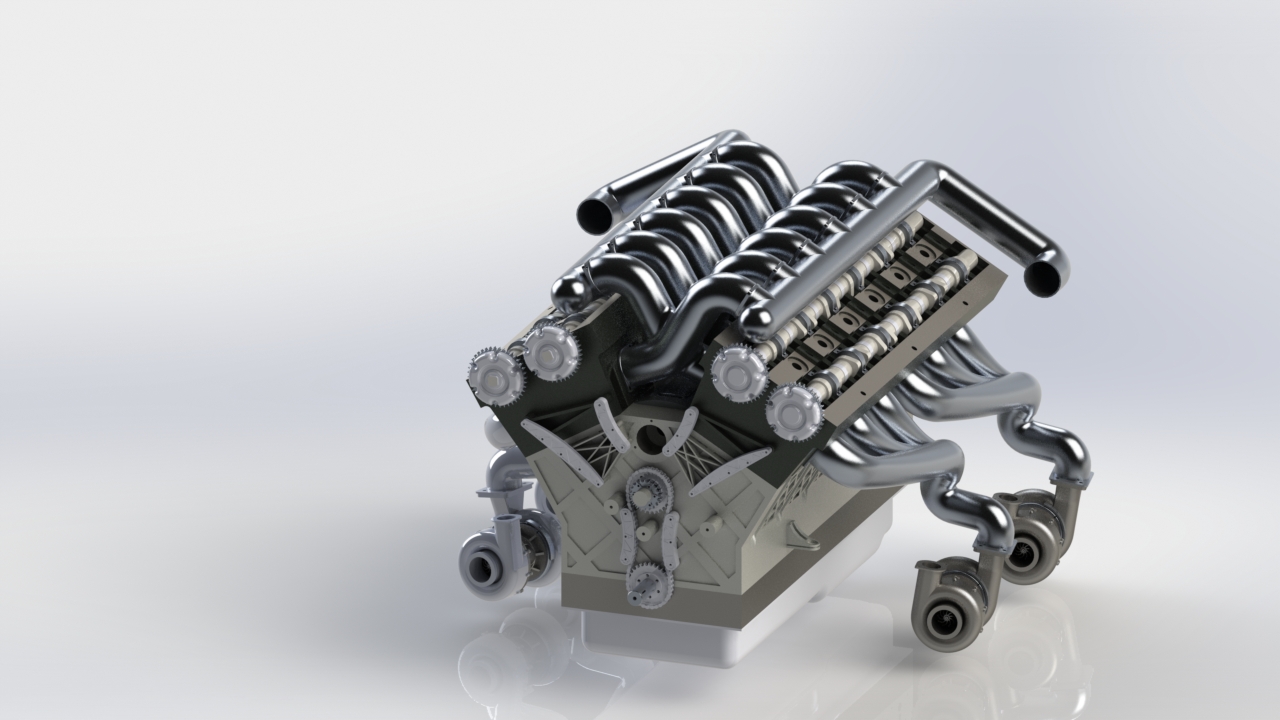

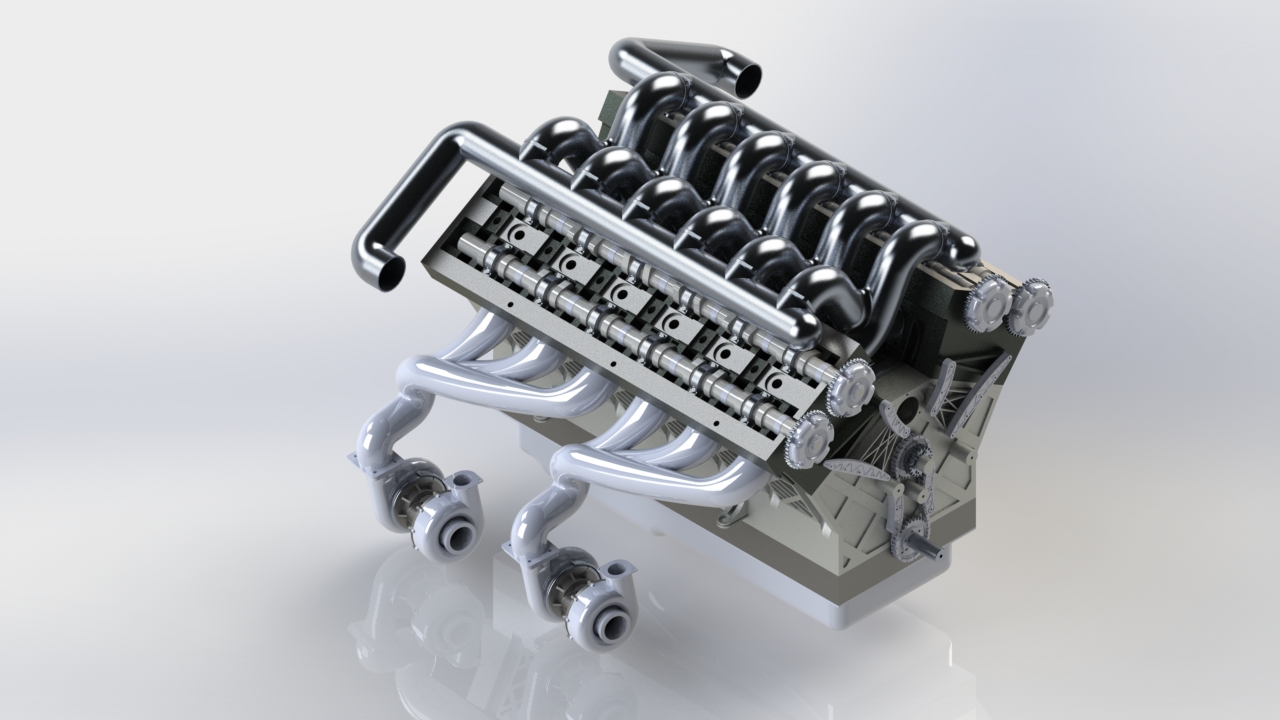

涡轮增压V12 发动机设计stl,SolidWorks 三维模型
三维机械图纸名称为：涡轮增压V12 发动机设计，属于交通运输，车辆相关分类，软件为stl,SolidWorks, 三维模型格式为stl,sldasm，可在线预览，可编辑，可供设计参考
模型参数
模型ID：10556396
模型大小：34.05M
软件版本： stl,SolidWorks
模型格式：stl,sldasm
是否可编辑：可修改，包括参数
上传时间：2026-08-14
图纸介绍：
下载模型
文件列表
1. Assy-Full_Components - Assy-Connecting_rod-1 Part2-Piston_connecting_rod_bearing-1.STL
33.9 KB
2. Assy-Full_Components - Assy-Connecting_rod-18 Part2-Piston_connecting_rod_bearing-1.STL
33.9 KB
3. Assy-Full_Components - Assy-Connecting_rod-18 prevailing torque nut style 1 insert_din-3.STL
158 KB
4. Assy-Full_Components - Assy-Connecting_rod-18 socket head cap screw_din-1.STL
105 KB
5. Assy-Full_Components - Assy-Connecting_rod-19 Part2-Piston_rod-1.STL
1010 KB
6. Assy-Full_Components - Assy-Connecting_rod-19 prevailing torque nut style 1 insert_din-4.STL
158 KB
7. Assy-Full_Components - Assy-Connecting_rod-19 socket head cap screw_din-1.STL
105 KB
8. Assy-Full_Components - Assy-Connecting_rod-2 prevailing torque nut style 1 insert_din-3.STL
158 KB
9. Assy-Full_Components - Assy-Connecting_rod-2 socket head cap screw_din-1.STL
105 KB
10. Assy-Full_Components - Assy-cylinder_head-valve-1 Assy-valve01-1 Part7-Valve01-2.STL
82.9 KB
11. Assy-Full_Components - Assy-cylinder_head-valve-1 slotted cheese head screw_din-3.STL
76.6 KB
12. Assy-Full_Components - Assy-turbo-compressor-3 Part14-turbo_compressor_cover-1.STL
1.11 MB
13. Assy-Full_Components - Assy-turbo-compressor-3 Part15-turbo_compressor_wheel-1.STL
763 KB
14. Assy-Full_Components - Assy-turbo-compressor-3 Part16-turbo_v_band_clamp-1.STL
418 KB
15. Assy-Full_Components - Assy-turbo-compressor-3 Part17-turbo_bricket-1.STL
469 KB
16. Assy-Full_Components - Assy-turbo-compressor-3 Part18-compressor_cover-custom-1.STL
791 KB
17. Assy-Full_Components - Assy-turbo-compressor-3 Part19-turbo_wheel_shaft-1.STL
571 KB
18. Assy-Full_Components - Assy-turbo-compressor-3 socket head cap screw 4762_din-2.STL
136 KB
19. Assy-Full_Components - Assy-turbo-compressor-kanan-1 Part14-turbo_compressor_cover-mirror1-2.STL
791 KB
20. Assy-Full_Components - Assy-turbo-compressor-kanan-2 Part19-turbo_wheel_shaft-1.STL
571 KB
21. Assy-Full_Components - Assy-valve01-1 Part9-Tapet01-2.STL
48.9 KB
22. Assy-Full_Components - Assy-valve01-13 Part7-Valve01-2.STL
82.9 KB
23. Assy-Full_Components - Assy-valve01-3 Part7-Valve01-2.STL
82.9 KB
24. Assy-Full_Components - Part1-Head_piston-18.STL
2.57 MB
25. Assy-Full_Components - Part10-Seat_ring01-1.STL
34.8 KB
26. Assy-Full_Components - Part11-Cam-shaft_updated-1.STL
367 KB
27. Assy-Full_Components - Part12-Pipe_head-1.STL
1.06 MB
28. Assy-Full_Components - Part13-Pipe_Cylinder_block_coba3-1.STL
1.5 MB
29. Assy-Full_Components - Part20-Crankshaft_bearing_case-1.STL
126 KB
30. Assy-Full_Components - Part23-Camshaft_bearing-cap-6.STL
270 KB
31. Assy-Full_Components - Part24-Crankshaft_whell-1.STL
243 KB
32. Assy-Full_Components - Part25-Pinion_DP38-1.STL
244 KB
33. Assy-Full_Components - Part26-Cover_water-tank-1.STL
2.67 MB
34. Assy-Full_Components - Part27-1.STL
161 KB
35. Assy-Full_Components - Part28-1.STL
506 KB
36. Assy-Full_Components - Part29a-chain_inner-1.STL
59.7 KB
37. Assy-Full_Components - Part3-Cylinder_block-1.STL
3.94 MB
38. Assy-Full_Components - Part4-Sleeve_valve-3.STL
30.2 KB
39. Assy-Full_Components - Part8-Valve_guide01-3.STL
29.1 KB
40. Assy-Full_Components.SLDASM
9.97 MB
41. Read Me !.txt
338 B
42. full-assy_view1.JPG
365 KB
43. full-assy_view2.JPG
399 KB
44. full-assy_view3.JPG
344 KB
45. full-assy_view4.JPG
323 KB
46. full-assy_view5.JPG
406 KB
