FS-MXF20气动滑台气缸[FS-HMXF20-30-M9P s]SolidWorks 三维模型
三维机械图纸名称为：FS-MXF20气动滑台气缸[FS-HMXF20-30-M9P s]，属于设备部件，液压气动元件分类，软件为SolidWorks, 三维模型格式为sldasm,sldprt，可在线预览，可编辑，可供设计参考

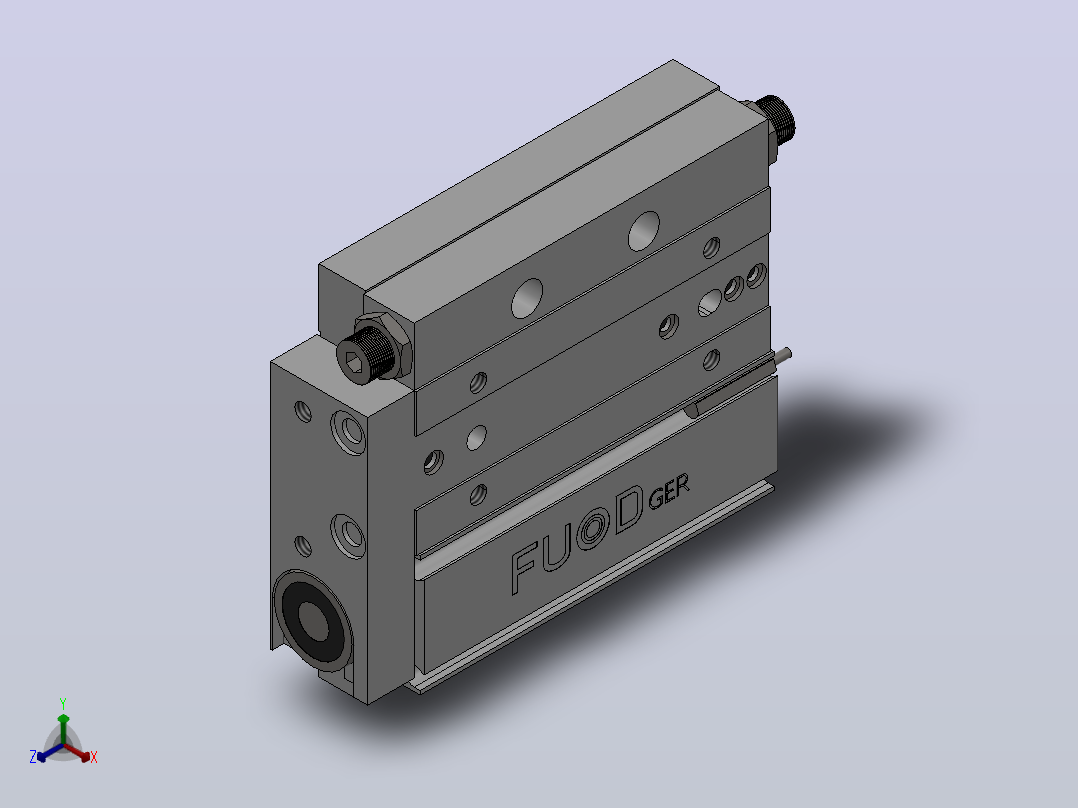

![FS-MXF20气动滑台气缸[FS-HMXF20-30-M9P s]主视图](https://image.shanhu3d.com/images/101115493701/20260623/10510981_01_home.png!format.webp)

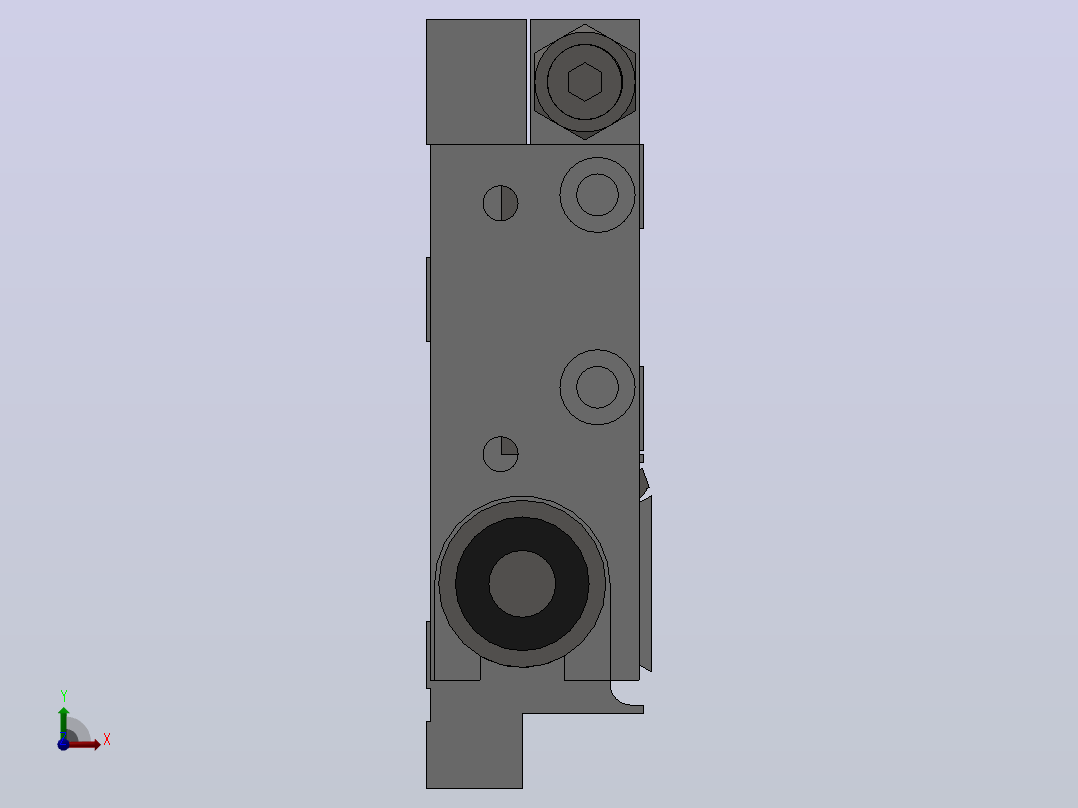

![FS-MXF20气动滑台气缸[FS-HMXF20-30-M9P s]前视图](https://image.shanhu3d.com/images/101115493701/20260623/10510981_02_front.png!format.webp)

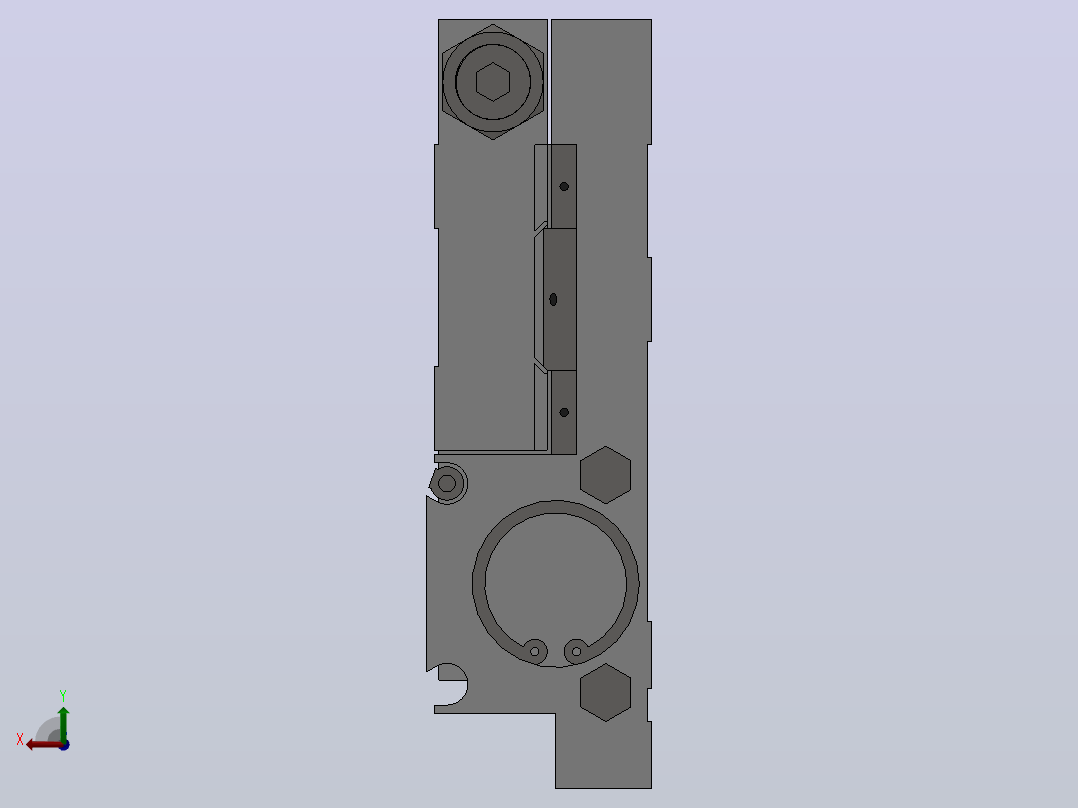

![FS-MXF20气动滑台气缸[FS-HMXF20-30-M9P s]后视图](https://image.shanhu3d.com/images/101115493701/20260623/10510981_03_back.png!format.webp)

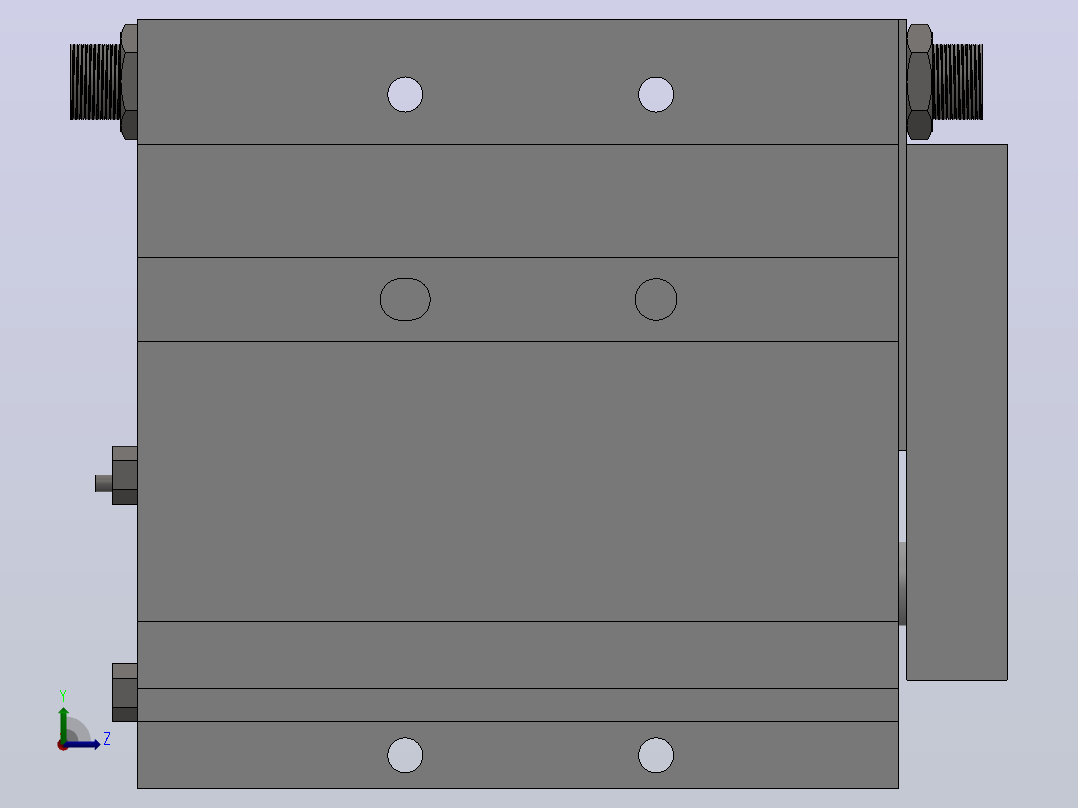

![FS-MXF20气动滑台气缸[FS-HMXF20-30-M9P s]左视图](https://image.shanhu3d.com/images/101115493701/20260623/10510981_04_left.png!format.webp)

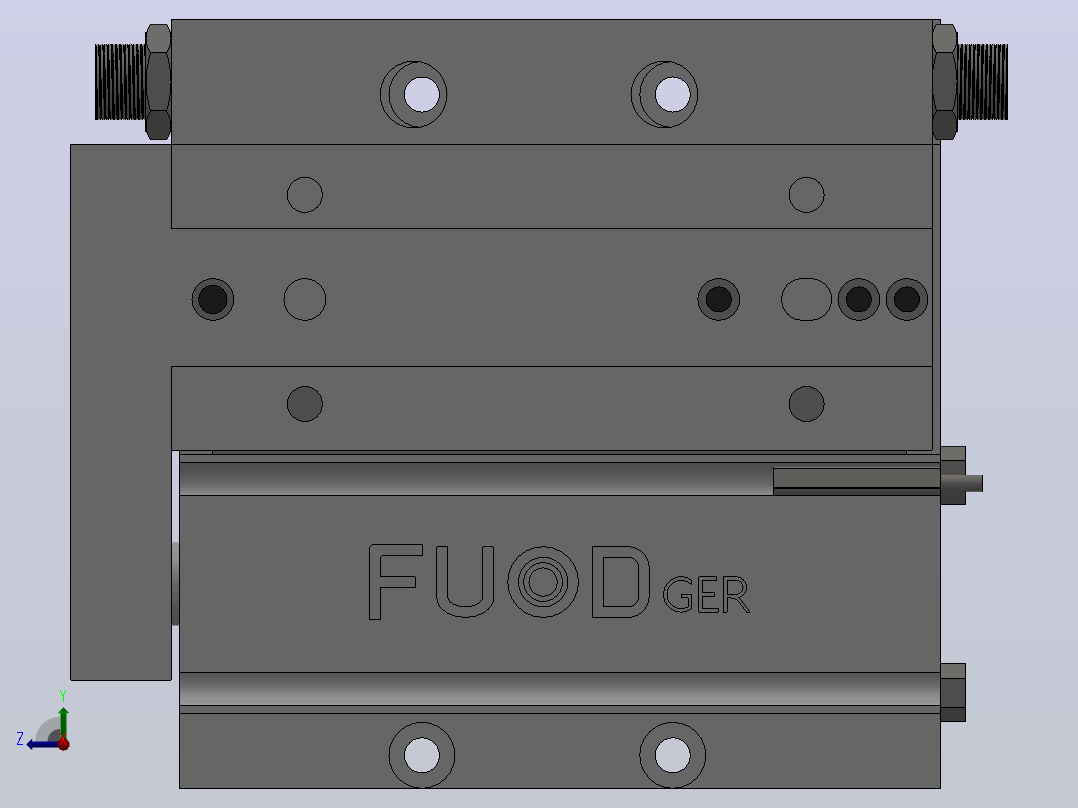

![FS-MXF20气动滑台气缸[FS-HMXF20-30-M9P s]右视图](https://image.shanhu3d.com/images/101115493701/20260623/10510981_05_right.png!format.webp)

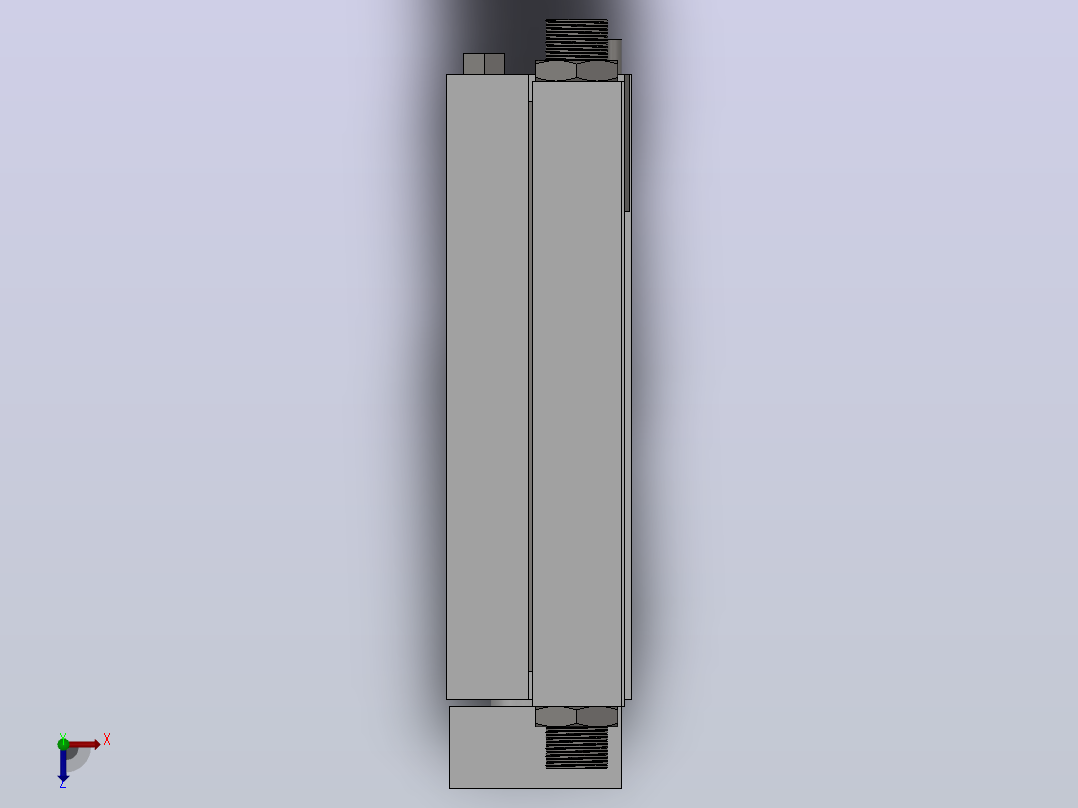

![FS-MXF20气动滑台气缸[FS-HMXF20-30-M9P s]俯视图](https://image.shanhu3d.com/images/101115493701/20260623/10510981_06_top.png!format.webp)

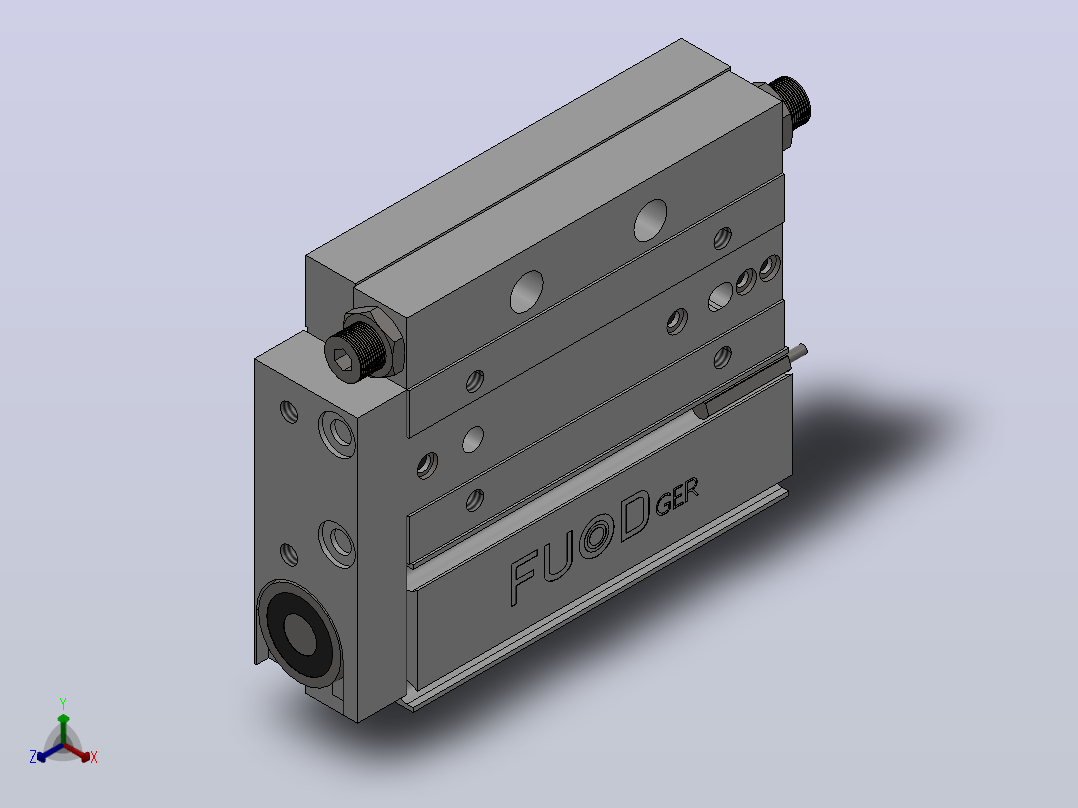

![FS-MXF20气动滑台气缸[FS-HMXF20-30-M9P s]正等轴测图](https://image.shanhu3d.com/images/101115493701/20260623/10510981_08_IsoMetric.png!format.webp)
![FS-MXF20气动滑台气缸[FS-HMXF20-30-M9P s]主视缩略图](https://image.shanhu3d.com/images/101115493701/20260623/10510981_01_home.png!format_w_520.webp)
![FS-MXF20气动滑台气缸[FS-HMXF20-30-M9P s]前视缩略图](https://image.shanhu3d.com/images/101115493701/20260623/10510981_02_front.png!format_w_520.webp)
![FS-MXF20气动滑台气缸[FS-HMXF20-30-M9P s]后视缩略图](https://image.shanhu3d.com/images/101115493701/20260623/10510981_03_back.png!format_w_520.webp)
![FS-MXF20气动滑台气缸[FS-HMXF20-30-M9P s]左视缩略图](https://image.shanhu3d.com/images/101115493701/20260623/10510981_04_left.png!format_w_520.webp)
![FS-MXF20气动滑台气缸[FS-HMXF20-30-M9P s]右视缩略图](https://image.shanhu3d.com/images/101115493701/20260623/10510981_05_right.png!format_w_520.webp)
![FS-MXF20气动滑台气缸[FS-HMXF20-30-M9P s]俯视缩略图](https://image.shanhu3d.com/images/101115493701/20260623/10510981_06_top.png!format_w_520.webp)
![FS-MXF20气动滑台气缸[FS-HMXF20-30-M9P s]正等轴测缩略图](https://image.shanhu3d.com/images/101115493701/20260623/10510981_08_IsoMetric.png!format_w_520.webp)
模型参数
模型ID：10510981
模型大小：2.52M
软件版本： SolidWorks
模型格式：sldasm,sldprt
是否可编辑：可修改，包括参数
上传时间：2026-06-23
图纸介绍：
免费下载
文件列表
1. FS-MXF20气动滑台气缸[FS-HMXF20-30-M9P s].sldasm
447 KB
2. FS-MXF20气动滑台气缸[FS-HMXF20-30-M9P s]_机体.sldprt
367 KB
3. FS-MXF20气动滑台气缸[FS-HMXF20-30-M9P s]_活塞.sldprt
693 KB
4. 机体.SLDPRT
367 KB
5. 活塞.SLDPRT
692 KB
