遥控直升机SolidWorks 三维模型

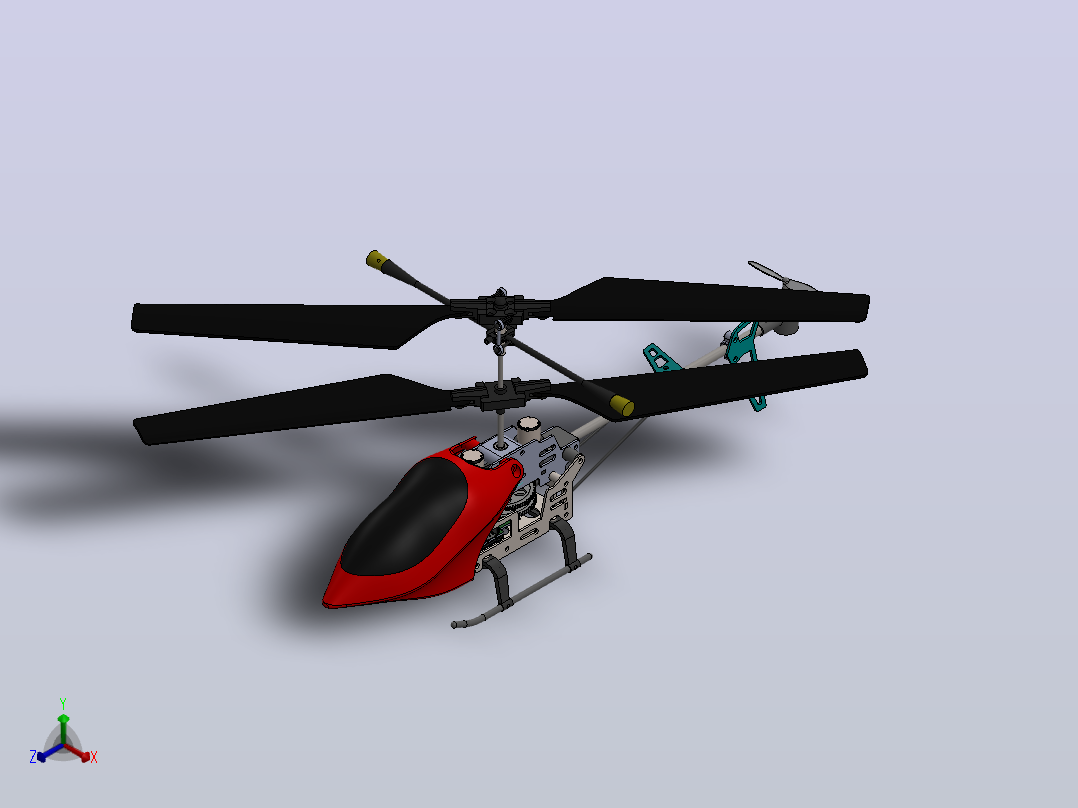

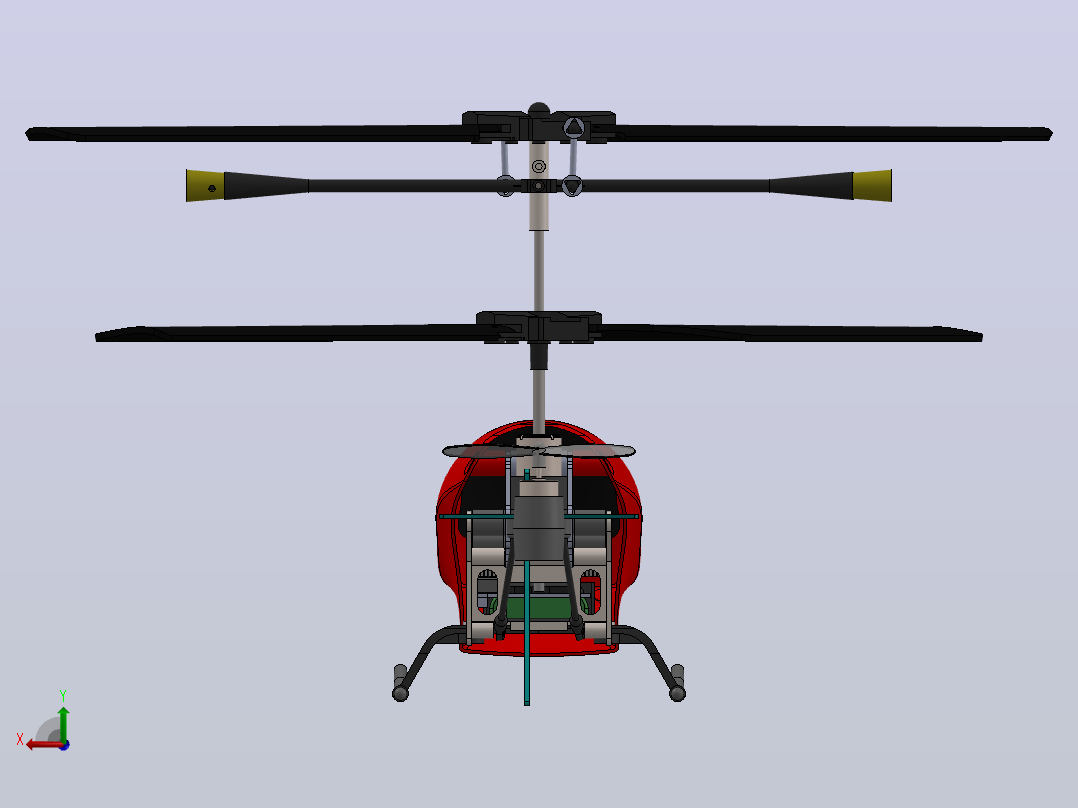

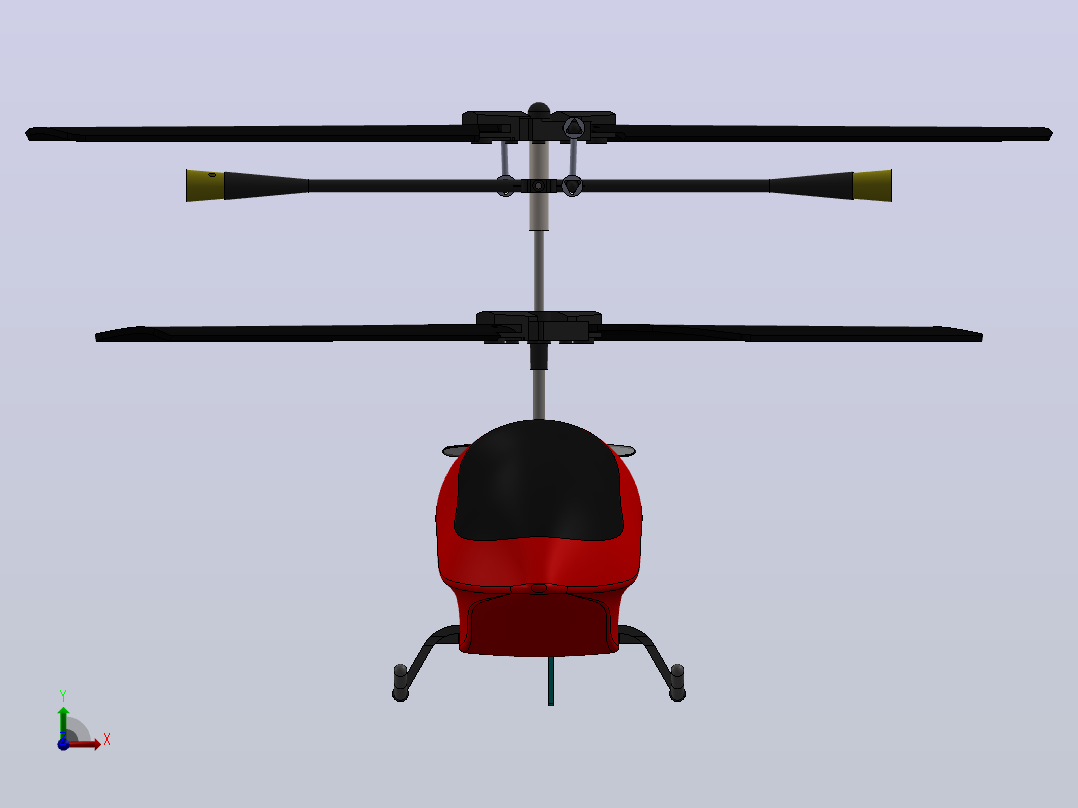

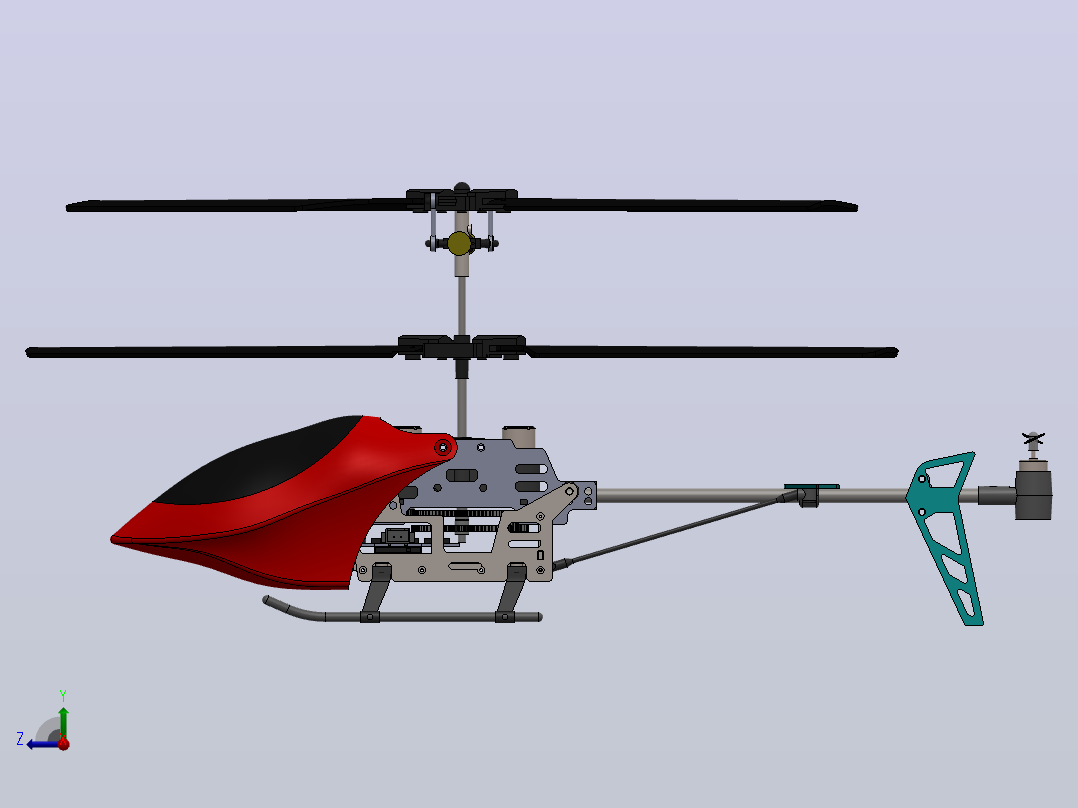

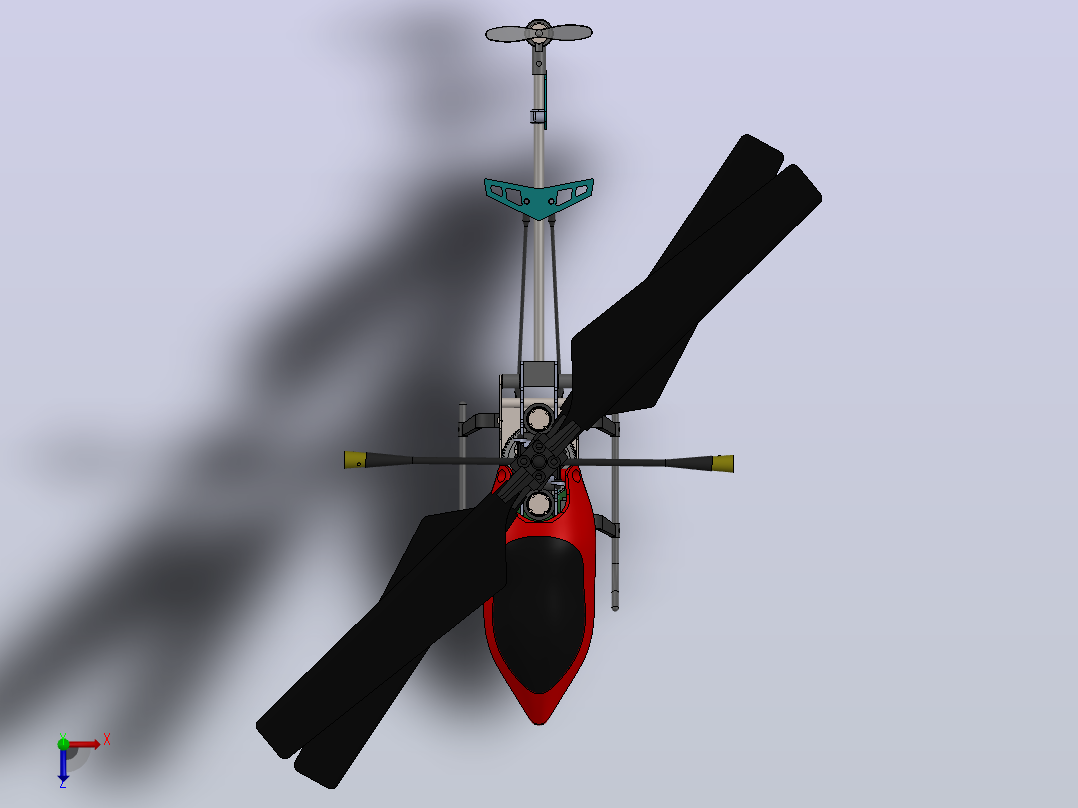

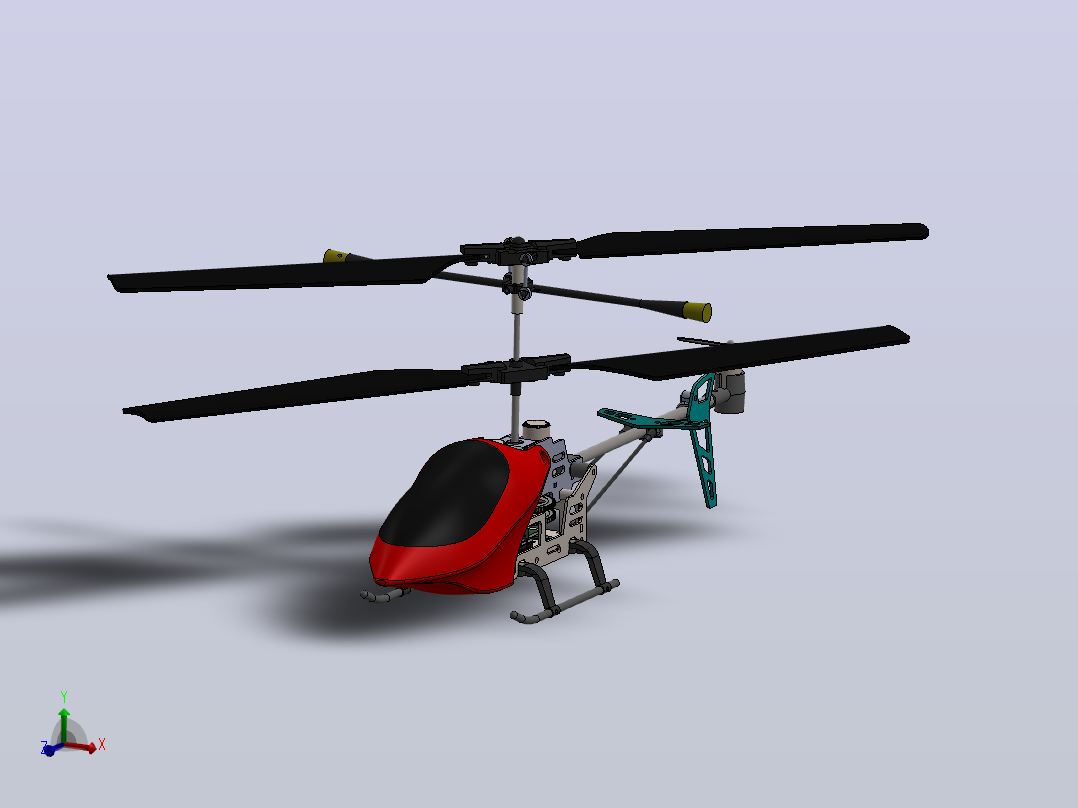

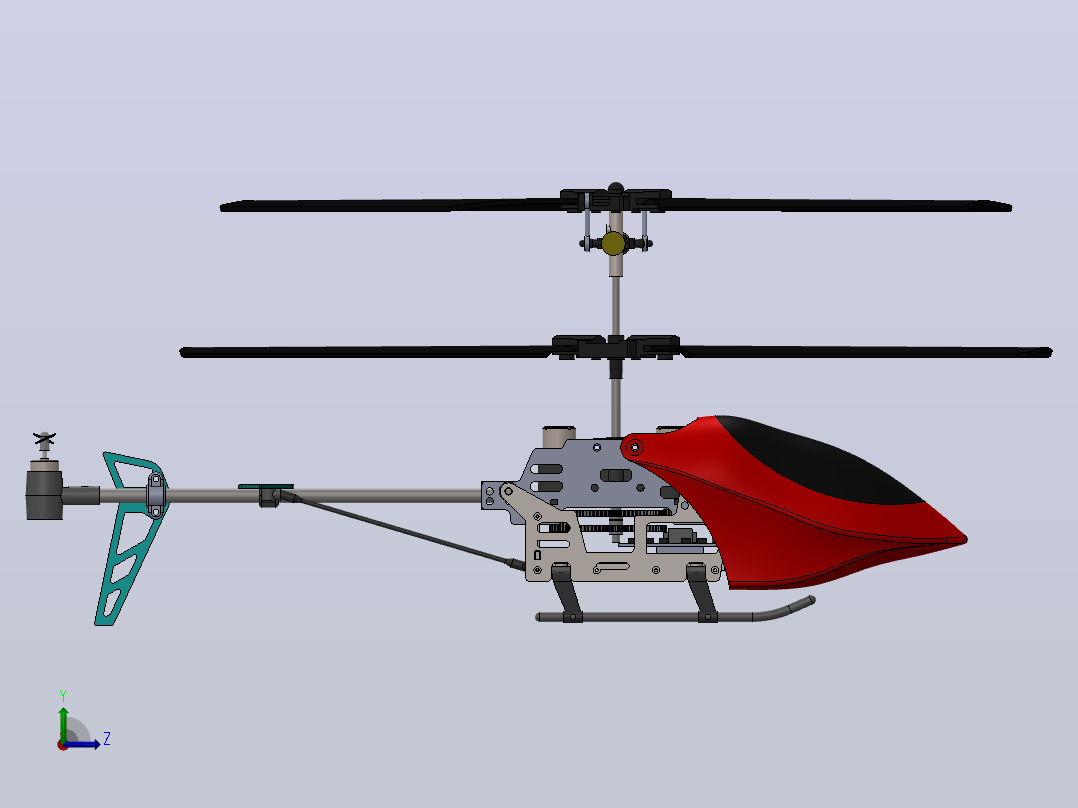

三维机械图纸名称为：遥控直升机，属于交通运输，航空航天分类，软件为SolidWorks, 三维模型格式为sldasm,sldprt,pdf，可在线预览，可编辑，可供设计参考
模型参数
模型ID：10497352
模型大小：65.87M
软件版本： SolidWorks
模型格式：sldasm,sldprt,pdf
是否可编辑：可修改，包括参数
上传时间：2026-06-11
图纸介绍：
下载模型
文件列表
1. 1st Sub-assembly (Helicopter upper section with blades).SLDASM
319 KB
2. 1st Sub-assembly (Helicopter upper section with blades).SLDASM
319 KB
3. 1st motor.SLDPRT
81.6 KB
4. 1st motor.SLDPRT
81.6 KB
5. 2nd Sub-assembly (Gear Box).SLDASM
722 KB
6. 2nd Sub-assembly (Gear Box).SLDASM
722 KB
7. 2nd motor.SLDPRT
84.2 KB
8. 2nd motor.SLDPRT
84.2 KB
9. 3rd Sub-assembly (Landing frame and electronic circuit).SLDASM
388 KB
10. 3rd Sub-assembly (Landing frame and electronic circuit).SLDASM
388 KB
11. 5th Sub-assembly (Rear Section).SLDASM
291 KB
12. 5th Sub-assembly (Rear Section).SLDASM
291 KB
13. Back Motor Holder-Housing.SLDPRT
120 KB
14. Back Motor Holder-Housing.SLDPRT
120 KB
15. Back Motor.SLDPRT
97.6 KB
16. Back Motor.SLDPRT
97.6 KB
17. Back Propeller.SLDPRT
162 KB
18. Back Propeller.SLDPRT
162 KB
19. Back Rod.SLDPRT
92.5 KB
20. Back Rod.SLDPRT
92.5 KB
21. Back Wing Mount-Connector.SLDPRT
192 KB
22. Back Wing Mount-Connector.SLDPRT
192 KB
23. Back Wing.SLDPRT
127 KB
24. Back Wing.SLDPRT
127 KB
25. Balance Weight.SLDPRT
82.5 KB
26. Balance Weight.SLDPRT
82.5 KB
27. Battery.SLDPRT
144 KB
28. Battery.SLDPRT
144 KB
29. Bearing Holder-Housing.SLDPRT
112 KB
30. Bearing Holder-Housing.SLDPRT
112 KB
31. Bearing.SLDPRT
431 KB
32. Bearing.SLDPRT
431 KB
33. Blade 1-Static 1-BenchMark-Solver.txt
39.3 KB
34. Blade 1-Static 1-BenchMark.txt
40.5 KB
35. Blade 1-Static 1.BMC
861 B
36. Blade 1-Static 1.CWR
11.2 MB
37. Blade 1-Static 1.LOG
522 B
38. Blade 1-Static 1.PGF
1.69 KB
39. Blade 1-Static 2-BenchMark-Solver.txt
29.6 KB
40. Blade 1-Static 2-BenchMark.txt
30.8 KB
41. Blade 1-Static 2.LOG
704 B
42. Blade 1-Static 2.PC0
2.89 MB
43. Blade 1-Static 2.PGF
2.54 KB
44. Blade 1-Static 3-BenchMark-Solver.txt
912 B
45. Blade 1-Static 3-BenchMark.txt
5.1 KB
46. Blade 1-Static 3.LOG
340 B
47. Blade 1.SLDPRT
151 KB
48. Blade 1.SLDPRT
161 KB
49. Blade 2.SLDPRT
175 KB
50. Blade 2.SLDPRT
175 KB
51. Blades 1 Holder.SLDPRT
310 KB
52. Blades 1 Holder.SLDPRT
310 KB
53. Blades 2 Holder.SLDPRT
201 KB
54. Blades 2 Holder.SLDPRT
201 KB
55. Blades Stabiliser.SLDPRT
192 KB
56. Blades Stabiliser.SLDPRT
192 KB
57. Body.SLDPRT
1.26 MB
58. Body.SLDPRT
718 KB
59. CAD Presentation.pptx
564 KB
60. CAD Presentation.pptx
564 KB
61. Charger Socket.SLDPRT
116 KB
62. Charger Socket.SLDPRT
116 KB
63. Chasis Support Panel 1.SLDPRT
258 KB
64. Chasis Support Panel 1.SLDPRT
258 KB
65. Chasis Support Panel 2.SLDPRT
197 KB
66. Chasis Support Panel 2.SLDPRT
197 KB
67. Chasis-Frame support-Bottom.SLDPRT
326 KB
68. Chasis-Frame support-Bottom.SLDPRT
326 KB
69. Chasis-Frame support-Side.SLDPRT
137 KB
70. Chasis-Frame support-Side.SLDPRT
137 KB
71. Fin Mount-Holder.SLDPRT
170 KB
72. Fin Mount-Holder.SLDPRT
170 KB
73. Fin-Side Wing.SLDPRT
144 KB
74. Fin-Side Wing.SLDPRT
144 KB
75. Final Assembly - Cross Section.PDF
92.9 KB
76. Final Assembly - Cross Section.PDF
92.9 KB
77. Final Assembly - Cross Section.SLDDRW
1.44 MB
78. Final Assembly - Cross Section.SLDDRW
1.44 MB
79. Final Assembly - Render.SLDASM
1.86 MB
80. Final Assembly - Render.SLDASM
1.86 MB
81. Final Assembly Exploded View BOM.PDF
108 KB
82. Final Assembly Exploded View BOM.PDF
108 KB
83. Final Assembly Exploded View BOM.SLDDRW
430 KB
84. Final Assembly Exploded View BOM.SLDDRW
430 KB
85. Final Assembly Exploded View.PDF
313 KB
86. Final Assembly Exploded View.PDF
313 KB
87. Final Assembly Exploded View.SLDASM
1.87 MB
88. Final Assembly Exploded View.SLDASM
1.87 MB
89. Final Assembly Exploded View.SLDDRW
1.88 MB
90. Final Assembly Exploded View.SLDDRW
1.88 MB
91. Final Assembly.PDF
100 KB
92. Final Assembly.PDF
100 KB
93. Final Assembly.SLDASM
1.85 MB
94. Final Assembly.SLDASM
1.93 MB
95. Final Assembly.SLDDRW
434 KB
96. Final Assembly.SLDDRW
434 KB
97. Final Assembly.avi
9.86 MB
98. Front Panel.SLDPRT
192 KB
99. Front Panel.SLDPRT
192 KB
100. Gear 1.SLDPRT
499 KB
101. Gear 1.SLDPRT
499 KB
102. Gear 2.SLDPRT
496 KB
103. Gear 2.SLDPRT
496 KB
104. Gear 3.SLDPRT
149 KB
105. Gear 3.SLDPRT
149 KB
106. Landing Arm.SLDPRT
161 KB
107. Landing Arm.SLDPRT
161 KB
108. Landing Leg.SLDPRT
69.9 KB
109. Landing Leg.SLDPRT
69.9 KB
110. Motors Holder-Housing.SLDPRT
209 KB
111. Motors Holder-Housing.SLDPRT
209 KB
112. PCB_Electronic Circuit.SLDPRT
115 KB
113. PCB_Electronic Circuit.SLDPRT
115 KB
114. Panel Spacer.SLDPRT
76.5 KB
115. Panel Spacer.SLDPRT
76.5 KB
116. PerformanceLog.txt
1.15 KB

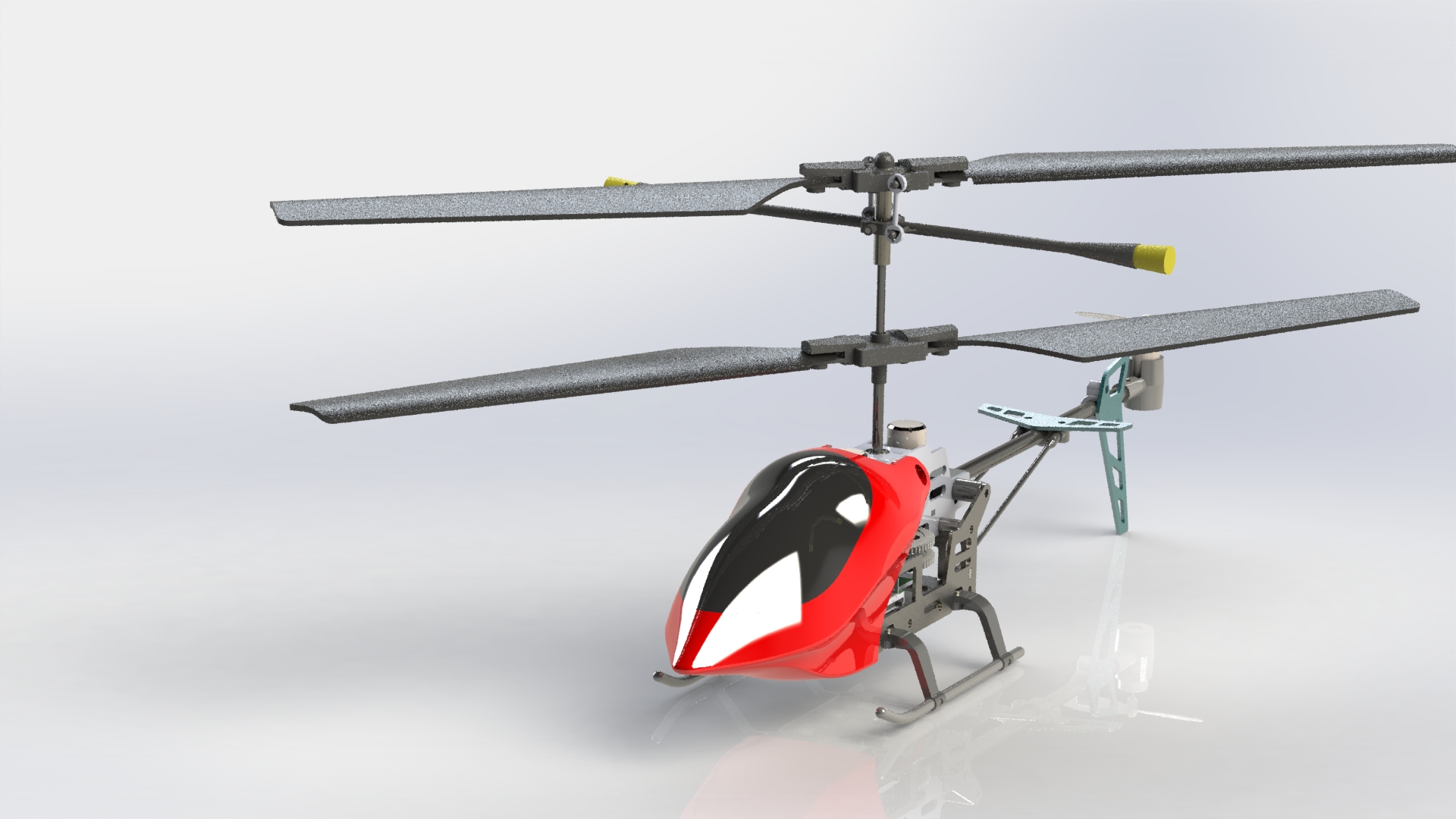

117. RC Helicopter Render.JPG
514 KB
118. Shaft 1.SLDPRT
71.5 KB
119. Shaft 1.SLDPRT
71.5 KB
120. Shaft 2.SLDPRT
123 KB
121. Shaft 2.SLDPRT
123 KB
122. Shaft 3.SLDPRT
42.5 KB
123. Shaft 3.SLDPRT
42.5 KB
124. Shaft 4.SLDPRT
46 KB
125. Shaft 4.SLDPRT
46 KB
126. Stabiliser Stem-Connector.SLDPRT
115 KB
127. Stabiliser Stem-Connector.SLDPRT
115 KB
128. Tail Connector_Expand support.SLDPRT
110 KB
129. Tail Connector_Expand support.SLDPRT
110 KB
130. Tail Shaft.SLDPRT
66.8 KB
131. Tail Shaft.SLDPRT
66.8 KB
132. X.BAT
1.07 KB
