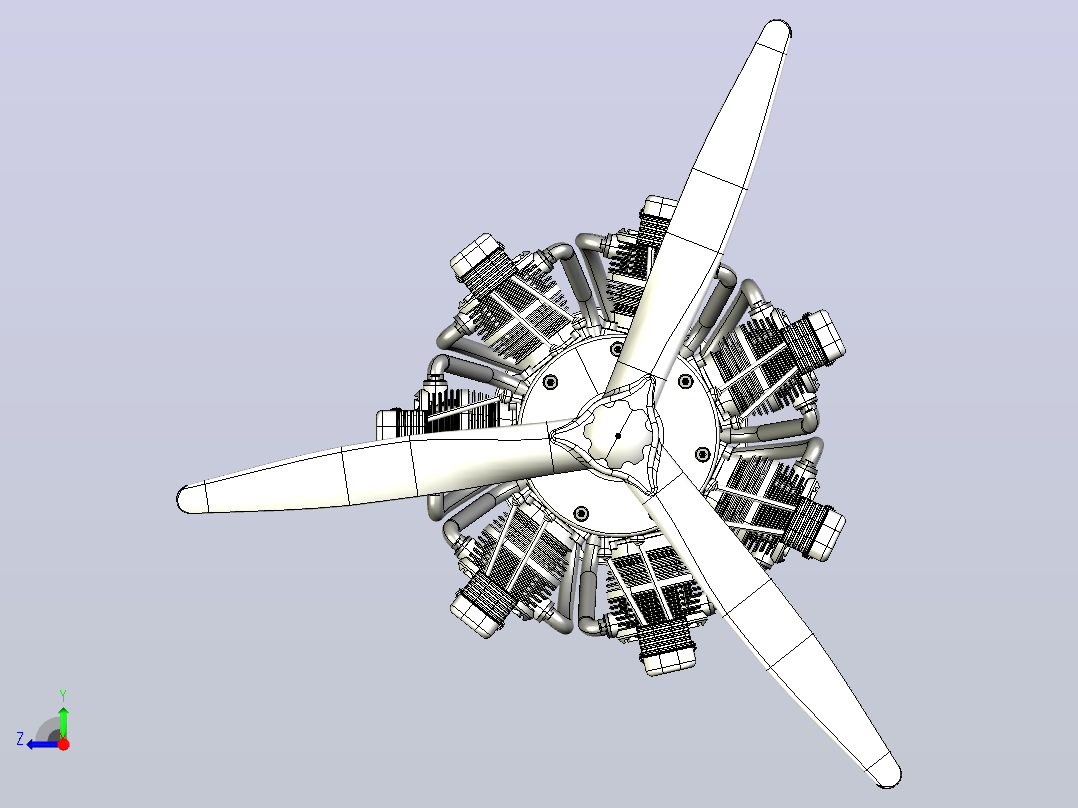

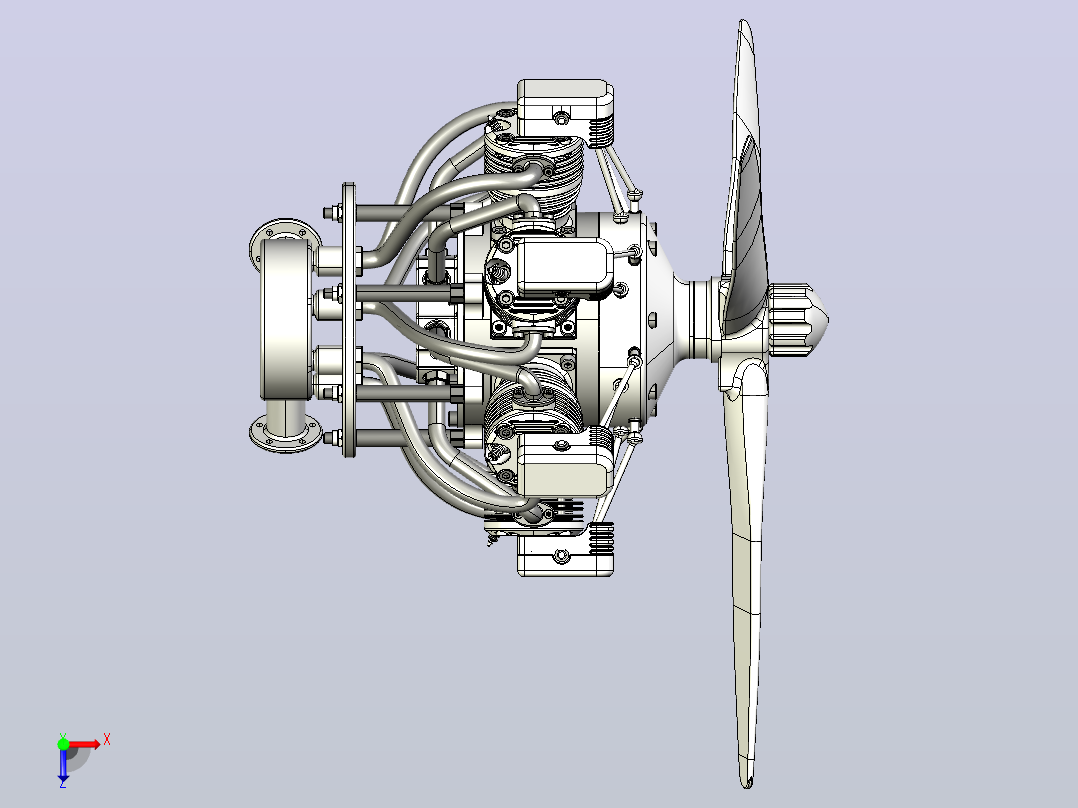

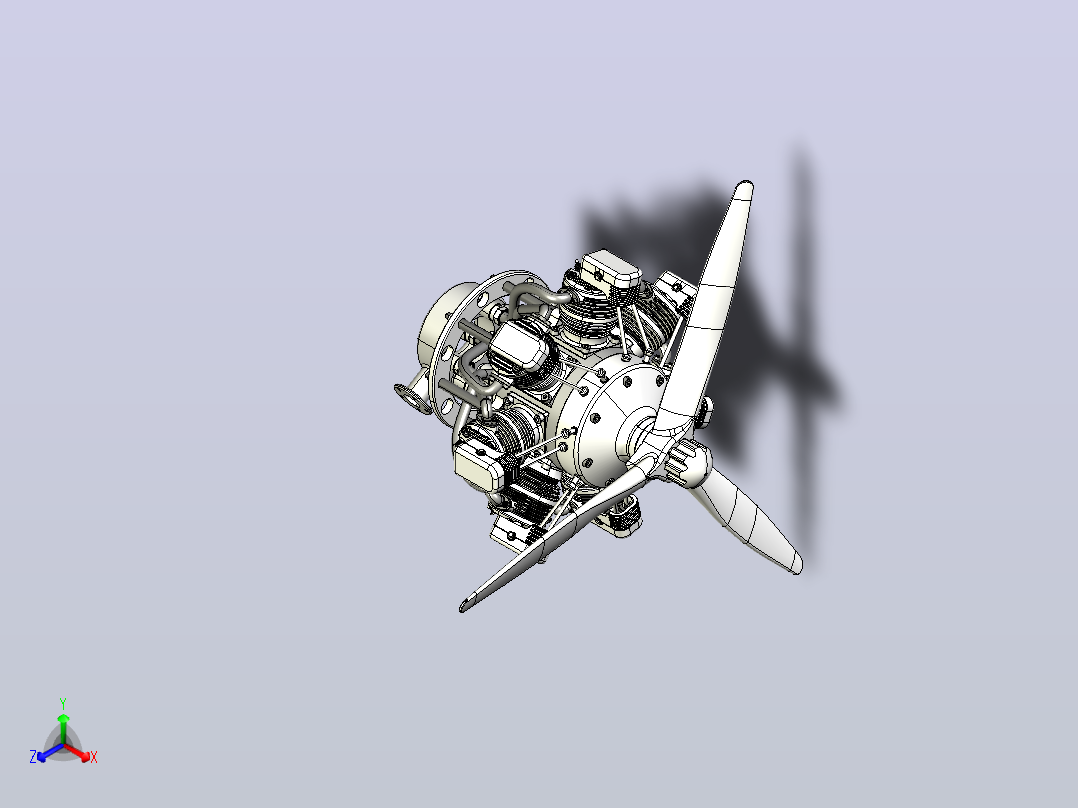

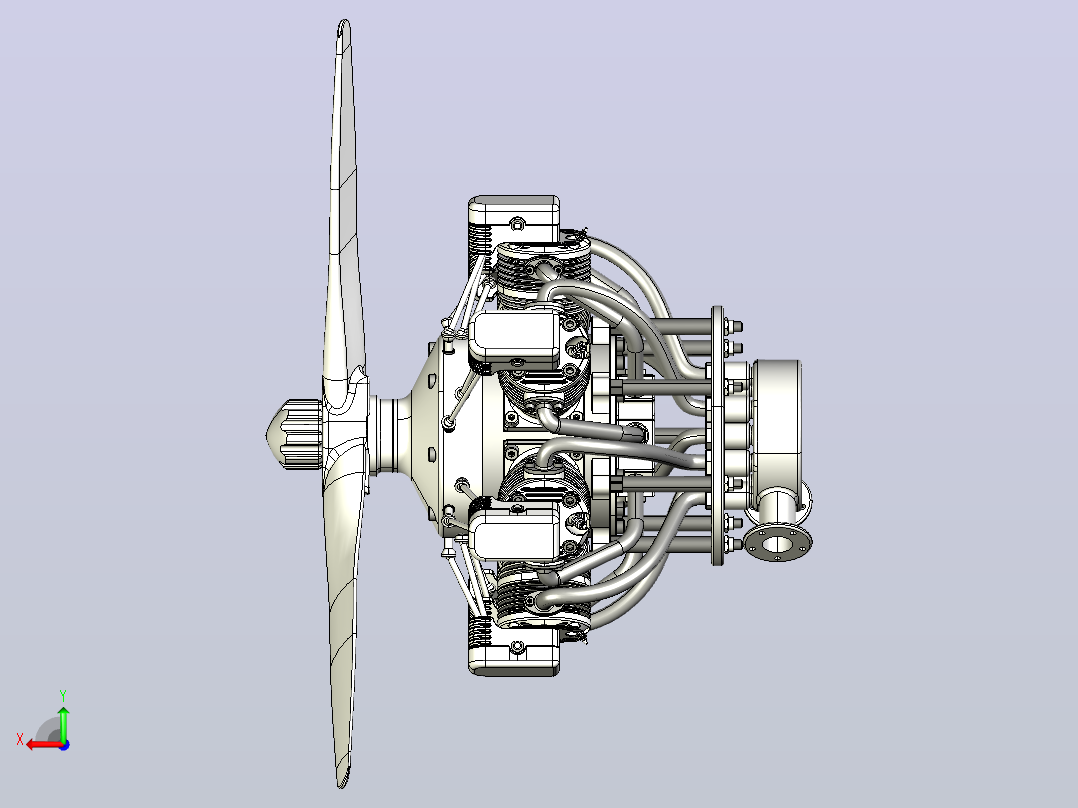

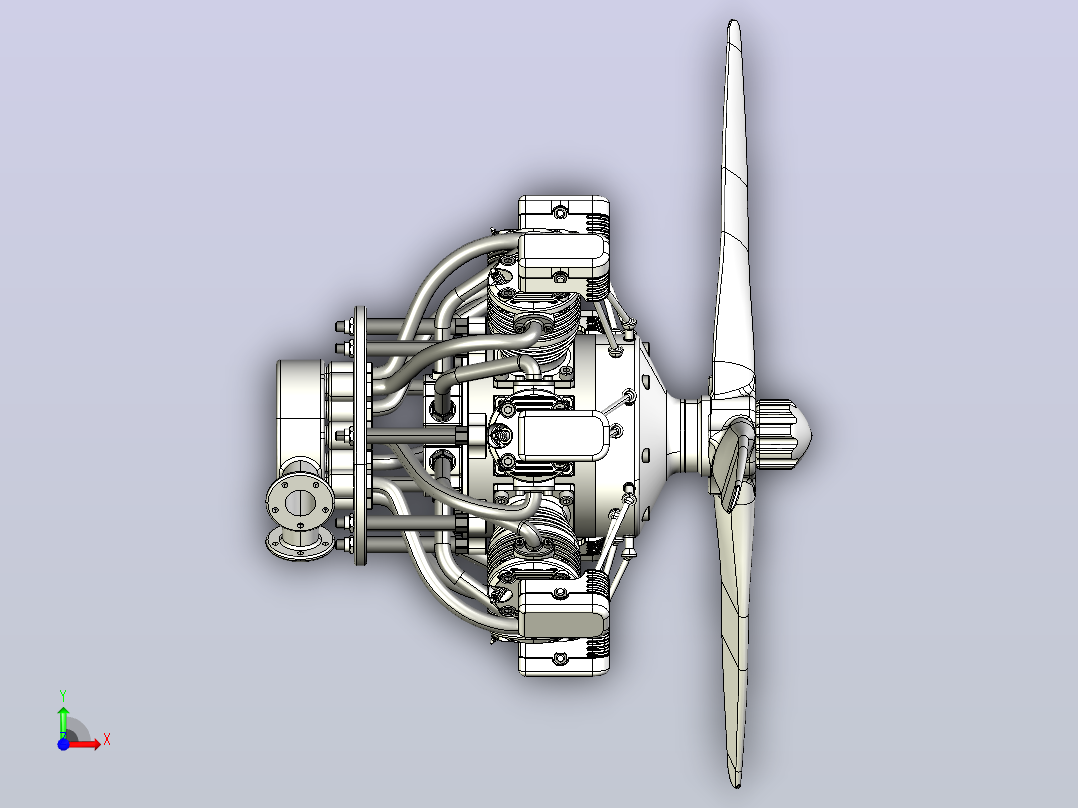

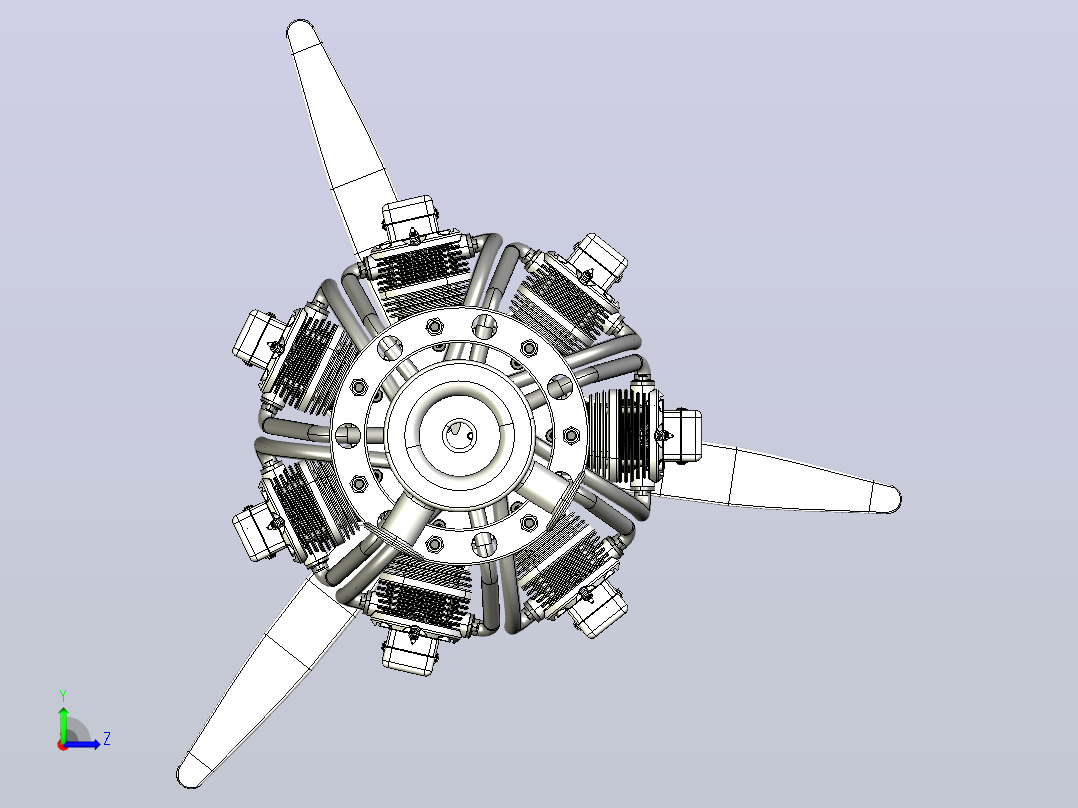

径向飞机发动机catia 三维模型
三维机械图纸名称为：径向飞机发动机，属于交通运输，车辆相关分类，软件为catia, 三维模型格式为，可在线预览，可编辑，可供设计参考
模型参数
模型ID：10459843
模型大小：10.53M
软件版本： catia
是否可编辑：可修改，包括参数
上传时间：2026-05-12
图纸介绍：
下载模型
文件列表
1. Abgas-Dichtung-puffer.CATPart
59.6 KB
2. Achse Planetenrad.CATPart
83.1 KB
3. All Piston assembly.CATProduct
61.6 KB
4. Auspuff gaskollektor.CATPart
702 KB
5. Bearing ID15 OD35.CATPart
275 KB
6. Bearing OD17.5.CATPart
203 KB
7. Bearing at Planet Gear.CATPart
38.5 KB
8. Bearing at crank.CATPart
272 KB
9. Bearing at front shaft.CATPart
190 KB
10. Bolt at Cylinder head.CATPart
119 KB
11. Bolt at Gasket.CATPart
77.3 KB
12. Bolts at last.CATPart
454 KB
13. Central cyn block.CATPart
1.39 MB
14. Connecting Rod.CATPart
316 KB
15. Crank with Conn rodl.CATPart
964 KB
16. CrankPin.CATPart
50.5 KB
17. Cyl Head Cover.CATPart
396 KB
18. Cylinder Assembly.CATProduct
195 KB
19. Cylinder Bush.CATPart
88.4 KB
20. Cylinder.CATPart
2.17 MB
21. DIN 617 SKF - SKF NA 4900 RS.CATPart
272 KB
22. DIN 618 - HK0609 - 6 x 10 x 9.CATPart
221 KB
23. DIN 625 T3 - 4202 - 15 x 35 x 14.CATPart
296 KB
24. DIN 6799 - 10.CATPart
81 KB
25. DIN 6799 - 2,3.CATPart
81.9 KB
26. DIN 6799 - 9.CATPart
81 KB
27. DIN 6799.CATPart
95.1 KB
28. Dech.CATPart
150 KB
29. Exhaust Pipe Right.CATPart
133 KB
30. Exhaust pipe Left.CATPart
188 KB
31. Gasket.CATPart
113 KB
32. ISO 10511 - M5.CATPart
80.9 KB
33. ISO 4036 - M3.CATPart
61.3 KB
34. ISO 4762 - M2,5 x 4.CATPart
77 KB
35. ISO 4762 - M4 x 30.CATPart
76.7 KB
36. ISO 4762 - M4 x 6.CATPart
77 KB
37. ISO 7046-1 - M3 x 8 - 4.8 - Z.CATPart
142 KB
38. Kipphebel-Lagerblock.CATPart
882 KB
39. Kipphebel-gestaenge.CATPart
170 KB
40. Konus1.CATPart
95.1 KB
41. Lockclip at pinion.CATPart
95.1 KB
42. Lockpin at Planet G.CATPart
80.8 KB
43. Minehmer1.CATPart
119 KB
44. Monstagering.CATPart
242 KB
45. Niederhalter-Ventilfeder.CATPart
121 KB
46. Nock Vorne.CATPart
245 KB
47. Piston Pin.CATPart
88.1 KB
48. Piston Rings.CATPart
85.2 KB
49. Piston assembly.CATProduct
40.6 KB
50. Piston.CATPart
307 KB
51. Planet gear.CATPart
777 KB
52. Pleuelachse-Mutterpleuel 6mm.CATPart
50.6 KB
53. Product3.CATProduct
772 KB
54. Propeller.CATPart
972 KB
55. Puffermutter.CATPart
440 KB
56. Ring gear.CATPart
7.11 MB
57. STAB-vorn.CATPart
66.3 KB
58. Spark Plug.CATPart
400 KB
59. Spring at valve.CATPart
101 KB
60. Stoessel-Lagerbuchse.CATPart
69.6 KB
61. Stoessel.CATPart
72.9 KB
62. Sun Gear at Epi gear train.CATPart
1.35 MB
63. Valve Lever.CATPart
477 KB
64. Valve lever Rod.CATPart
73.6 KB
65. Valve.CATPart
80.6 KB
66. Ventiltasse.CATPart
151 KB
67. Welle.CATPart
284 KB
68. Zylinderkopfdichtung.CATPart
48 KB
69. Zynlinder.CATPart
463 KB
70. _NPart#360468.CATPart
803 KB
71. _NPart#360483.CATPart
71 KB
72. _NPart#360488.CATPart
948 KB
73. _NPart#360502.CATPart
197 KB
74. nose.CATPart
363 KB
