| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | 2.54 mm DUPONT MALE PIN HEADER, IO, 2X20, RPi4ModelB.STEP.prt | 700 KB |
| 2 | 2.54 mm DUPONT MALE PIN HEADER, POE, 2X2, RPi4ModelB.STEP.prt | 140 KB |
| 3 | 2X USB2.0 PORTS, RPi4ModelB.STEP.prt | 1.11 MB |
| 4 | 2X USB3.0 PORTS, RPi4ModelB.STEP.prt | 988 KB |
| 5 | 30A ESC v1.step.prt | 201 KB |
| 6 | 91D77 D9WHV 778K, 4 GB LPDDR4 SDRAM, RPi4ModelB.STEP.prt | 274 KB |
| 7 | AEROTHON31 23.step | 45.9 MB |
| 8 | BATTERY HOLDER 2-0.step.prt | 120 KB |
| 9 | BATTERY HOLDER 2.step.prt | 66.5 KB |
| 10 | Broadcom BCM2711B0 CPU, RPi4ModelB.STEP.prt | 88 KB |
| 11 | Broadcom BCM54213PE Gigabit Ethernet Transceiver, RPi4ModelB.STEP.prt | 692 KB |
| 12 | CADDXFPV Ratel 2.1mm v1.prt | 67 KB |
| 13 | CORE BODY.step.prt | 2.05 MB |
| 14 | Camera Connector, RPi4ModelB.STEP.prt | 916 KB |
| 15 | Component2.step.prt | 96 KB |
| 16 | Component25cover.step.prt | 968 KB |
| 17 | Cypress CYW43455 Wireless Module Cover, RPi4ModelB.STEP.prt | 112 KB |
| 18 | DF13-2P-1.25DSA.step.prt | 103 KB |
| 19 | DF13-3P-1.25DSA.step.prt | 114 KB |
| 20 | DF13-4P-1.25DSA.step.prt | 124 KB |
| 21 | DF13-5P-1.25DSA.step.prt | 134 KB |
| 22 | DF13-6P-1.25DSA.step.prt | 146 KB |
| 23 | DF13-7P-1.25DSA.step.prt | 156 KB |
| 24 | Display Connector, RPi4ModelB.STEP.prt | 916 KB |
| 25 | FLYSKY RECEIVER v1.prt | 65.5 KB |
| 26 | FLYSKY RECEIVER.prt | 13.4 MB |
| 27 | FPV Camera.prt | 3.69 MB |
| 28 | Female Micro HDMI Connector, RPi4ModelB.STEP.prt | 928 KB |
| 29 | Female USB Type C Connector, RPi4ModelB.STEP.prt | 369 KB |
| 30 | GPS STAND v2.step.prt | 78.5 KB |
| 31 | Gigabit Ethernet Port, RPi4ModelB.STEP.prt | 370 KB |
| 32 | L SHAPE USB A CONNECTOR v1.step.prt | 83.5 KB |
| 33 | LANDING FINAL (1) v2 (1).prt | 170 KB |
| 34 | LANDING FINAL (1) v2.prt | 170 KB |
| 35 | M2x4.prt | 212 KB |
| 36 | Microphone Plug, RPi4ModelB.STEP.prt | 347 KB |
| 37 | MxL7704 Universal PMIC, RPi4ModelB.STEP.prt | 324 KB |
| 38 | OVA5647_FOV.step.prt | 65.5 KB |
| 39 | OVA5647_Lens_FOV.step.prt | 1.92 MB |
| 40 | PCB, RPi4ModelB.STEP.prt | 150 KB |
| 41 | PROPELLER - 8x4.5 CCW.prt | 265 KB |
| 42 | PROPELLER - 8x4.5 CW.prt | 309 KB |
| 43 | PX4 Neo M8N GPS v1 v1.step.prt | 668 KB |
| 44 | Part27.prt | 111 KB |
| 45 | Pi_X_E8ce10^Pixhawk.step.prt | 69.5 KB |
| 46 | Pi_X_E8ce11^Pixhawk.step.prt | 70 KB |
| 47 | Pi_X_E8ce12^Pixhawk.step.prt | 85.5 KB |
| 48 | Pi_X_E8ce13^Pixhawk.step.prt | 78 KB |
| 49 | Pixhawk APM.step.prt | 740 KB |
| 50 | Pixhawk Flight Controller v2 v1.step.prt | 84 KB |
| 51 | Raspberry Pi 4 Model B.STEP.prt | 84 KB |
| 52 | SD Card Slot, RPi4ModelB.STEP.prt | 483 KB |
| 53 | SG90 v1.prt | 1.15 MB |
| 54 | Servo Horn - Drop Bracket v1.prt | 220 KB |
| 55 | TP LINK v1 v1.step.prt | 216 KB |
| 56 | VIA VL805 PCIe USB 3.0 controller, RPi4ModelB.STEP.prt | 427 KB |
| 57 | _model1.prt | 142 KB |
| 58 | aero135 v17.step.prt | 71.5 KB |
| 59 | battery.step.prt | 74 KB |
| 60 | danda.step.prt | 68 KB |
| 61 | dusra danda.step.prt | 68 KB |
| 62 | emax2213.prt | 67.5 KB |
| 63 | emax2213_1.prt | 67.5 KB |
| 64 | emax2213_2.prt | 67.5 KB |
| 65 | emax2213_3.prt | 67.5 KB |
| 66 | micro USB.step.prt | 66.5 KB |
| 67 | micro usb02.step.prt | 421 KB |
| 68 | micro usb_1.step.prt | 916 KB |
| 69 | pan head cross recess screw_iso_ISO 7045 - M1.6 x 3 - Z --- 3N.step.prt | 101 KB |
| 70 | raspi holder.prt | 81.5 KB |
| 71 | rotor.prt | 217 KB |
| 72 | stator.prt | 140 KB |

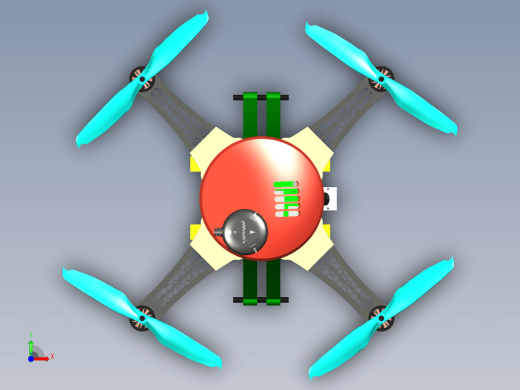

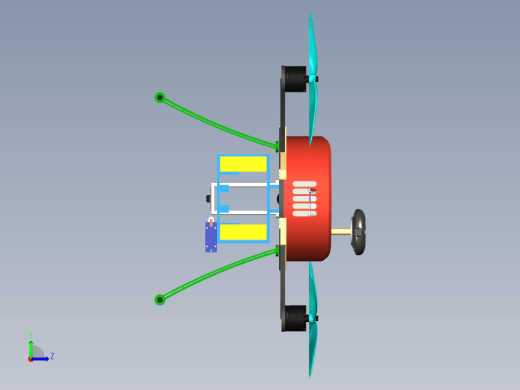

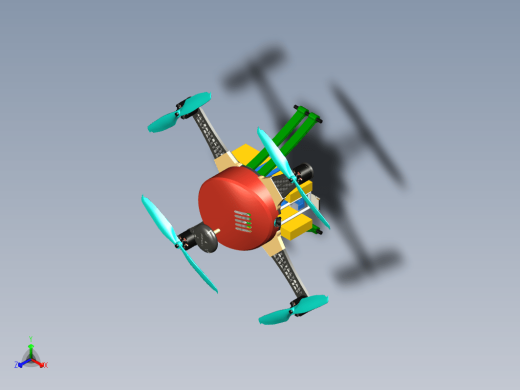

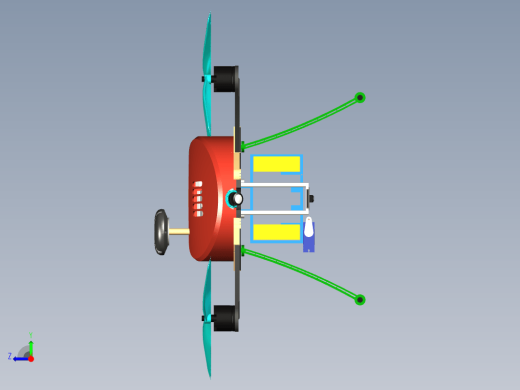

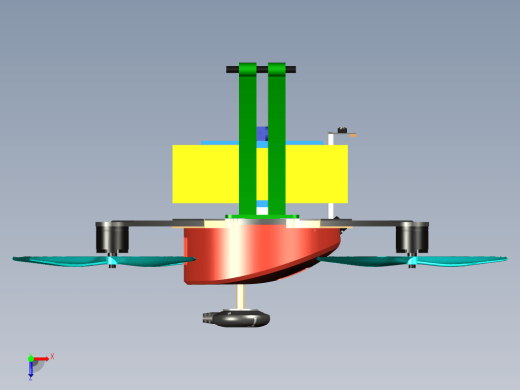

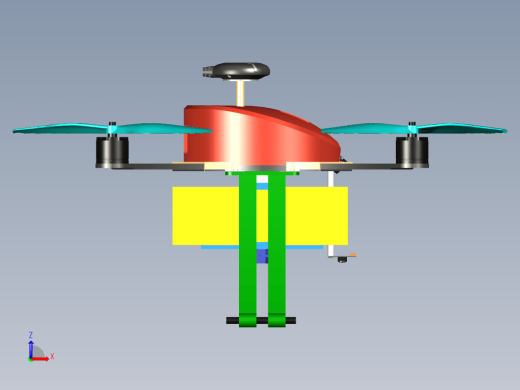

四旋翼无人机设计模型
图纸ID：10219041
文件大小：27.59M
软件版本：
图纸格式：prt,step
参数/编辑：可修改，包括参数
上传时间：2024-08-03
图纸介绍：
下载模型
踏霜痕
作品: 0
粉丝: 0
文件列表
免责申明:
本网站模型由用户自行上传，如权利人发现存在误传其作品情形，请及时与本站联系。
【四旋翼无人机设计模型】相关作品
