| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | 1000T半挂油罐车设计模型.SLDASM | 3.56 MB |
| 2 | 32NB Flex Hose Connect.sldprt | 77 KB |
| 3 | 32NB-Suction-Pipe.sldprt | 50.5 KB |
| 4 | 80 X 10 Coupling Mount Plate.sldprt | 53.5 KB |
| 5 | Assembled 1500 Wide.sldasm | 97 KB |
| 6 | Assembled Pump Cover.sldasm | 53 KB |
| 7 | Assembled Tank.sldasm | 93.5 KB |
| 8 | Axle-Pack-Plate.sldprt | 51.5 KB |
| 9 | BAFFLE PLATE.sldprt | 52.5 KB |
| 10 | BOLT M10 X 25.sldprt | 58.5 KB |
| 11 | BOLT M12 x 30.sldprt | 60.5 KB |
| 12 | BOLT M12 x 35.sldprt | 58.5 KB |
| 13 | Ball-Valve-32NB.sldprt | 250 KB |
| 14 | Bolt M8 x 25.sldprt | 58.5 KB |
| 15 | BoltM16x90.sldprt | 58 KB |
| 16 | Bump-2.sldprt | 57.5 KB |
| 17 | Bump-Part-2.sldprt | 82 KB |
| 18 | Bump-Part-3.sldprt | 57 KB |
| 19 | Cap-Brass-Lockable-50NB.sldprt | 65.5 KB |
| 20 | Chain Link.sldprt | 50.5 KB |
| 21 | Chassis Frame Assy.sldasm | 71.5 KB |
| 22 | Coupling 50mm Towball.sldasm | 46 KB |
| 23 | Coupling-1.sldprt | 78 KB |
| 24 | Coupling-2.sldprt | 329 KB |
| 25 | D-Shackle 8mm pin.sldprt | 55.5 KB |
| 26 | D-Shackle 8mm.sldprt | 394 KB |
| 27 | Dip Stick.sldprt | 56 KB |
| 28 | F-F Elbow 50NB.sldprt | 91.5 KB |
| 29 | FILL-DIP PIPE 1040 LONG.sldprt | 56 KB |
| 30 | Fish Plate TE7UBBP63.sldprt | 52.5 KB |
| 31 | Flange-Table-E-65NB.sldprt | 56.5 KB |
| 32 | Flanged Hex Skt Screw M6 x 16.sldprt | 78 KB |
| 33 | Flanged Hex Skt Screw M6 x 20.sldprt | 78 KB |
| 34 | Front-CH.sldprt | 56.5 KB |
| 35 | Hasp 1.sldprt | 54 KB |
| 36 | Hasp 2.sldprt | 55.5 KB |
| 37 | Hasp 3.sldprt | 51 KB |
| 38 | Hasp.sldasm | 47 KB |
| 39 | Hinge Pin.sldprt | 50.5 KB |
| 40 | Hinge-50mm-1.sldprt | 55.5 KB |
| 41 | Hinge-50mm-2.sldprt | 55 KB |
| 42 | Hinge-50mm-3.sldprt | 51 KB |
| 43 | Hinge-50mm-Heavy-Duty.sldasm | 48 KB |
| 44 | HoseTail 32NB.sldprt | 93 KB |
| 45 | Hub - Stub TE1H01750-12G.sldprt | 59.5 KB |
| 46 | ISO 4014 AS_M8 X 40.sldprt | 63.5 KB |
| 47 | Inlet.sldprt | 60.5 KB |
| 48 | Jockey Wheel.sldprt | 93 KB |
| 49 | Light-Body.sldprt | 171 KB |
| 50 | Lock Plate.sldprt | 52 KB |
| 51 | M12 Wheel Nut.sldprt | 60.5 KB |
| 52 | M5 Spring.sldprt | 51.5 KB |
| 53 | M6 Nut Nylock.sldprt | 58.5 KB |
| 54 | M6 Spring.sldprt | 51.5 KB |
| 55 | Mating-Plate-65NB-TableE.sldprt | 51.5 KB |
| 56 | Mudguard-Sup-1.sldprt | 57.5 KB |
| 57 | Mudguard-Sup-2.sldprt | 57.5 KB |
| 58 | Mudguard-TE11MGS2.sldprt | 96.5 KB |
| 59 | NUT M10.sldprt | 58 KB |
| 60 | NUT M12.sldprt | 61 KB |
| 61 | NUT M8 Nylock.sldprt | 60 KB |
| 62 | NUT M8.sldprt | 58 KB |
| 63 | NUT NYLOC M12.sldprt | 61 KB |
| 64 | NUT NYLOC M16.sldprt | 61 KB |
| 65 | PUMP MOTOR HONDA W20XT 4 HP.sldasm | 58 KB |
| 66 | PV204 ROLLOVER VENT.sldasm | 79.5 KB |
| 67 | PV204-1.sldprt | 52 KB |
| 68 | PV204-2.sldprt | 65 KB |
| 69 | PV204-3.sldprt | 52.5 KB |
| 70 | Pipe Stub 32NB 160 Long.sldprt | 51 KB |
| 71 | Pipe Stub 65NB x 70 Long.sldprt | 51 KB |
| 72 | Pipe-Anchor-U-Bolt.sldprt | 51 KB |
| 73 | Pipe-Stub-32NBx250-Long.sldprt | 50.5 KB |
| 74 | Pipe-Support-Angle.sldprt | 55.5 KB |
| 75 | Plug-32NB.sldprt | 61.5 KB |
| 76 | Pump Cover Handle.sldprt | 60.5 KB |
| 77 | Pump Cover Hinge 1.sldprt | 51 KB |
| 78 | Pump Cover.sldprt | 72 KB |
| 79 | Pump Outlet.sldprt | 115 KB |
| 80 | Pump-Base-400x400.sldprt | 56.5 KB |
| 81 | Pump-Base-Mount-1.sldprt | 51.5 KB |
| 82 | Pump-Support.sldprt | 56 KB |
| 83 | RHS 75 x 40 x 4 1000 Long.sldprt | 55.5 KB |
| 84 | ROLLOVER VALVE PLATE.sldprt | 53 KB |
| 85 | Rear Bumper Assy.sldasm | 53 KB |
| 86 | Red Bush 50NB - 32NB.sldprt | 99.5 KB |
| 87 | Rolling Chassis.sldasm | 183 KB |
| 88 | SOCKET HD SCREW M5 x 16.sldprt | 56.5 KB |
| 89 | SW3dPS-PUMP MOTOR HONDA W20XT 4 HP_GPU-558_-_2.sldprt | 52.5 KB |
| 90 | SW3dPS-PUMP MOTOR HONDA W20XT 4 HP_GPU-558_-_3.sldprt | 524 KB |
| 91 | Safety Chain Mount.sldprt | 52 KB |
| 92 | Shackle Bolt M16 x 90 TE187SB1.sldasm | 49 KB |
| 93 | Side-Rail-2.sldprt | 58.5 KB |
| 94 | Side-Rail-2_1.sldprt | 58 KB |
| 95 | Spring Slipper-TE197SL2.sldprt | 68 KB |
| 96 | Spring-Shackle.sldprt | 56 KB |
| 97 | Spring-TE7G1750-1750Kg.sldprt | 372 KB |
| 98 | Staple.sldprt | 57.5 KB |
| 99 | Strake.sldprt | 72.5 KB |
| 100 | Suction Assy.sldasm | 50 KB |
| 101 | TANK END 940 DIA STIFFENER LONG.sldprt | 51.5 KB |
| 102 | TANK END 940 DIA STIFFENER SHORT.sldprt | 56.5 KB |
| 103 | TANK END ASSY 940 DIA.sldasm | 48.5 KB |
| 104 | TANK END BLANK 940 DIA.sldprt | 49.5 KB |
| 105 | TE17N85700BP Navara Tail Lamp.sldasm | 50 KB |
| 106 | TableE Flange and Stub.sldasm | 79.5 KB |
| 107 | Tail-Light-Lense Amber.sldprt | 60.5 KB |
| 108 | Tail-Light-Lense Red.sldprt | 55 KB |
| 109 | Tail-Light-Lense White.sldprt | 81.5 KB |
| 110 | Tail-Light-Mount.sldprt | 58.5 KB |
| 111 | Tank Mount Angle.sldprt | 54 KB |
| 112 | Tank-Chassis Assembly.sldasm | 39.5 KB |
| 113 | Threaded-Tee-32NB.sldprt | 59.5 KB |
| 114 | Trailer Safey Chain.sldasm | 56 KB |
| 115 | Tyre-649x188.sldprt | 61.5 KB |
| 116 | U-Bolt 51 x 140 TE7UB09.sldprt | 51.5 KB |
| 117 | Valence Pressing-Cutout.sldprt | 55.5 KB |
| 118 | Valence Pressing.sldprt | 55 KB |
| 119 | Valence-Assy.sldasm | 52.5 KB |
| 120 | Valence-Lid Assy.sldasm | 51 KB |
| 121 | Valence-Lid-edge.sldprt | 51 KB |
| 122 | Valence-Lid.sldprt | 54.5 KB |
| 123 | Valve-Brass-Check-32NB.sldprt | 64 KB |
| 124 | Washer Flat M10.sldprt | 50 KB |
| 125 | Washer Flat M12.sldprt | 50 KB |
| 126 | Washer Flat M6.sldprt | 83 KB |
| 127 | Washer Spring M10.sldprt | 51.5 KB |
| 128 | Washer Spring M12.sldprt | 51 KB |
| 129 | Washer Spring M8.sldprt | 51.5 KB |
| 130 | Washer flat M8.sldprt | 83 KB |
| 131 | Washer-Flat-M16.sldprt | 50 KB |
| 132 | Wheel Assy TE18W9643.sldasm | 46 KB |
| 133 | Wheel-Rim-14.sldprt | 89.5 KB |

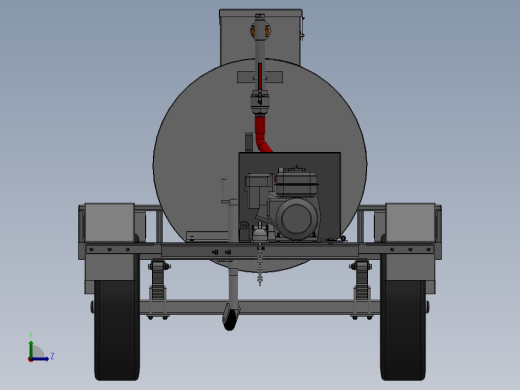

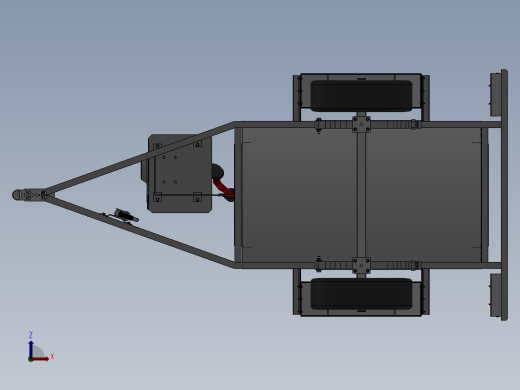

1000T半挂油罐车设计模型
图纸ID：10218125
文件大小：7.37M
软件版本：
图纸格式：sldasm,sldprt
参数/编辑：可修改，包括参数
上传时间：2024-08-03
图纸介绍：
下载模型
汴梁
作品: 122
粉丝: 0
文件列表
