| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | 023 screw dia 3.SLDPRT | 138 KB |
| 2 | 024 fjäder.SLDPRT | 454 KB |
| 3 | 024 locking nut2.SLDPRT | 144 KB |
| 4 | 024 locking screw.SLDPRT | 143 KB |
| 5 | 024 nut.SLDPRT | 174 KB |
| 6 | 2 mm pin.SLDPRT | 188 KB |
| 7 | Bearing half above.SLDPRT | 248 KB |
| 8 | Bearing half below.SLDPRT | 248 KB |
| 9 | Boxer upper crank case.SLDPRT | 2.39 MB |
| 10 | Cyl liner.SLDPRT | 168 KB |
| 11 | Driving disk.SLDPRT | 660 KB |
| 12 | Egnition assem.SLDASM | 648 KB |
| 13 | Front camshaft cover.SLDASM | 146 KB |
| 14 | Front crankcase cover.SLDPRT | 405 KB |
| 15 | Gear 20 cog M1.SLDPRT | 471 KB |
| 16 | M10 nut.SLDPRT | 170 KB |
| 17 | M2 45 degree.SLDPRT | 182 KB |
| 18 | M2 fake.SLDPRT | 178 KB |
| 19 | M2 x10.SLDPRT | 170 KB |
| 20 | M2.5.SLDPRT | 185 KB |
| 21 | M3 locking nut2.SLDPRT | 140 KB |
| 22 | M3x10.SLDPRT | 166 KB |
| 23 | M3x26.SLDPRT | 172 KB |
| 24 | M3x7.SLDPRT | 165 KB |
| 25 | M4x15.SLDPRT | 169 KB |
| 26 | M5 nut.SLDPRT | 284 KB |
| 27 | M5x40.SLDPRT | 161 KB |
| 28 | M6 nut.SLDPRT | 182 KB |
| 29 | M6x20.SLDPRT | 302 KB |
| 30 | Piston pin.SLDPRT | 319 KB |
| 31 | Prop washer.SLDPRT | 177 KB |
| 32 | Stand plate no1.SLDPRT | 338 KB |
| 33 | Thumbs.db | 6 KB |
| 34 | Topp+lock+utblås, assam.SLDASM | 959 KB |
| 35 | V house locking screw.SLDPRT | 132 KB |
| 36 | V house nut.SLDPRT | 161 KB |
| 37 | Valve house left.SLDPRT | 367 KB |
| 38 | Valve house.SLDPRT | 215 KB |
| 39 | Valve spring bracket.SLDPRT | 146 KB |
| 40 | Valve spring.SLDPRT | 466 KB |
| 41 | Valve.SLDPRT | 201 KB |
| 42 | Ventil fjäder.SLDPRT | 430 KB |
| 43 | Washer driving disk.SLDPRT | 169 KB |
| 44 | bevel gear 1.SLDPRT | 653 KB |
| 45 | bevel gear 2.SLDPRT | 672 KB |
| 46 | bottom crank case.SLDPRT | 2.43 MB |
| 47 | boxer 4 main assem.SLDASM | 4.82 MB |
| 48 | brass contact item.SLDPRT | 598 KB |
| 49 | bronze bearing.SLDASM | 304 KB |
| 50 | cam follower.SLDPRT | 160 KB |
| 51 | cam nock.SLDPRT | 679 KB |
| 52 | carburator.SLDPRT | 1.27 MB |
| 53 | carriage beam x12.SLDPRT | 217 KB |
| 54 | connecting rod bracket.SLDPRT | 491 KB |
| 55 | connecting rod.SLDASM | 276 KB |
| 56 | connecting rod.SLDPRT | 497 KB |
| 57 | contact pin 16mm.SLDPRT | 166 KB |
| 58 | contact pin 8mm.SLDPRT | 159 KB |
| 59 | crankshaft.SLDPRT | 1.09 MB |
| 60 | cyl.SLDPRT | 478 KB |
| 61 | cylinder.SLDASM | 1.02 MB |
| 62 | distribute cap.SLDPRT | 771 KB |
| 63 | egnition bracket.SLDPRT | 397 KB |
| 64 | fjäder hållare.SLDPRT | 131 KB |
| 65 | follower stearing.SLDPRT | 264 KB |
| 66 | front camshaft cover.SLDPRT | 350 KB |
| 67 | gear 40 cog, M1.SLDPRT | 743 KB |
| 68 | hex screw planethouse.SLDPRT | 192 KB |
| 69 | in,out bracket.SLDPRT | 223 KB |
| 70 | inlet distributor.SLDPRT | 409 KB |
| 71 | inlet pipe no 2 cyl.SLDPRT | 210 KB |
| 72 | inlet pipe no 3.SLDPRT | 192 KB |
| 73 | inlet pipe no 4.SLDPRT | 177 KB |
| 74 | inlet pipe no1.SLDPRT | 184 KB |
| 75 | lifter left.SLDPRT | 448 KB |
| 76 | lifter right.SLDPRT | 446 KB |
| 77 | m3 stop screw.SLDPRT | 162 KB |
| 78 | magneto bracket.SLDPRT | 376 KB |
| 79 | magneto.SLDPRT | 137 KB |
| 80 | new back cover.SLDPRT | 406 KB |
| 81 | piston.SLDPRT | 435 KB |
| 82 | propeller.SLDPRT | 1.3 MB |
| 83 | push rod.SLDPRT | 130 KB |
| 84 | sensor.SLDPRT | 251 KB |
| 85 | shaft to magneto driving disk.SLDPRT | 407 KB |
| 86 | sparkplug.SLDPRT | 225 KB |
| 87 | spring bracket.SLDPRT | 131 KB |
| 88 | spring pin.SLDPRT | 174 KB |
| 89 | studs cover.SLDPRT | 178 KB |
| 90 | topp test.SLDPRT | 2.34 MB |
| 91 | utbl+fäste.SLDASM | 245 KB |
| 92 | utblåsrör.SLDPRT | 311 KB |
| 93 | v.cover.SLDPRT | 376 KB |
| 94 | valve house right.SLDPRT | 366 KB |
| 95 | valve house, right assem.SLDASM | 363 KB |
| 96 | valve house1.SLDASM | 447 KB |
| 97 | valve lock pin.SLDPRT | 142 KB |
| 98 | valvehouse, left assem.SLDASM | 360 KB |
| 99 | washer 6x10.SLDPRT | 141 KB |

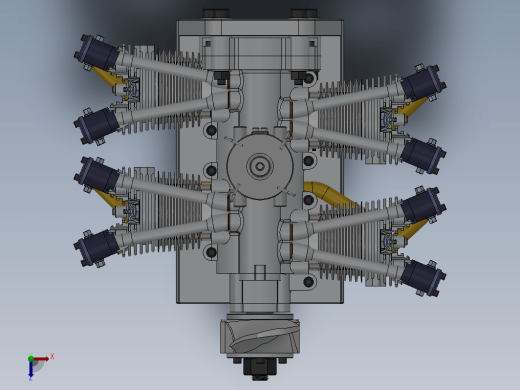

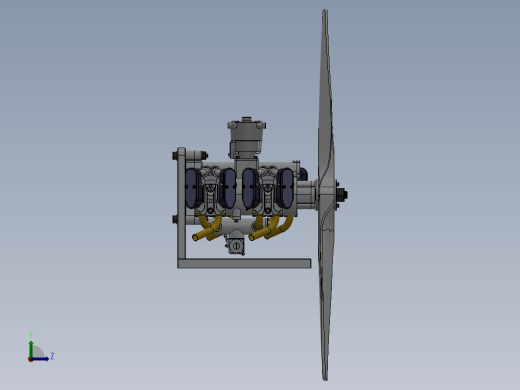

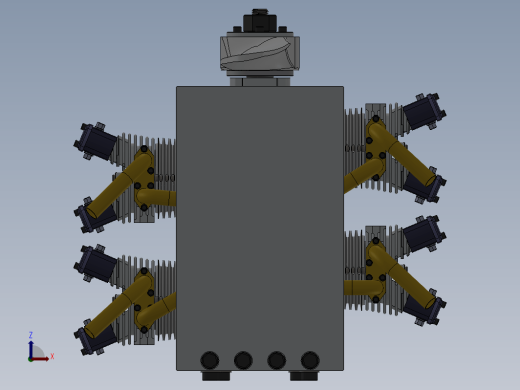

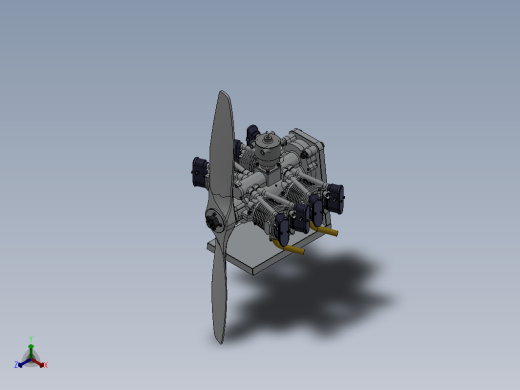

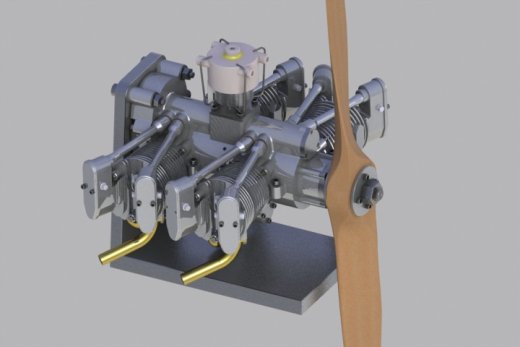

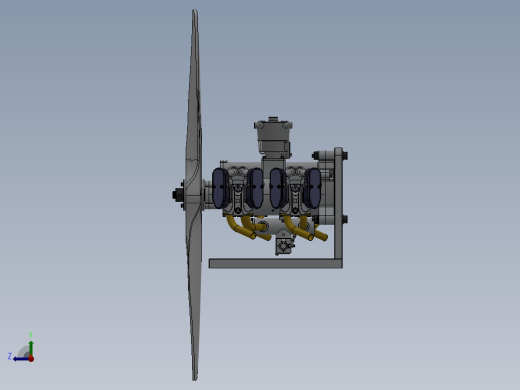

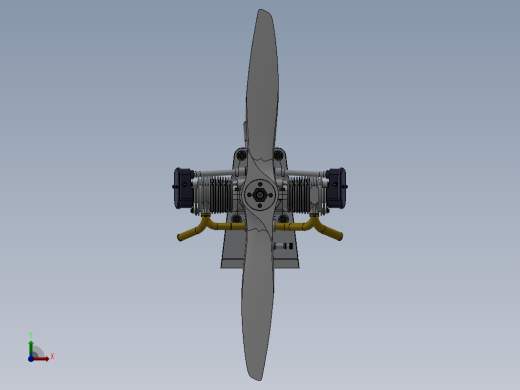

4缸水平对置发动机
图纸ID：10206592
文件大小：24.97M
软件版本：
SOLIDWORKS 2012
图纸格式：sldprt,sldasm
参数/编辑：可修改，包括参数
上传时间：2024-07-18
图纸介绍：
免费下载
四海为家
作品: 0
粉丝: 0
文件列表
