| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | Assem.SLDASM | 5.13 MB |
| 2 | Assem.SLDPRT | 17.8 MB |
| 3 | Assem.STL | 27.4 MB |
| 4 | Assem.jpg | 366 KB |
| 5 | Assem.x_t | 30.5 MB |
| 6 | Axe Holder C.SLDPRT | 78.5 KB |
| 7 | Axe Holder FB.SLDPRT | 93.2 KB |
| 8 | Ball 4mm.SLDPRT | 113 KB |
| 9 | Brotoboard.SLDPRT | 1.91 MB |
| 10 | Buttons.SLDPRT | 164 KB |
| 11 | Caterpillar Bearing Mini.SLDPRT | 65.3 KB |
| 12 | Caterpillar Bearing.SLDPRT | 65.6 KB |
| 13 | Caterpillar FB Bases.SLDPRT | 70 KB |
| 14 | Caterpillar RL Bases.SLDPRT | 77.1 KB |
| 15 | Caterpillar.SLDPRT | 585 KB |
| 16 | DC-DC XL4015.SLDPRT | 138 KB |
| 17 | DC-DC XL4015_Extra_Base.SLDPRT | 90.1 KB |
| 18 | FS5109M Base Holder C.SLDPRT | 79.2 KB |
| 19 | FS5109M Base Holder S.SLDPRT | 73.8 KB |
| 20 | FS5109M Base Holder.SLDPRT | 69.6 KB |
| 21 | FS5109M.SLDPRT | 122 KB |
| 22 | HC-SR04 Bottom Base Central.SLDPRT | 126 KB |
| 23 | HC-SR04 Main Base Bearing.SLDPRT | 106 KB |
| 24 | HC-SR04 Main Base.SLDPRT | 539 KB |
| 25 | HC-SR04 Sensor.SLDPRT | 365 KB |
| 26 | HC-SR04 Top Base Central.SLDPRT | 225 KB |
| 27 | HC-SR04 Top Base Left.SLDPRT | 136 KB |
| 28 | Hitec HS5086WP Horn.SLDPRT | 131 KB |
| 29 | Hitec HS5086WP Horn_Circle.SLDPRT | 113 KB |
| 30 | IMU Base.SLDPRT | 113 KB |
| 31 | IMU.SLDPRT | 151 KB |
| 32 | LED Base.SLDPRT | 200 KB |
| 33 | LED G.SLDPRT | 67.2 KB |
| 34 | Laser 6MM.SLDPRT | 68.1 KB |
| 35 | M10X410.SLDPRT | 46.7 KB |
| 36 | M2.SLDPRT | 91.8 KB |
| 37 | M2x12.SLDPRT | 59 KB |
| 38 | M2x16.SLDPRT | 58 KB |
| 39 | M2x20.SLDPRT | 54.2 KB |
| 40 | M2x6.SLDPRT | 66.8 KB |
| 41 | M2x8.SLDPRT | 64.1 KB |
| 42 | M3.SLDPRT | 94.2 KB |
| 43 | M3x12.SLDPRT | 64.4 KB |
| 44 | M3x16.SLDPRT | 62.4 KB |
| 45 | M3x20.SLDPRT | 58.1 KB |
| 46 | M3x8.SLDPRT | 65.5 KB |
| 47 | M4.SLDPRT | 96.2 KB |
| 48 | M4x12.SLDPRT | 63.1 KB |
| 49 | M4x16.SLDPRT | 60.7 KB |
| 50 | M4x20.SLDPRT | 63 KB |
| 51 | M4x8.SLDPRT | 63 KB |
| 52 | MS Bottom Base Back.SLDPRT | 155 KB |
| 53 | MS Bottom Base Front.SLDPRT | 106 KB |
| 54 | MS Main Base Back.SLDPRT | 302 KB |
| 55 | MS Main Base Front.SLDPRT | 95.5 KB |
| 56 | MS Main Base Left.SLDPRT | 123 KB |
| 57 | MS Main Base Right.SLDPRT | 189 KB |
| 58 | MS Top Base Left.SLDPRT | 97.2 KB |
| 59 | MS Top Base Right.SLDPRT | 275 KB |
| 60 | Measure System Base Top L.SLDPRT | 140 KB |
| 61 | Measure System Main Base Ring.SLDPRT | 121 KB |
| 62 | Measure System Main Base.SLDPRT | 116 KB |
| 63 | Measure System.SLDASM | 1.04 MB |
| 64 | PiCamera H Base Suport.SLDPRT | 63.7 KB |
| 65 | PiCamera H Base.SLDPRT | 154 KB |
| 66 | PiCamera H.SLDPRT | 129 KB |
| 67 | Raspberry Pi 3.SLDPRT | 6.25 MB |
| 68 | Screw 8x15.SLDPRT | 125 KB |
| 69 | Servo Screw.SLDPRT | 97.5 KB |
| 70 | Spur gear 1.0M 36T 20PA PAN.SLDPRT | 352 KB |
| 71 | Spur gear 1.0M 36T 20PA TILT.SLDPRT | 184 KB |
| 72 | Spur gear 1.0M 54T 20PA Servo Horn.SLDPRT | 209 KB |
| 73 | Spur gear 1.5M 12T 20PA Caterpillar.SLDPRT | 116 KB |
| 74 | Spur gear 1.5M 12T 20PA TILT Base.SLDPRT | 211 KB |
| 75 | Switch.SLDPRT | 71.8 KB |
| 76 | Turnigy 5.0.SLDPRT | 74.1 KB |
| 77 | Tyre Bearing C.SLDPRT | 73 KB |
| 78 | Tyre Bearing F.SLDPRT | 70 KB |
| 79 | UAV B Base.SLDPRT | 319 KB |
| 80 | UAV Base.SLDPRT | 249 KB |
| 81 | UAV F Base.SLDPRT | 285 KB |
| 82 | UAV.SLDASM | 3.51 MB |
| 83 | Water Level.SLDPRT | 88.1 KB |

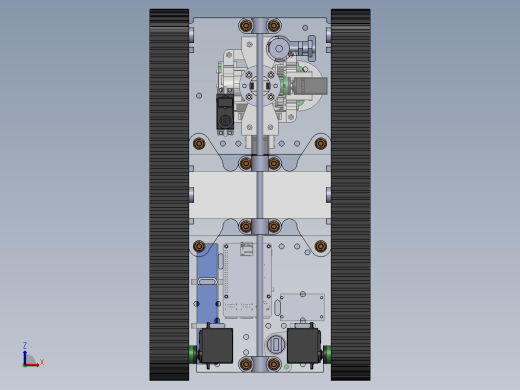

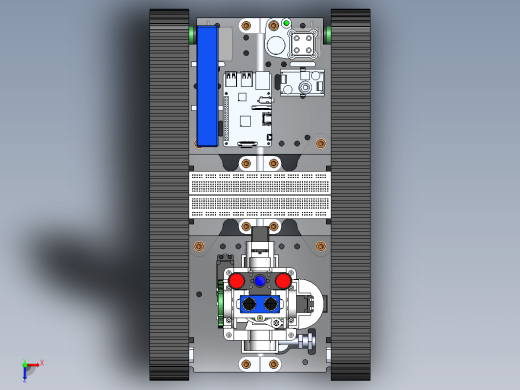

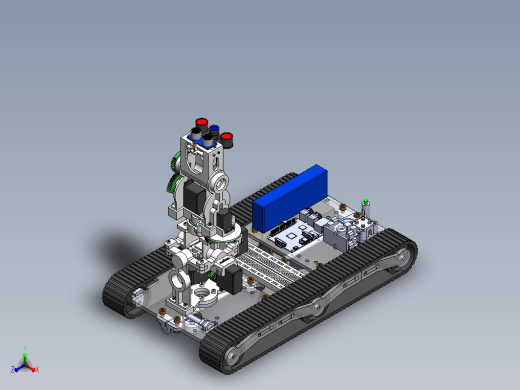

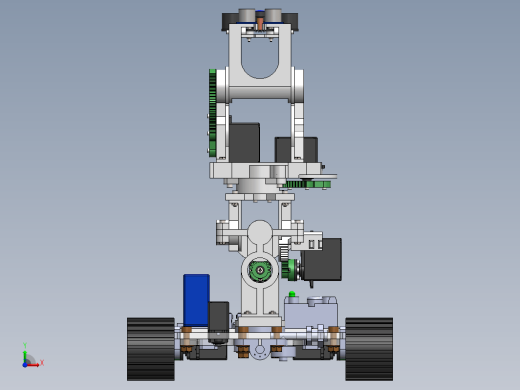

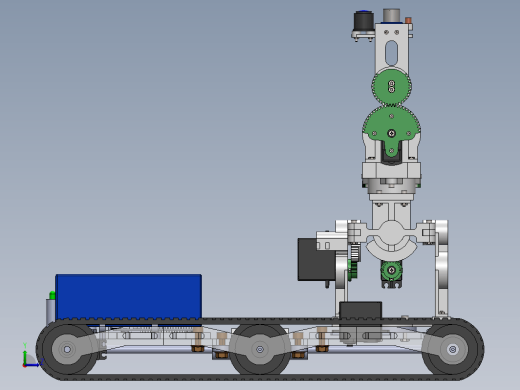

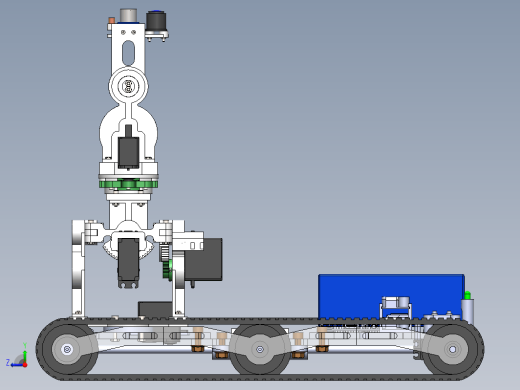

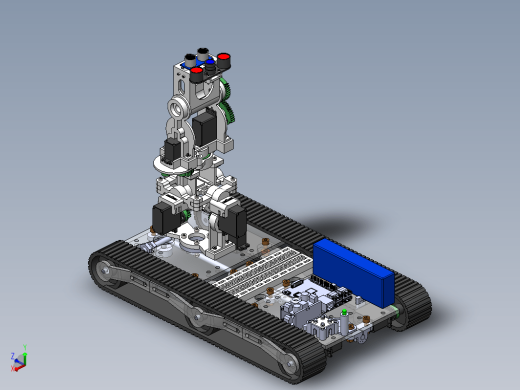

基于Raspberry Pi和Arduino的3D扫描机器人履带车SolidWorks,stl,parasolid 3D模型
图纸ID：10164736
文件大小：57.79M
软件版本：
图纸格式：sldasm,sldprt,stl,x_t
参数/编辑：可修改，包括参数
上传时间：2024-02-23
图纸介绍：
免费下载
钓寒江
作品: 0
粉丝: 0
文件列表
