| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | 1.JPG | 67.9 KB |
| 2 | 2.JPG | 72.2 KB |
| 3 | 21socket head cap screw_iso.SLDPRT | 933 KB |
| 4 | ASSEMBLY.SLDASM | 3.81 MB |
| 5 | ASSEMBLY.SLDDRW | 8.6 MB |
| 6 | Assembly.png | 186 KB |
| 7 | Calculations.pdf | 788 KB |
| 8 | Drawing.pdf | 2.02 MB |
| 9 | Gearbox.IGS | 35.4 MB |
| 10 | ISO - LH Helical gear 3M 60T 23.59HA 20PA 48FW .SLDDRW | 6.1 MB |
| 11 | ISO - RH Helical gear 3M 24T 23.59HA 20PA 48FW.SLDDRW | 2.24 MB |
| 12 | ISO - Spur gear 2.75M 80T 20PA 35FW.SLDDRW | 926 KB |
| 13 | LH HELICAL GEAR.SLDPRT | 7.66 MB |
| 14 | RH HELICL GEAR.SLDPRT | 2.41 MB |
| 15 | Spur Gear ( Gear).SLDPRT | 687 KB |
| 16 | Spur Gear ( Pinion ).SLDPRT | 364 KB |
| 17 | Spur Gear ( pinion).slddrw | 761 KB |
| 18 | Transparent window.sldprt | 156 KB |
| 19 | c type shaft use retaining ring_jis.sldprt | 222 KB |
| 20 | desktop.ini | 80 B |
| 21 | input cover.sldprt | 480 KB |
| 22 | input seal locker.SLDPRT | 103 KB |
| 23 | input seal.SLDPRT | 150 KB |
| 24 | input shaft assembly.SLDDRW | 875 KB |
| 25 | input shim.sldprt | 89 KB |
| 26 | intermediate cover.sldprt | 434 KB |
| 27 | intermediate shaft assembly.SLDDRW | 3.09 MB |
| 28 | intermediate shaft.SLDDRW | 768 KB |
| 29 | intermediate shaft.SLDPRT | 297 KB |
| 30 | intermediate shim.sldprt | 75.5 KB |
| 31 | key helica gear.SLDPRT | 67.5 KB |
| 32 | key helical pinion.SLDPRT | 67 KB |
| 33 | key spur gear.SLDPRT | 67 KB |
| 34 | located washer 50.sldprt | 206 KB |
| 35 | located washer35.sldprt | 197 KB |
| 36 | lower case.SLDPRT | 2.27 MB |
| 37 | nut lock35.SLDPRT | 360 KB |
| 38 | nut lock50.SLDPRT | 428 KB |
| 39 | oiL cap seat.sldprt | 245 KB |
| 40 | oil cap.sldprt | 278 KB |
| 41 | out put seal.SLDPRT | 152 KB |
| 42 | output cover.sldprt | 445 KB |
| 43 | output seal locker.SLDPRT | 103 KB |
| 44 | output shaft assembly.SLDDRW | 6.7 MB |
| 45 | output shaft.SLDDRW | 826 KB |
| 46 | output shaft.SLDPRT | 369 KB |
| 47 | output shim.sldprt | 73 KB |
| 48 | radial ball bearing_68_skf.sldprt | 1.39 MB |
| 49 | ring 6009.sldprt | 82.5 KB |
| 50 | ring 6207.sldprt | 83 KB |
| 51 | ring 6309.sldprt | 82 KB |
| 52 | ring 6406.sldprt | 79 KB |
| 53 | ring 6407.sldprt | 82 KB |
| 54 | slotted pan head screw_iso.sldprt | 1.43 MB |
| 55 | socket head cap screw1_iso.SLDPRT | 661 KB |
| 56 | transparent oil level gauge.sldprt | 159 KB |
| 57 | upper case.SLDPRT | 1.88 MB |
| 58 | ~$ASSEMBLY.slddrw | 4 B |

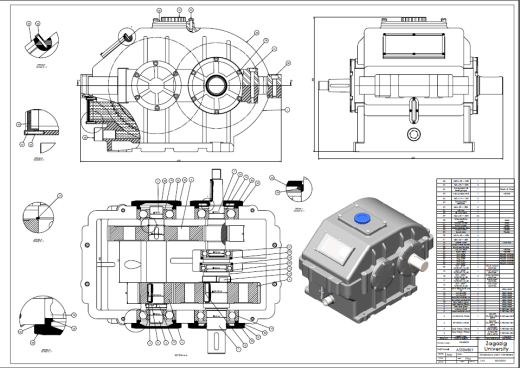

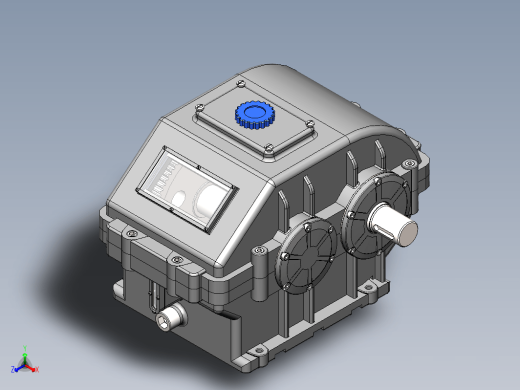

输送机上的同轴齿轮箱3D图纸 Solidworks设计 附工程图和计算书SolidWorks,iges 3D模型
图纸ID：10163644
文件大小：50.67M
软件版本：
图纸格式：sldprt,sldasm,pdf,igs
参数/编辑：可修改，包括参数
上传时间：2024-02-21
图纸介绍：
