| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | 599-19-Chezy-DR-A-002-ChassisAssem.STEP | 37.8 MB |
| 2 | 7.15-#35 12T Double Hub Sprocket .5 Hex 217-2658.SLDPRT | 338 KB |
| 3 | 7.15-.5 Hex .125 Spacer 217-2758.SLDPRT | 71.9 KB |
| 4 | 7.15-0.5 Hex ID 1.125OD Flanged Bearing V2 FR8ZZ VEX-217-3875.SLDPRT | 83.5 KB |
| 5 | 7.15-0.500 ID 1.125.OD_x_0_313.WD_Radial_Bearing VEX 217-3109.SLDPRT | 385 KB |
| 6 | 7.15-0.5ID 1.125OD Flanged Bearing VEX-217-2731.SLDPRT | 81.5 KB |
| 7 | 7.15-0.75in bore 0.5in stroke cylinder Vex 217-2778.SLDASM | 319 KB |
| 8 | 7.15-12.CIM.VP217-3099.SLDPRT | 280 KB |
| 9 | 7.15-18.hex500.steel.217-5460-20160825.sldprt | 112 KB |
| 10 | 7.15-217-2778-NCQ8A075-050M_1032_Nut_90545A111.sldprt | 60.7 KB |
| 11 | 7.15-217-2778-NCQ8A075-050M_1032_Nut_90545A111_1.sldprt | 59.5 KB |
| 12 | 7.15-217-2778-NCQ8A075-050M_NCQ8 Rod_075M.sldprt | 29.3 KB |
| 13 | 7.15-217-2778-NCQ8A075-050M_NCQ8 Tube_075A.sldprt | 54.2 KB |
| 14 | 7.15-217-2778-NCQ8A075-050M_Snap Ring_075.sldprt | 28.3 KB |
| 15 | 7.15-217-3195-010 Rev1.sldprt | 69.6 KB |
| 16 | 7.15-250 Tube 10-32 Thread Elbow Male AD ME14-10N.SLDPRT | 263 KB |
| 17 | 7.15-28.hex500.aluminum.217-5467-STEP.sldprt | 154 KB |
| 18 | 7.15-3 TOOTH DOG 217-3423-009 Rev3_1.sldprt | 44.2 KB |
| 19 | 7.15-30ThouSpacer217-3423-004 Rev1.sldprt | 24.3 KB |
| 20 | 7.15-32.hex500.aluminum.217-5470-STEP.sldprt | 165 KB |
| 21 | 7.15-40.DOG.VP217-3417.SLDPRT | 673 KB |
| 22 | 7.15-42.pocket.500hex WCP-0117.SLDPRT | 310 KB |
| 23 | 7.15-50.DOG.VP217-3419.SLDPRT | 894 KB |
| 24 | 7.15-599-19-Chezy-00-S-001-DrivebaseSketch.SLDPRT | 95.2 KB |
| 25 | 7.15-599-19-Chezy-00-S-002-ShooterSketch.SLDPRT | 60.9 KB |
| 26 | 7.15-599-19-Chezy-DR-A-001-GearboxAssem.SLDASM | 3.6 MB |
| 27 | 7.15-599-19-Chezy-DR-A-002-ChassisAssem.SLDASM | 4.07 MB |
| 28 | 7.15-599-19-Chezy-DR-A-003-BearingBlockAssem.SLDASM | 143 KB |
| 29 | 7.15-599-19-Chezy-DR-A-004-DriveChainAssem.SLDASM | 188 KB |
| 30 | 7.15-599-19-Chezy-DR-P-001-ChassisRail.SLDPRT | 253 KB |
| 31 | 7.15-599-19-Chezy-DR-P-002-IntermediatePlate.SLDPRT | 274 KB |
| 32 | 7.15-599-19-Chezy-DR-P-003-MotorPlate.SLDPRT | 400 KB |
| 33 | 7.15-599-19-Chezy-DR-P-004-MountingPlate.SLDPRT | 271 KB |
| 34 | 7.15-599-19-Chezy-DR-P-005-BearingBlock.SLDPRT | 199 KB |
| 35 | 7.15-599-19-Chezy-DR-P-006-CornerCrossmembers.SLDPRT | 126 KB |
| 36 | 7.15-599-19-Chezy-DR-P-007-CornerGusset.SLDPRT | 102 KB |
| 37 | 7.15-599-19-Chezy-DR-P-008-ShifterShaftv2.SLDPRT | 200 KB |
| 38 | 7.15-599-19-Chezy-DR-P-009-1.6875Standoff.SLDPRT | 82.8 KB |
| 39 | 7.15-599-19-Chezy-DR-P-010-FirstStageShaft.SLDPRT | 85.6 KB |
| 40 | 7.15-599-19-Chezy-DR-P-011-OutputShaft.SLDPRT | 82.9 KB |
| 41 | 7.15-599-19-Chezy-DR-P-012-TopStandof.SLDPRT | 79.5 KB |
| 42 | 7.15-599-19-Chezy-DR-P-013-BackMidStandoff.SLDPRT | 80 KB |
| 43 | 7.15-599-19-Chezy-DR-P-015-.375ODStandoff.SLDPRT | 71.6 KB |
| 44 | 7.15-599-19-Chezy-DR-P-016-Bellypan.SLDPRT | 262 KB |
| 45 | 7.15-599-19-Chezy-DR-P-017-DriveShaft.SLDPRT | 66.7 KB |
| 46 | 7.15-599-19-Chezy-DR-P-018-BumperRail.SLDPRT | 99.8 KB |
| 47 | 7.15-599-19-Chezy-DR-P-018-SmallFrontRail.SLDPRT | 132 KB |
| 48 | 7.15-599-19-Chezy-DR-P-020-VerticalFrontRailSupport.SLDPRT | 85.7 KB |
| 49 | 7.15-599-19-Chezy-DR-P-021-BackBumperRail.SLDPRT | 126 KB |
| 50 | 7.15-599-19-Chezy-DR-P-022-EndBlock.SLDPRT | 65.2 KB |
| 51 | 7.15-599-19-Chezy-DR-P-023-VerticalCornerBackRail.SLDPRT | 69 KB |
| 52 | 7.15-599-19-Chezy-DR-P-024-BumperBoxGusset.SLDPRT | 96.1 KB |
| 53 | 7.15-80.hex500.aluminum.217-5481-STEP.sldprt | 361 KB |
| 54 | 7.15-91251A107_91251A107_1.sldprt | 96.3 KB |
| 55 | 7.15-BHCS.SLDPRT | 567 KB |
| 56 | 7.15-Ball.SLDPRT | 118 KB |
| 57 | 7.15-Bumpers.SLDPRT | 299 KB |
| 58 | 7.15-CIM 217-2000.SLDPRT | 117 KB |
| 59 | 7.15-COUPLER ASSEM217-3195-200 Rev1.sldasm | 23.8 KB |
| 60 | 7.15-FHCS.SLDPRT | 393 KB |
| 61 | 7.15-LinkPlate+Bushings+Pins.SLDPRT | 134 KB |
| 62 | 7.15-Nylon-Insert Locknut.SLDPRT | 370 KB |
| 63 | 7.15-OutsidePlate.SLDPRT | 113 KB |
| 64 | 7.15-Plunger217-3423-008 Rev1.sldprt | 29.1 KB |
| 65 | 7.15-SHCS.SLDPRT | 867 KB |
| 66 | 7.15-WCD Bearing Block Gearbox VEX-217-3634.SLDPRT | 79.5 KB |
| 67 | 7.15-WCP-0049-001 Rev1.sldprt | 96.1 KB |
| 68 | 7.15-WCP-0049-002 Rev1.sldprt | 37 KB |
| 69 | 7.15-WCP-0049-Rev2-8INCH.SLDASM | 1.16 MB |
| 70 | 7.15-WCP-0100 Rev2.sldprt | 78.9 KB |
| 71 | 7.15-WCP-0167 Rev1.sldprt | 7.98 MB |
| 72 | 7.15-mcmaster_91255A192_91255A192.sldprt | 33.8 KB |
| 73 | Drivetrain0.5.png | 2.18 MB |
| 74 | Render1Cim.JPG | 1010 KB |

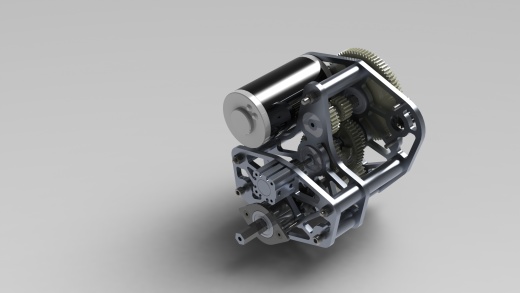

比赛机器人车底盘step,SolidWorks 3D模型
图纸ID：10161023
文件大小：41.53M
软件版本：
图纸格式：step,sldprt,sldasm
参数/编辑：可修改，包括参数
上传时间：2024-02-05
图纸介绍：
免费下载
