| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | 10-32 x 0.375 Hex Socket Cap Screw.FCStd | 10.3 KB |
| 2 | 10-32 x 0.5 Hex Socket Cap Screw.FCStd | 10.3 KB |
| 3 | 12 Inch Saw Blade.FCStd | 125 KB |
| 4 | 12mm x 385mm Linear Rod.FCStd | 5.09 KB |
| 5 | 1_2 Narrow Flat Washer.FCStd | 9.65 KB |
| 6 | 1_2 Wide Flat Washer.FCStd | 9.74 KB |
| 7 | 1_2-13 All Thread Rod.FCStd | 34.8 KB |
| 8 | 1_2-13 Hex Nut.FCStd | 10.3 KB |
| 9 | 1_2-13 Thin Hex Nut.FCStd | 10.2 KB |
| 10 | 1_2-13 x 0.75 Hex Head Bolt.FCStd | 9.11 KB |
| 11 | 1_2-13 x 1 Hex Head Bolt.FCStd | 9.11 KB |
| 12 | 1_2-13 x 3.5 Hex Head Bolt.FCStd | 9.28 KB |
| 13 | 1_4 Flat Washer.FCStd | 3.98 KB |
| 14 | 1_4 PTFE Tubing.FCStd | 12 KB |
| 15 | 1_4 to 1_8 Pipe Reducing Bushing.FCStd | 533 KB |
| 16 | 1_4-20 x 0.5 Hex Socket Flat Head Screw.FCStd | 10.1 KB |
| 17 | 1_4-20 x 0.75 Hex Socket Flat Head Screw.FCStd | 10.4 KB |
| 18 | 1_4-20 x 1.25 Hex Head Bolt.FCStd | 9.32 KB |
| 19 | 1_4-28 Ball Rod End.FCStd | 175 KB |
| 20 | 1_4-28 Hex Nut.FCStd | 10.5 KB |
| 21 | 1_4-28 x 1.25 All Thread Rod.FCStd | 5.15 KB |
| 22 | 1_8 Pipe to Compression Elbow.FCStd | 463 KB |
| 23 | 1_8 x 0.75 Roll Pin.FCStd | 15.7 KB |
| 24 | 3 x 3 x 0.188 Box Tube.FCStd | 20 KB |
| 25 | 3_8 - 16 x 1 Hex Socket Cap Screw.FCStd | 10.4 KB |
| 26 | 3_8 - 16 x 2.5 Hex Socket Cap Screw.FCStd | 10.5 KB |
| 27 | 3_8 Flat Washer.FCStd | 4.02 KB |
| 28 | 5 x 5 x 0.188 Box Tube.FCStd | 19.9 KB |
| 29 | 608 Bearing.FCStd | 26.7 KB |
| 30 | 8-32 x 0.25 Hex Socket Cap Screw.FCStd | 10.3 KB |
| 31 | 8-32 x 0.375 Hex Socket Cap Screw.FCStd | 10.3 KB |
| 32 | 8mm Flange Pillow Block Bearing.FCStd | 290 KB |
| 33 | 8mm Pillow Block Bearing.FCStd | 233 KB |
| 34 | 8mm x 3mm Neodymium Magnet.FCStd | 5.13 KB |
| 35 | Base Assembly.step | 2.71 MB |
| 36 | Base Assembly.FCStd | 737 KB |
| 37 | Cylinder Mount Spacer.FCStd | 19.9 KB |
| 38 | Damping Cylinder.step | 2.84 MB |
| 39 | Damping Cylinder Assembly.FCStd | 1.38 MB |
| 40 | End Angle.FCStd | 14.5 KB |
| 41 | Flange Bearing Assembly.FCStd | 89.2 KB |
| 42 | Frame Assembly.step | 6.63 MB |
| 43 | Frame Assembly.FCStd | 1.45 MB |
| 44 | Frame Back Side Angle 1.FCStd | 71.4 KB |
| 45 | Frame Back Side Angle 2.FCStd | 82.1 KB |
| 46 | Frame Brase Angle 2.FCStd | 69.5 KB |
| 47 | Frame Brase Angle.FCStd | 45 KB |
| 48 | Frame Guide Bearing Angle.FCStd | 148 KB |
| 49 | Frame Horizontal Angle.FCStd | 50.3 KB |
| 50 | Frame Linear Bearing Angle 1.FCStd | 75.5 KB |
| 51 | Frame Linear Bearing Angle 2.FCStd | 55.8 KB |
| 52 | Frame Motor Mount.FCStd | 22.2 KB |
| 53 | Frame Spacer.FCStd | 9.41 KB |
| 54 | Frame Vertical Angle 1.FCStd | 29.1 KB |
| 55 | Frame Vertical Angle.FCStd | 27.9 KB |
| 56 | Frame Weld Up Assembly.FCStd | 142 KB |
| 57 | Guide Bearing Assembly.FCStd | 26.2 KB |
| 58 | Half Nut Angle.FCStd | 33 KB |
| 59 | Half Nut Assembly.FCStd | 372 KB |
| 60 | Half Nut.FCStd | 1.39 MB |
| 61 | Hold Up Lever.FCStd | 47.8 KB |
| 62 | Knob Assembly.FCStd | 95.8 KB |
| 63 | Knob.FCStd | 164 KB |
| 64 | Linear Bearing Assembly.FCStd | 67.2 KB |
| 65 | M5 x 12mm Hex Socket Cap Screw.FCStd | 10.2 KB |
| 66 | M6 x 12mm Hex Socket Flat Head Screw.FCStd | 10 KB |
| 67 | M8 Narrow Washer.FCStd | 3.93 KB |
| 68 | M8 x 25 Hex Socket Cap Screw.FCStd | 10.3 KB |
| 69 | Motor Crank Arm.FCStd | 36 KB |
| 70 | Moving Jaw Assembly.FCStd | 122 KB |
| 71 | Needle Valve.FCStd | 297 KB |
| 72 | O-Ring.FCStd | 8.43 KB |
| 73 | PVC - 1 1_2in Pipe.FCStd | 14.5 KB |
| 74 | PVC - 1 1_2in to 1 1_4 Threaded Adaptor.FCStd | 51.1 KB |
| 75 | PVC - 1 1_4in Threaded Plug.FCStd | 660 KB |
| 76 | PVC - 1_2 Plug.FCStd | 68.7 KB |
| 77 | PVC - 1in Tee.FCStd | 39.4 KB |
| 78 | PVC - 1in to 1_2 Reducer Modified.FCStd | 117 KB |
| 79 | PVC - 1in to 1_2 Reducer.FCStd | 92.7 KB |
| 80 | Pillow Block Bearing Assembly.FCStd | 88.4 KB |
| 81 | Pillow Block Bearing Spacer.FCStd | 18 KB |
| 82 | Piston.step | 534 KB |
| 83 | Piston Assembly.FCStd | 166 KB |
| 84 | Piston Mount Angle.FCStd | 63.9 KB |
| 85 | Piston Rod.FCStd | 5.1 KB |
| 86 | Piston.FCStd | 378 KB |
| 87 | Pivot Rod.FCStd | 5.11 KB |
| 88 | Power Hacksaw.step | 13.2 MB |
| 89 | Power Hacksaw 0.png | 215 KB |
| 90 | Power Hacksaw 1.png | 223 KB |
| 91 | Power Hacksaw 2.png | 246 KB |
| 92 | Power Hacksaw Assembly.FCStd | 3.64 MB |
| 93 | Rail Angle 1.FCStd | 67.8 KB |
| 94 | Rail Angle 2.FCStd | 54.8 KB |
| 95 | Rail Spacer.FCStd | 9.33 KB |
| 96 | Rocker Switch.FCStd | 438 KB |
| 97 | SCS12UU Linear Bearing Block.FCStd | 136 KB |
| 98 | Saw Frame Adjustable End.FCStd | 79.4 KB |
| 99 | Saw Frame Assembly.FCStd | 355 KB |
| 100 | Saw Frame Rod Clamp.FCStd | 54.6 KB |
| 101 | Saw Frame Tensioner.FCStd | 62.8 KB |
| 102 | Switch Activator Bracket.FCStd | 26.4 KB |
| 103 | Switch Activator.FCStd | 24.4 KB |
| 104 | Switch Mount Bracket Assembly.FCStd | 25.1 KB |
| 105 | Switch Mount Bracket.FCStd | 25.8 KB |
| 106 | Vise Fixed Jaw.FCStd | 41.1 KB |
| 107 | Vise Handle Crank.FCStd | 22.7 KB |
| 108 | Vise Handle Tube.FCStd | 13 KB |
| 109 | Vise Moving Jaw Top.FCStd | 41.2 KB |
| 110 | Vise Moving Jaw.FCStd | 50.1 KB |
| 111 | Vise Nut Angle.FCStd | 27.2 KB |
| 112 | Vise Push Block.FCStd | 69.6 KB |
| 113 | Weight Bar.FCStd | 5.1 KB |
| 114 | Weight.FCStd | 92.2 KB |
| 115 | Wormgear Motor Assembly.FCStd | 498 KB |
| 116 | Wormgear Motor.FCStd | 432 KB |

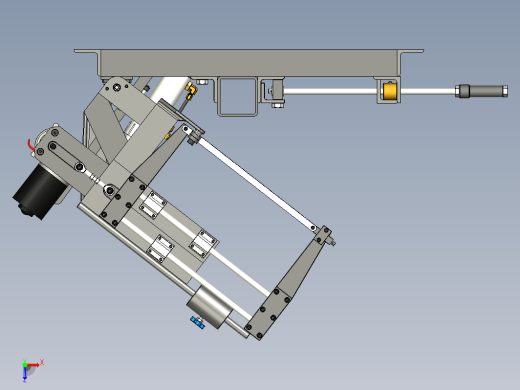

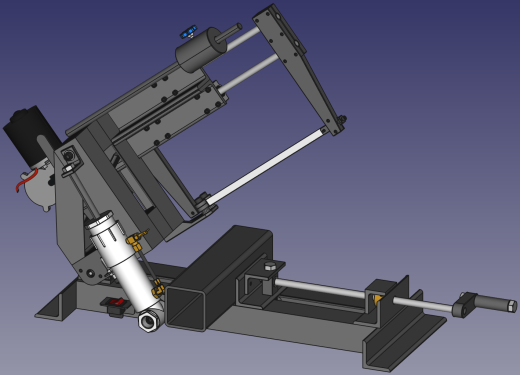

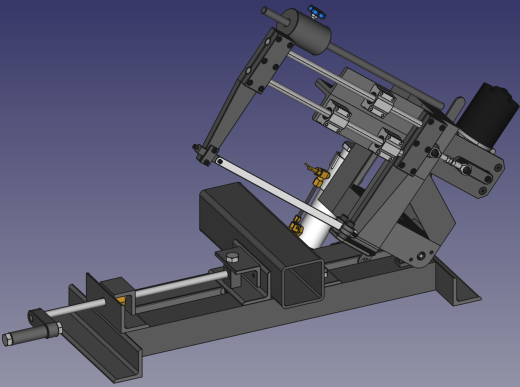

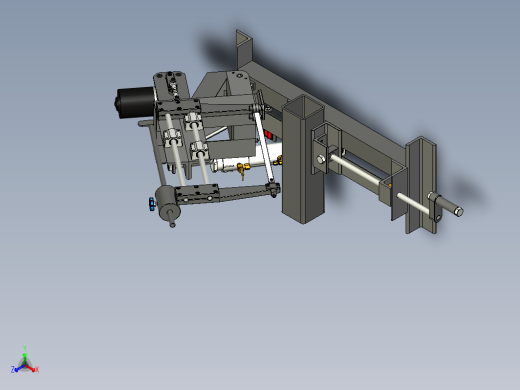

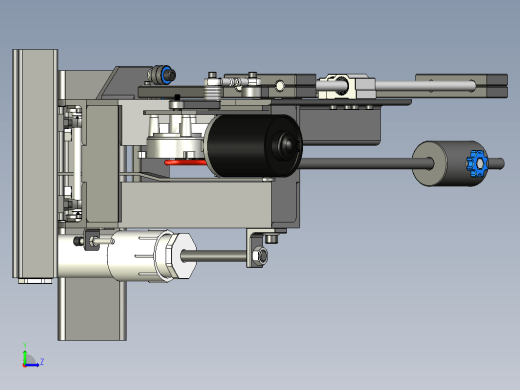

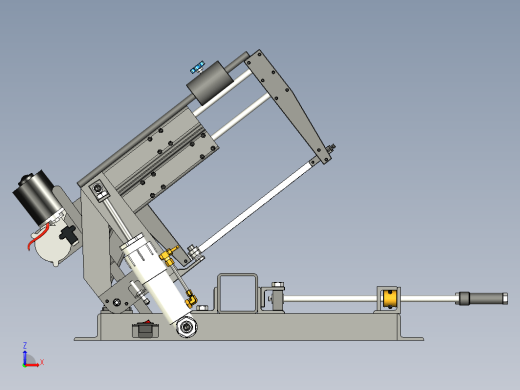

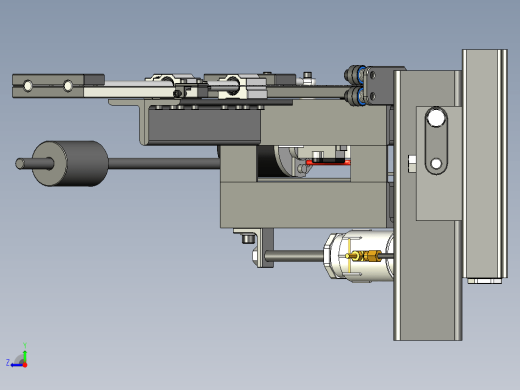

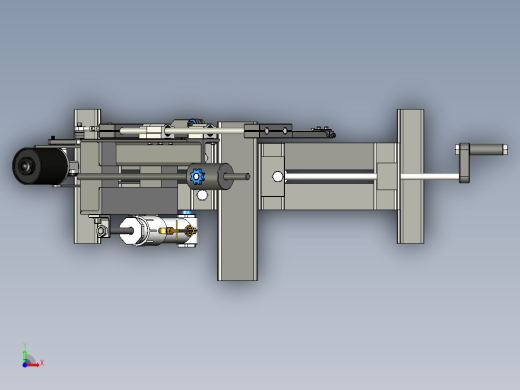

DIY Power Hacksaw电动锯结构
图纸ID：10154160
文件大小：22.46M
软件版本：
图纸格式：step
参数/编辑：可修改，包括参数
上传时间：2023-06-29
图纸介绍：
