| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | 1.PNG | 243 KB |
| 2 | 2.PNG | 234 KB |
| 3 | Assembly_gearwheel.SLDASM | 898 KB |
| 4 | Ball_bearing_SKF6207-RS1.SLDASM | 330 KB |
| 5 | Ball_bearing_SKF_6207-2ZNR.SLDASM | 315 KB |
| 6 | Corps_cover.SLDPRT | 711 KB |
| 7 | Cylindrical_pin_M4x12.SLDPRT | 160 KB |
| 8 | Distance_Sleeve_13x5.SLDPRT | 133 KB |
| 9 | Distance_Sleeve_18x7.SLDPRT | 89.9 KB |
| 10 | Nut_M8.SLDPRT | 138 KB |
| 11 | Nut_m8.SLDPRT | 148 KB |
| 12 | Pad_M6 (2).SLDPRT | 132 KB |
| 13 | Pad_M6.SLDPRT | 113 KB |
| 14 | Pad_M6.SLDPRT | 36.6 KB |
| 15 | Pad_M8.SLDPRT | 35.9 KB |
| 16 | Pad_M8.SLDPRT | 74.3 KB |
| 17 | Pad_m4x8_02.SLDPRT | 71.7 KB |
| 18 | Pad_m8.SLDPRT | 68.4 KB |
| 19 | Pad_m8.SLDPRT | 75.4 KB |
| 20 | Pinion_Assemby.SLDASM | 866 KB |
| 21 | Reductor_Assembly.STEP | 6.84 MB |
| 22 | Reductor_Assembly.SLDASM | 2.37 MB |
| 23 | Screw_M4x8_01.SLDPRT | 72.2 KB |
| 24 | Screw_M4x8_with_pad.SLDASM | 181 KB |
| 25 | Screw_M6x16.SLDPRT | 39.2 KB |
| 26 | Screw_M6x16_with_pad.SLDASM | 142 KB |
| 27 | Screw_M6x30.SLDPRT | 123 KB |
| 28 | Screw_M6x30_with_Pad_and_Nut.SLDASM | 214 KB |
| 29 | Screw_M8x100.SLDPRT | 110 KB |
| 30 | Screw_M8x100_with_pad_and_nut.SLDASM | 138 KB |
| 31 | Screw_M8x140.SLDPRT | 112 KB |
| 32 | Screw_M8x140_with_pad_and_nut.SLDASM | 132 KB |
| 33 | Screw_M8x16.SLDPRT | 116 KB |
| 34 | Screw_M8x16_with_pad.SLDASM | 125 KB |
| 35 | Screw_M8x20.SLDPRT | 39.3 KB |
| 36 | Screw_M8x20_with_pad.SLDASM | 182 KB |
| 37 | Side_cover_closed_D100.SLDPRT | 175 KB |
| 38 | Side_cover_closed_D72.SLDPRT | 185 KB |
| 39 | Side_cover_open_D100.SLDPRT | 117 KB |
| 40 | Side_cover_open_D72.SLDPRT | 125 KB |
| 41 | Sight_glass_cover.sldprt | 155 KB |
| 42 | _6207-2ZNR_PART1.sldprt | 27.2 KB |
| 43 | _6207-2ZNR_PART2.sldprt | 27.2 KB |
| 44 | _6207-2ZNR_PART3.sldprt | 23.5 KB |
| 45 | _6207-2ZNR_PART4.sldprt | 20 KB |
| 46 | _6207-RS1_PART1.sldprt | 26.1 KB |
| 47 | _6207-RS1_PART2.sldprt | 25.7 KB |
| 48 | _6207-RS1_PART3.sldprt | 23.3 KB |
| 49 | _6207-RS1_PART4.sldprt | 20.5 KB |
| 50 | _6211-2ZNR_PART1.sldprt | 28.2 KB |
| 51 | _6211-2ZNR_PART2.sldprt | 27.1 KB |
| 52 | _6211-2ZNR_PART3.sldprt | 23.6 KB |
| 53 | _6211-2ZNR_PART4.sldprt | 20.5 KB |
| 54 | _6211-2Z_PART1.sldprt | 27.9 KB |
| 55 | _6211-2Z_PART2.sldprt | 26.4 KB |
| 56 | _6211-2Z_PART3.sldprt | 22.8 KB |
| 57 | _6211-2Z_PART4.sldprt | 21.5 KB |
| 58 | ball_bearing_SKF_6011N.SLDASM | 321 KB |
| 59 | ball_bearing_SKF_6211-2Z.SLDASM | 320 KB |
| 60 | circlip_55x3.SLDPRT | 123 KB |
| 61 | conical_pin_4x20.SLDPRT | 154 KB |
| 62 | cylindrical_pin_5m6x16.SLDPRT | 163 KB |
| 63 | distance_sleeve_55x13x5.SLDPRT | 125 KB |
| 64 | distance_sleeve_63x13x5.SLDPRT | 124 KB |
| 65 | gearwheel.SLDPRT | 723 KB |
| 66 | pinion_gear.SLDPRT | 348 KB |
| 67 | pinion_shaft.SLDPRT | 361 KB |
| 68 | protection disk_I_63.SLDPRT | 104 KB |
| 69 | protection_disk_I_36.SLDPRT | 108 KB |
| 70 | protection_disk_I_40.SLDPRT | 105 KB |
| 71 | pulley_htd_28x14m40.SLDPRT | 532 KB |
| 72 | reducer_body.SLDPRT | 863 KB |
| 73 | retaining_rings_32 x 2.SLDPRT | 123 KB |
| 74 | retaining_rings_35 x 2.5.SLDPRT | 122 KB |
| 75 | sealant_46X60X8 CRW1 R.SLDPRT | 177 KB |
| 76 | sprocket_shaft.SLDPRT | 330 KB |
| 77 | venting_plug_M14x1.5.SLDPRT | 862 KB |

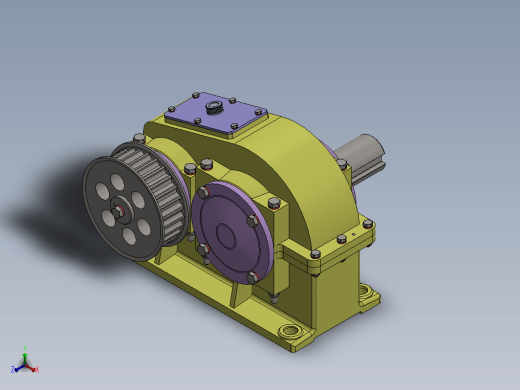

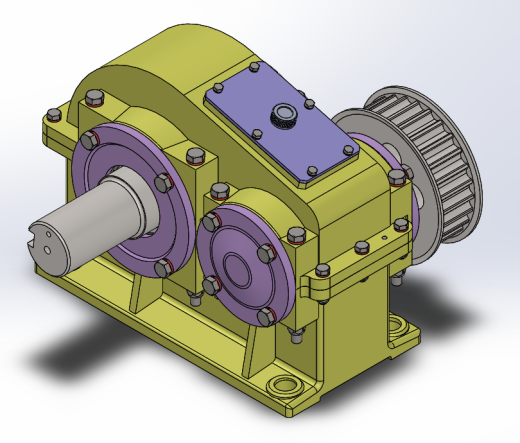

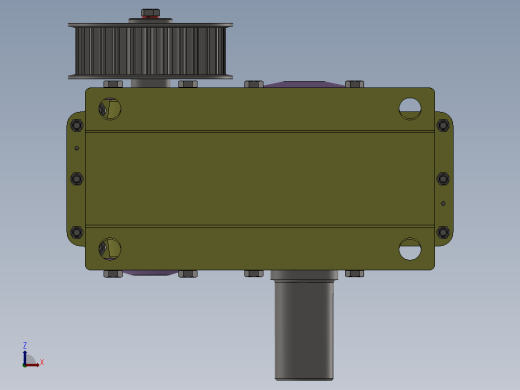

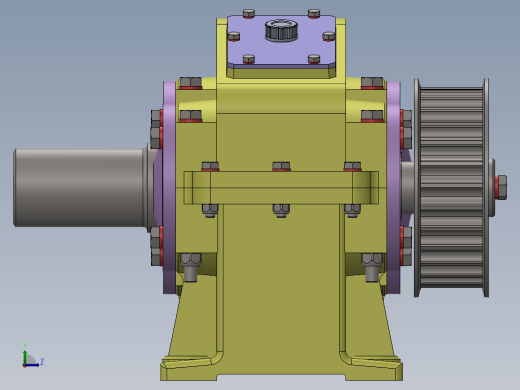

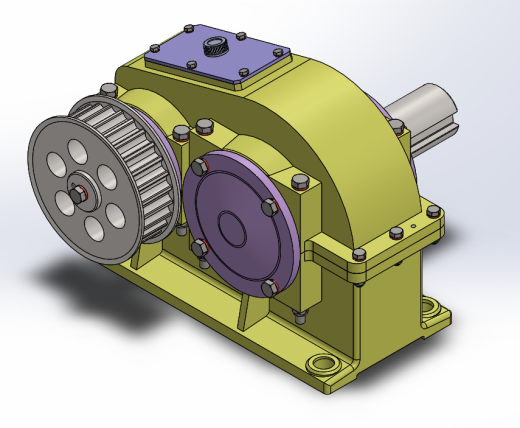

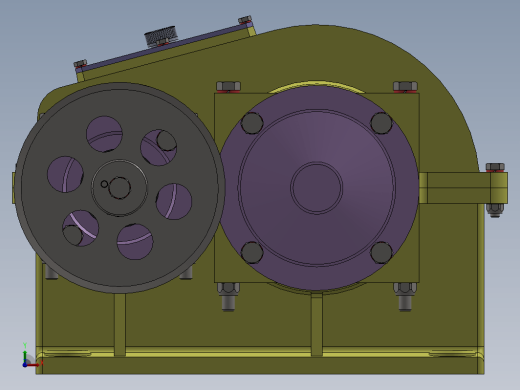

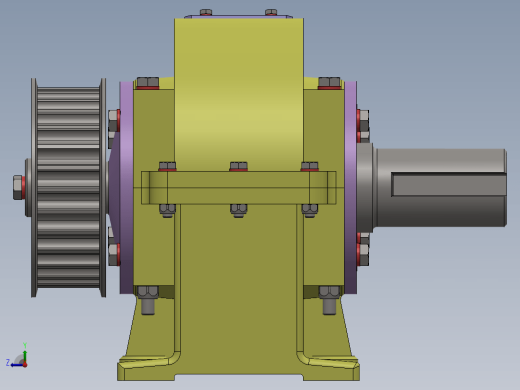

正齿轮减速器3D Spur gear reducer
图纸ID：10152074
文件大小：17.12M
软件版本：
图纸格式：sldasm,sldprt,step
参数/编辑：可修改，包括参数
上传时间：2023-04-22
图纸介绍：
下载模型
拂袖烟
作品: 122
粉丝: 0
