| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | AD-16(94.05.02)Fishing Reel.ipj | 8.09 KB |
| 2 | ANSI B18.2.4.2M - M3x0.5 - 5.5.ipt | 164 KB |
| 3 | ANSI B18.2.4.2M - M8x1.25 - 13.ipt | 128 KB |
| 4 | BACK SIDE ASSEMBLY.iam | 96.5 KB |
| 5 | BS 4183 - M2 x 6(2) I.ipt | 183 KB |
| 6 | CRANKSHAFT ASSEMBLY.iam | 301 KB |
| 7 | CRANKSHAFT ASSEMBLY.ipn | 39 KB |
| 8 | Fishing Reel.iam | 1.43 MB |
| 9 | Fishing Reel.stp | 4.51 MB |
| 10 | HANDLE SIDE COVER ASSEMBLY.iam | 100 KB |
| 11 | ISO_R 1051 - 2 x 6 x 0.001.ipt | 137 KB |
| 12 | LINE GUIDE ASSEMBLY.iam | 310 KB |
| 13 | Plastic Crankshaft Spacer.ipt | 101 KB |
| 14 | REEL CAGE ASSEMBLY.iam | 171 KB |
| 15 | Rolling bearing 70000B S723 GB_T 292-94.ipt | 294 KB |
| 16 | SPOOL ASSEMBLY.iam | 109 KB |
| 17 | WINDING ASSEMBLY.iam | 285 KB |
| 18 | WINDING HANDLE ASSEMBLY.iam | 228 KB |
| 19 | back side cover body.ipt | 212 KB |
| 20 | bearing housing.ipt | 171 KB |
| 21 | captive cover screw.ipt | 139 KB |
| 22 | cover handle port sleeve.ipt | 134 KB |
| 23 | crank shaft spacer tension spring.ipt | 128 KB |
| 24 | crankshaft cover.ipt | 206 KB |
| 25 | crankshaft.ipt | 181 KB |
| 26 | crankshft spindle.ipt | 122 KB |
| 27 | drag adjustment lever.ipt | 346 KB |
| 28 | drag lever guide bracket.ipt | 256 KB |
| 29 | drag lever spring pin.ipt | 129 KB |
| 30 | drag lever.ipt | 387 KB |
| 31 | drag lock guide.ipt | 184 KB |
| 32 | drag lock pivot pin.ipt | 120 KB |
| 33 | drag lock.ipt | 128 KB |
| 34 | drag sprocket pin.ipt | 106 KB |
| 35 | drag sprocket.ipt | 173 KB |
| 36 | drive gear offset spacer b.ipt | 143 KB |
| 37 | drive gear offset spacer.ipt | 146 KB |
| 38 | drive gear rubber washer a.ipt | 100 KB |
| 39 | drive spindle crossmember roller.ipt | 139 KB |
| 40 | drive spindle crossmember.ipt | 140 KB |
| 41 | drive transfer gear.ipt | 389 KB |
| 42 | drive_transfer_gear.ipt | 177 KB |
| 43 | driver gear rubber washer b.ipt | 104 KB |
| 44 | follower guide pin retainer.ipt | 129 KB |
| 45 | follower guide pin.ipt | 158 KB |
| 46 | foot.ipt | 144 KB |
| 47 | grip spindle.ipt | 116 KB |
| 48 | grip.ipt | 191 KB |
| 49 | handle side cover.ipt | 323 KB |
| 50 | line guide drive shaft.ipt | 323 KB |
| 51 | line guide head bushing.ipt | 132 KB |
| 52 | line guide shaft housing.ipt | 158 KB |
| 53 | line guide tail bush.ipt | 132 KB |
| 54 | line guide.ipt | 247 KB |
| 55 | locking plate.ipt | 206 KB |
| 56 | main bearing cover.ipt | 110 KB |
| 57 | main drive gear.ipt | 1.27 MB |
| 58 | pivot pin.ipt | 164 KB |
| 59 | plastic bushing.ipt | 123 KB |
| 60 | slotted strut.ipt | 149 KB |
| 61 | spindle crossmember.ipt | 140 KB |
| 62 | spool drive spindle.ipt | 195 KB |
| 63 | spool frame ring - back.ipt | 325 KB |
| 64 | spool frame ring - front.ipt | 262 KB |
| 65 | spool to winder transfer gear.ipt | 329 KB |
| 66 | spool.ipt | 196 KB |
| 67 | spring spacer.ipt | 314 KB |
| 68 | strut.ipt | 116 KB |
| 69 | threaded strut.ipt | 138 KB |
| 70 | winder transfer gear spindle.ipt | 133 KB |
| 71 | winder transfer gear.ipt | 644 KB |
| 72 | winder transfer gear2.ipt | 365 KB |
| 73 | winding assembly base.ipt | 155 KB |
| 74 | winding assembly y plate.ipt | 154 KB |
| 75 | winding handle.ipt | 141 KB |

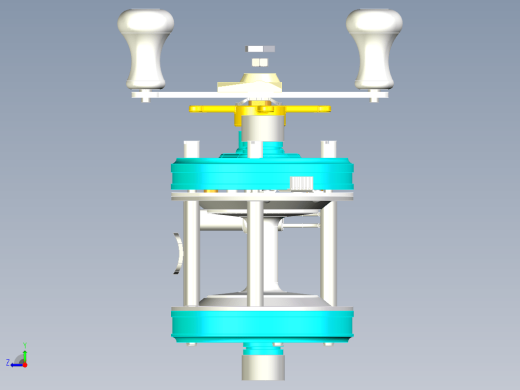

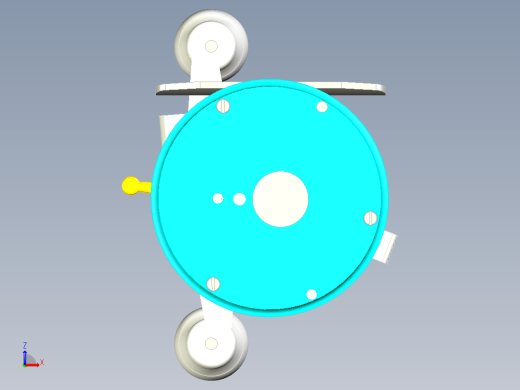

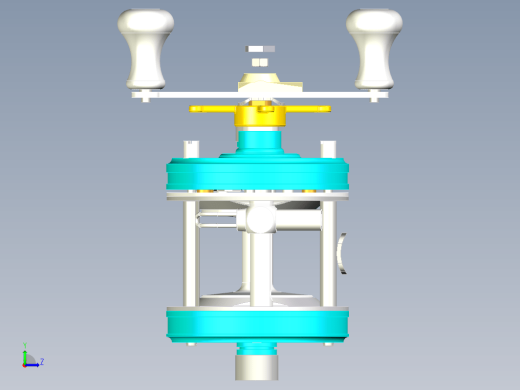

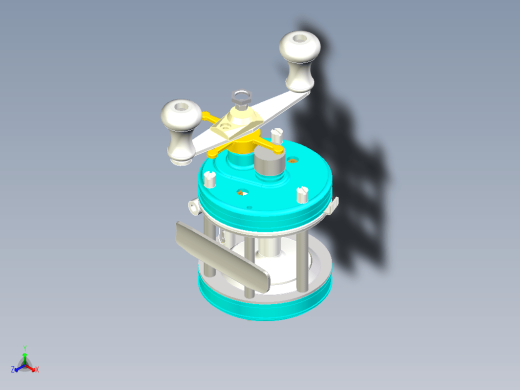

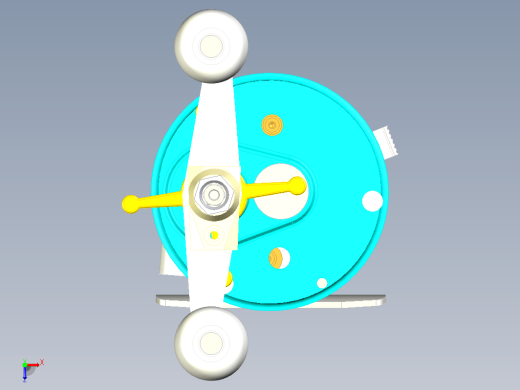

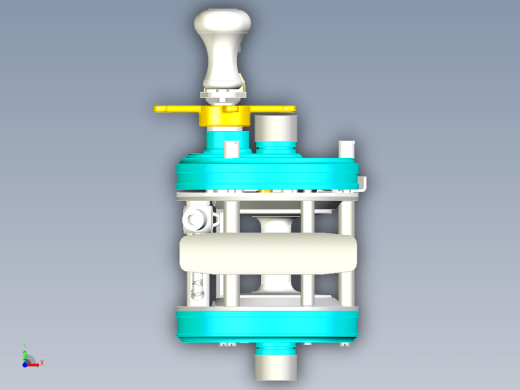

渔线轮模型
图纸ID：10151158
文件大小：15.03M
软件版本：
图纸格式：ipt
参数/编辑：可修改，包括参数
上传时间：2023-03-23
图纸介绍：
免费下载
离殇
作品: 112
粉丝: 0
文件列表
