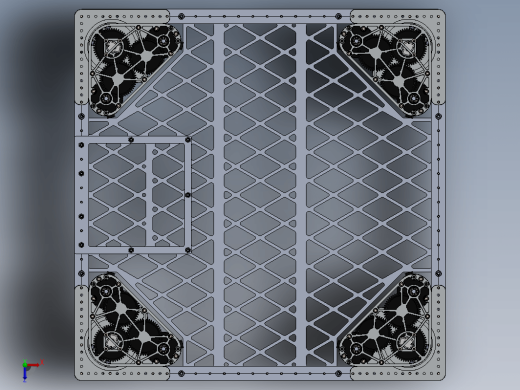

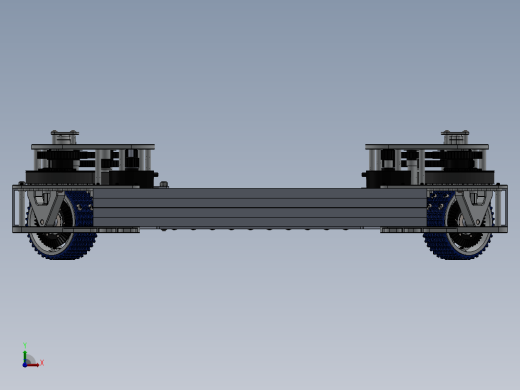

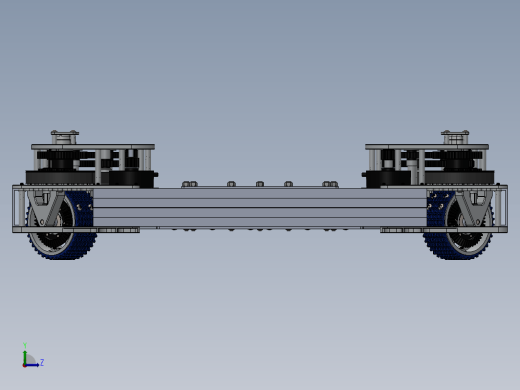

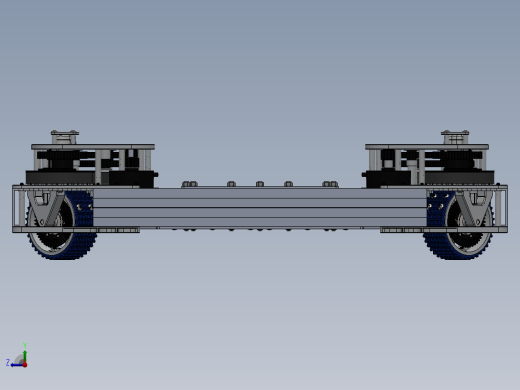

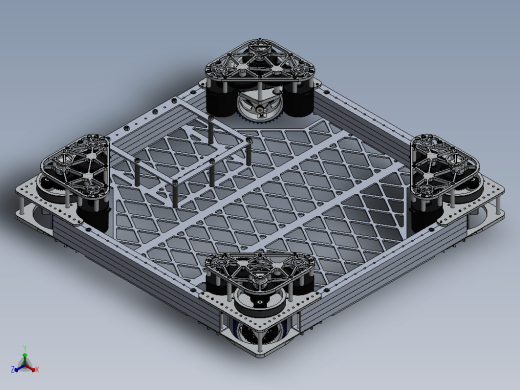

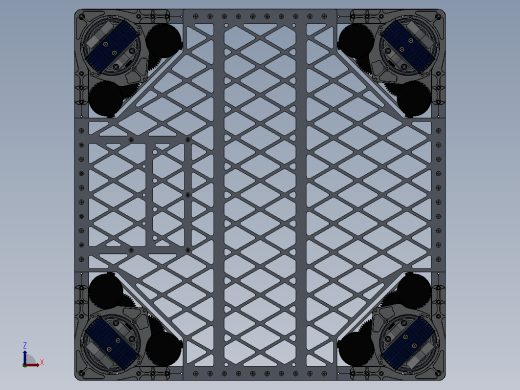

比赛机器人车底盘结构 OTR Swerve（ID:10141806）

免费下载

文件大小：32.44M

| 软件版本：SOLIDWORKS 2021

| 图纸格式：sldprt,sldasm

| 参数/编辑：可修改，包括参数

平面图

3D视图

文件列表

加入收藏

珊瑚网 www.shanhu3d.com

珊瑚网 www.shanhu3d.com

珊瑚网

#	文件名称	文件大小
1	+必看说明+.txt	2.22 KB
2	90631A009_Low-Strength Steel Nylon-Insert Locknut.SLDPRT	452 KB
3	91251A347_Black-Oxide Alloy Steel Socket Head Screw.SLDPRT	1.02 MB
4	91255A811_Button Head Hex Drive Screw.SLDPRT	801 KB
5	92949A821_18-8 Stainless Steel Button Head Hex Drive Screw.SLDPRT	1.59 MB
6	95105A135_Zinc-Plated Steel Heavy-Duty Rivet Nut (5).SLDPRT	677 KB
7	97525A465_18-8 Stainless Steel Blind Rivets.SLDPRT	240 KB
8	Bearing, .375 ThunderHex, Flanged, 217-5829.SLDPRT	17 KB
9	Bearing, 6802.SLDPRT	15.4 KB
10	Bearing, 688.SLDPRT	16 KB
11	Bearing, A035XPO_SA035XPO.SLDPRT	17.3 KB
12	Bearing, R188ZZ, 217-3489.SLDPRT	14.8 KB
13	Bearing, R6ZZ.SLDPRT	15.8 KB
14	Bearing, R8ZZ.SLDPRT	18.9 KB
15	Belt, 320-5M-15.SLDPRT	19.2 KB
16	Bevel Gear, 1545.SLDPRT	320 KB
17	Bevel Gear, 4515.SLDPRT	675 KB
18	Bumper Braket.SLDPRT	128 KB
19	CANcoder Assembly.SLDASM	21.9 KB
20	CANcoder Bottom Housing.SLDPRT	69.3 KB
21	CANcoder PCA.SLDPRT	38.2 KB
22	CANcoder Screw.SLDPRT	133 KB
23	CANcoder Top Housing.SLDPRT	88.3 KB
24	Double Gear, 20DP, 25T, 50T.SLDPRT	213 KB
25	Double Gear, 20DP, 27T, 50T.SLDPRT	214 KB
26	Double Gear, 20DP, 28T, 50T.SLDPRT	271 KB
27	Gear, 17T, 20DP, .375Hex.SLDPRT	76.3 KB
28	Gear, 19T, 20DP, .375Hex.SLDPRT	63.3 KB
29	Gear, 20DP, 14T, 8mm REV1.SLDPRT	37.8 KB
30	Gear, 20DP, 16T, .375Hex, 217-5451.SLDPRT	61.2 KB
31	Gear, 50T, 20DP, .375Hex.SLDPRT	173 KB
32	MK3 Base Pulley Tall.SLDPRT	162 KB
33	MK3 Center Column.SLDPRT	19.8 KB
34	MK4 Billet Wheel Assembly.SLDASM	26.8 KB
35	MK4 Intermediate Shaft.SLDPRT	27 KB
36	MK4 Wheel Spacer.SLDPRT	17.2 KB
37	MK4i Master Part_NEO Config.SLDPRT	667 KB
38	MK4i Shaft, Drive Idler.SLDPRT	22.1 KB
39	MK4i Steering Shaft Spacer.SLDPRT	14.8 KB
40	MK4i Steering Shaft Tall.SLDPRT	50.8 KB
41	Machine Key, 2 X 2 X 12mm.SLDPRT	17.5 KB
42	Motor, NEO.SLDPRT	36.7 KB
43	Retaining Ring, 8mm, 98430A132_98430A132.SLDPRT	67 KB
44	SDS MK4i Swerve Module, NEOs (2).SLDASM	7.64 MB
45	Screw, .25-20 X .625, 91251A539_91251A539.SLDPRT	67 KB
46	Screw, .25-20 X 1 Socket, 91251A542_91251A542.SLDPRT	85.6 KB
47	Screw, 10-32 X .25, Button, 91255A261_91255A261.SLDPRT	47.8 KB
48	Screw, 10-32 X .5, Button, 97763A232_97763A232.SLDPRT	72.9 KB
49	Screw, 10-32 X .75, Button, 91255A269_91255A269.SLDPRT	90.3 KB
50	Screw, 10-32 X 1.375, 90044A202_90044A202.SLDPRT	106 KB
51	Screw, 10-32 X 2.25, 91251A354_91251A354.SLDPRT	112 KB
52	Screw, 12-24 X .625, Flat, 91253A282_91253A282.SLDPRT	57 KB
53	Screw, 3-48 X .1875, Pan Phillips, 90272A091_90272A091.SLDPRT	70.3 KB
54	Screw, 8-32 X .875, Button, 91255A166_91255A166.SLDPRT	172 KB
55	Screw, 8-32 X 2.5, 91251A207_91251A207.SLDPRT	112 KB
56	Screw, Shoulder, .375 X 2.5, 5_16-18, 91259A634_91259A634.SLDPRT	146 KB
57	Shim, 8mm ID X 14mm OD X .5mm Thick, 98055A115_98055A115.SLDPRT	14.9 KB
58	Smaller Bumper Braket.SLDPRT	69.5 KB
59	Spacer, 8mmID X .437 OD X 0.437 L.SLDPRT	16.7 KB
60	Swerve Drive Battery Mount.SLDPRT	98.3 KB
61	Swerve Drive Belly Pan.SLDPRT	2.38 MB
62	Swerve Drive Bumper With Brakets.SLDASM	110 KB
63	Swerve Drive Bumper.SLDPRT	114 KB
64	Swerve Drive Cross Support.SLDPRT	345 KB
65	Swerve Drive.SLDASM	9.32 MB
66	Tread, Blue Nitrile 4in X 1.5in.SLDPRT	1.31 MB
67	Versa Frame Swerve Drive 14.5in.SLDPRT	881 KB
68	WCP-0207.SLDPRT	48.9 KB
69	Wheel Mount A.SLDPRT	37.4 KB
70	Wheel Mount B Gen2.SLDPRT	43.6 KB
71	Wheel, SDS, Nitrile Tread, 4in X 1.5in, Bearing Bore.SLDPRT	77.2 KB
72	am-3233 Bumper Wood Corner Bracket With Adjusted Holes.SLDPRT	105 KB
73	magnet.SLDPRT	17.3 KB
74	【珊瑚网 www.shanhu3d.com 】更多【资料】【图档】.url	177 B
75	公众号免费下载.jpg	79 KB

模型信息

图纸ID：10141806

文件大小：32.44M

软件版本：

SOLIDWORKS 2021

图纸格式：sldprt,sldasm

参数/编辑：可修改，包括参数

上传时间：2022-05-24

图纸介绍：
