工业厂房工棚框架SolidWorks 3D模型

3D模型名称为：工业厂房工棚框架，属于建筑设施，办公厂房分类，软件为SolidWorks, 三维模型格式为sldasm,sldprt，可在线预览，可编辑，可供设计参考

平面图

3D视图

加入收藏

模型参数

模型ID：10127265

模型大小：4.38M

软件版本： SolidWorks

模型格式：sldasm,sldprt

是否可编辑：可修改，包括参数

上传时间：2021-02-07

图纸介绍：

免费下载

江南

+ 关注

作品: 0

粉丝: 0

文件列表

1. 35ton Crane Track.SLDASM

55.3 KB

2. Column-Roof Joint Face Plate.SLDPRT

59.2 KB

3. Column-Roof Joint Support Plate 2.SLDPRT

44.9 KB

4. Column-Roof Joint Support Plate.SLDPRT

43.2 KB

5. Crane Bracket Cover Plate.SLDPRT

40.7 KB

6. Crane Bracket Support Plate 2.SLDPRT

35.3 KB

7. Crane Bracket Support Plate.SLDPRT

41.2 KB

8. Crane Track Stiffner Plate.SLDPRT

40.2 KB

9. Floor.SLDPRT

179 KB

10. Frame Section.SLDASM

196 KB

11. I Beam 450 x 500 x 450.SLDPRT

51.9 KB

12. I Beam 450 x 750 x 40ft.SLDPRT

99.2 KB

13. I Beam 600 x 350 x 4500.SLDPRT

52.3 KB

14. I Beam 600 x 350 x 4700.SLDPRT

42.9 KB

15. I Beam's Column Assem.SLDASM

91 KB

16. I Beam's Column Base Support Plate 1.SLDPRT

40.5 KB

17. I Beam's Column Base Support Plate 2.SLDPRT

45.8 KB

18. I beam Column Base Plate.SLDPRT

66.7 KB

19. Pipe's Column Base Plate.SLDPRT

65.6 KB

20. Pipe's Column.SLDASM

53.8 KB

21. Purlin Front Corner.SLDPRT

47.9 KB

22. Purlin Joint Plate Front Bracket.SLDPRT

54.1 KB

23. Purlin Joint Plate Front.SLDPRT

62.2 KB

24. Purlin Joint Plate wall.SLDPRT

64.5 KB

25. Purlin Joint Plate.SLDPRT

64.5 KB

26. Purlin Roof Corner.SLDPRT

47.9 KB

27. Purlin Wall Corner.SLDPRT

48 KB

28. Roof Calculation.SLDPRT

39.6 KB

29. Roof PIpe 2175mm Assem.SLDASM

59.8 KB

30. Roof PIpe 26ft Assem.SLDASM

69.7 KB

31. Roof Pipe Assem.SLDASM

83.8 KB

32. Roof Pipe Cover Plate.SLDPRT

37.5 KB

33. Roof Pipe joint Face Plate.SLDPRT

61.6 KB

34. Roof pipe Cut Design.SLDASM

38.5 KB

35. Roof.SLDASM

84.9 KB

36. Round Pipe 4in 2.SLDPRT

59.4 KB

37. Round Pipe 4in Column-Column.SLDASM

59 KB

38. Round Pipe 4in Joint Bracket.SLDPRT

56.6 KB

39. Round Pipe 4in Joint L Angle 4in x 4in.SLDPRT

61 KB

40. Round Pipe 4in Roof-Roof.SLDASM

59.6 KB

41. Round Pipe 4in.SLDPRT

62.2 KB

42. Side Wall.SLDPRT

292 KB

43. Square Bar 50 x 50 x 36400.SLDPRT

38.2 KB

44. Square Pipe 12in x 12in x 2175.2mm.SLDPRT

56.1 KB

45. Square Pipe 12in x 12in x 26ft.SLDPRT

52.1 KB

46. Square Pipe 12in x 12in x 47ft.SLDPRT

53.6 KB

47. Support Plate 6in x 3in x 8mm.SLDPRT

40.3 KB

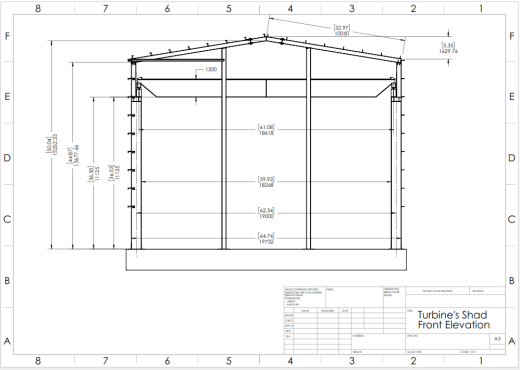

48. Turbine Shad Front Elevation.PNG

73.9 KB

49. Turbine Shad.JPG

557 KB

50. Turbine Shad.SLDASM

1020 KB
