| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | Assembly.JPG | 122 KB |
| 2 | Assembly.pdf | 275 KB |
| 3 | Base.pdf | 67.8 KB |
| 4 | Beam Linkage.pdf | 42.4 KB |
| 5 | Beam.pdf | 59.2 KB |
| 6 | Bearing.pdf | 55.5 KB |
| 7 | Centrifugal Pump Bearing.pdf | 53.9 KB |
| 8 | Centrifugal Pump Cover.pdf | 66.4 KB |
| 9 | Centrifugal Pump Housing.pdf | 86.4 KB |
| 10 | Centrifugal Pump Impeller.pdf | 99 KB |
| 11 | Centrifugal Pump Pulley.pdf | 78.1 KB |
| 12 | Centrifugal Pump Shaft.pdf | 56.2 KB |
| 13 | Column.pdf | 61.7 KB |
| 14 | Connecting Rod Head.pdf | 65.2 KB |
| 15 | Connecting Rod Link.pdf | 54.8 KB |
| 16 | Crankshaft Bolt.pdf | 50.1 KB |
| 17 | Crankshaft Nut.pdf | 45.9 KB |
| 18 | Crankshaft Rocker.pdf | 56.7 KB |
| 19 | Crankshaft Rod.pdf | 50.5 KB |
| 20 | Crankshaft.pdf | 48.5 KB |
| 21 | Cylinder Head.pdf | 48.6 KB |
| 22 | Cylinder.pdf | 55.5 KB |
| 23 | Eccentric Hub.pdf | 50.9 KB |
| 24 | Eccentric Strap Head.pdf | 55.3 KB |
| 25 | Eccentric Strap Rod.pdf | 47.9 KB |
| 26 | Eccentric Strap.pdf | 49.7 KB |
| 27 | Inlet.pdf | 47.7 KB |
| 28 | Piston.IGS | 462 KB |
| 29 | Piston Rod Head.pdf | 54.3 KB |
| 30 | Piston Rod.pdf | 53 KB |
| 31 | Piston Support Beam.IGS | 221 KB |
| 32 | Piston Support Beam.pdf | 53 KB |
| 33 | Piston Support Rod.pdf | 56.9 KB |
| 34 | Piston.pdf | 53.9 KB |
| 35 | Plain Bearing.IGS | 68.4 KB |
| 36 | Plain Bearing.pdf | 51.3 KB |
| 37 | Rod D4-L18.IGS | 132 KB |
| 38 | Rod D4-L18.pdf | 49.7 KB |
| 39 | Rod D4-L22.IGS | 38.4 KB |
| 40 | Rod D4-L22.pdf | 49.7 KB |
| 41 | Rod D4-L46.IGS | 133 KB |
| 42 | Rod D4-L46.pdf | 45 KB |
| 43 | Rod D6-L46.IGS | 77.9 KB |
| 44 | Rod D6-L46.pdf | 45.5 KB |
| 45 | Steam engine project.510.jpg | 40.8 KB |
| 46 | Steam engine project.511.jpg | 40.3 KB |
| 47 | Steam engine project.512.jpg | 22.5 KB |
| 48 | Turbine Pulley.IGS | 153 KB |
| 49 | Turbine Pulley.pdf | 59.1 KB |
| 50 | Valve.IGS | 209 KB |
| 51 | Valve Linkage.IGS | 140 KB |
| 52 | Valve Linkage Bolt.IGS | 96.9 KB |
| 53 | Valve Linkage Bolt.pdf | 47.5 KB |
| 54 | Valve Linkage Dual Rocker.IGS | 1020 KB |
| 55 | Valve Linkage Dual Rocker.pdf | 50.7 KB |
| 56 | Valve Linkage Rocker.IGS | 738 KB |
| 57 | Valve Linkage Rocker.pdf | 44.5 KB |
| 58 | Valve Linkage Stud.IGS | 48.6 KB |
| 59 | Valve Linkage Stud.pdf | 42.2 KB |
| 60 | Valve Linkage.pdf | 52.9 KB |
| 61 | Valve.pdf | 53.5 KB |
| 62 | Wood Pin D6 L40.IGS | 364 KB |
| 63 | Wood Pin D6 L40.pdf | 47 KB |
| 64 | piston.JPG | 85.2 KB |

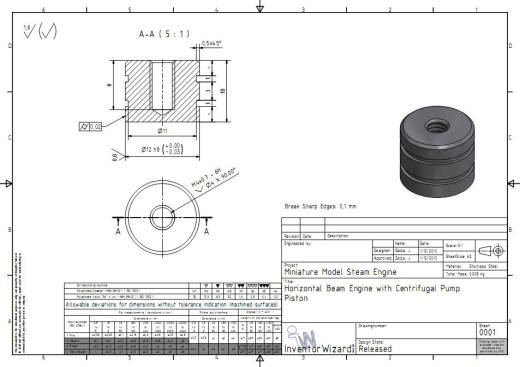

水平梁离心泵蒸汽机平面加工图纸
图纸ID：10125316
文件大小：3.38M
软件版本：
图纸格式：pdf,igs
参数/编辑：可修改，包括参数
上传时间：2020-12-05
图纸介绍：
免费下载
踏青石
作品: 108
粉丝: 0
文件列表
