| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | 1.PNG | 1.36 MB |
| 2 | 2.PNG | 1.78 MB |
| 3 | 5.6x10mm M3 Nylon Threaded Spacer.SLDPRT | 75.3 KB |
| 4 | 5.6x14mm M3 Nylon Tapped Spacer.SLDPRT | 65.1 KB |
| 5 | 5.6x14mm M3 Nylon Tapped Spacer.SLDPRT | 65.1 KB |
| 6 | 5.6x6.5mm M3 Nylon Tapped Spacer.SLDPRT | 68.1 KB |
| 7 | 5.PNG | 436 KB |
| 8 | 6.PNG | 87.6 KB |
| 9 | APM Damping Platform.SLDASM | 352 KB |
| 10 | Arm Mount.SLDPRT | 124 KB |
| 11 | Back.SLDPRT | 84.6 KB |
| 12 | Bearing Bracket Inner Assembly.SLDASM | 119 KB |
| 13 | Bearing Bracket Inner Body.SLDPRT | 157 KB |
| 14 | Bearing Bracket Inner Shaft.SLDPRT | 139 KB |
| 15 | Bearing Bracket Middle Assembly.SLDASM | 164 KB |
| 16 | Bearing Bracket Middle Bottom.SLDPRT | 147 KB |
| 17 | Bearing Bracket Middle Shaft.SLDPRT | 130 KB |
| 18 | Bearing Bracket Middle Top.SLDPRT | 177 KB |
| 19 | Bearing Damping Assembly.SLDASM | 362 KB |
| 20 | Bearing Damping Mount.SLDPRT | 276 KB |
| 21 | Bearing Holder Middle Assembly.SLDASM | 244 KB |
| 22 | Body Assembly.SLDASM | 2.68 MB |
| 23 | Carbon Fibre Mount.SLDPRT | 311 KB |
| 24 | Cobra 2208 rotor.SLDPRT | 252 KB |
| 25 | Cobra 2208 stator.SLDPRT | 260 KB |
| 26 | Cobra 2208.SLDPRT | 311 KB |
| 27 | Cobra Motor.SLDASM | 454 KB |
| 28 | Control Assembly.SLDASM | 1.57 MB |
| 29 | Control Bracket.SLDPRT | 137 KB |
| 30 | Corona DS-339MG.SLDPRT | 290 KB |
| 31 | Corona DS-339MG.SLDPRT | 290 KB |
| 32 | Damping Assembly.SLDASM | 693 KB |
| 33 | Damping Asssembly.SLDASM | 426 KB |
| 34 | Damping Back.SLDPRT | 84.6 KB |
| 35 | Damping Ball 100g.SLDPRT | 88.2 KB |
| 36 | Damping Ball 100g.SLDPRT | 88.2 KB |
| 37 | Damping Bracket.SLDPRT | 148 KB |
| 38 | Damping Front.SLDPRT | 98 KB |
| 39 | Design v5.SLDASM | 4.26 MB |
| 40 | ESC.SLDPRT | 266 KB |
| 41 | Frame Assembly.SLDASM | 741 KB |
| 42 | Frame Bracket.SLDPRT | 248 KB |
| 43 | Frame Center.sldprt | 366 KB |
| 44 | Frame Outer.SLDPRT | 218 KB |
| 45 | Frame Under.SLDPRT | 182 KB |
| 46 | Frame.SLDPRT | 667 KB |
| 47 | Front.SLDPRT | 102 KB |
| 48 | Gemfan 6040.SLDPRT | 312 KB |
| 49 | Inner Ring Cobra.SLDASM | 1.01 MB |
| 50 | Inner Ring Frame Assembly.SLDASM | 269 KB |
| 51 | Inner disk.SLDPRT | 374 KB |
| 52 | Landing Skid.SLDPRT | 266 KB |
| 53 | M3 Servo Horn.SLDPRT | 323 KB |
| 54 | M3 Servo Horn.SLDPRT | 323 KB |
| 55 | Middle Ring Assembly.SLDASM | 1 MB |
| 56 | Middle Ring.SLDPRT | 1.11 MB |
| 57 | Middle.SLDPRT | 69.3 KB |
| 58 | Motor Arm.SLDPRT | 308 KB |
| 59 | Motor Assembly Support.SLDASM | 534 KB |
| 60 | Motor Mount Middle Section.SLDPRT | 247 KB |
| 61 | Naze32 Acro.SLDPRT | 5.43 MB |
| 62 | OrangeRx Receiver.SLDPRT | 618 KB |
| 63 | Prop Adapter Base.SLDPRT | 69.5 KB |
| 64 | Prop Adapter Cone.SLDPRT | 204 KB |
| 65 | Prop Adapter Inner.SLDPRT | 112 KB |
| 66 | Prop Adapter.SLDASM | 310 KB |
| 67 | Rotor assembly.SLDASM | 291 KB |
| 68 | SK450 Arm.SLDPRT | 1 MB |
| 69 | Servo Bracket Inner Assembly.SLDASM | 221 KB |
| 70 | Servo Bracket Inner Face.SLDPRT | 144 KB |
| 71 | Servo Bracket Inner.SLDPRT | 107 KB |
| 72 | Servo Bracket Middle Assembly.SLDASM | 291 KB |
| 73 | Servo Bracket Middle Bottom.SLDPRT | 162 KB |
| 74 | Servo Bracket Middle Mount.SLDPRT | 259 KB |
| 75 | Servo Bracket Middle Top.SLDPRT | 185 KB |
| 76 | Servo Damping Assembly.SLDASM | 274 KB |
| 77 | Servo Damping Mount.SLDPRT | 240 KB |
| 78 | Servo Grommet.SLDPRT | 67.1 KB |
| 79 | Servo Grommet.SLDPRT | 67.1 KB |
| 80 | Servo Mount Bottom.SLDPRT | 130 KB |
| 81 | Servo Mount Bottom.SLDPRT | 131 KB |
| 82 | Servo Mount Middle Assembly.SLDASM | 211 KB |
| 83 | Servo Mount Top.SLDPRT | 140 KB |
| 84 | Servo Mount Top.SLDPRT | 140 KB |
| 85 | bracket.SLDPRT | 162 KB |

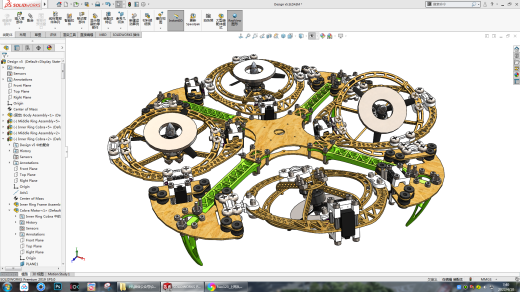

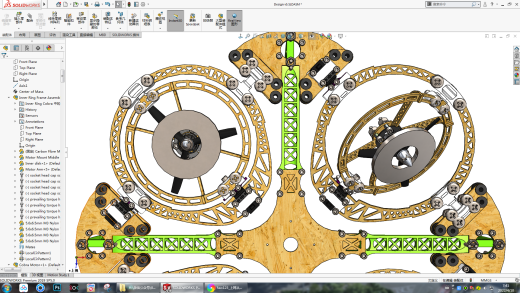

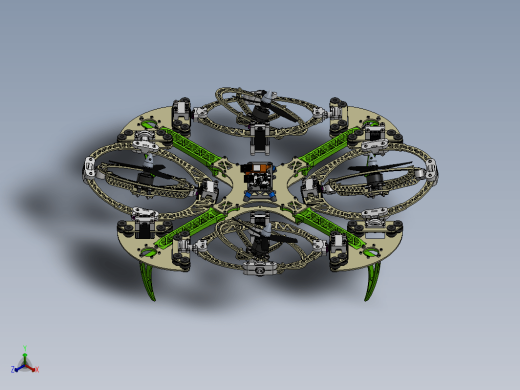

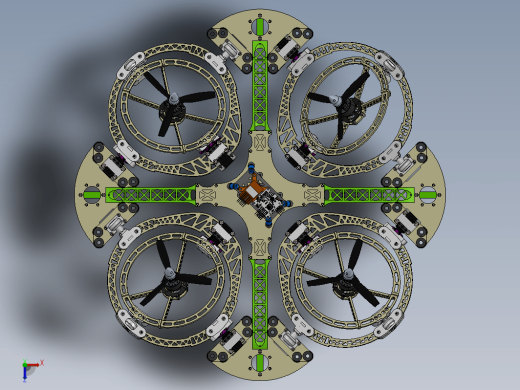

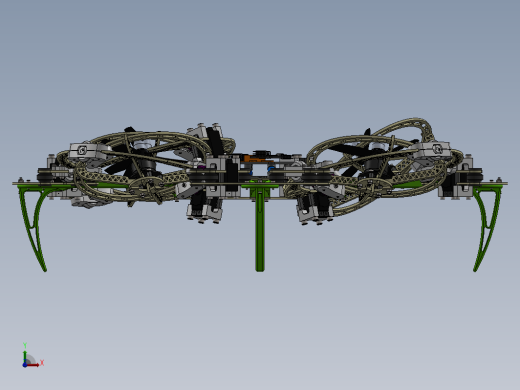

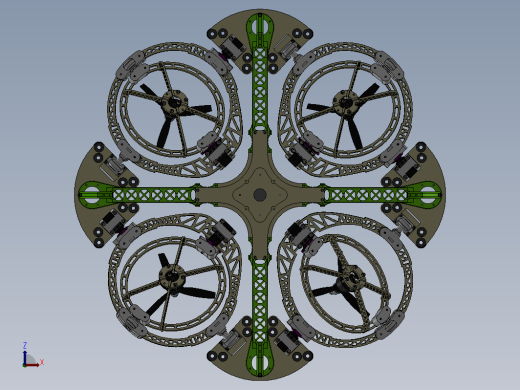

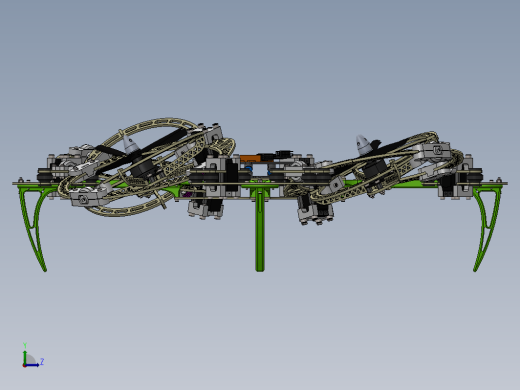

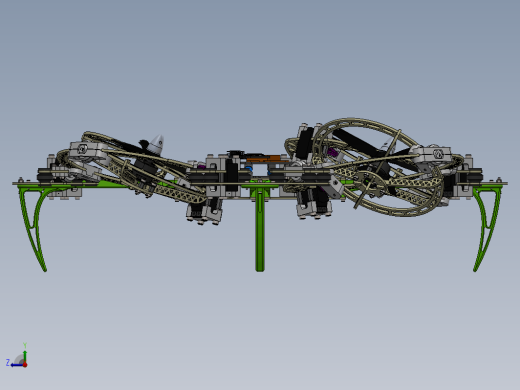

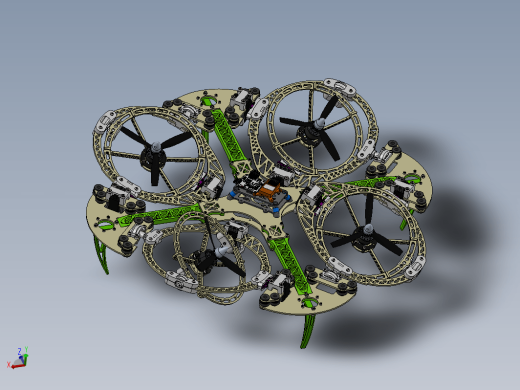

双轴倾斜四旋翼
图纸ID：10117202
文件大小：38.4M
软件版本：
图纸格式：sldprt,sldasm
参数/编辑：可修改，包括参数
上传时间：2020-03-17
图纸介绍：
