SCARA pick and place拾取和放置机器人SolidWorks,AutoCAD,stl 三维模型

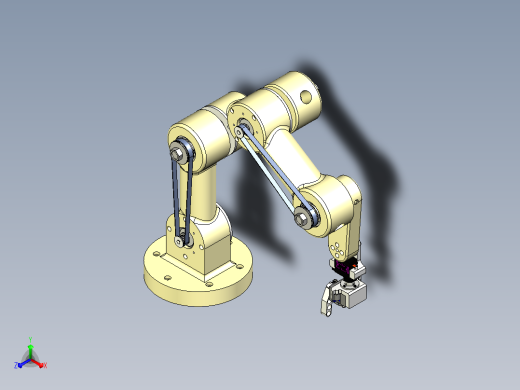

三维机械图纸名称为：SCARA pick and place拾取和放置机器人，属于机械设备，智能装置分类，软件为SolidWorks,AutoCAD,stl, 三维模型格式为sldprt,sldasm,stl，可在线预览，可编辑，可供设计参考
模型参数
模型ID：10113882
模型大小：28.08M
软件版本： SolidWorks,AutoCAD 2016,stl
模型格式：sldprt,sldasm,stl
是否可编辑：可修改，包括参数
上传时间：2019-12-01
图纸介绍：
下载模型
文件列表
1. 1mm_plate(quantity=4).DXF
22 KB
2. 1mm_plate.SLDPRT
36.9 KB
3. 1mm_sideplate(quantity=8).DXF
22 KB
4. 1mm_sideplate.SLDPRT
34.9 KB
5. 77855.mp4
222 KB
6. SCARA pick and place robot final render.JPG
920 KB
7. SKF - 608 - 8,DE,NC,8_68.sldprt
261 KB
8. SKF - 618-8 - 12,SI,NC,12_68.sldprt
181 KB
9. SKF - 61900 - 10,DE,NC,10_68.sldprt
283 KB
10. SKF - 61902 - 14,SI,NC,14_68.sldprt
174 KB
11. axis.SLDASM
59.1 KB
12. axis2.SLDASM
65.9 KB
13. back_Assem1.SLDASM
67.3 KB
14. base.DXF
23.7 KB
15. base.SLDPRT
58.8 KB
16. base1.DXF
23.4 KB
17. base1.SLDPRT
63.6 KB
18. base_1.DXF
24.7 KB
19. base_1.SLDPRT
66.6 KB
20. base_stepper_motor.SLDASM
56.6 KB
21. beam.DXF
22 KB
22. beam.SLDPRT
32.1 KB
23. bottom cover.SLDPRT
81.1 KB
24. bottom.DXF
23.4 KB
25. bottom.SLDPRT
62.7 KB
26. bottom.sldprt
69.5 KB
27. bottom2.sldprt
86.5 KB
28. bottom3.sldprt
62 KB
29. chuck.sldprt
149 KB
30. elecmagnet_assembly.SLDPRT.SLDASM
75.7 KB
31. elecmagnet_bottom.DXF
26.7 KB
32. elecmagnet_bottom.SLDPRT
112 KB
33. elecmagnet_bottom1.DXF
24.8 KB
34. elecmagnet_bottom1.SLDPRT
73.4 KB
35. elecmagnet_side.DXF
27.5 KB
36. elecmagnet_side.SLDPRT
80.1 KB
37. elecmagnet_side1.DXF
27.1 KB
38. elecmagnet_side1.SLDPRT
85.1 KB
39. elecmagnet_top(quantity=2).DXF
24.8 KB
40. elecmagnet_top.SLDPRT
72.5 KB
41. elecmagnet_top1.DXF
24.8 KB
42. elecmagnet_top1.SLDPRT
72.9 KB
43. front_assembly.SLDASM
57.9 KB
44. gripper.SLDASM
1.12 MB
45. link.sldprt
60.5 KB
46. link2.sldprt
58.5 KB
47. locknutM2.5.sldprt
54 KB
48. locknutM3.sldprt
54 KB
49. middle.DXF
24.8 KB
50. middle.SLDPRT
51 KB
51. middle_support.DXF
26.9 KB
52. middle_support.SLDPRT
67.5 KB
53. motor.sldprt
243 KB
54. n_back_holder.SLDPRT
82.5 KB
55. n_ball_bearing_housing.SLDPRT
70.7 KB
56. n_base.SLDPRT
77.5 KB
57. n_base_assembly.SLDASM
200 KB
58. n_base_stud.SLDPRT
35.6 KB
59. n_base_support_new.SLDPRT
65 KB
60. n_basemotor_coupler.SLDPRT
65.8 KB
61. n_basemotor_stud.SLDPRT
39.3 KB
62. n_basesteppermotor_back.SLDPRT
47 KB
63. n_basesteppermotor_front.SLDPRT
88 KB
64. n_basesteppermotor_middle.SLDPRT
43.6 KB
65. n_bearing_holder.SLDPRT
57.8 KB
66. n_bearing_holding_plate.SLDPRT
67.9 KB
67. n_bottom_assembly.SLDASM
230 KB
68. n_bottom_plate_pen.SLDPRT
144 KB
69. n_bottom_support.SLDPRT
133 KB
70. n_bottom_support_bearing_holder.SLDPRT
59.5 KB
71. n_bottom_support_washer.SLDPRT
51.8 KB
72. n_bottomlink_plate.SLDPRT
176 KB
73. n_cupler_forencoder.SLDPRT
83.3 KB
74. n_front_holder.SLDPRT
108 KB
75. n_gt2_40T.SLDPRT
151 KB
76. n_gt2_40T.STL
190 KB
77. n_gt2_firstpulley.SLDPRT
153 KB
78. n_gt2_pulley_220T.SLDPRT
575 KB
79. n_gt2_pulley_220T.STL
909 KB
80. n_gt2_pulley_220T_new.SLDPRT
632 KB
81. n_gt2_pulley_220T_new.STL
901 KB
82. n_holder.SLDPRT
91.3 KB
83. n_lead_screw.SLDPRT
3.51 MB
84. n_limit_switch.SLDPRT
76.1 KB
85. n_limit_switch_link1_holder.SLDPRT
81.1 KB
86. n_limit_switch_link1_holder.SLDPRT
81.1 KB
87. n_limit_switch_link2_holder.SLDPRT
119 KB
88. n_limit_switch_zaxis_holder.SLDPRT
90.9 KB
89. n_linear_ballbearing.SLDPRT
64.6 KB
90. n_linear_bearing_holder.SLDPRT
44.5 KB
91. n_linear_shaft.SLDPRT
30.9 KB
92. n_link2_holder_shaft.SLDPRT
44 KB
93. n_link2_stud.SLDPRT
40.8 KB
94. n_link_1_assembly.SLDASM
689 KB
95. n_link_plate_support_stud.SLDPRT
36.4 KB
96. n_new_link2_pen_assembly.SLDASM
221 KB
97. n_nut_leadscrew.SLDPRT
446 KB
98. n_pen_holder.SLDASM
73.6 KB
99. n_pen_holder_support.SLDPRT
66.5 KB
100. n_shaft_washer_6mm.SLDPRT
50.4 KB
101. n_stepper_back.SLDPRT
41.4 KB
102. n_stepper_front.SLDPRT
86.2 KB
103. n_stepper_middle.SLDPRT
43.6 KB
104. n_stepper_motor.SLDASM
56.6 KB
105. n_stepper_motor_clamp.SLDPRT
67.9 KB
106. n_stepper_stud.SLDPRT
39 KB
107. n_swivel_bottom_plate.SLDPRT
85.7 KB
108. n_swivel_middle.SLDPRT
44 KB
109. n_swivel_plate_assembly.SLDASM
66.9 KB
110. n_swivel_top_plate.SLDPRT
64.9 KB
111. n_top_bearing_extra_support.SLDPRT
53 KB
112. n_top_plate_pen.SLDPRT
94.7 KB
113. n_top_support.SLDPRT
112 KB
114. n_top_support_assembly.SLDASM
222 KB
115. n_toplink_plate.SLDPRT
134 KB
116. n_z_axis_assembly.SLDASM
3.07 MB
117. n_zaxis_limit_switch.SLDASM
44.2 KB
118. nut M3.sldprt
110 KB
119. nutM3_2.sldprt
50 KB
120. nylonM4.sldprt
71.5 KB
121. package.SLDPRT
55.7 KB
122. pen_holder_acrylic.SLDASM
103 KB
123. plastic ring 2.5.sldprt
45 KB
124. rib(quantity=2).DXF
22.8 KB
125. rib.SLDPRT
47.6 KB
126. rib1(quantity=8).DXF
22.8 KB
127. rib1.SLDPRT
43.8 KB
128. rib2.SLDPRT
44 KB
129. scara robot working.mp4
2.9 MB
130. scara_bot_assemblt.SLDASM
5.18 MB
131. screw M2.5_12.sldprt
81.5 KB
132. screw M2.5_14.sldprt
93.5 KB
133. screw M3_18.sldprt
92 KB
134. screw M4_10.sldprt
78 KB
135. screwM1.6.sldprt
54.5 KB
136. side1.DXF
26.8 KB
137. side1.SLDPRT
60.7 KB
138. side2.DXF
24.6 KB
139. side2.SLDPRT
65.5 KB
140. side_Assem3.SLDASM
54.6 KB
141. spring.sldprt
44.5 KB
142. top.DXF
23.4 KB
143. top.SLDPRT
58.1 KB
144. upper cover.SLDPRT
67.3 KB
145. v_shape(quantity=2).DXF
25.3 KB
146. v_shape.SLDPRT
62.4 KB
147. v_shape_support.DXF
29.9 KB
148. v_shape_support.SLDPRT
107 KB
149. zaxis.SLDASM
48.5 KB
150. zbase.DXF
25.2 KB
151. zbase.SLDPRT
80.9 KB
152. ztop.DXF
22.7 KB
153. ztop.SLDPRT
62.4 KB
